Overview & Basic Info
Carrying Capacity
256/350kg
Certification
GS, CE, RoHS
★
Product Description

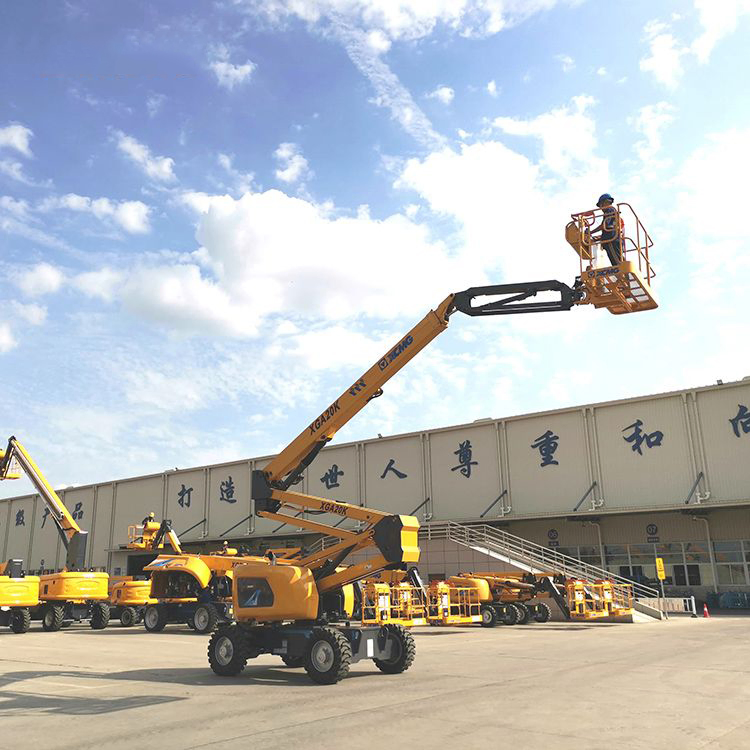

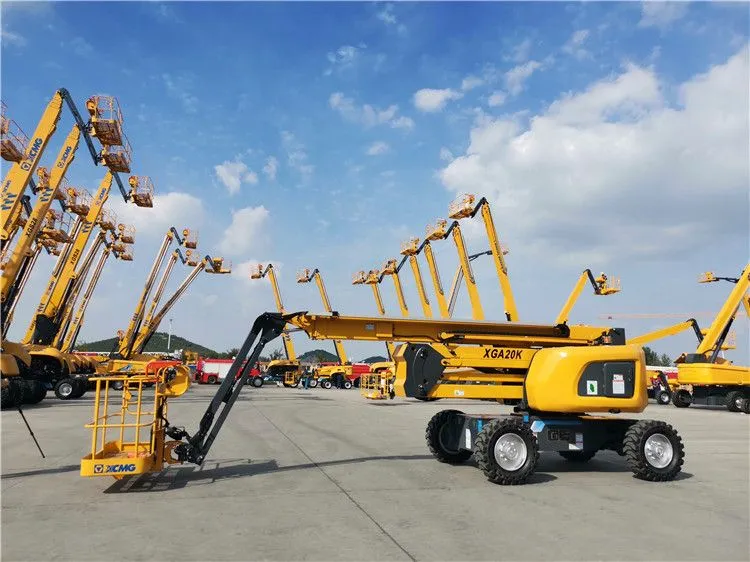

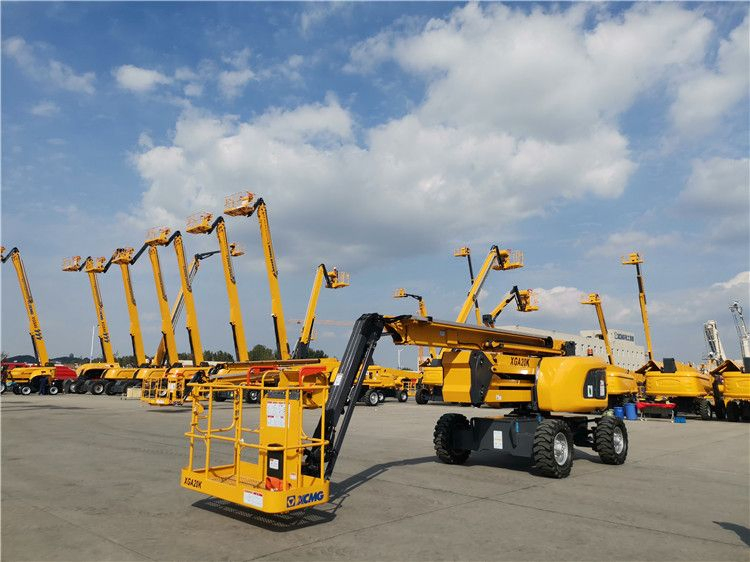

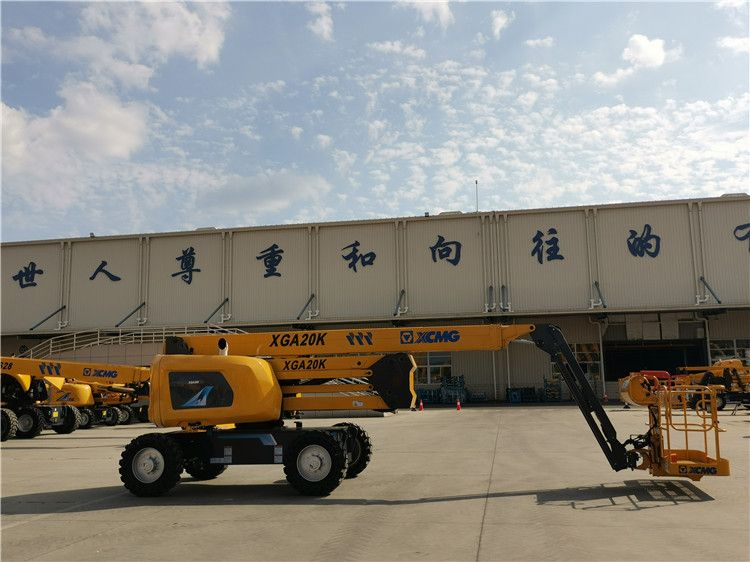

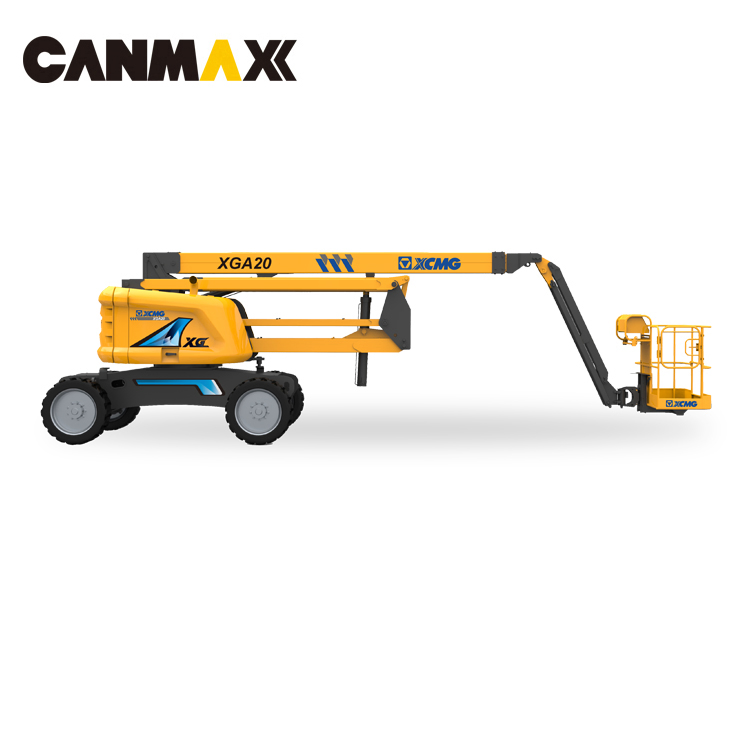

Articulating boom lift XGA20K is a kind of layout is compact, the obstacle-surmounting efficiency and design precision, driving strong and simple operation of the crank arm type mobile elevating work platform. The machine is easy to operate, safe and reliable, accurate and efficient, and can widely meet the needs of users in construction, steel structure, petrochemical industry, venue and lease, etc.
- 256/350 kg of double load and big load design, load performance in the industry advanced level.
- Multi-directional precise positioning up, down and across functions as well as excellent stretch functions.
- Electrical system uses a distributed PLC control technology, adaptive proportional valve control method.
- Full hydraulic pressure drive, 360° angular free rotation, high reliability.
- Compact clever, vehicle layout is compact, convenient for container transportation.
📊
Product Parameters
| Item |
Unit |
Parameters |
| Overall length | mm | 8520 |
| Overall width | mm | 2300 |
| Overall height | mm | 2400 |
| Wheelbase | mm | 2500 |
| Max. working height | m | 20.63 |
| Max. platform height | m | 18.63 |
| Max. working range | m | 12.08 |
| Max. carrying weight | kg | 256(unlimited)/350(limited) |
| Scope of luffing of No. 1 arm | ° | 0~+72 |
| Slewing angle of turntable | ° | 360 |
| Dimension of platform | mm | 1830×760×1150 |
| Overall weight | kg | 9900 |
| Max. traveling speed | km/h | 5.5 |
| Max. gradeability | % | 45 |
| Engine rated power | kW/(r/min) | 36.8/(2400) |
📦
Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the products arrive at the destination accurately and safely.
🏆
Our Advantages
Every year, we regularly attend international construction machinery exhibitions in the Philippines, Indonesia, Russia, and the Canton Fair. We have received more than 1000 clients and training engineers from more than 100 countries around the world. Our products are exported to more than 80 countries and regions including Africa, Middle East, South America, Central Asia, Europe, and Oceania.
🛠
After Sales Service
Professional machinery exporter and one-stop solution supplier with more than 15 years of experience.
(1) Warranty: One-year or 2000 working hour warranty. We repair or replace defective parts free of charge under normal working conditions.
(2) Spare parts: We provide genuine spare parts with the highest quality and exact fitness. Fast delivery through our global network.
(3) Installation & Maintenance: Overall installation of complicated machinery with testing data reports provided after inspection.
(4) Training: Tailored training sessions including product operation, maintenance, and technical know-how at our factory or client's site.
❓
FAQ
Which regions do you export to?
We export globally to Asia (India, Philippines, Vietnam), Middle East (Saudi Arabia, UAE), Europe (Russia, Ukraine), Africa (South Africa, Algeria), South America (Brazil, Mexico), and Oceania (Australia).
What is the proportion of your products exported?
Approximately 75% of our products are exported to international markets all over the world.
What is the standard payment term?
Payment terms are negotiable. We typically accept TT, L/C, and D/P depending on the cooperation duration, country, and contract value.
What kind of logistic services do you supply?
We offer railway, sea-rail intermodal, and sea-land multimodal transportation. Terms include FOB, CIF, DAP, and to-door service via container, bulk cargo, or air.
What spare parts brands can you supply?
We supply all kinds of spare parts for SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, and ZF GEAR BOX.
What does your warranty cover?
Every product enjoys a one-year or 2000 working hour warranty covering material or process defects under normal operation.
