Product Description

📊 Basic Information
Model NO.
GTZZ16E
Lift Mechanism
Articulated Lift
Application
Workshop, Shipboard, Warehouse, Building Crane
Moves
Self-propelled
Driven Type
AC / Electric
Power
Battery
Certification
GS, CE, RoHS, ISO 9001
Tire Type
Solid
Capacity
230kg
Hydraulic Tank
45L
📝 Product Description

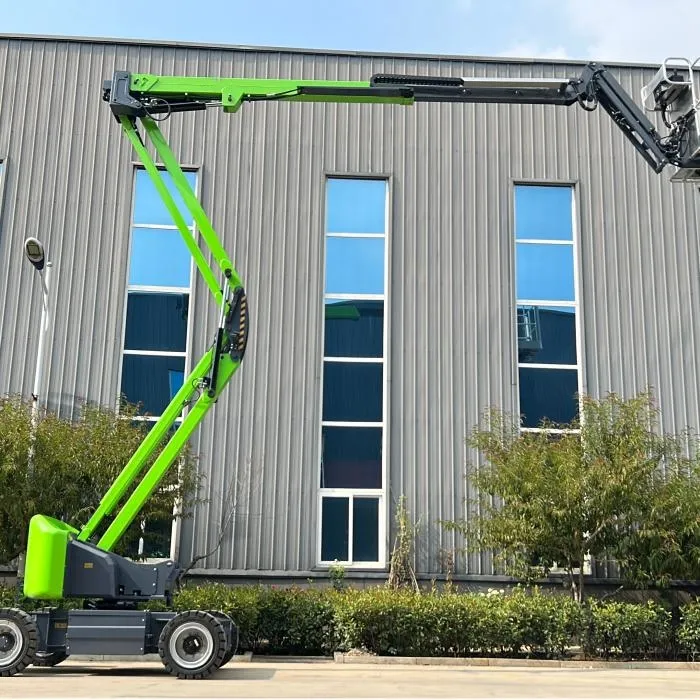

Articulated Boom Lift Overview
Articulated boom lift is an upgrade from towable boom lifts, making movement significantly more convenient as the operator can control it independently. It is ideal for outdoor construction and industrial applications.

The current platform height ranges from 10m to 18m with battery power, and diesel power options range from 14m to 20m. With a load capacity of 230kg, this model is available in both 2WD and 4WD configurations. The larger work envelope provides essential access to hard-to-reach places.
⚙️ Product Parameters
Max. Working Height17.7m
Max. Platform Height15.7m
Max. Up and Over Clearance7.3m
Max. Working Radius8.9m
Platform Dimensions1.4m x 0.76m
Stowed Dimensions (L*W*H)7.2m * 1.90m * 2.0m
Ground Clearance0.25m
Max Lift Capacity230kg
Platform Rotation±80°
Turntable Rotation355°
Drive Speed (Stowed)5.0km/h
Gradeability30%
Weight6630kg
Battery48V/320Ah
Drive Motor3.3kw
📷 Detailed Photos

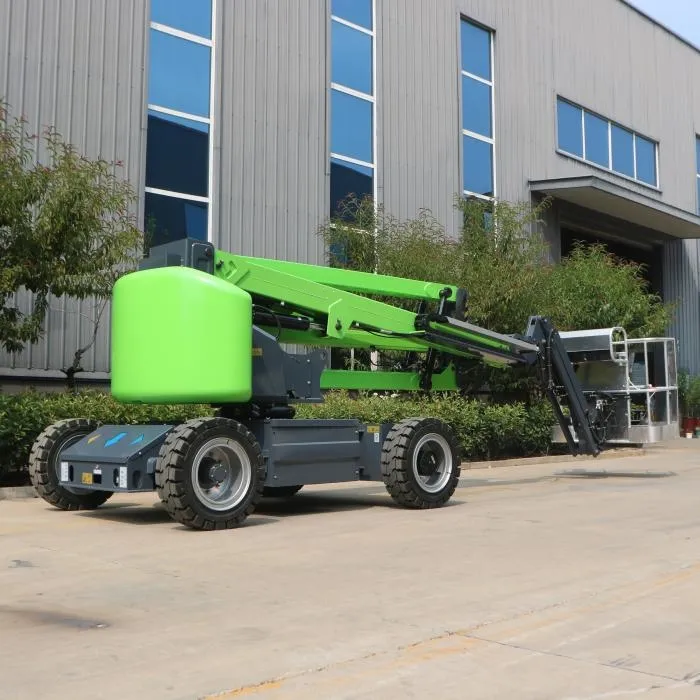

Detailed View 1

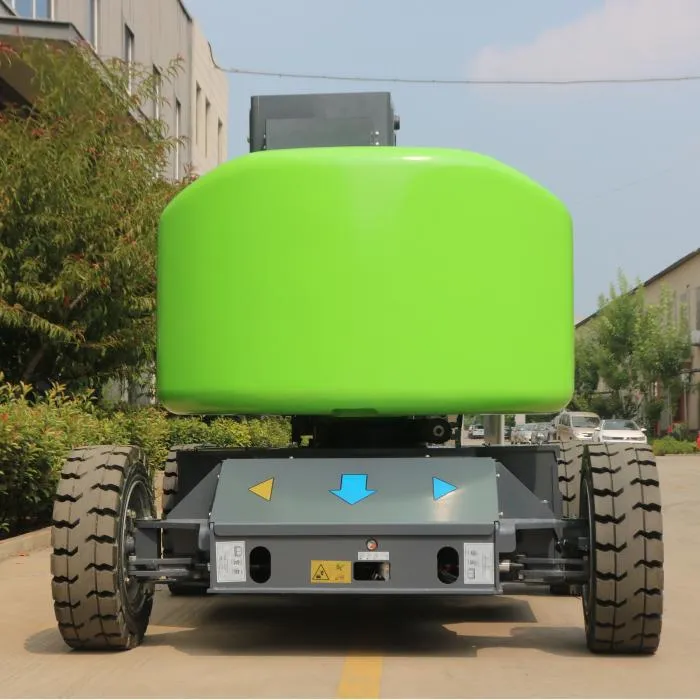

Detailed View 2
Detailed View 3

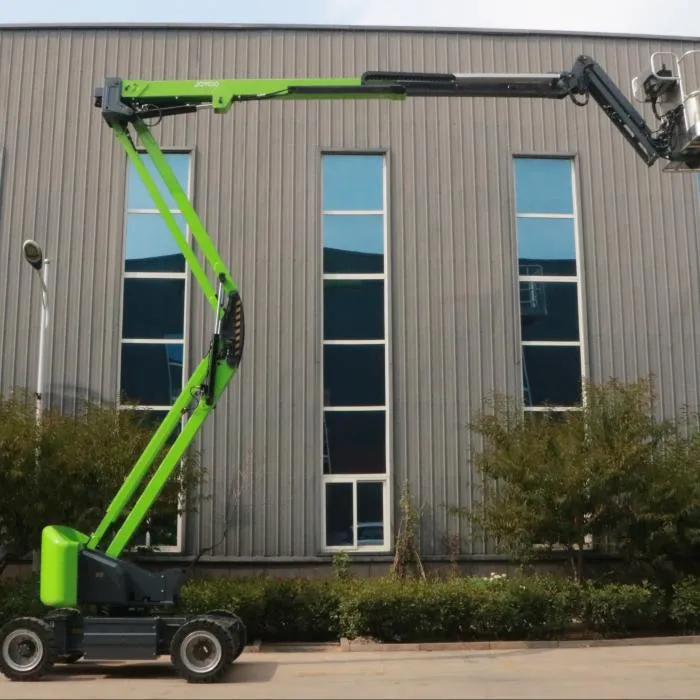

Detailed View 4
Detailed View 5

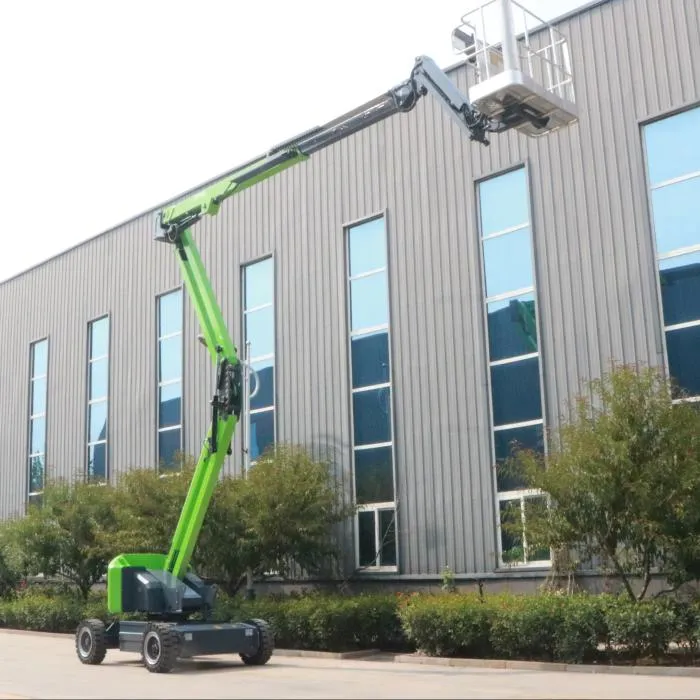

Detailed View 6
Technical Specification 1
Technical Specification 2
Technical Specification 3
Technical Specification 4
Technical Specification 5
Technical Specification 6
❓ Frequently Asked Questions
What is the maximum working height of the GTZZ16E?
The GTZZ16E model offers a maximum working height of 17.7 meters, with a platform height reaching up to 15.7 meters.
What is the load capacity of this articulated boom lift?
This lift is designed to carry a maximum weight of 230kg, suitable for 2 occupants and their necessary tools.
What power source does the equipment use?
The GTZZ16E is powered by a high-capacity 48V/320Ah battery system, making it ideal for both indoor and outdoor use with zero emissions.
Is the lift suitable for sloped surfaces?
Yes, the machine features a 30% gradeability in its stowed position, allowing it to navigate inclines common in construction sites.
What safety certifications does this product hold?
The articulated boom lift is fully certified with GS, CE, RoHS, and ISO 9001 standards, ensuring high safety and quality performance.
Can the platform rotate for better positioning?
Yes, the platform offers a rotation of ±80°, and the turntable can rotate 355°, providing excellent maneuverability in tight spaces.
