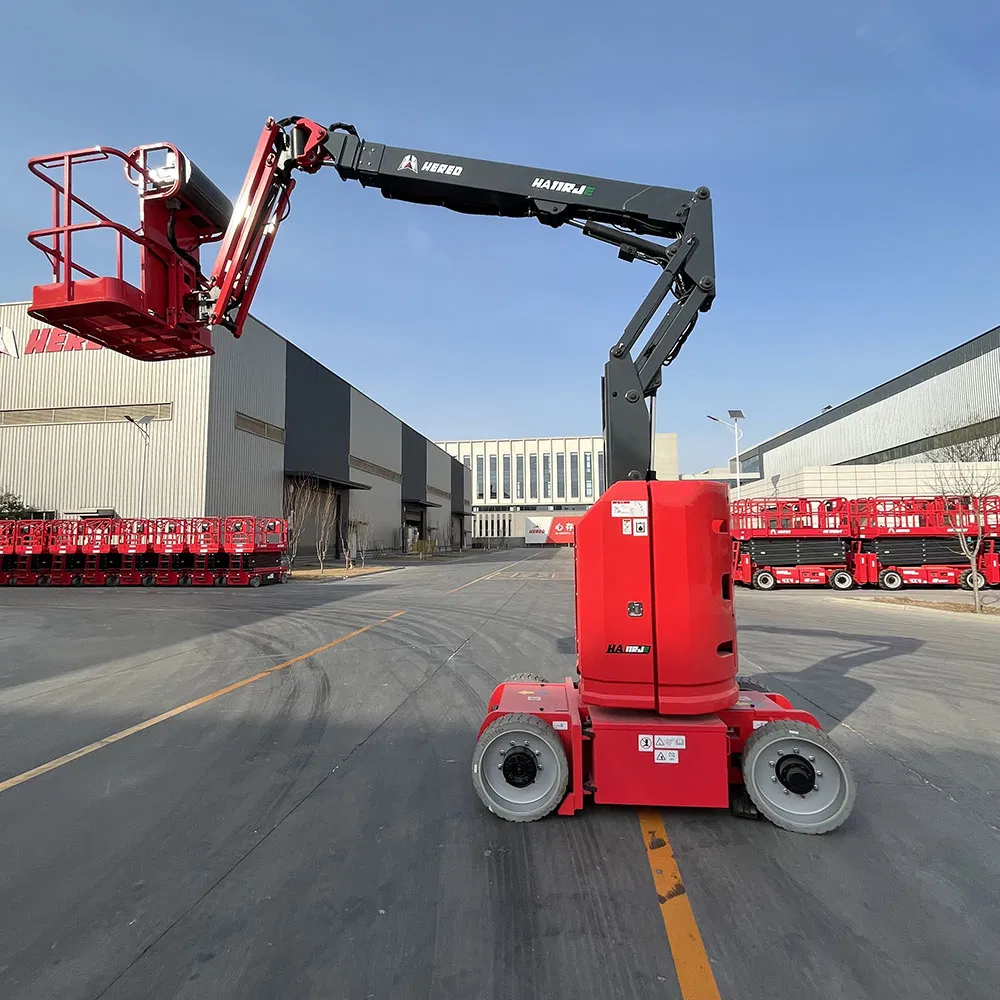

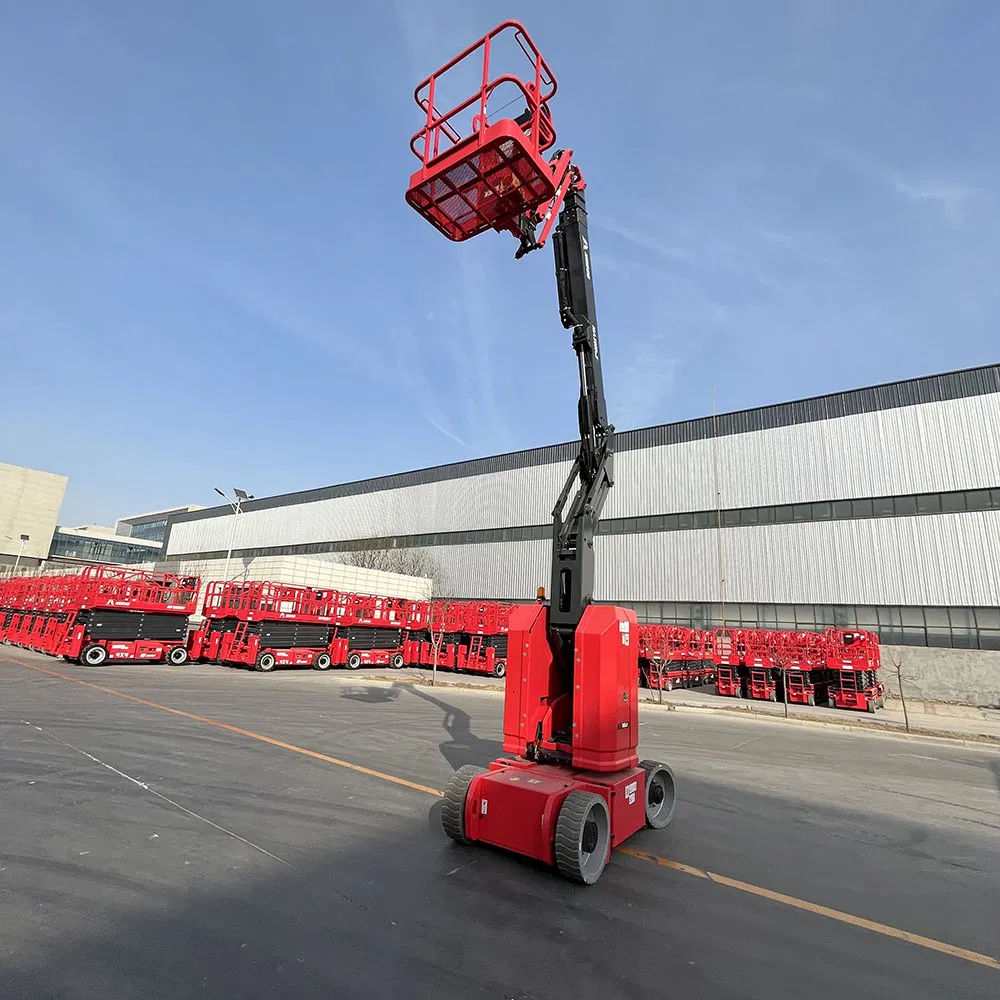

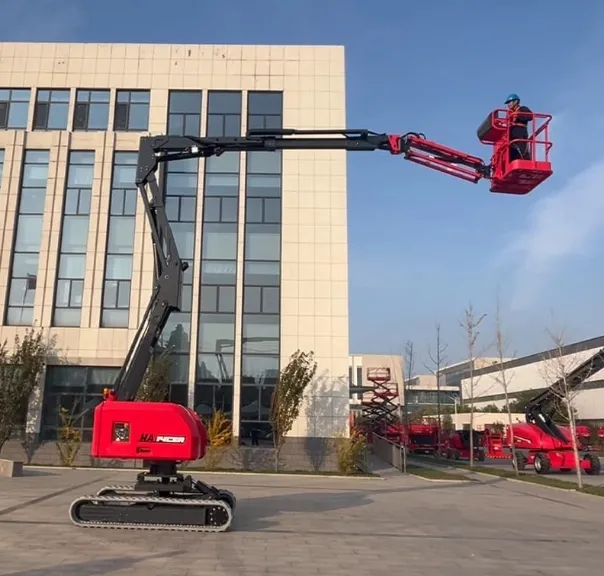

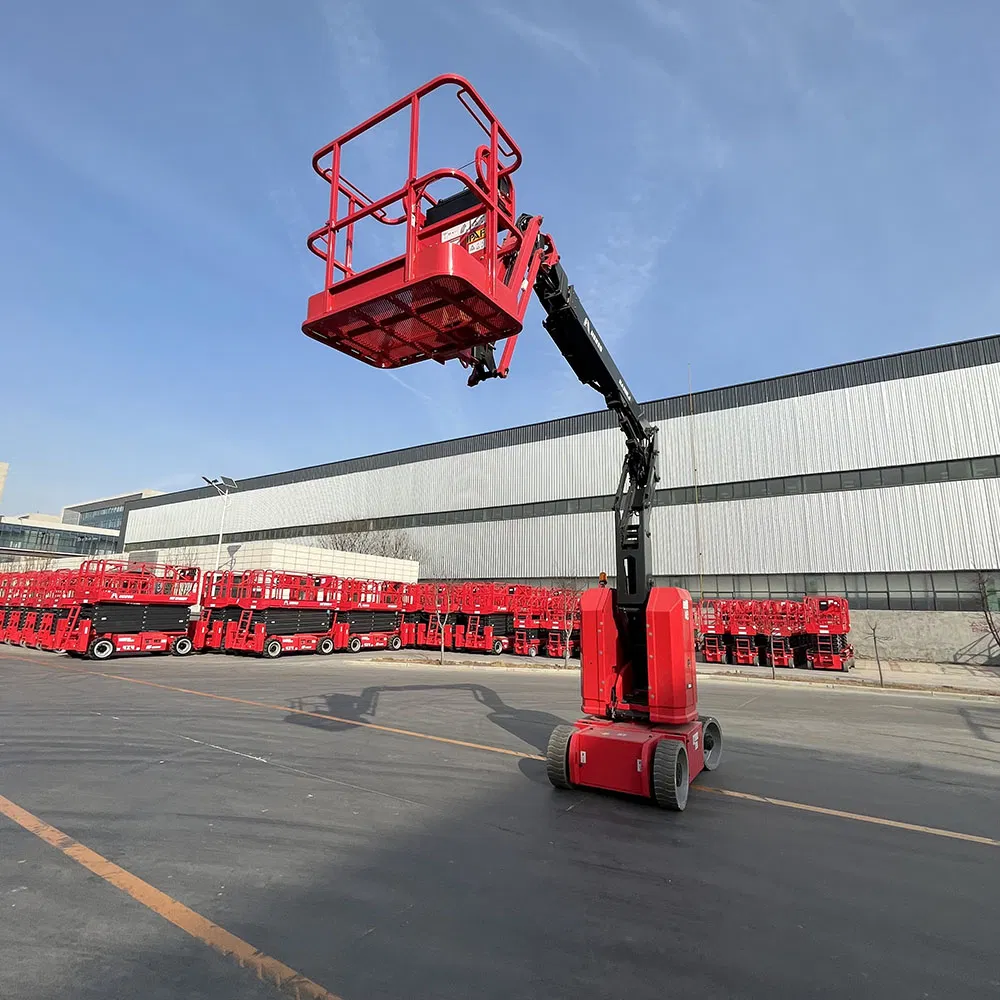

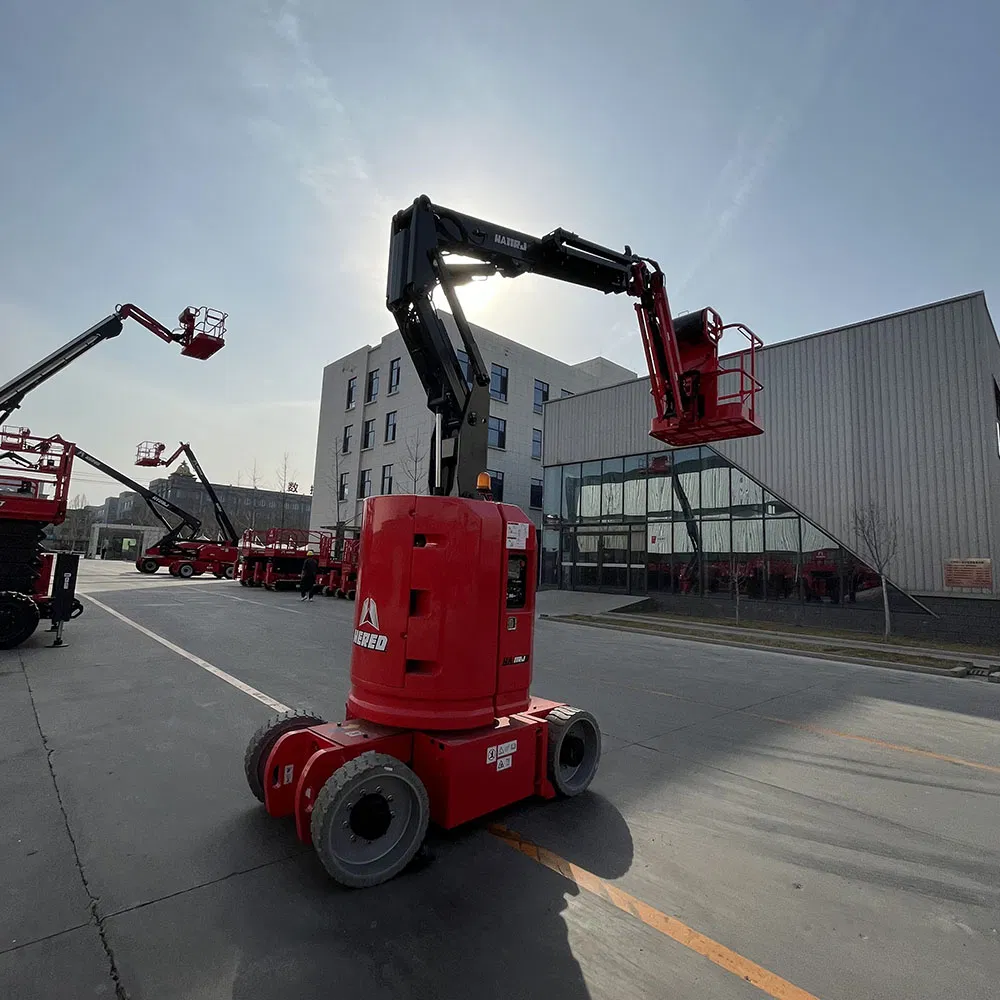

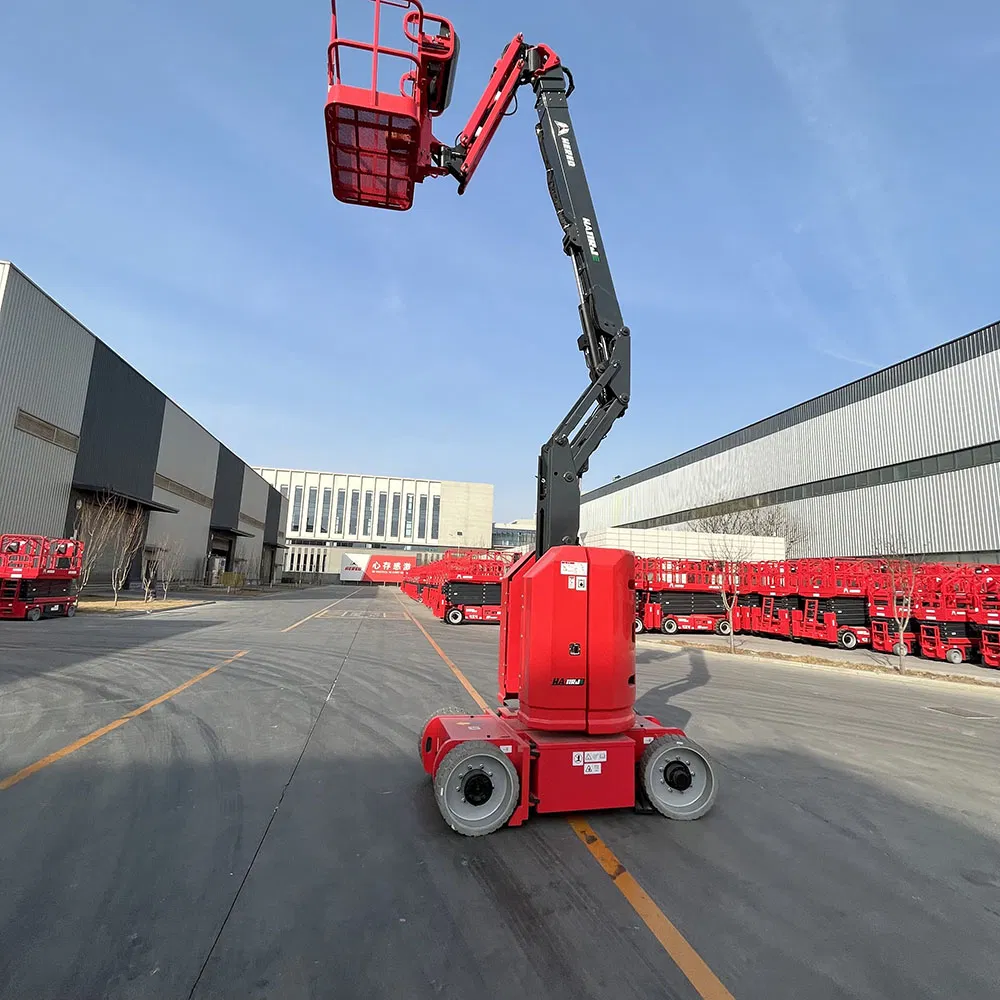

Articulating Boom Lift (also known as cherry pickers) provides extra reach over and around obstacles on the job site. This electric articulating boom lift offers excellent outreach, high capacity, versatile performance, and easy maintenance. Articulated lifts provide a large working range, allowing access to hard-to-reach places.

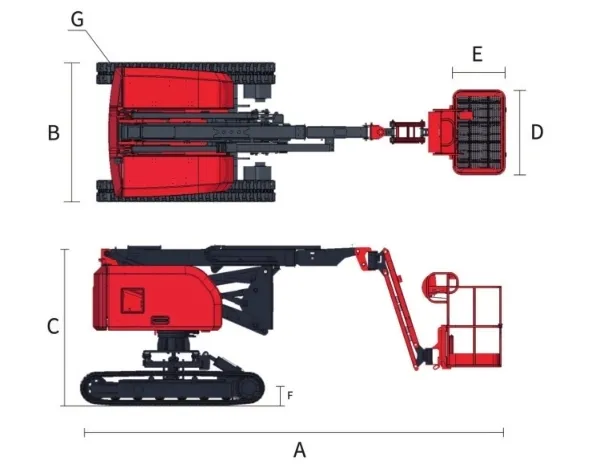

| DIMENSIONS | |
| Model | HA09RJE |
| Max. Working Height | 10.82m |
| Max. Platform Height | 8.82m |
| Max. Horizontal Extension | 6.29m |
| Max. Up and Over Height | 3.77m |
| Overall Length (Stowed) | 5.38m |
| Overall Width (Stowed) | 1.19m |
| Overall Height (Stowed) | 2.04m |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Max. Drive Speed | 4.8km/h |
| Turning Radius (Out.) | 3.35m |
| Turntable Rotation | 355° Non-Continuous |
| Vertical JIB Rotation | ±90° |
| POWER & WEIGHT | |
| Batteries (V/Ah) | 48V/310Ah |
| Drive Motor | AC48V |
| Tires | 24x7x17.5 |
| Total Weight | 6900kg |
Designed for various environments including indoor facility maintenance, outdoor construction on flat terrain, and complex industrial workshops. The precise positioning capability makes it ideal for hard-to-access work areas.

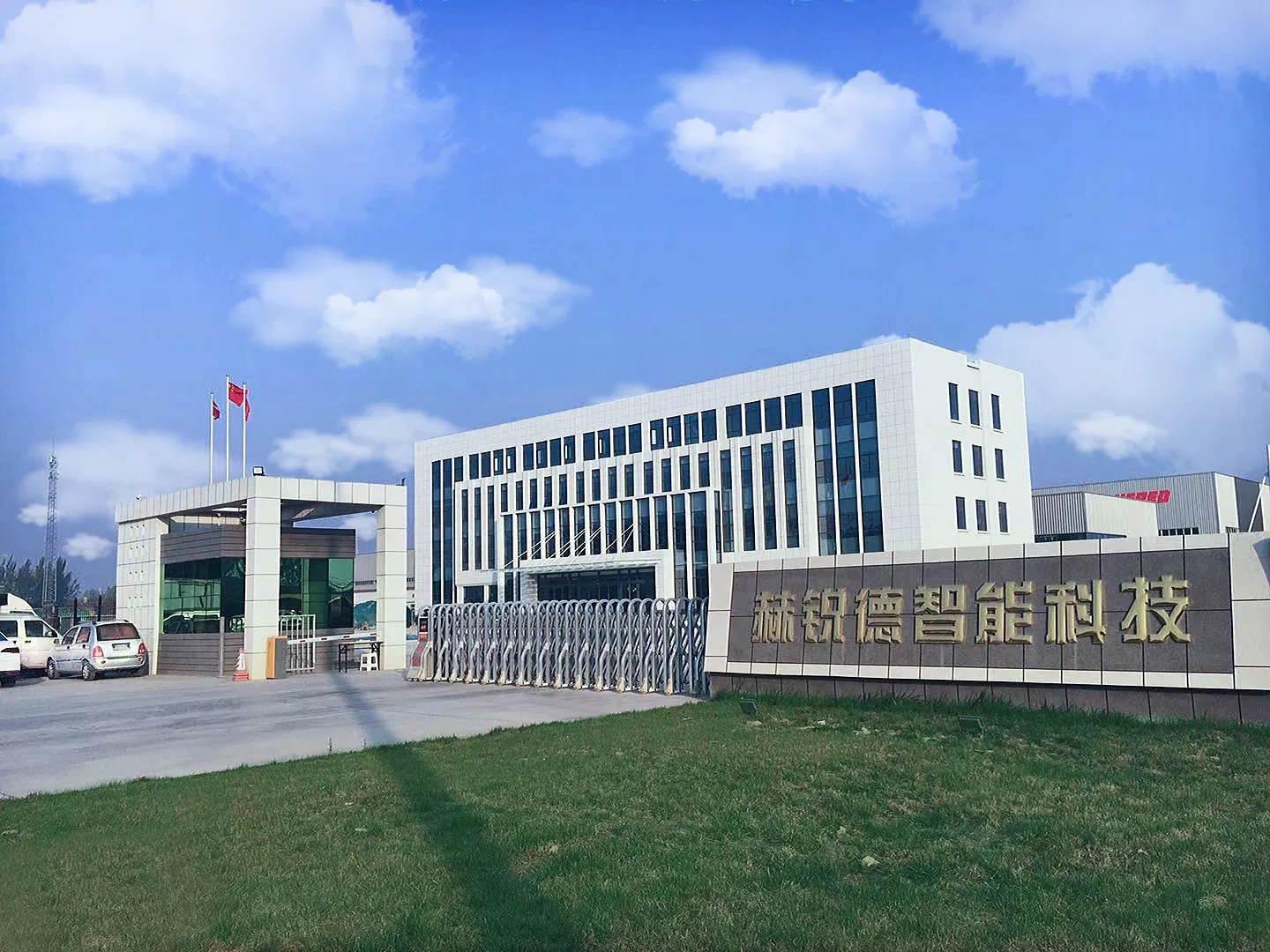

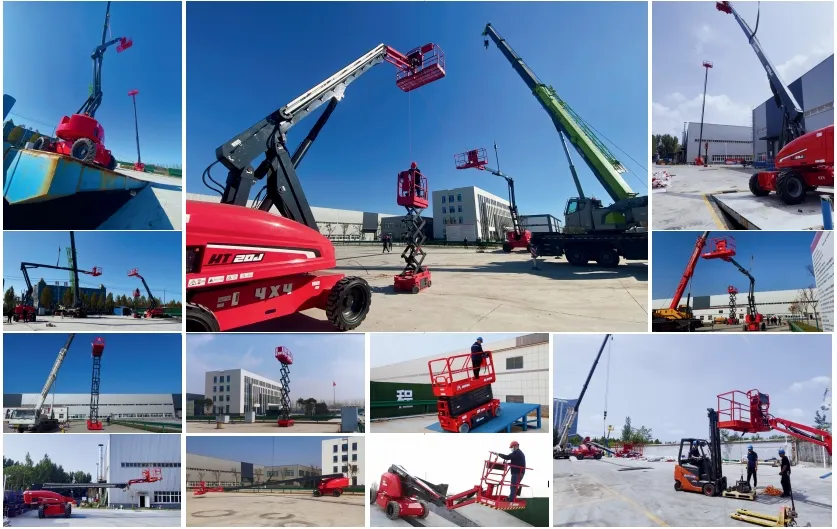

The manufacturing facility utilizes advanced intelligent technology for aerial work platforms. With comprehensive test sites, products undergo 100,000 fatigue tests, including climbing ability, pothole, and rollover stability tests to ensure maximum safety.
