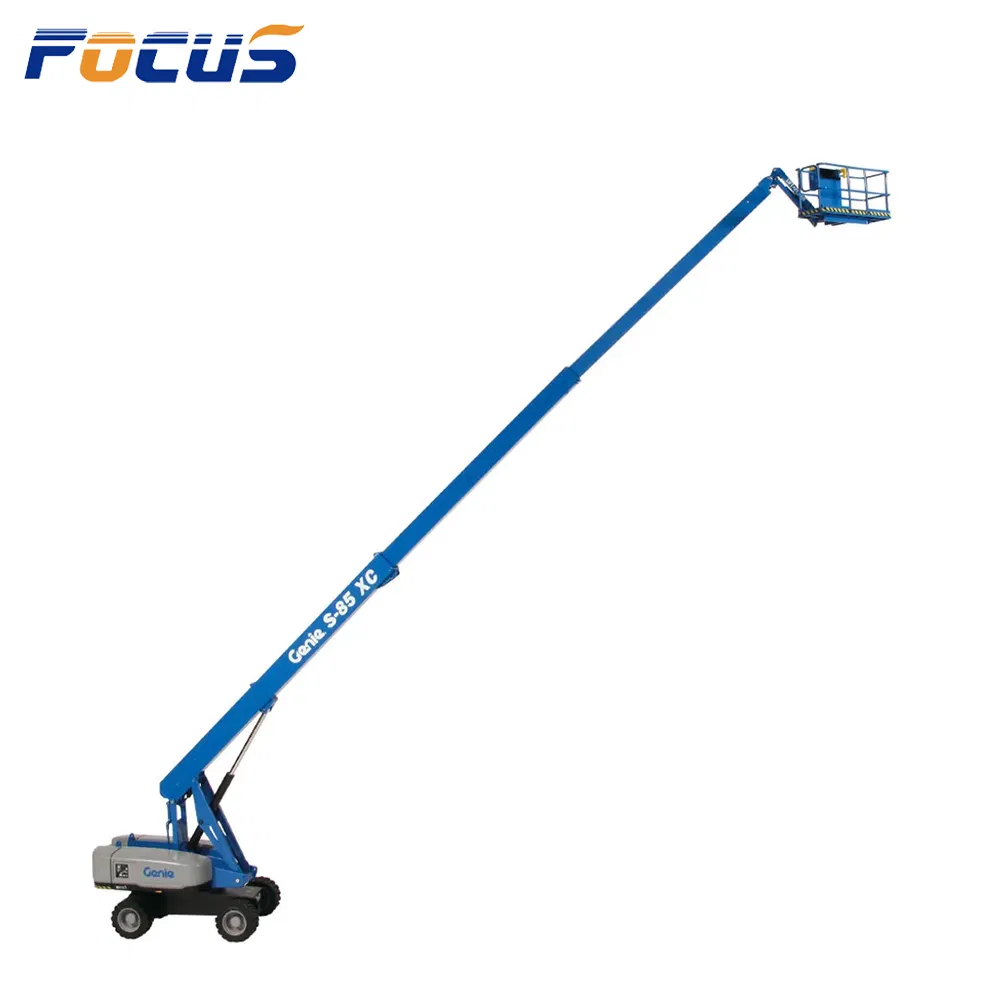

| Model NO. | Genie S85-XC / S65-XC | Lift Mechanism | Telescoping Lift |
| Driven Type | Hydraulic / Self-propelled | Working Height | 21.81m |
| Horizontal Outreach | 16.51m | Max SWL | 300/454kg |
| Power Source | Diesel Engine | Certification | GS, CE, RoHS, ISO 9001 |

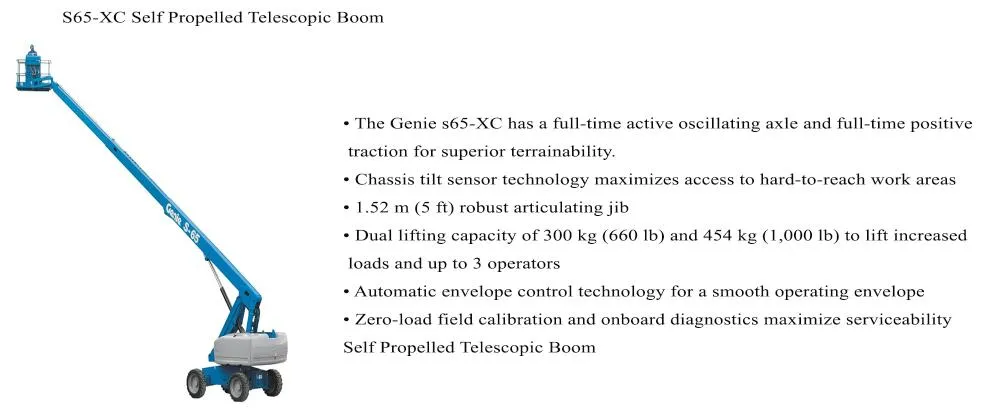

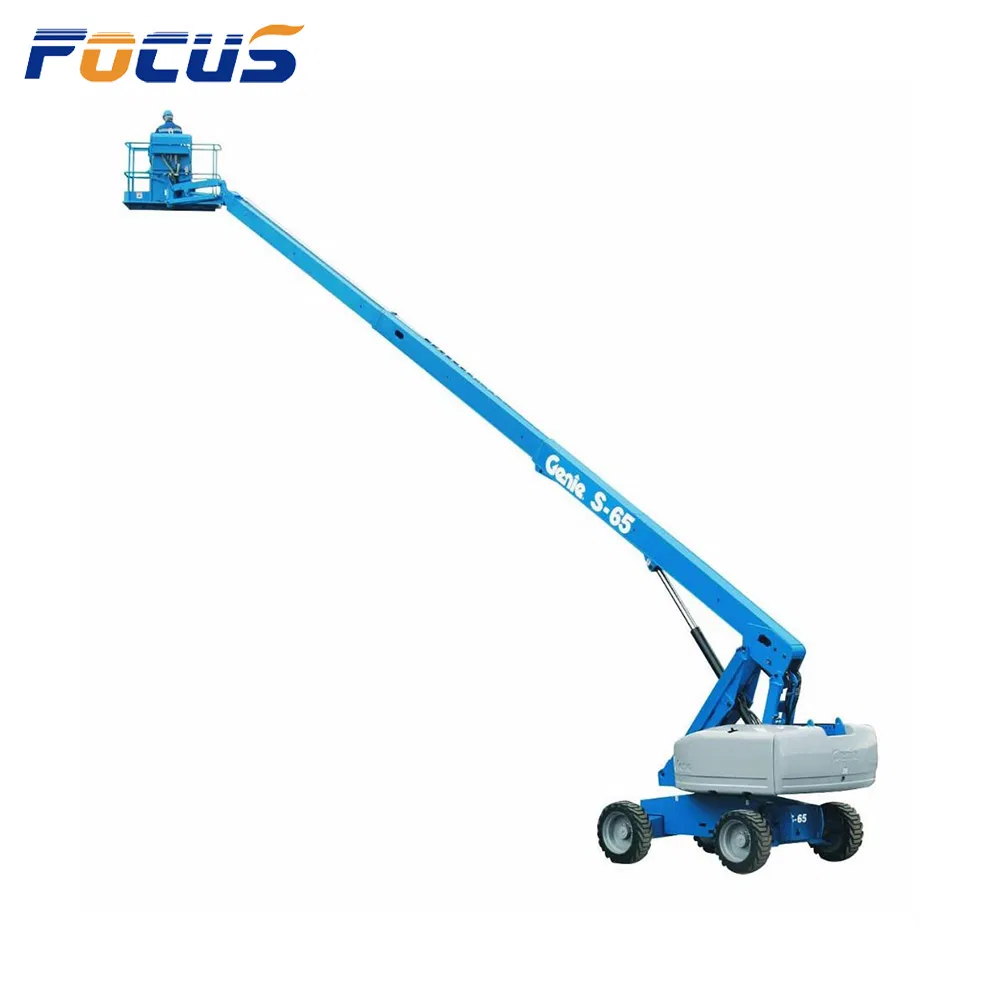

The Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. The Genie Xtra Capacity™ (XC) feature allows up to three people to work onboard with tools and materials.

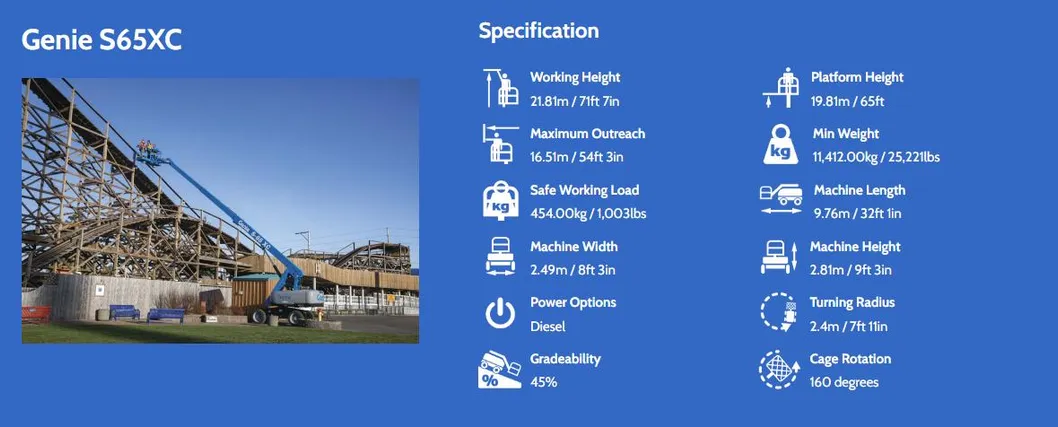

| Measurements | Metric | US |
|---|---|---|

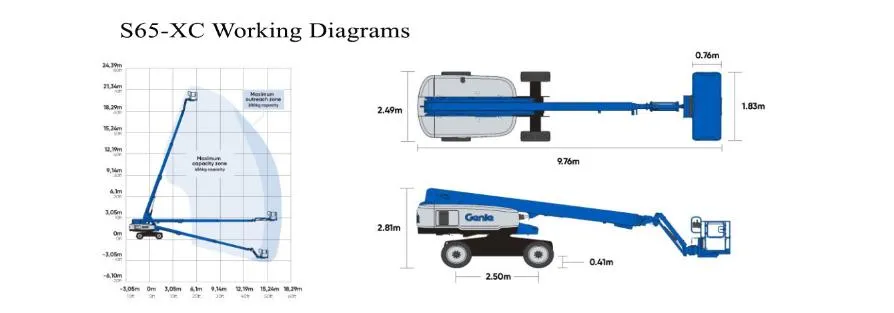

| Working height maximum | 21.81 m | 71ft |
| Platform height maximum | 19.81m | 65ft |
| Horizontal reach maximum | 16.51m | 54ft 2in |
| Maximum lift capacity (unrestricted) | 300kg | 660lbs |
| Maximum lift capacity (restricted) | 454kg | 1000lbs |
| Drive speed - stowed | 4.8 km/h | 3.0 mph |
| Gradeability - stowed | 45% | 45% |
| Power source | Deutz D2011L03i, 48 hp (36 kW) | |
| Fuel tank capacity - diesel | 132 L | 35 gal |
