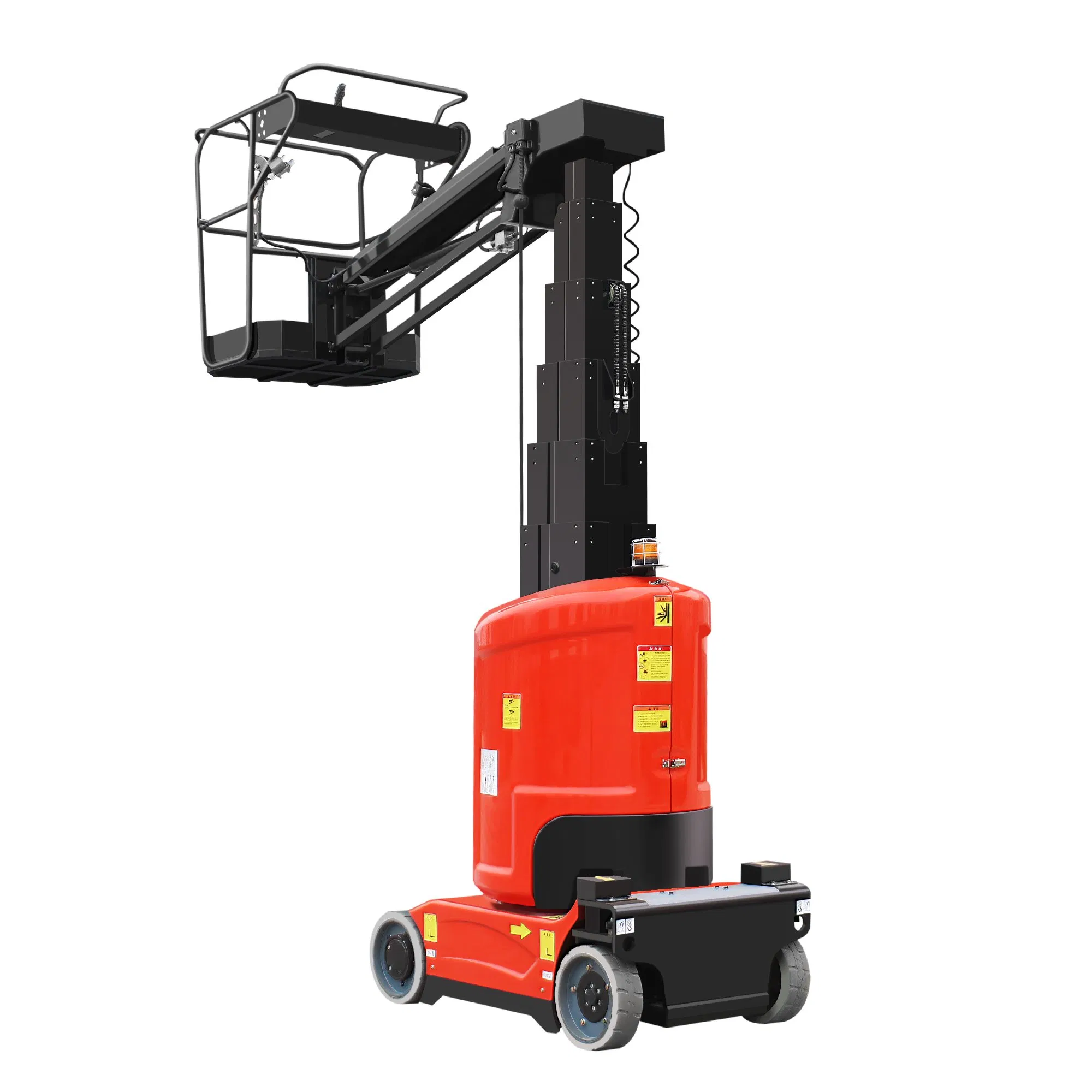

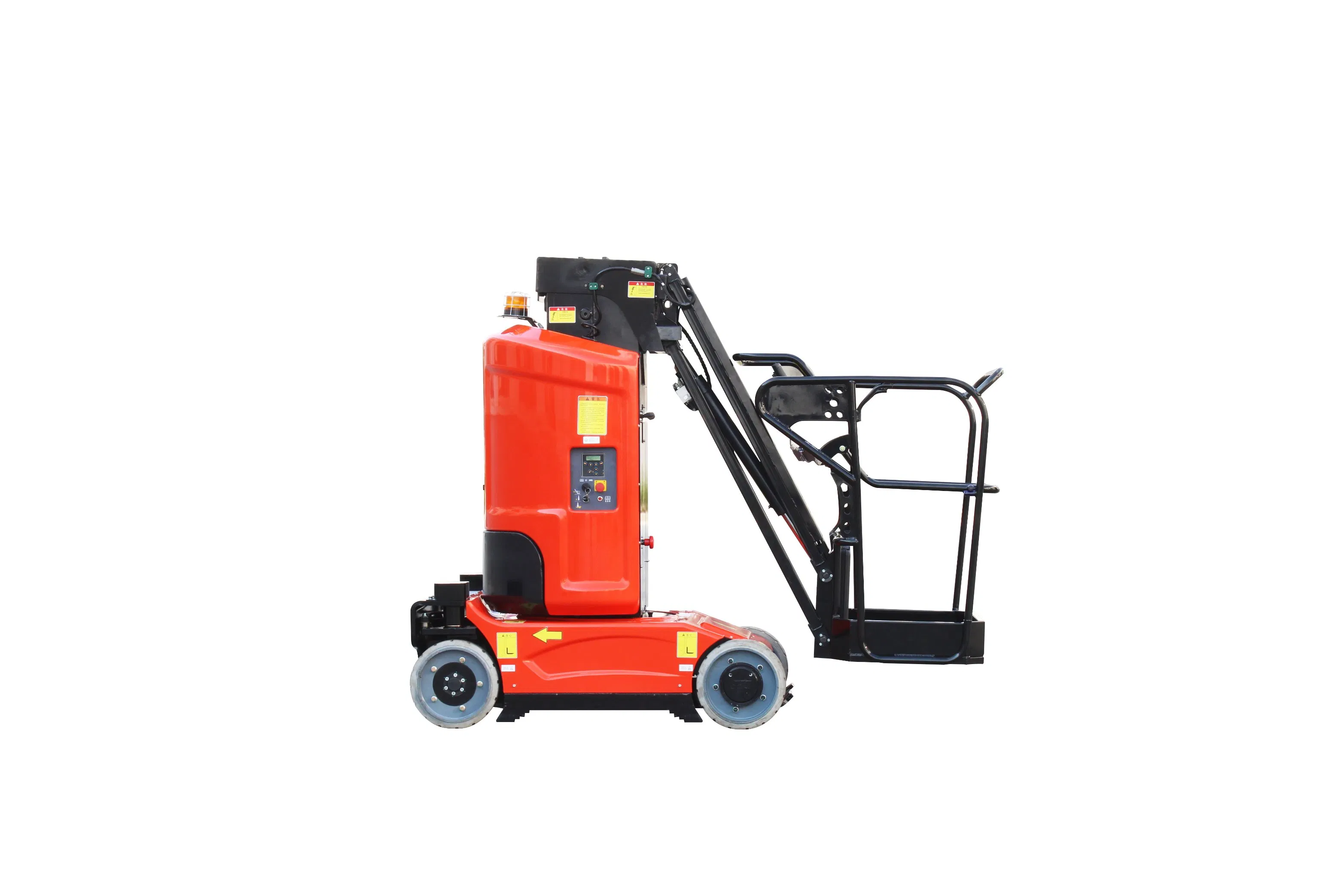

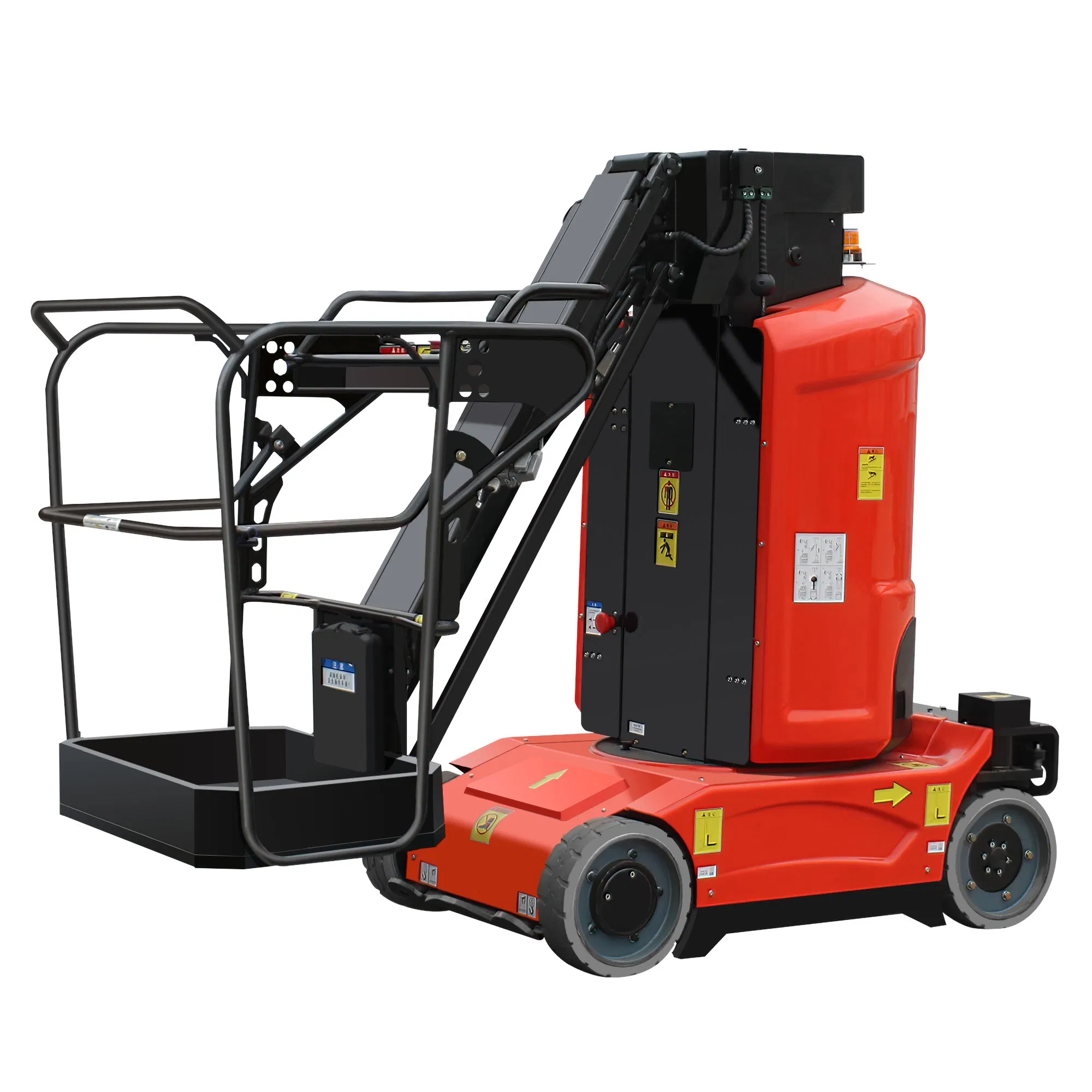

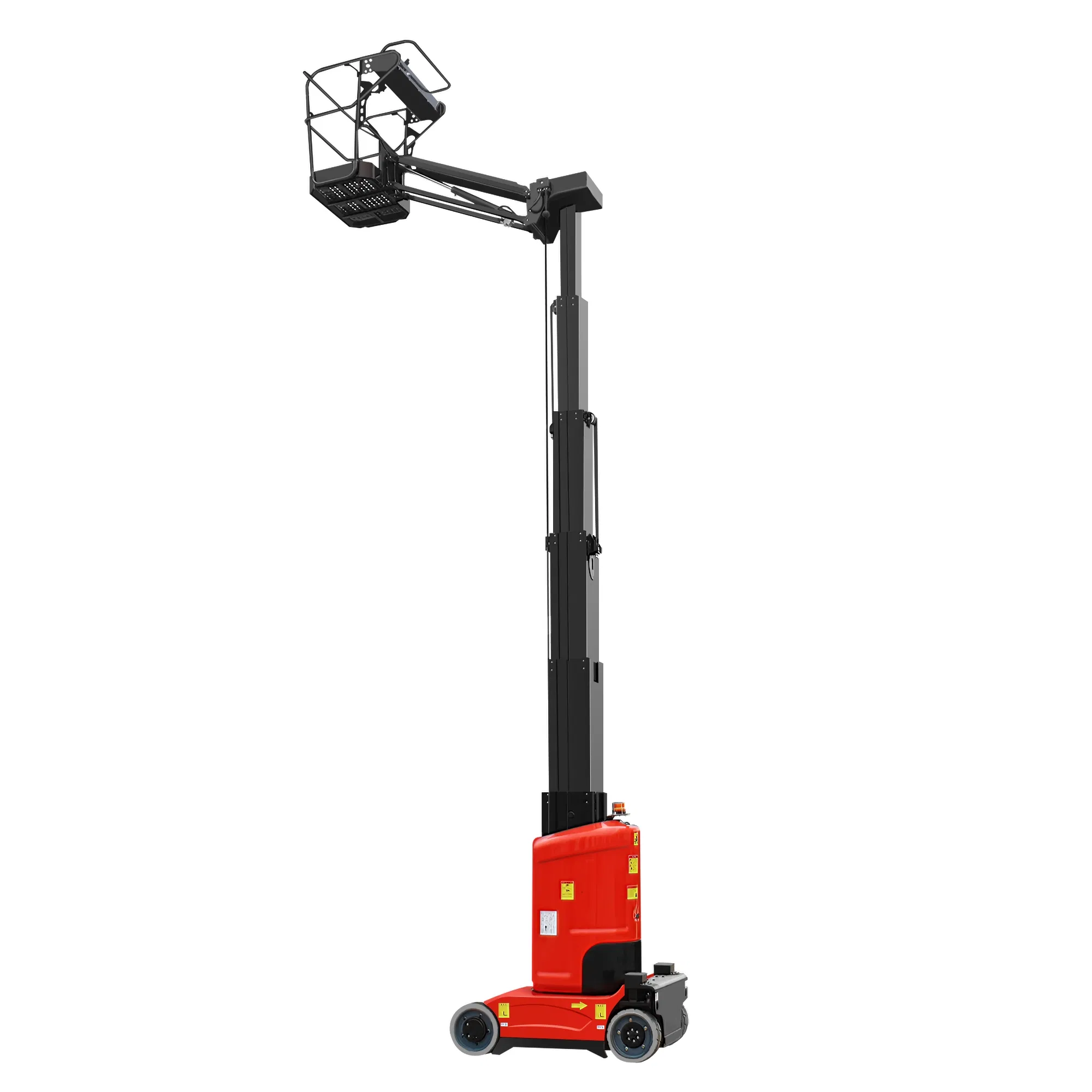

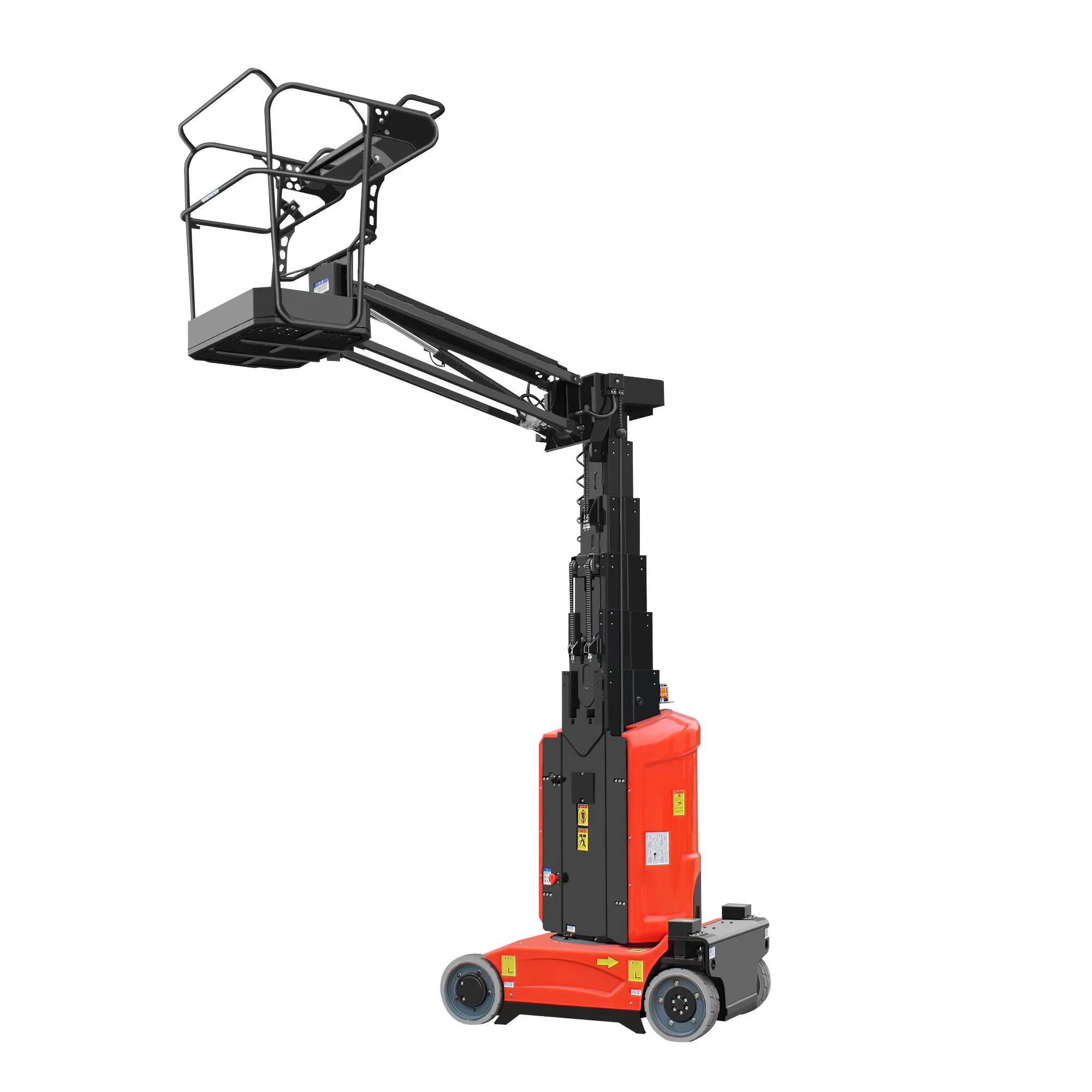

Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
1 / 5
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift
Compact Self-Propelled Articulating Boom Lift

Compact Self-Propelled Articulating Boom Lift

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO. AMWP11.2-8100A
Max Working Height 11.2m
Max Horizontal Reach 3m
Up and Over Height 7.89m
Guardrail Height 1.1m
Overall Length 2.53m
Overall Width 1.0m
Platform Dimension 0.62*0.87m
Production Capacity 200 Units Per Month
HS Code 8428909090
Product Description
Vertical Mast Boom Lift
This vertical mast boom lift makes quick work of elevated maintenance, painting, lighting, and repair work. This aerial work platform has excellent maneuverability and can be easily operated and driven on the platform, which has a lift height of up to 9.2 meters. In addition, our vertical boom lifts are designed for use in narrow spaces, such as narrow doorways and freight elevators.
Applications
  • Warehousing & Logistics: High-density storage rack maintenance, order picking, and distribution center lighting.
  • Industrial Maintenance: Production line servicing, machinery repair in confined spaces, and ventilation maintenance.
  • Commercial Facilities: Shopping mall ceiling work, exhibition hall decoration, and airport facility maintenance.

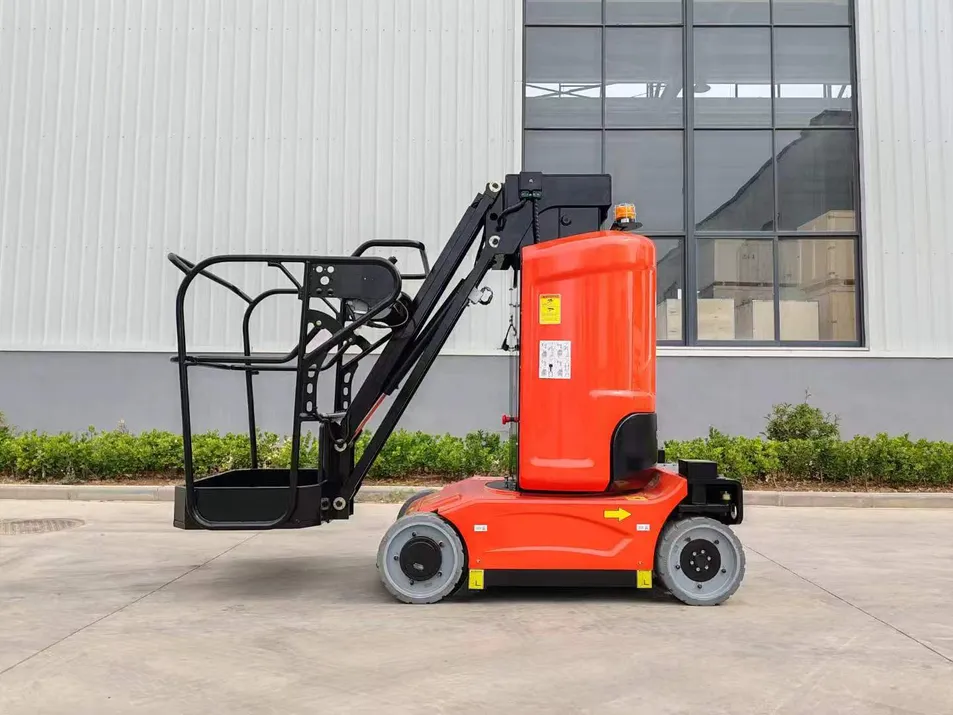

Vertical Mast Boom Lift Application

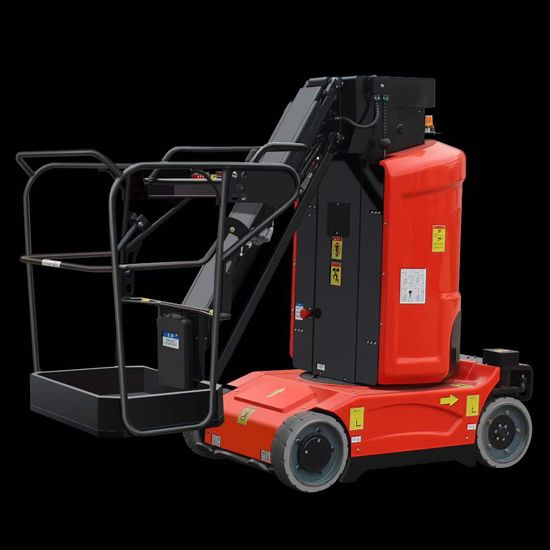

Product Video
Product Video Preview
Key Advantages
  • Zero tail swing operation for obstacle-free work in tight spaces
  • Minimal ground pressure for sensitive floor protection
  • Quiet, emission-free electric power for indoor environments
  • Precise vertical positioning for accurate overhead work
  • Compact footprint for maximum space utilization
Product Elevations
Right Elevation

Right Elevation

Back Elevation

Back Elevation

Front Elevation

Front Elevation

Technical Specifications
(Custom configurations available upon request.)
Max. Working Height11.2m Occupants2
Max. Platform Height9.2m Turning Radius0.23/1.65m
Max. Horizontal Reach3m Turret Rotation345°
Up and Over Height7.89m Jib Movement130°
Travel Speed (Stowed)4.5km/h Travel Speed (Raised)0.5km/h
Battery24V/240Ah Loading Capacity200kg
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

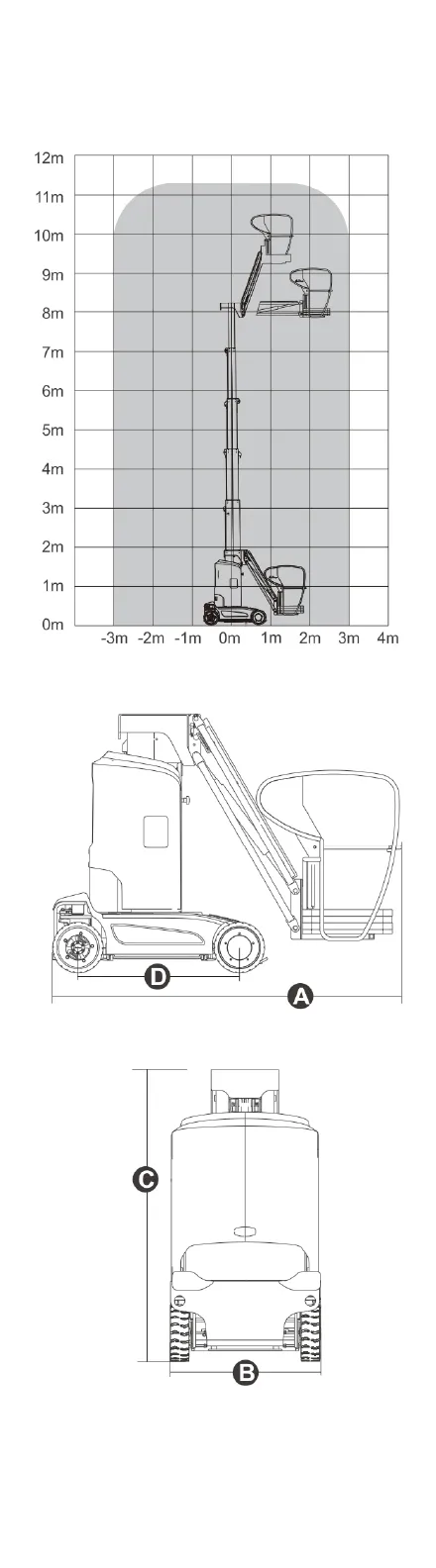

Technical Drawings
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours.
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: On-site or remote operation and maintenance training.
Frequently Asked Questions
Q: What is the typical lead time for orders?
A: Standard models are usually shipped within 15–30 days. For customized units, the lead time is approximately 30–45 days depending on the complexity.
Q: Do you offer international after-sales support?
A: Yes, we provide global technical assistance and have partnered service centers in several key regions to ensure your equipment remains operational.
Q: Can the platform or bucket size be customized?
A: Absolutely. We offer tailored attachments and platform modifications to suit your specific industrial or commercial needs.
Q: What documentation is provided for international shipping?
A: We provide a full export documentation package, including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
Q: How can I initiate a purchase or request a quote?
A: You can reach out to our sales team via the contact form or email. We will provide a formal quote, and the order is confirmed upon receipt of a Purchase Order (PO).
Q: Is training provided for new operators?
A: Yes, we offer both on-site and remote training sessions covering safe operation and routine maintenance procedures.
