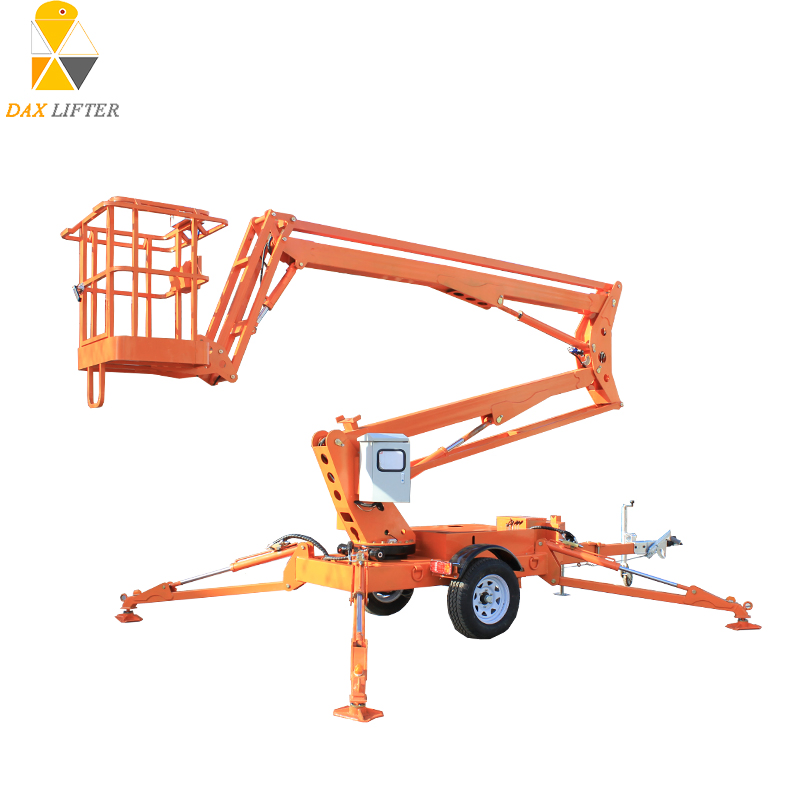

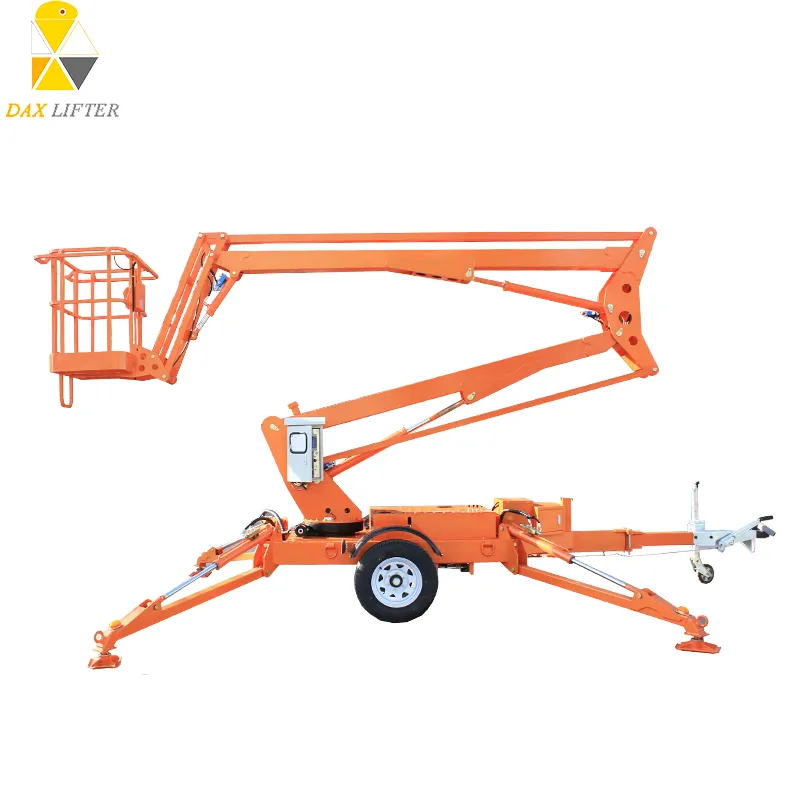

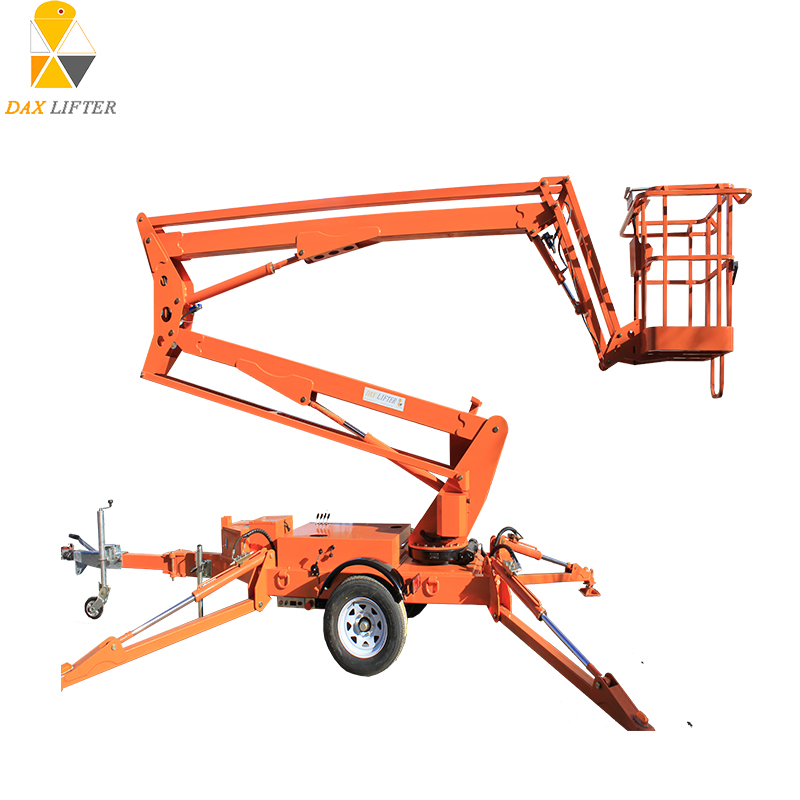

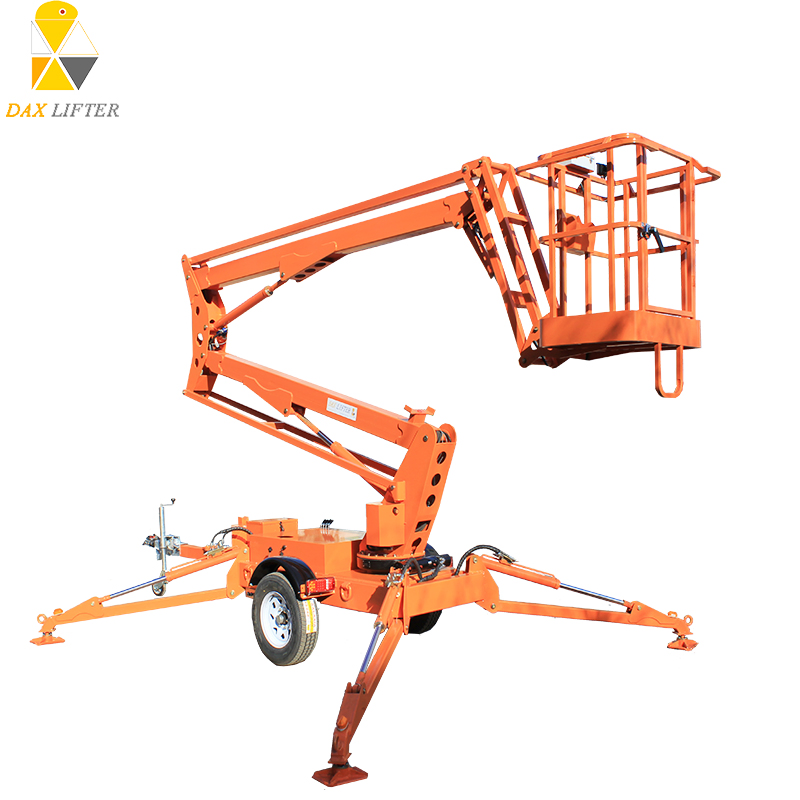

The towable boom lift is a premium hydraulic lifting solution designed for versatile aerial operations. With a maximum platform height reaching up to 16m and a 200kg capacity, it is ideal for navigating obstacles in complex environments. Featuring 360° rotation, this equipment offers an exceptional operating range for pedestrians or goods lifting.
Engineered for stability, it includes four supporting legs to ensure balance on uneven surfaces, making it a preferred choice for stations, docks, and public building maintenance.
| Model | DXBL-10 | DXBL-12 | DXBL-14 | DXBL-16 | DXBL-18 | DXBL-20 |
|---|---|---|---|---|---|---|
| Lifting Height | 10m | 12m | 14m | 16m | 18m | 20m |
| Working Height | 12m | 14m | 16m | 18m | 20m | 22m |
| Load Capacity | 200kg | |||||
| Working Radius | 5.5m | 6.5m | 8.5m | 10.5m | 11m | 11m |
| Overall Length | 6.3m | 7.3m | 6.65m | 6.8m | 7.6m | 6.9m |
Imported components from Germany ensure reliable and safe stopping performance.
Advanced bearings allow the folding arm to rotate fully, maximizing work efficiency.
Integrated limit switches and sensors protect the operator from unsafe inclines.

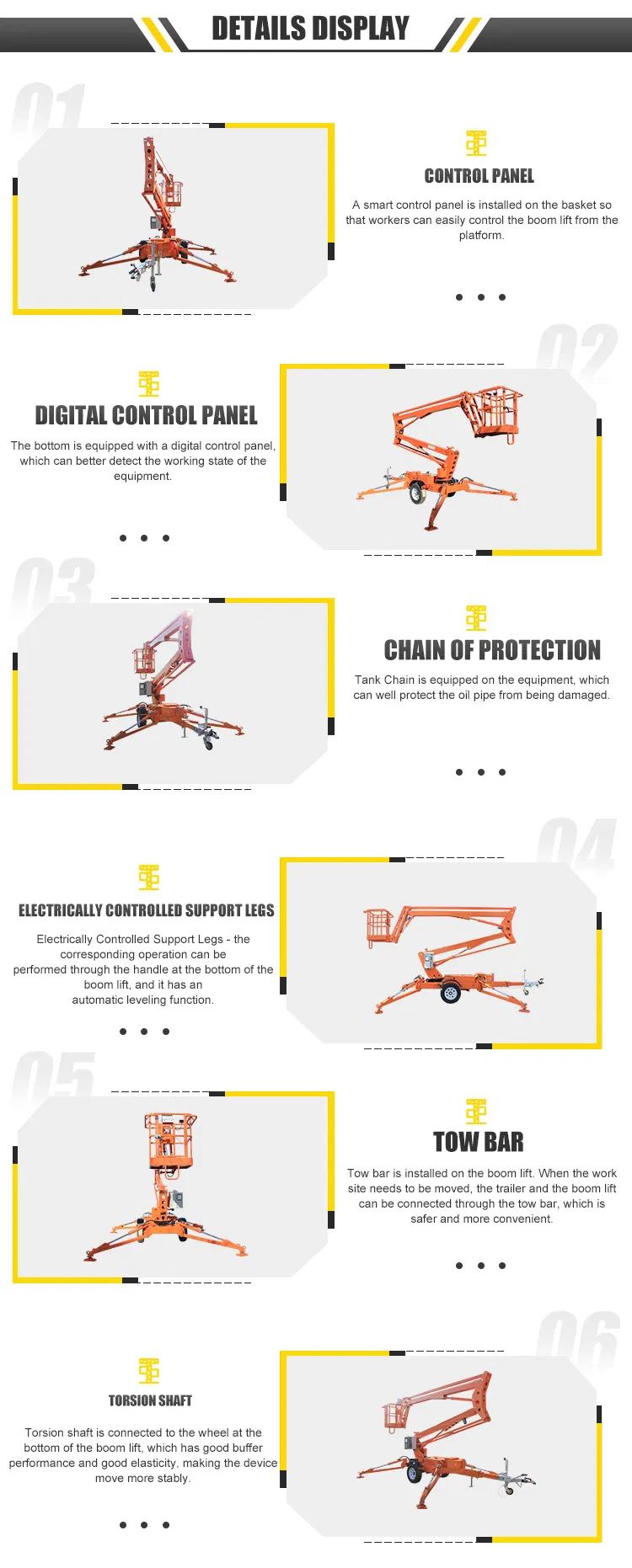

Controls on both the high-altitude basket and ground level for convenient operation.
Four independent outriggers ensure the equipment remains level and stable during use.
Equipped with emergency buttons and basket safety locks to ensure a secure environment.
