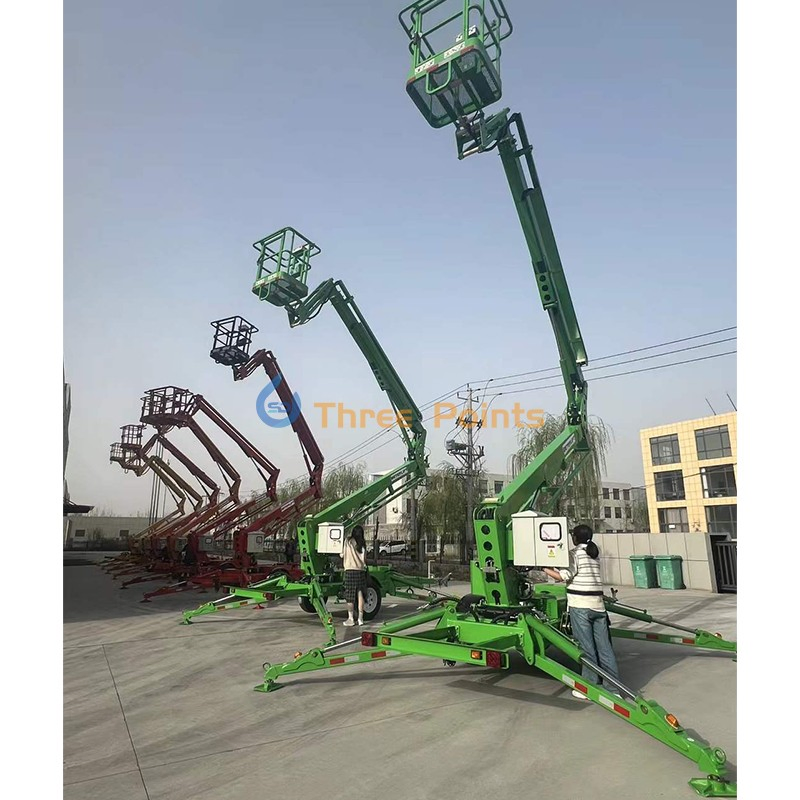

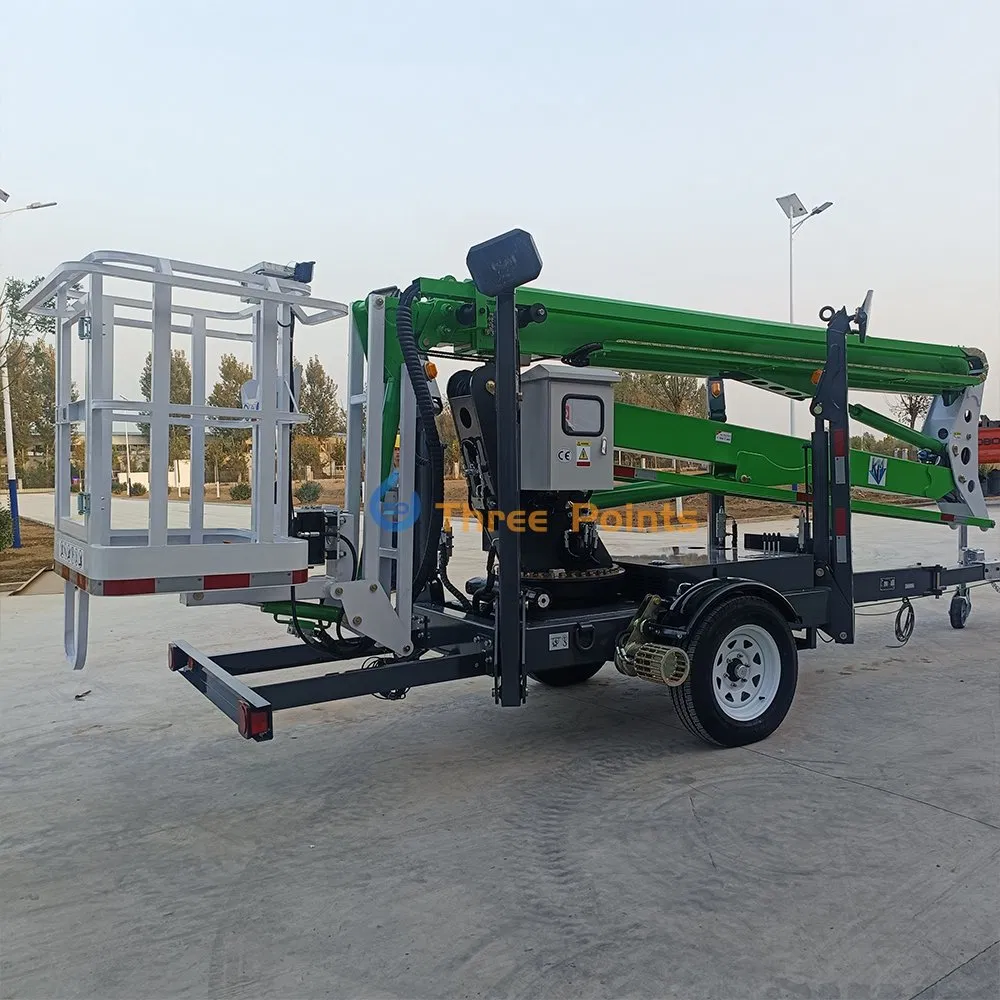

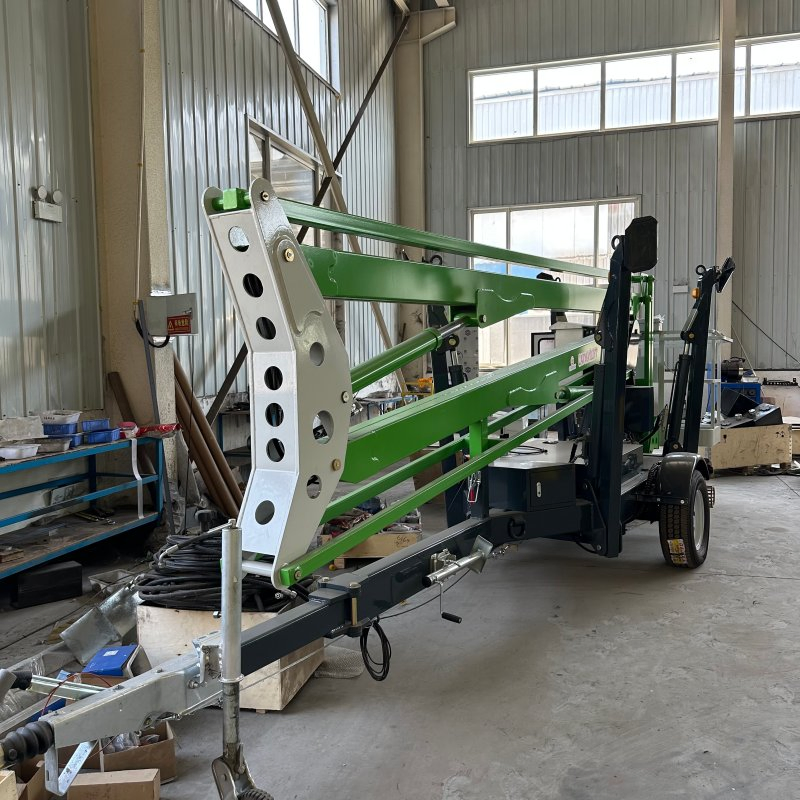

Cherry Picker Boom Lift Aerial Work Platform Trailer Articulating Telescopic Towable Boom Lift

Customization: Available
After-sales Service: Free Spare Parts Will Be Provided for Any Quality-
Warranty: 12 Months for The Main Structure (Platform, Scisso

Product Description

📋

Technical Specifications

Model NO.
TP-TB-02
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
AC
Certification
GS, CE, RoHS, ISO 9001
Power Type
AC/Diesel/ DC/Gasoline
Max. Lifting Height
22m
Platform Size
900mm*700mm
Net Weight
1855kg-3290kg
Production Capacity
3000PCS/Year
🏗️

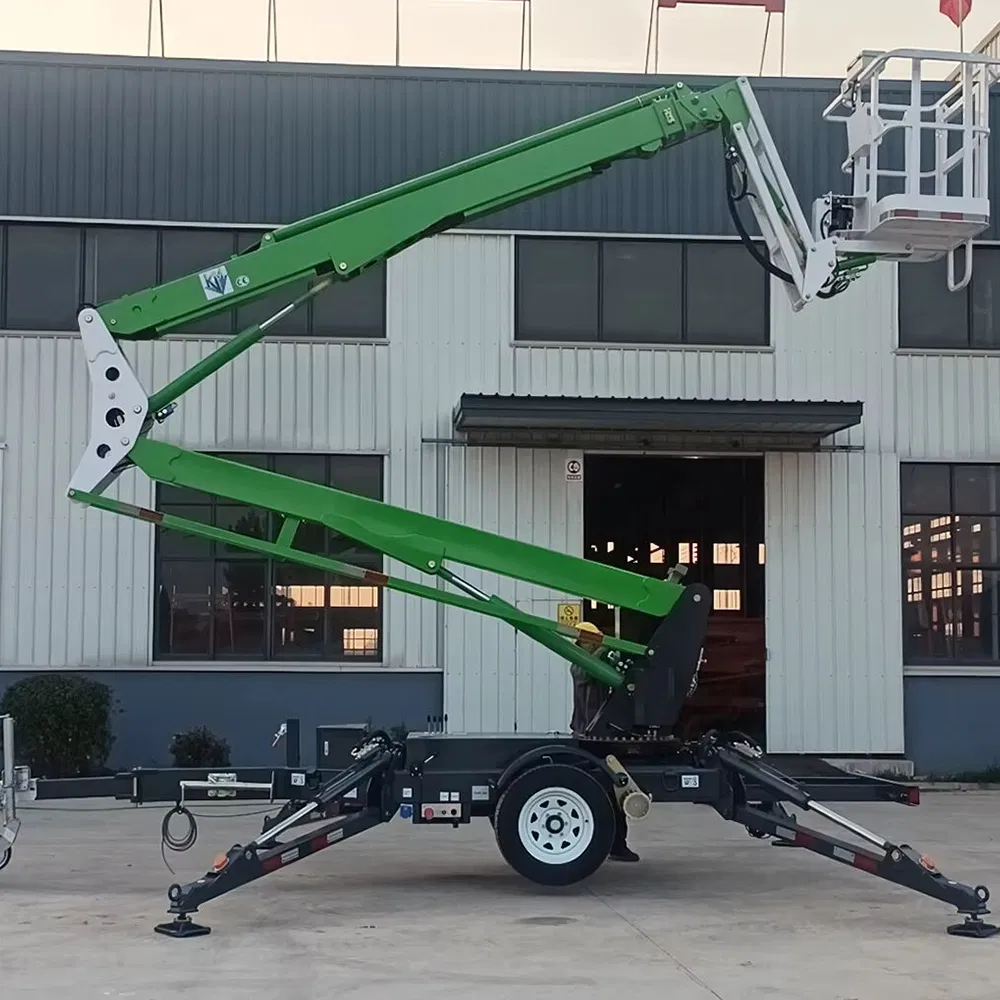

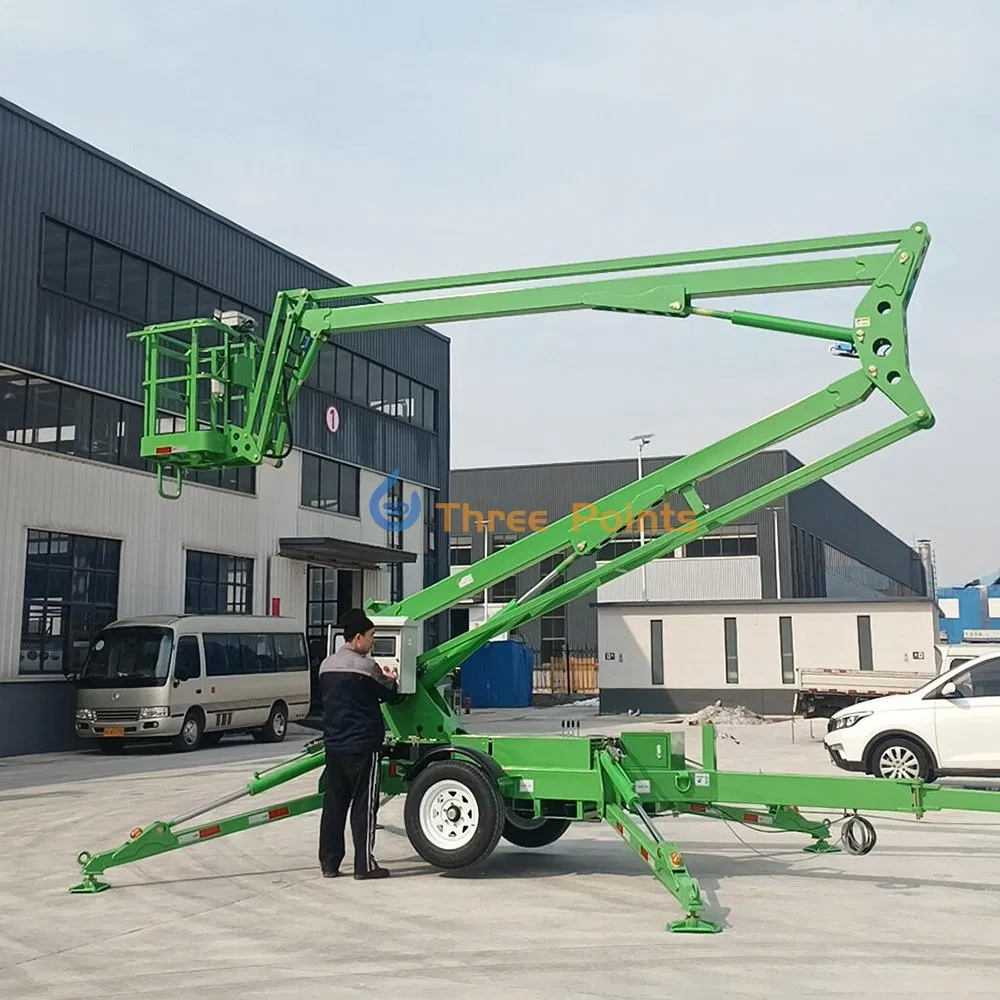

Towable Boom Lift Overview

The Towable Boom Lift is a lightweight and flexible aerial work platform that can be easily towed by vehicles such as pickup trucks or vans. With a working height of up to 22 meters and a load capacity of 200–230 kg, it features a 360-degree rotating boom, hydraulic outriggers for stability, and is powered by either battery or AC electricity.

This lift is ideal for building maintenance, tree trimming, lighting installation, and signage work. It's easy to transport, simple to operate, and perfect for both indoor and outdoor use, especially in places with limited access or uneven terrain.

Key Advantages:

  • Highly Mobile: Easily towed by pickup trucks or small vehicles for quick transport.
  • Flexible Reach: Telescopic and rotating boom offers wide vertical and horizontal outreach.
  • Fast Setup: Hydraulic outriggers and auto-leveling system allow quick and stable positioning.
  • Terrain Adaptability: Adjustable outriggers handle uneven ground for outdoor construction.
  • High Safety Standards: Equipped with guardrails, emergency lowering system, and anti-tip protection.
  • Cost-Effective: Lower purchase and maintenance cost compared to self-propelled units.
📸

Product Presentation

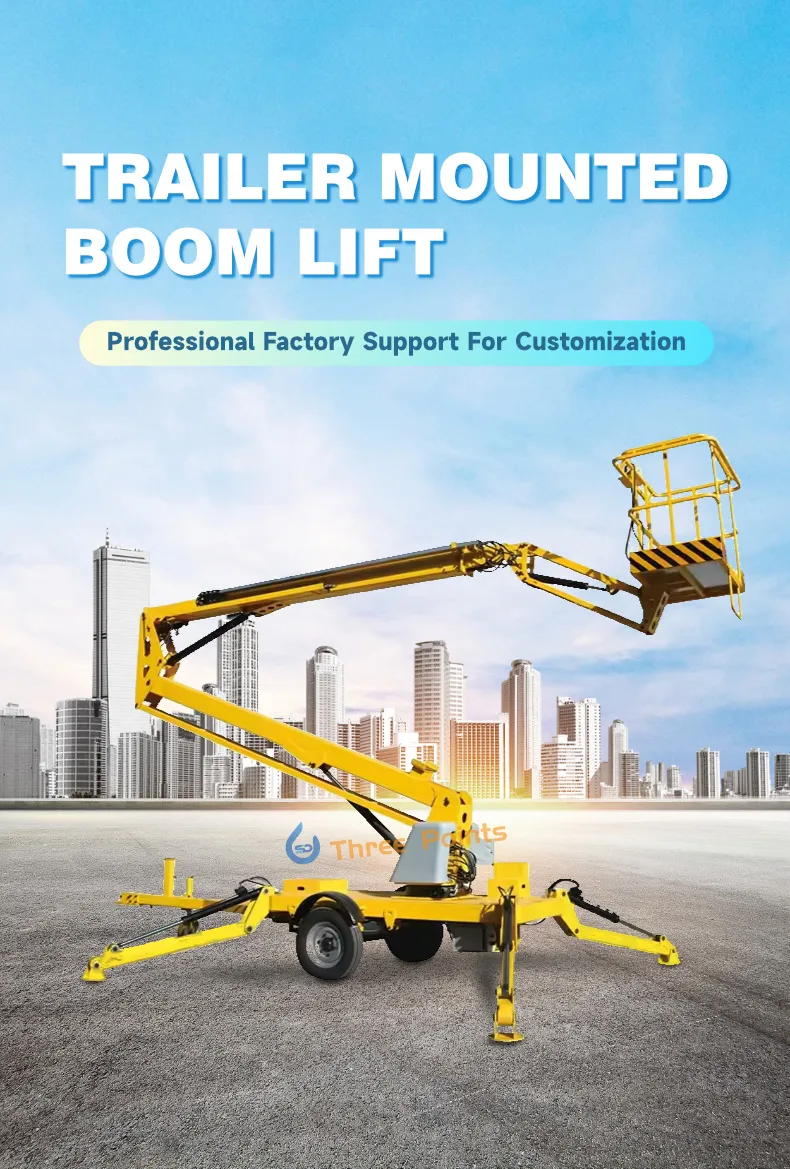

Towable Boom Lift
Aerial Work Platform

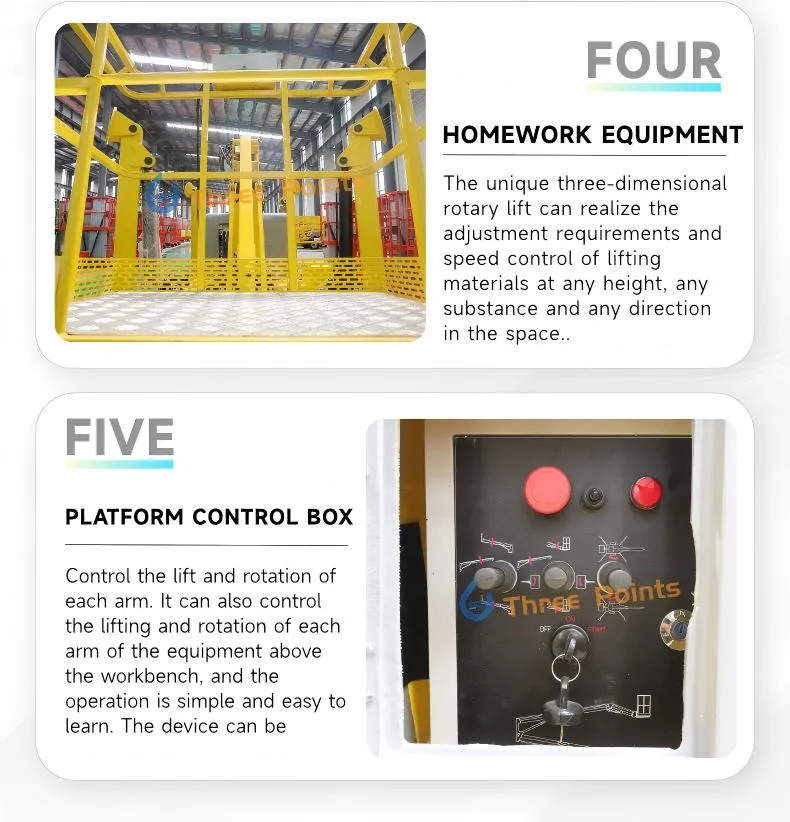

Trailer Boom Lift

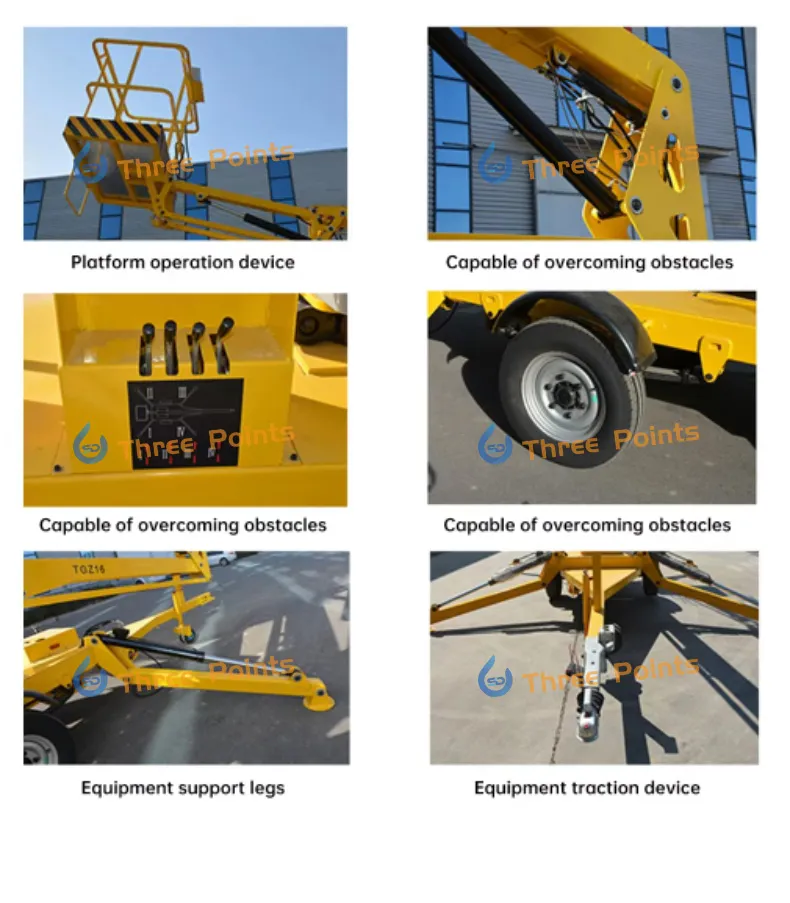

Telescopic Towable Boom

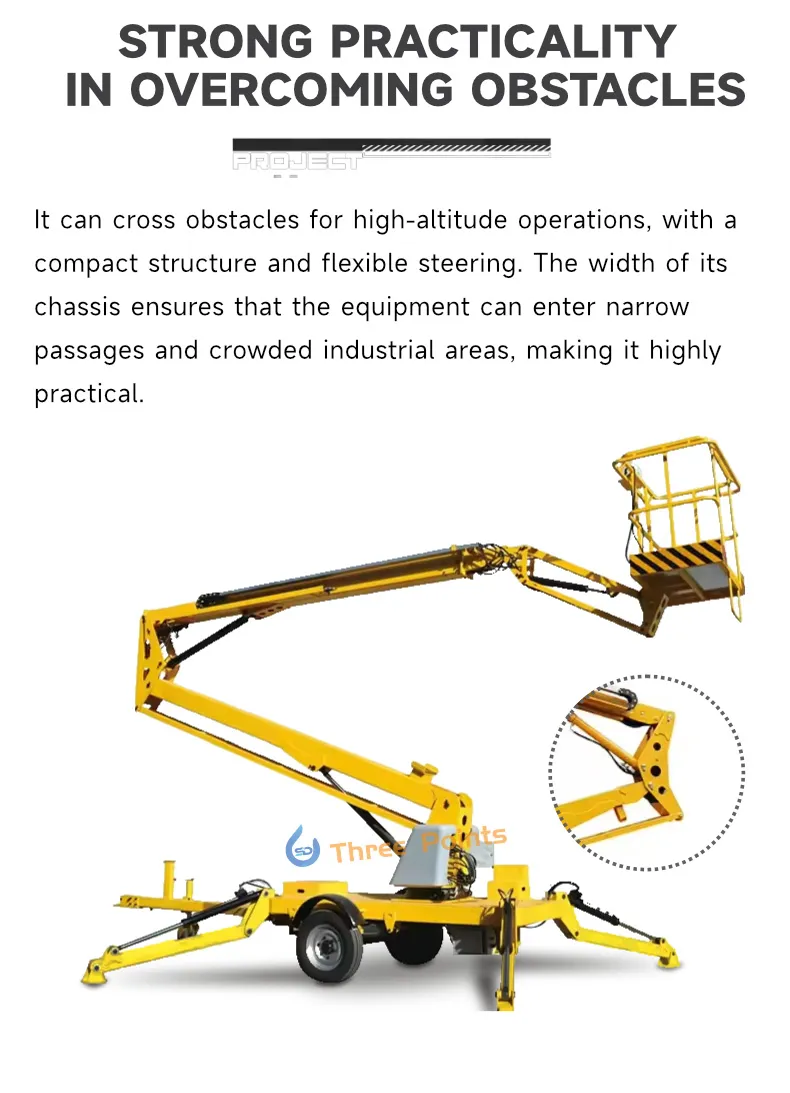

Cherry Picker Lift

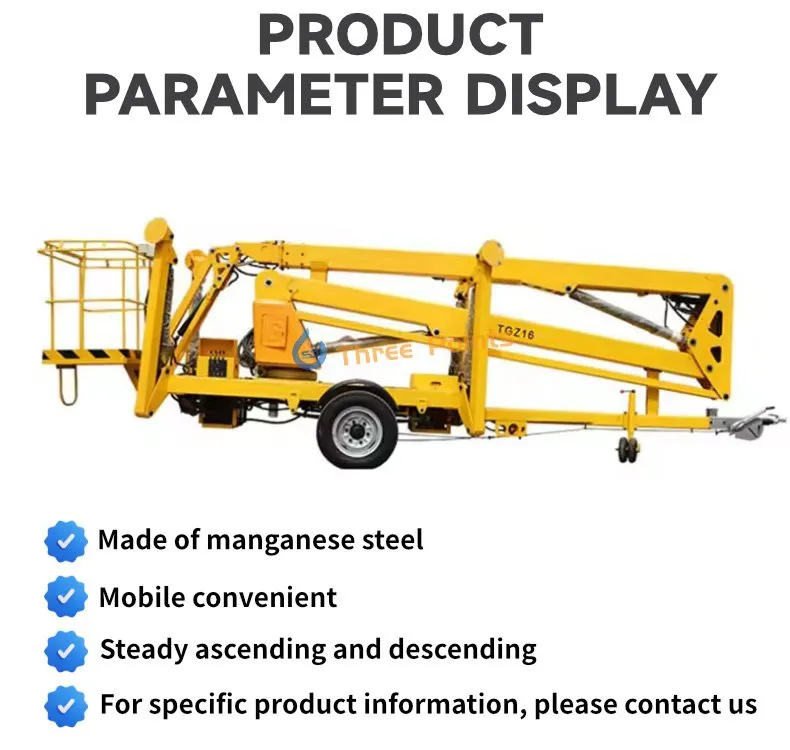

Articulating Boom Lift
Model Working Height (m) Overall Width (mm) Stowed Height (mm) Platform Size (mm) Overall Length (mm)
TPTB-121217002100900/7006300
TPTB-141417002100900/7007300
TPTB-161617002100900/7006650
TPTB-181817002200900/7006800
TPTB-202018002250900/7007600
TPTB-222219002250900/7006900
Details 1

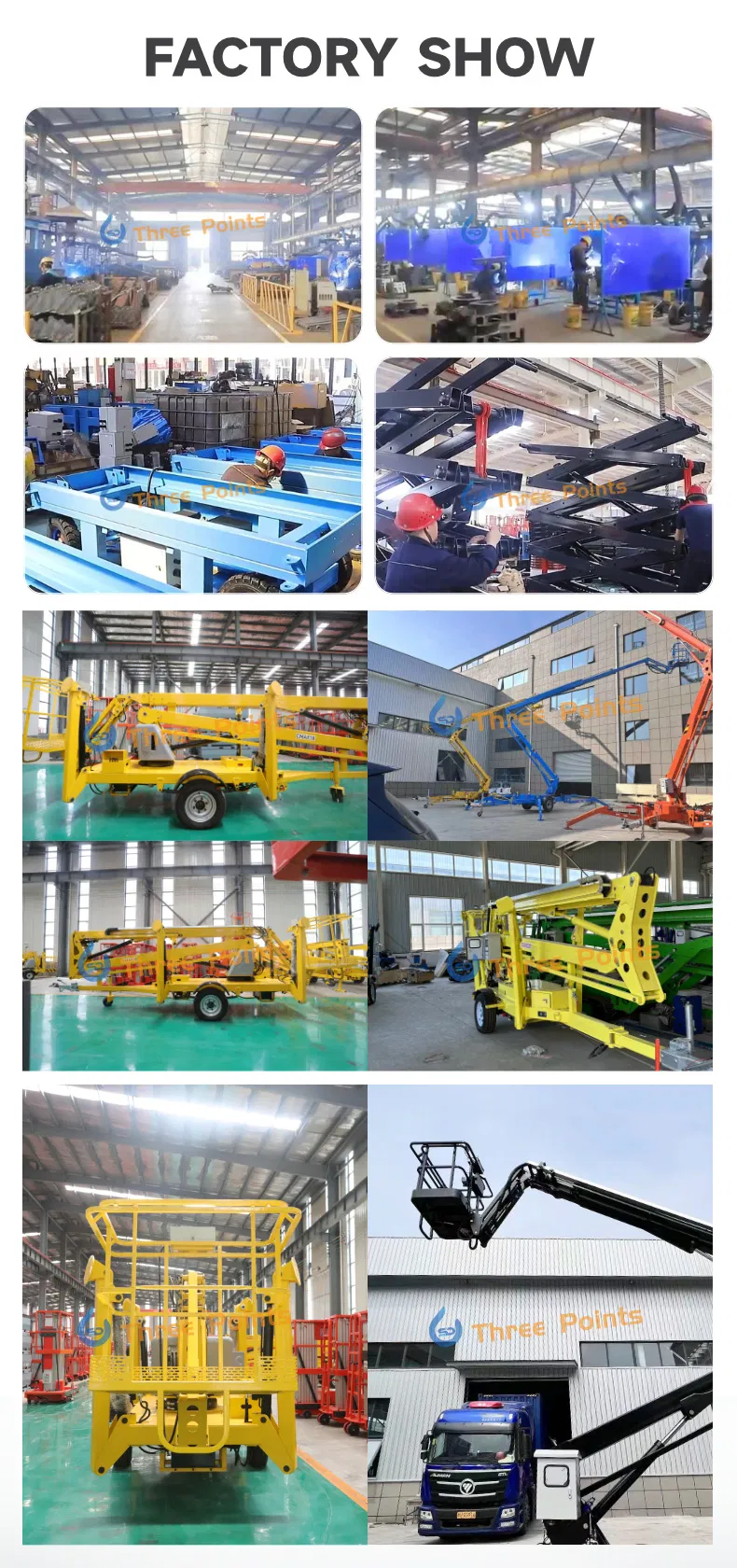

Details 2
Details 3
Details 4
Details 5
Details 6

Frequently Asked Questions

What is the maximum lifting height available?
The TPTB series offers a range of working heights, with the maximum model reaching up to 22 meters.
What power options are available for these boom lifts?
You can choose from multiple power sources including AC, Diesel, DC (battery), or Gasoline, with optional hybrid systems available.
Can the lift be used on uneven terrain?
Yes, it is equipped with hydraulic outriggers and an auto-leveling system that allows for stable positioning on uneven or sloping ground.
Is it easy to transport between different job sites?
Absolutely. The towable design allows it to be easily hooked up to pickup trucks or vans, making it highly mobile and cost-effective for transport.
What safety features are included in the design?
Standard safety features include secure guardrails, an emergency lowering system, anti-tip protection, and explosion-proof/insulating features depending on the model.
What is the carrying capacity of the platform?
The typical load capacity for these units ranges between 200kg and 230kg, suitable for operators and their tools.
