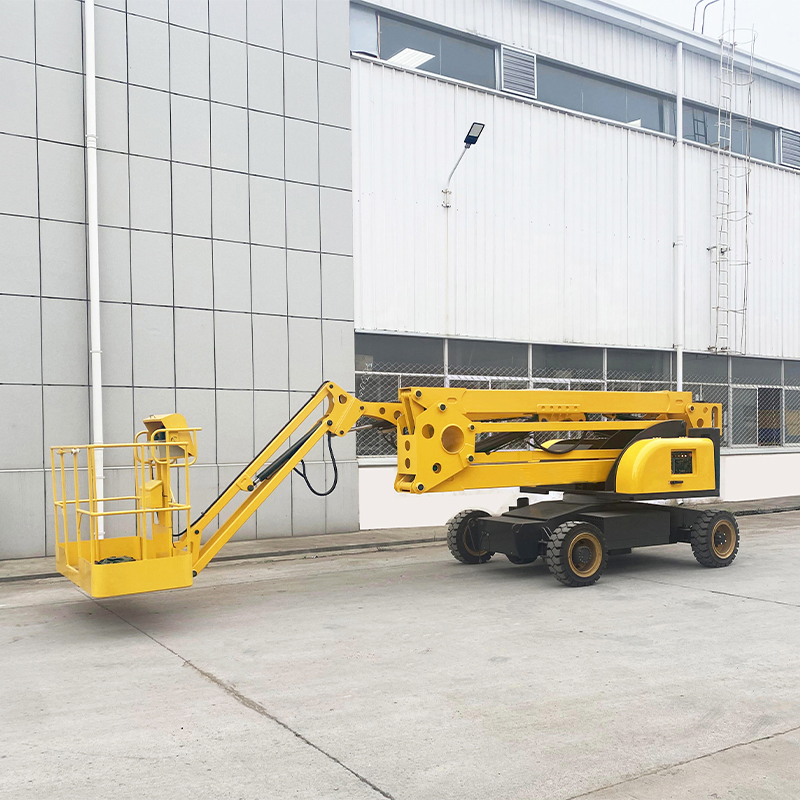

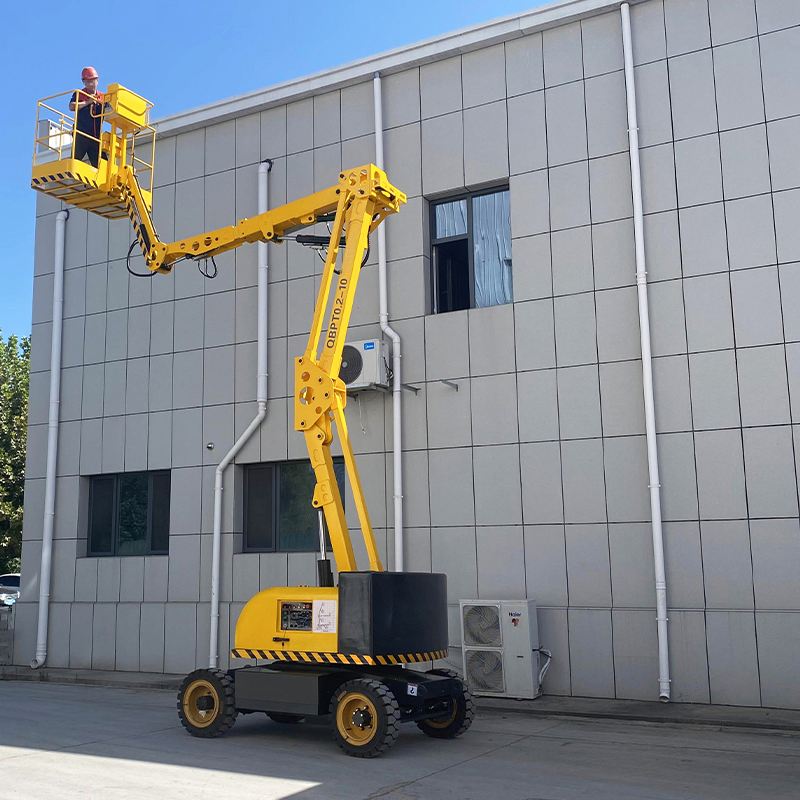

| Model | YG-0810 | YG-1012 | YG-1214 | YG-1416 | YG-1618 | YG-1820 | YG-2022 |
| Platform height (m) | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Working height (m) | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| Max load capacity (kg) | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| Workbench (mm) | 1600*800 | 1600*800 | 1600*800 | 1600*800 | 1800*800 | 1800*800 | 1800*800 |
| Ext. dimensions (m) | 5.2*1.65*2.35 | 5.5*1.65*2.35 | 6.3*1.78*2.35 | 7.0*1.93*2.35 | 7.18*2.18*2.53 | 8.35*2.2*2.53 | 8.86*2.25*2.53 |
| Max extension (m) | 5.3 | 5.8 | 6.9 | 8 | 8.9 | 10.6 | 11.7 |
| Weight (kg) | 4900 | 5800 | 6596 | 6900 | 8550 | 9200 | 11000 |
PROFESSIONAL OVERVIEW
We are an integrated large-scale manufacturing enterprise with abundant resources and convenient transportation. With 19 years of high-speed development, we have gathered a large number of talents and won a sound reputation for credibility. Our product quality and healthy development are ensured by advanced management concepts and a comprehensive management system.
