Xyzlift Hot Sale Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview

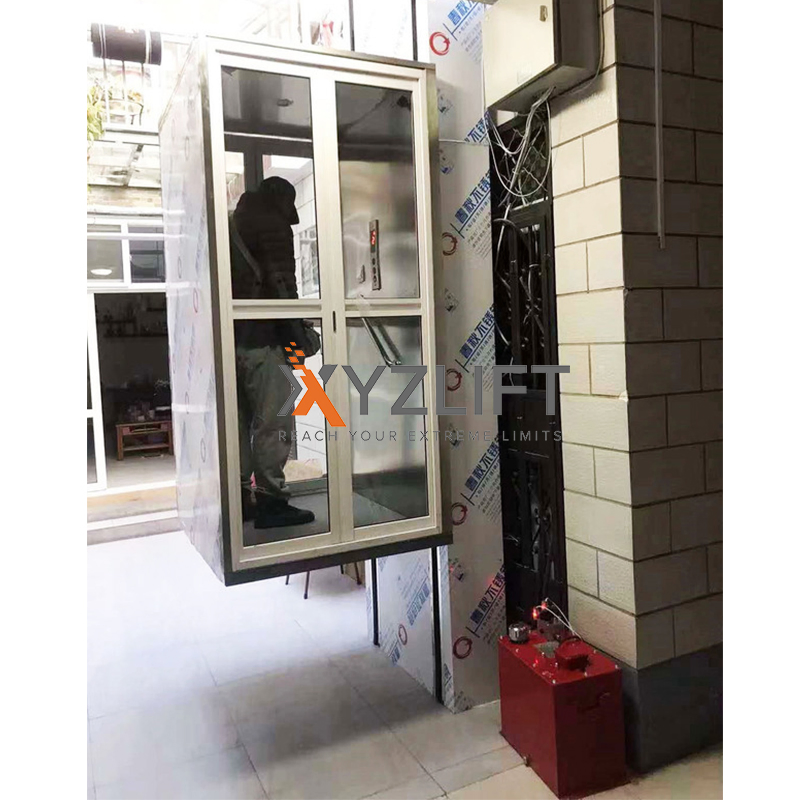

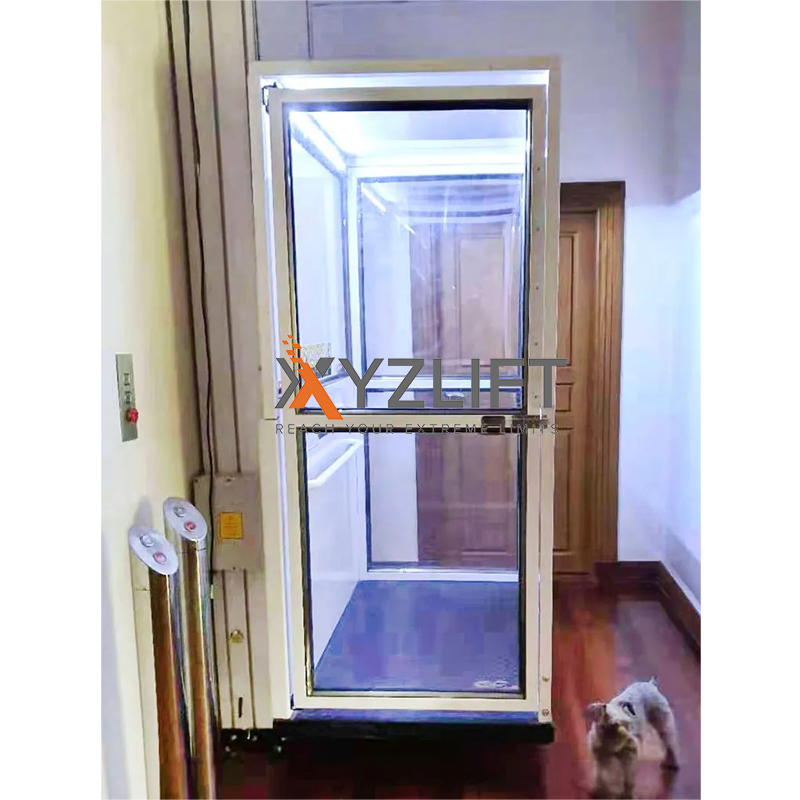

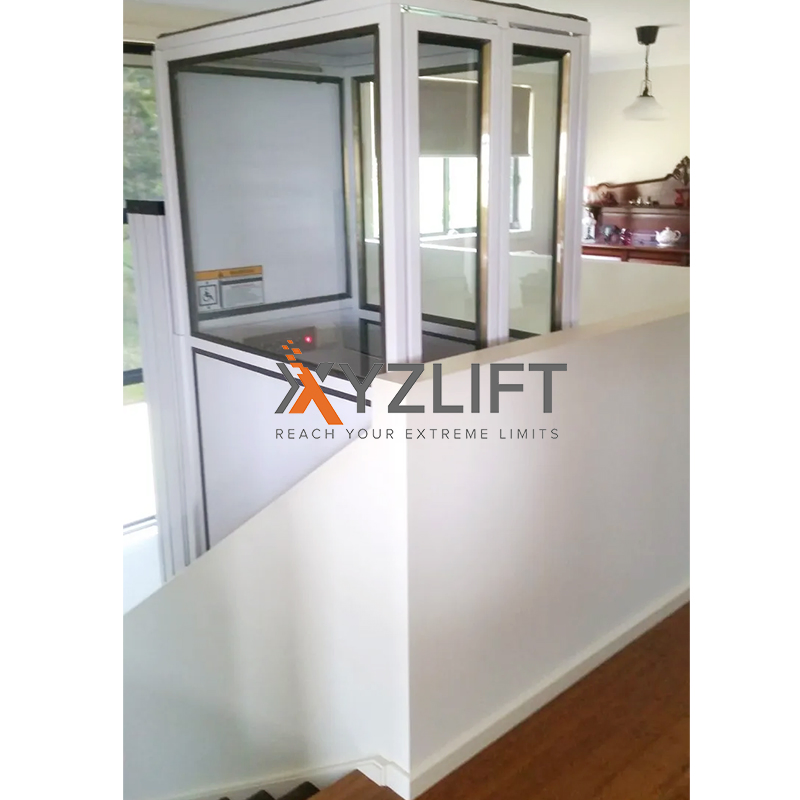

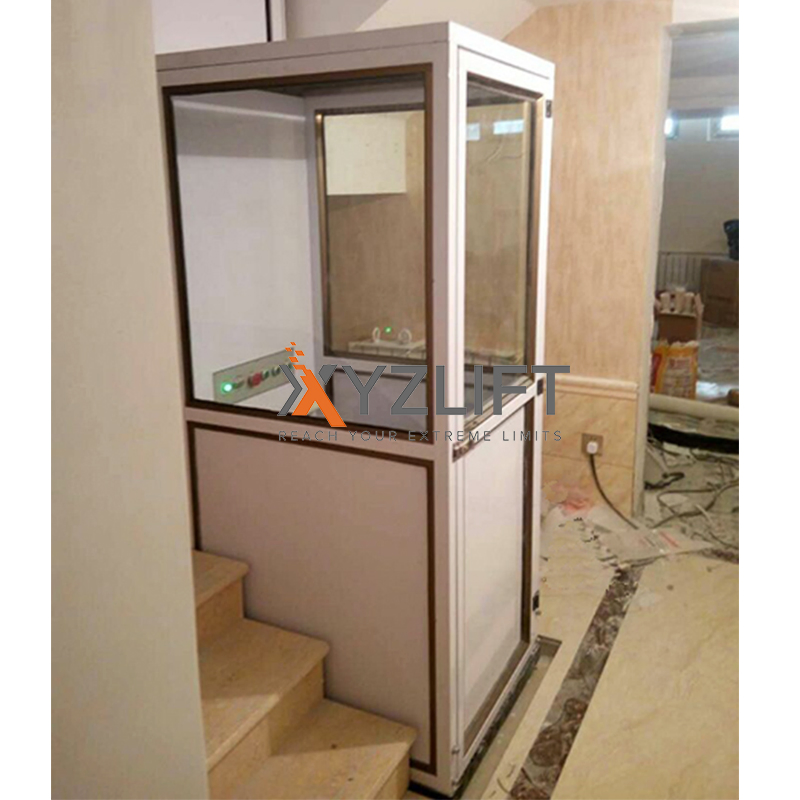

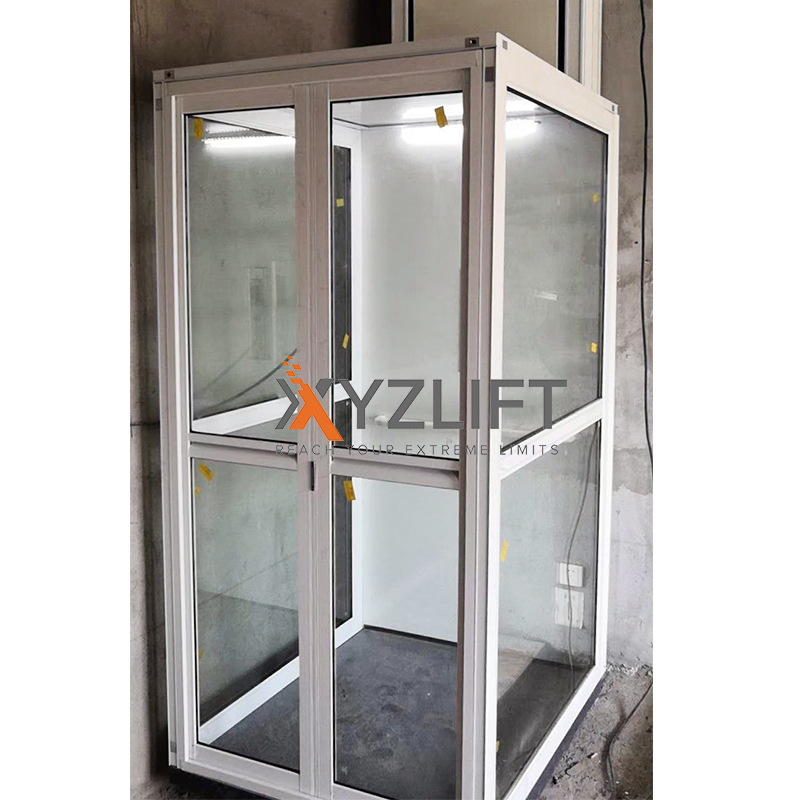

Hot Sale Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

Our Vertical platform lift is built with the end user in mind. Passenger comfort, simple-to-use operation and safety features allow people with limited mobility to operate the lifts independently or with assistance from an attendant. It is designed to provide cost-effective access to raised porches, decks, and other elevated areas for residential and commercial applications. Can easily installed in private homes or public buildings.

Model
XYZVPL-2
Driven Type
Hydraulic
Material
Aluminum Alloy/ SS304
Certification
CE, ISO 9001
Safety Standard
En81-41
Load Capacity
250kg or Customized
Travel Height
Up to 15m
Power Supply
220V/50HZ

Product Parameters

MODEL XYZVPL-2
Load capacity250kgs
Platform size1330mm*900mm (Custom)
Travel heightUp to 15 meters
Normal speed60mm/s
Entry & Exit90°/180°/three-sided
Motor power2.2kw
Drive systemHydraulic driven
StandardEN81-41

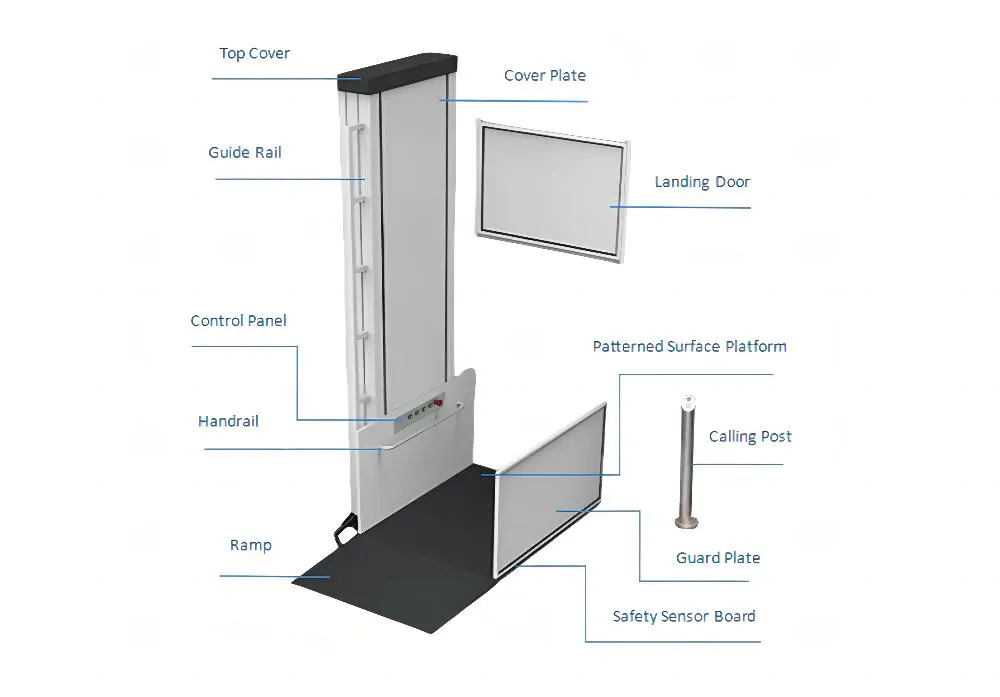

Vertical Wheelchair Lift Parameters

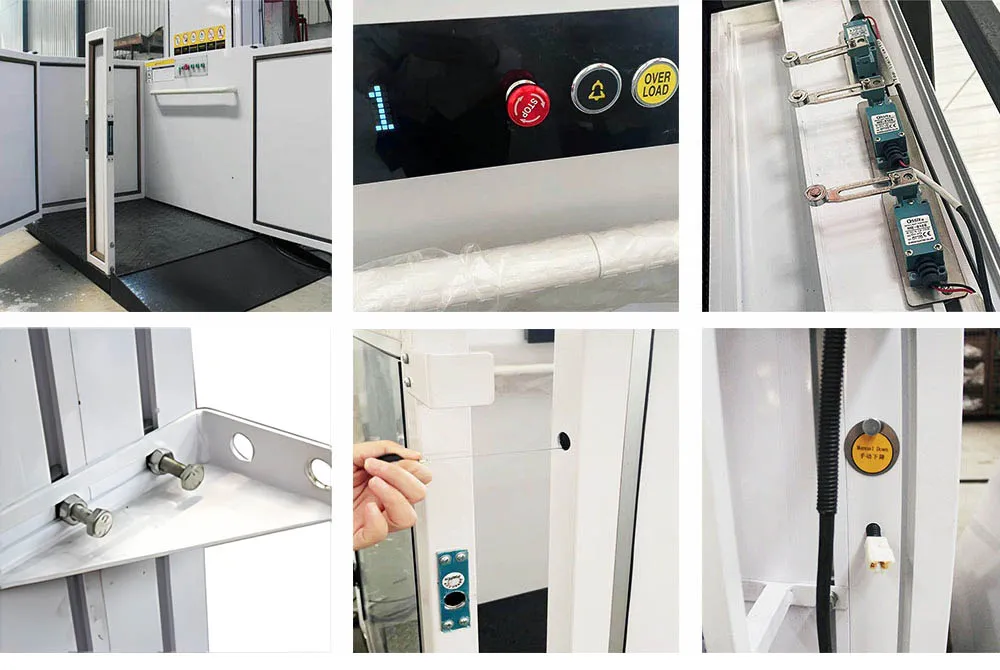

Detail Show

1. Versatile Entry: Optional entrance/exit direction: 90°/180°/three-sided.
2. Display Panel: Intuitive operation interface for users.
3. Limit Switch: Safety mechanism to stop the platform if leveling switch fails.
4. Mounting Bracket: Adjustable bracket to secure the cover plate to walls.
5. Manual Opening: Emergency door lift feature during power failures.
6. Manual Down: Emergency lowering valve to safely reach ground level without power.
Lift Component Details

Installation & Customization

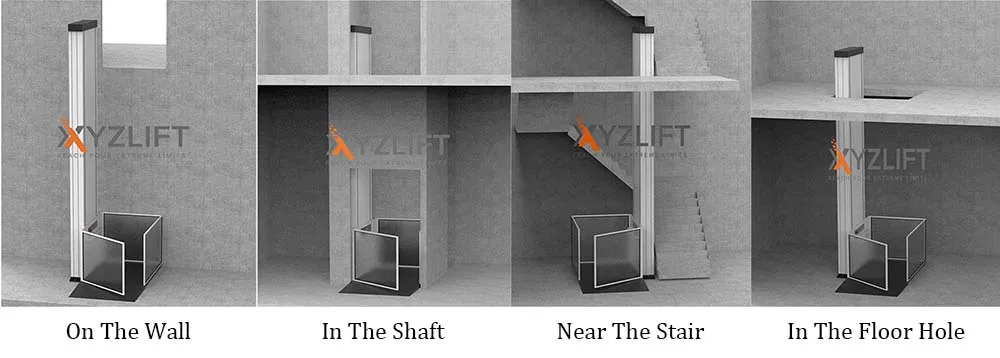

Common Installation Scenarios

We provide 3D designs tailored to specific installation sites, including detailed instructions for 4 common scenarios.

Installation Scenarios

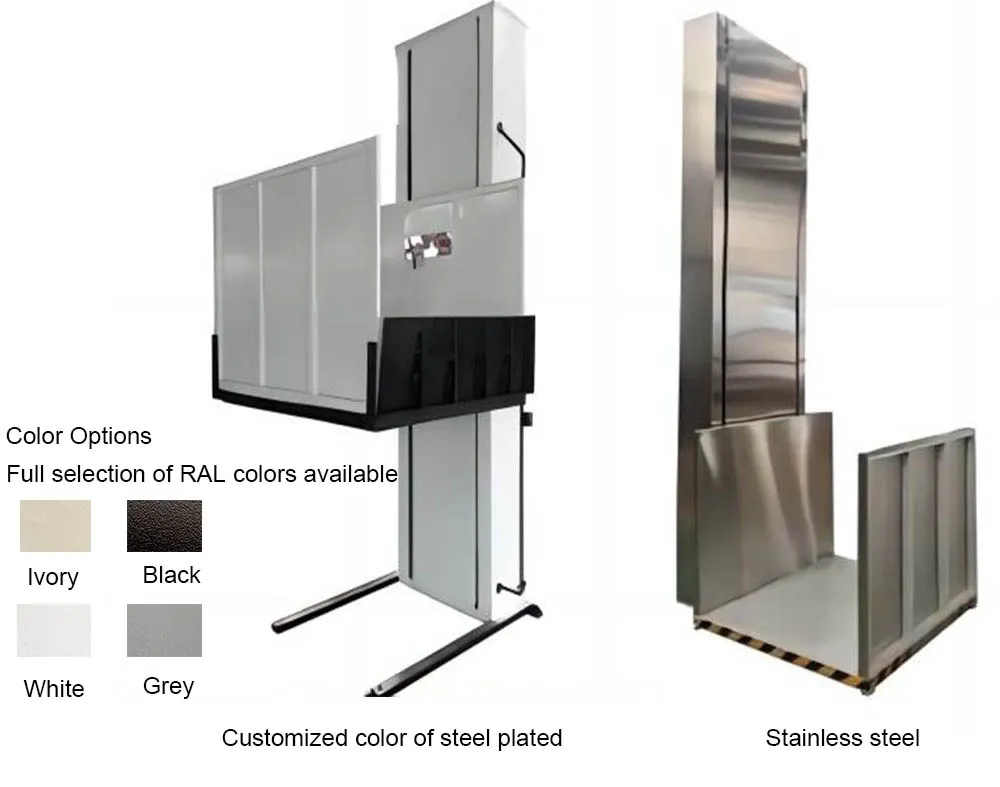

Different Finish & Color

Upgrade your vertical lift platform with versatile cover options. Choose between stainless steel or steel plates available in various colors to perfectly complement the surroundings.

Color and Finish Options

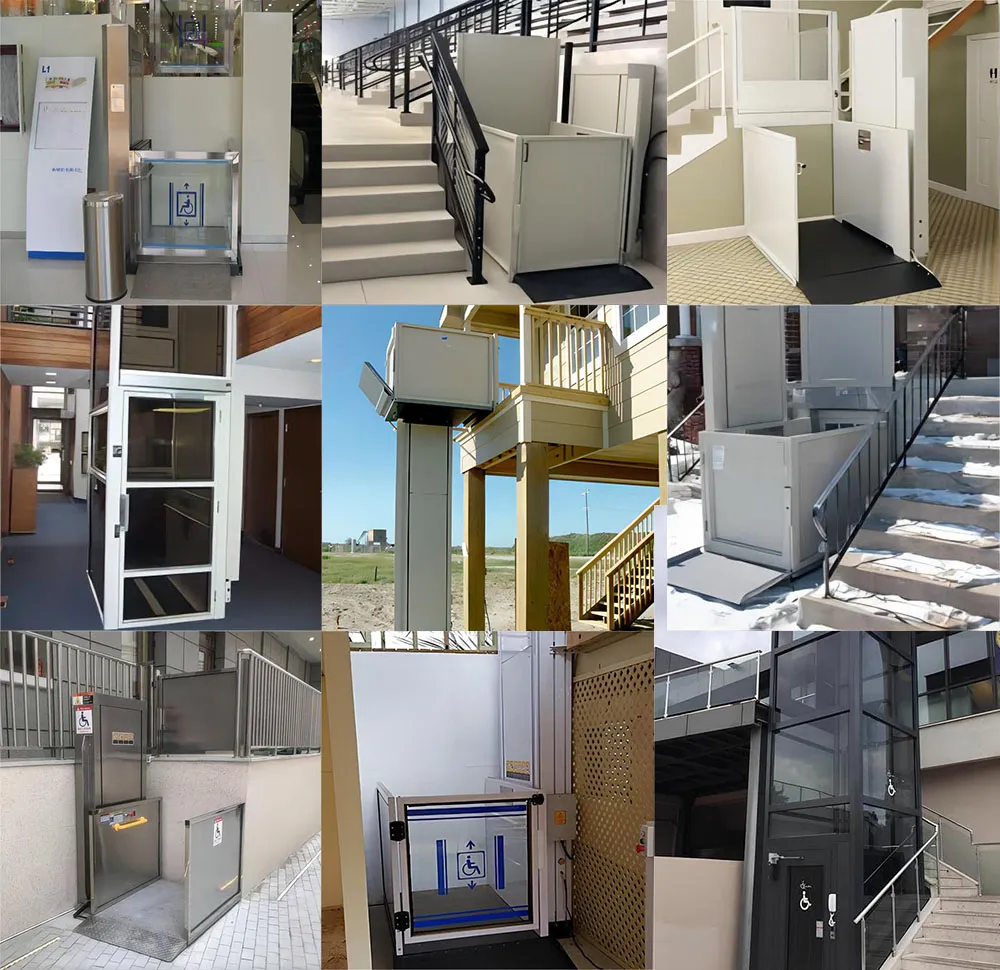

Project Showcase

Suitable for indoor and outdoor use in houses, villas, banks, factories, or warehouses.

Project Show 1

Certifications

Quality Certifications

Packaging

Secure Packaging

Frequently Asked Questions

What details are required for specifying a vertical lift platform?
We need the Platform Size (Standard 1430*1000mm), Travel Height (vertical distance between floors), Loading/Unloading Directions (one side, opposite, or three sides), and any Additional Equipment like glass shafts or landing doors.
How many floors can the vertical lift platform reach?
Our vertical lift platforms can travel up to 16 meters, covering up to 5 floors.
What color options are available?
You can provide any RAL color number, and we will customize the platform's finish to match your specific choice.
What safety standards does the lift comply with?
The lift is designed and manufactured according to the EN81-41 safety standard, ensuring high reliability and user safety.
Is there a backup plan for power failures?
Yes, the lift includes a manual emergency lowering valve and a manual door opening mechanism to allow passengers to exit safely even during a power outage.
What is the standard load capacity?
The standard load capacity is 250kg, but this can be customized based on your specific application requirements.
