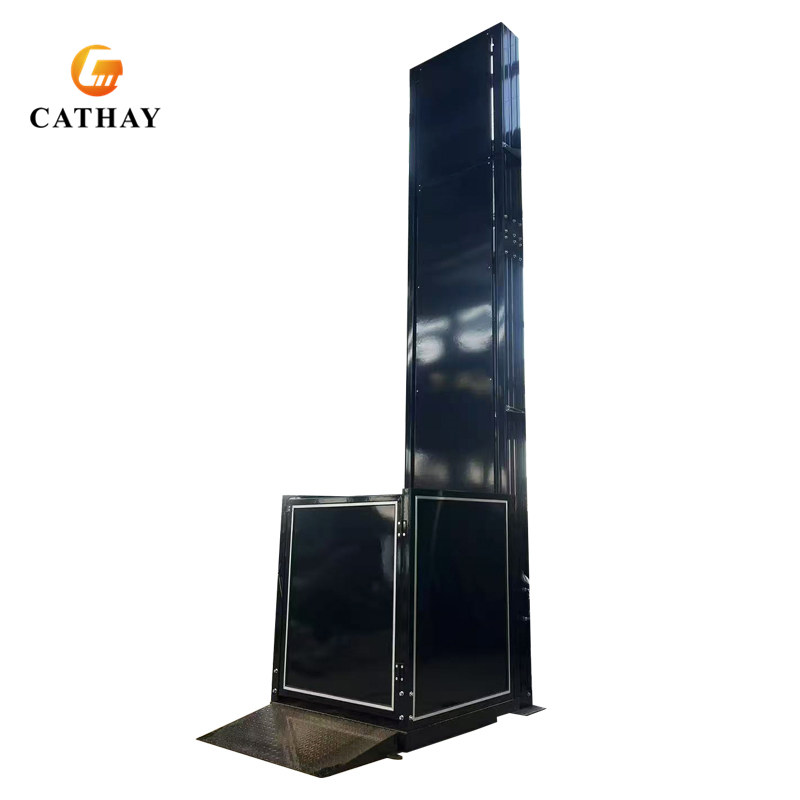

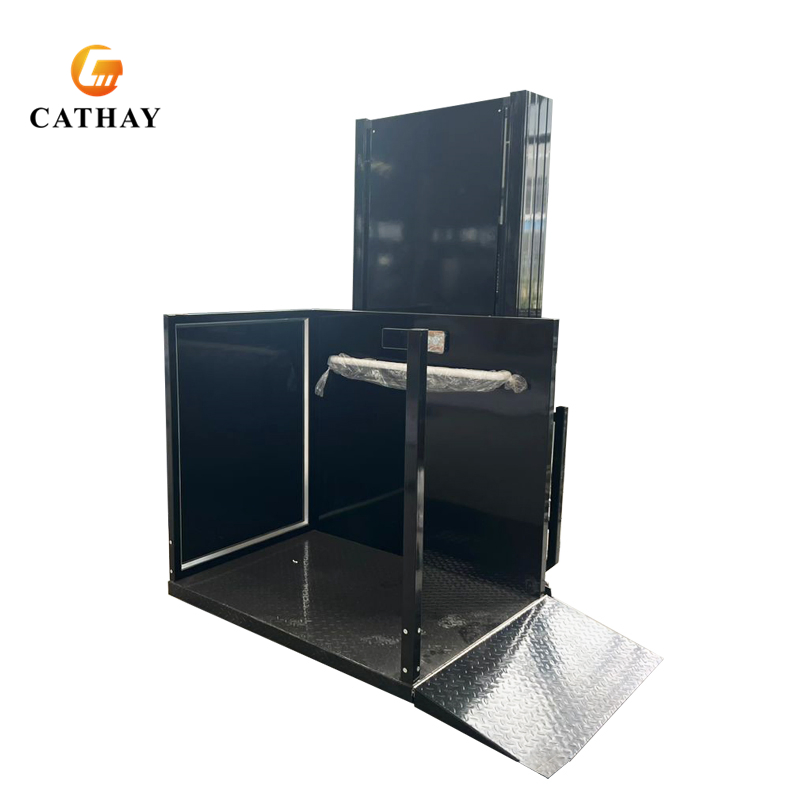

1~12m 250kg Small Home Indoor Outdoor Passenger Disabled Vertical Platform Wheelchair Handicap Household Lifts Elevator with CE

1 / 5

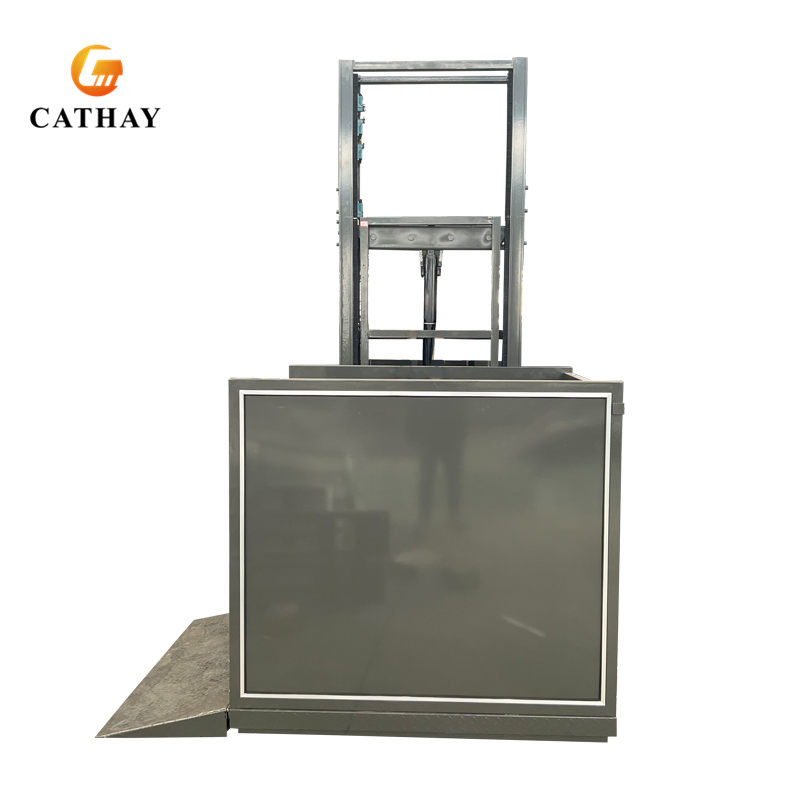

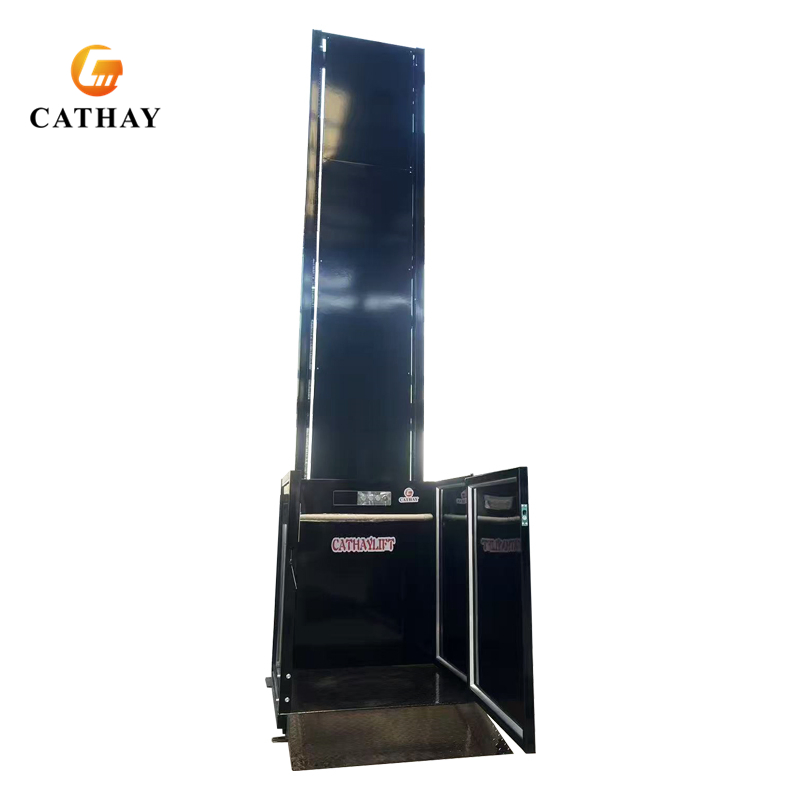

1~12m 250kg Small Home Indoor Outdoor Passenger Disabled Vertical Platform Wheelchair Handicap Household Lifts Elevator with CE

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Application:

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism:

Lift Chain

Carrying Capacity:

250kg~500kg

Moves:

Stationary

Driven Type:

Feature:

Explosion-Proof, Insulating

Certification:

GS, CE, RoHS, ISO 9001

Platform Size:

1430mm×1000mm

Lifting Height:

1~12m

Voltage:

110V 220V 380V 440V

Lifting Speed:

0.01~0.2m/S

Power Output:

1.1~2.2kw

Product Description

The electric indoor outdoor hydraulic wheelchair home platform elevator lift for disabled is engineered with a lifting height range of 1~12 meters and a robust lifting capacity of 250kg~500kg. These lifts are designed to meet diverse needs while ensuring stability and security. Their strong adaptability allows installation in harsh environments and general explosion-proof locations, making them suitable for a variety of settings. Flexible configuration options enable customization of the platform and entry/exit orientation to match specific installation environments.

Product Parameters

Model	HL10	HL20	HL30	HL40	HL50	HL60	HL80	HL100
Max Platform Height	1000mm	2000mm	3000mm	4000mm	5000mm	6000mm	8000mm	10000mm
Load Capacity	250kg - 500kg
Platform Size	1430*1000mm skid proof checkered steel
Speed	0.06~0.2m/s
Drive System	Hydraulic silent pump station and electric motor

Please note: Tailored solutions are available for table size, lifting height, periphery, elevator car, and floor doors.

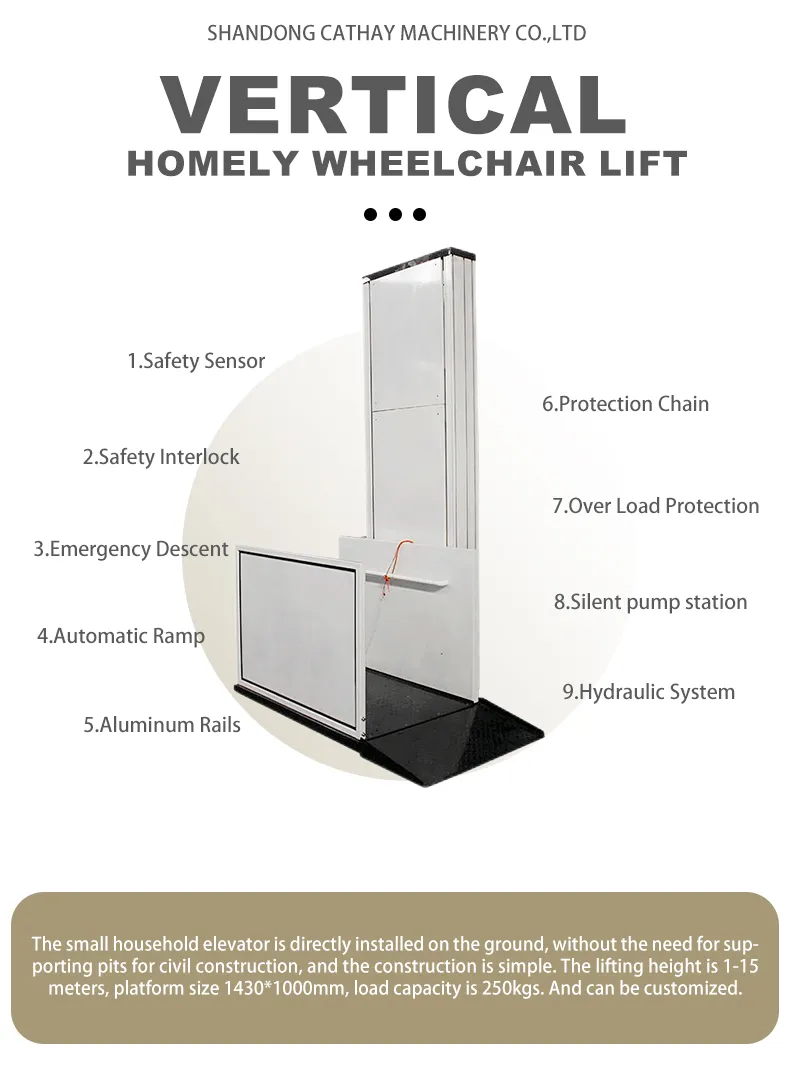

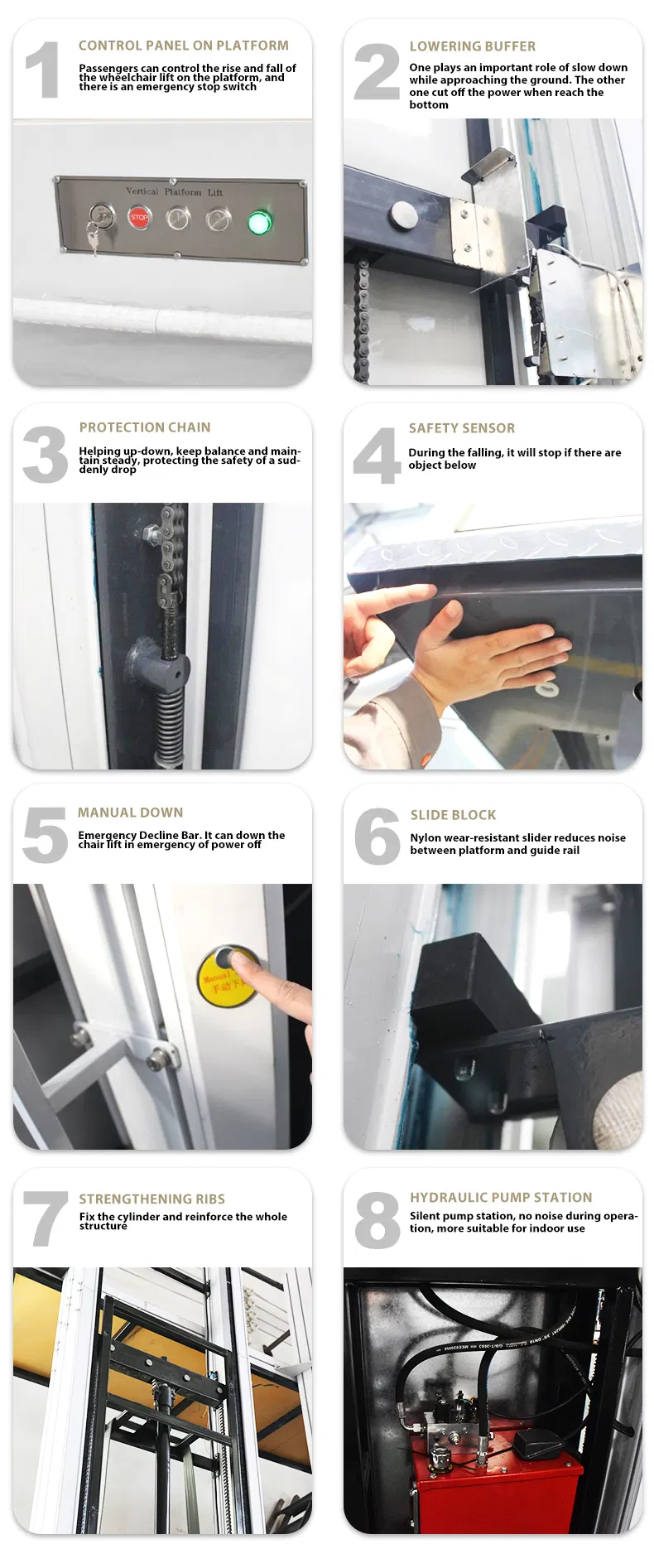

Product Advantages

●

Silent Operation: Equipped with a silent pump station to ensure no noise during use.

●

Safety Sensor Protection: A sensor beneath the car stops the platform immediately if an obstacle is detected.

●

Safety Interlock System: Automatically locks the platform in case of malfunction to prevent accidental movement.

●

Emergency Descent: Manual pressure relief mechanism allows safe lowering during power outages.

●

Durable Materials: High-strength extruded aluminum rails ensure long-term durability.

●

Overload Protection: Overcurrent relay and pressure relief valves prevent operation beyond rated capacity.

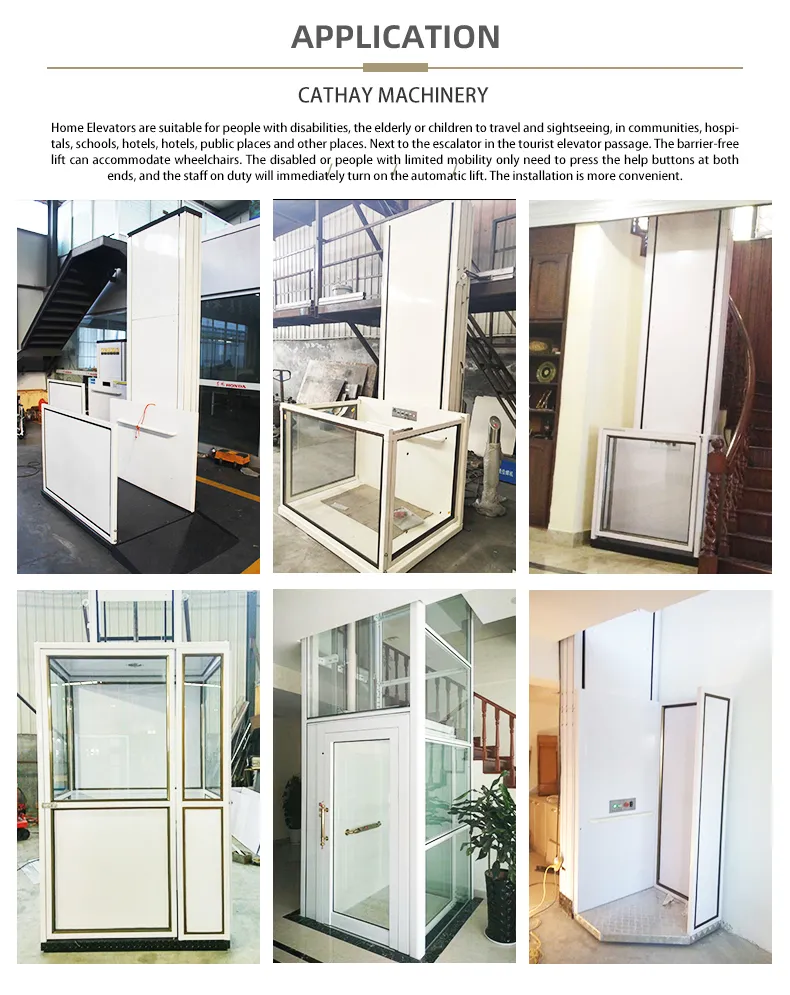

Application & Practical Use

Hydraulic wheelchair home lifts provide an efficient and compact way to move between floors in residential spaces, making everyday life easier for seniors and people with disabilities. Suitable for both new homes and retrofits, these lifts can be installed indoors or outdoors. They connect basements to ground floors and offer access to rooftop decks, combining convenience and flexibility.

Quality & Support

Related Products

Frequently Asked Questions

What is the maximum lifting height available for this platform?

The lift is highly customizable and can reach a maximum platform height of up to 12 meters, depending on the specific model and installation requirements.

Is a foundation pit required for installation?

No pit is required for lifting heights under 3.0 meters; the unit can be installed directly on the finished floor. For heights above 3.0 meters, it can be secured to both the floor and the wall.

What happens if there is a power failure while the lift is in use?

The lift is equipped with a manual emergency descent function and pressure relief system, allowing the user to lower the platform safely to the ground manually.

Can this elevator be installed in an outdoor environment?

Yes, the lift is designed for both indoor and outdoor use, with an operating temperature range of -20°C to 70°C and weather-resistant aluminum construction.

What safety features protect the user during operation?

Key safety features include a safety sensor under the platform to detect obstacles, an electronic interlock system, and overload protection via overcurrent relays.

What are the power requirements for this hydraulic lift?

The lift supports various voltages including 110V, 220V, 380V, and 440V. We can customize the electrical system to match your local power standards (single or three-phase).
