Basic Specifications
Lift Mechanism
Scissor Lift
Application
Workshop, Warehouse, Building Crane
Load Capacity
1000kg - 4000kg (Customizable)
Lifting Height
1m - 1.5m (Customizable)
Voltage
110V/220V/380V/400V
Certification
GS, CE, RoHS, ISO 9001
Product Description

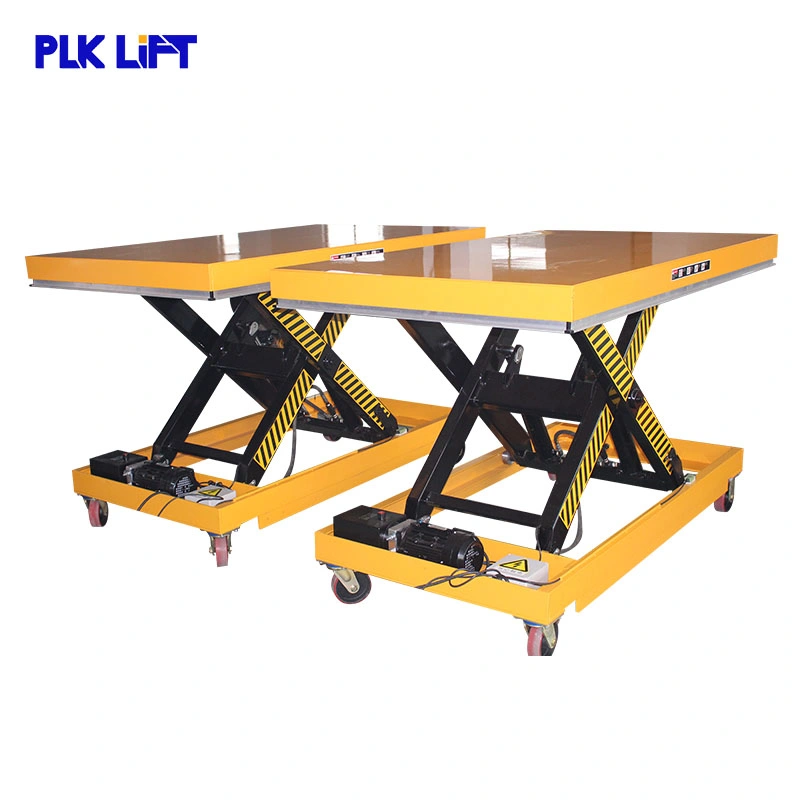

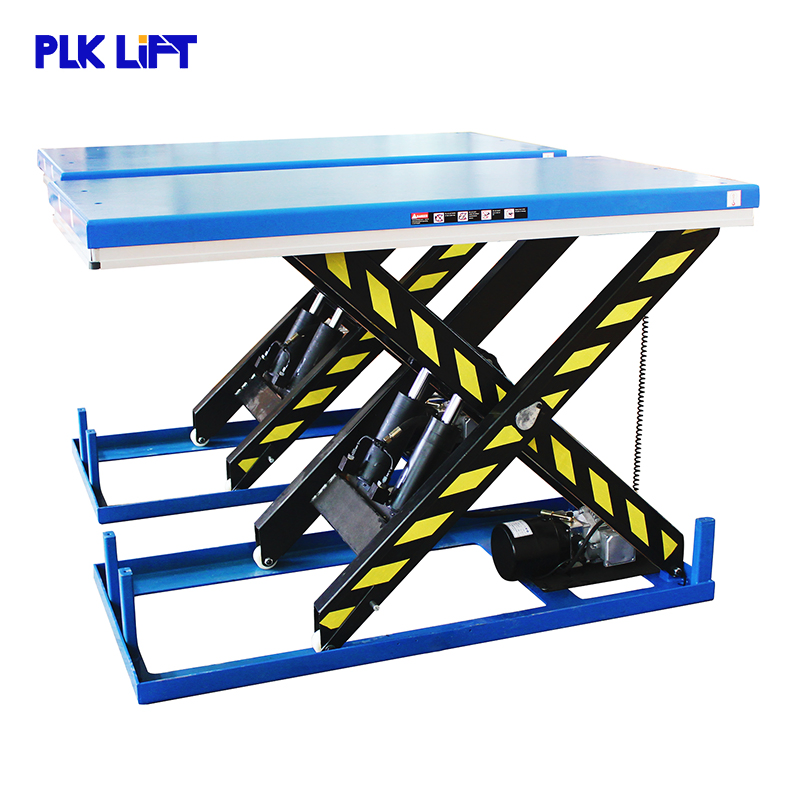

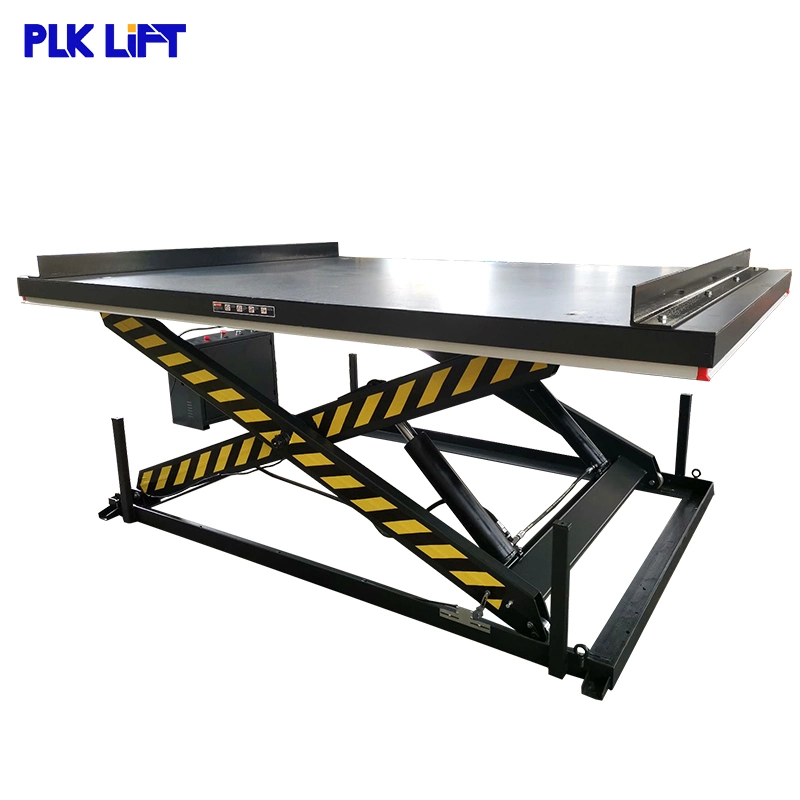

Portable Hydraulic Three Scissor Lift Table
The hydraulic table is our standard model, equipped with a single-layer scissor system. Designed for efficiency and safety, it reaches a maximum platform height of 3000mm with load capacities ranging from 1000kg to 2000kg.

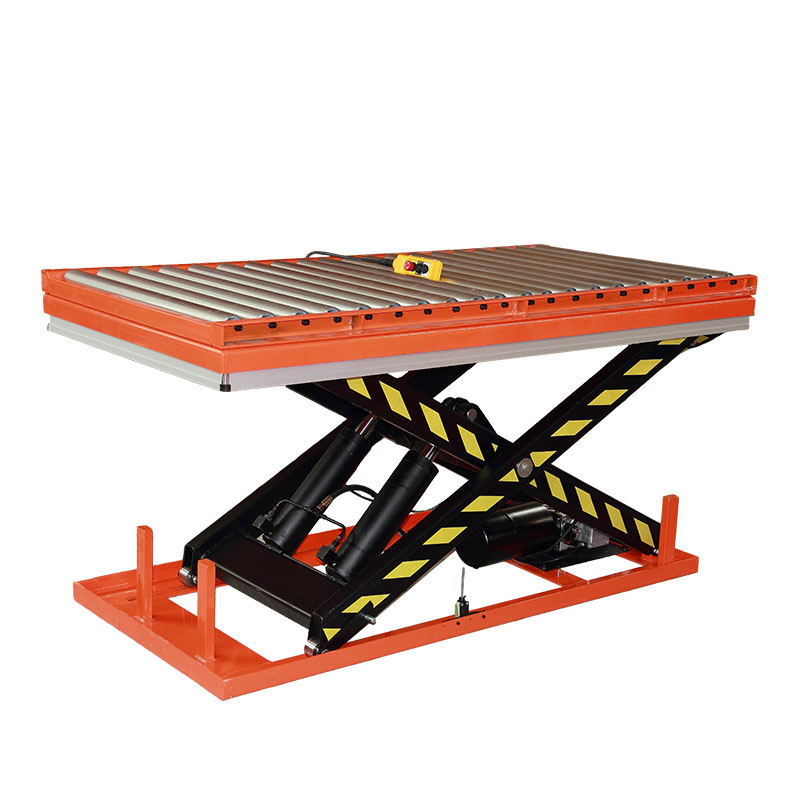

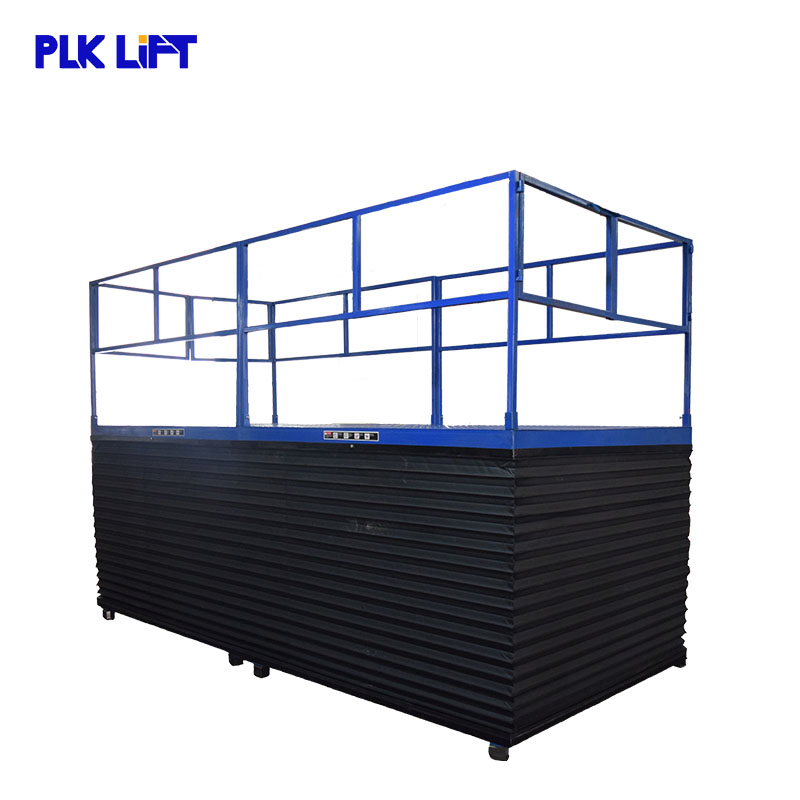

This lift table features advanced safety valves to protect both the cargo and the operator. We offer six types of optional customizations, including rollers, organ covers, and wheels, making it a highly versatile tool for industrial operations. Its compact volume and ease of operation make it a wise investment for any facility.
Technical Parameters
| Model |
Load Capacity (KG) |
Self Height (MM) |
Max Platform Height (MM) |
Platform Size (MM) |
Lifting Time (S) |
Net Weight (KG) |
| HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
| HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
| HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
| HW2004 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 |
| HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
| HW4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 |
| HW1000I | 1000 | 190 | 1010 | 1300*800 | 20~25 | 160 |

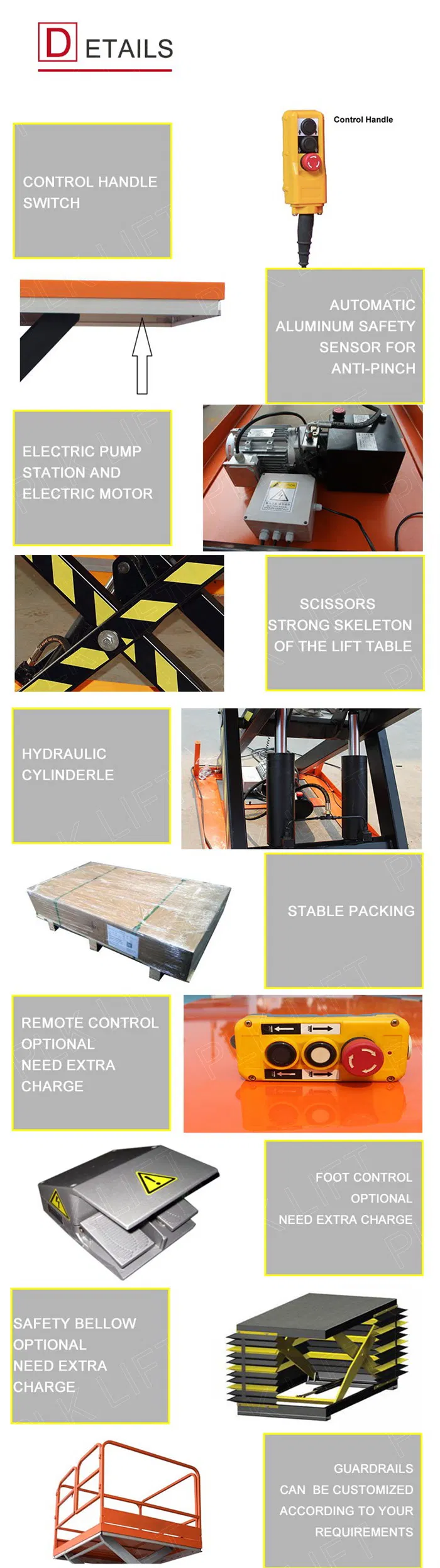

Features & Advantages
✓
Surface Treatment: Shot blasting and stoving varnish for superior anti-corrosion.
✓
High Stability: Premium pump station ensures smooth lifting and lowering.
✓
Self-Lubricating: Main pin-roll points utilize self-lubricating design for longer life.
✓
Safety Sensors: Equipped with aluminum anti-pinch safety sensors under the platform.
✓
Heavy Duty: Cylinders include drainage systems and check valves to prevent accidental drops.
✓
Standards: Complies with American ANSI/ASME and European EN1570 standards.
Safety Precautions
!
Explosion-proof valves: Protects hydraulic pipes against sudden rupture.
!
Spillover valve: Prevents high pressure and allows for pressure adjustment.
!
Emergency decline valve: Allows manual lowering during power outages.
!
Overload protection: Locking device to prevent operation under dangerous loads.
Frequently Asked Questions
Q: What is the maximum load capacity for these lift tables?
A: Our standard models support up to 4000kg, but we offer customized solutions for specific weight requirements.
Q: Can the platform size and voltage be customized?
A: Yes, we provide customization for platform dimensions and support various voltages including 110V, 220V, 380V, and 400V.
Q: What safety standards do your products meet?
A: All our scissor lift tables are CE certified and meet the American ANSI/ASME as well as European EN1570 standards.
Q: How do the safety sensors work?
A: The platform is equipped with an aluminum safety sensor underneath that automatically stops the descent if it encounters any obstacle.
Q: What kind of surface protection is used?
A: We use a combination of shot blasting and stoving varnish to provide a high-quality, anti-corrosive finish.
Q: Is it easy to maintain the hydraulic system?
A: Yes, the brief structure and self-lubricating pin-roll design make the units very easy to operate and maintain over a long lifespan.
