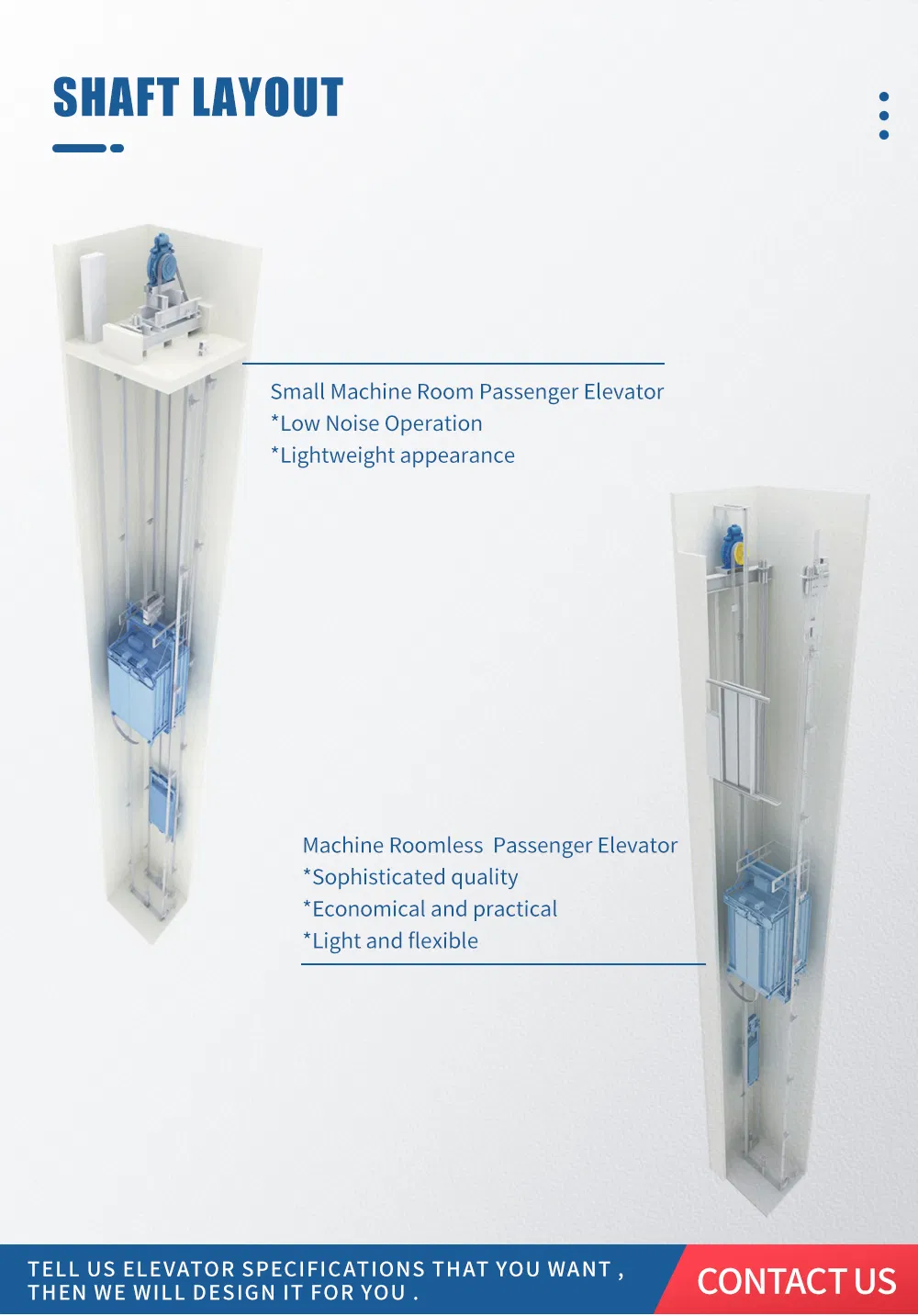

| Small Machine Room Configuration | ||||||
| Passenger | Capacity (Kg) | Speed (m/s) | Car Size (W*D*H) | Shaft Min. (W*D) | Overhead Height | Rise Max. (m) |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2200*1650 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1350*2400 | 2250*1850 | 4600 | 150 |
| 13 | 1000 | 1.0-2.5 | 1600*1500*2400 | 2400*1950 | 4800 | 150 |
| Machine Roomless (MRL) Configuration | ||||||
| Passenger | Capacity (Kg) | Speed (m/s) | Car Size (W*D*H) | Shaft Min. (W*D) | Overhead Height | Rise Max. (m) |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2250*1700 | 4800 | 90 |
| 13 | 1000 | 1.0-2.5 | 1600*1500*2400 | 2450*2000 | 4800 | 150 |

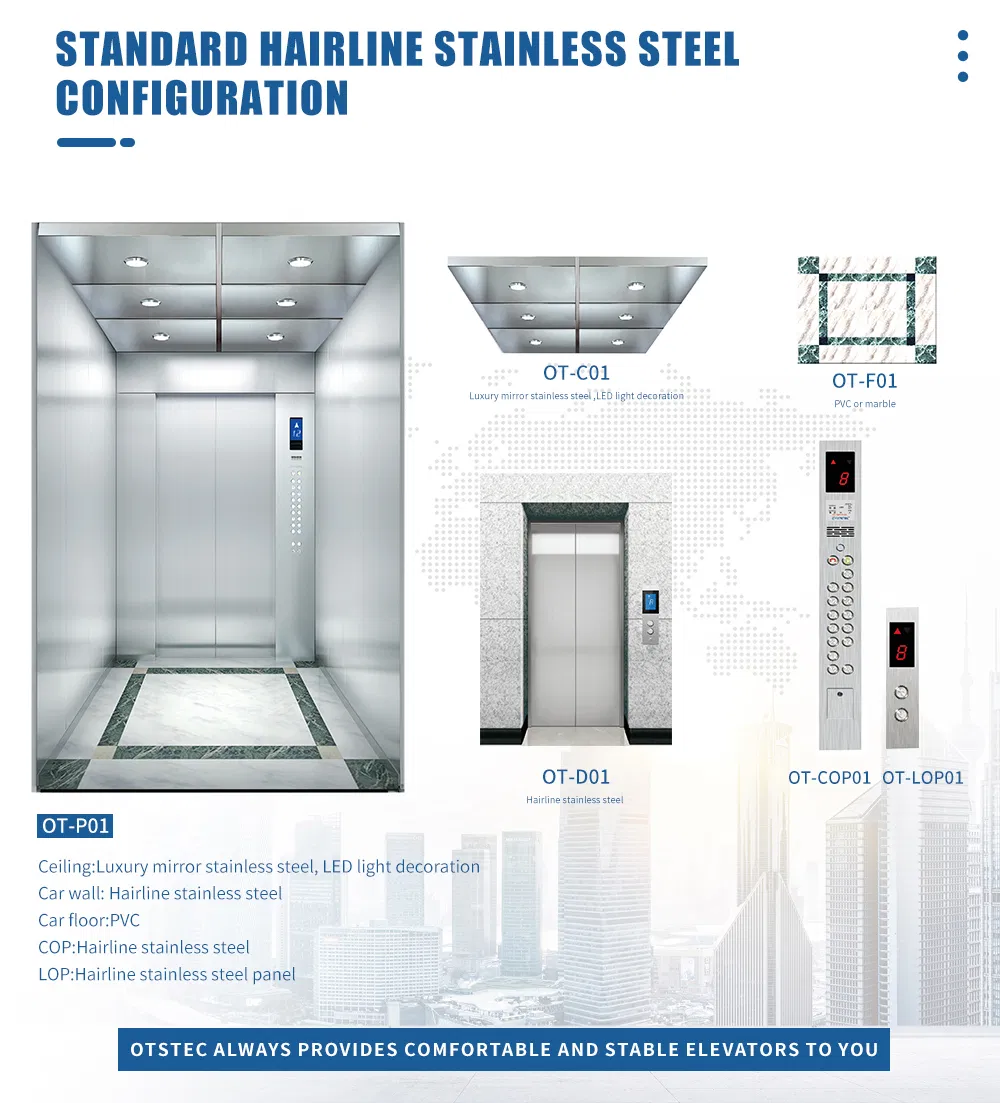

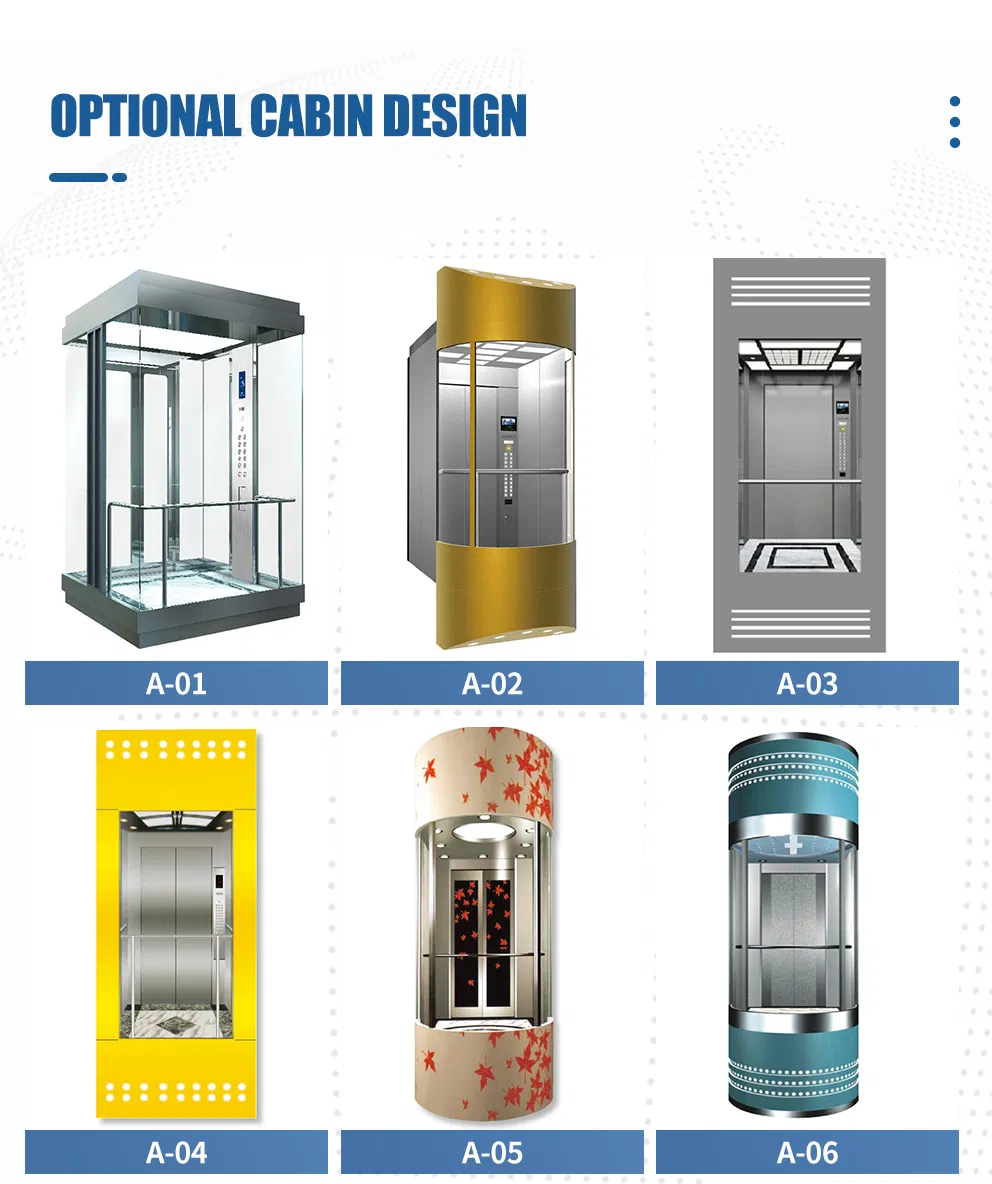

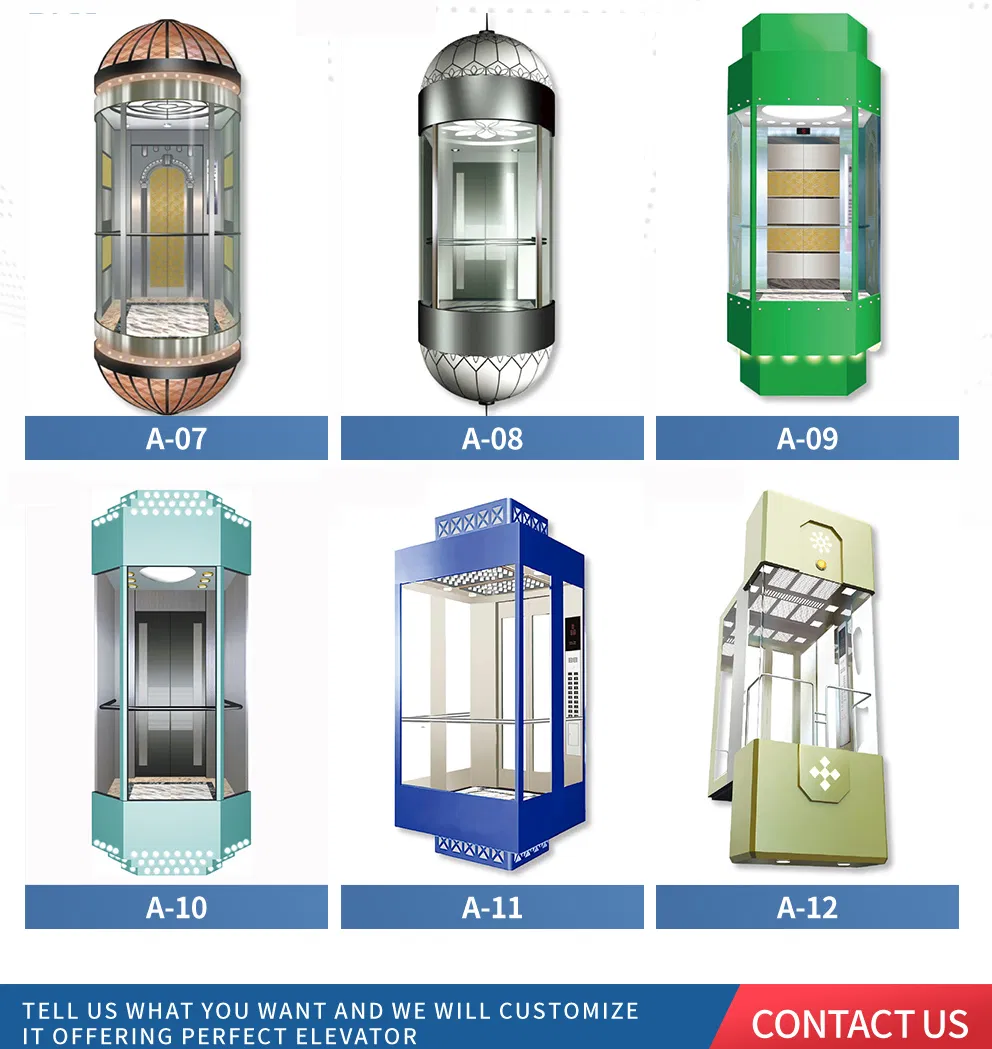

1. Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, glass;
2. Capacity: 250KG, 320kg, 400kg to 1600kg;
3. Speed: 0.4m/s up to 4.0m/s;
4. Control System: Monarch Technology;

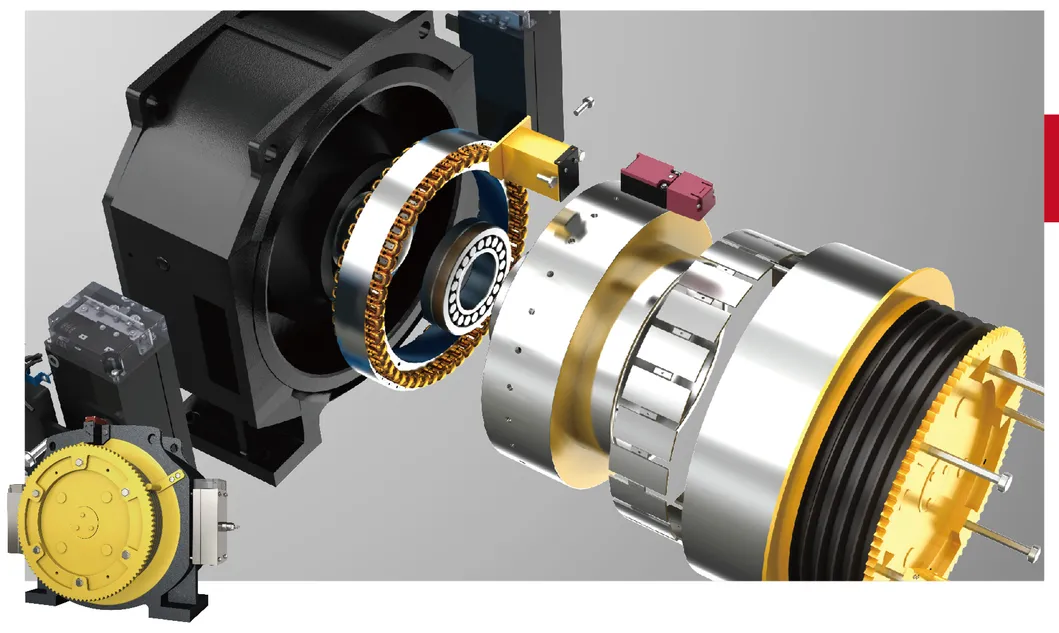

It uses rare earth materials and fully integrates coaxial transmission technology with digital frequency technology. Highly efficient and energy-saving, it can save up to 40% energy compared to traditional technology. The gearless design requires no grease, eliminating oil contamination and reducing noise for a quiet ride.
Automatically adjusts the current and precisely controls the torque of the host machine according to the load. This ensures the elevator remains stable, smooth, and comfortable during acceleration and deceleration.

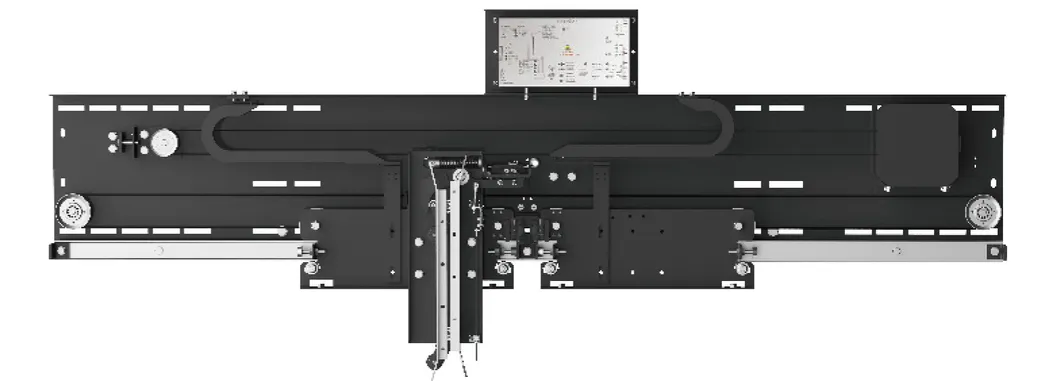

Application of advanced VVVF control ensures smooth and quiet door operation. The door load detector with self-learning capability monitors changes for each floor and automatically reopens if any resistance is detected, ensuring maximum safety.
We use top-tier global components: gearless motors from leading manufacturers, door operators from Wittur or Shenling, and control systems from Monarch or STEP. Our strict management ensures that the elevator design, quality control, and delivery are seamless, resulting in stable and efficient operation.
