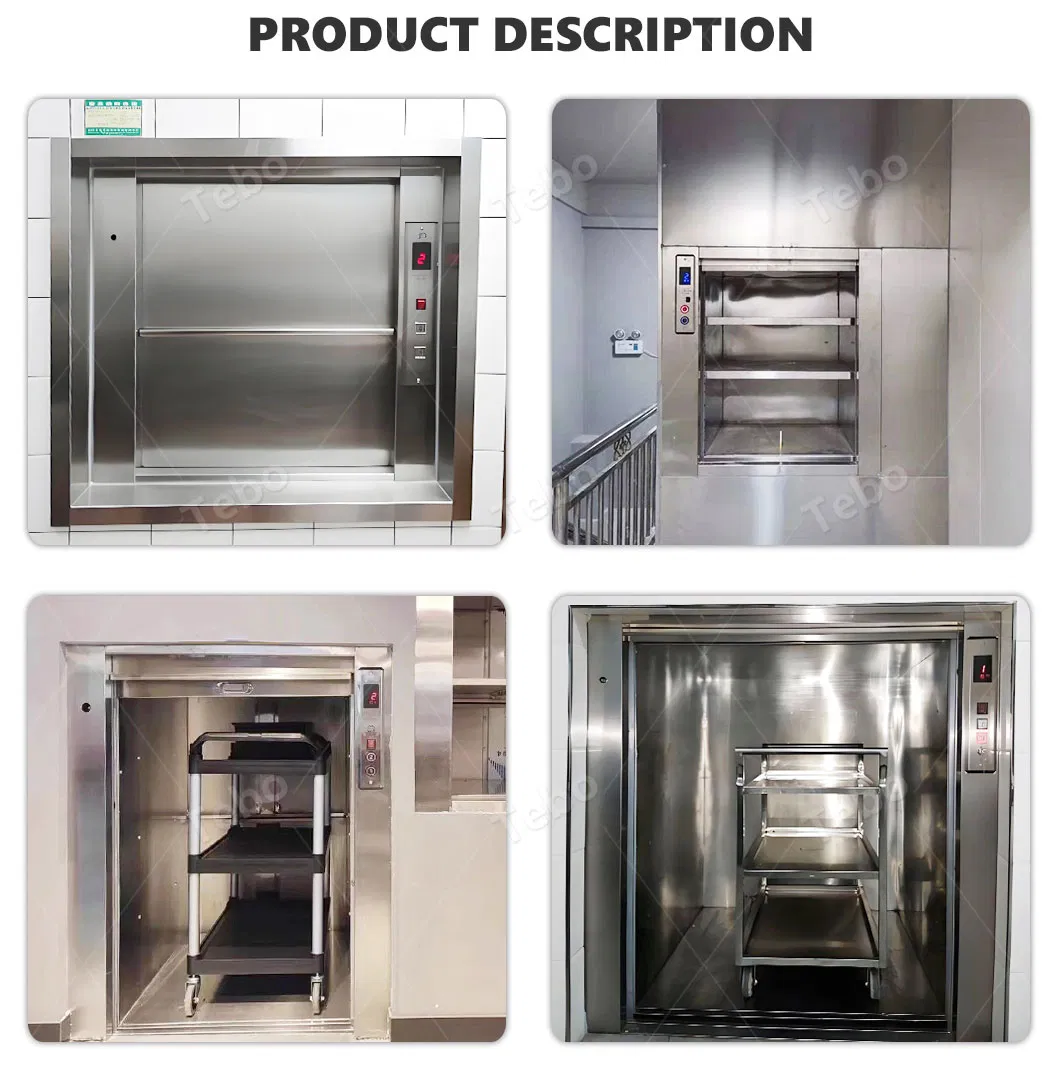

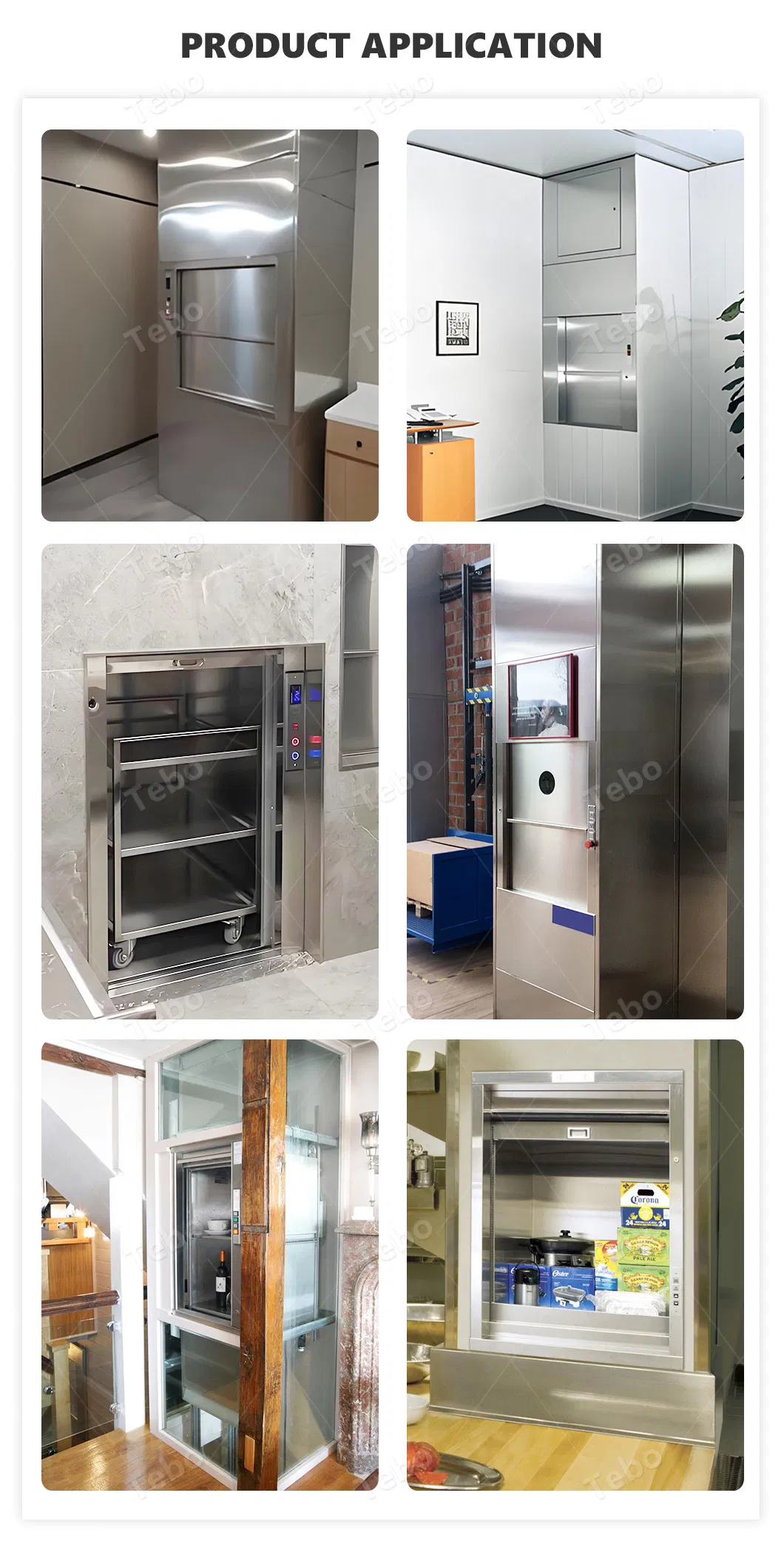

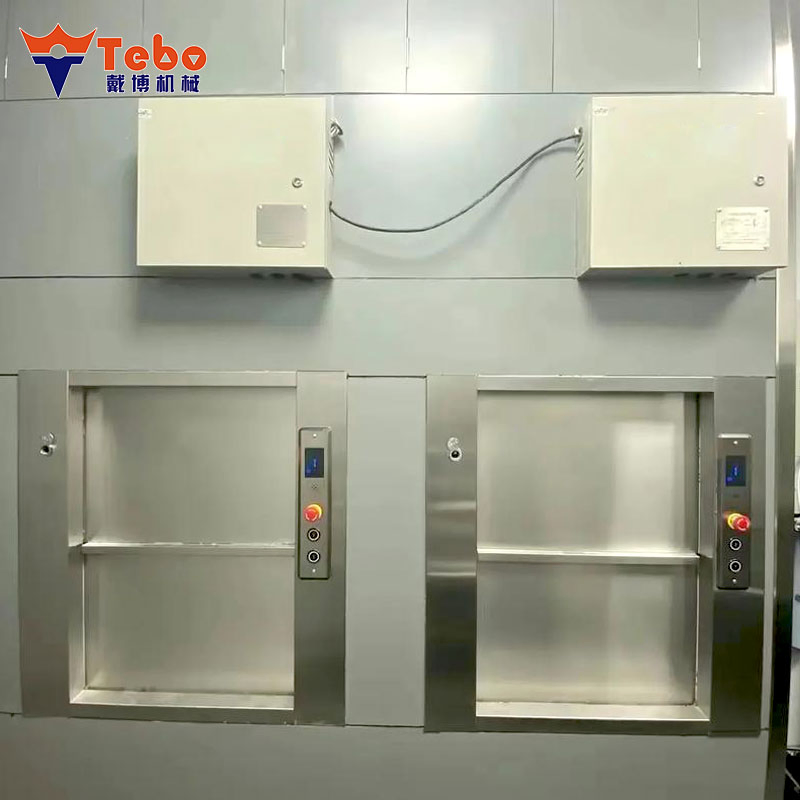

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.
Technical Parameters

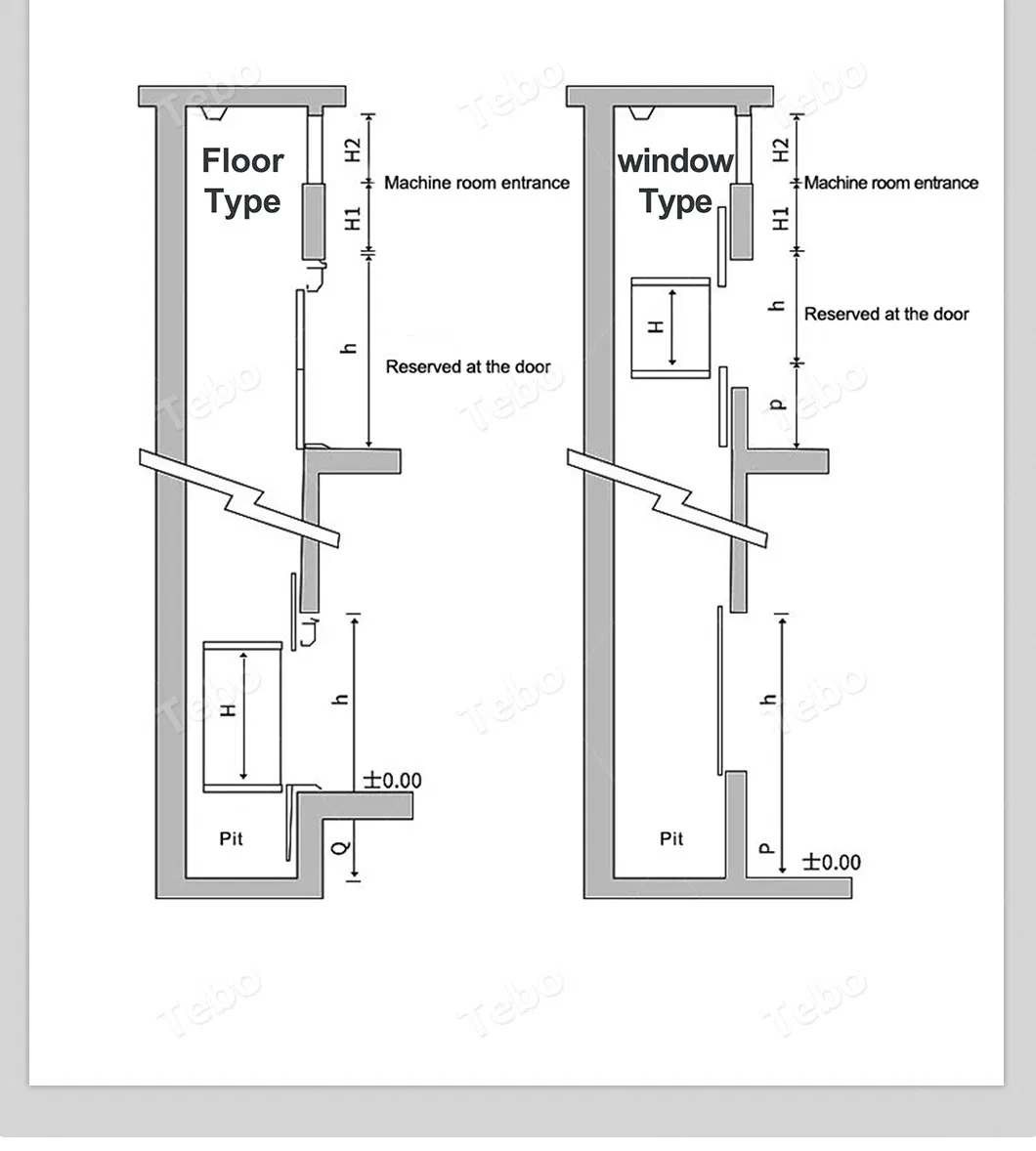

Window Type Parameters
Type
Load(kg)
Cabin Dimension (W*D*H mm)
Landing Door
Cabin Door
Door Size (W*H mm)
Sill Height
Overhead Height
Window Type
100
600*400*800
Standard
Optional
600*800
800
2800
Window Type
100
600*600*800
Standard
Optional
600*800
800
2800
Window Type
200
800*800*800
Standard
Optional
800*800
800
2800
Window Type
200
1000*1000*1000
Standard
Optional
1000*1000
800
3200
Floor Type Parameters
Type
Load(kg)
Cabin Dimension (W*D*H mm)
Landing Door
Cabin Door
Door Size (W*H mm)
Min Pit Depth
Overhead Height
Floor Type
200
800*800*1000
Standard
Optional
800*1000
600
2800
Floor Type
300
1000*1000*1200
Standard
Optional
1000*1200
700
3200
Floor Type
400
1000*1200*1400
Standard
Optional
1200*1400
800
3600

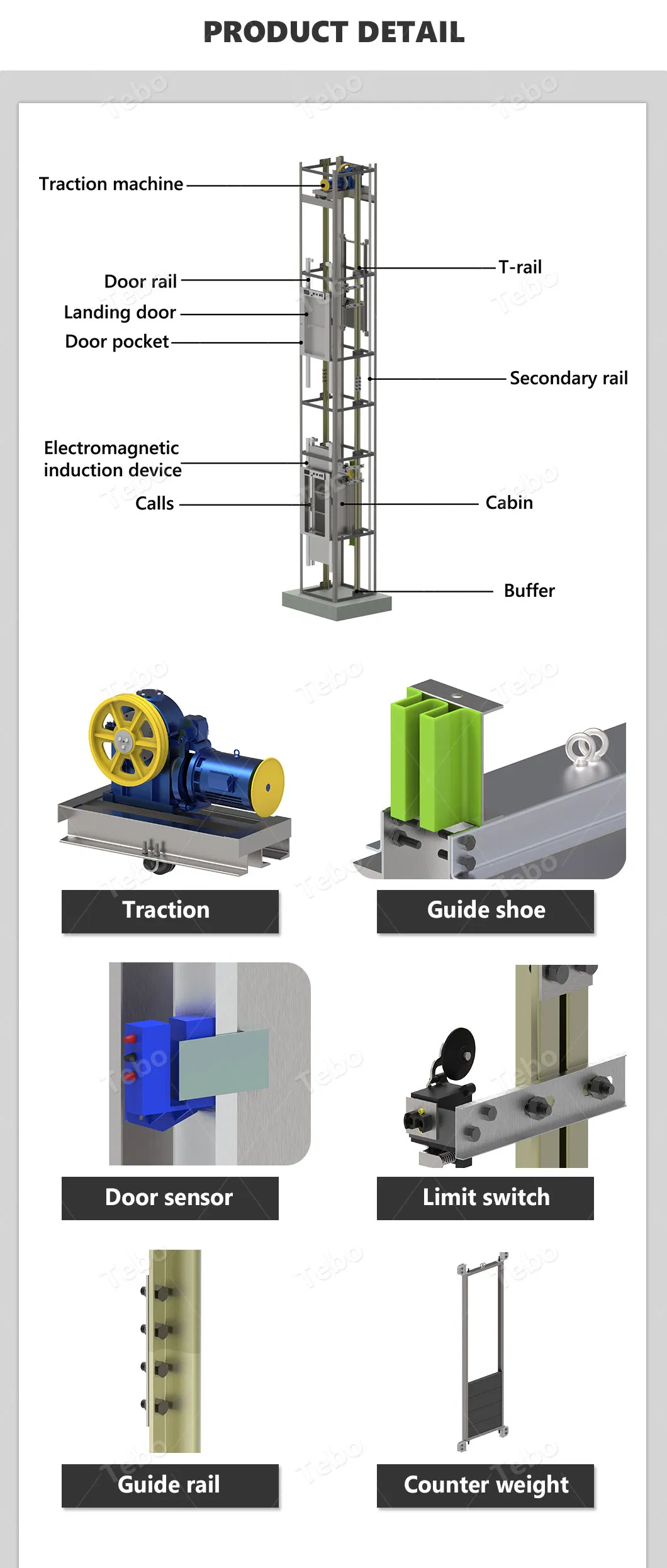

Product Details

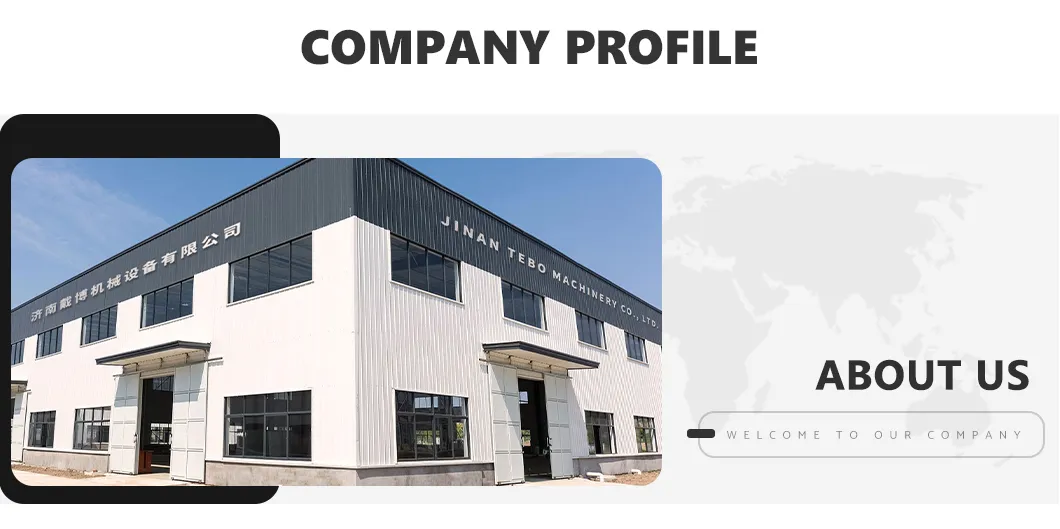

About Our Enterprise

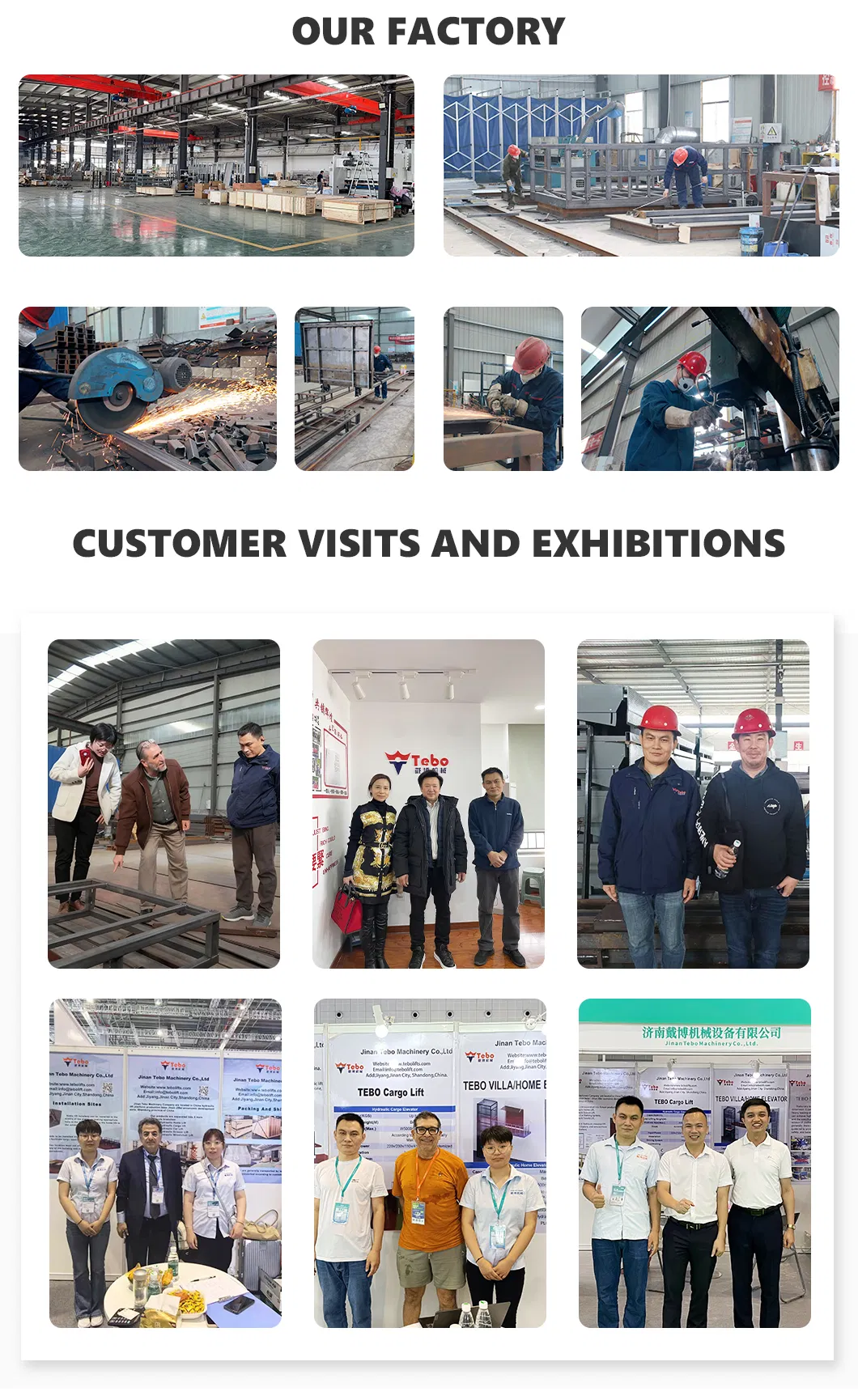

We are a Chinese enterprise specializing in the R&D and manufacturing of mechanical equipment. Our company has assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, having secured numerous independent intellectual property rights and patent technologies.
Our core range includes hydraulic home elevators, freight lifts, car lifts, and scissor lift platforms. Equipped with advanced CNC machining centers and automated welding equipment, we ensure efficient production from components to assembly, meeting stringent requirements for performance and reliability.
Certifications & Shipping
Frequently Asked Questions
1. What are the main advantages of your lift equipment?
We are among the leading manufacturers in China, offering competitive pricing and superior quality. Our lifts feature durable stainless steel construction, smooth traction systems, and comprehensive safety features like door interlocks and overload protection.
2. Do you provide installation support?
Yes, we provide detailed assembly drawings and installation manuals. For custom models, our engineers offer consultation to ensure a smooth setup process.
3. What is the standard lead time for shipping?
Typically, shipping takes about 10 working days after payment is received, depending on the specific product and customization requirements.
4. How is the equipment packaged for export?
We primarily use robust plywood cases to ensure safety during transit. We can also accommodate special shipping marks and requirements upon request.
5. What are the accepted payment terms?
We accept various international terms including EXW, FOB, CFR, and CIF. Production begins after order confirmation and payment, with the balance due before delivery.
6. Is the lift customizable for specific site dimensions?
Absolutely. All parameters, including cabin size, load capacity, and overhead height, can be customized to fit your specific architectural layout and operational needs.
