VERTRA villa elevator transfers individuality and pragmatic properties with unique styles. A life with intelligent household appliances is not just about art & high-tech. It is back to life. It expresses a life attitude through creation.
Realizing perfect connection between elevator and home furnishing, satisfying demand for life with superior quality, and enjoying the beauty of a comfortable home.
| Persons | Rated Capacity (kg) | Rated Speed (m/s) | Net Car Size (WxD) | Door Opening | Shaft Size (WxD) | Overhead (HR.H) | Pit Depth |
|---|---|---|---|---|---|---|---|
| 5 | 450 | 1.0 | 1100x1100 | 700x2100 | 1950x1750 | 4500 | 1500 |
| 8 | 630 | 1.0 - 1.75 | 1400x1100 | 800x2100 | 2250x1850 | 4500-4700 | 1500-1700 |
| 10 | 800 | 1.0 - 1.75 | 1450x1600 | 800x2100 | 2250x1950 | 4500-4700 | 1500-1700 |
| 13 | 1000 | 1.0 - 1.75 | 1450x1600 | 900x2100 | 2350x2150 | 4500-4700 | 1500-1700 |

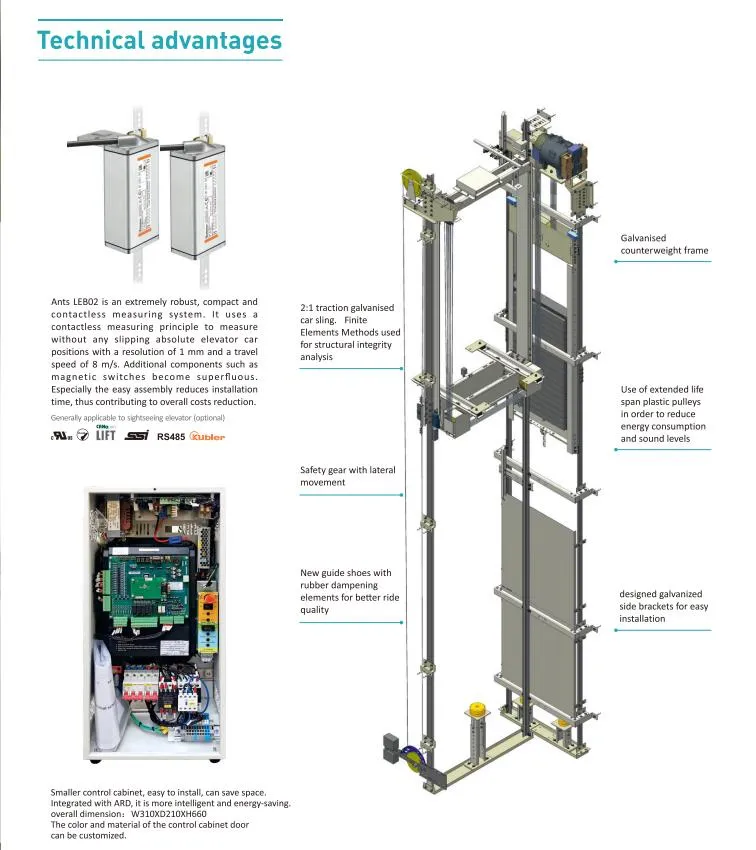

VERTRA Elevator puts safety in the first place, ensuring each passenger's safe delivery to their destination with redundant security systems.
Optimized for space-saving, our designs improve shaft availability and reduce the footprint required in residential buildings.

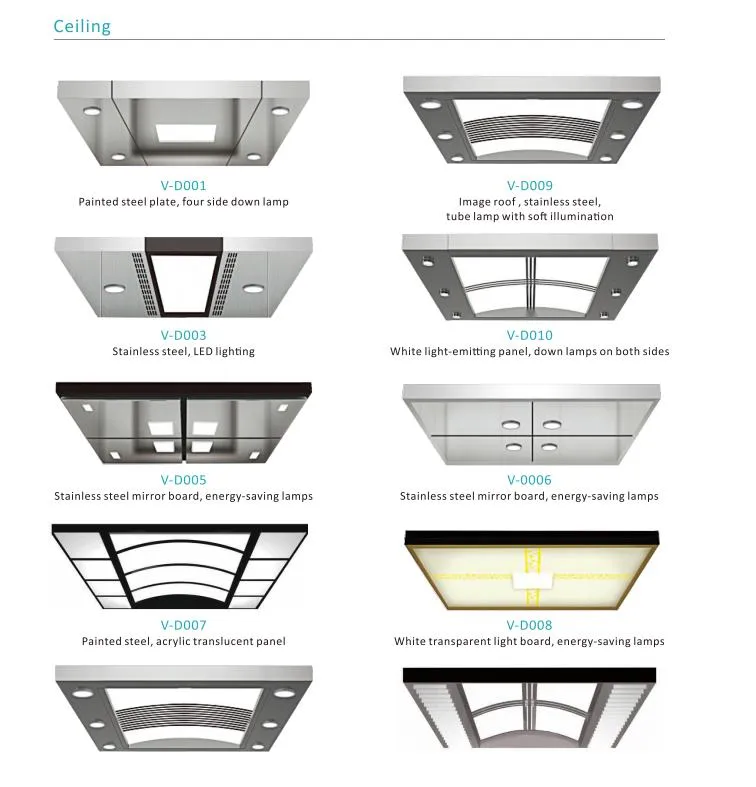

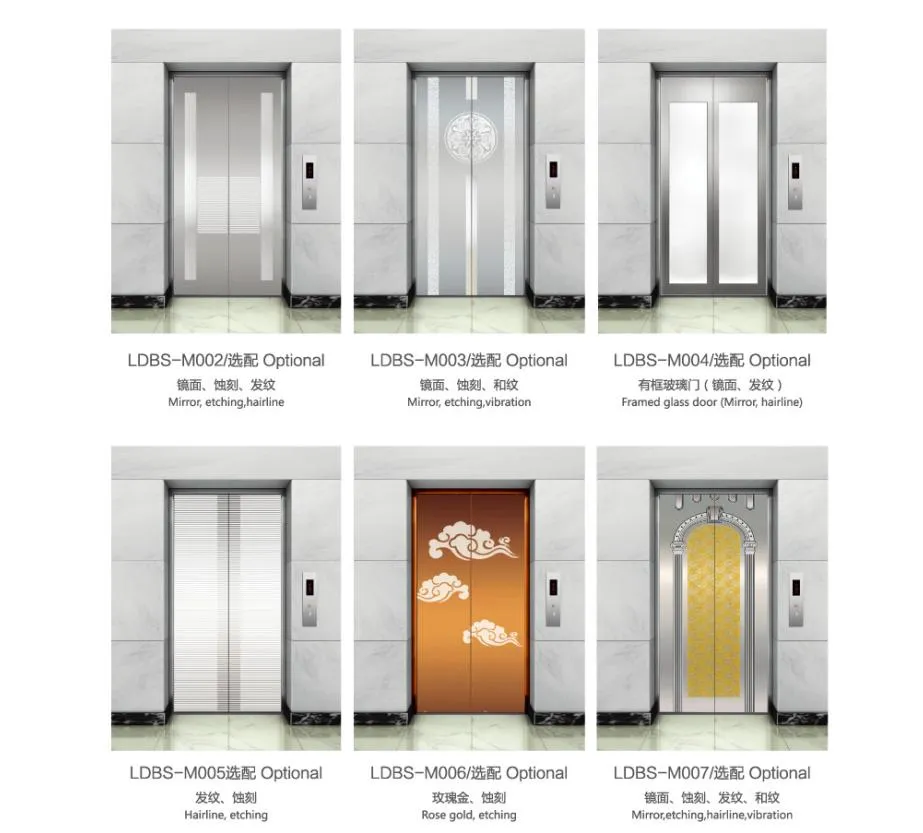

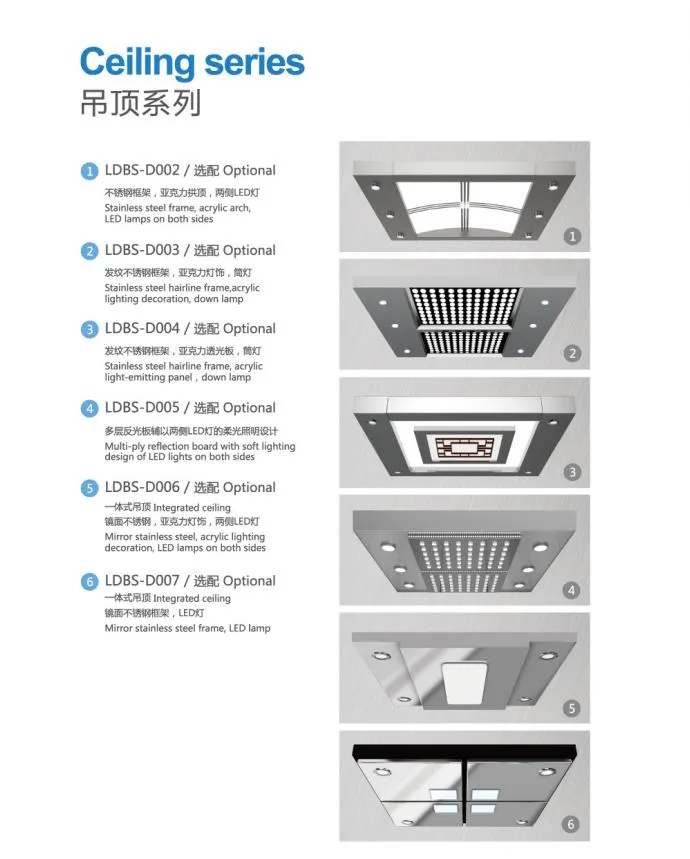

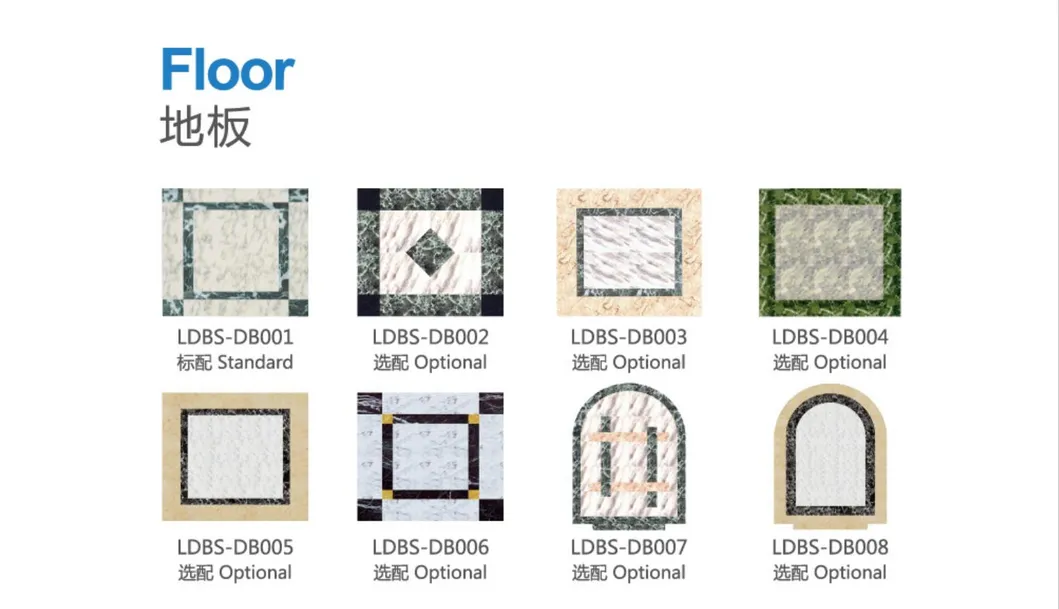

Customers can choose customized appearances including car finish, lighting design, ceiling patterns, and floor materials.
Adopts a low-noise execution unit to avoid traditional contactor noise, granting a quiet, green, and graceful environment.
