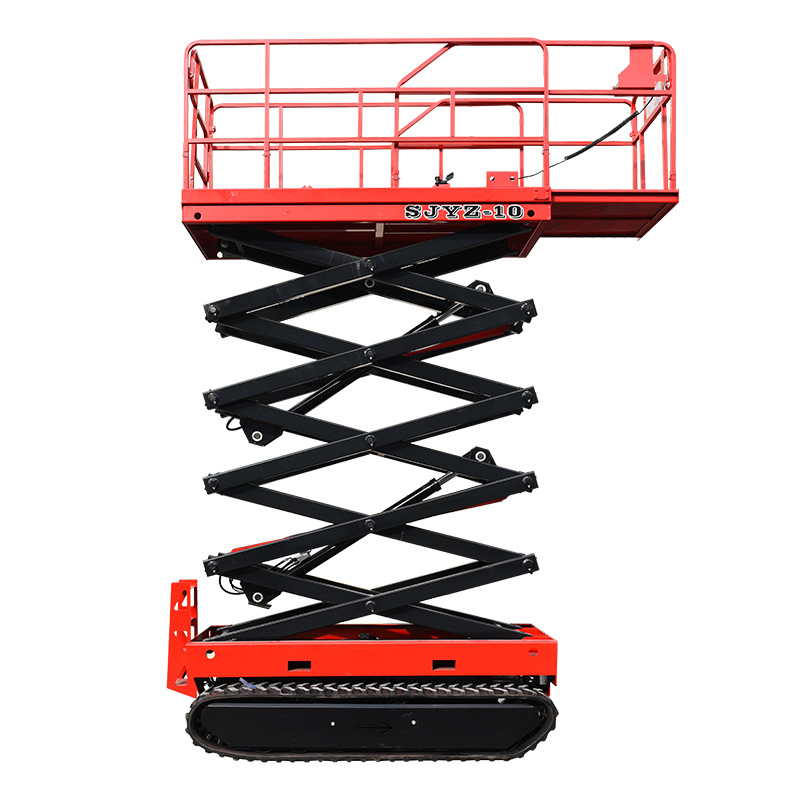

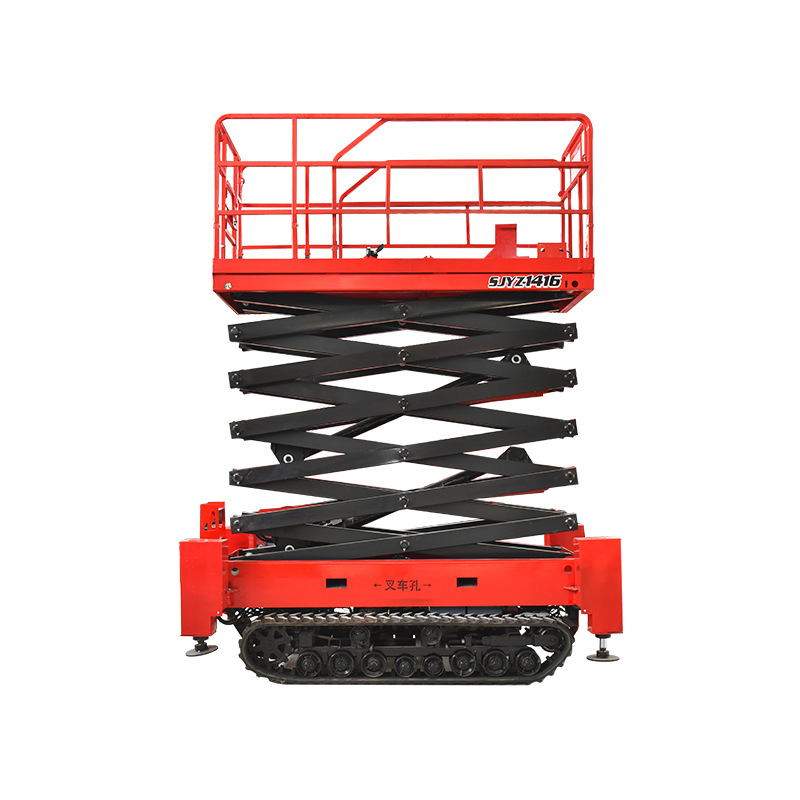

Pallet Lifter 6-12m Hydraulic Electric Crawler Wheels Scissor Lifting Platform on Tracks

1 / 5

Pallet Lifter 6-12m Hydraulic Electric Crawler Wheels Scissor Lifting Platform on Tracks

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

Crawler Type

Lift Mechanism

Scissor Lift

Carrying Capacity

Weight Level

Driven Type

Hydraulic

Feature

Explosion-Proof

Power Source

24V DC or 48V

Travel Speed (Raised)

0.5km/H

Table Size

2270*1120mm

Battery

6V/230ah

Load Capacity

320kg-450kg

Working Height

6-12m

Extend Platform

900mm

Overall Size

2480*1390*(2200-2635)mm

Production Capacity

8000 Pieces Per Month

🛠️ Product Overview

Main Advantages:

Lifting height versatile options from 6m to 16m.
Advanced electric model available in both wheel or track configurations.
Rough Terrain Crawler design specifically engineered for challenging work environments.
Superior capability to cross rough obstacles like grassland and uneven construction grounds.

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Extendable Platform Capacity	113kg	113kg	113kg	113kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Extendable Platform Length	900mm	900mm	900mm	900mm
Ground Clearance	150mm	150mm	150mm	150mm
Drive Speed	2.4km/h	2.4km/h	2.4km/h	2.4km/h
Net Weight	2400kg	2550kg	2840kg	3000kg

📸 Product Gallery

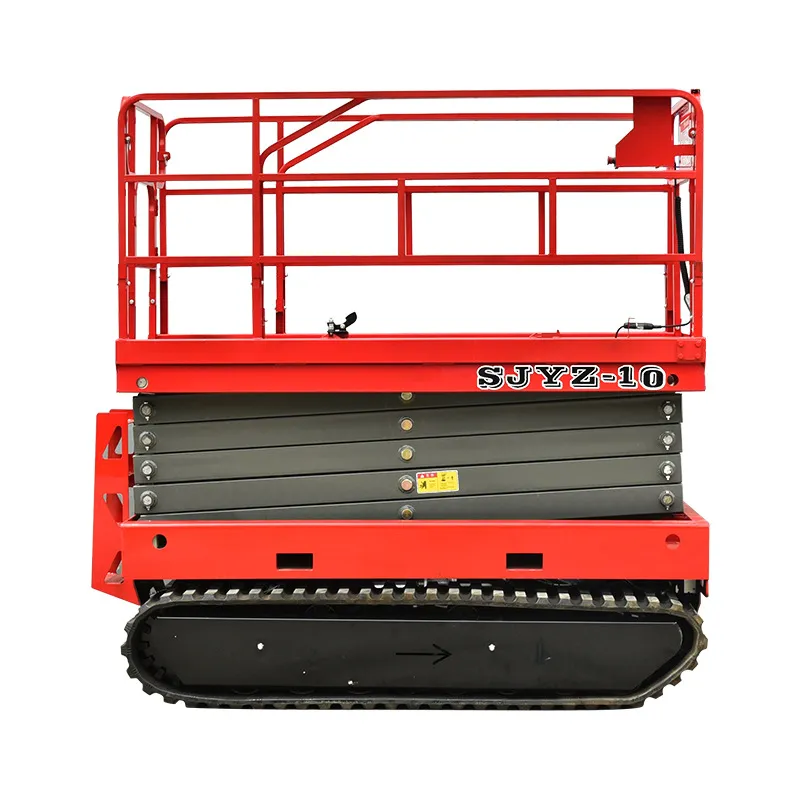

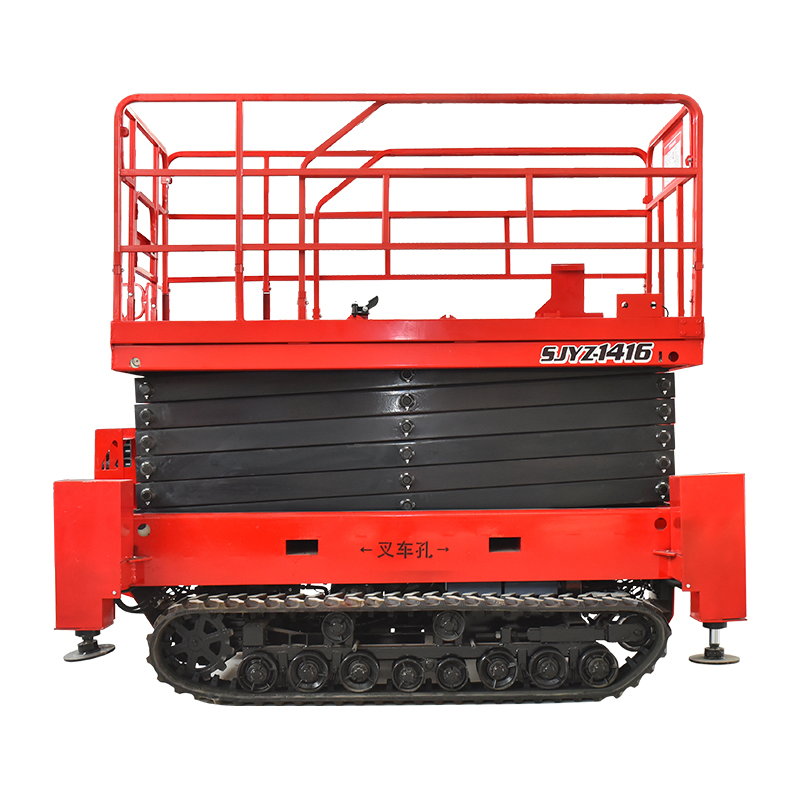

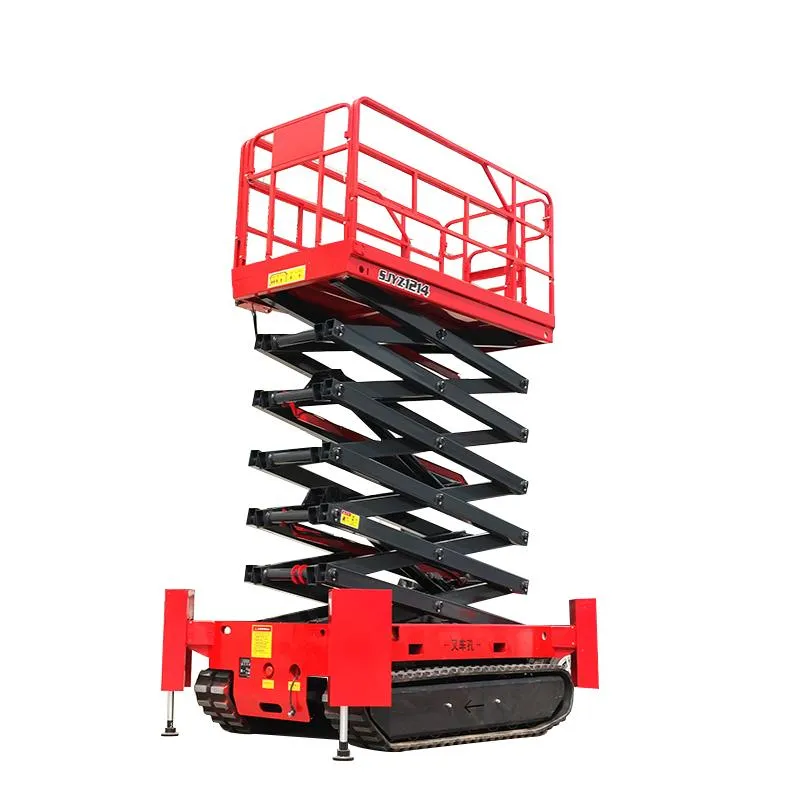

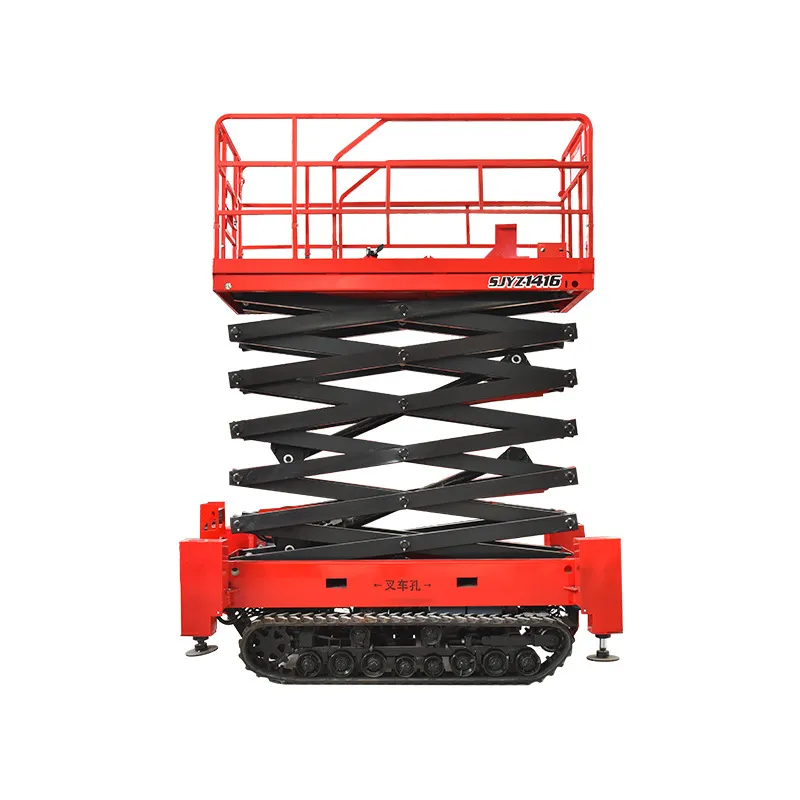

The Crawler Type Scissor Lift adopts a dedicated crawler design to ensure maximum stability and mobility. It is the ideal solution for outdoor projects requiring reliable elevation on unstable soil or debris-filled sites.

❓ Frequently Asked Questions

Q: What makes the crawler scissor lift different from standard models?

A: It features a specialized track design (crawler) instead of wheels, allowing it to operate efficiently on rough terrain, grass, and construction sites where traditional wheels might get stuck.

Q: What is the maximum working height available for this series?

A: The series offers a range of working heights, typically from 8 meters up to 14 meters, depending on the specific model selected.

Q: How much load can the platform handle?

A: The load capacity ranges from 320kg to 450kg, which is sufficient for multiple workers and their necessary equipment.

Q: Is the platform extendable for extra reach?

A: Yes, these models come with an extendable platform of 900mm to provide additional horizontal workspace.

Q: What type of power source is required?

A: The lifts are powered by a 48V DC battery system, making them suitable for both indoor and outdoor use without emission concerns.

Q: What is the travel speed of the unit?

A: The unit can travel at 2.4km/h when stowed. For safety, the travel speed is reduced to 0.5km/h when the platform is raised.
