Basic Specifications
Type

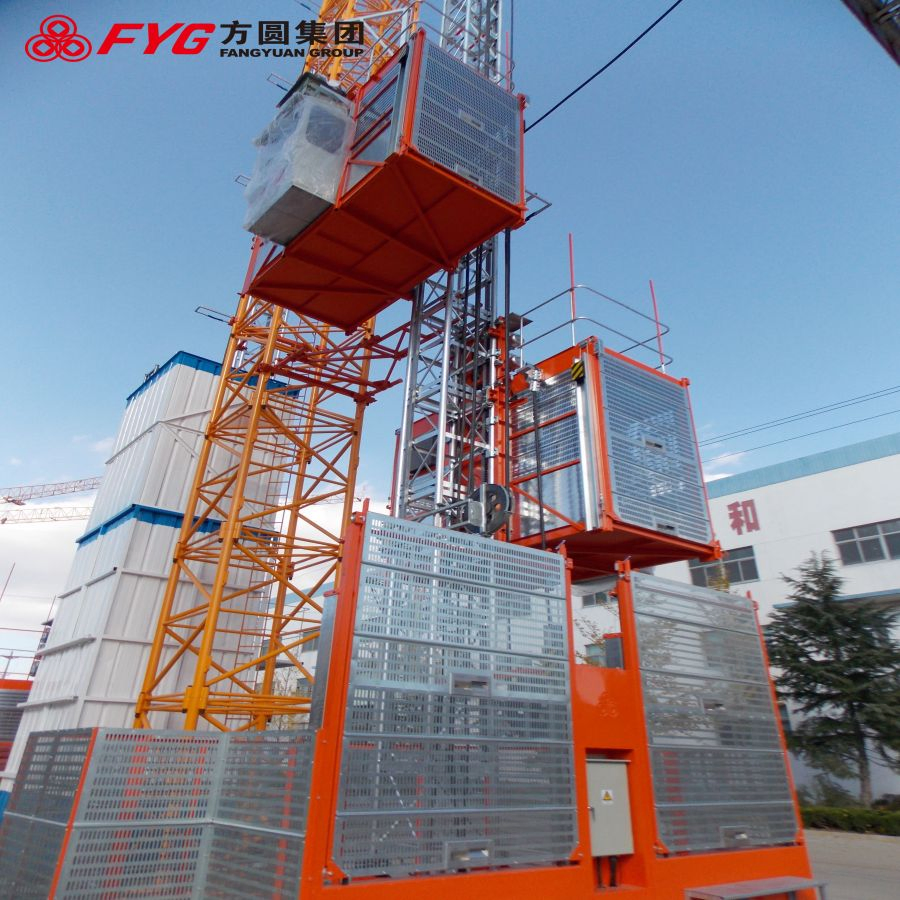

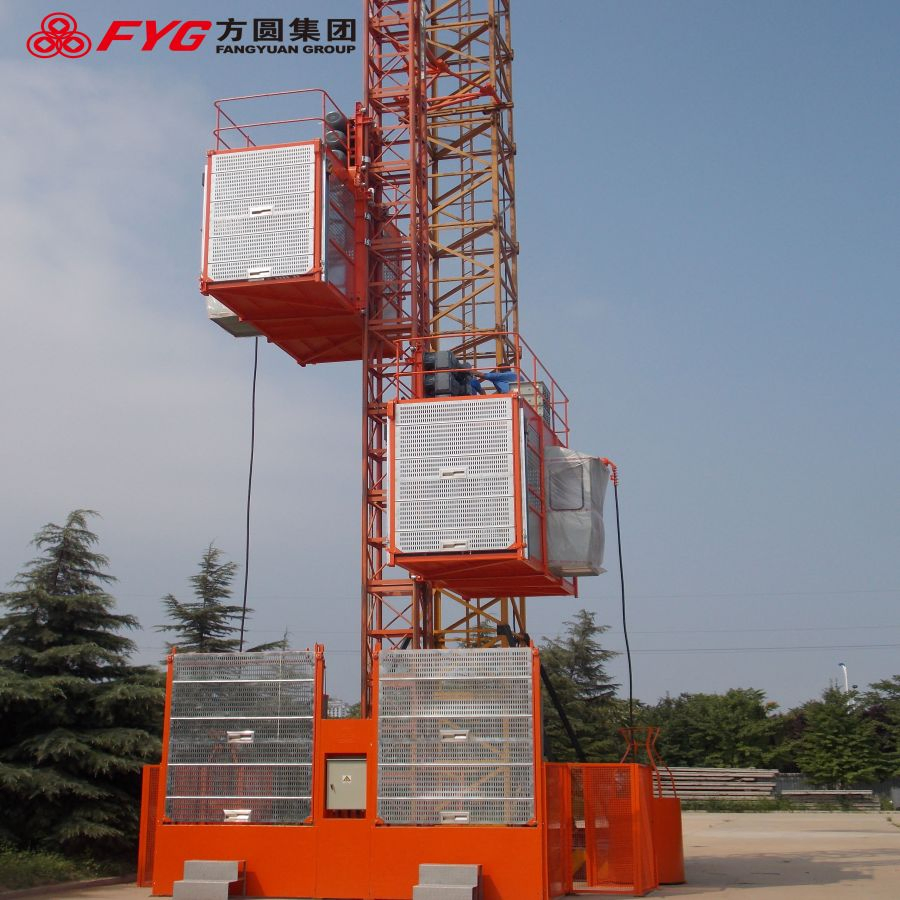

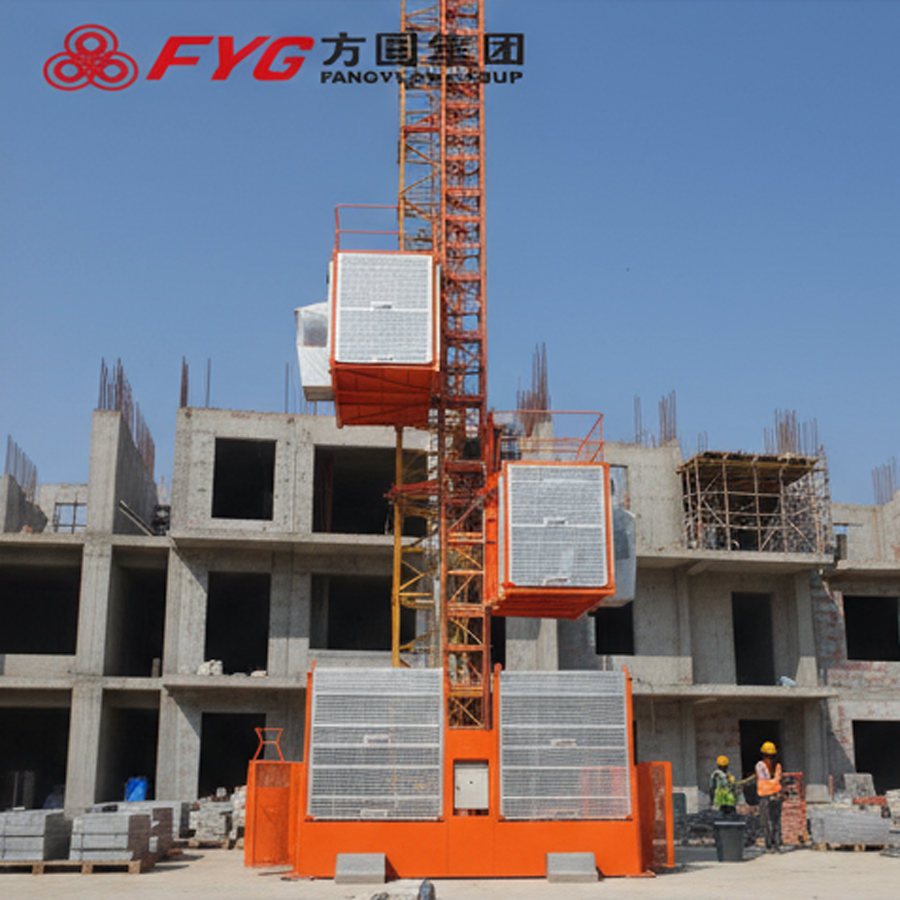

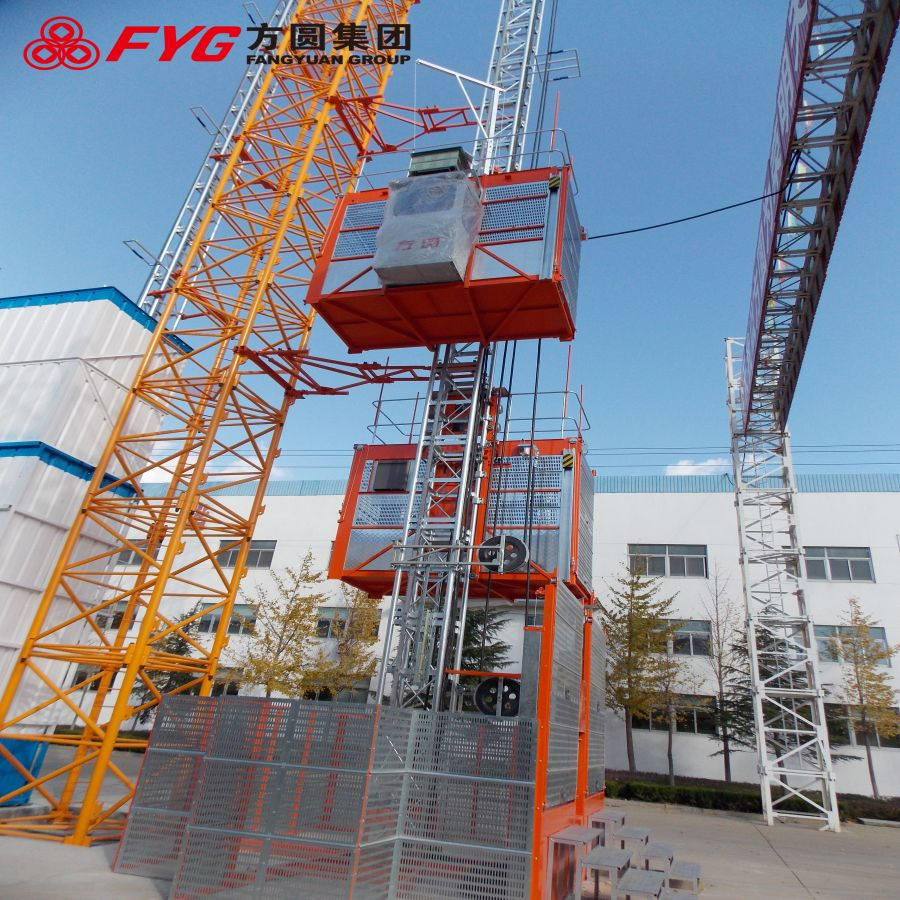

Construction Elevator
Lift Drive
Electric Motor
Key Features & Advantages
★
The cage drive system is equipped with a buffering device, ensuring more stable movement.
★
Ergonomically designed cage interior significantly improves operator comfort.
★
Unique structural design applied for patent for enhanced performance.
★
Advanced typical technologies ensure precise guide rail alignment.
★
Industry-leading components ensure the reliable quality of the machine.
★
Precise assembly processes for an accurate and smooth drive system.
★
Professional customized solutions available for special construction projects.
★
Complete safety devices integrated for a reliable control system.
Technical Parameters
| Model |
Unit |
SC200/200 |
SC200/200BP |
SCD200/200 |
SC200/200B |
| Configuration |
- |
Standard type |
Frequency conversion |
Counterweight type |
Export type |
| Rated load |
kg |
2000/2000 |
2000/2000 |
2000/2000 |
2000/2000 |
| Cage size L×W×H |
m |
3×1.3×2.2 |
3×1.3×2.2 |
3×1.3×2.2 |
3×1.3×2.2 |
| Passengers |
- |
16/16 |
16/16 |
16/16 |
16/16 |
| Max. lifting height |
m |
150 |
300 |
150 |
150 |
| Lifting speed |
m/min |
33 |
0~60 |
33 |
33 |
| Std. section size |
mm |
650×650×1508 |
| Electric motor |
Type |
- |
Disc brake electric motor |
| Power |
kW |
11×3/11×3 |
11×3/11×3 |
11×2/11×2 |
11×3/11×3 |
Product Display
Frequently Asked Questions
What is the maximum load capacity of the SC200/200 model?
The SC200/200 model features a dual-cage design with a rated load capacity of 2000kg (2 tons) per cage.
Does this elevator support frequency conversion for speed control?
Yes, the SC200/200BP model is specifically designed with frequency conversion, allowing for adjustable speeds from 0 to 60 m/min.
What safety mechanisms are included in the hoist?
The equipment includes a complete safety system with a buffering device, a speed limiter with precise action speeds (1.2-1.45 m/s), and a disc brake electric motor.
What is the standard cage size for these models?
The standard cage dimensions are 3 meters in length, 1.3 meters in width, and 2.2 meters in height (3×1.3×2.2m).
How high can this construction elevator reach?
The standard models reach up to 150 meters, while the frequency conversion model (SC200/200BP) can reach a maximum lifting height of 300 meters.
Are custom solutions available for unique construction projects?
Yes, we provide professional solutions tailored for special projects to meet specific site requirements and structural challenges.
