Mini Home Elevator Passenger Elevator House Lift for Elder

Customization:	Available
After-sales Service:	One-Year Free Warranty
Warranty:	One Year

Send Inquiry

Product Description

Basic Product Information

Model NO.

Passenger Elevator-XW-K11- (1)

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

2.00 - 3.50m/s

Control Mode

Collective Selective Control

Computer Room

Without Computer Room

Door Type

Center Opening Door

Production Capacity

10000 Units / Year

Origin

China

Product Description

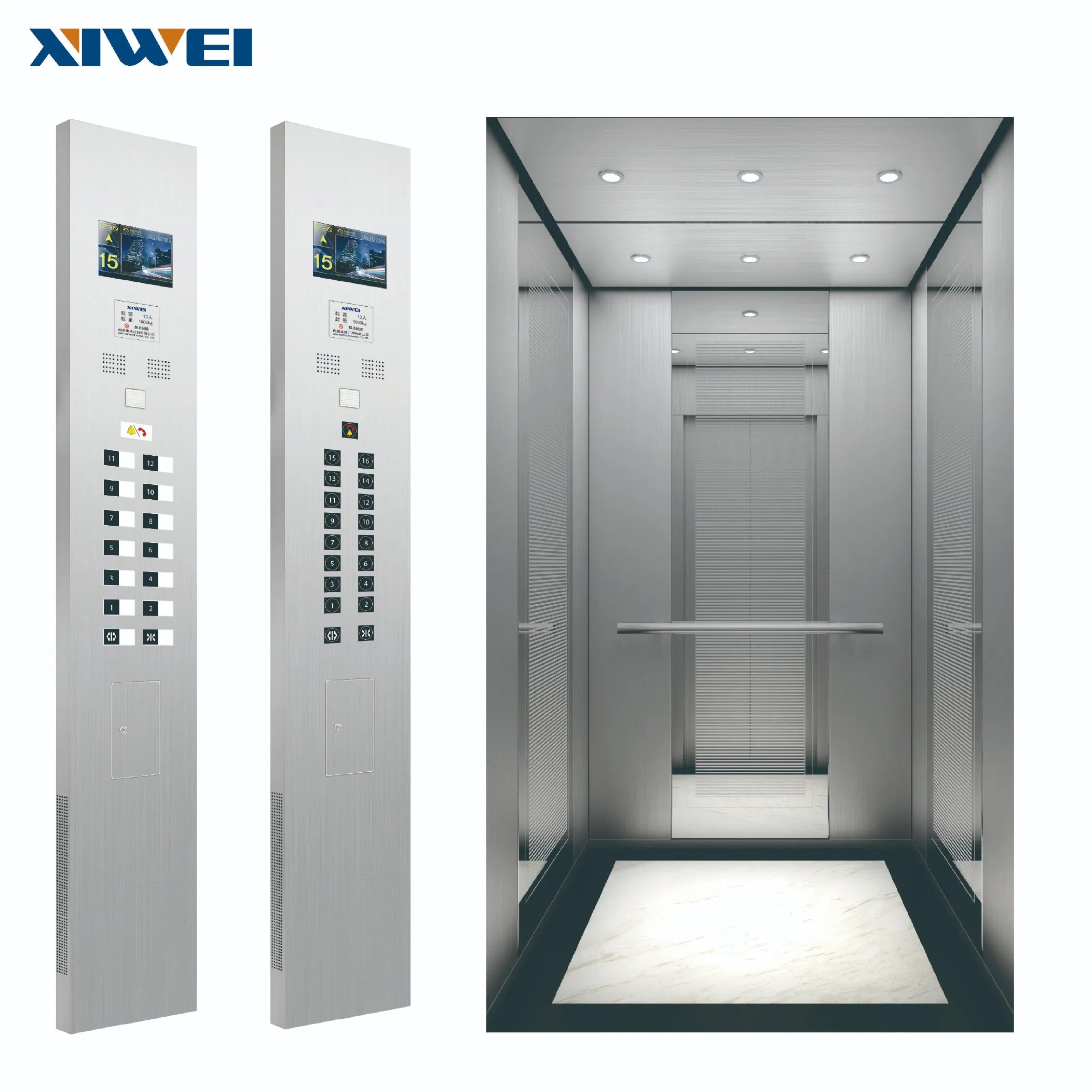

Model XW-K11

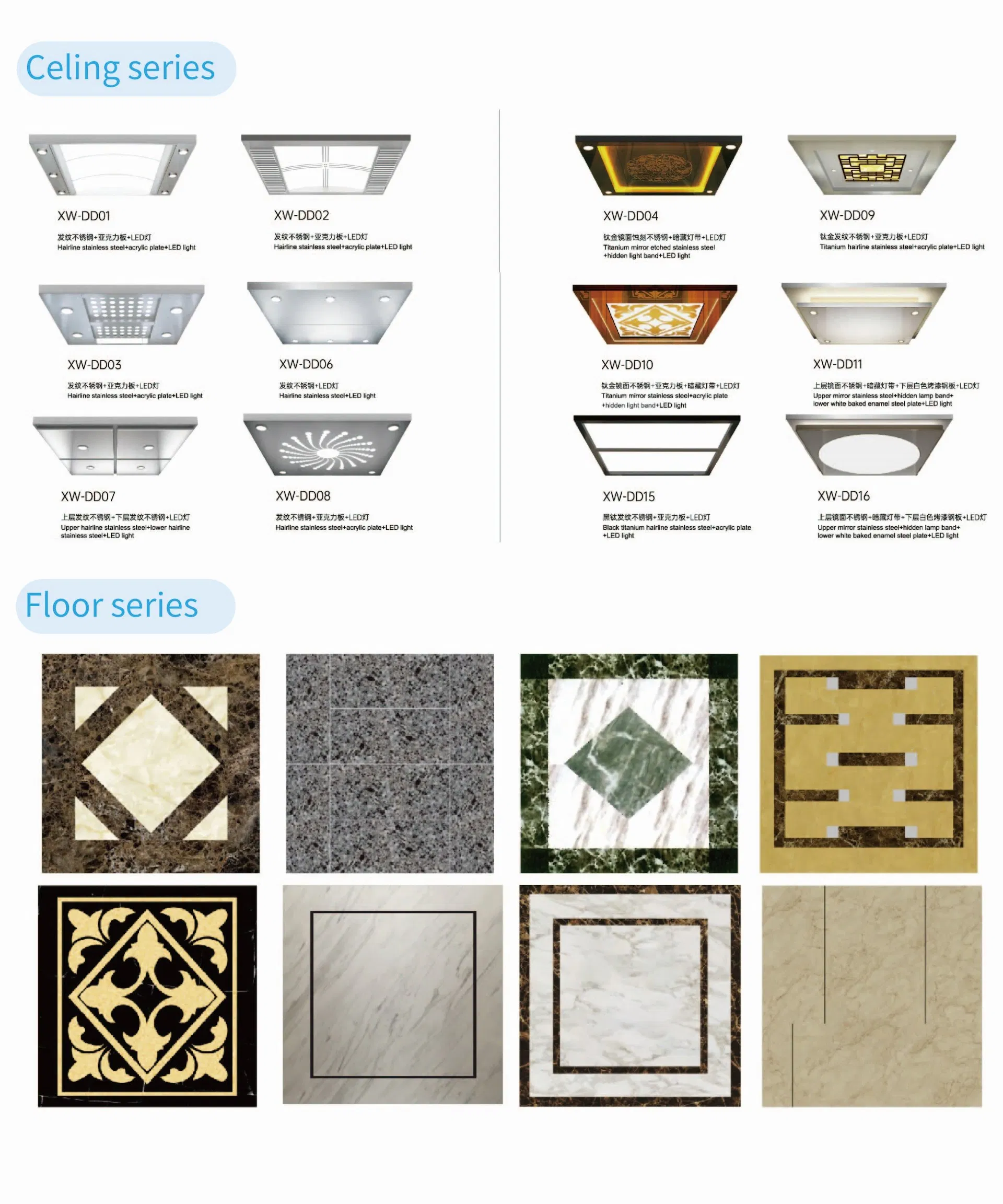

Split ceiling (XW-DD15): Hairline stainless steel + acrylic plate + energy saving light

Car wall: Hairline stainless steel + rear-wall center mirror etched

Front wall: Hairline stainless steel

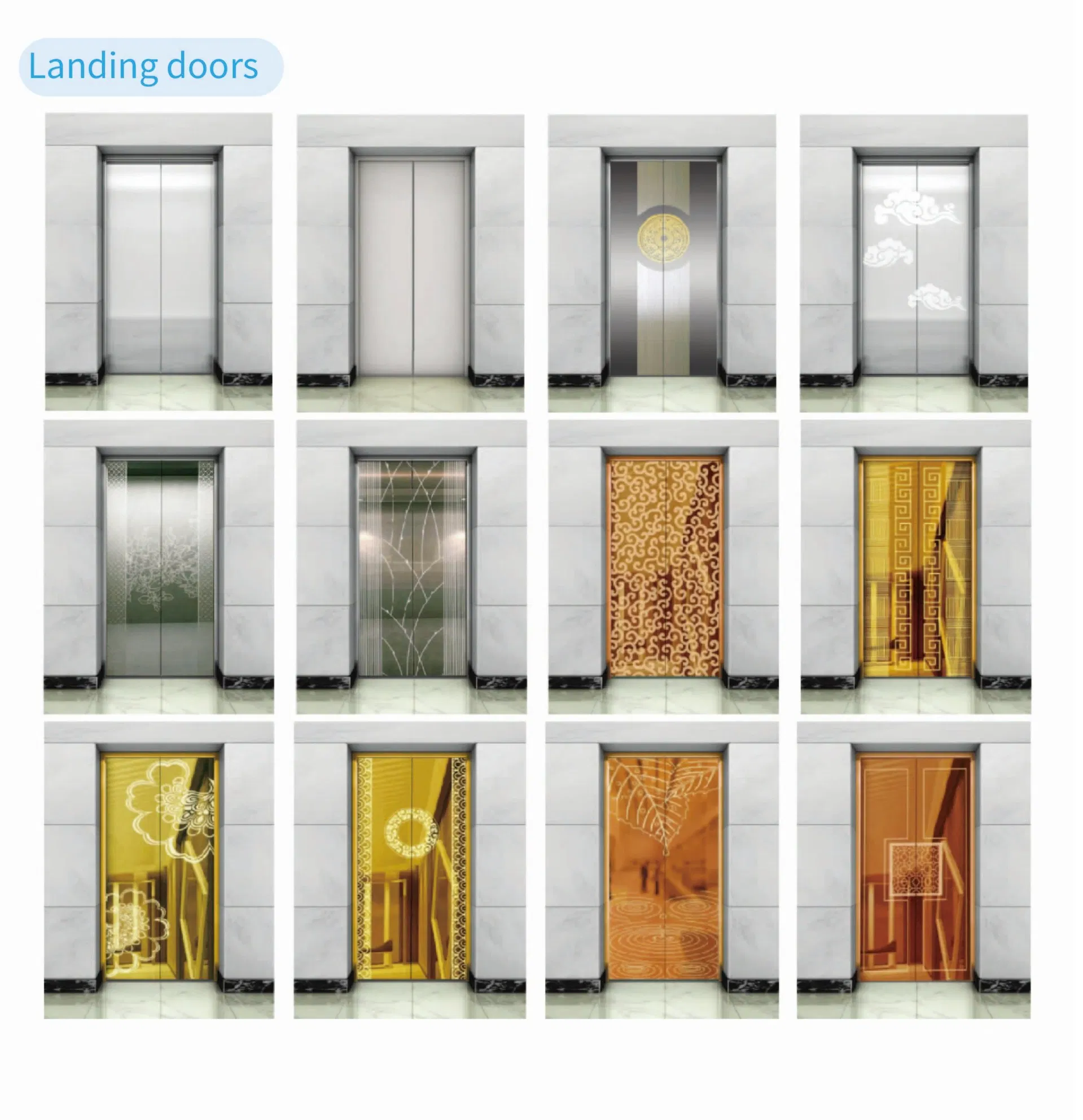

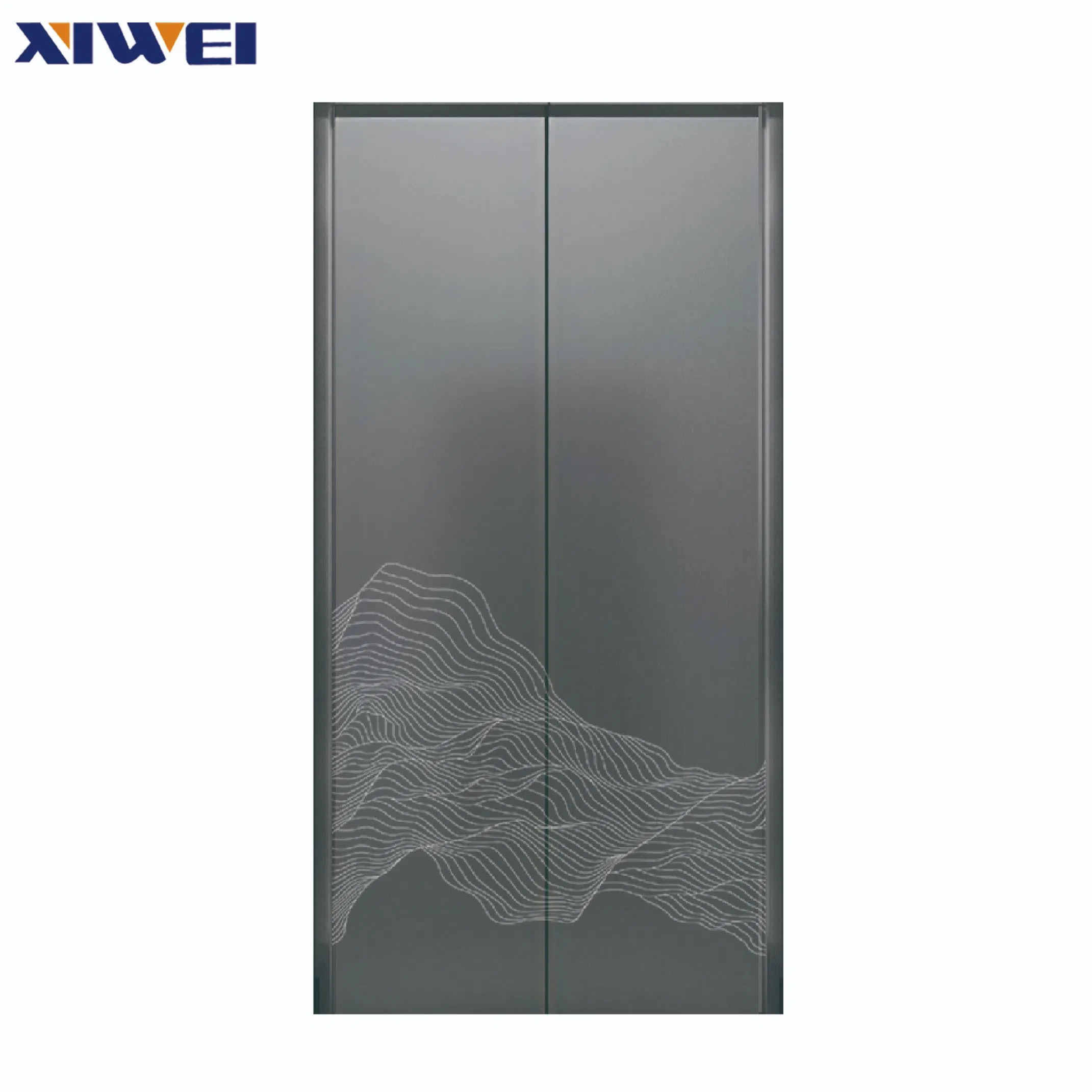

Car door: Hairline stainless steel

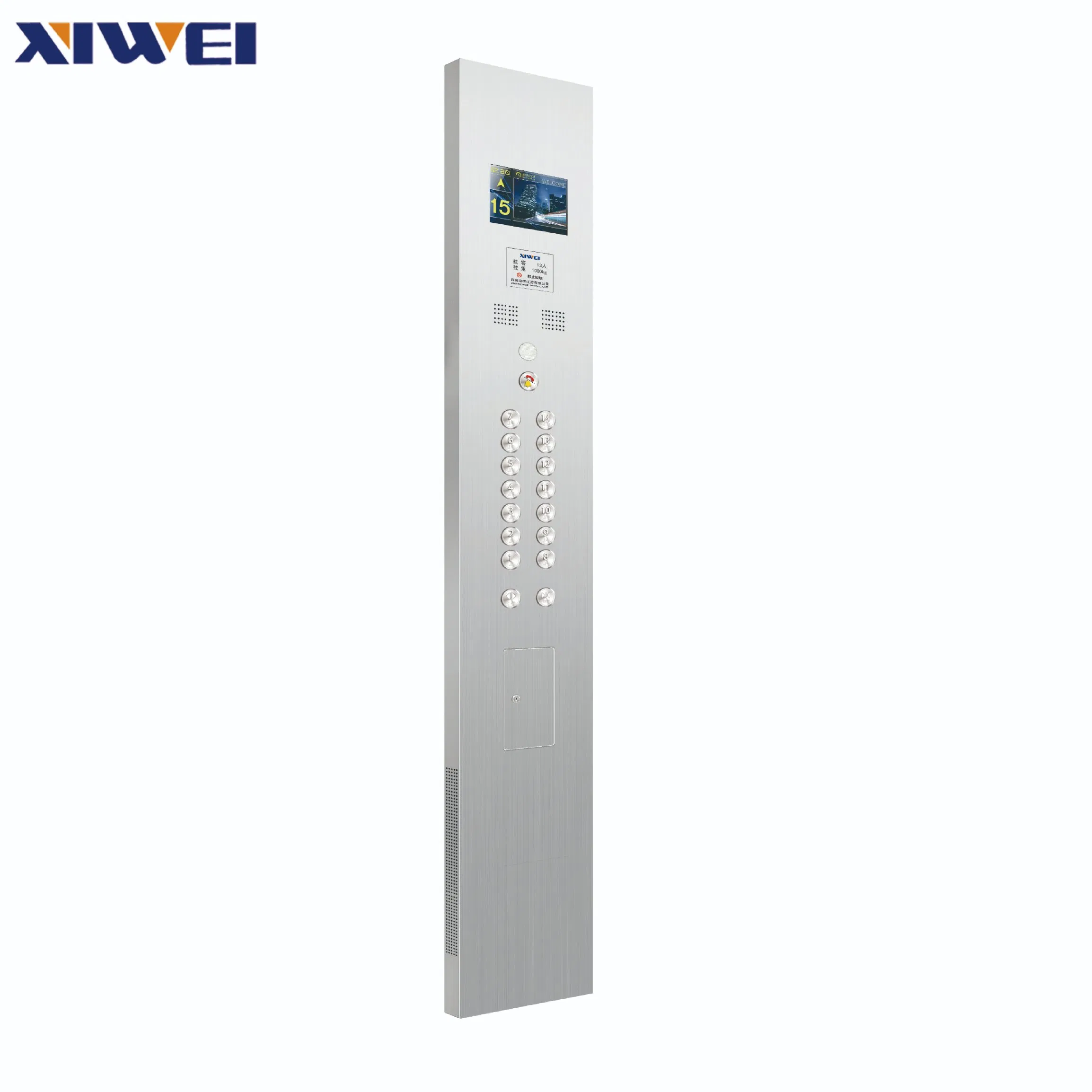

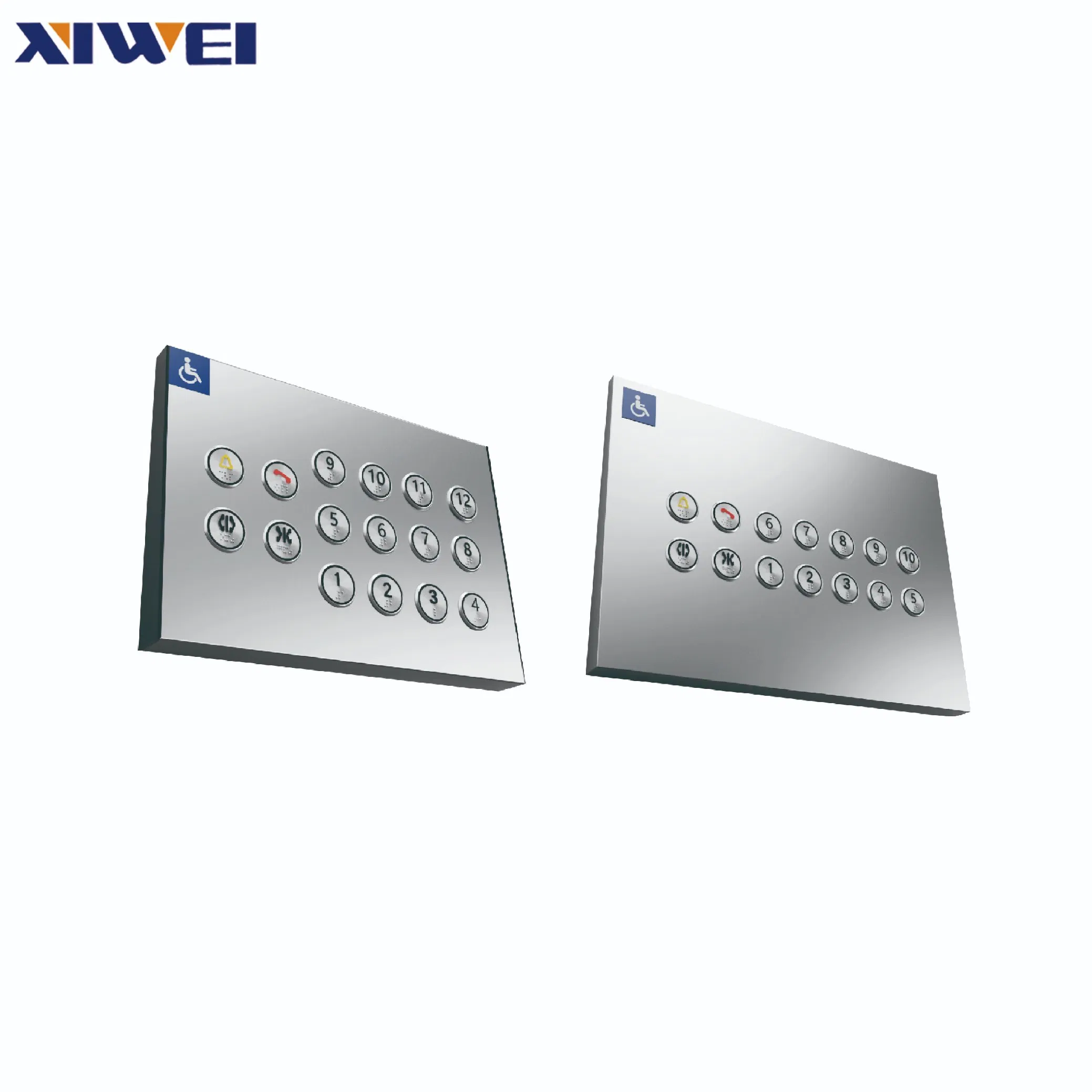

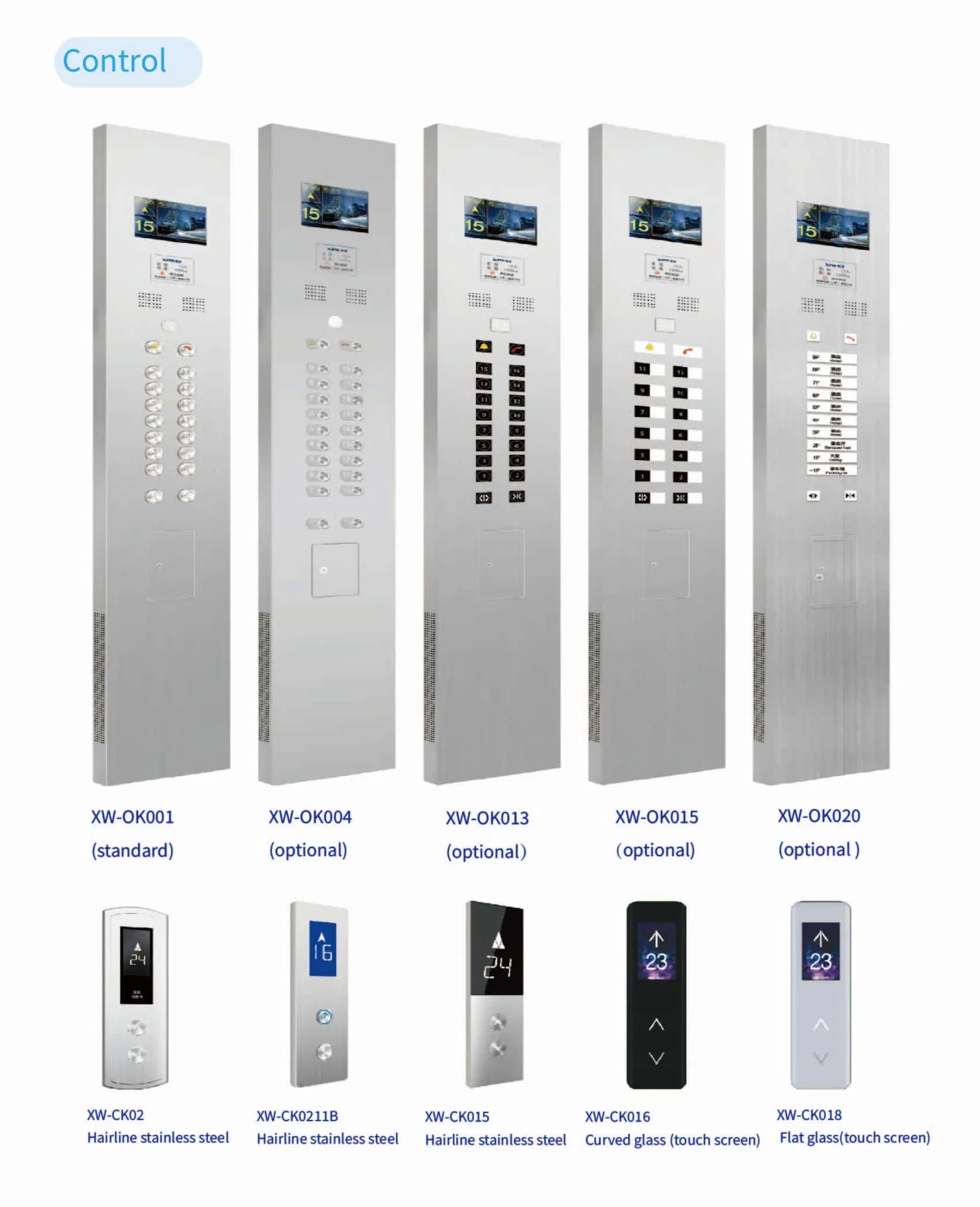

Operation panel: Integrated (XW-0K001), hairline stainless steel

Handrail (XW-F01): Stainless steel round handrail on the rear wall

Floor (XW-DB10): Full body brick or PVC

Applications: Combined with modern technology and fashion art, this passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., providing a safe and comfortable riding experience.

Technical Specifications

Rated load (kg)	Speed (m/s)	Net car size (CWxCD)	Net door size (DWxPH)	Net hoistway size (HWxHD)	Overhead (OH)
450	1.0 - 1.75	1100 x 1150	700 x 2100	1850 x 1600	4700 - 4900
630	1.0 - 1.75	1200 x 1300	800 x 2100	2000 x 1750	4700 - 4900
800	1.0 - 2.5	1400 x 1400	800 x 2100	2100 x 1800	4700 - 5300
1000	1.0 - 2.5	1600 x 1500	900 x 2100	2300 x 1900	4700 - 5300
1150	1.0 - 2.5	1700 x 1500	1000 x 2100	2450 x 1900	4700 - 5300

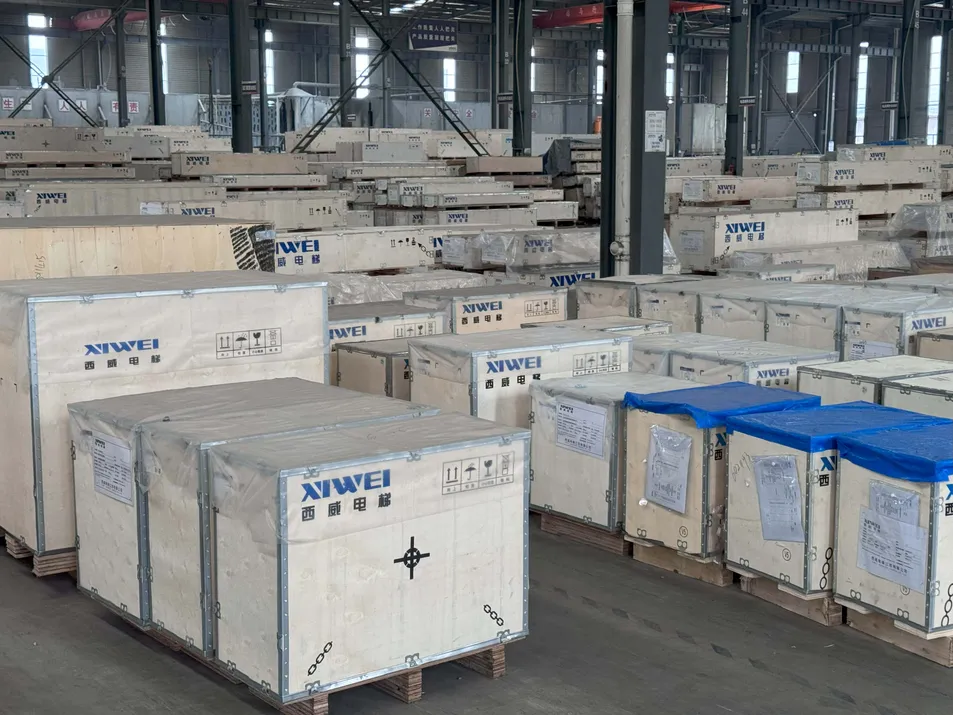

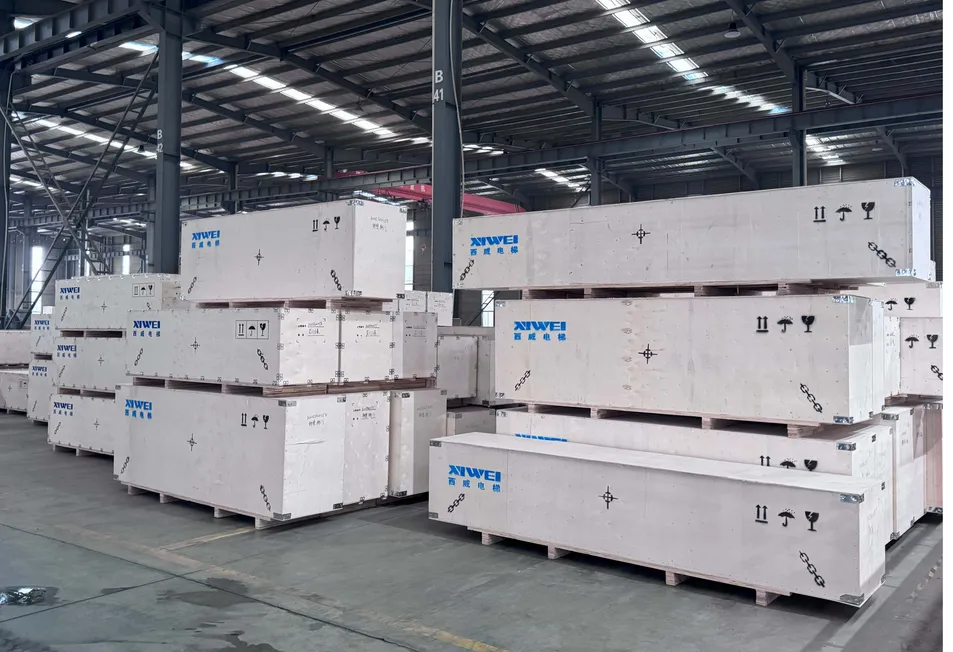

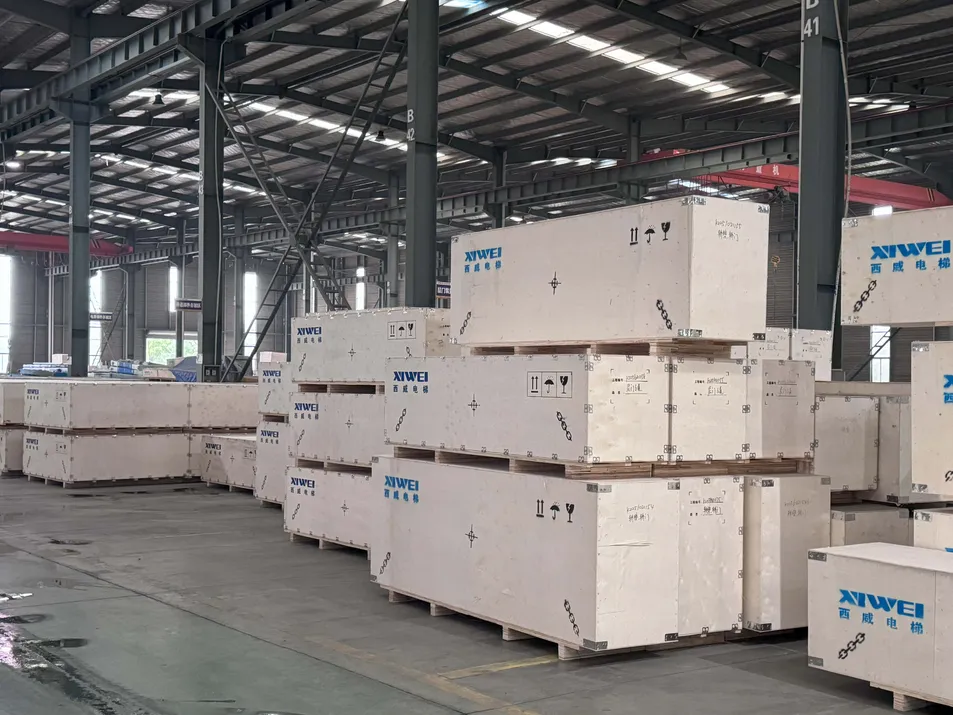

Packing & Delivery

DHL

3-5 working days

UPS/TNT

5-7 working days

FedEx

7-9 working days

Sea Freight

Depends on destination country

Certifications

Professional After-Sales Service

Warranty Period: The overall warranty period is 1 year. For core components (traction machines, control cabinets, safety gears, and speed governors), the warranty is extended to 5 years.

Coverage: Includes manufacturing defects and installation issues. Costs for maintenance and component replacement during the warranty period are fully covered by us.

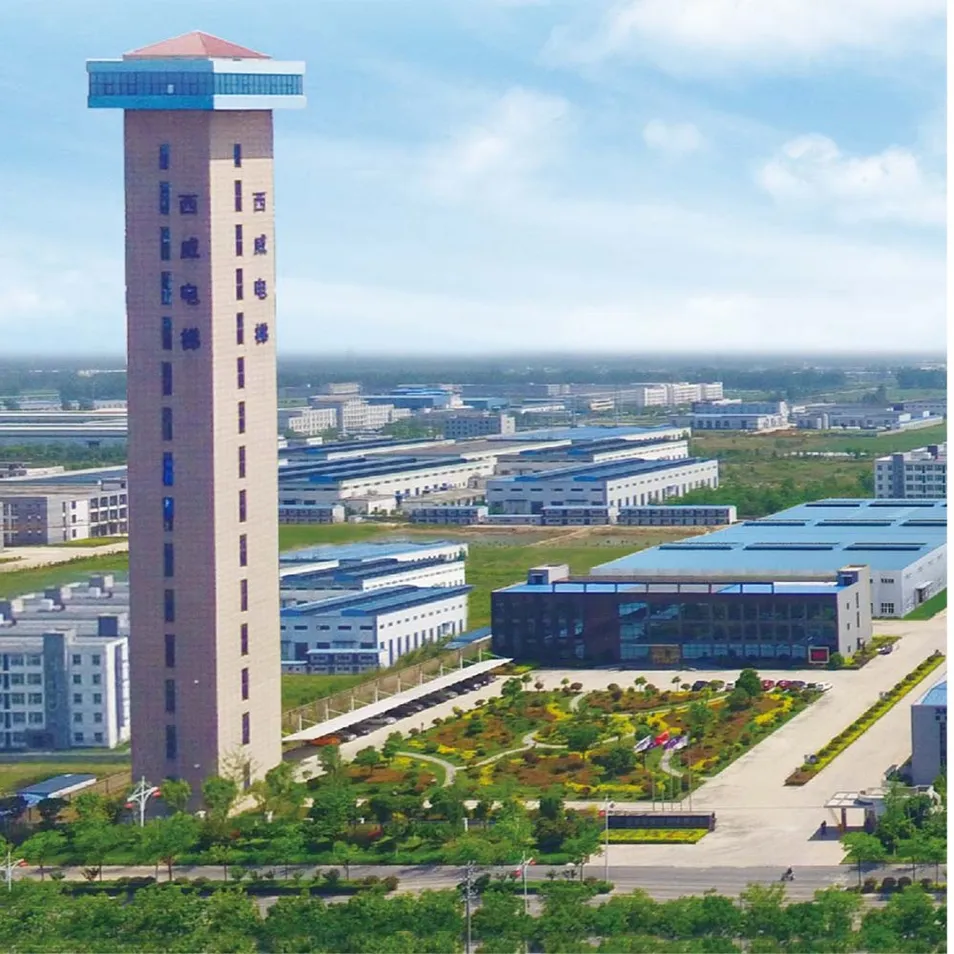

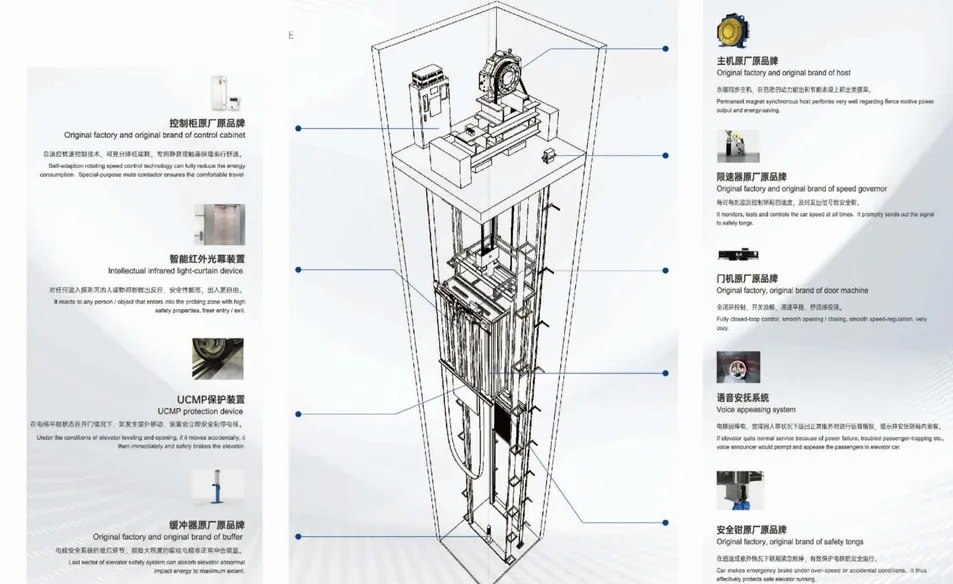

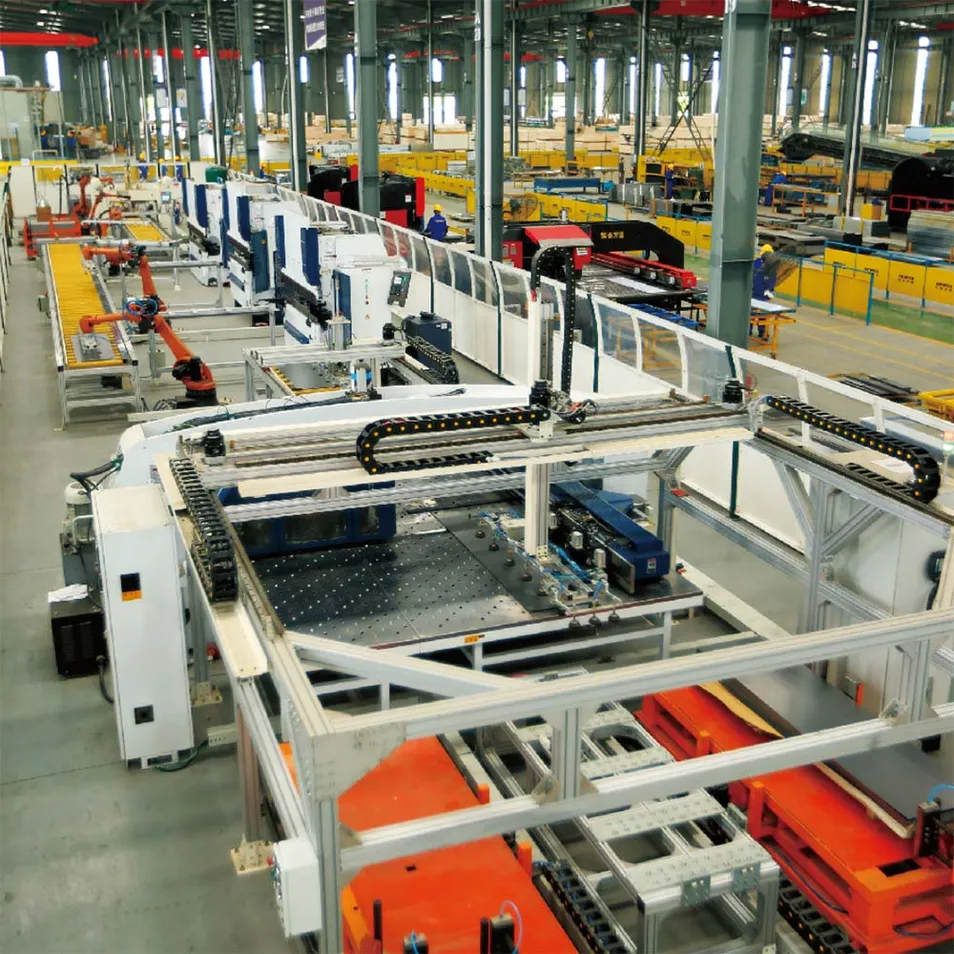

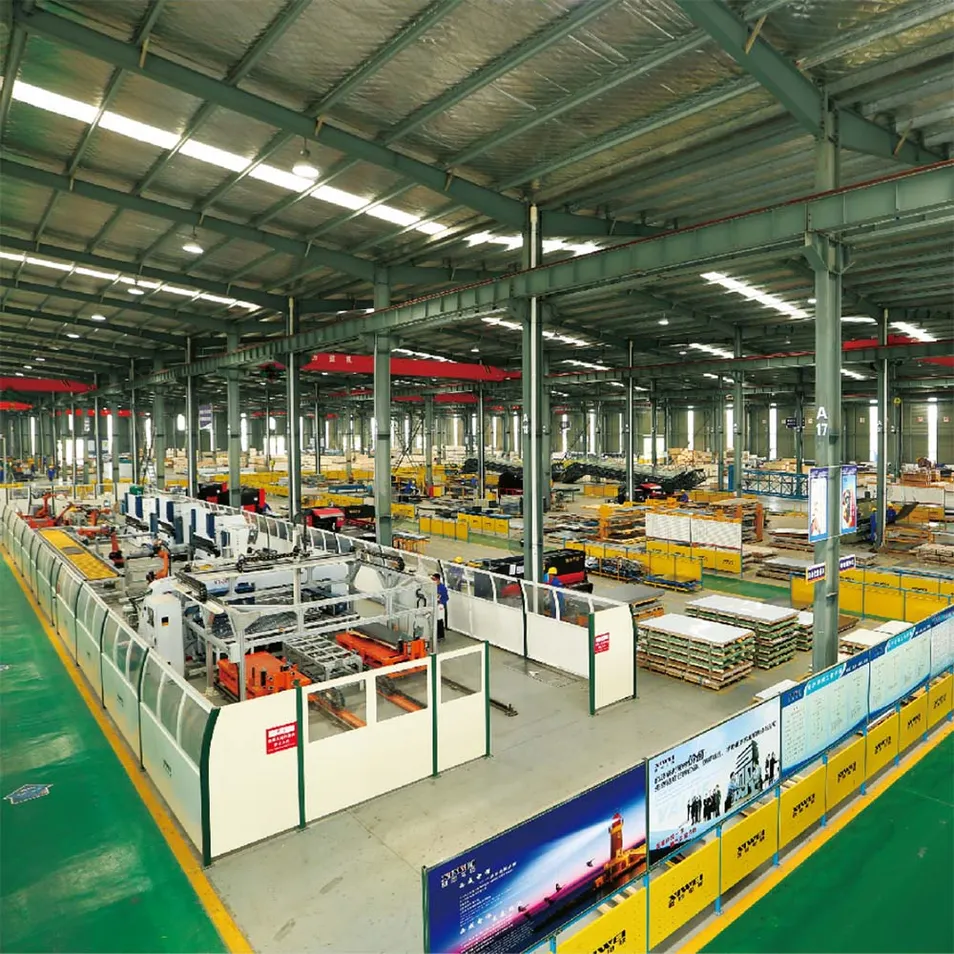

Factory Workshop & System Composition

Frequently Asked Questions

Are the elevator wire ropes durable?

Yes. The wire rope configuration considers not just the rated load but also the traction size. The tensile strength of the wire rope is significantly greater than the weight of the lift, and the safety factor is equipped with more than four wire ropes for redundancy.

Is a sudden power failure dangerous during operation?

No. If a power failure occurs, the elevator will automatically stop due to the electrical and mechanical safety devices. The brakes are automatically applied to ensure passenger safety.

Will passengers be hurt if the door closes suddenly?

No. Elevators are equipped with anti-clamping switches. If a person touches the door during closing, it will automatically restart or reopen. The closing force is also strictly regulated.

How does the elevator system operate?

Elevators are operated via a counterweight wire rope through a traction drive (tractor), which moves the cabin up and down along fixed guide rails.

Is escalator installation complicated?

We use an integrated structure design for our escalators. This makes the equipment more precise and efficient, allowing for easier and more convenient commissioning and installation.

What certifications do your products hold?

Our products are fully certified with ISO9001, CE, and CCC certificates, ensuring compliance with international quality and safety standards.
