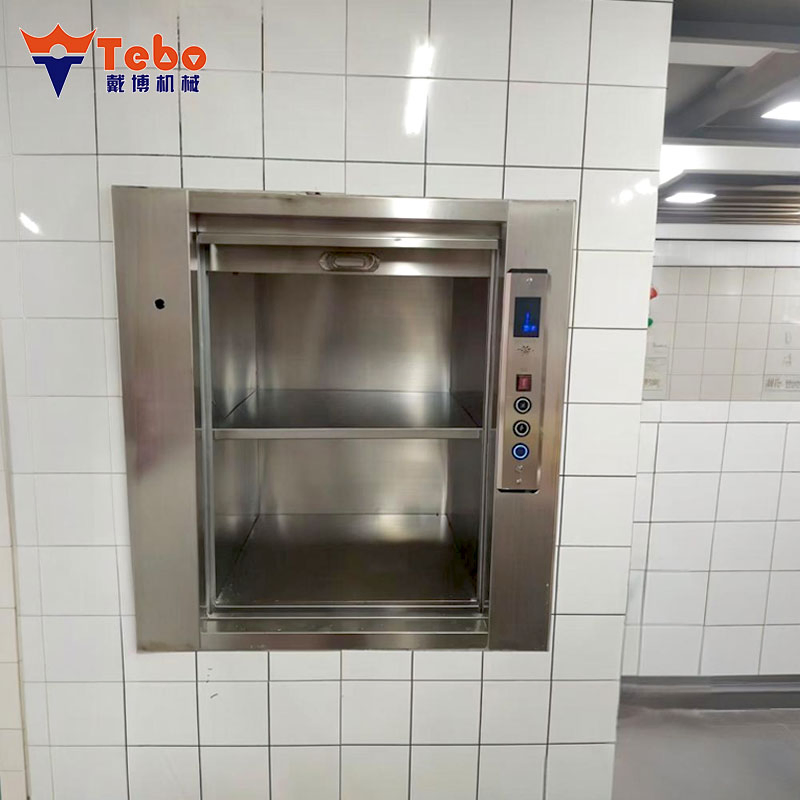

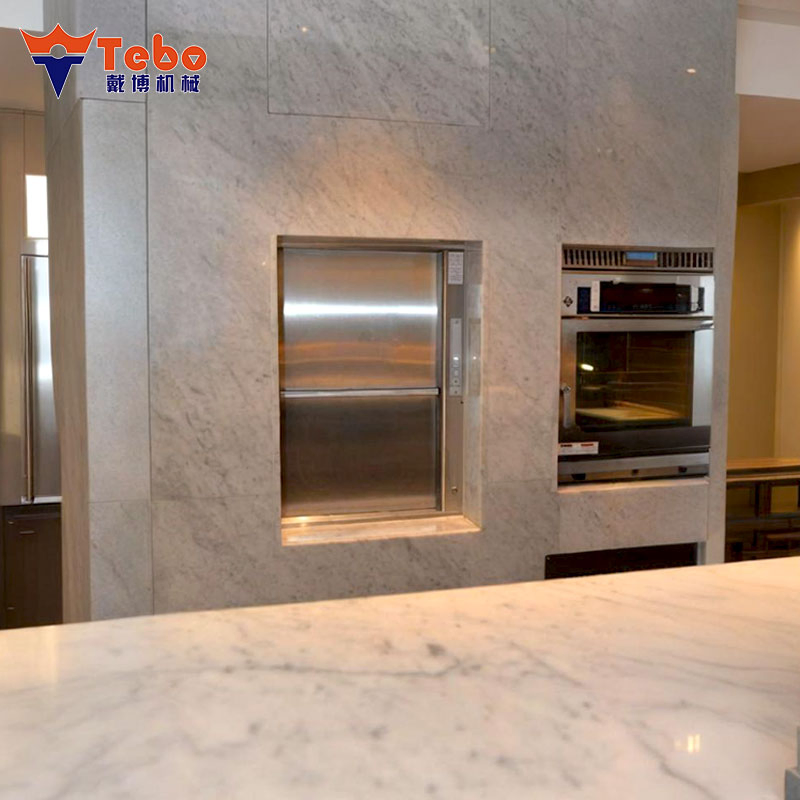

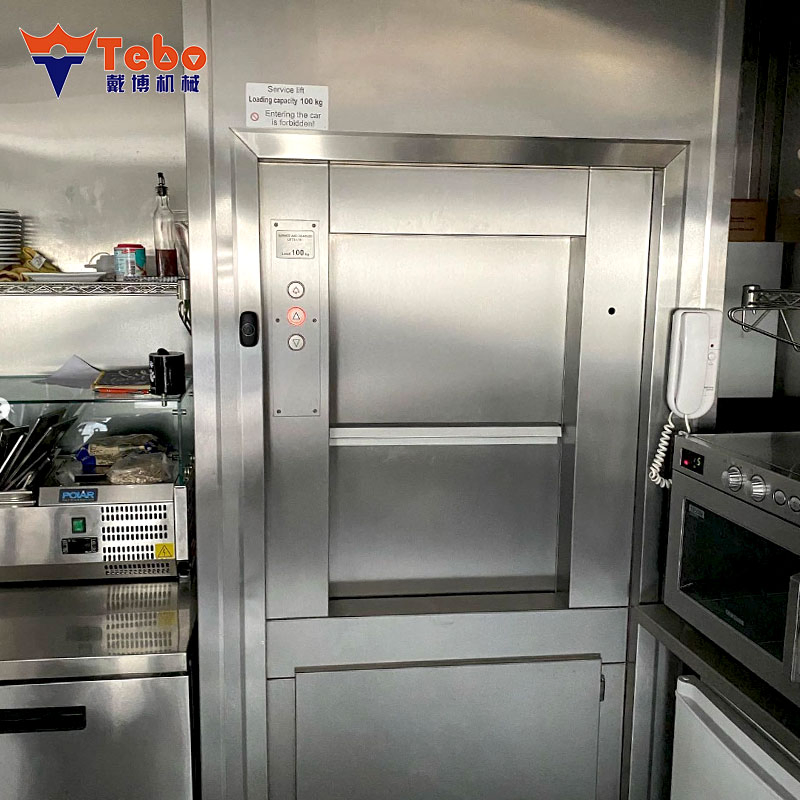

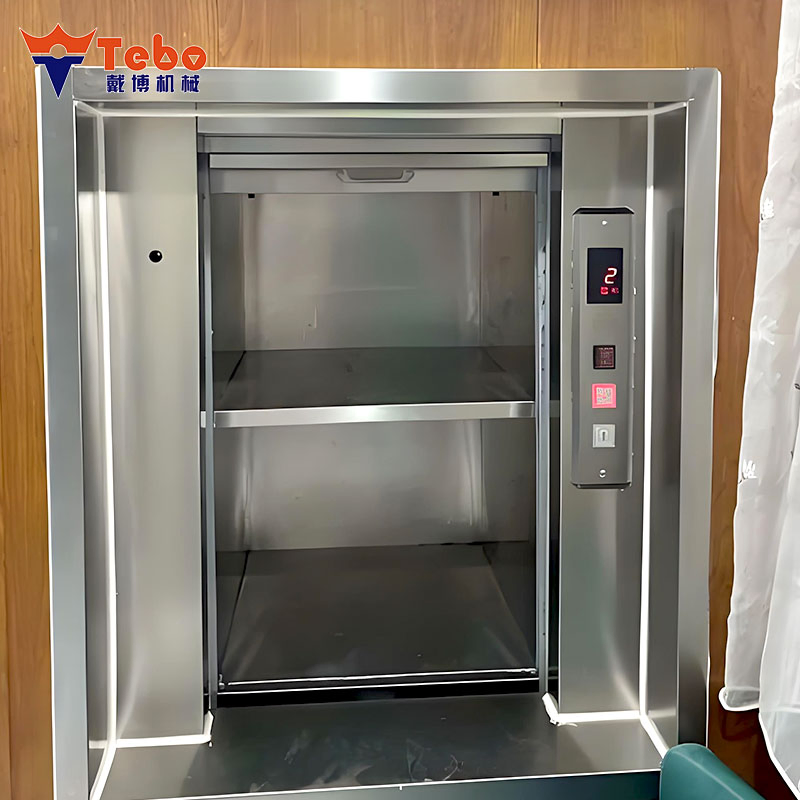

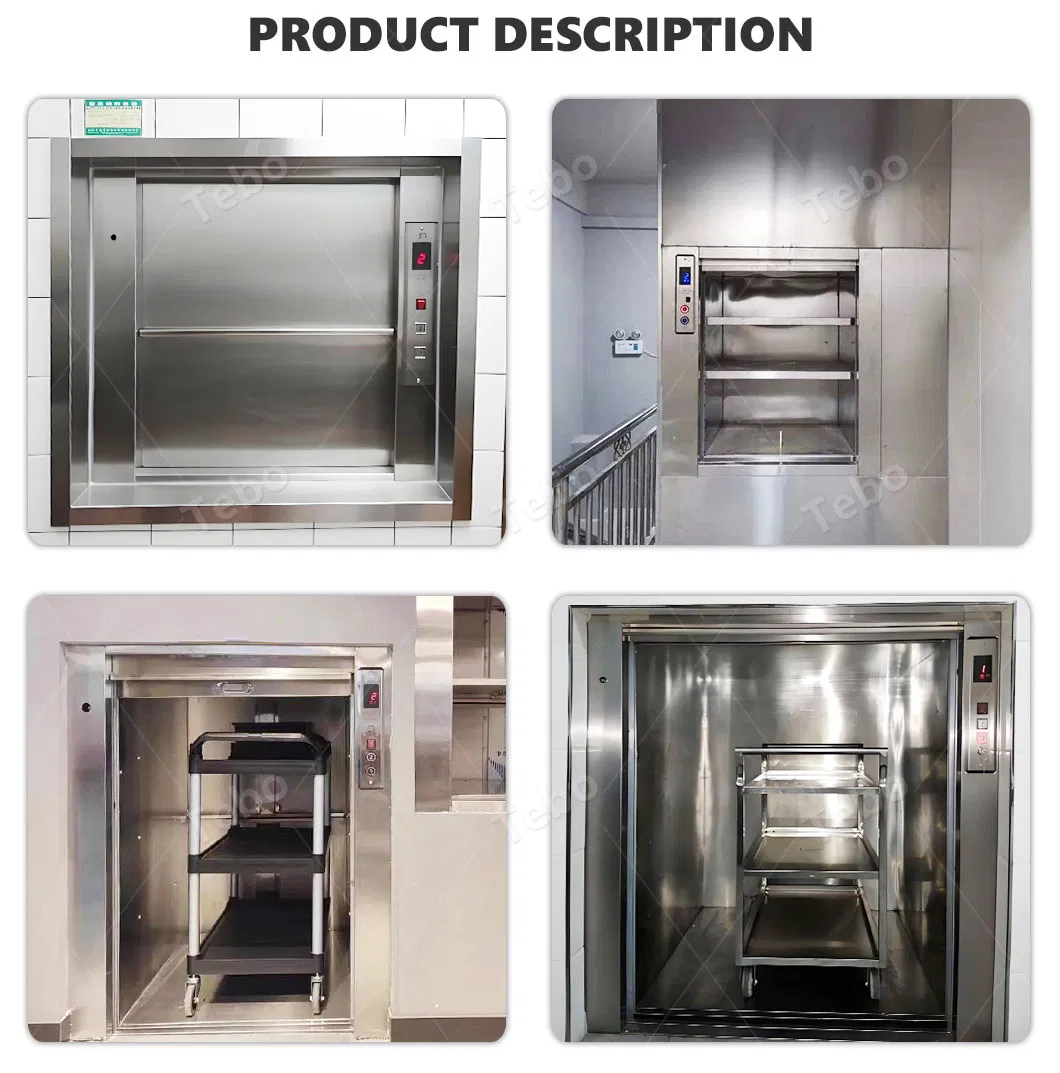

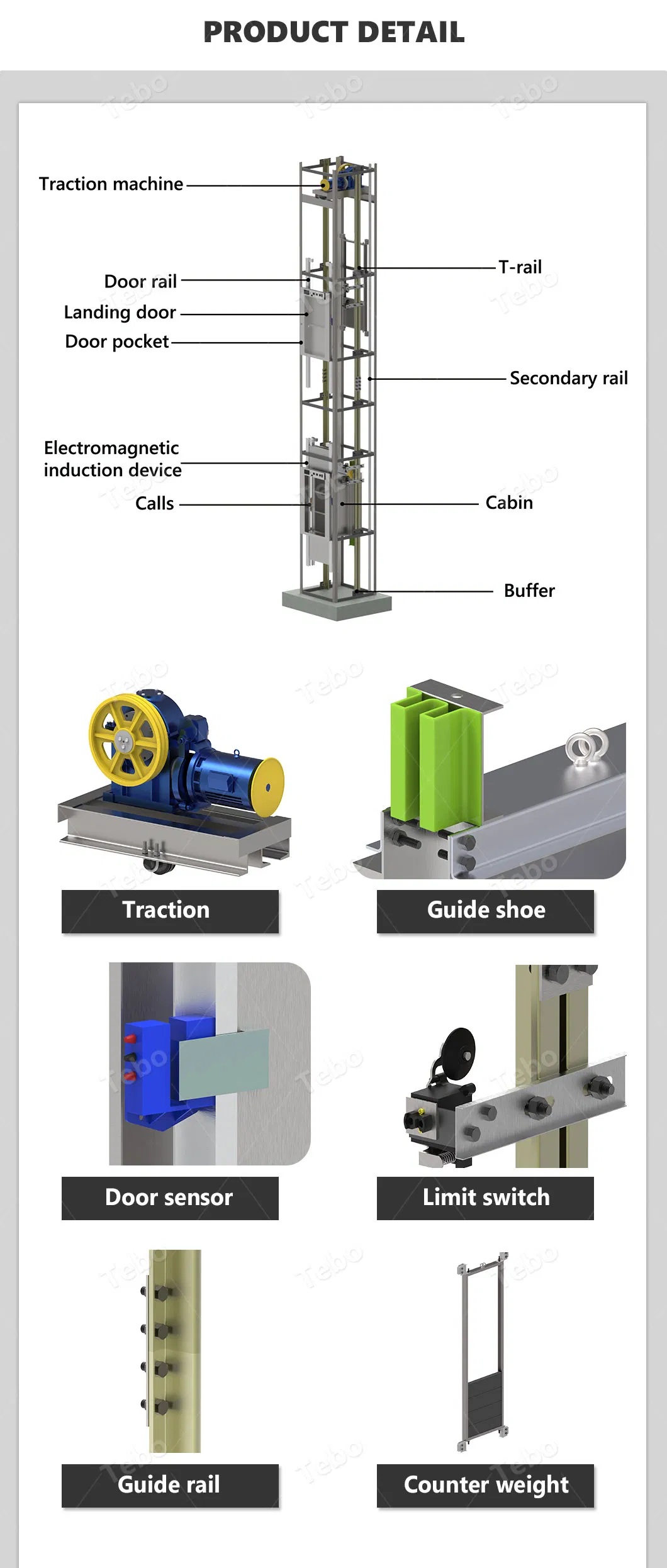

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

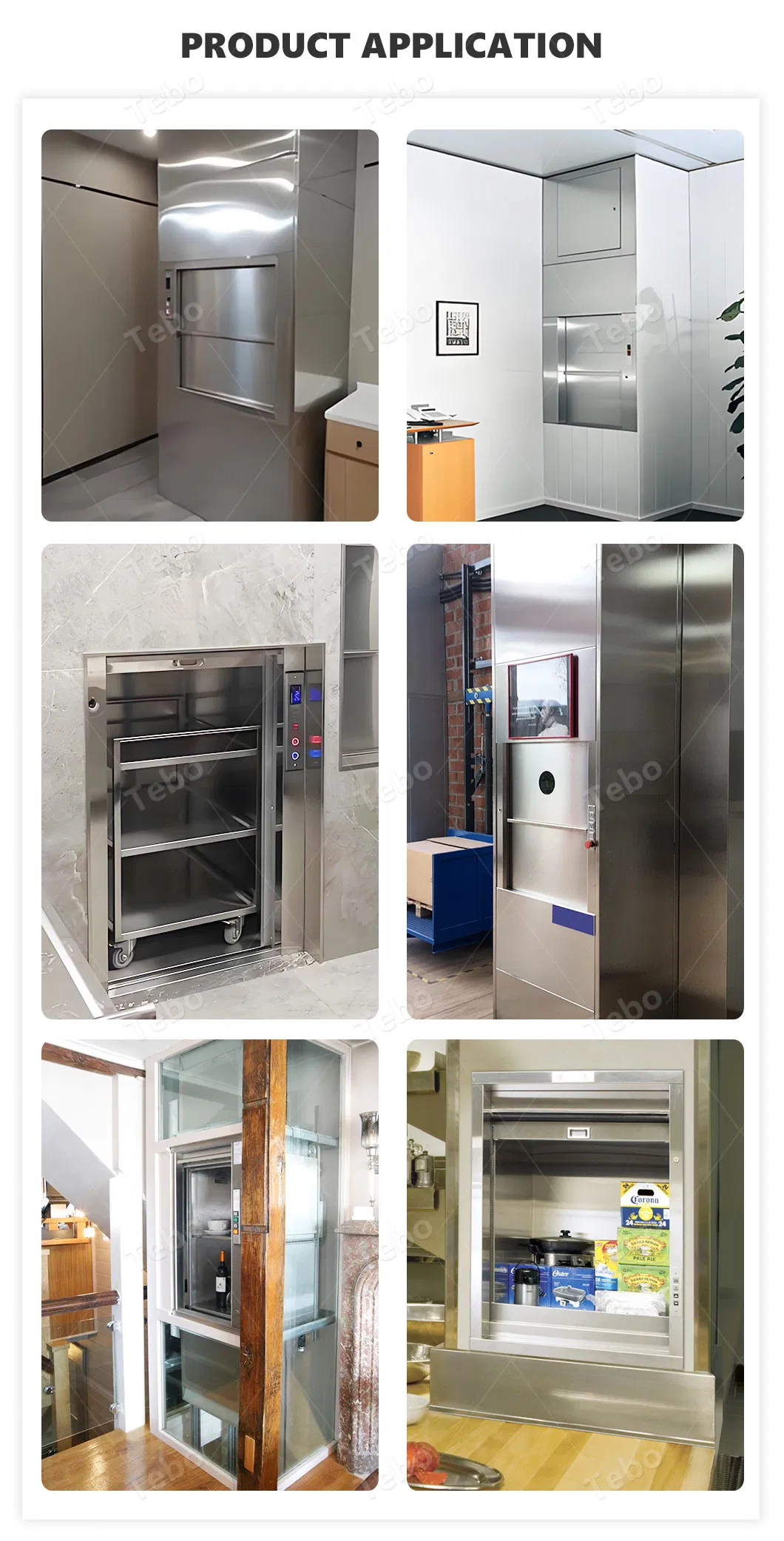

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, and private rooms with limited layout conditions.

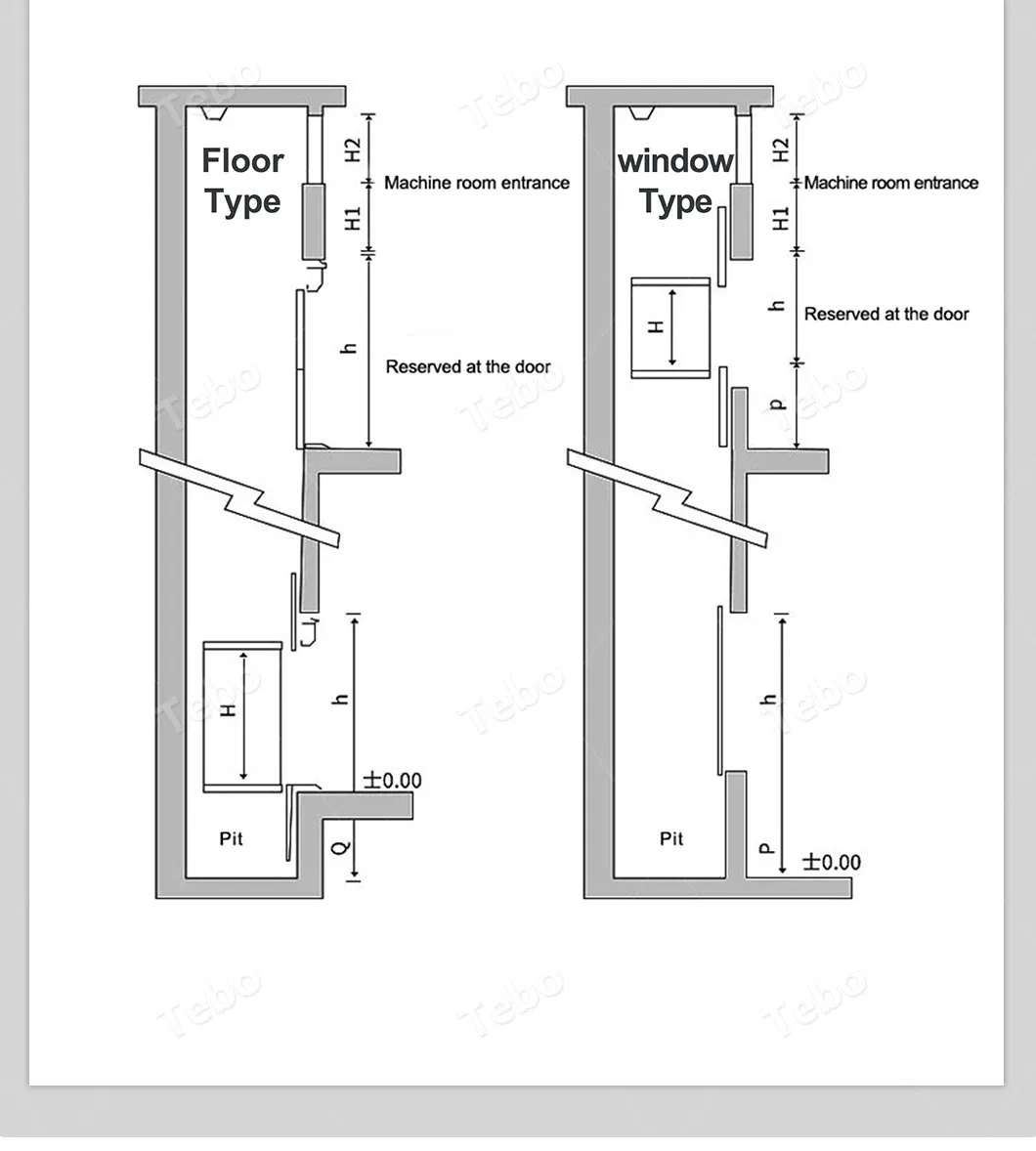

| Window Type Specifications | ||||||
|---|---|---|---|---|---|---|
| Load(kg) | Cabin Dimension W*D*H(mm) | Landing Door | Cabin Door | Door Size W*H(mm) | Window Sill Height | Overhead Height |
| 100 | 600*400*800 | Standard | Optional | 600*800 | 800 | 2800 |
| 100 | 600*600*800 | Standard | Optional | 600*800 | 800 | 2800 |
| 200 | 800*800*800 | Standard | Optional | 800*800 | 800 | 2800 |
| 200 | 1000*1000*1000 | Standard | Optional | 1000*1000 | 800 | 3200 |
| Floor Type Specifications | ||||||
|---|---|---|---|---|---|---|
| Load(kg) | Cabin Dimension W*D*H(mm) | Landing Door | Cabin Door | Door Size W*H(mm) | Min Pit Depth | Overhead Height |
| 200 | 800*800*1000 | Standard | Optional | 800*1000 | 600 | 2800 |
| 300 | 1000*1000*1200 | Standard | Optional | 1000*1200 | 700 | 3200 |
| 400 | 1000*1200*1400 | Standard | Optional | 1200*1400 | 800 | 3600 |
Our company is a professional enterprise specializing in the R&D and manufacturing of mechanical equipment. Located in a well-connected industrial hub, we have assembled an experienced and innovative technical team dedicated to optimizing vertical transportation solutions. We possess significant advantages in structural design, operational efficiency, and stability.
Our core range includes hydraulic home elevators, freight lifts, car lifts, and scissor lift platforms. Utilizing modern CNC machining centers, automated welding equipment, and precision inspection instruments, we ensure efficient production from components to assembly. We are dedicated to delivering integrated solutions encompassing market analysis, customized design, and full lifecycle technical support.
