📦 Basic Information
Model NO.
HY1001, HY1501, HY2001
Product Name
U-Shape Lift Table
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Certification
CE, ISO 9001
Production Capacity
600PCS/Month
🔍 Product Description

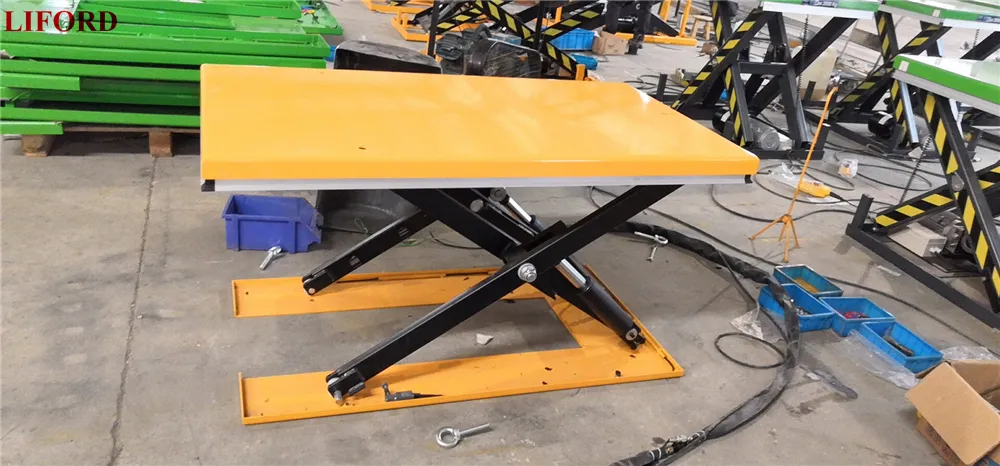

Ultra Low Profile Electric Scissor Lifts Hydraulic Fixed Lifting Platform
⭐ Main Features

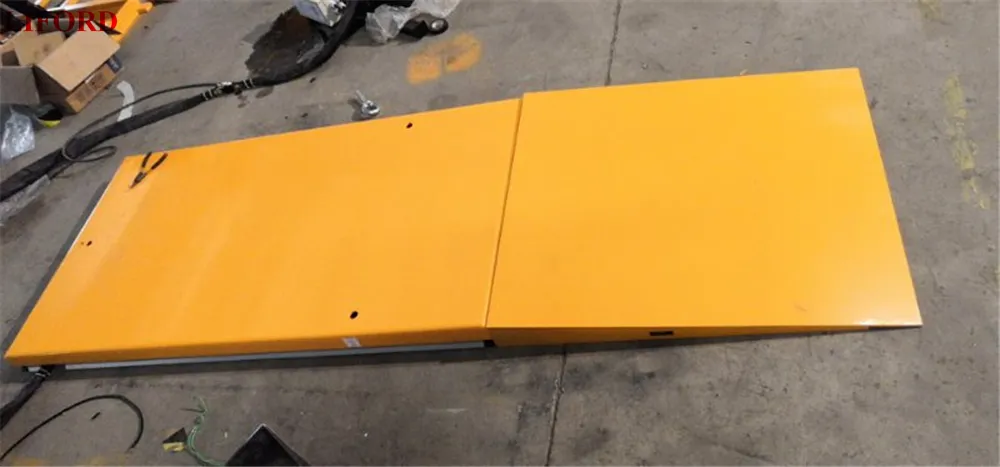

- Closed height only 85mm (super low profile), eliminating the need for a pit installation.
- Mechanical safety chocks provided for safe maintenance operations.
- Fully compliant with EN1570 norms and ANSI/ASME safety standards.
- Remote power pack with pedestal and IP54 protected controls.
- Upper platform fitted with a safety perimeter to prevent descent upon contact with obstructions.
- 24V control box featuring UP/DOWN buttons and an emergency stop.
- External power pack equipped with a relief valve against overloading.
- Hose burst safety valve to prevent platform dropping in case of hose breakage.
- Removable lifting hooks included to facilitate easy handling and installation.
📊 Technical Specifications
| Model |
Capacity (kg) |
Min/Max Height (mm) |
Table Size (mm) |
Base Size (mm) |
Lift Time (s) |
Power |
N.W. (kg) |
| HY1001 | 1000 | 85/860 | 1450*1140 | 1325*1074 | 25 | 380V/50Hz | 357 |
| HY1002 | 1000 | 85/860 | 1600*1140 | 1325*1074 | 25 | 380V/50Hz | 364 |
| HY1003 | 1000 | 85/860 | 1450*800 | 1325*734 | 25 | 380V/50Hz | 326 |
| HY1501 | 1500 | 105/870 | 1600*800 | 1325*734 | 30 | 380V/50Hz | 302 |
| HY2001 | 2000 | 105/870 | 1600*1180 | 1427*1114 | 35 | 380V/50Hz | 419 |
🏆 Why Choose Our Solutions?
- Professional Experience: More than 10 years in the material handling industry.
- Rapid Delivery: Fast production cycles to ensure your project stays on schedule.
- Quality Assurance: 100% inspection of all finished products before shipment.
- Robust Packaging: Strong pallets and cartons used for sea and air delivery to ensure perfect condition.
- Compliance: Strict adherence to international quality and safety standards.
❓ Frequently Asked Questions
Do I need to dig a pit for this scissor lift?
No, the super low profile design (starting at 85mm) allows for easy loading with a pallet jack without the need for a pit installation.
What safety standards do these tables meet?
Our lift tables are designed to meet the EN1570 norm and ANSI/ASME safety standards, ensuring high operational safety.
What happens if a hydraulic hose breaks?
The equipment is fitted with a hose burst safety valve that automatically stops the lift table from lowering in the event of a hose breakage.
What is the standard power supply?
The standard configuration is 380V/50Hz, but we can discuss custom electrical requirements based on your local power grid.
How is the descent speed controlled?
The external power pack is equipped with a compensated flow valve that allows for precise control of the lowering speed regardless of the load.
Are these lift tables suitable for maintenance?
Yes, they include mechanical safety chocks to secure the platform during maintenance and removable lifting hooks for easy installation.
