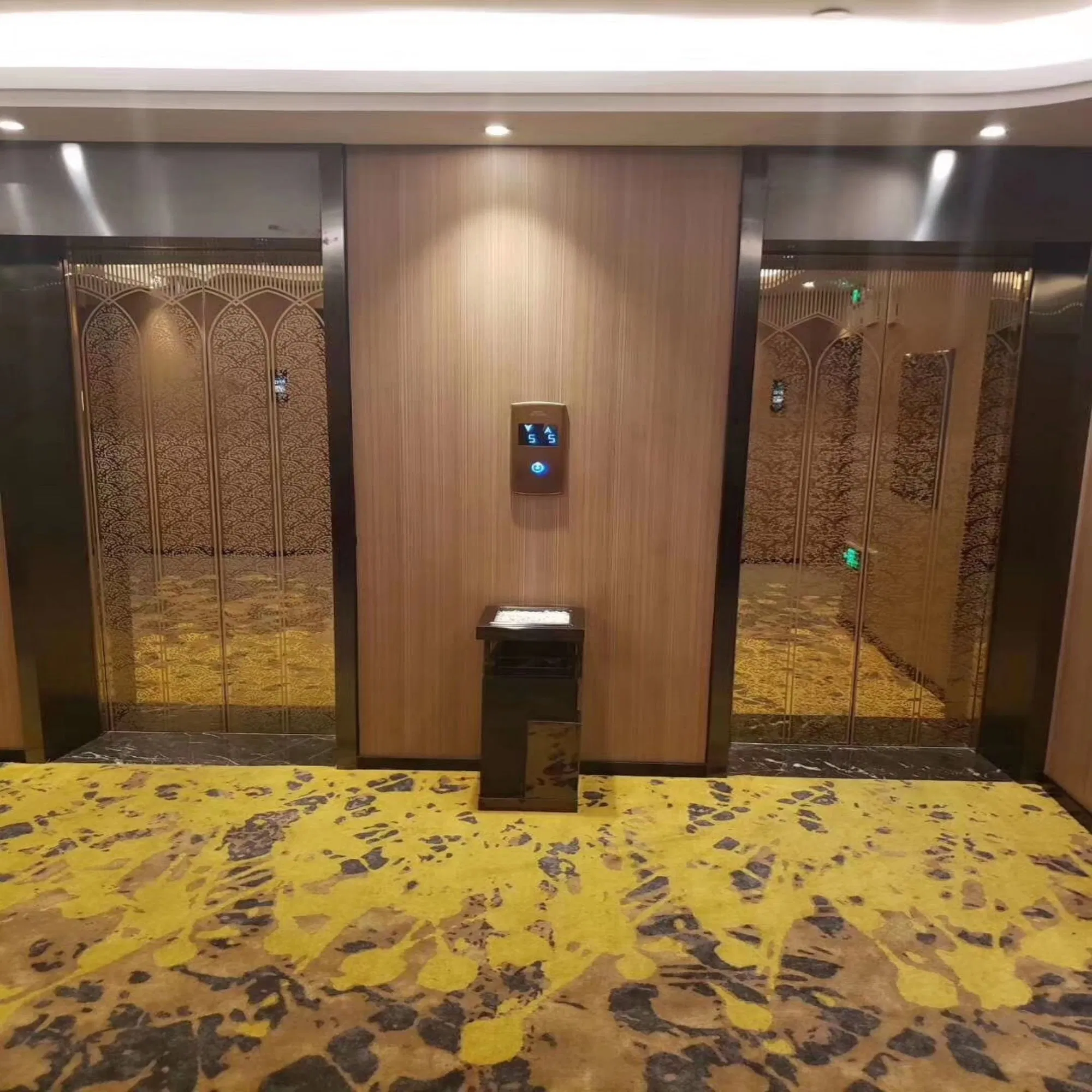

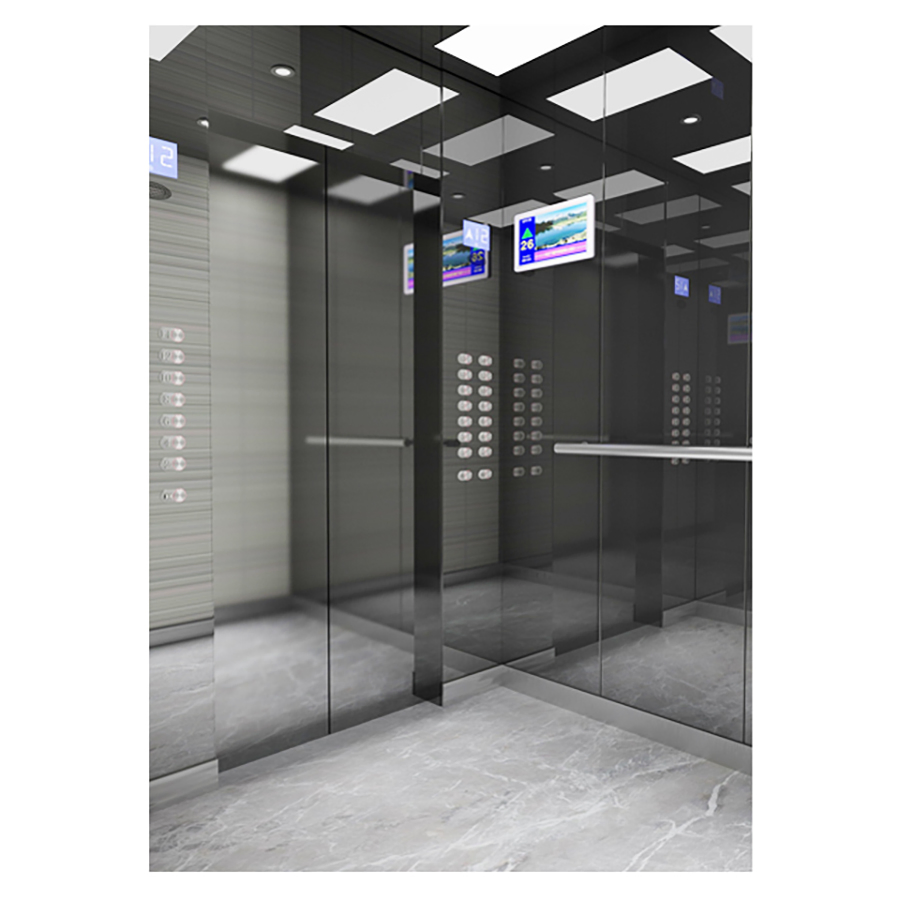

Large Space Comfortable Silent Stainless 1600kg 6 Person Passenger Lift Elevator

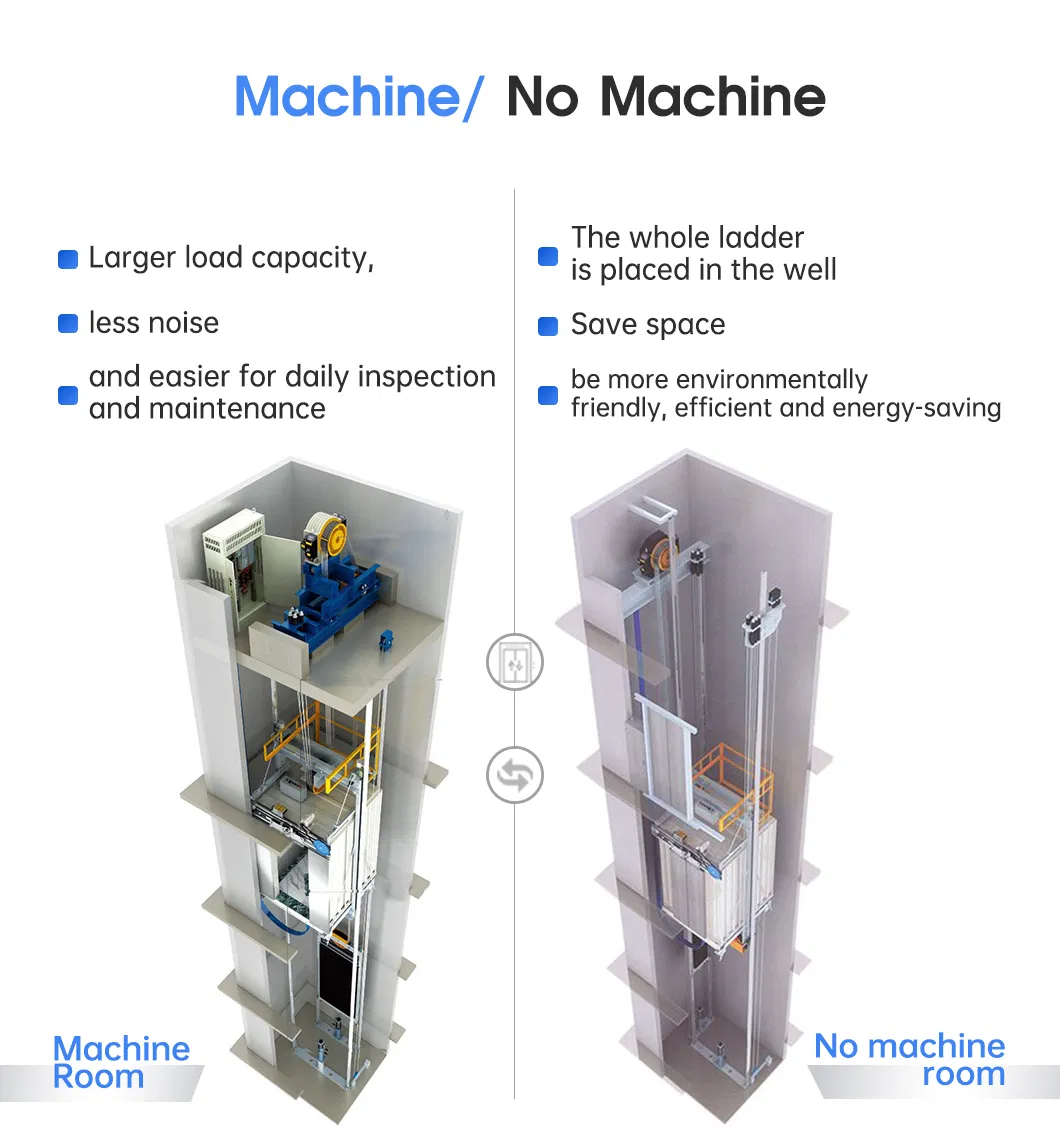

MACHINE ROOM PASSENGER ELEVATOR
Less Space, More Intelligence. This elevator greatly saves the building space and material. Compared with the traditional elevator, it efficiently controls the machine room height while ensuring operation space stipulated by national standards.
MACHINE ROOMLESS PASSENGER ELEVATOR
By cancelling the machine room, it reduces the total area of equipment and flexibly utilizes effective space. It offers a contemporary sense and a beautiful construction outline.
| Load (kg) | Speed (m/s) | Control | Car Size (CWxCD) | Door Size | Hoistway (HWxHD) |
|---|---|---|---|---|---|
| 450 | 1.0 - 1.75 | VVVF | 1100 x 1000 | 800 | 1850 x 1700 |
| 630 | 1.0 - 1.75 | VVVF | 1400 x 1100 | 800 | 2000 x 1800 |
| 800 | 1.0 - 2.5 | VVVF | 1400 x 1350 | 800 | 2000 x 2000 |
| 1000 | 1.0 - 2.5 | VVVF | 1600 x 1500 | 900 | 2200 x 2200 |
| 1150 | 1.0 - 2.5 | VVVF | 1800 x 1500 | 1100 | 2400 x 2200 |
| 1350 | 1.0 - 2.5 | VVVF | 1900 x 1600 | 1100 | 2500 x 2300 |
| 1600 | 1.0 - 2.5 | VVVF | 2000 x 1750 | 1100 | 2600 x 2500 |
