Hydraulic Vertical Disabled Wheelchair Man Lift

1 / 5

Hydraulic Vertical Disabled Wheelchair Man Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Indoor or Outdoor Lift
Lift Mechanism:	Lift Chain

Send Inquiry

Product Description

Basic Specifications

Model NO.

VWL

Carrying Capacity

Light Level

Driven Type

Hydraulic

Running Mode

Stationary

Feature

Explosion-Proof

Certification

CE, ISO 9001

Max Platform Height

6000mm

Platform Size

1200mm*900mm or Customized

Load Capacity

200-450kg

Power Output

1.5kw

Noise

50dB

HS Code

842890

Product Description

Hydraulic Vertical Disabled Wheelchair Man Lift

Vertical Elevating System: Durable and easy-to-use vertical lift suitable for indoor or outdoor applications up to 6 meters.
Easy Installation: Can be directly installed into the ground without architectural supporting pits.
Comfort & Safety: Hydraulic or screw system offers smooth transportation with multiple safety devices.
Emergency Descending: Manual descent feature available during power failures or malfunctions.
Compact Design: Ideal for residential estates and areas with limited land resources.
Weather Resistant: Designed to withstand harsh weather conditions, serving as an affordable alternative to residential elevators.

Technical Parameters

Max Platform Height	6000mm
Min Platform height	80mm
Speed	60mm/s - 100mm/s
Load capacity	250KG ~ 350KG (Max 450kg)
Power Input	220V/50HZ/25A (or customized)
Drive System	Hydraulic or screw
Control Mode	Inching Switch or Automatic
Material	Checkered slip-proof aluminum alloy
Working Temperature	-50°C ~ 60°C
Safety Device	Safety Interlock, Safety Sensor, Emergency Lowering, Auto-flap

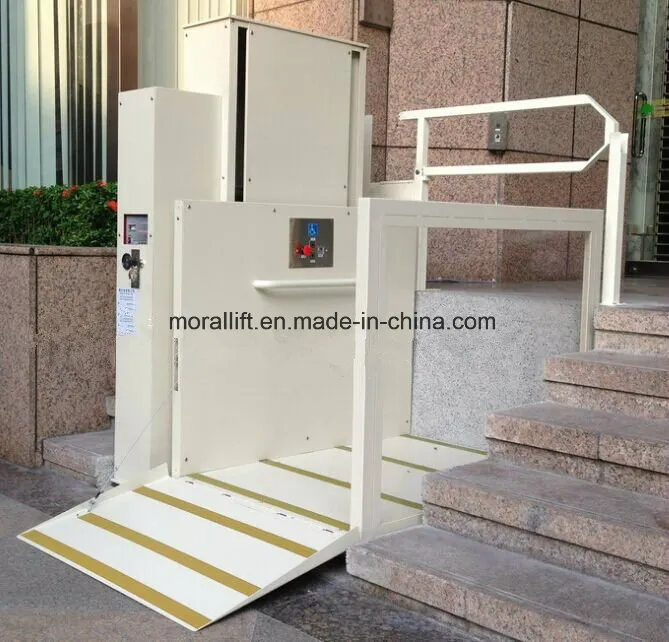

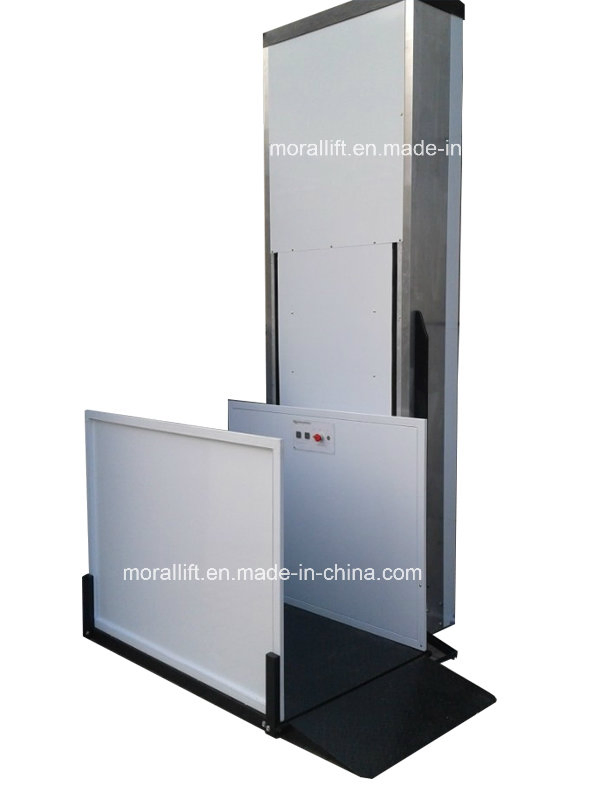

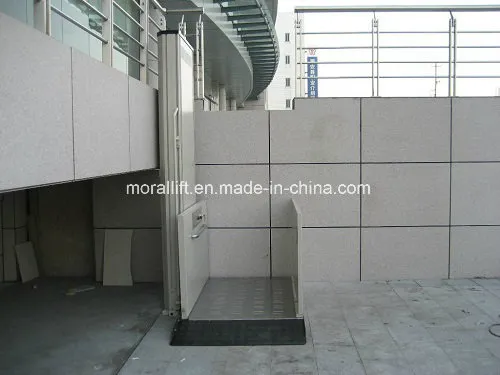

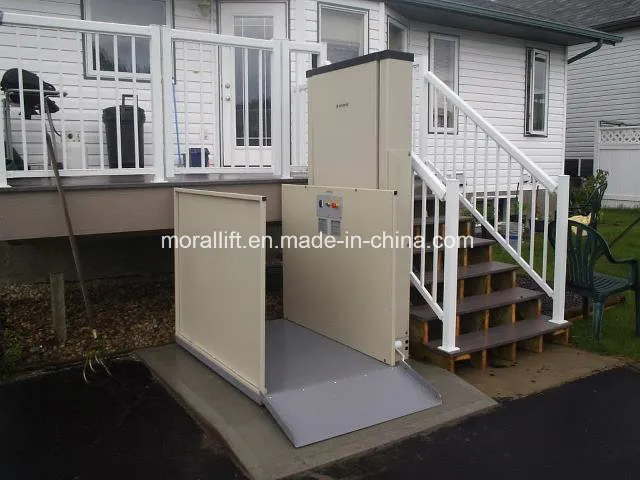

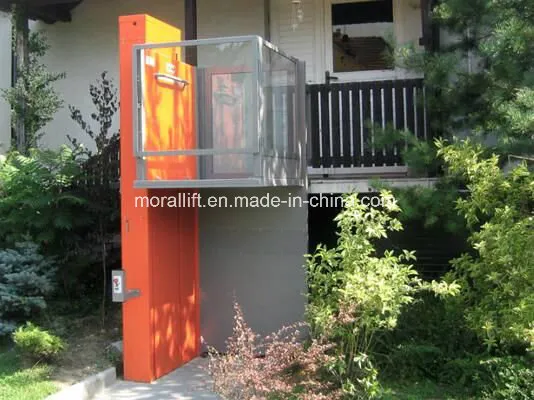

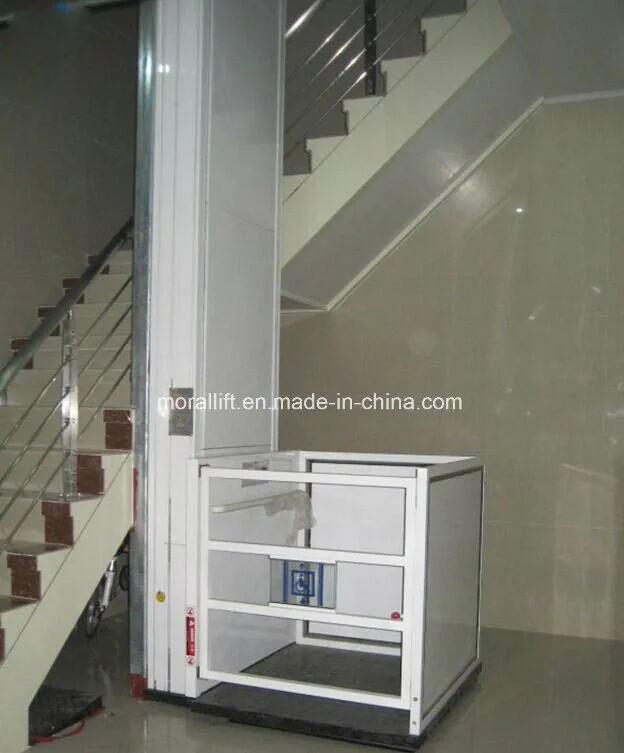

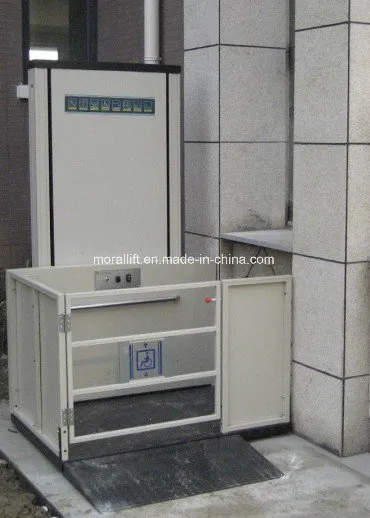

Product Gallery

Our Services

Full Testing
All machines are fully tested before shipment to ensure quality.

12-Month Warranty
Total machine guarantee provided for 12 months.

Technical Support
24-hour online technical support via video and communication channels.

English Manuals
User-friendly manuals for operation and maintenance.

Frequently Asked Questions

1. What is the maximum lifting height available? The vertical lift can reach a maximum platform height of up to 6000mm.

2. Can the platform size be customized? Yes, while the standard size is 1200mm(L)*900mm(W), we can customize the dimensions according to your specific needs.

3. Is this lift suitable for outdoor installation? Absolutely. The lift is designed to be weather-resistant and is suitable for both indoor and outdoor applications.

4. What happens if there is a power failure? The device includes an emergency lowering feature that allows the platform to be lowered manually via a hydraulic valve or screw rod.

5. What safety features protect the user during operation? Safety features include a safety sensor (stops if obstacles are met), safety interlocks, and an emergency stop button.

6. What is the standard lead time for an order? The delivery time is usually within 15-20 working days upon receipt of payment.
