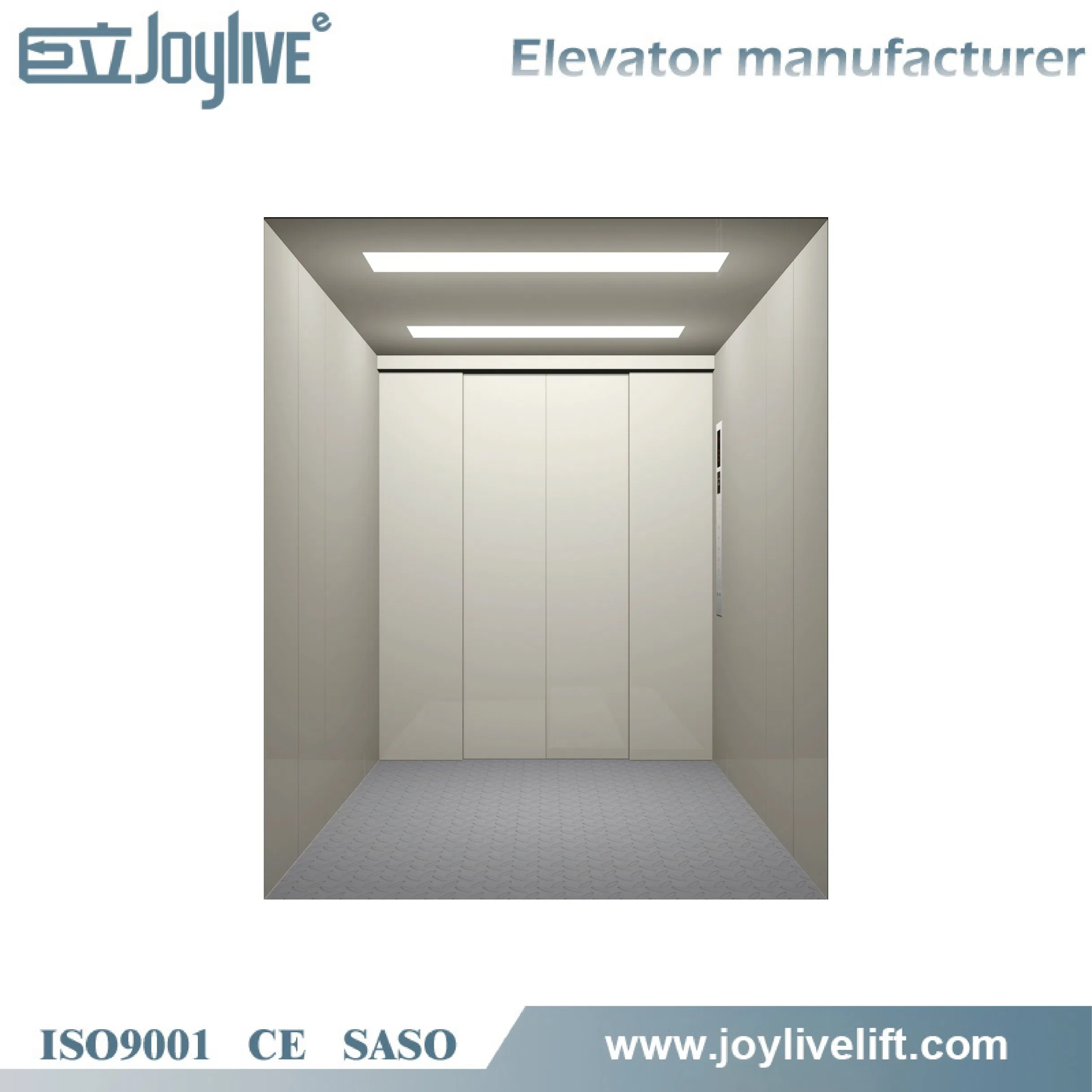

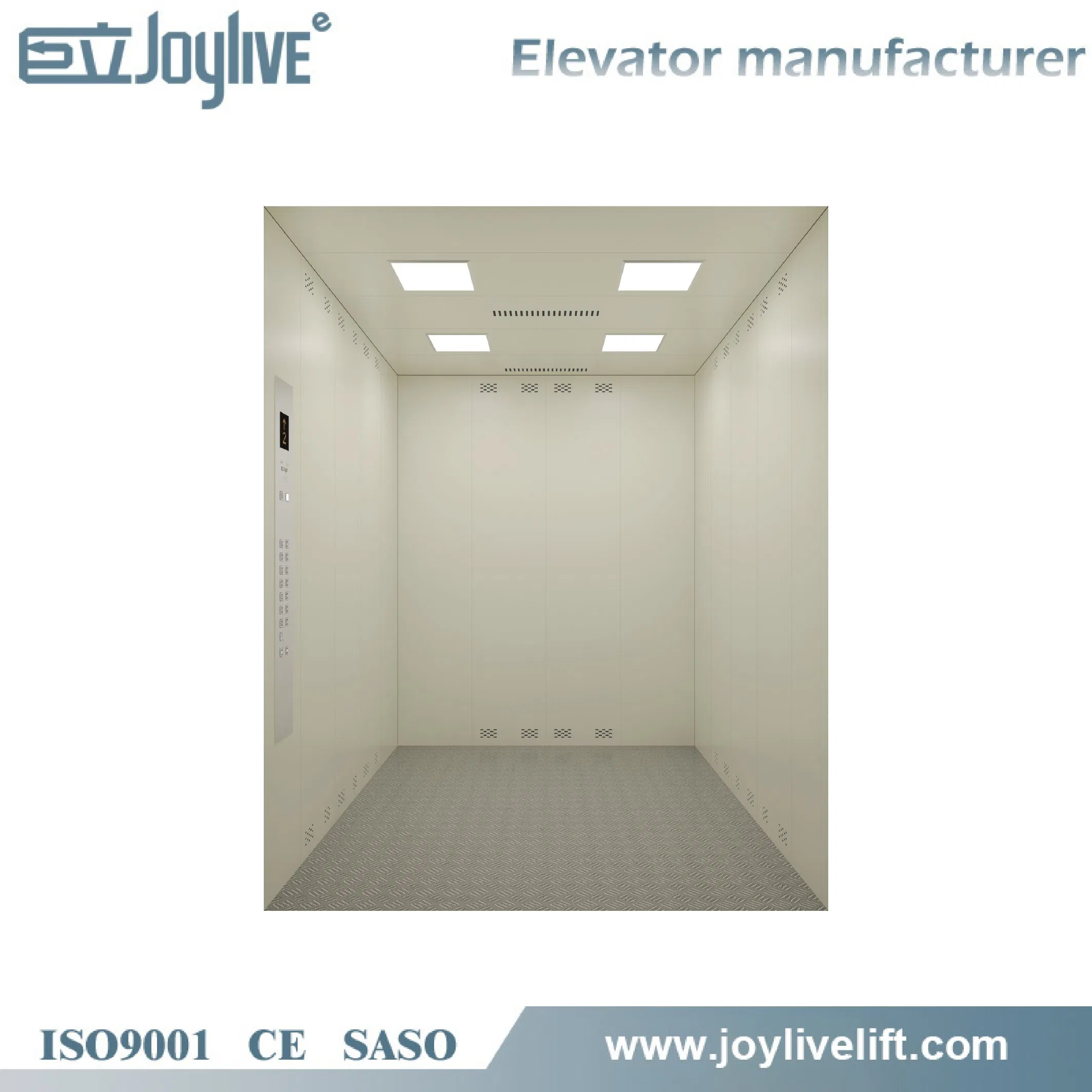

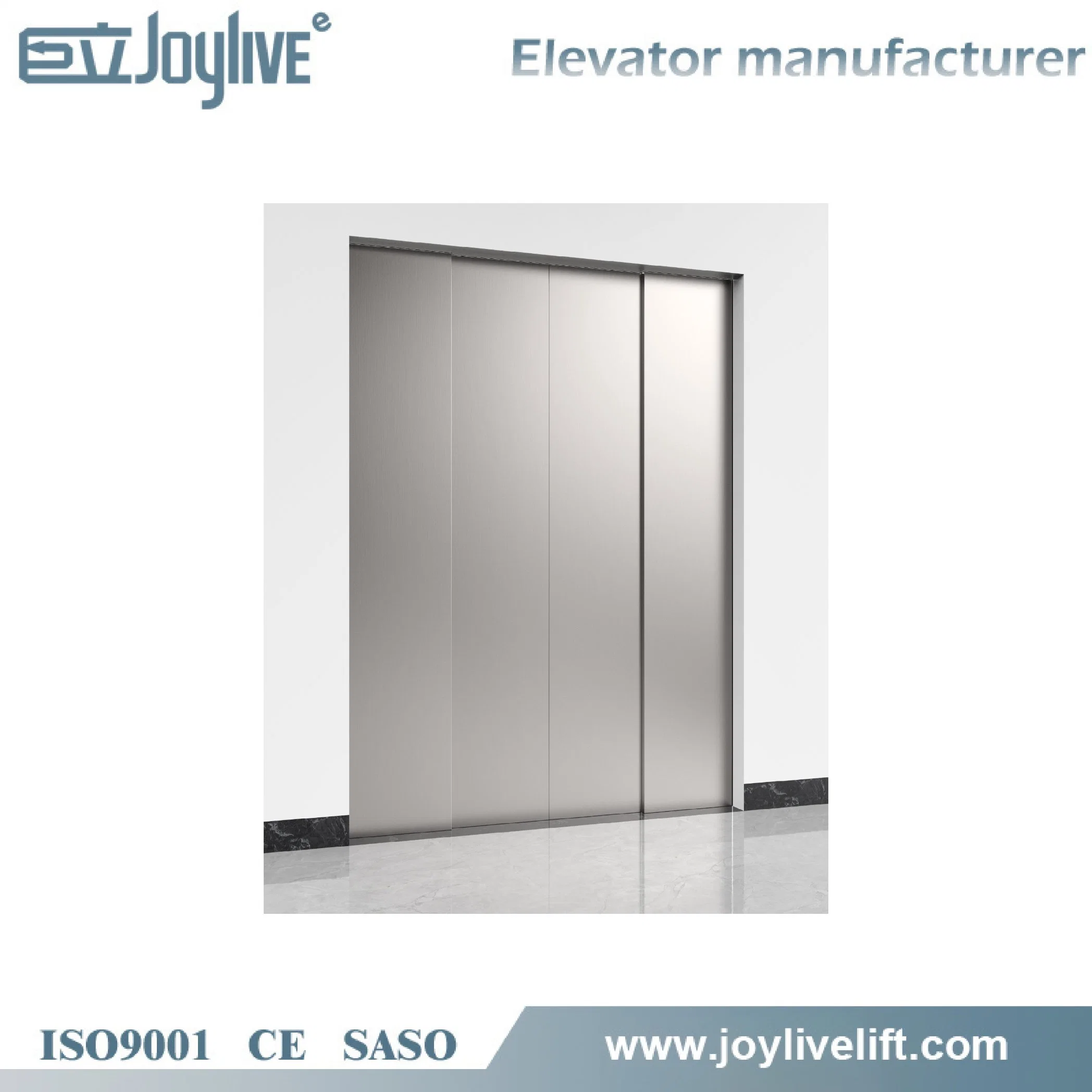

Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
1 / 5
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse

Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse

Customization: Available
After-sales Service: Online Technical Guidance
Warranty: 12 Months After Installation Finished
Send Inquiry

Product Description

Basic Info

Model NO.Freight Elevator
TypeWellhole
Load Capacity1000-5000kg, 7000-20000kg
Speed0.5m/S, 1m/S, 1.5m/S
Drive ModeVVVF
Open & Close TypeAutomatic
Lift MechanismLift
Guide RailT Guide
Elevator DoorSide/Center Open
Travel HeightMax 75m
Control SystemMonarch
CertificationISO/CE/Saso

Product Description

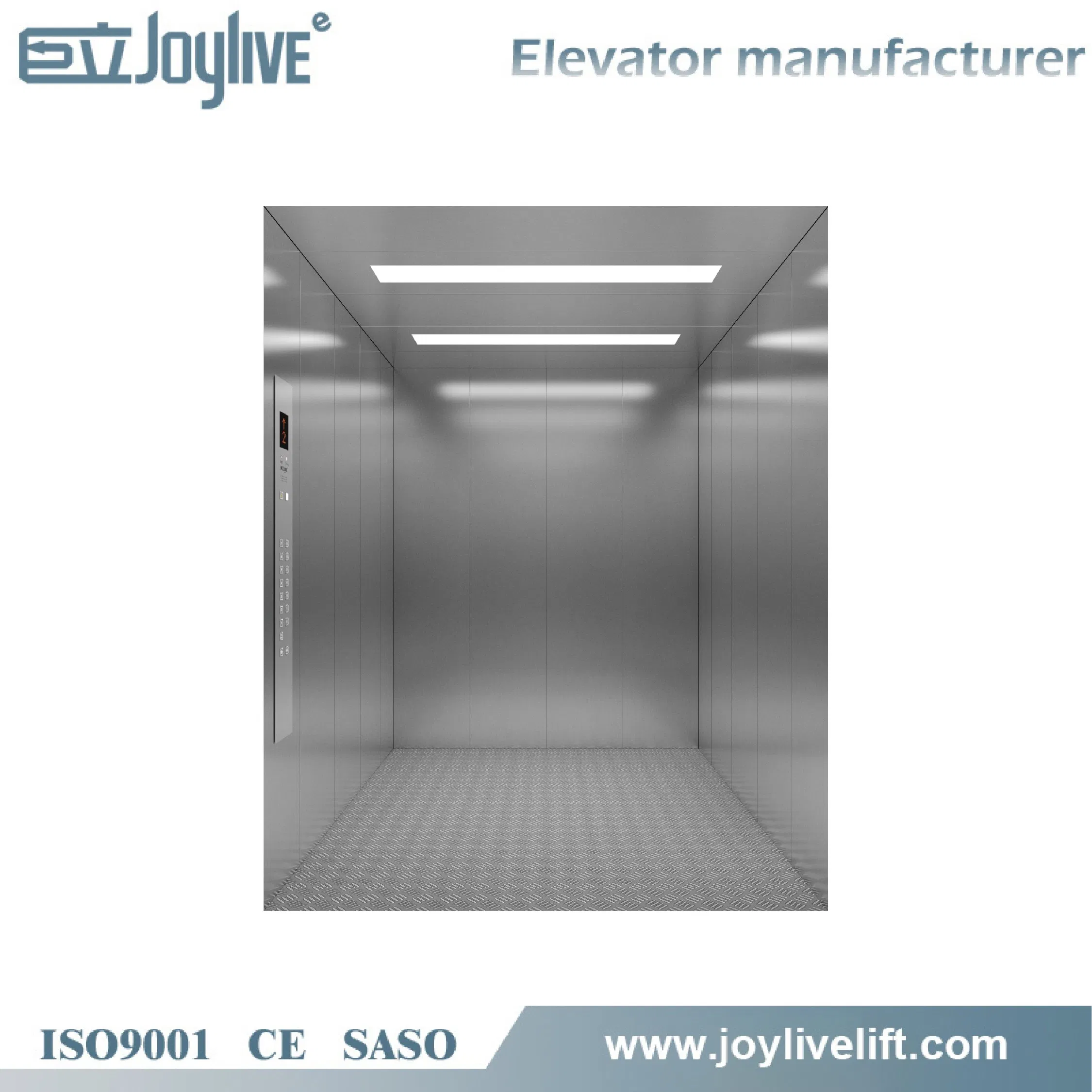

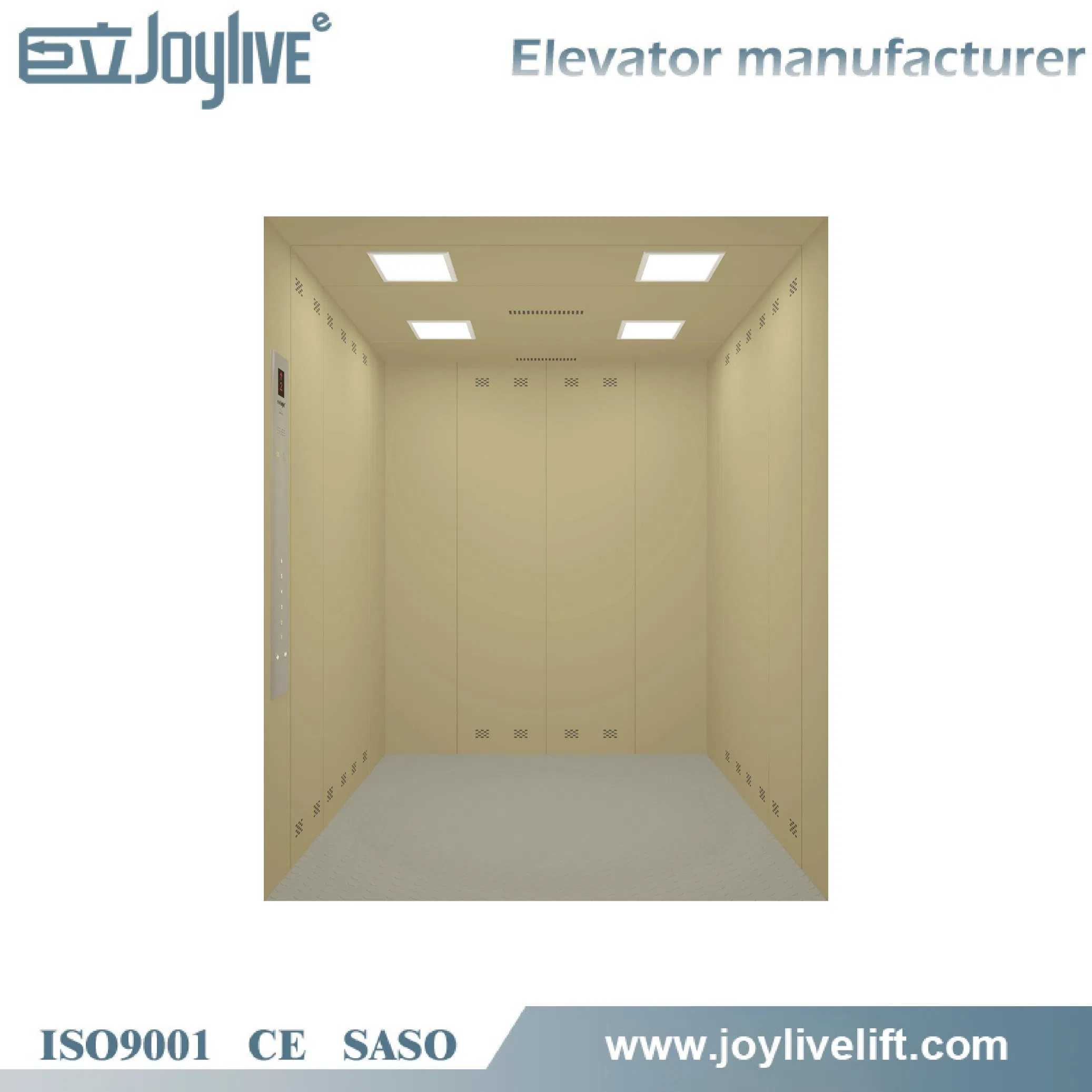

Product Name: Heavy Duty 1000 Kg 2ton Cargo Freight Elevator for Factory or Warehouse

Freight Elevator

Model Specifications

Ceiling: Powder coated steel, LED Lighting

Cabin Wall: Hairline stainless steel, Powder coated steel

Floor: Chequered steel plate

Applications: Factory, Warehouse, Shopping mall, Freight center

Load:1000kg to 20000kg
Speed:0.5m/s - 1.75m/s
Max Travel:75m

Heavy-duty freight elevator provides auxiliary logistics planning for large vehicles transportation, equipment, warehousing and distribution with max. load 20 tons. Automatic dispatching between elevator and AGV (Automated Guided Vehicle) ensures efficient transport across floors, solving vertical space obstacles.

Basic Series Gallery

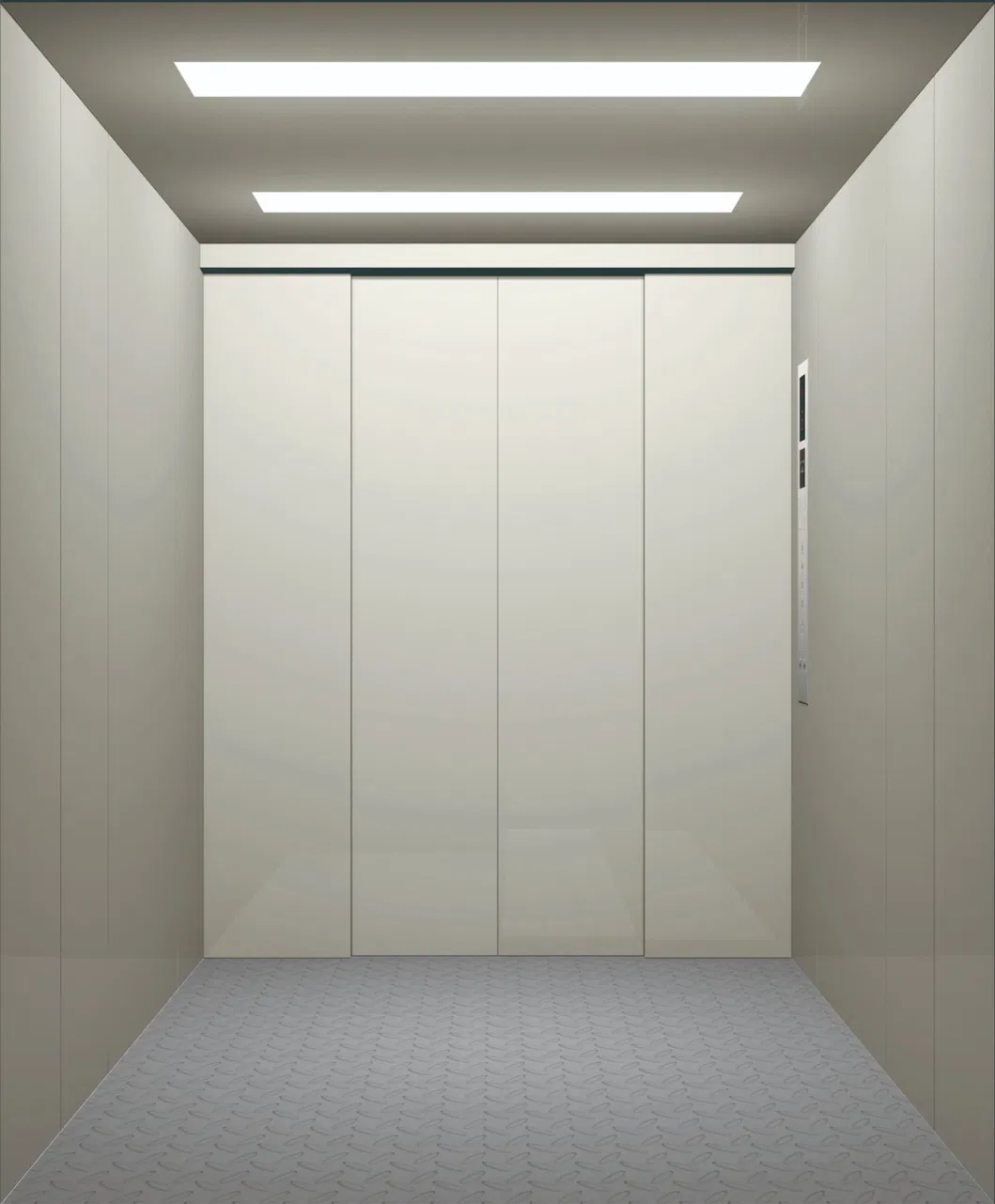

Series 1

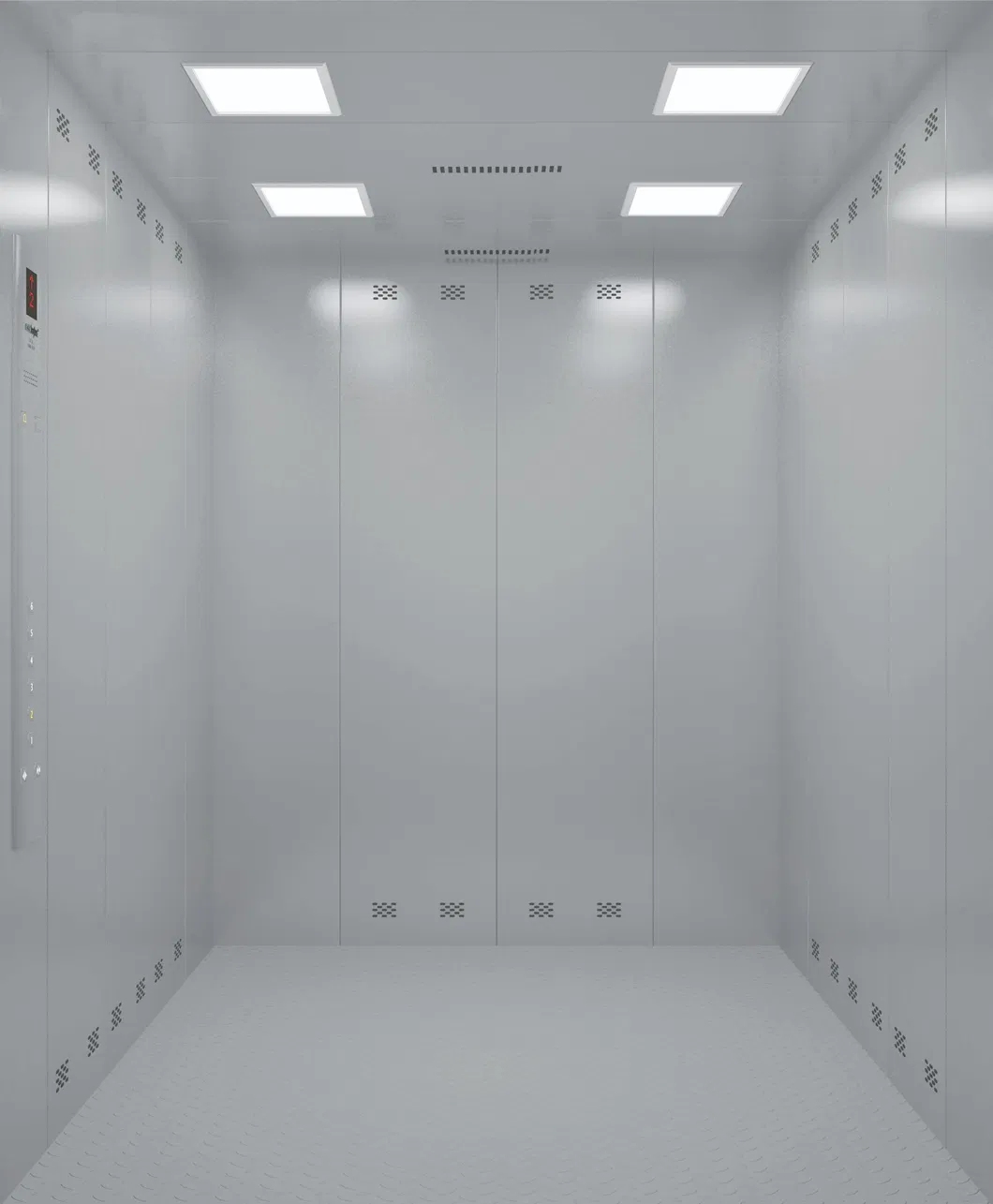

Series 2

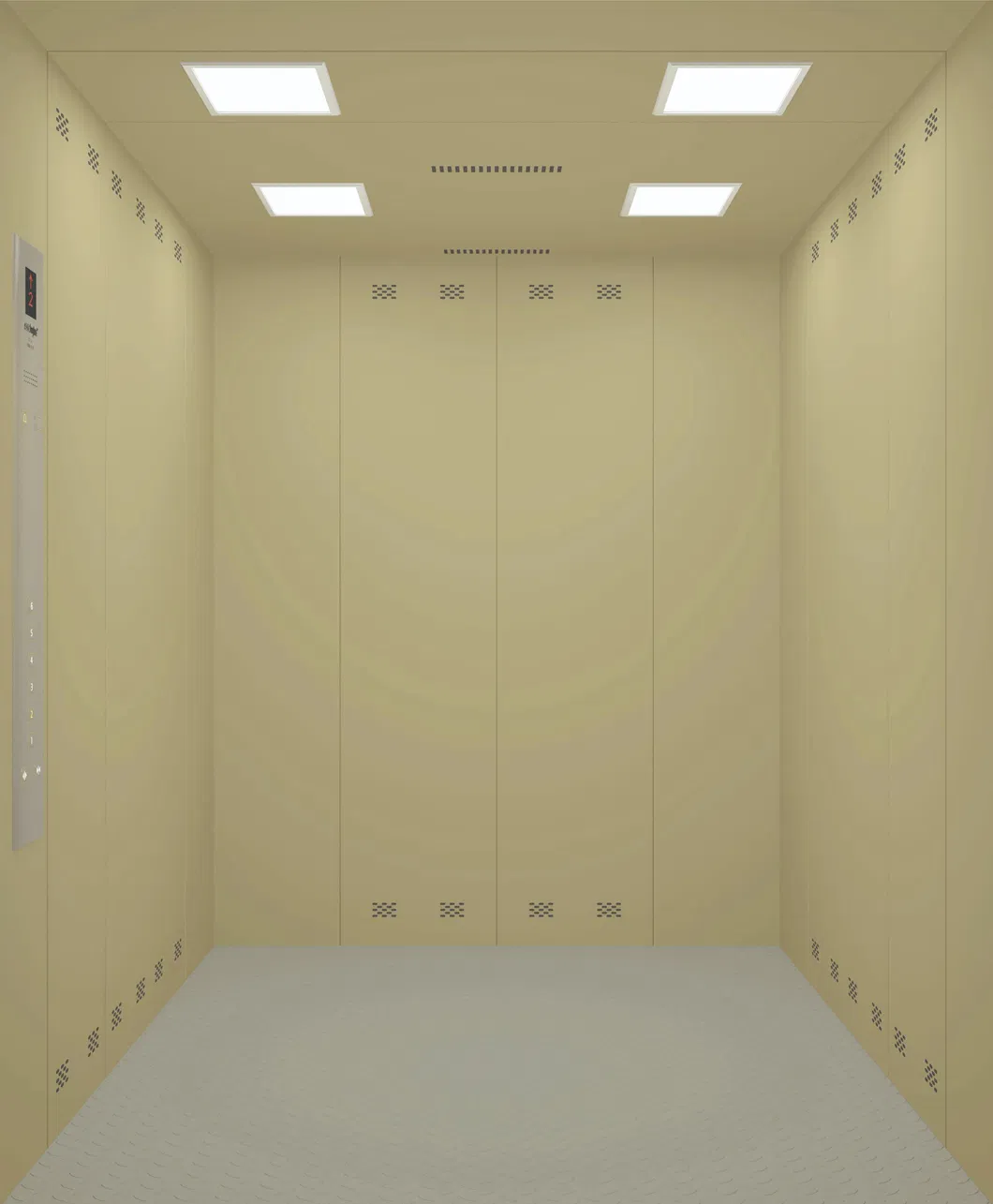

Series 3

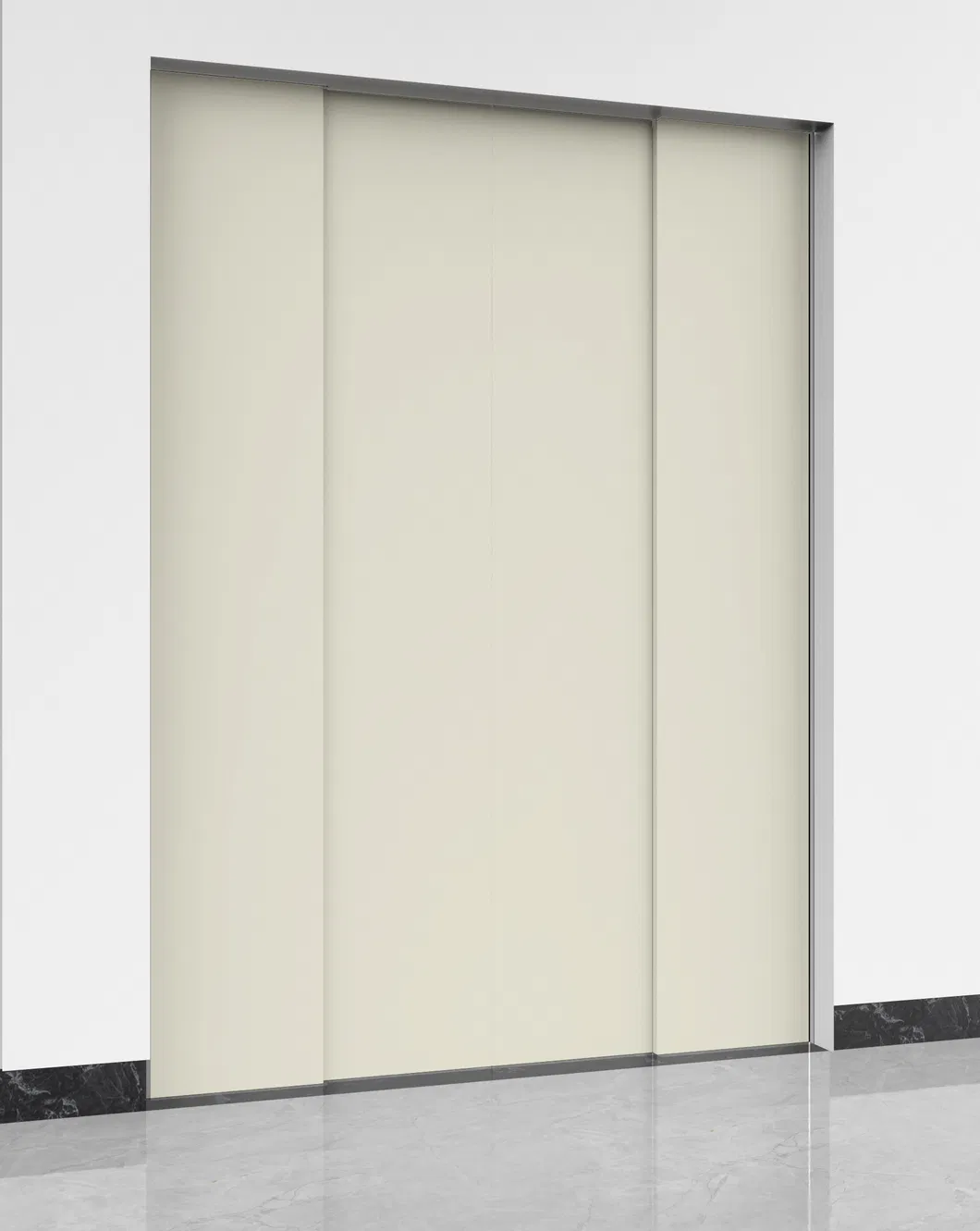

Series 4

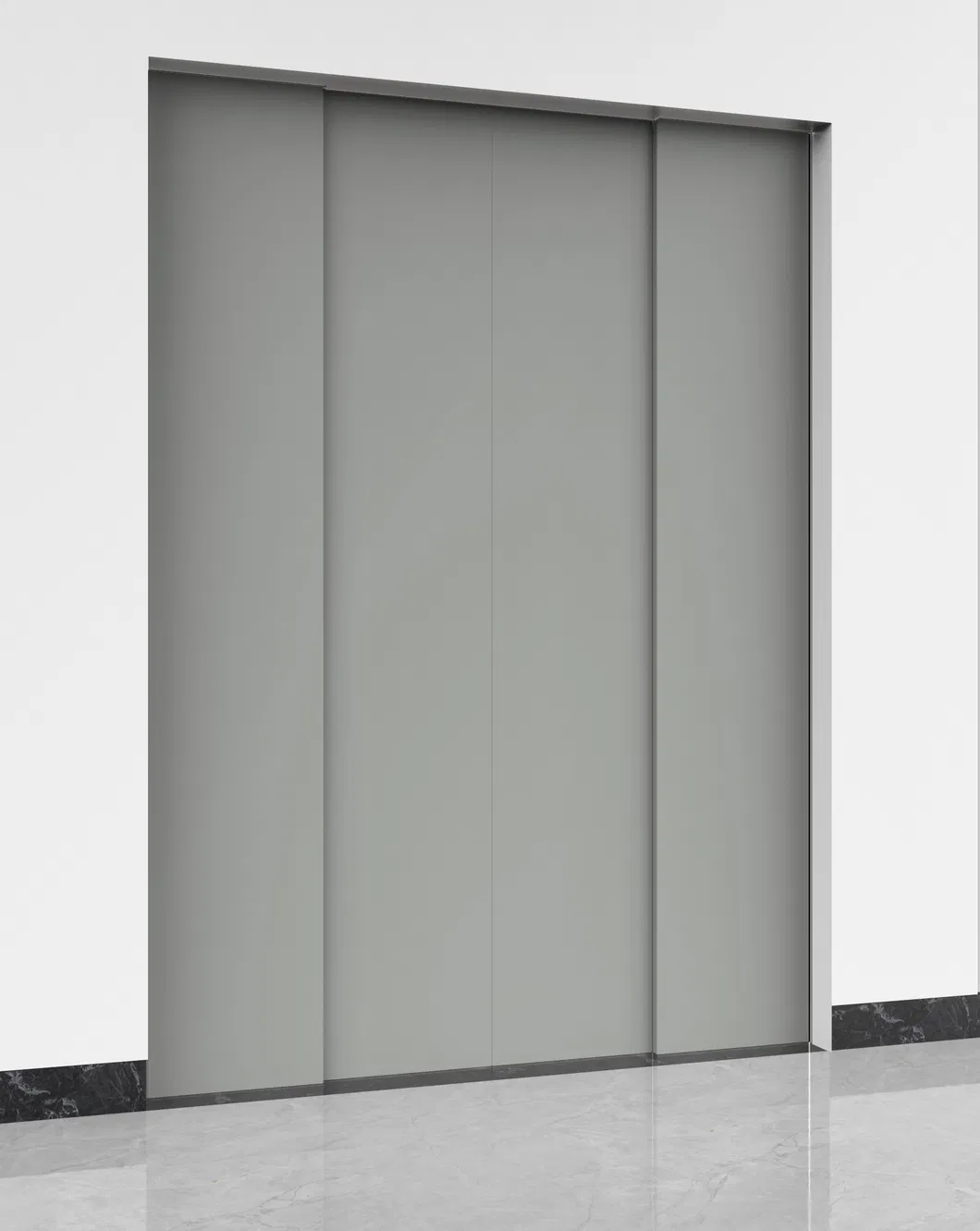

Series 5

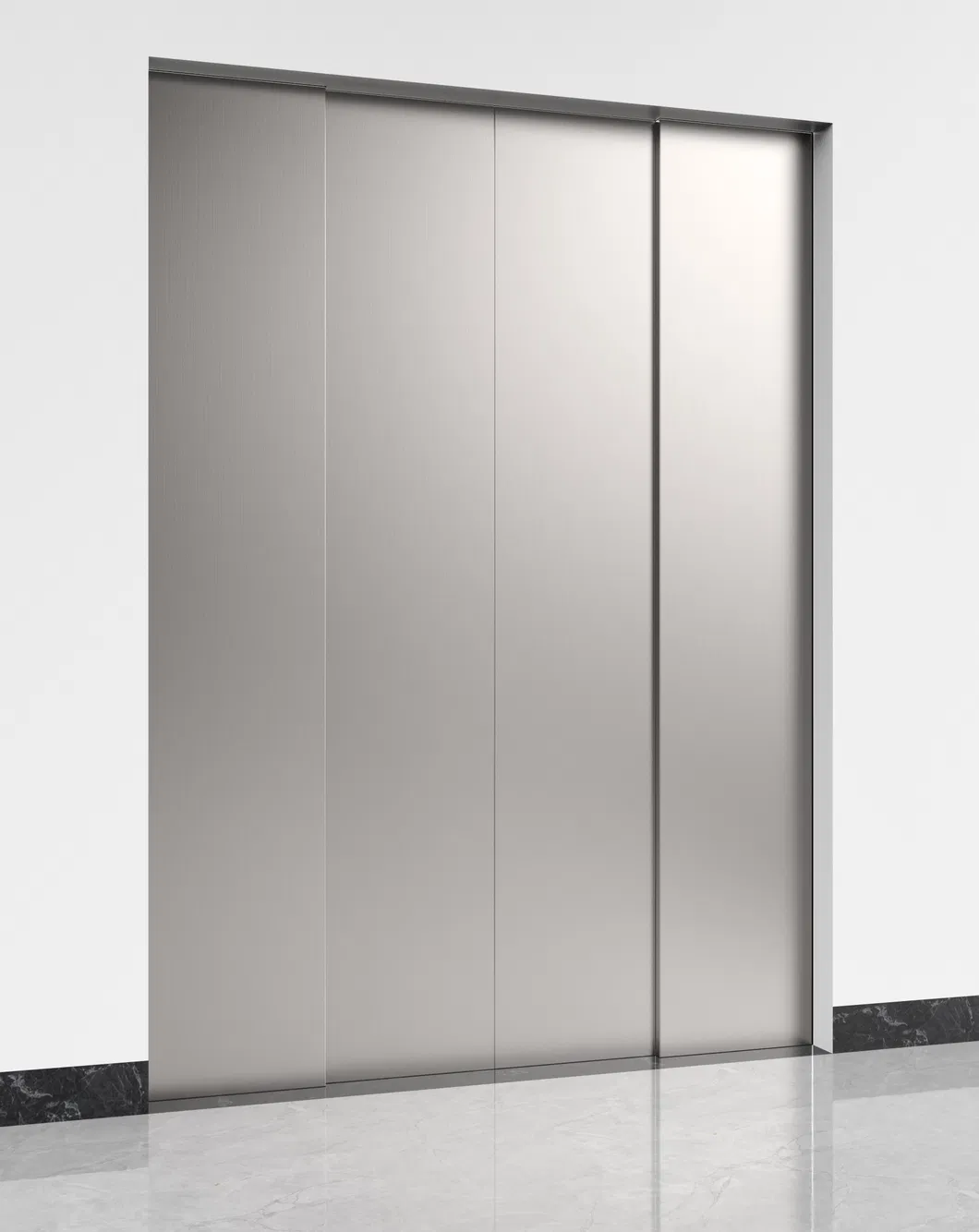

Series 6

Technical Specifications

Load (kg) Speed (m/s) Cabin Size (CW×CD) Door Opening (EW×EH) Shaft Size (HW×HD) Pit Depth Top Floor Height
10000.5/1.01400×17001200×21002250×210015004300
16000.5/1.01500×23001500×21002650×270015004300
20000.5/1.01700×24001700×21002900×285015004300
30000.5/1.02000×28001800×21003350×325015004300
50000.25/0.52400×36002400×23004050×405016004800
100000.53400×49003000×30005300×520020005750
200000.54600×70004000×35006400×765025005800

Standard Elevator Functions

VVVF Drive
Over-load Protection
Anti-slip Protection
Inspection Running
Fault Diagnosis
Emergency Light
Alarm Bell
Fire Emergency Return
Light Curtain Protection
Full Collective Control
Automatic Close Door
Independent Running

Advanced Monitoring System

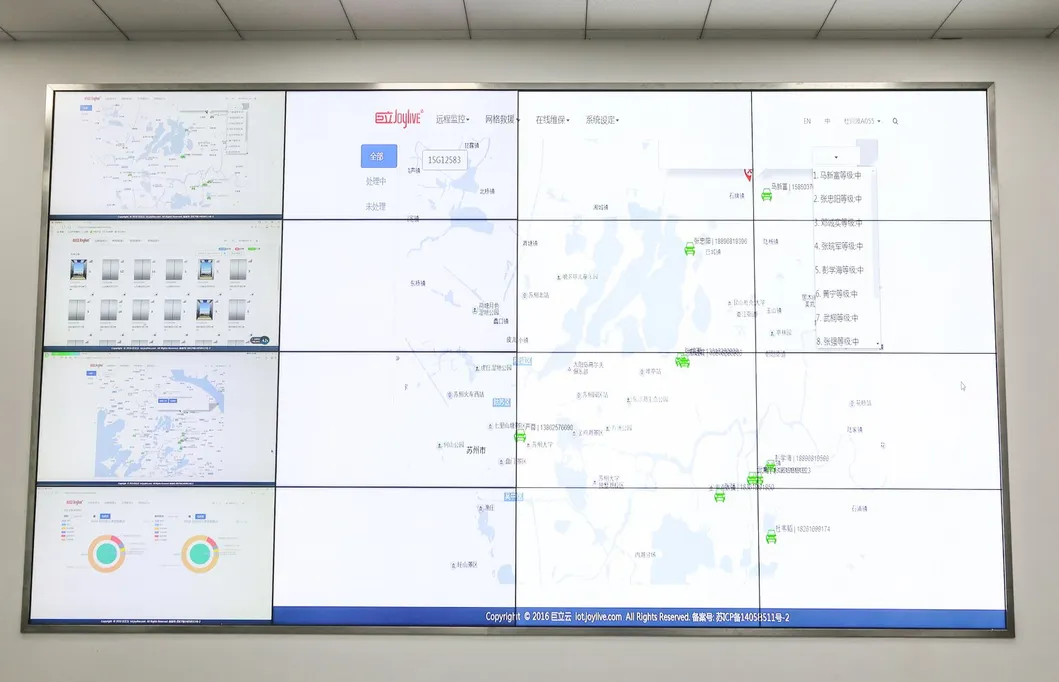

IoT Platform

Elevator IoT Platform

24-hour uninterrupted elevator operation and safety management service. Maintenance processes are open, transparent, and safer for all passengers.

Dynamic Monitoring
Remote Monitoring
Grid Rescue
On-line Maintenance

Frequently Asked Questions

What is the maximum load capacity for these freight elevators?
Our heavy-duty freight elevators can support a maximum capacity of up to 20,000kg (20 tons), suitable for large industrial vehicles and heavy equipment.
Are there Machine Roomless (MRL) options available?
Yes, we provide both Machine Room (MR) and Machine Roomless (MRL) series to accommodate different architectural requirements and space-saving needs.
What safety certifications do these elevators hold?
All freight elevator models are fully compliant with international standards, including ISO, CE, and SASO certifications.
What drive technology is used for energy efficiency?
We utilize VVVF (Variable Voltage Variable Frequency) drive technology for both the main motor and door motor, ensuring smooth operation and significant energy savings.
Can the cabin size and load be customized?
Yes, elevator load and cabin dimensions can be customized based on specific project requirements and shaft constraints.
Does the system support remote monitoring?
Yes, our elevators can be integrated with an IoT platform for 24-hour dynamic monitoring, fault diagnosis, and grid rescue functions.
