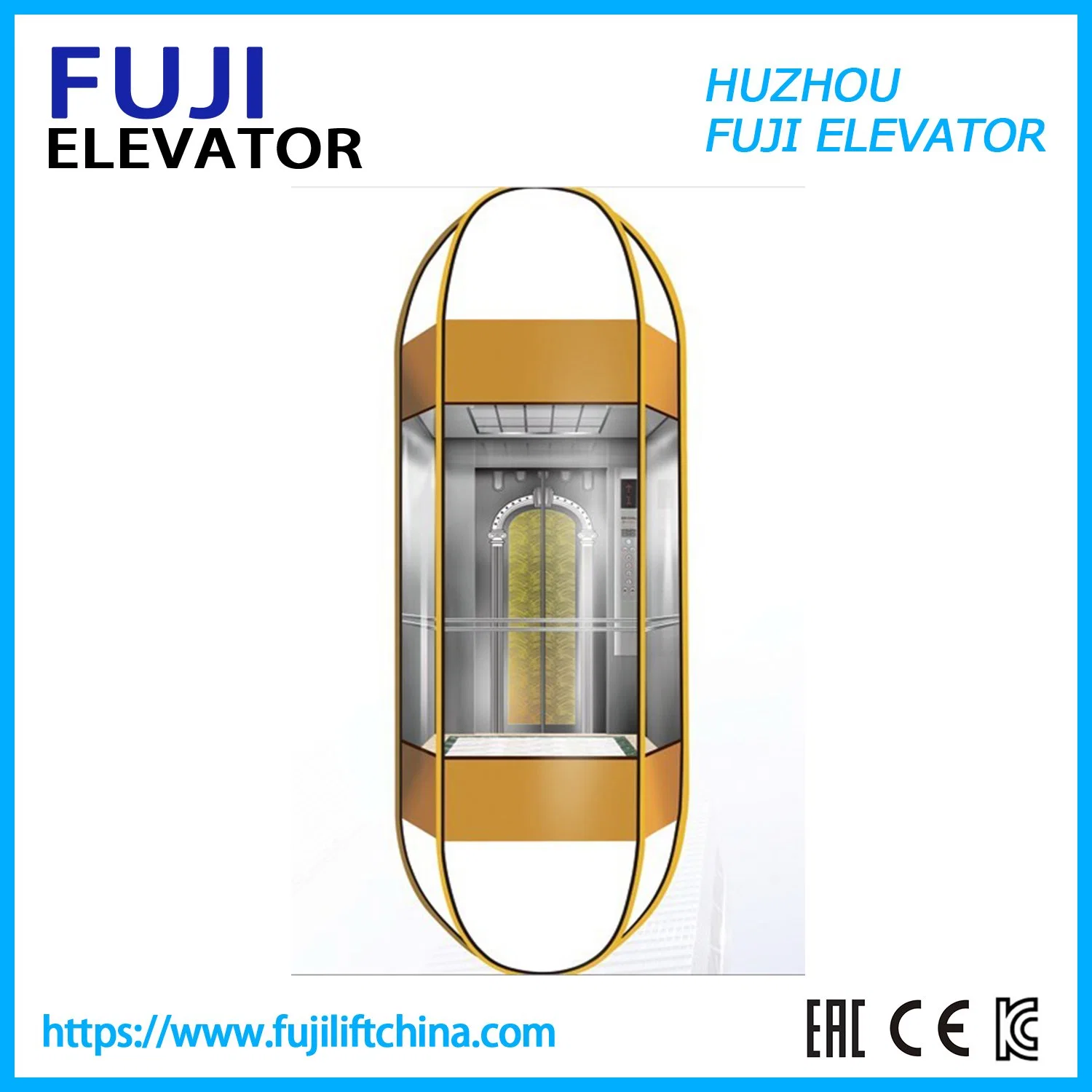

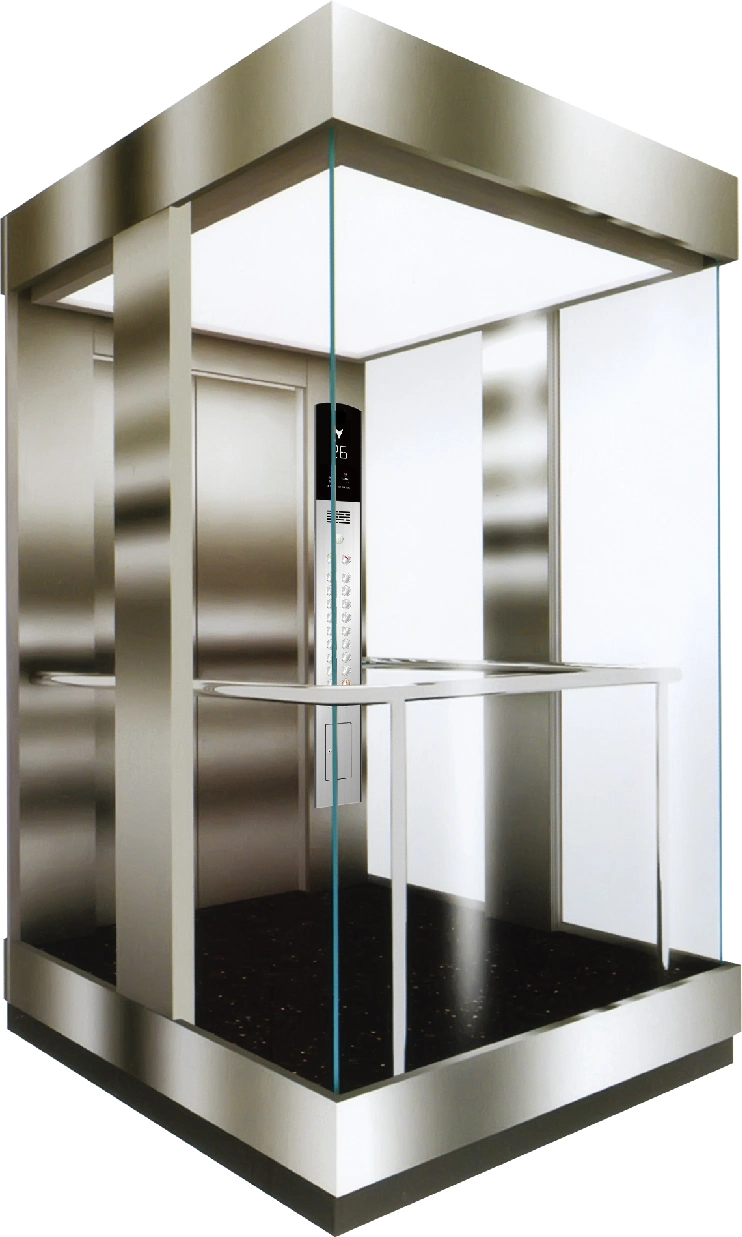

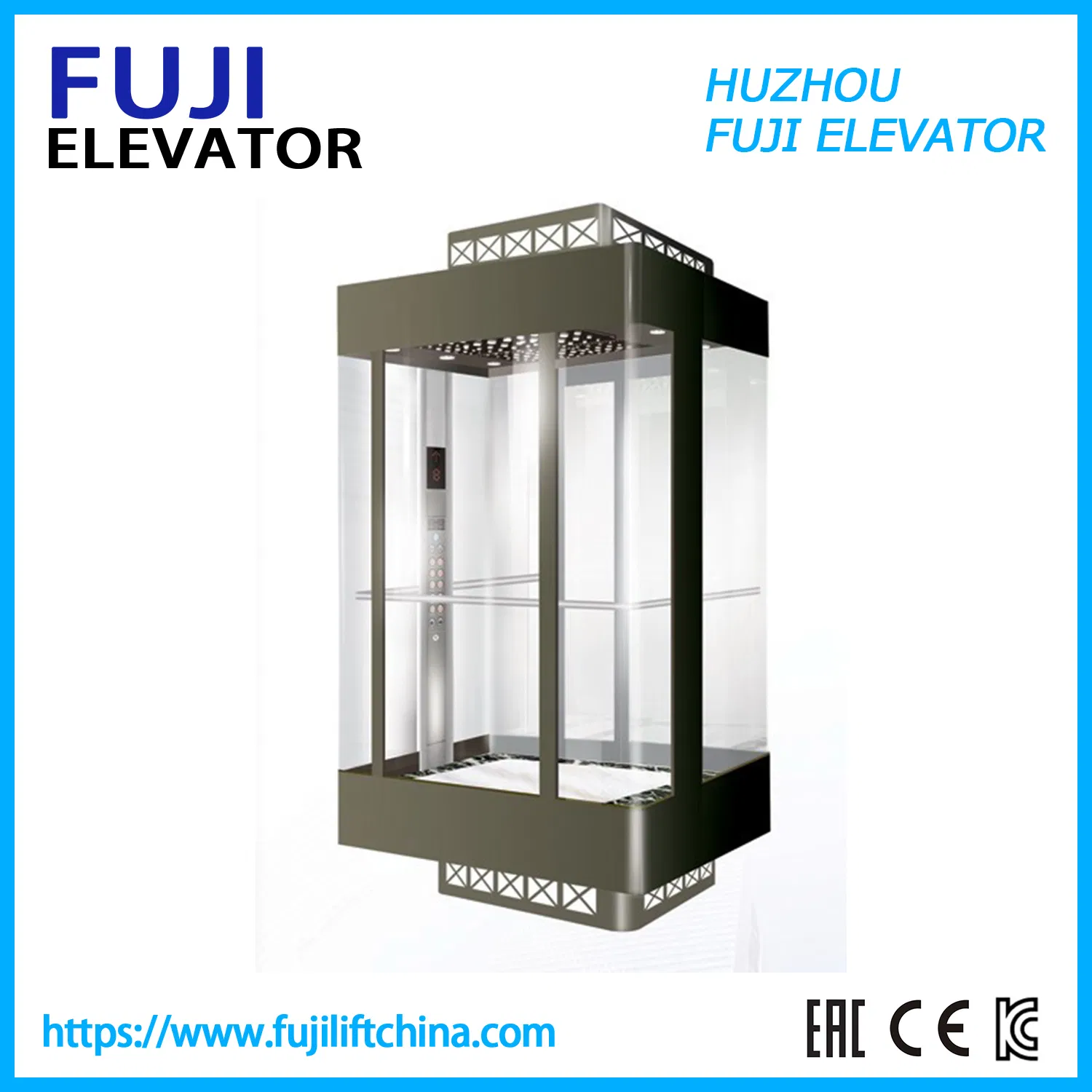

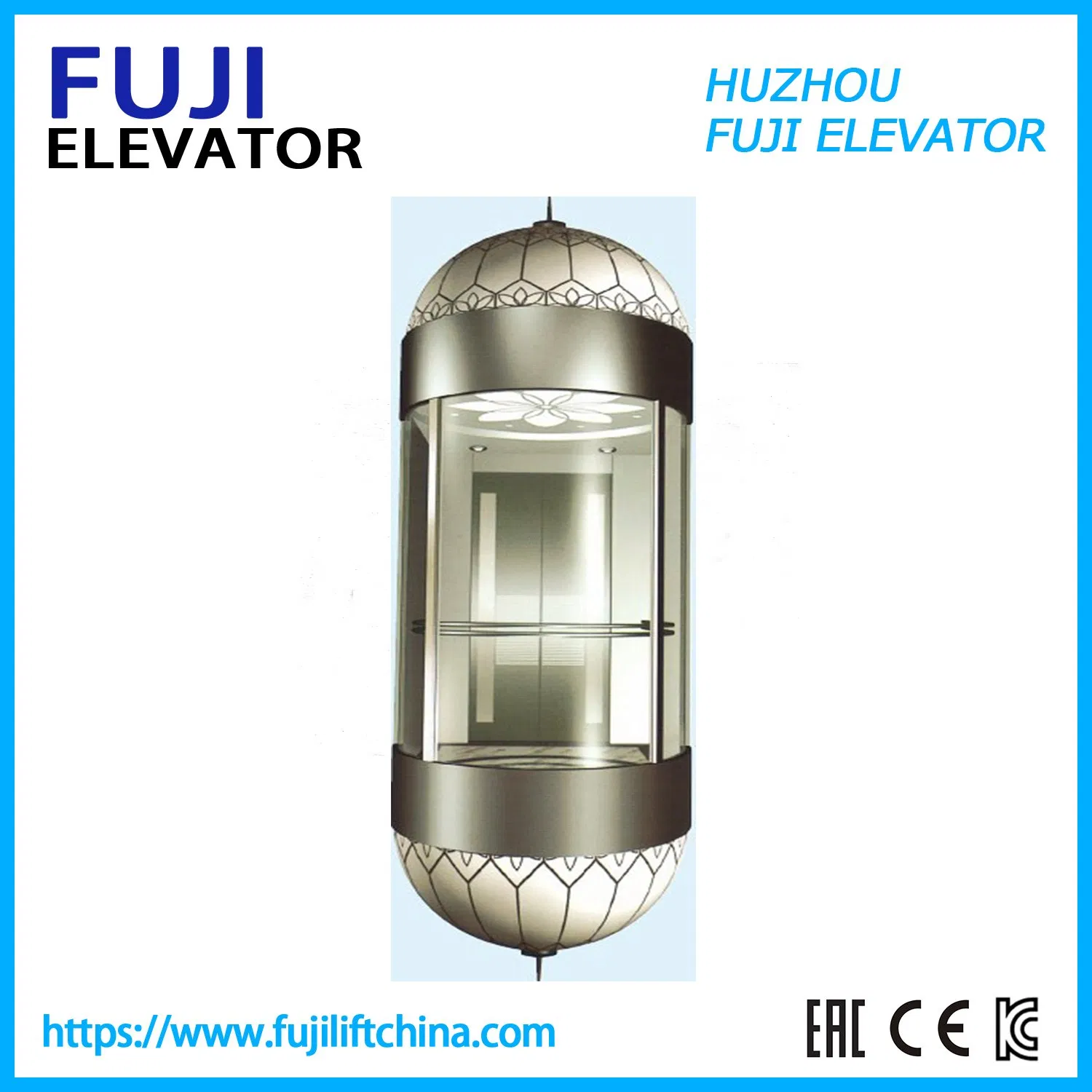

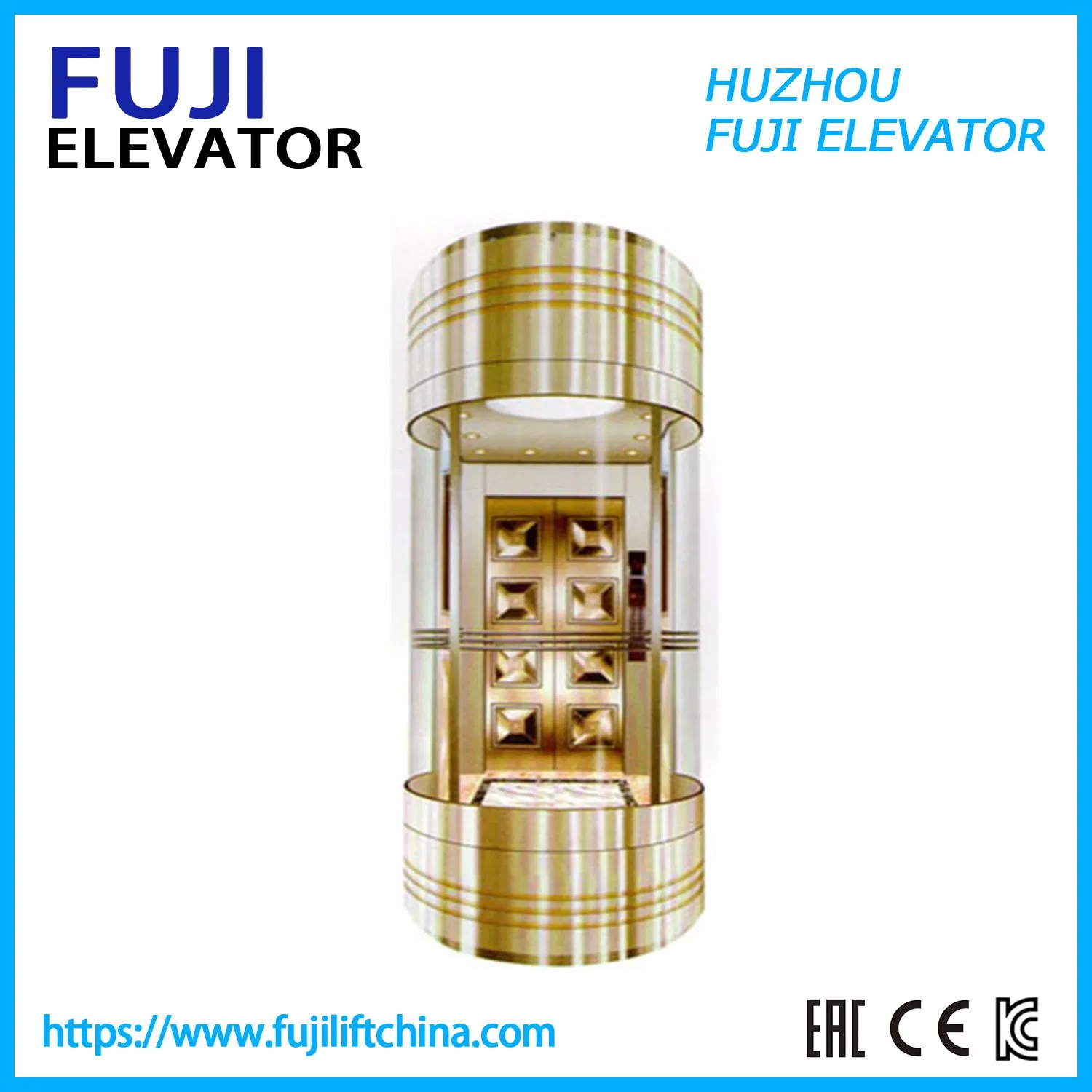

FUJI Factory Manufacturer Panoramic Lift Glass Elevator with Sightseeing Elevator Home Elevator Villa Passenger Lift Passenger Elevator Lift China Lift

1 / 5

FUJI Factory Manufacturer Panoramic Lift Glass Elevator with Sightseeing Elevator Home Elevator Villa Passenger Lift Passenger Elevator Lift China Lift

Customization:	Available
After-sales Service:	24 Hours Service
Warranty:	12-18 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

FUJI-G

Type

without Machine Room

Speed

1.00 - 2.00m/s

Capacity

500-1000kg

Persons

450-1600kgs

Shape

Square and Semi-Circle

Number of Sides

Three

Driving Type

AC Elevator

Control Mode

Collective Selective Control

Elevator Door

Center Opening Door

Production Time

Within 25-30 Days

Transport Package

High Quality Export Wooden Case

Standard Decoration Options

Wall	Hairline stainless steel
Ceiling	LED Fluorescent, according to the car design
Car bottom	PVC
Jamb material	The first layer of hairline, the remaining steel plate Spraying
Hall door	The first layer of hairline, the remaining steel plate Spraying

Passenger Elevator Parameters

Load (Kg)	Rated Speed (m/s)	Car Size cw*cd(mm)	Door Size ew*eh(mm)	Shaft Size hw*hd(mm)	Pit Depth (mm)
450	1	1100×1100	800×2100	2050×1850	1500
630	1, 1.5, 1.75	1400×1100	800×2100	2250×1900	1500/1600
800	1, 1.5, 1.75	1400×1350	800×2100	2200×1950	1500/1600
1000	1, 1.5, 1.75	1500×1550	900×2100	2350×2150	1600
1600	1, 1.5, 1.75	1800×2000	1100×2100	2900×2200	1500/1600

Machine Room Configurations

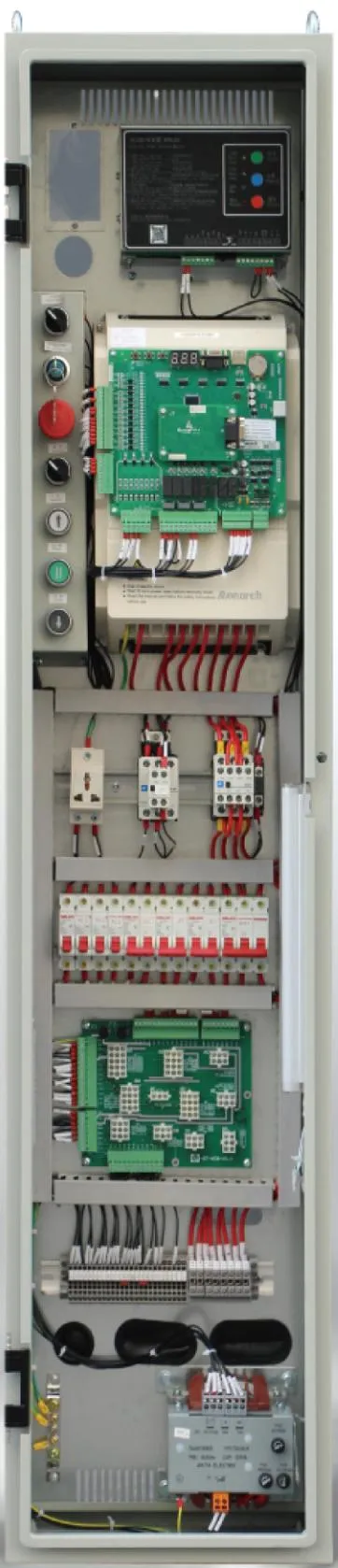

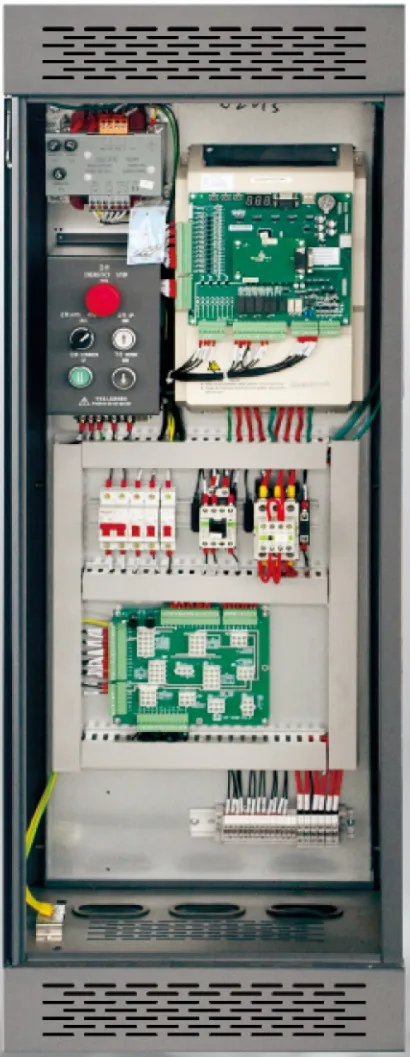

Intellectual Main Control System

It gives first priority to effectiveness in vertical transport field. To fully optimize service efficacy, the elevator system fulfills intellectual management such as multi-computer, modular, and network control through a fully computerized system. It instantly feeds back running conditions to provide the most efficient service.

Advanced Traction & Door Systems

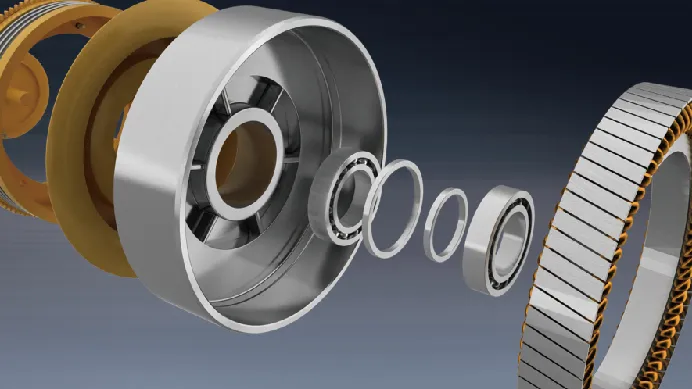

New generation permanent magnet synchronous traction machine & Top advanced door operator system.

Elevator Standard Safety Functions

No.	Safety Feature	Description
1	Static electricity protection	Eliminate static electricity raised from running steps.
2	Emergency stop button	Immediate stop control for emergency situations.
3	Skirting protection	Prevents foreign bodies from being jammed between steps and skirting.
4	Handrail entry safety	Protection against foreign bodies at the handrail entry point.
5	Over-speed protection	Activates if speed exceeds 20% of rated speed.
6	Over-load protection	Prevents motor strain from excessive loading.
7	Step missing detection	Detects and stops if a step is missing in the stairway.
8	Short circuit protection	Electrical safety against short circuit risks.

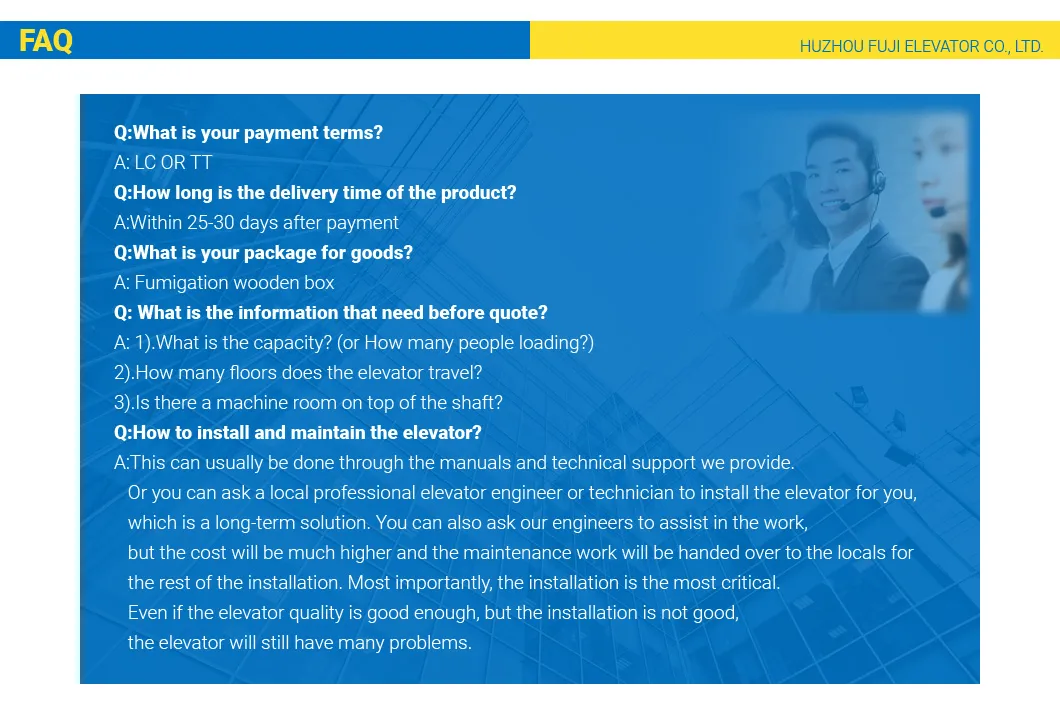

Frequently Asked Questions

1. What is the maximum load capacity for these elevators?

Our passenger elevators offer a wide range of load capacities, typically ranging from 450kg up to 1600kg to accommodate various building requirements.

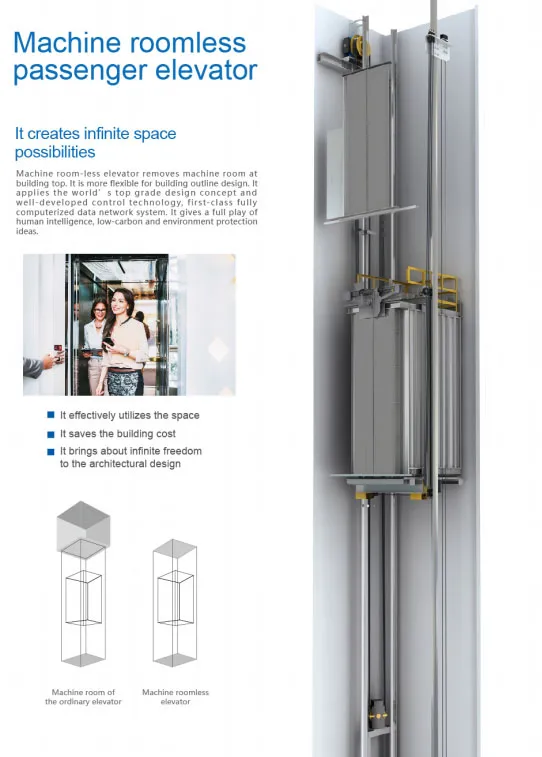

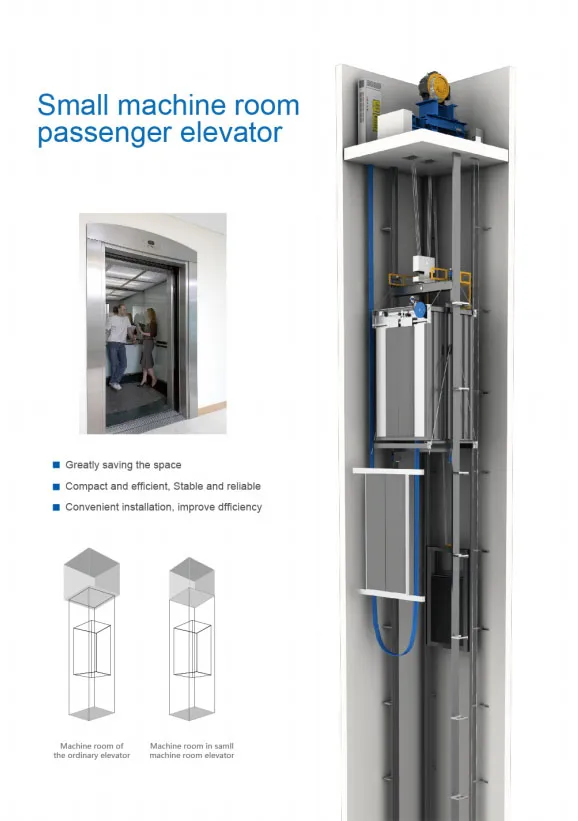

2. Can this elevator be installed in buildings without a dedicated machine room?

Yes, we provide both "Small Machine Room" and "Machine Roomless" (MRL) options, giving you flexibility in architectural design and space utilization.

3. What safety features are included as standard?

Standard safety features include emergency stop buttons, over-load protection, over-speed protection, static electricity protection, and skirting anti-clamp devices, among others.

4. What is the typical production and delivery time?

The standard production time for our elevator systems is usually within 25 to 30 days after the specifications are confirmed.

5. Are there customizable decoration options for the car interior?

Yes, we offer standard hairline stainless steel walls, various LED ceiling designs, and PVC flooring. Additional custom decoration requests can also be accommodated.

6. What type of control system does the elevator use?

The elevators utilize an intellectual main control system with multi-computer and network control for optimized vertical transport efficiency.
