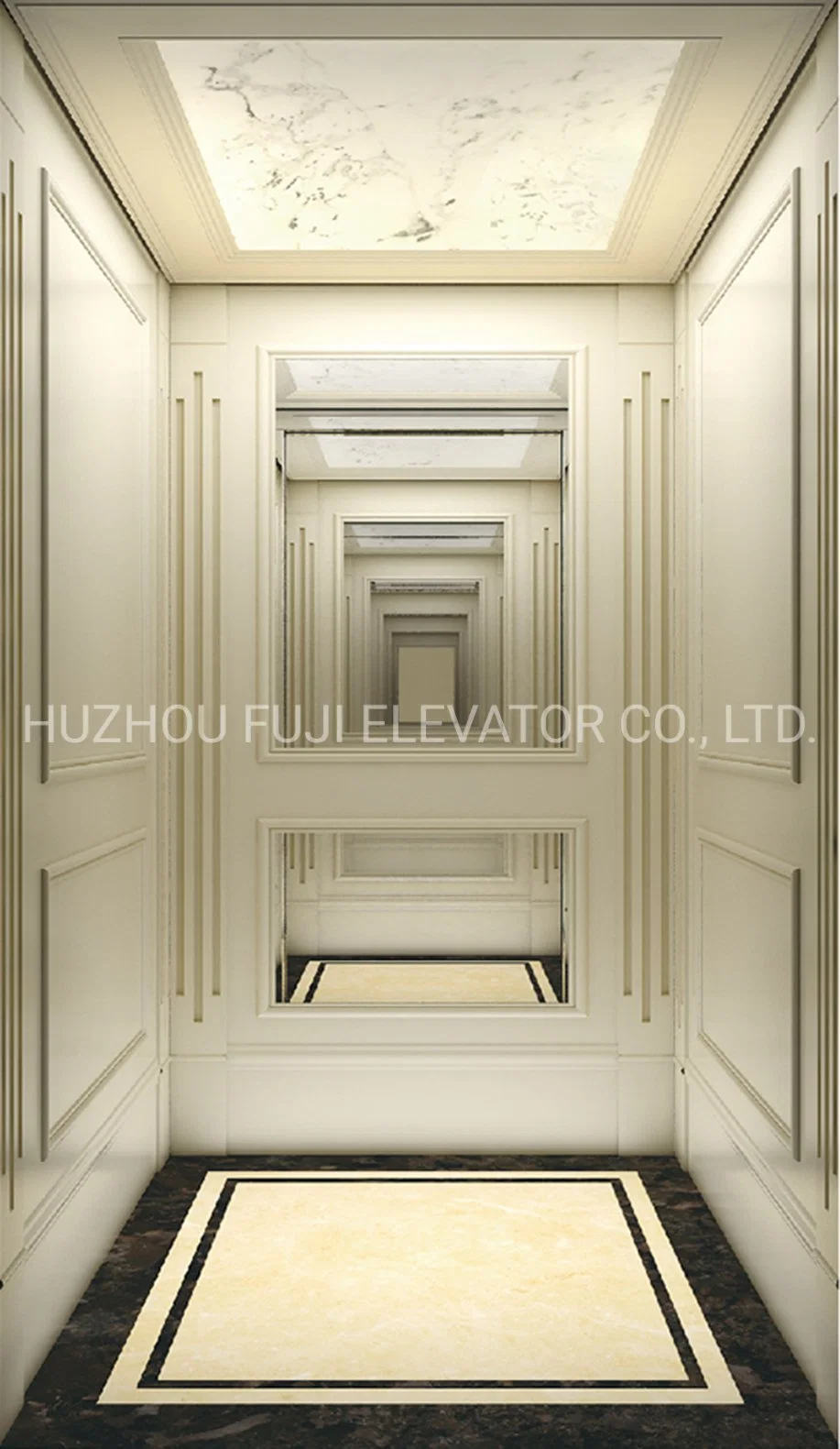

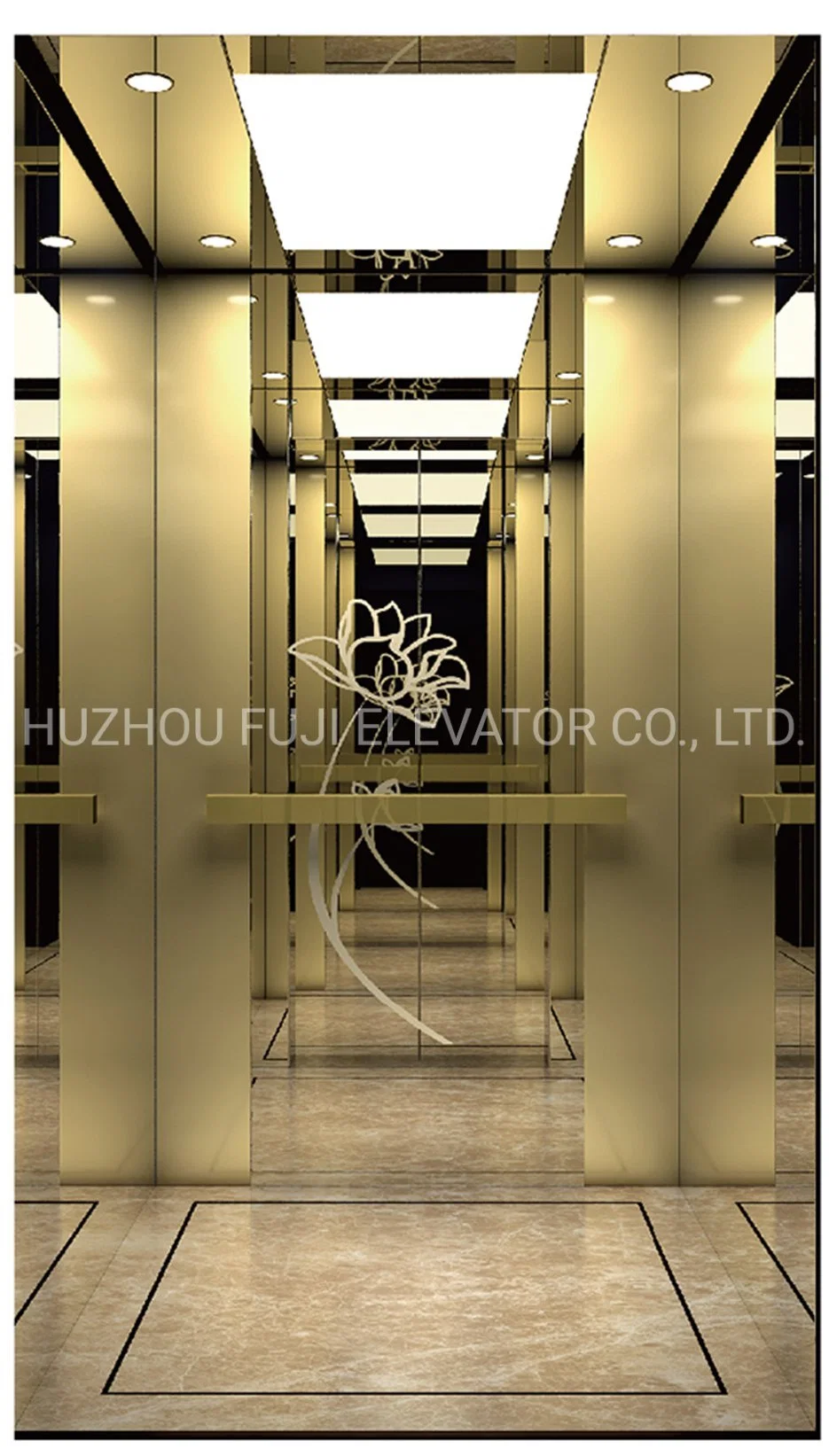

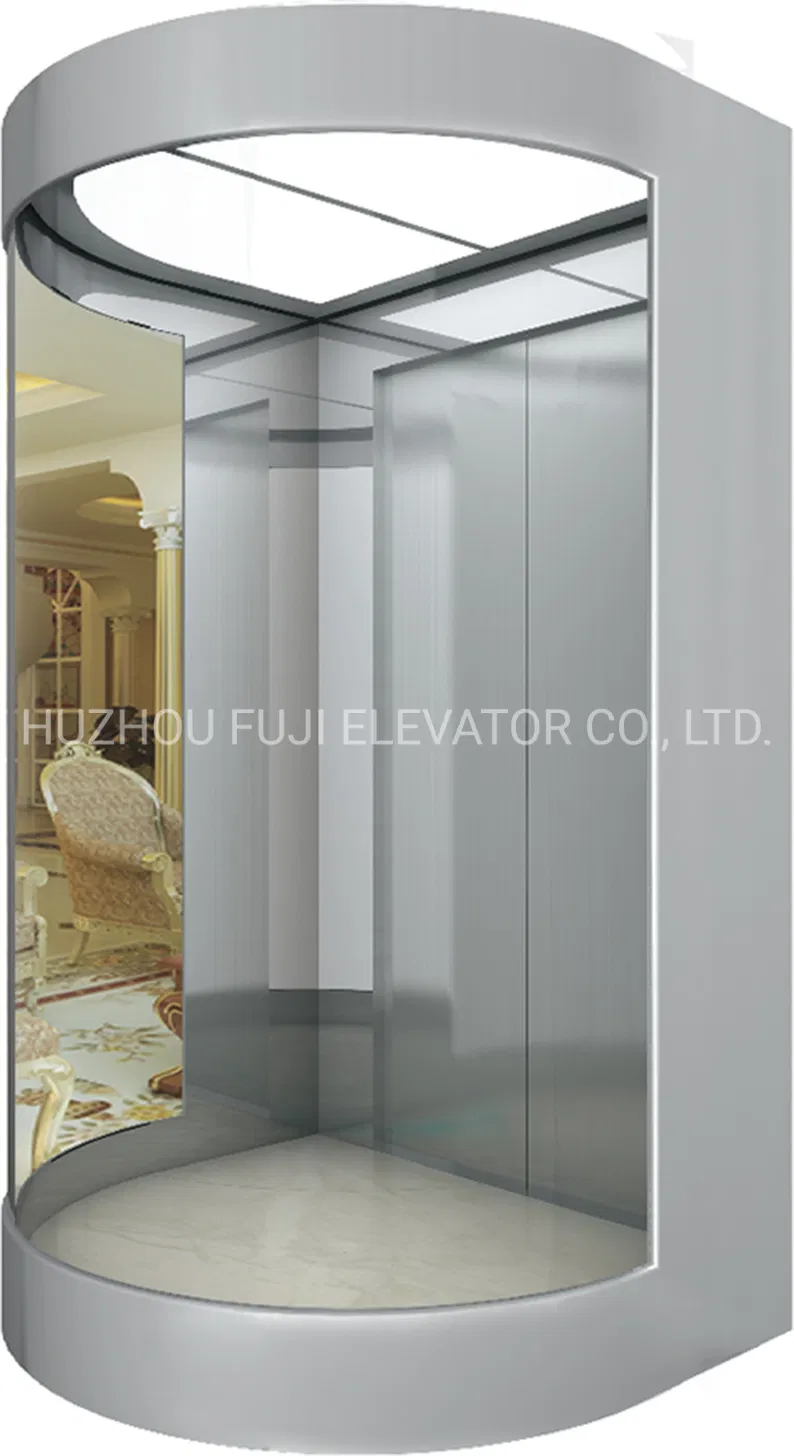

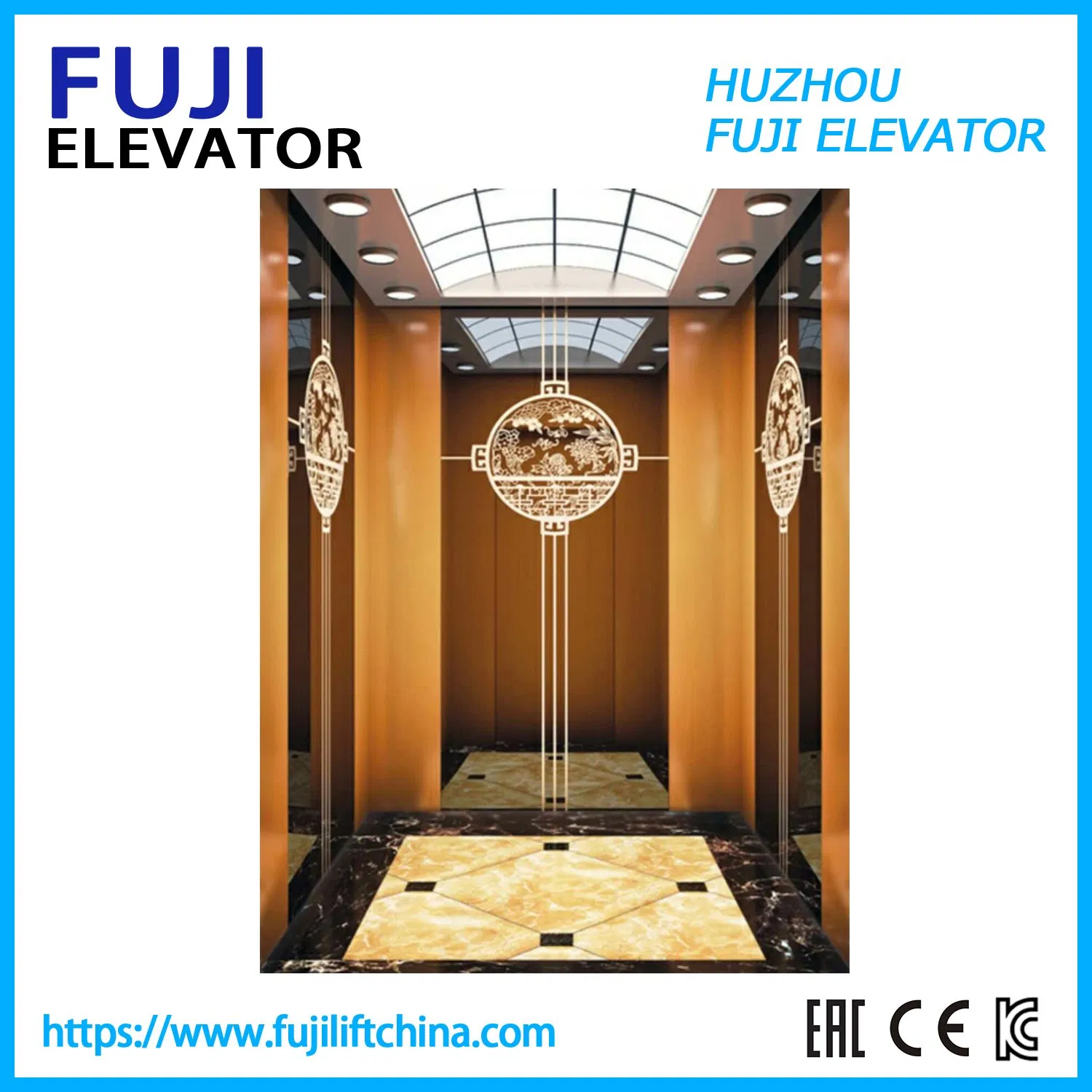

Standard Decoration Optional: For passenger elevators, various finishes are available including hairline stainless steel walls, LED Fluorescent ceilings, and PVC flooring.
| Decoration Part |
Standard Specification |
| Wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | The first layer of hairline, remaining steel plate Spraying |
| Hall door | The first layer of hairline, remaining steel plate Spraying |
Technical Parameters
| Load (Kg) |
Speed (m/s) |
Car Size (mm) |
Door Size (mm) |
Shaft Size (mm) |
Pit Depth (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 1500 |
| 630 | 1 / 1.5 / 1.75 | 1400×1100 | 800×2100 | 2250×1900 | 1500/1600 |
| 800 | 1 / 1.5 / 1.75 | 1400×1350 | 800×2100 | 2200×1950 | 1500/1600 |
| 1000 | 1 / 1.5 / 1.75 | 1500×1550 | 900×2100 | 2350×2150 | 1600 |
| 1600 | 1 / 1.5 / 1.75 | 1800×2000 | 1100×2100 | 2900×2200 | 1500/1600 |

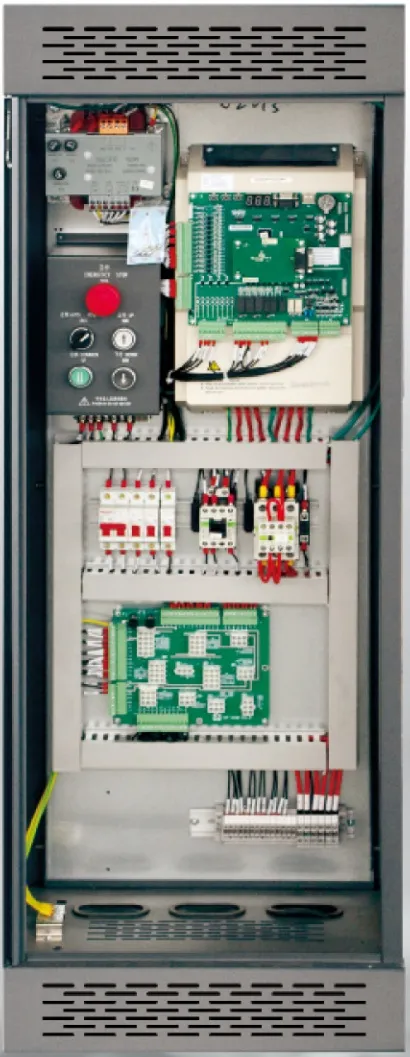

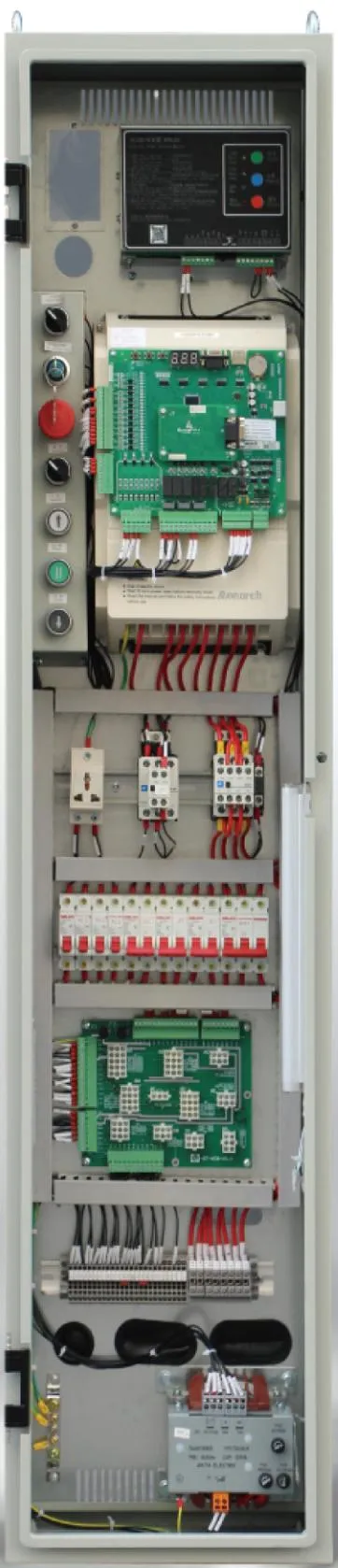

Intellectual Control System
To fully optimize service efficacy, the elevator system fulfills intellectual management such as multi-computer, modular and network control. It provides passengers with the most efficient and stable transportation services through a fully computerized feedback system.

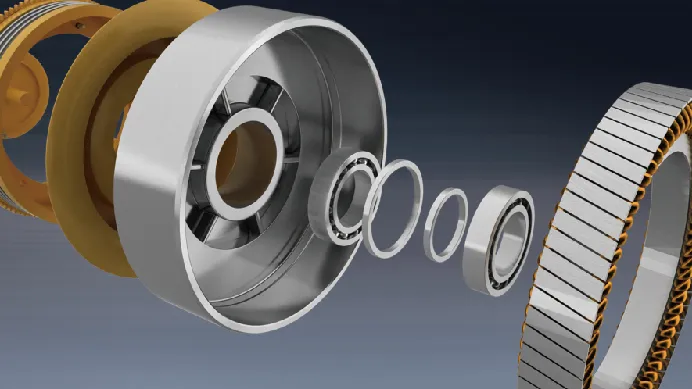

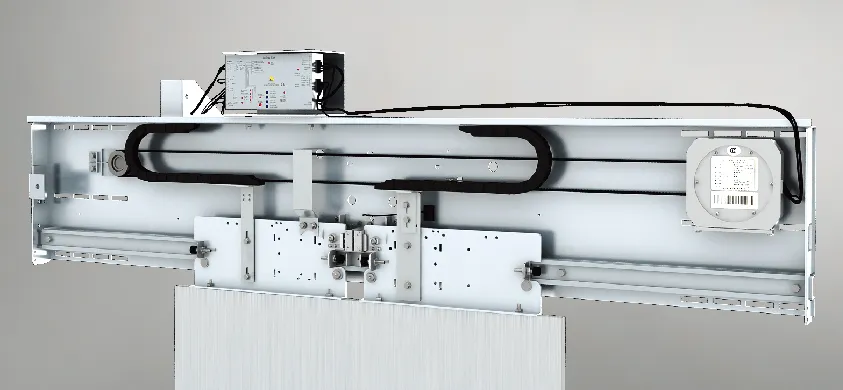

Traction Machine & Door System
Standard Safety Functions
| No. |
Safety Function |
Description |
| 1 | Static electricity protection | Eliminates static electricity from running steps. |
| 2 | Emergency stop button | Immediate stop control for emergencies. |
| 3 | Over-load protection | Prevents motor damage from excessive weight. |
| 4 | Step sagging protection | Protects against step breakage or sagging risks. |
| 5 | Over-speed protection | Activates if speed exceeds 20% of rated speed. |
| 6 | Step missing detection | Detects missing steps in the stairway. |
| 7 | Lack of phase protection | Protection against phase failure or errors. |
Frequently Asked Questions
What is the weight capacity of this passenger elevator?
The load capacity ranges from 450 Kgs to 1600 Kgs, accommodating approximately 5 to 25 persons depending on the model chosen.
How long does the production process take?
The standard production time for our passenger elevators is within 25 to 30 days.

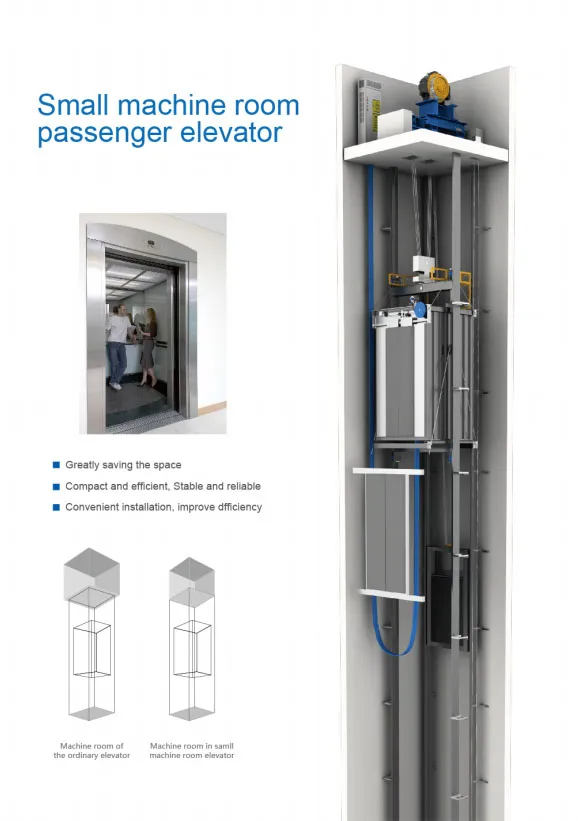

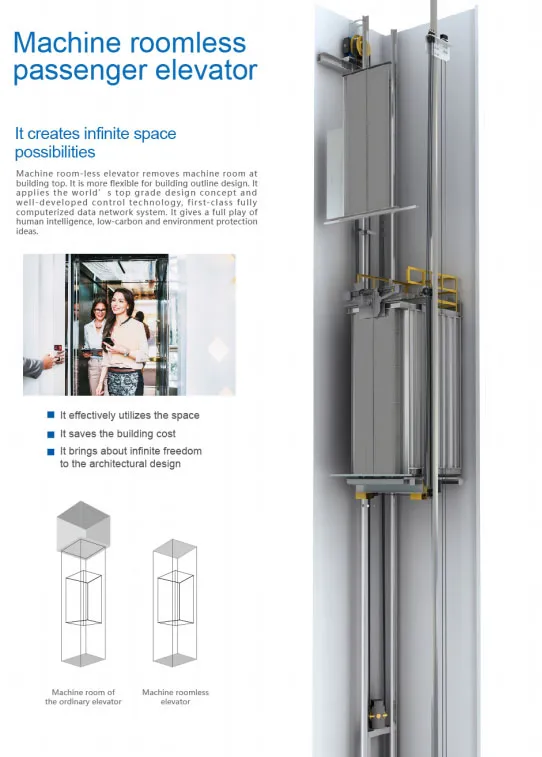

Are there options for buildings without a machine room?
Yes, we provide both Small Machine Room and Machine Roomless (MRL) elevator configurations to suit different architectural requirements.
What kind of safety features are included as standard?
Standard safety features include emergency stop buttons, over-load protection, over-speed protection, static electricity protection, and step missing detection, among others.
What materials are used for the elevator interior?
The standard specification uses hairline stainless steel for walls, with options for various LED ceilings and high-durability PVC flooring.
What is the rated speed of these elevators?
The rated speed varies by model and requirement, typically ranging from 1.0 M/S to 1.75 M/S.
