Basic Specifications
Open & Close Type
Automatic
Deceleration
With Deceleration Device
Elevator Door
Center Opening Door
Production Time
Within 25-30 Days
Machine Room
With and Without
Package
High Quality Export Wooden Case

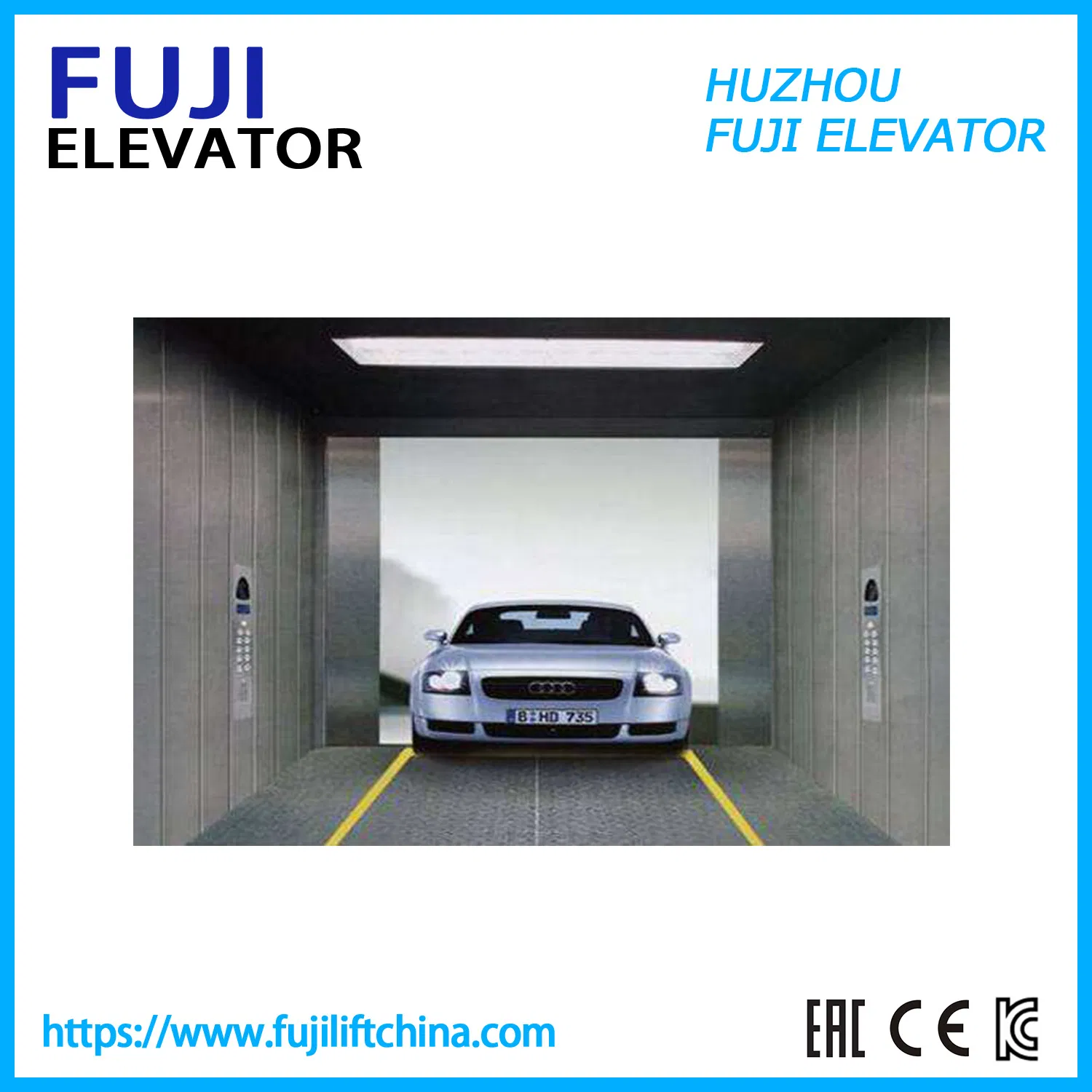

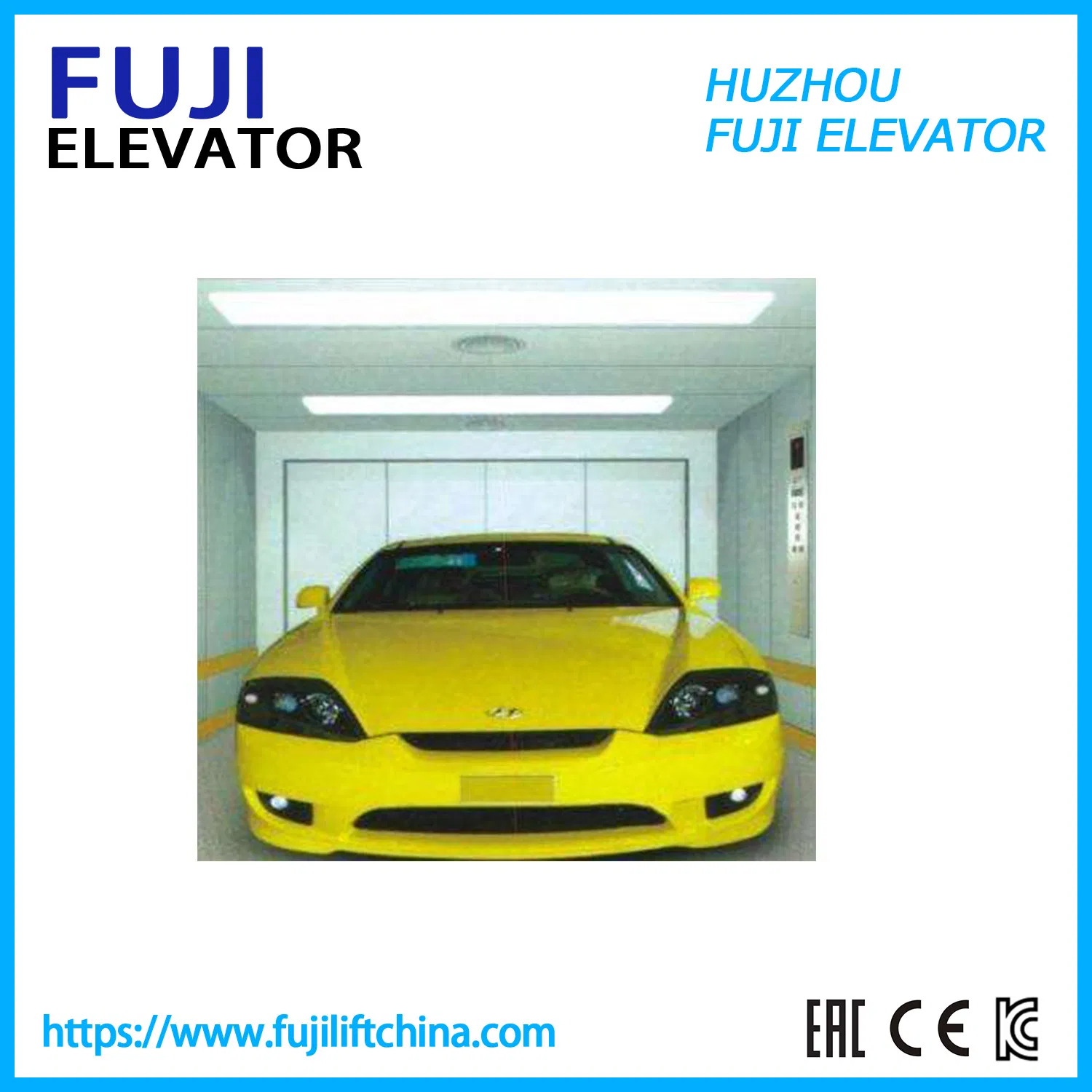

About Automobile Elevator
💡
Our intelligent automobile elevator introduces well-developed international elevation technology. Developed through absorption, conversion, and enhancement, our advanced technology eliminates shaking, noise from burdened traction systems, and uneven force, optimizing product performance for vehicle transport.
Service & Support
🛠️
Technical Support:
- Detailed installation manuals provided for technical staff.
- Remote guidance for accurate commissioning.
- On-site engineer support for special installation requirements.
- Factory-based training and inspection for agents.
Core Features
✅
Dynamic Load Adaptation: Designed to handle rapid load changes and non-uniform stress during vehicle entry.
✅
Dual Control Boxes: Equipped with two button boxes so drivers can operate the lift without leaving the car.
✅
High Capacity: Rated load over 3 tons with spacious car areas for various vehicle types.
✅
Front & Rear Doors: Through-door design facilitates easy entry and exit.

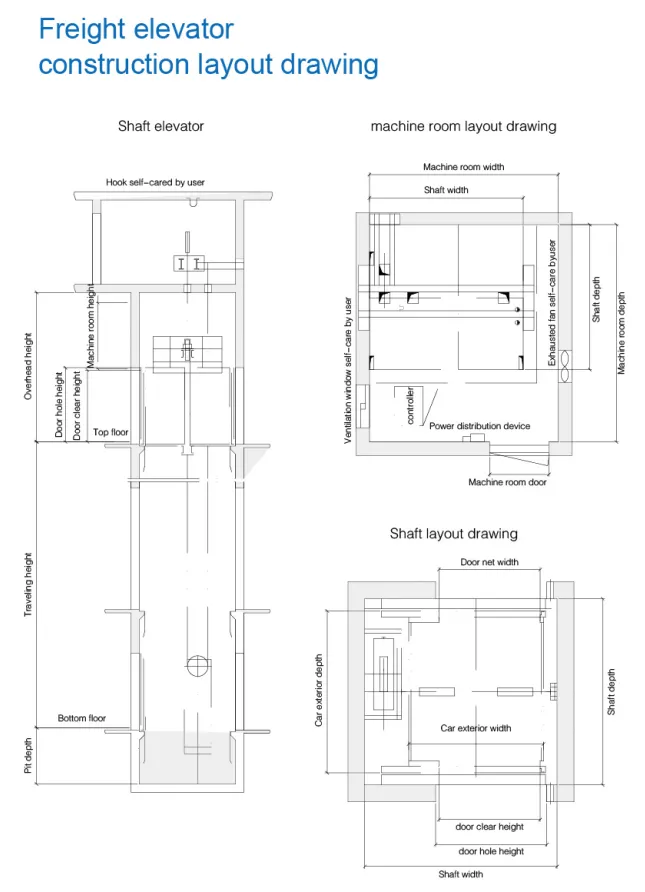

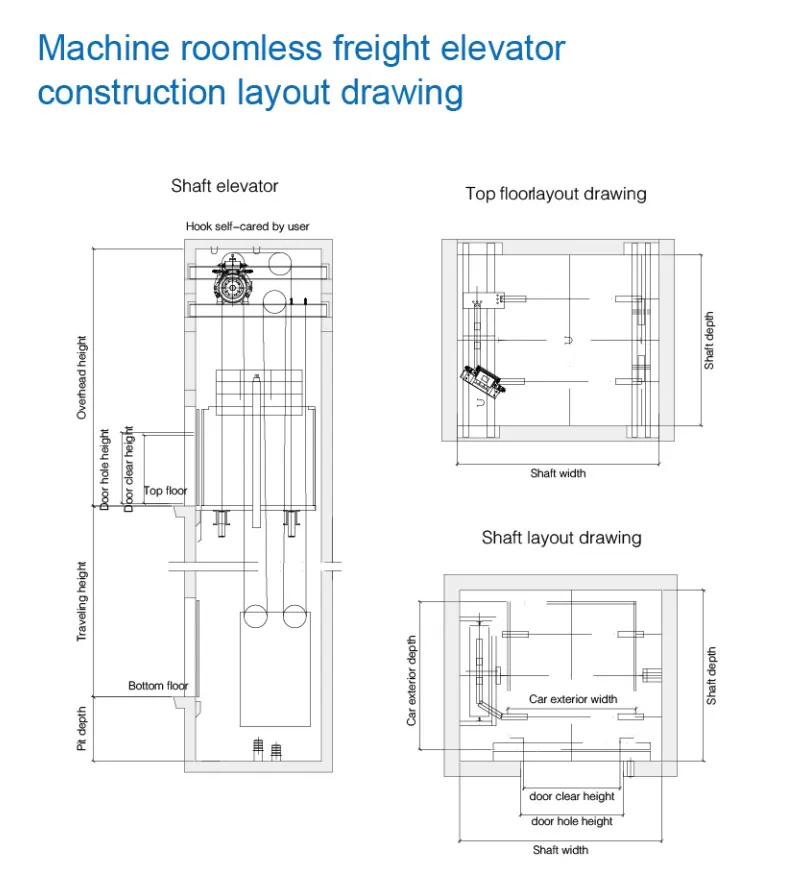

Technical Parameters
| Capacity (KG) |
Speed (m/s) |
Car Size (WxDxH)mm |
Door Opening (WxD)mm |
Shaft Size (WxD) |
OH (mm) |
Pit Depth (mm) |
| 3000 |
0.25/0.5 |
2700x5800 |
2400x2200 |
4100x6160 |
4800 |
1600 |
| 5000 |
0.25/0.5 |
3500x7200 |
2600x2200 |
4750x7560 |
4800 |
1600 |
Standard Functions
| 1. Automatic stop | 16. Anti-mischief function |
| 2. Self-diagnostic of call button | 17. Auto-running of full-load |
| 3. Auto light/ventilation shut off | 18. Re-opening via hall button |
| 4. Repeat open/close door | 19. Door load sensor |
| 5. Infrared Light curtain protection | 20. Arrival tip |
| 6. Fire running function | 21. Self-diagnostic of elevator fault |
| 7. Automatic door lock/unlock | 22. Current floor auto opening |
| 8. Terminal landing speed-adjustment | 23. Terminal landing prevention |
| 9. Driver/Non-driver operation | 24. Overhaul running operation |
| 10. Direction orientation function | 25. Auto-stop and rescue fault |
| 11. Overload voice-light alarm | 26. High speed protection |
| 12. No-stopping prevention | 27. Hoist way data self-save |
| 13. Current floor call record | 28. Auto directional changing |
| 14. Internal auto-response | 29. Power-fail data protection |
| 15. Running signal fault protection | 30. Five-party interphone |

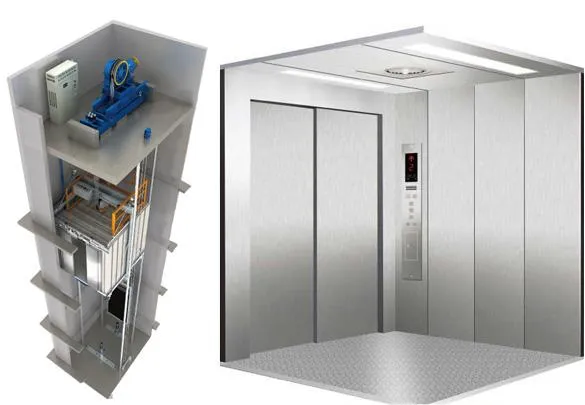

Safety & Durability
🛡️
Our elevators utilize high-strength section materials and a doubled consolidation design at the car bottom. This ensures the structure can bear heavy loads without deformation, providing a safe and effective transport plan for warehouses, shopping centers, and exhibition halls.
Frequently Asked Questions
What is the maximum load capacity for the car elevator?
The standard models support capacities of 3000kg and 5000kg, designed specifically for various vehicle weights.
How long does the production process take?
The typical production time is within 25 to 30 days from the confirmation of specifications.
Can the elevator be installed in buildings without a machine room?
Yes, our automobile elevators are available in both "With Machine Room" and "Machine Roomless" (MRL) configurations to suit your building structure.
What safety features are included for vehicle transport?
Standard safety features include infrared light curtain protection, overload voice-light alarms, door load sensors, and a high-strength car design to prevent deformation.
How do you handle after-sales technical issues?
We provide comprehensive installation manuals, remote technical guidance for commissioning, and can dispatch engineers to the site for complex requirements.
Is it possible for the driver to operate the lift from inside the car?
Yes, the car is equipped with two control button boxes, allowing the driver to operate the elevator without having to step out of the vehicle.
