FUJI Industrial Cargo Elevator is specially designed for transporting heavy cargo safely and efficiently between different floors in factories, warehouses, logistics centers, and commercial buildings. Featuring high load capacity, durable steel cabin structure, and advanced VVVF control system.

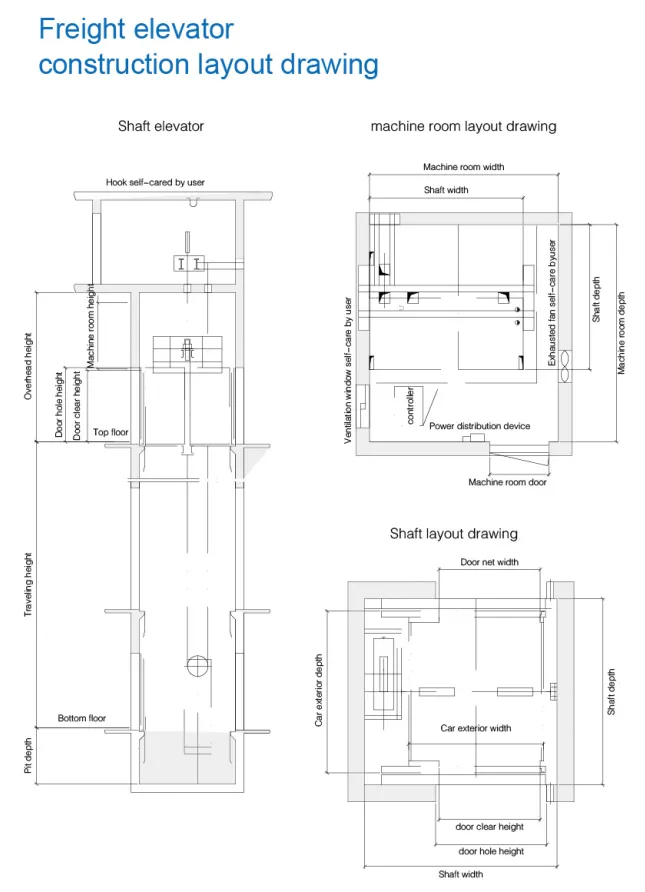

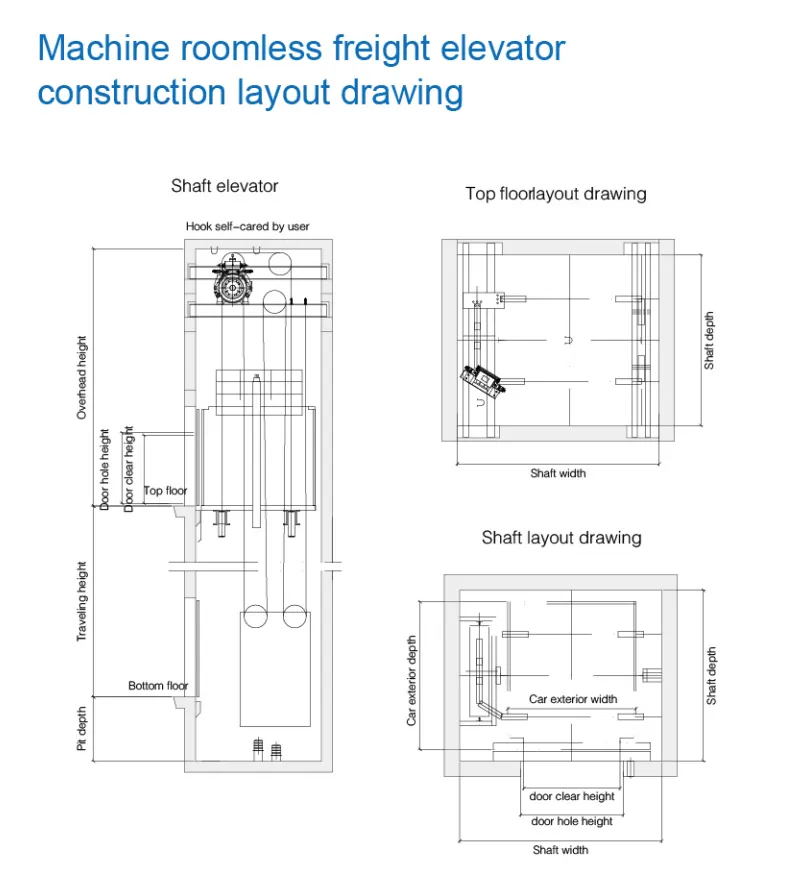

| Capacity (KG) | Speed (m/s) | Car Size (WxDxH)mm | Door Opening (WxD)mm | Shaft Size (WxD) | OH (mm) | Pit Depth (mm) |
|---|---|---|---|---|---|---|
| 3000 | 0.25/0.5 | 2700x5800 | 2400x2200 | 4100x6160 | 4800 | 1600 |
| 5000 | 0.25/0.5 | 3500x7200 | 2600x2200 | 4750x7560 | 4800 | 1600 |
| 1. Automatic stop | 16. Anti-mischief function |
| 2. Self-diagnostic of call button | 17. Auto-running of full-load |
| 3. Auto ventilation & light shut off | 18. Re-opening by hall button |
| 4. Repeat open/close door | 19. Door load sensor |
| 5. Infrared Light curtain protection | 20. Arrival tip |
| 6. Fire running function | 21. Self-diagnostic of faults |
| 7. Automatic door lock/unlock | 22. Auto opening at current floor |
| 8. Enforcement speed adjustment | 23. Terminal landing prevention |
| 9. Driver/Non-driver operation | 24. Overhaul running operation |
| 10. Directional choice function | 25. Auto-stop rescue fault |
| 11. Overload voice-light alarm | 26. High speeding protection |
| 12. Non-stopping prevention | 27. Hoist way data self-save |
| 13. Current floor call record | 28. Auto changing direction |
| 14. Internal auto-response | 29. Power-fail data protection |
| 15. Signal fault protection | 30. Five-party interphone |
