Product Description

📋

Basic Specifications

Model
XYZD-2R
Type
Wellhole and Derrick
Load Capacity
100kgs
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Traction
Guide Rail
T Guide
Applicable Industries
Restaurant, Hotels, Warehouse, Bank, Childcenter
Certification
CE, ISO 9001
Tailor-Made Service
Yes
Transport Package
Plywood Case
🏠

Product Description

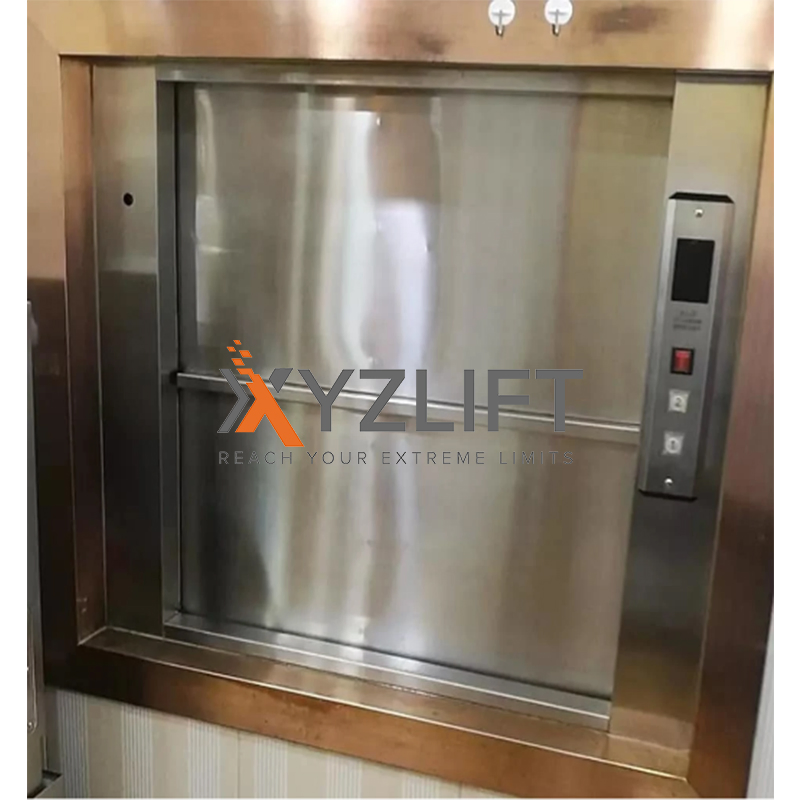

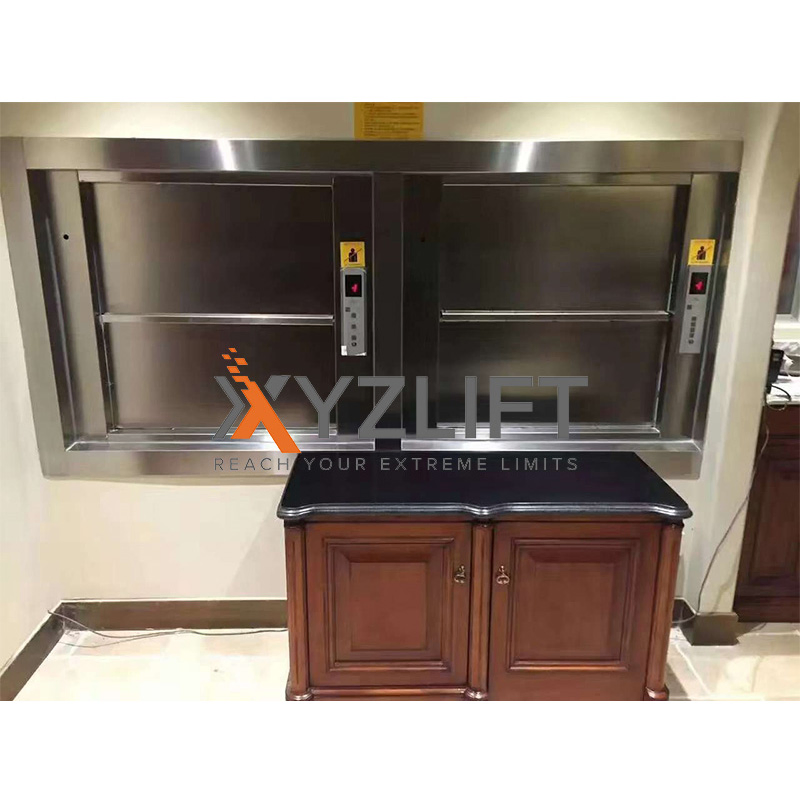

En81-31 Certified Residential Dumbwaiters Kitchen Lift

Introducing our EN81-31 certified Residential Dumbwaiters, the ultimate solution for convenient and efficient home vertical transportation. Designed specifically for residential use, these dumbwaiters add immense value and functionality to any multi-story home, making the movement of groceries, laundry, and other household items effortless and safe.

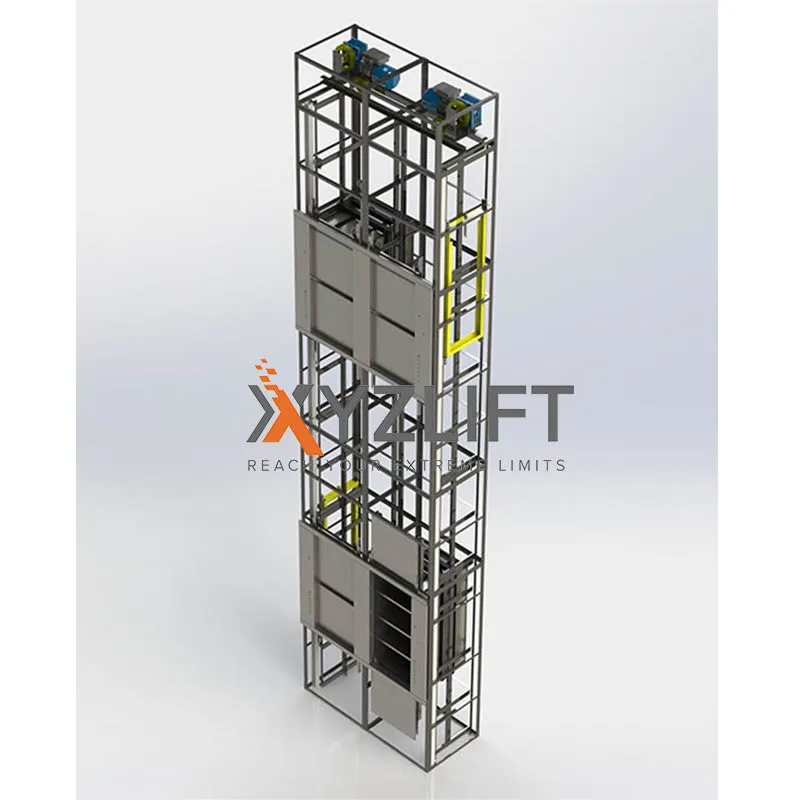

Residential Dumbwaiter

Key Features:

  • EN81-31 Certification: Highest level of safety and reliability.
  • Customizable Configurations: Single side, opposite sides, adjacent, or three sides.
  • Compact Design: Maximize space efficiency in tight residential areas.
  • Quiet Operation: Engineered for smooth, discreet performance.
  • Easy Installation: Designed for minimal disruption to your home.
📊

Technical Parameters

Parameter Details
MODELXYZD-2
Capacity150kgs
Installation site size1000*1000mm
Car size600*600*600mm
Door openingSingle opening
DoorsBi-parting Stainless Steel
Floor height3260mm
Sill height700mm
Speed0.4m/s
Customize serviceLifting height, cabin size, and door orientation can be customized.

Standard Functions

Arrival reminder
Over time running protection
Overloading alarm
Lift running direction indication
Elevator locking service
Elevator location display
Intercom communication
Monitoring relay
⚙️

Options for Better Experience

We understand that each customer has unique needs for counter loading Residential DUMBWAITER elevators:

  • Thermal insulation features for cold environments.
  • Efficient door-opening: Two doors at one floor level.
  • Luxurious appearance: Copper plating options.
  • Landing door options: Automatic, swing, or roller doors.

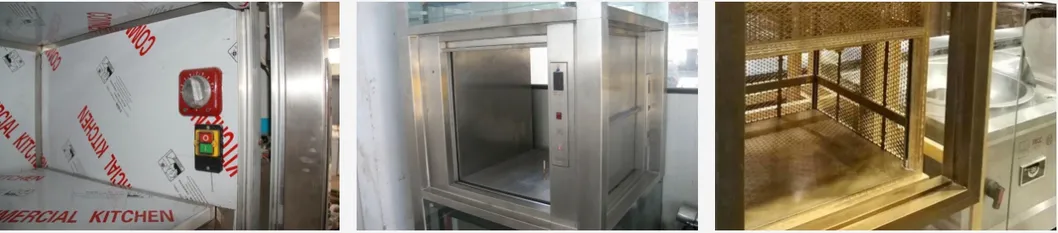

Dumbwaiter Options
🛠️

Installation Guide

Each delivered dumbwaiter comes with an installation manual and video. Our technical team provides resolutions within 2 hours for any challenges.

Step 1: Connect Stand Columns and Shaft Beams on a level foundation.
Step 2: Attach Guide Rails inside shaft beams; ensure vertical alignment.
Step 3: Install the Motor at the top or in a motor room.
Step 4: Set up Counterweight frame and connect to the cabin.
Step 5: Fix the Cabin and Guide Shoes for smooth movement.
Step 6-10: Install Cabin/Landing doors, Buffers, Limit Switches, and Electric Controller.

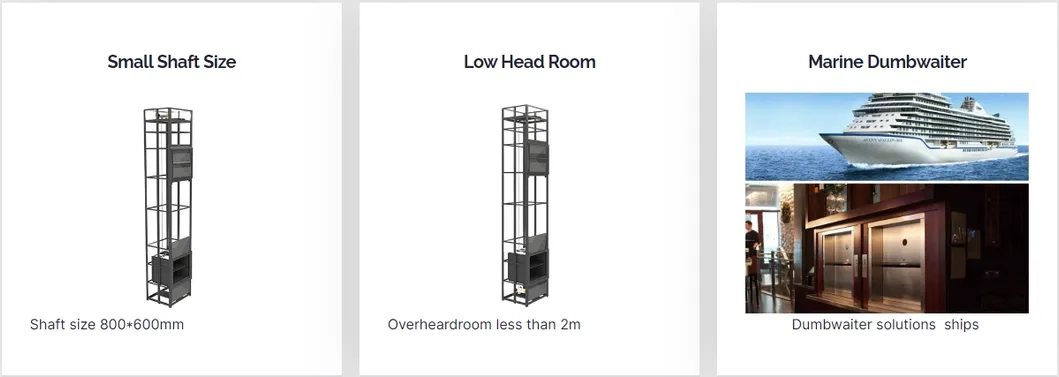

Installation Diagram
🌟

Project Showcase

Suitable for houses, villas, child centers, banks, factories, or warehouses. Our agents worldwide can provide measurement and free planning services.

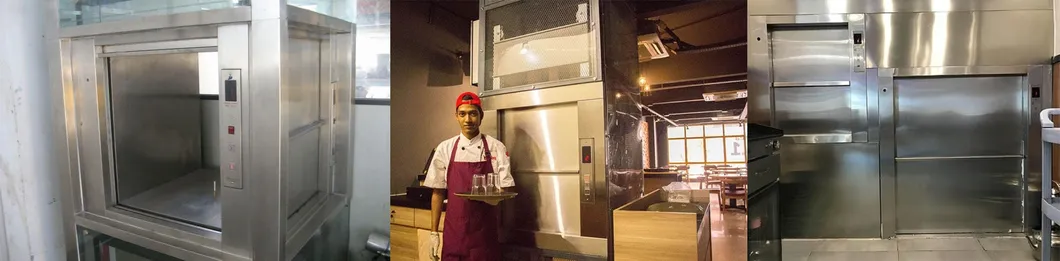

Project Show
✉️

Get A Free Quote

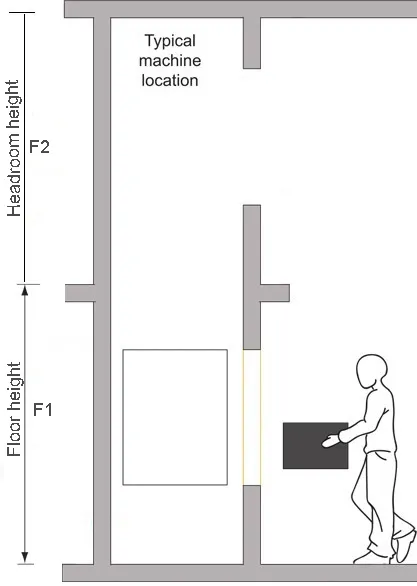

Custom Design

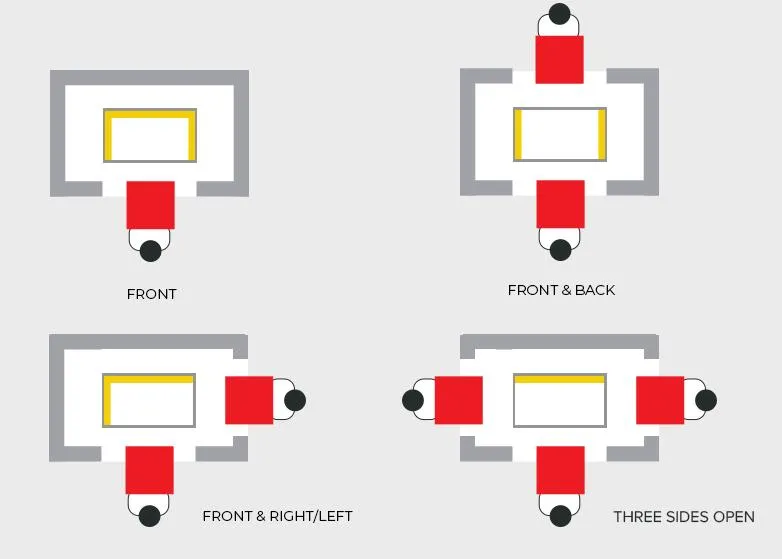

Loading Configurations

Please provide the following details for an accurate solution:

  1. Installation size / Shaft size
  2. Height of each floor
  3. Car door direction
  4. Local voltage

Frequently Asked Questions

What is the standard load capacity for these dumbwaiters?
Our residential dumbwaiters typically handle loads between 100kg and 150kg, making them perfect for groceries, laundry, and kitchen supplies.
Can the cabin size be customized to fit my existing shaft?
Yes, we offer full customization for cabin dimensions, lifting height, and door orientations to match your specific architectural requirements.
Is the installation process complicated?
Not at all. Every unit comes with a detailed installation manual and video. Most local contractors can complete the setup following our 10-step guide.
What safety certifications do your dumbwaiters hold?
Our dumbwaiters are EN81-31 certified and comply with CE and ISO 9001 standards, ensuring the highest safety for home use.
How noisy is the operation during use?
The system is engineered for quiet performance with a smooth traction drive, ensuring minimal noise disruption in a residential environment.
What happens if I encounter issues during installation?
Our technical support team is committed to responding within 2 hours to provide solutions and ensure a seamless installation experience.
