📋 Basic Specifications
Driving Type
Hydraulic & Screw Drive
Control Mode
Push-Button Control
Position
Outdoor or Indoor
Transport Package
Export Wooden Box
Production Capacity
10000 Sets Per Month
📊 Product Description

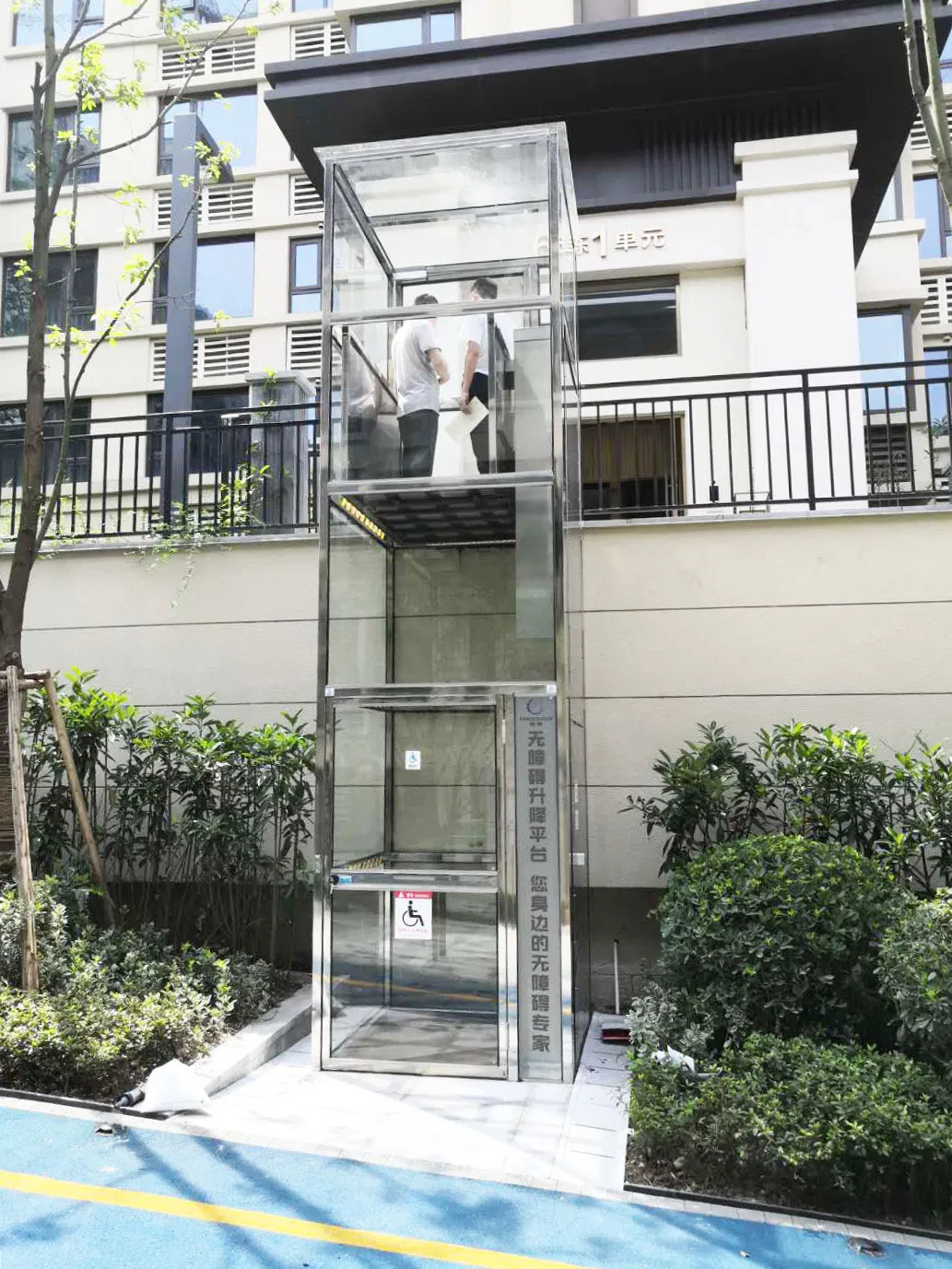

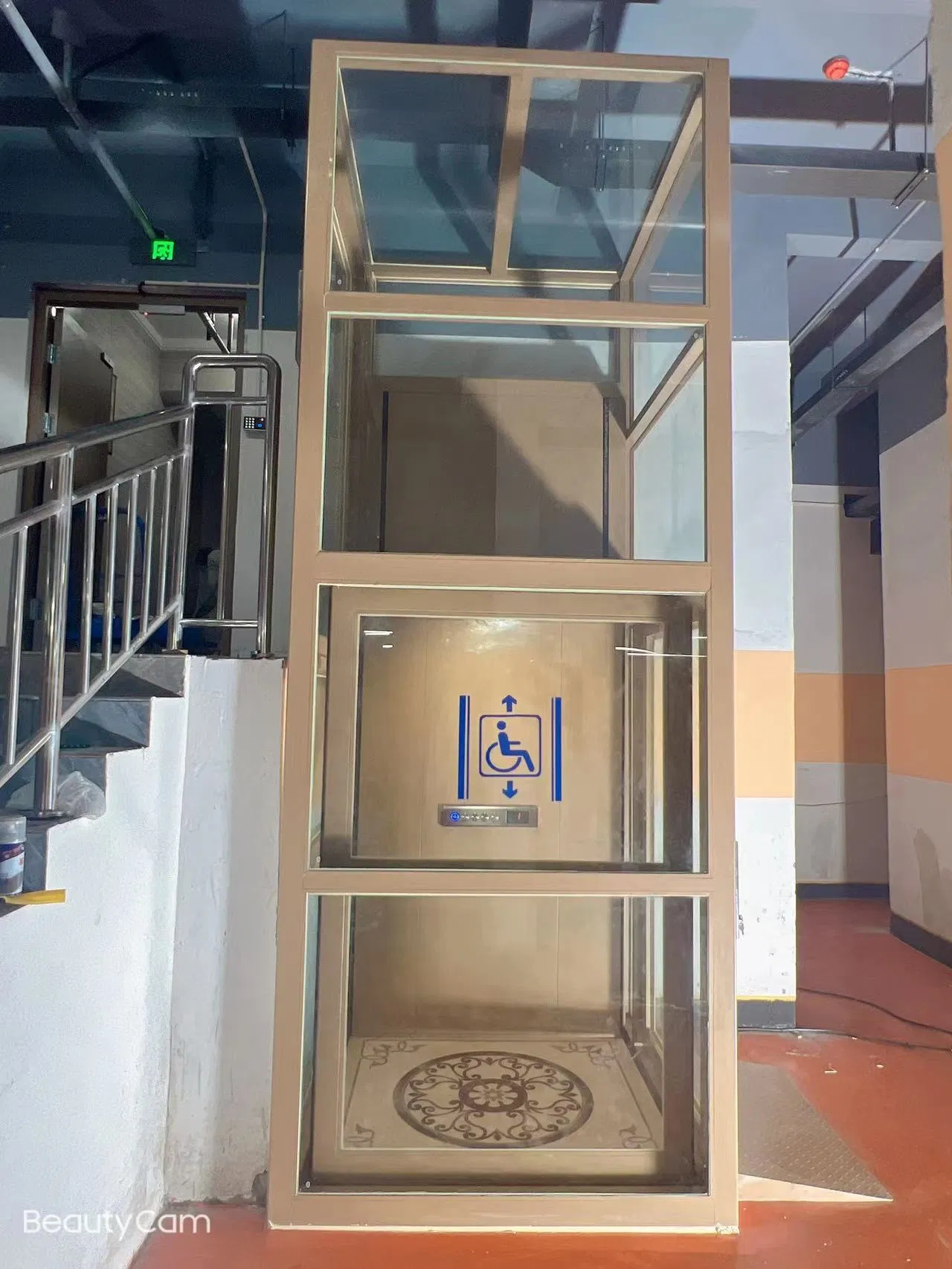

Wheelchair platform lift for home is a customized product designed for lifting cargo or wheelchairs for disabled people. It is suitable for solving access challenges for passengers with large height differences between floors. The platform space is designed to accommodate both wheelchairs and escorts. It features smooth running speed, high safety, and easy installation with minimal space and no pits required.
⚙ Technical Parameters & Functions
| Voltage | 220V/50HZ or Customized |

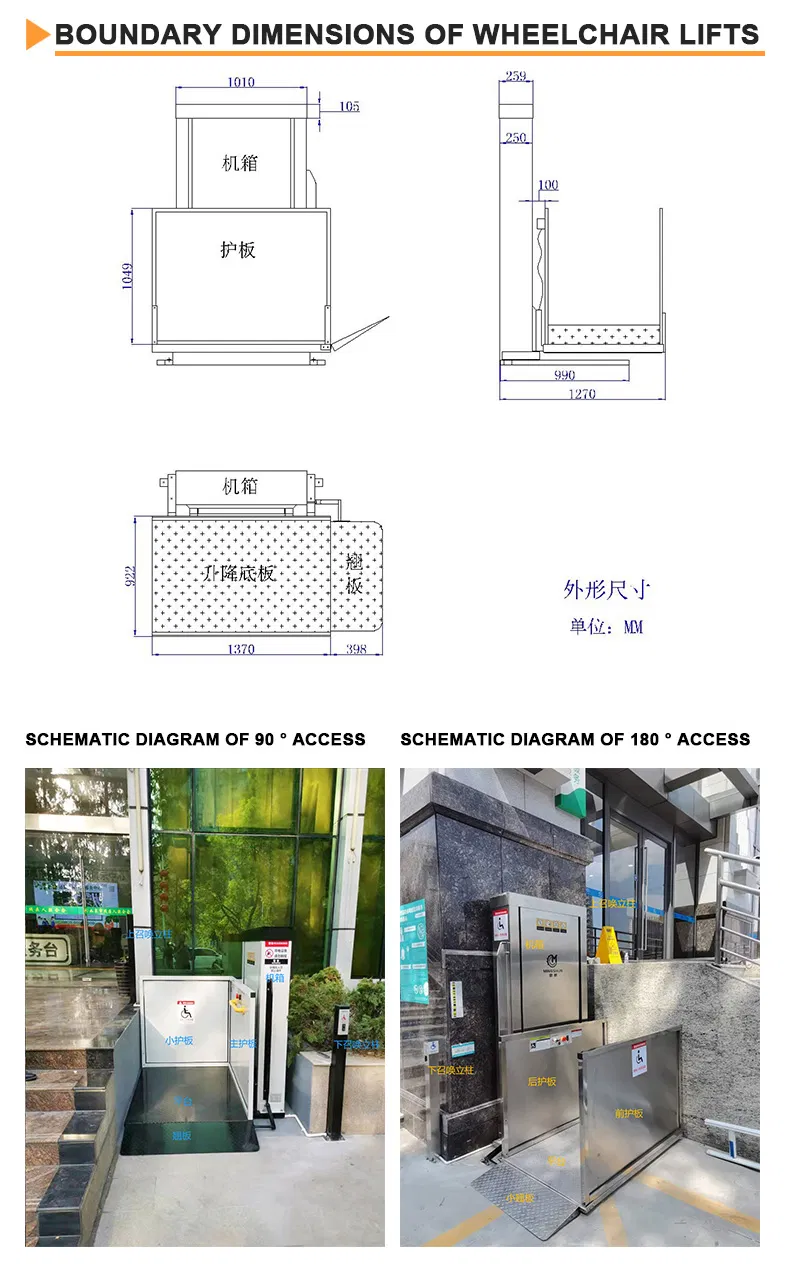

| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm (H) |
| Lifting Height | 2000mm (Customizable) |
| Min. Base Height | 60mm from the ground |
| Installation | No Foundation Required |
| Lifting Speed | 60mm/s Inverter Control (Soft start/brake) |
| Max Loading | 240kg |
| Drive | Screw Drive |
| Environment | Indoor & Outdoor (-20°C to 60°C) |

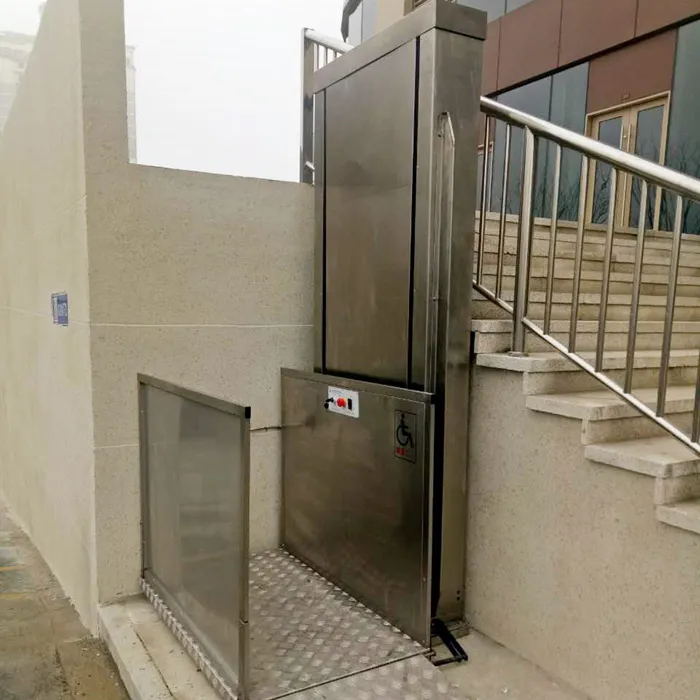

🛡 Safety Equipment
| Safety Rocker | Automatically tilts up to prevent wheelchair sliding |
| Overload Protection | System prevents operation when overloaded |
| Emergency Stop | Immediate control to stop upward or downward movement |
| Emergency Descent | Electric-powered emergency descent system |
Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, office buildings, subways, banks, gymnasiums, and hospitals. Our designs are novel, stable, and low-noise, complying with ASME A18-1 and CSA-B613 standards.
❓ Frequently Asked Questions
What is the maximum weight capacity of this platform lift?
The standard model supports a maximum loading capacity of 240kg to 250kg, which safely accommodates a wheelchair user and an escort.

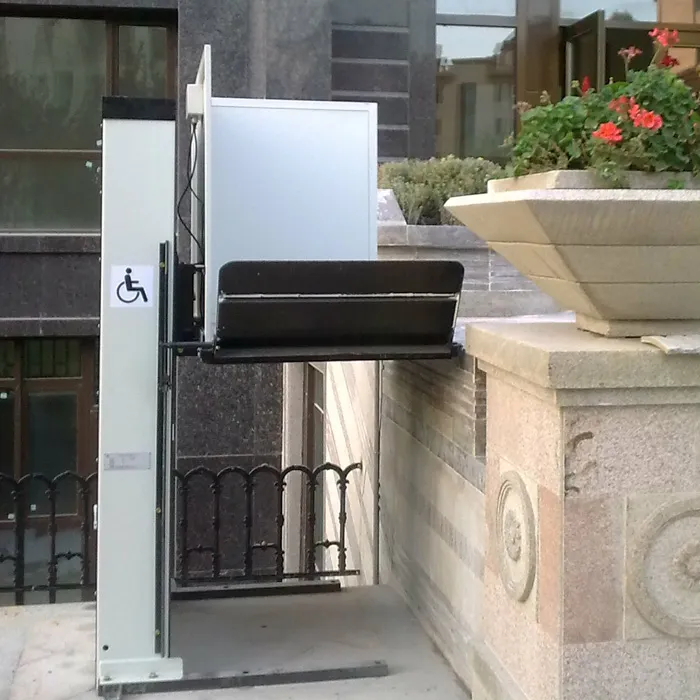

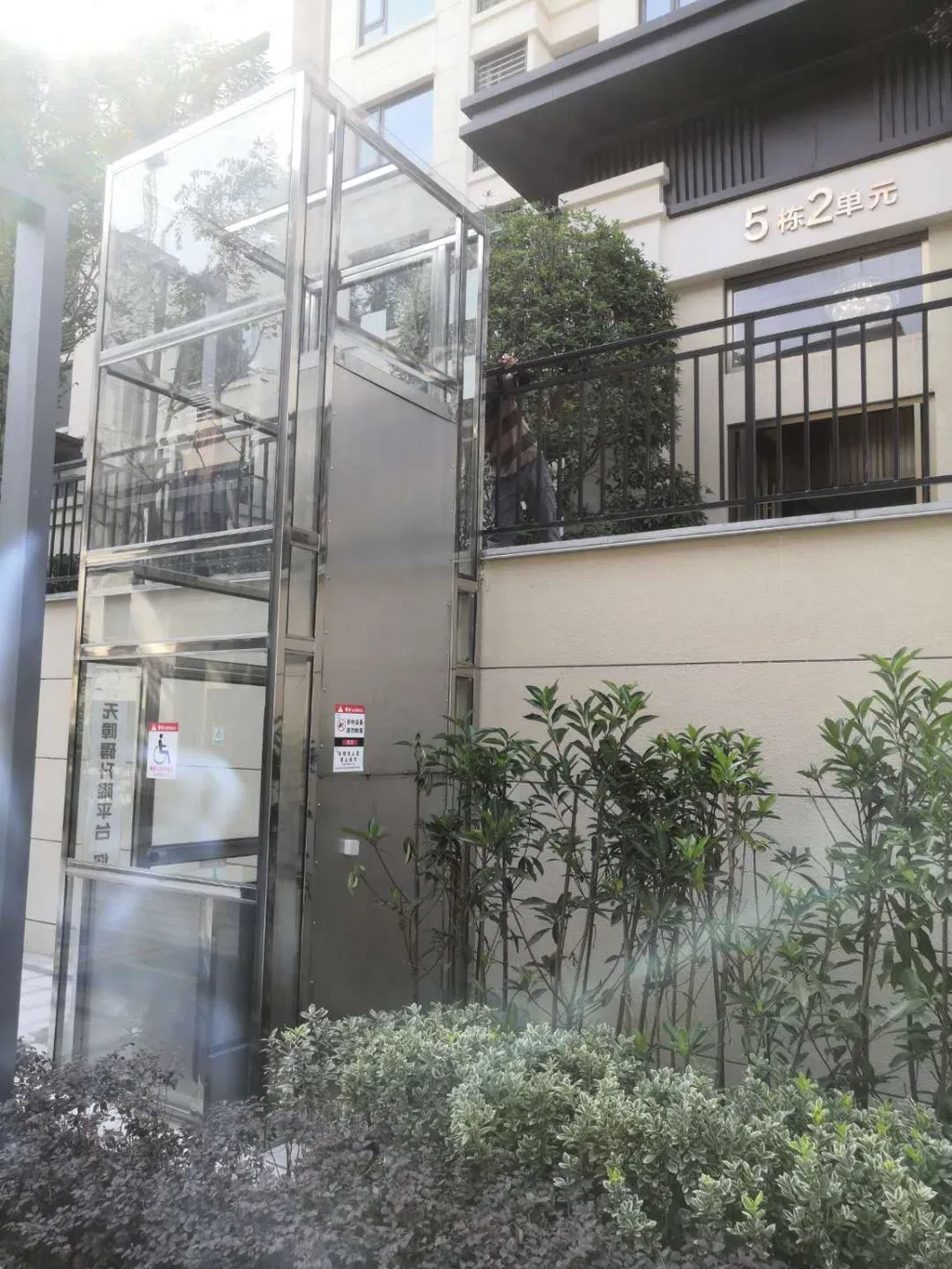

Can this lift be installed outdoors?
Yes, the platform lift is designed for both indoor and outdoor environments, with a working temperature range of -20°C to 60°C.
Does the installation require a floor pit?
No, one of the main features of this lift is its pit-free design. It can be installed directly on the ground with no foundation work required.
What safety features are included for wheelchair users?
It includes an automatic safety rocker to prevent sliding, overload protection, emergency stop buttons, and an emergency descent system in case of power failure.
Is the lifting height customizable?
Absolutely. While standard lifting height is often set at 2000mm, it can be customized to cover a range from 1 meter up to 10 meters depending on your floor requirements.
What are the power requirements?
The standard power supply is 220V/50HZ, but this can be customized to match your local electrical standards.
