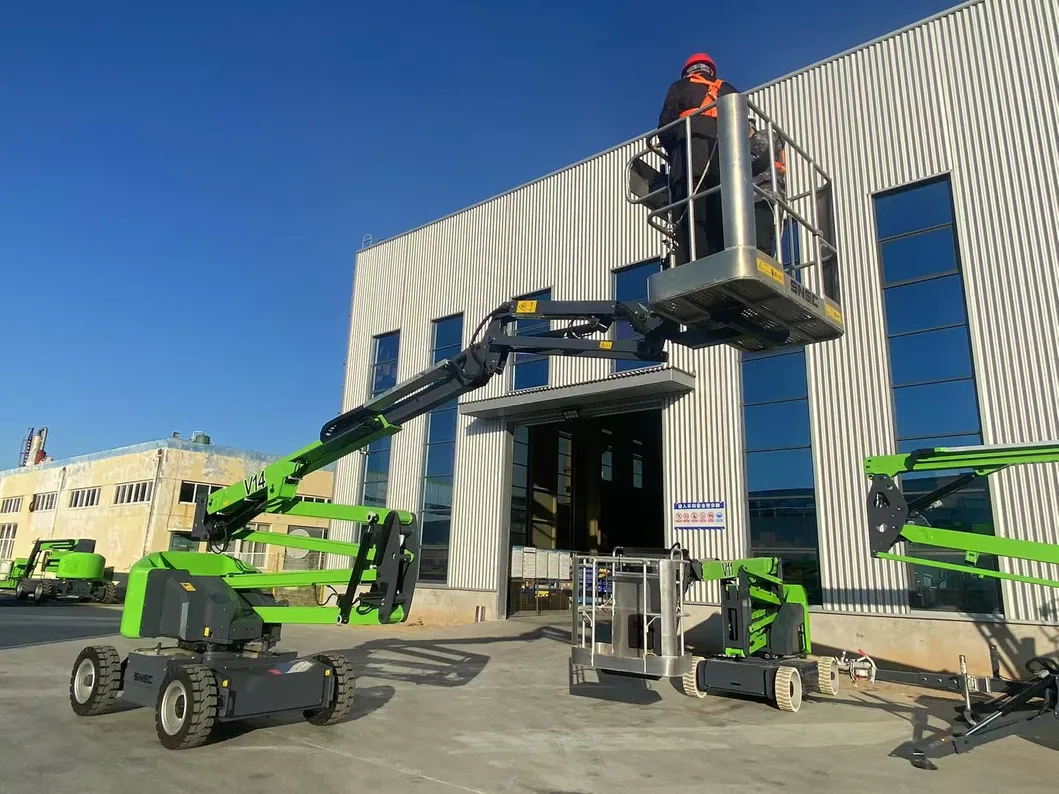

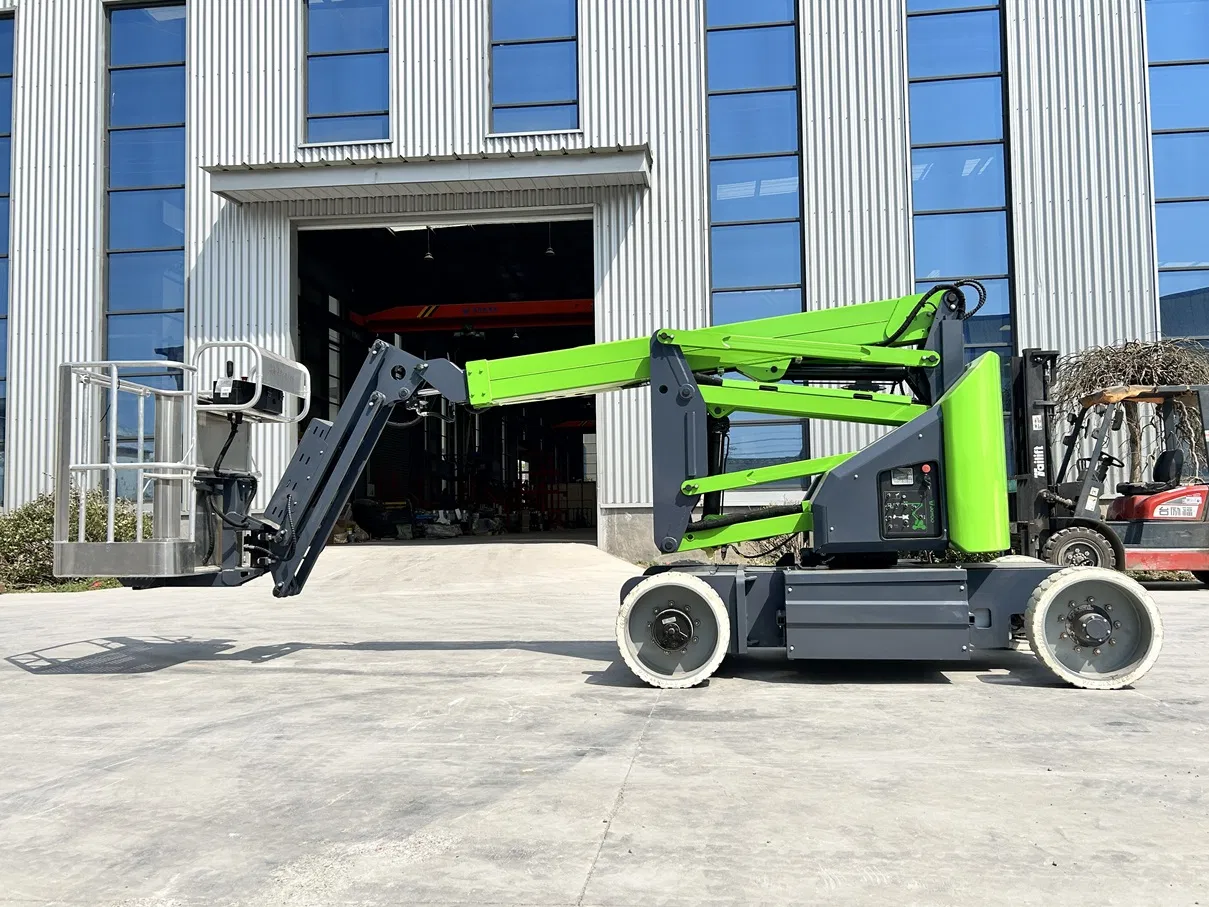

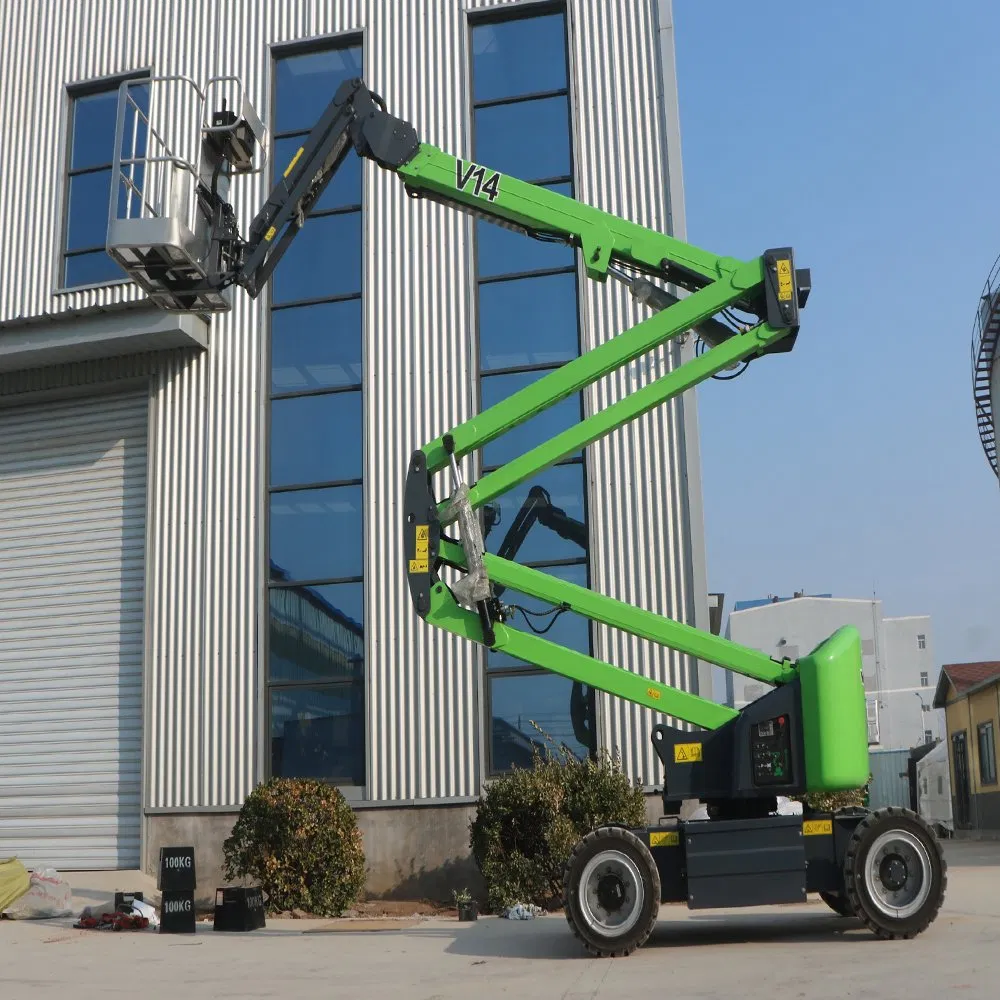

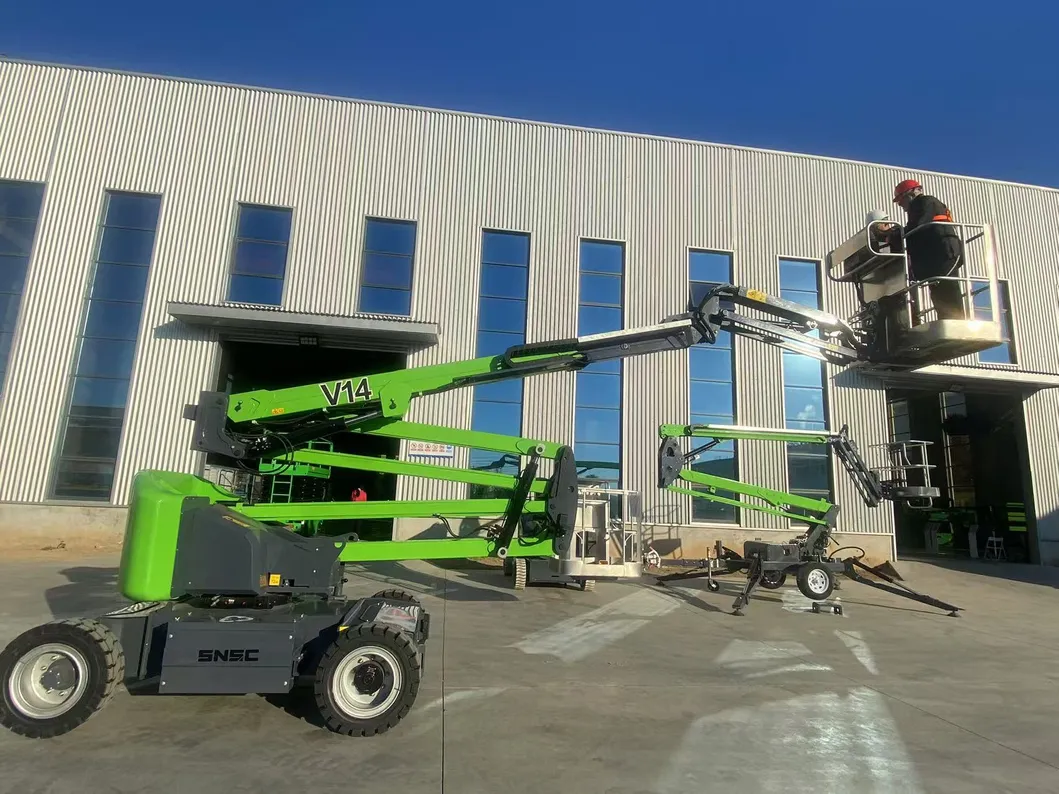

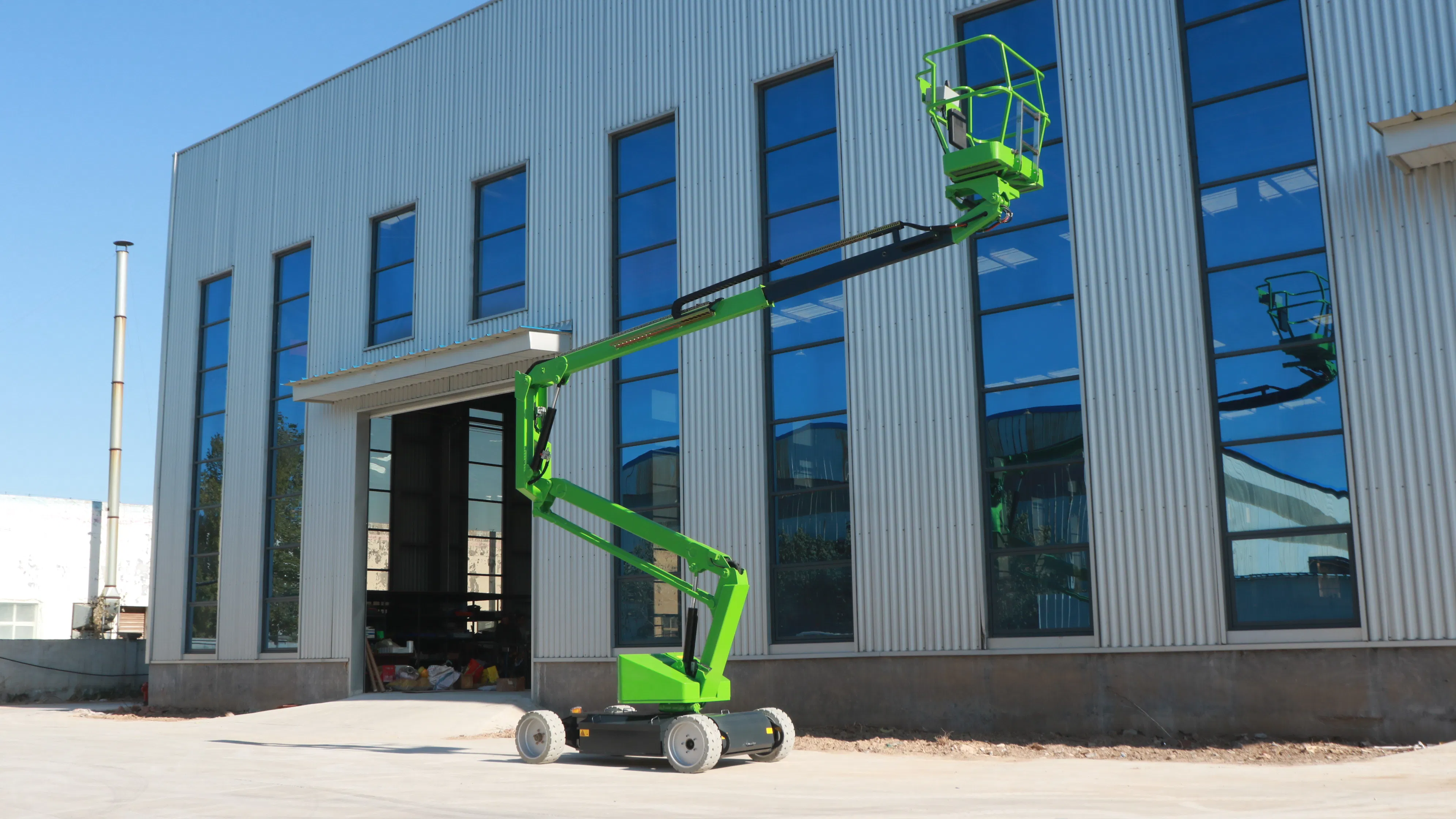

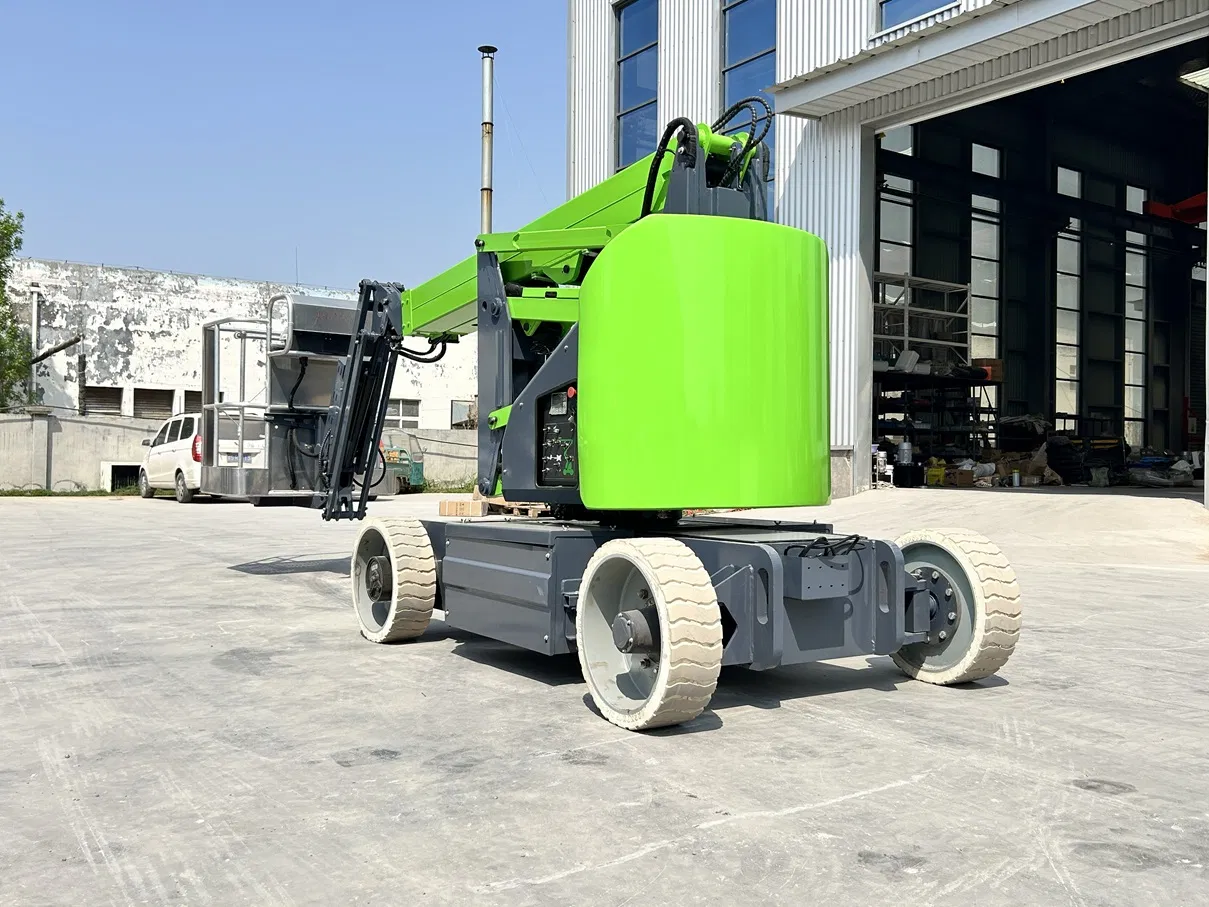

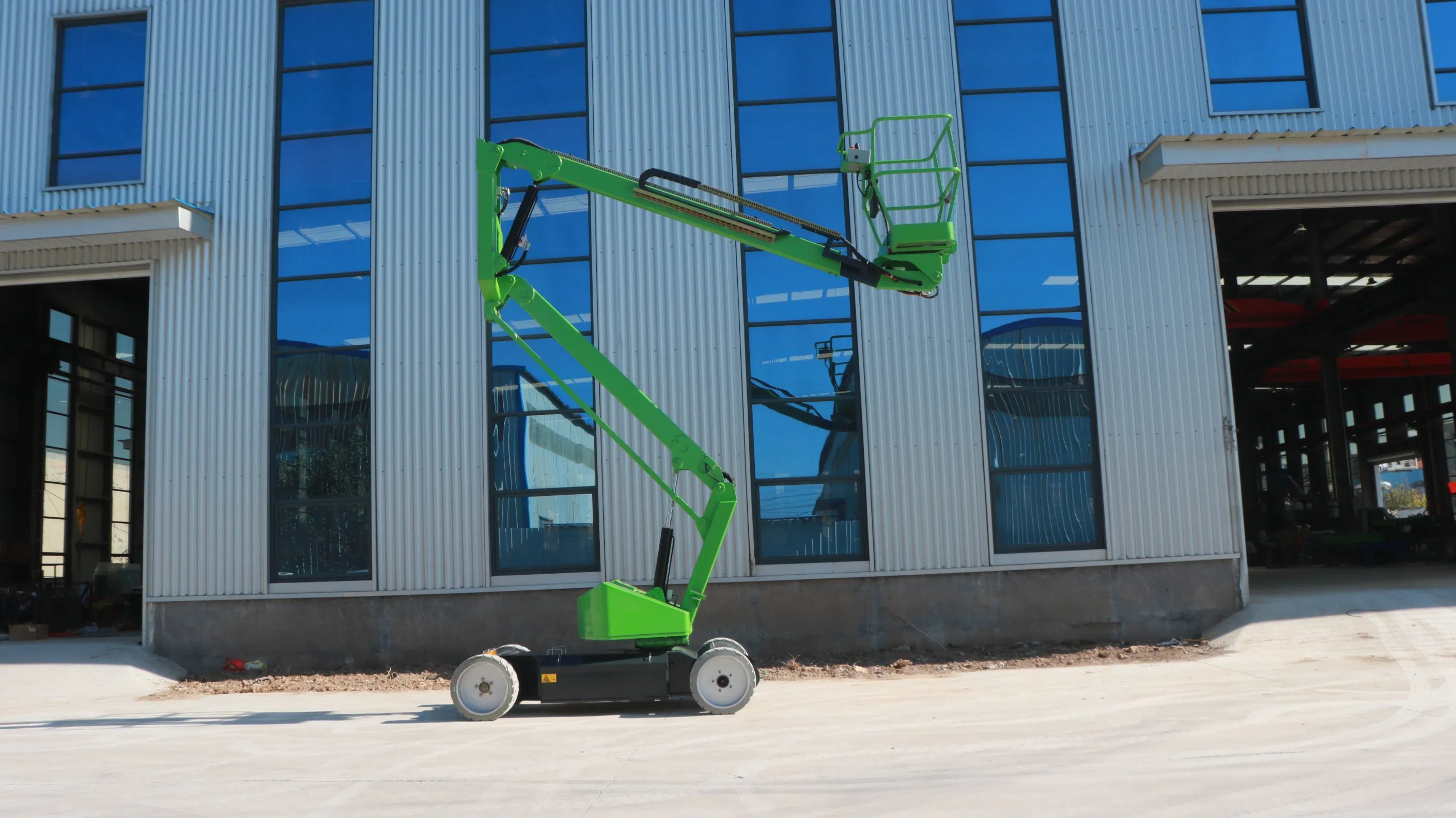

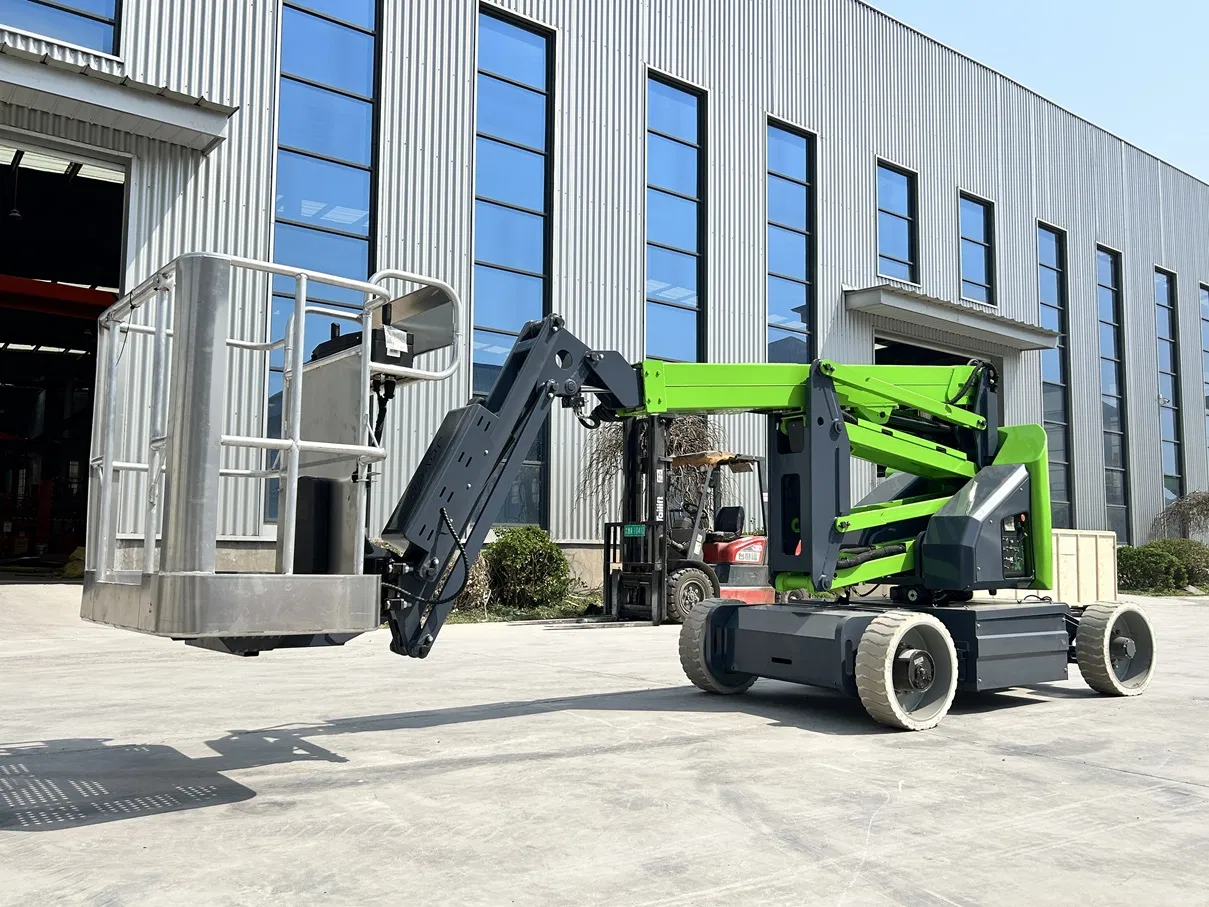

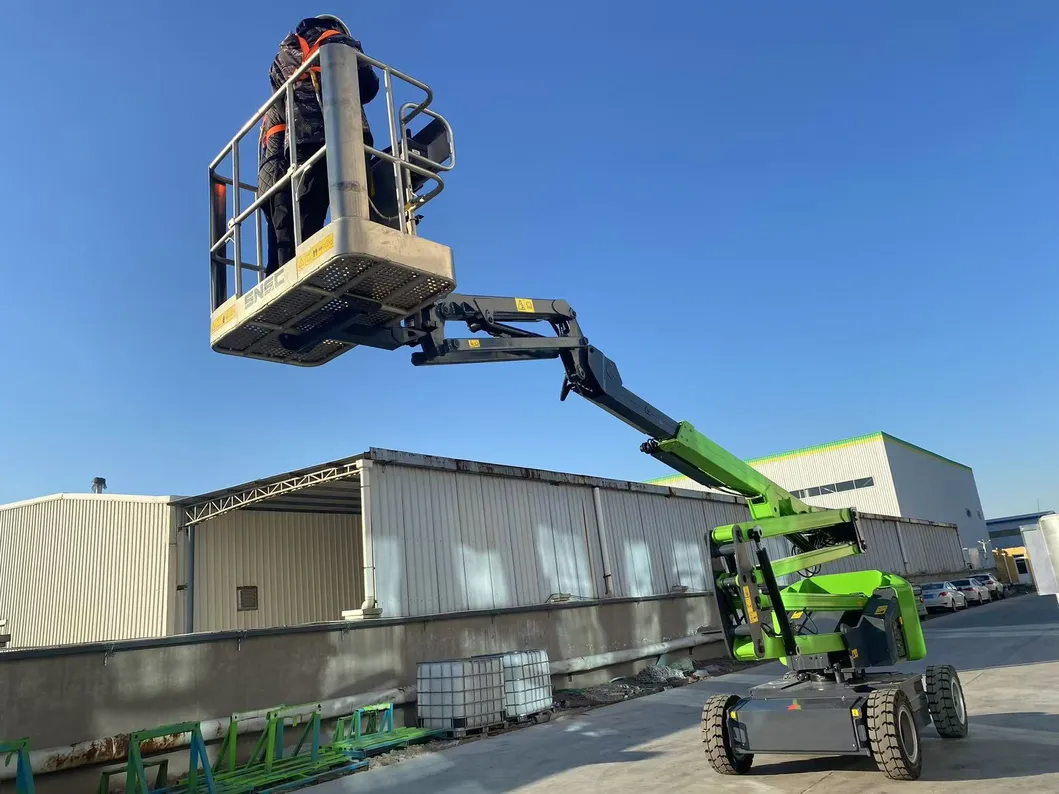

Electric Articulating Boom Lifts are aerial machines used to access difficult-to-reach locations. Most models come with a 360-degree base turntable, so they can swivel in any direction. However, the most notable feature that sets them apart is their joint arm and segmented boom sections.

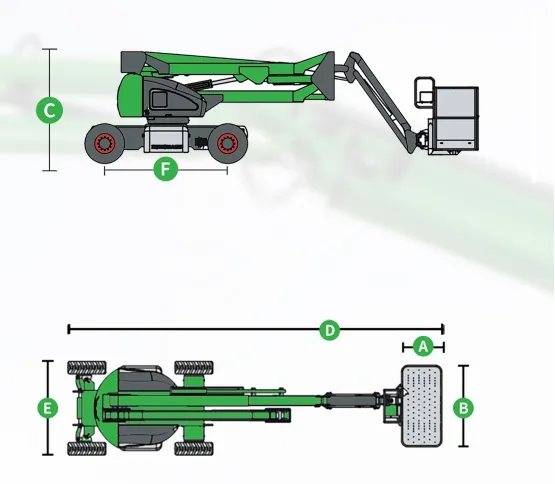

| Model | V14 |
| Max. Working height | 15.8m |
| Max. Platform height | 13.8m |
| Max. up and over clearance | 7.0m |
| Max. Working radius | 7.5m |

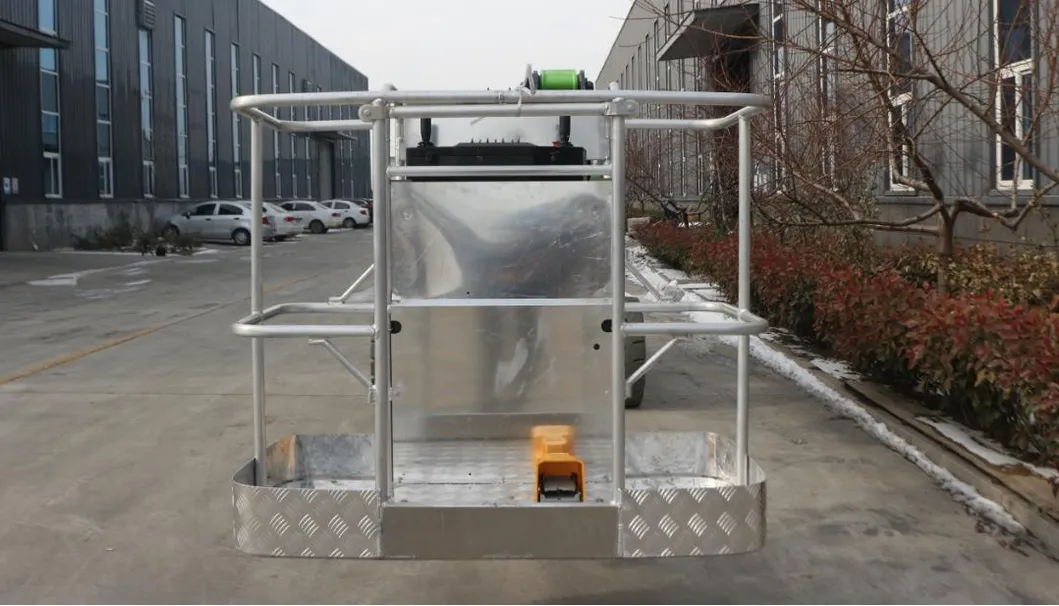

| Platform Dimensions | 1.4m x 0.76m |
| Stowed Size (LxWxH) | 6.5m x 1.76m x 2.0m |
| Wheelbase | 2.0m |
| Ground clearance - center | 0.25m |
| Max. Lift capacity | 230kg |
| Number of platform occupants | 2 |
| Platform rotation | ±80° |
| Turntable rotation | 355° |
| Drive speed - stowed | 5.1km/h |

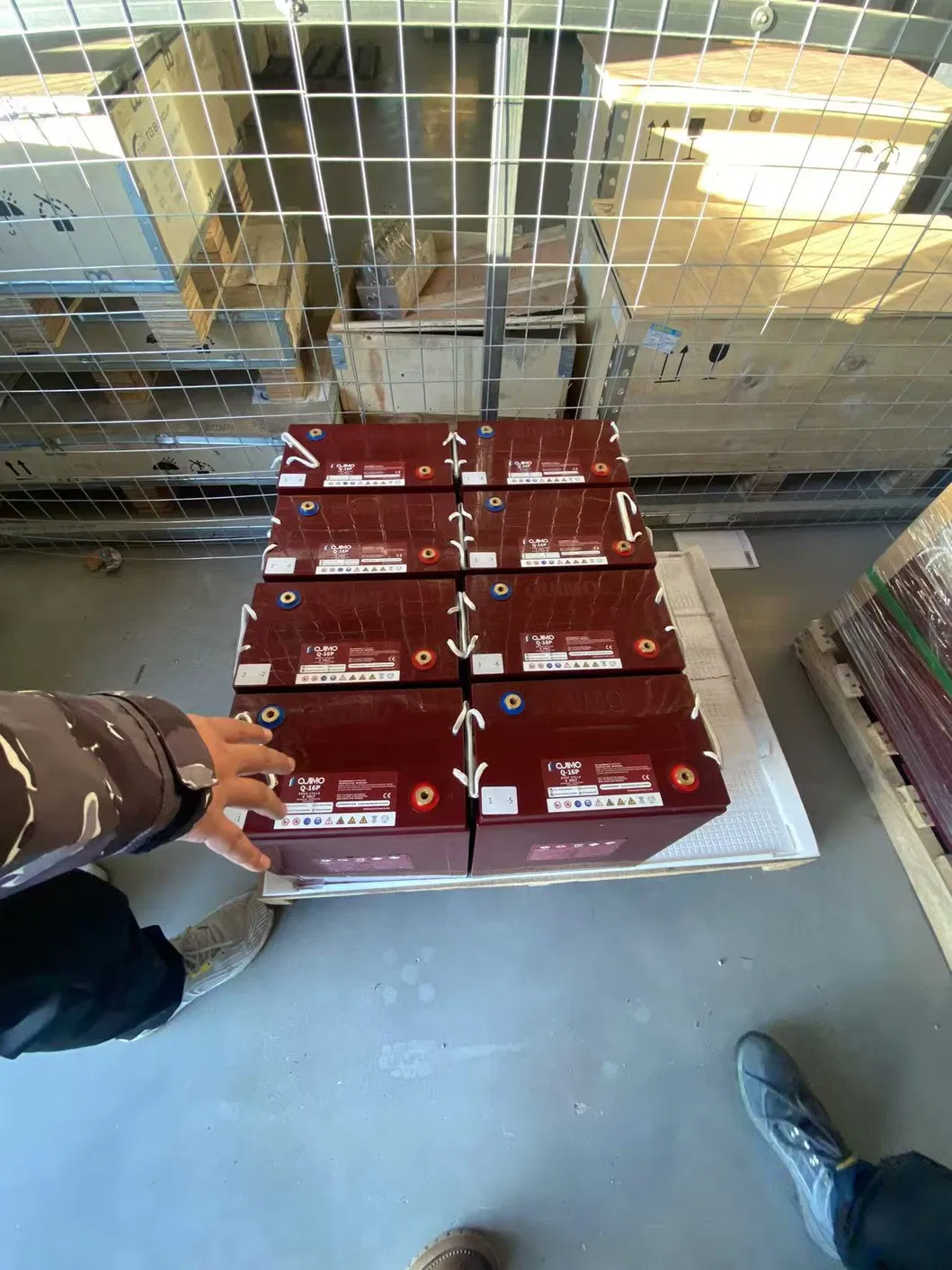

| Battery | 48V/320Ah |
| Weight | 5960 kg |

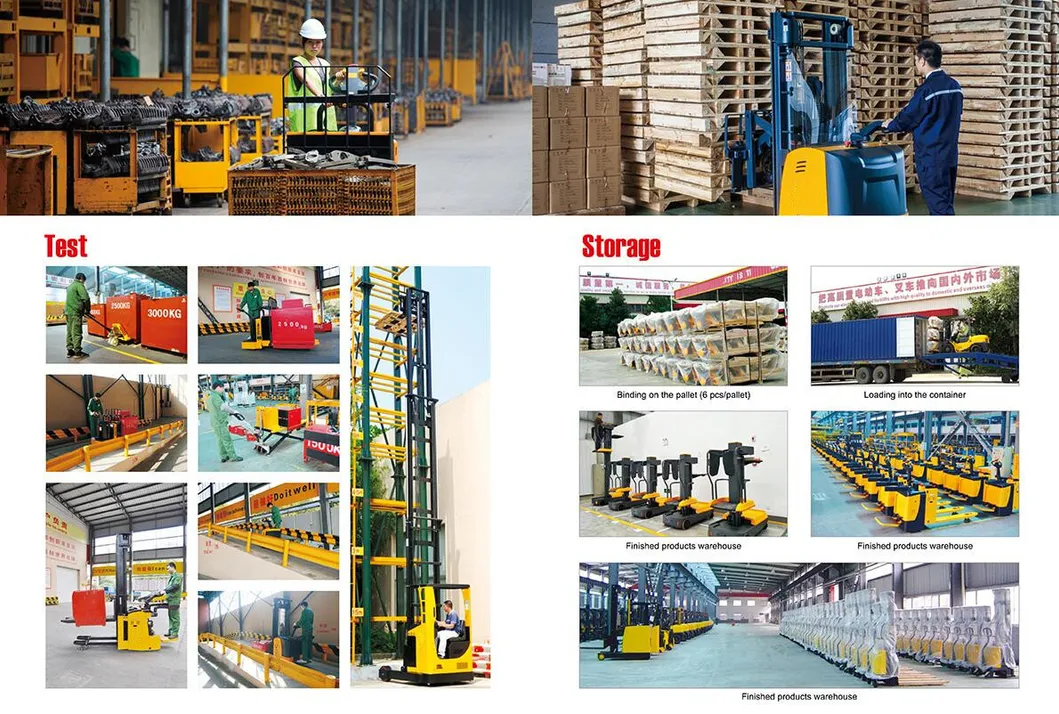

Our factory was established in 2010, covering an area of 130,000 square meters, with more than 400 employees. Among them, there are nearly 80 engineers, 60 office staff and 300 front-line workers. The annual output is 10,000 sets of forklifts, with a daily output of 40 units. Our products are exported to more than 130 countries.

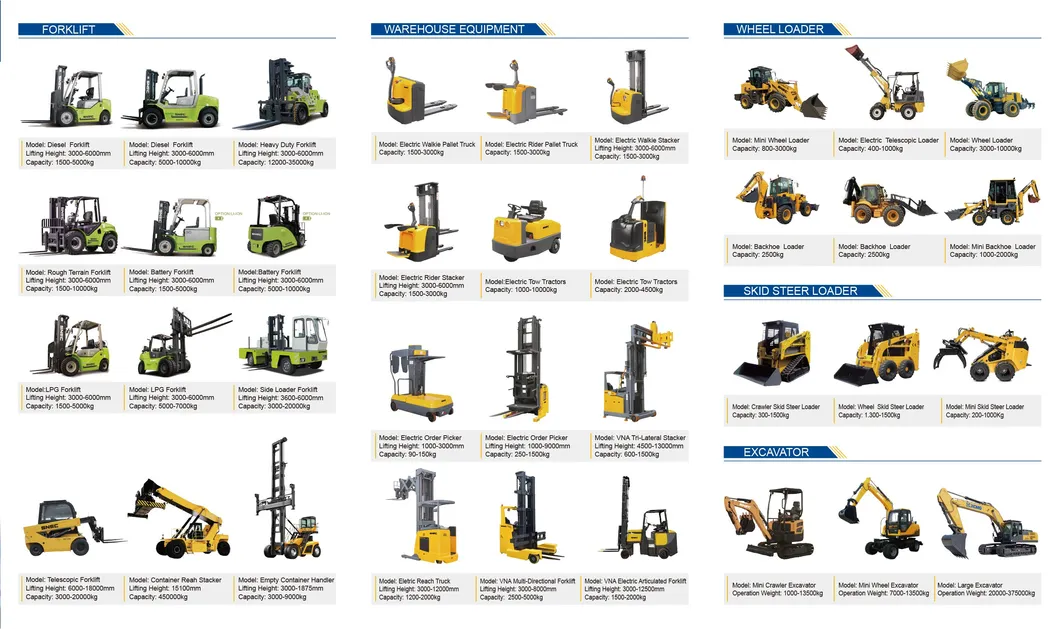

We offer a comprehensive range of lifting solutions:
Shipping includes a comprehensive Tool Box, Product Catalog, Gloves, Operation and Maintenance Manuals, Fork Sleeves, and essential Spare Parts.
