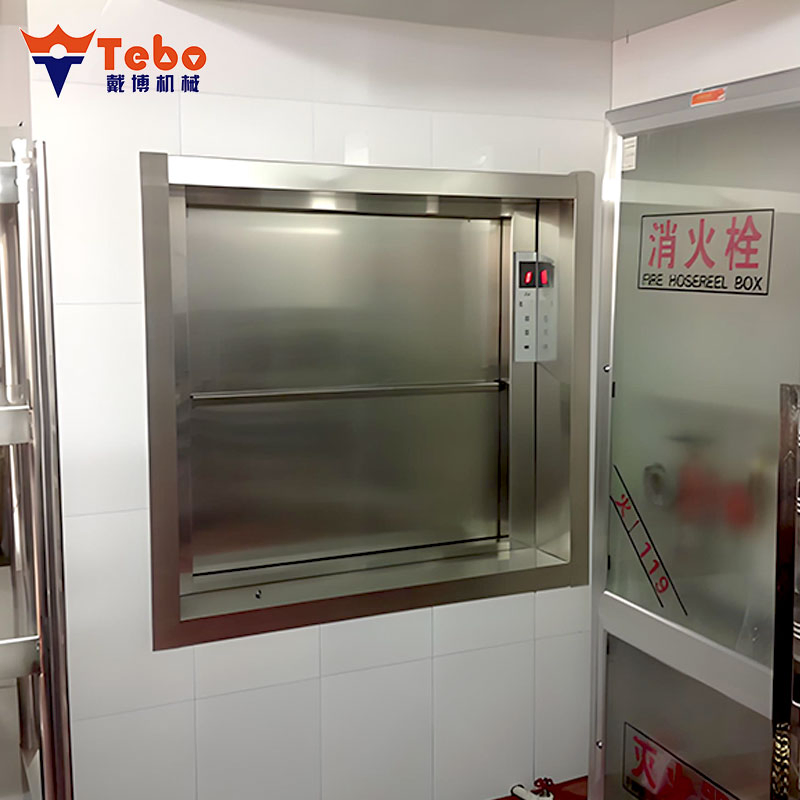

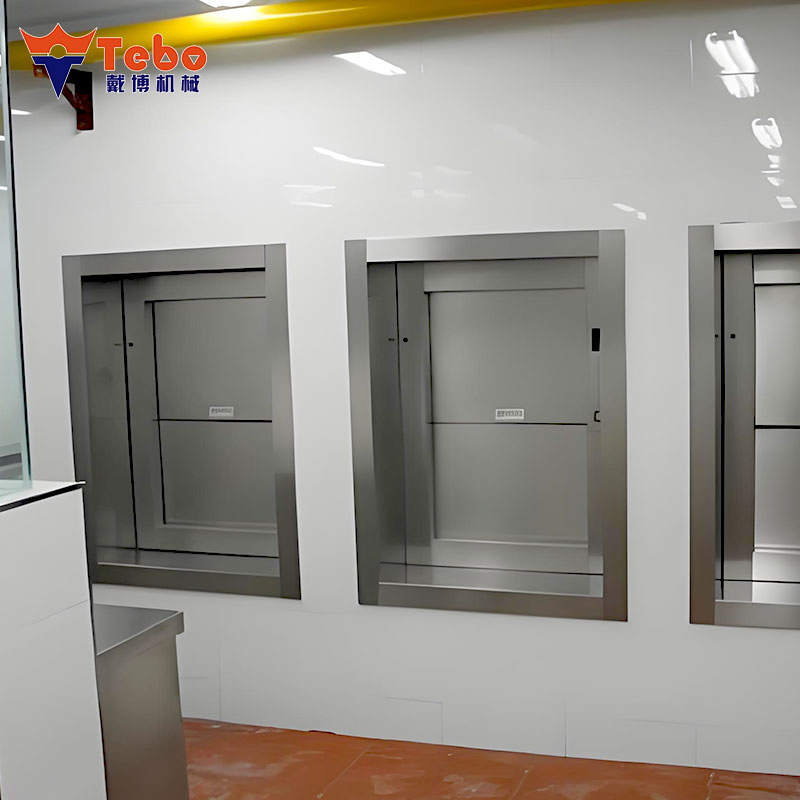

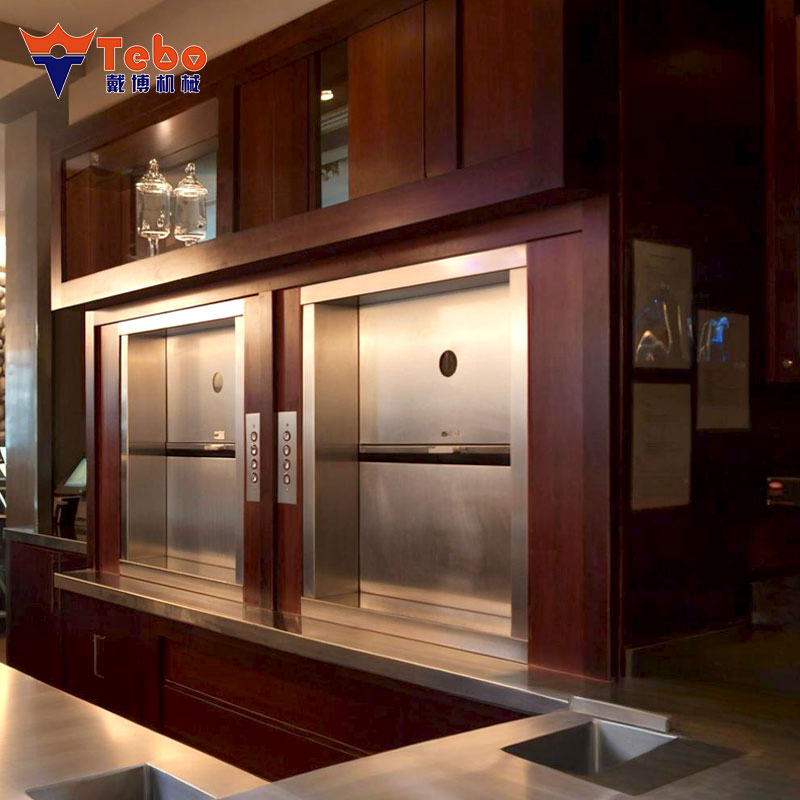

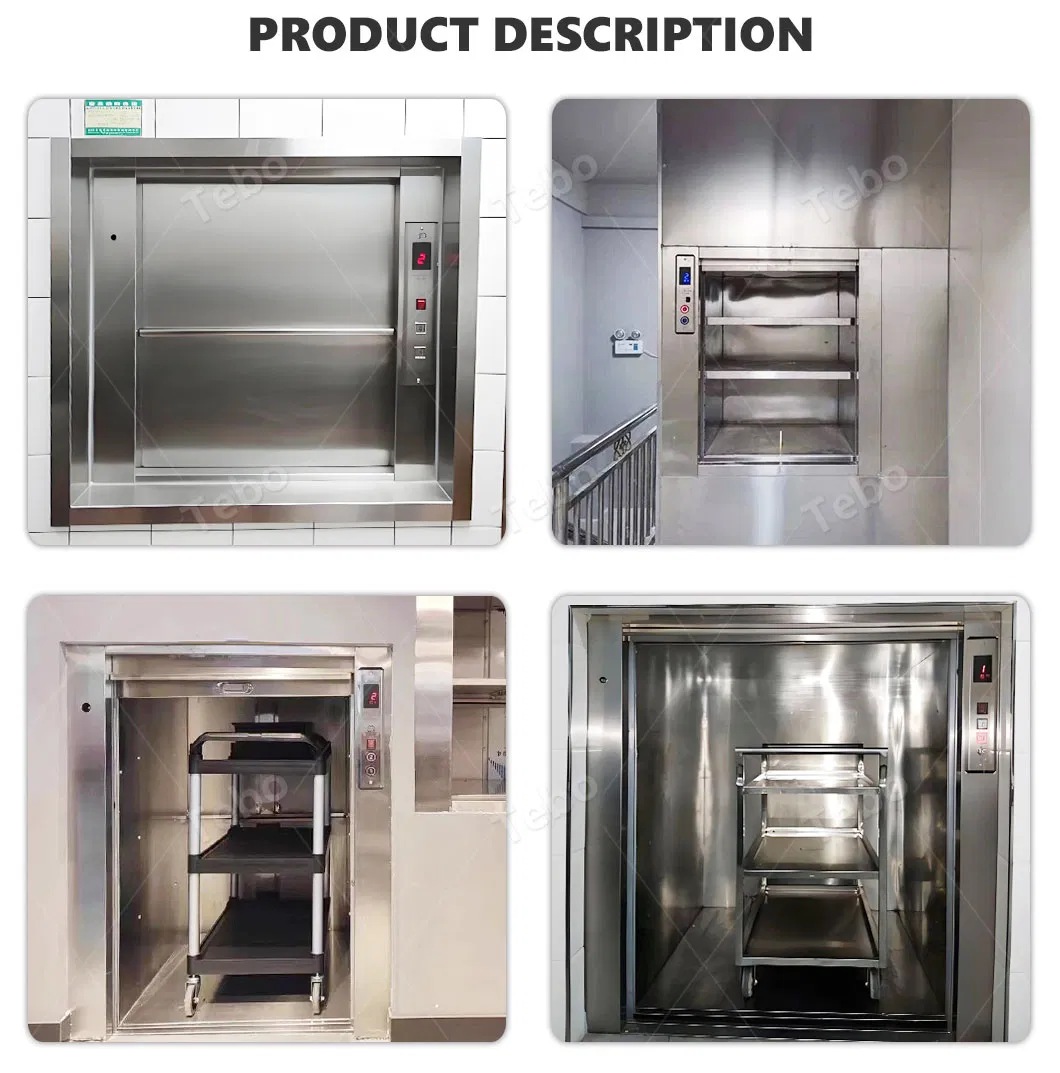

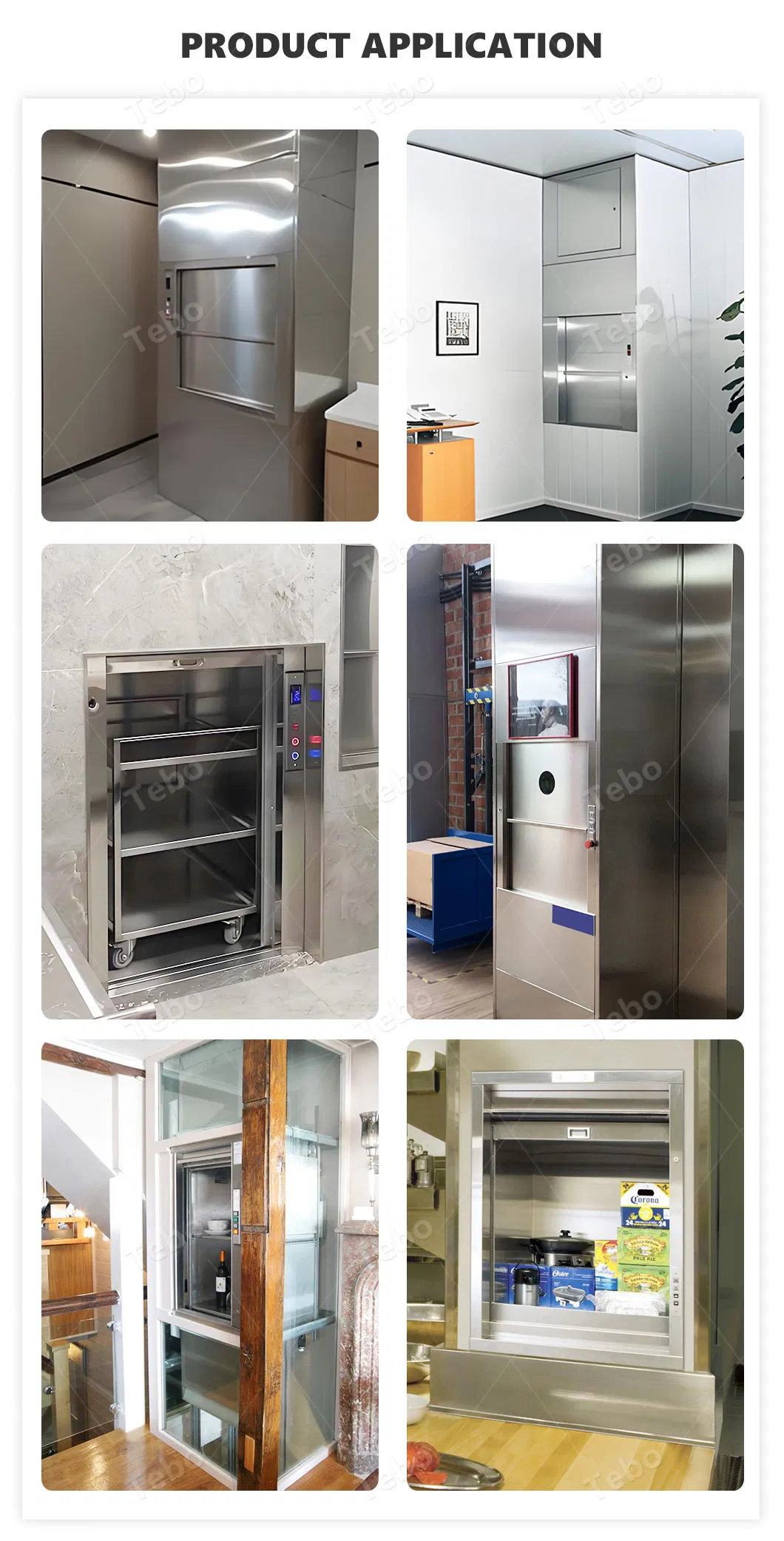

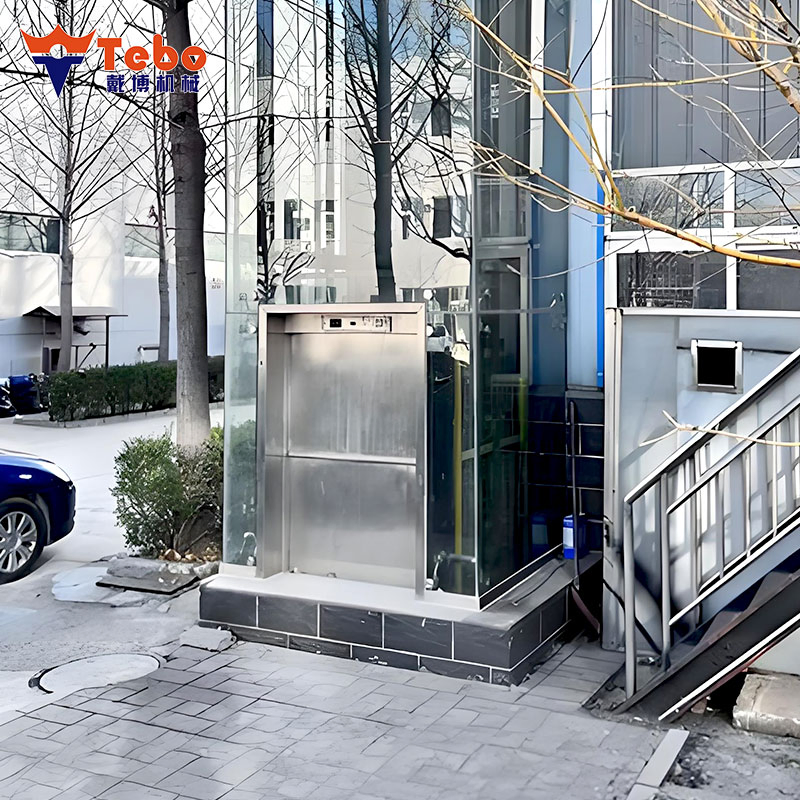

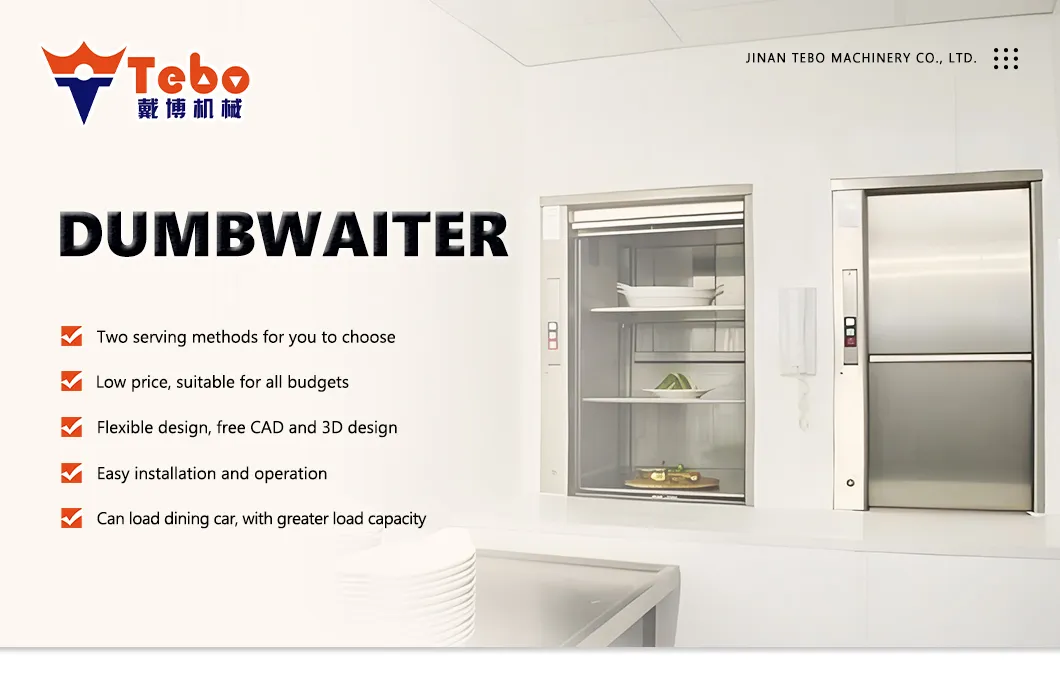

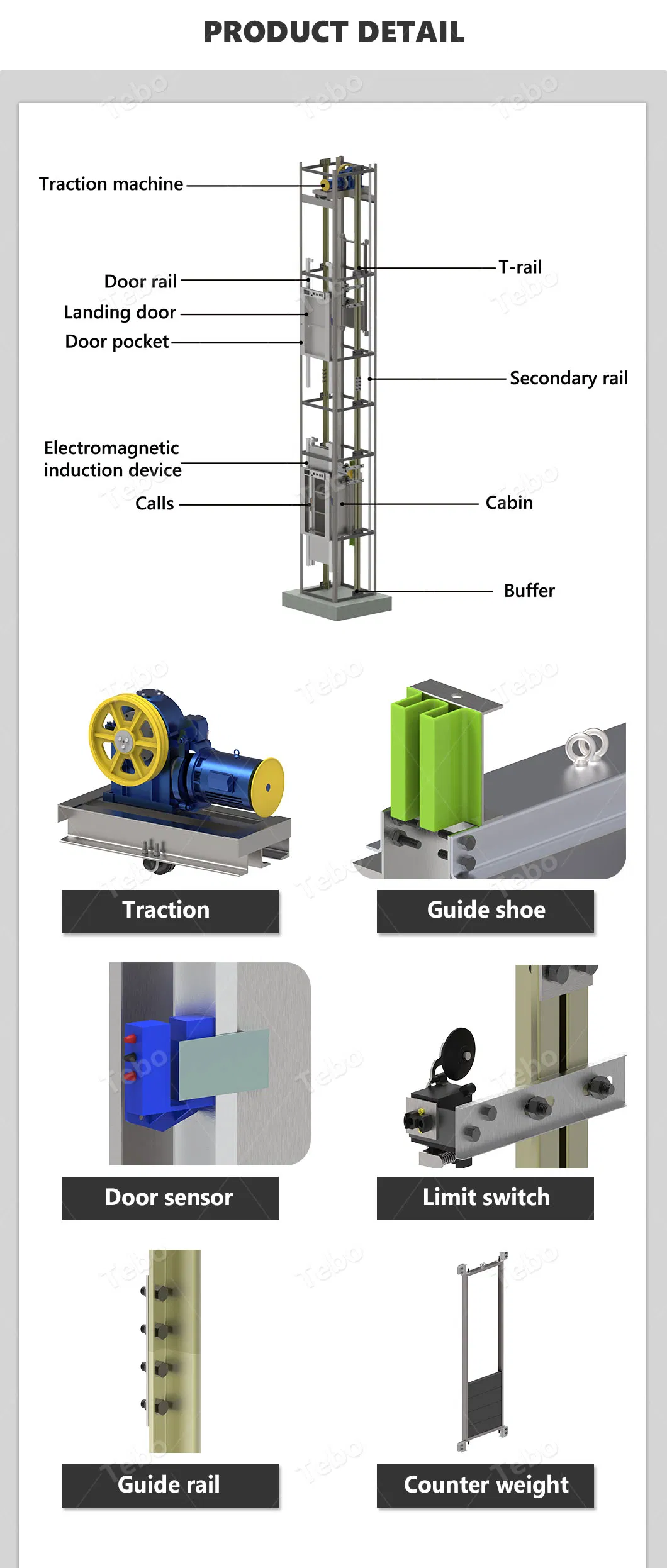

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.
The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings. Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals.
| Load(kg) | Cabin Size W*D*H(mm) | Landing Door | Door Size W*H(mm) | Window Sill Height | Overhead Height |
| 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 |
| 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 800 | 3200 |

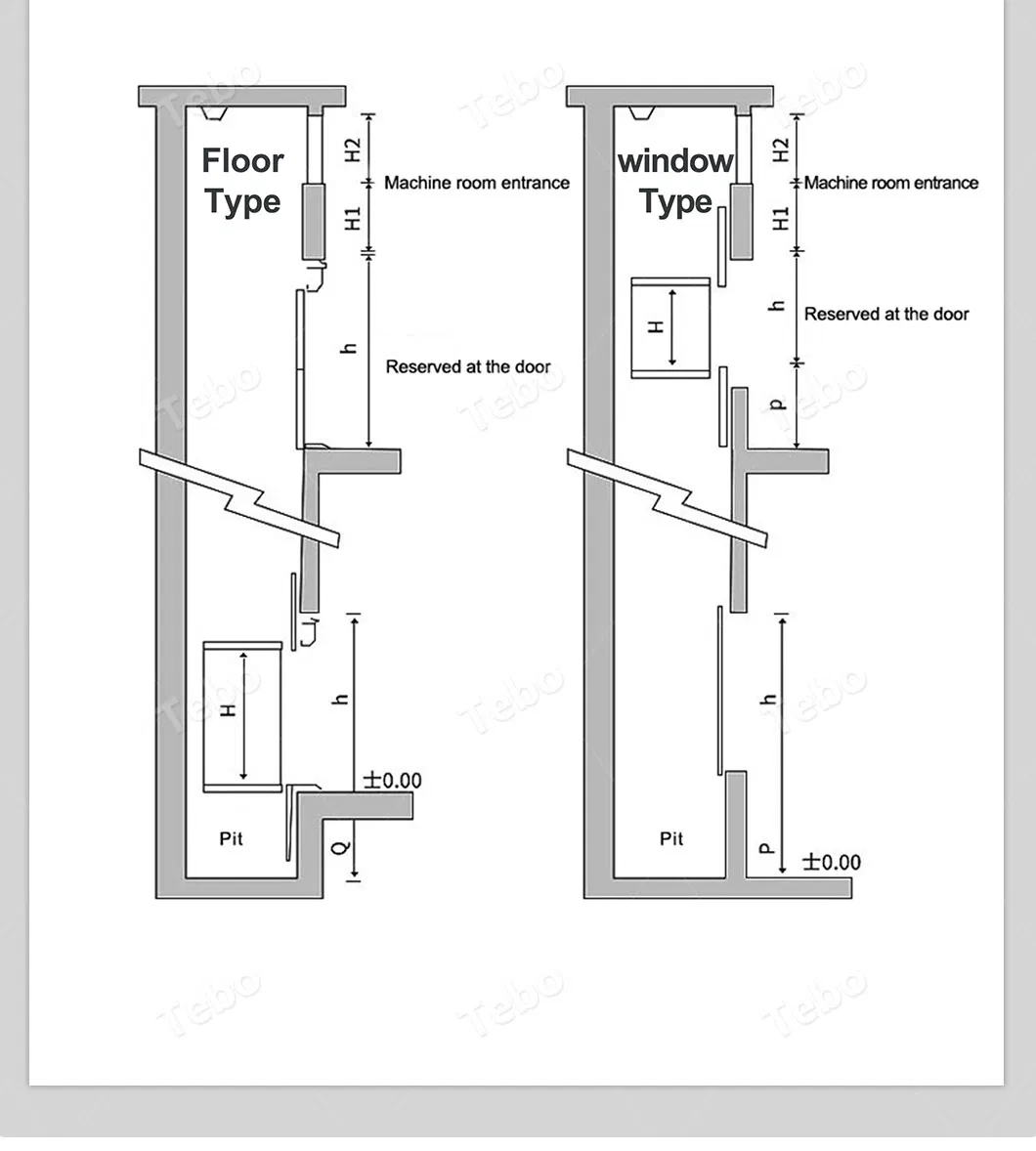

| Load(kg) | Cabin Size W*D*H(mm) | Landing Door | Door Size W*H(mm) | Min Pit Depth | Overhead Height |
| 200 | 800*800*1000 | Standard | 800*1000 | 600 | 2800 |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 600 | 2800 |
| 300 | 1000*1000*1200 | Standard | 1000*1200 | 700 | 3200 |
| 400 | 1000*1200*1400 | Standard | 1200*1400 | 800 | 3600 |
* All parameters support customized services.

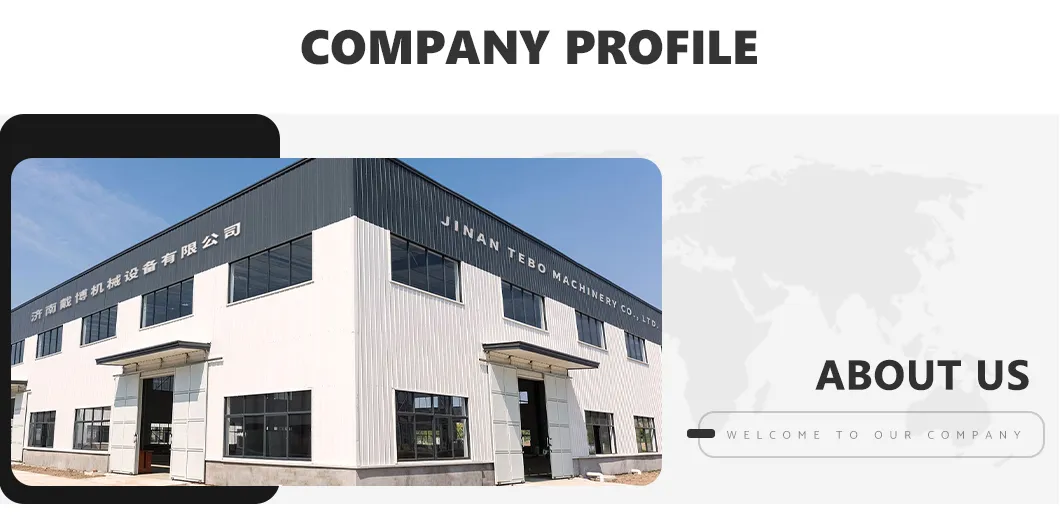

Our operational and production base is located in a well-connected industrial hub. Our experienced and highly innovative technical team continuously develops and optimizes multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, securing numerous independent intellectual property rights and patent technologies.
Equipped with advanced production facilities, including modern CNC machining centers and automated welding equipment, we ensure efficient end-to-end production. Our rigorous quality control systems guarantee that every unit assembly meets stringent performance and reliability requirements.
