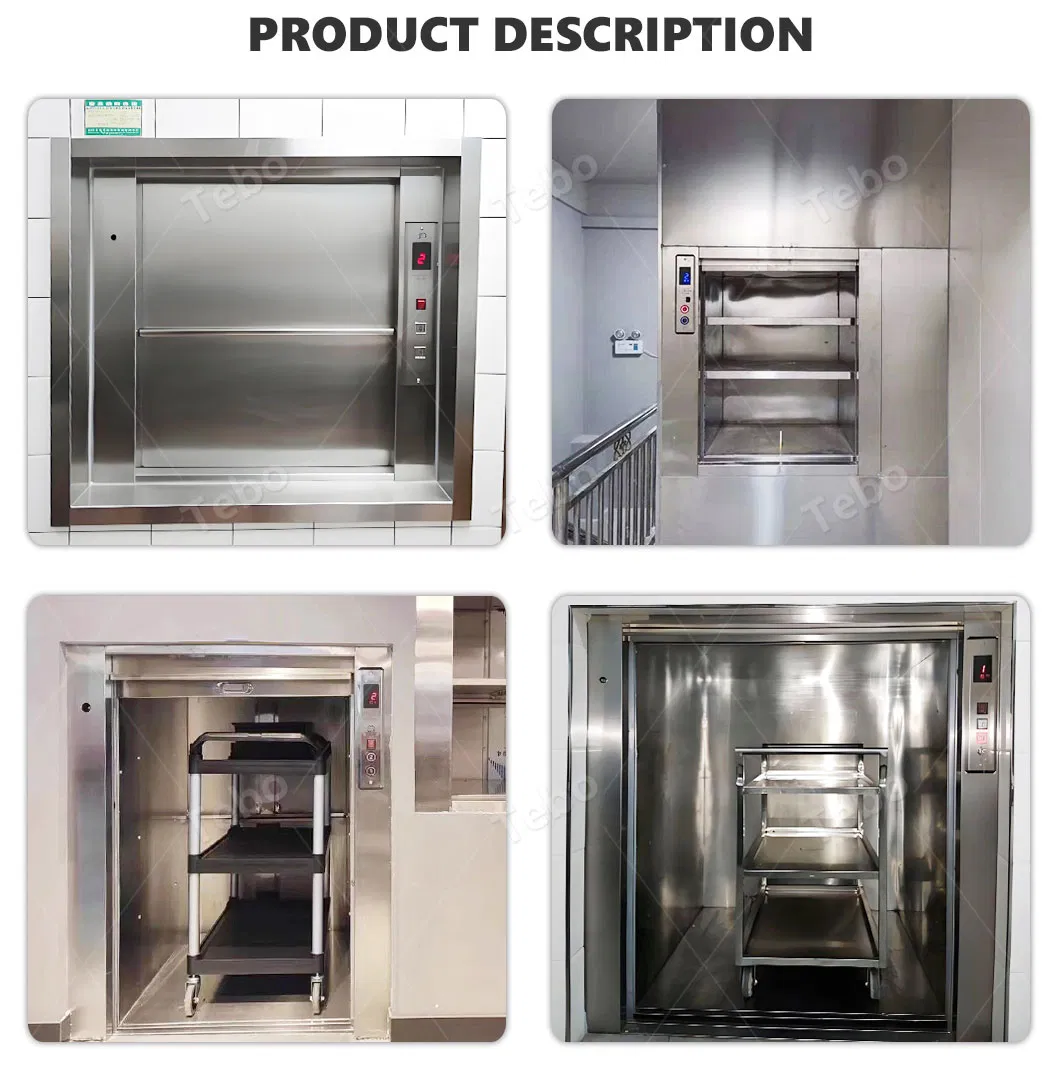

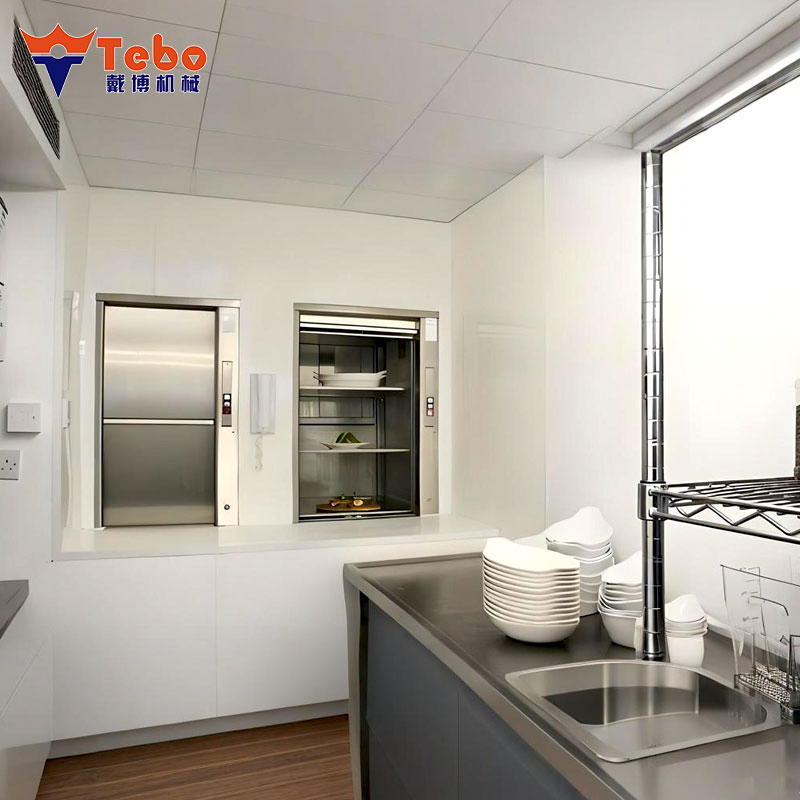

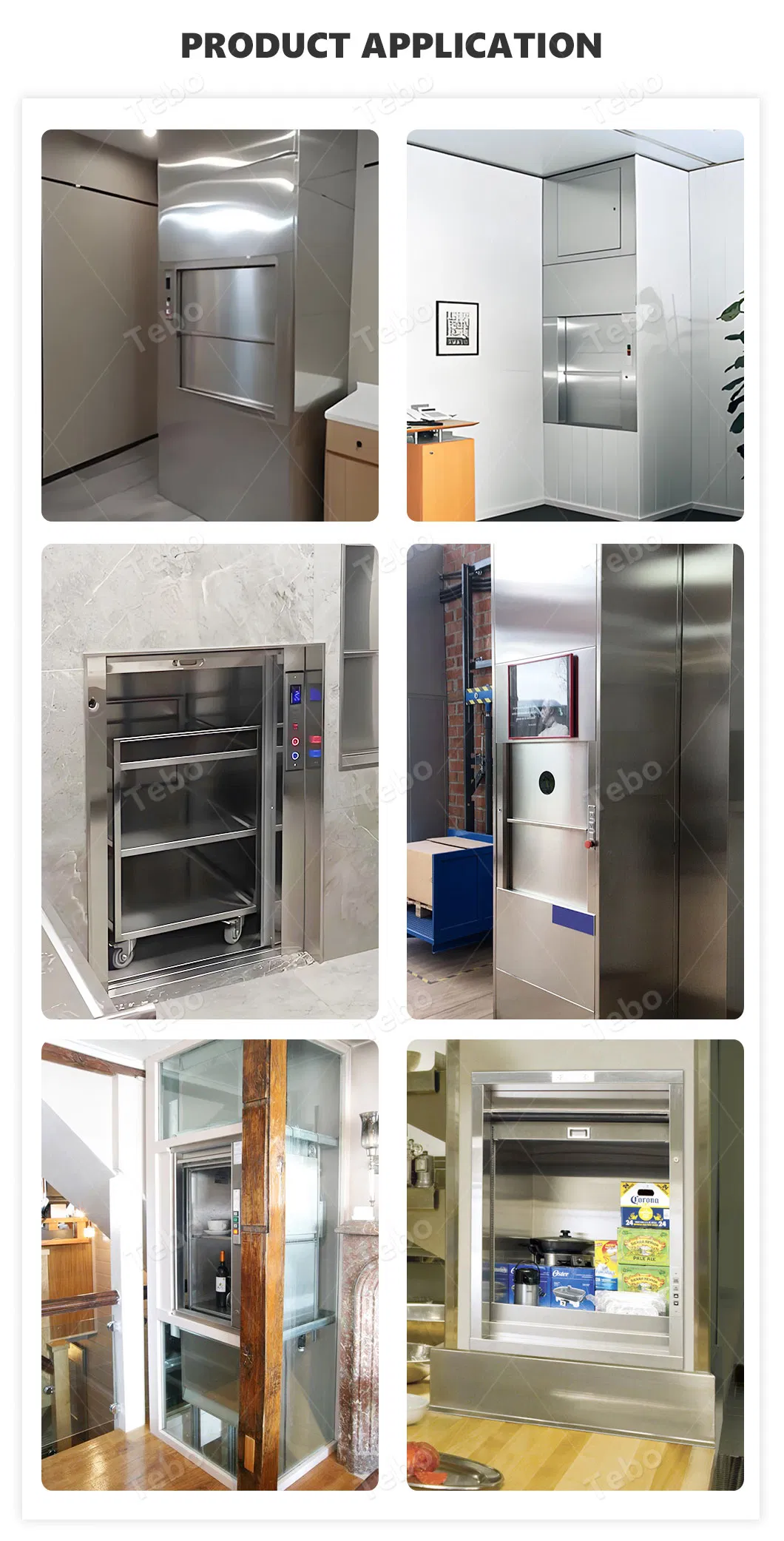

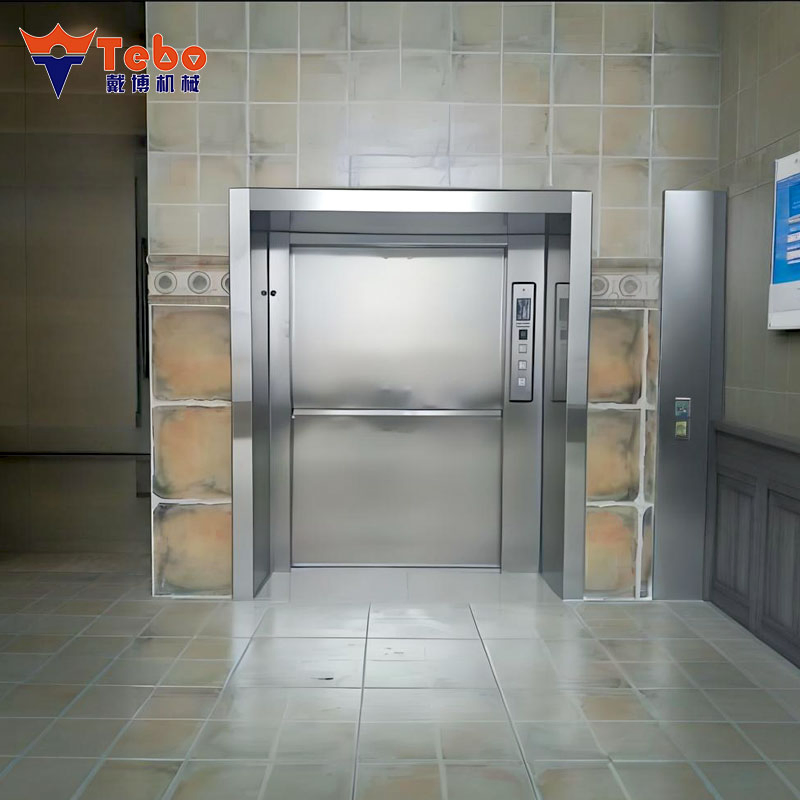

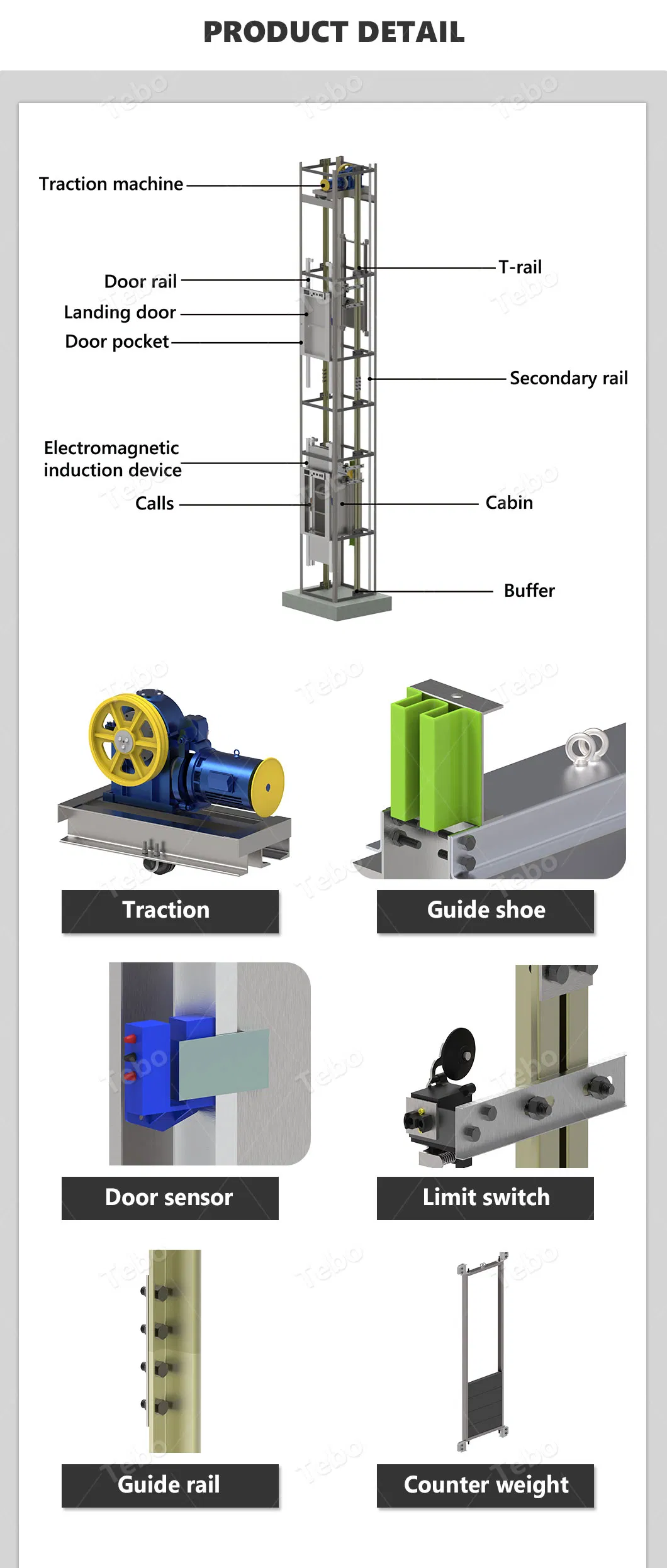

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel carbin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.

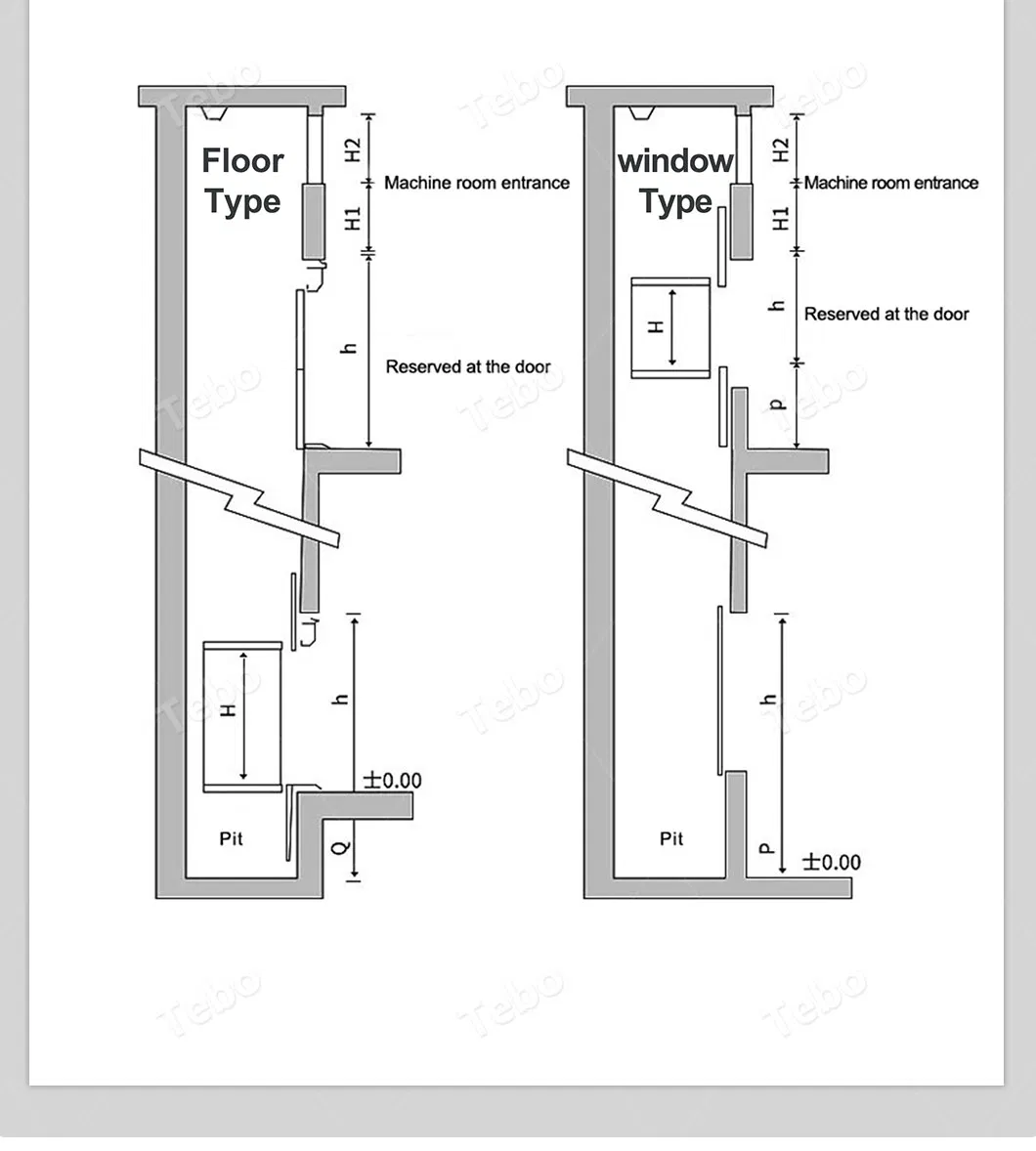

| Type | Load (kg) | Cabin Size W*D*H (mm) | Landing Door | Door Size W*H (mm) | Sill Height (mm) | Overhead (mm) |
|---|---|---|---|---|---|---|

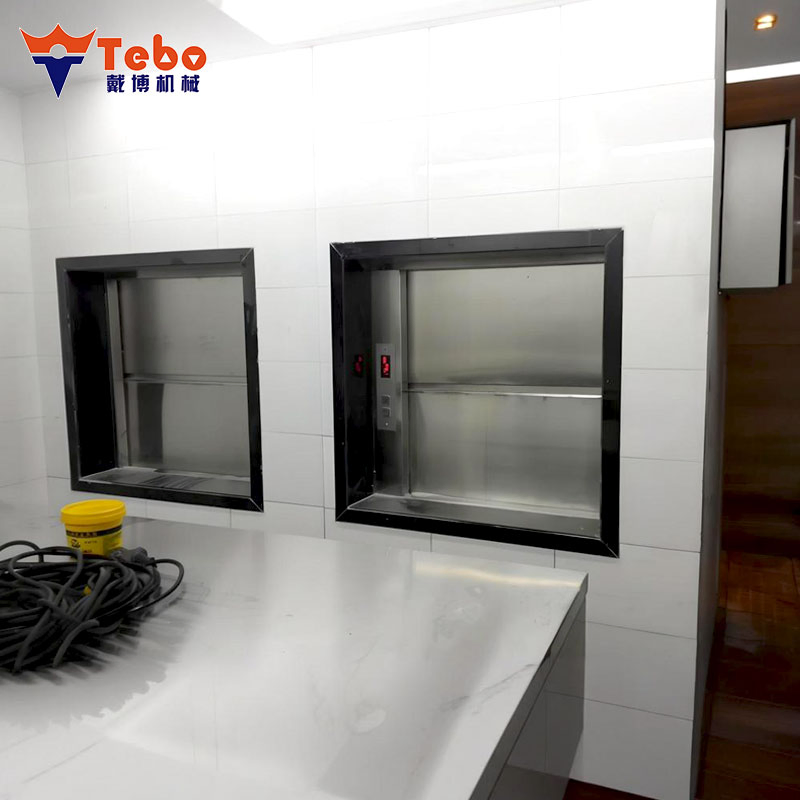

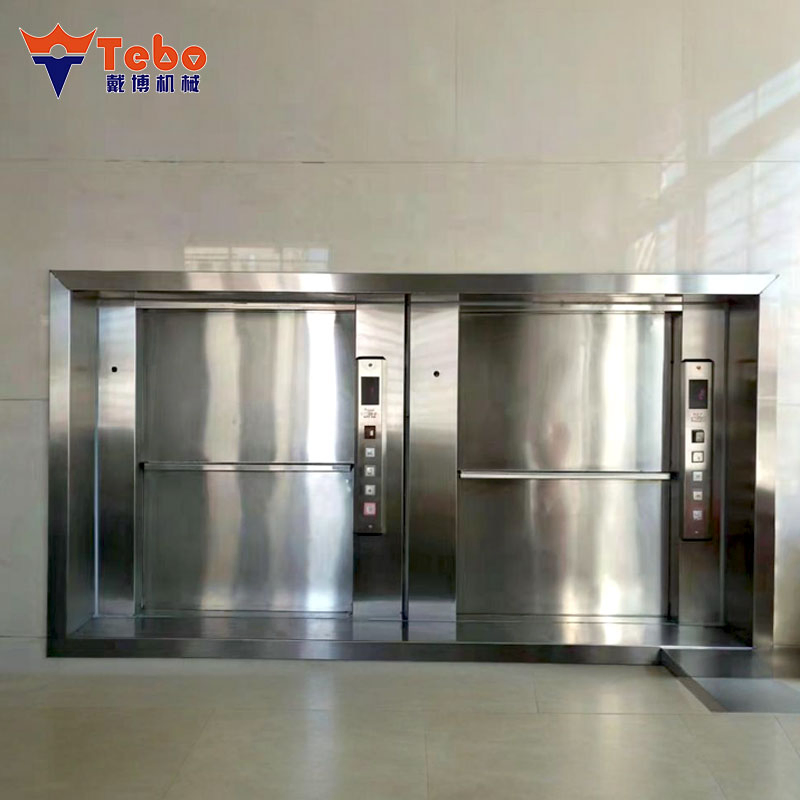

| Window Type | 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 |

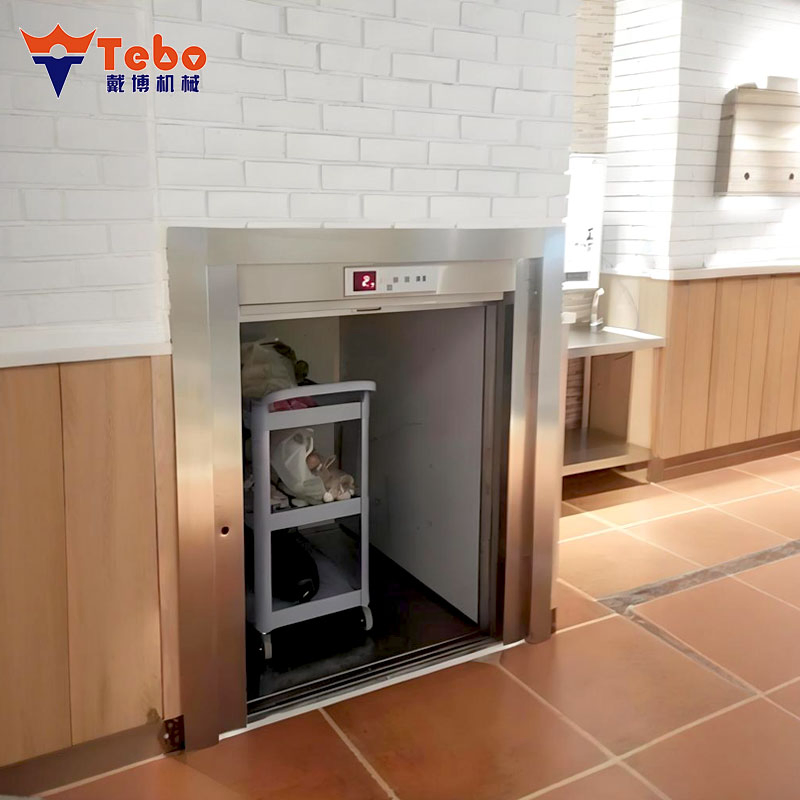

| Floor Type | 200 | 800*800*1000 | Standard | 800*1000 | 600 | 2800 |
| Floor Type | 300 | 1000*1000*1200 | Standard | 1000*1200 | 700 | 3200 |
| Floor Type | 400 | 1000*1200*1400 | Standard | 1200*1400 | 800 | 3600 |
Our company is a specialized enterprise in the R&D and manufacturing of mechanical lifting equipment. We have an experienced and highly innovative technical team, continuously optimizing product series for better structural design and operational efficiency. Our core range includes hydraulic home elevators, freight lifts, and specialized scissor lift platforms.
Equipped with advanced production facilities, including modern CNC machining centers and automated welding equipment, we ensure high precision and reliability. We have established a comprehensive service system encompassing design, customized manufacturing, and full lifecycle technical support.
