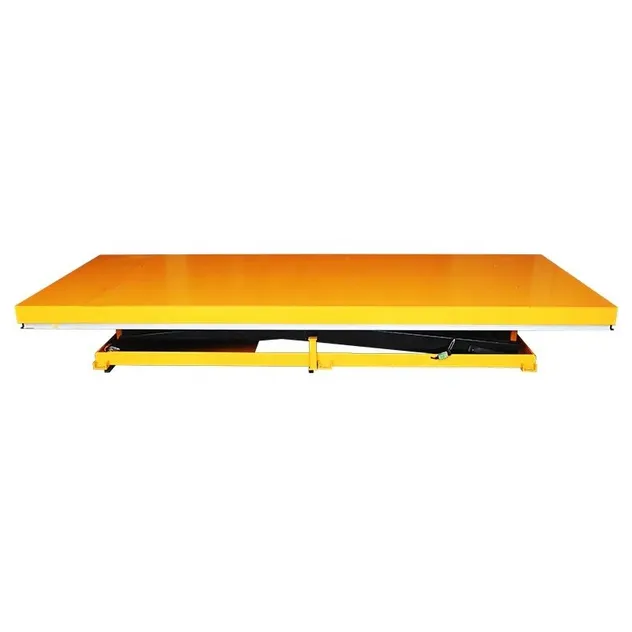

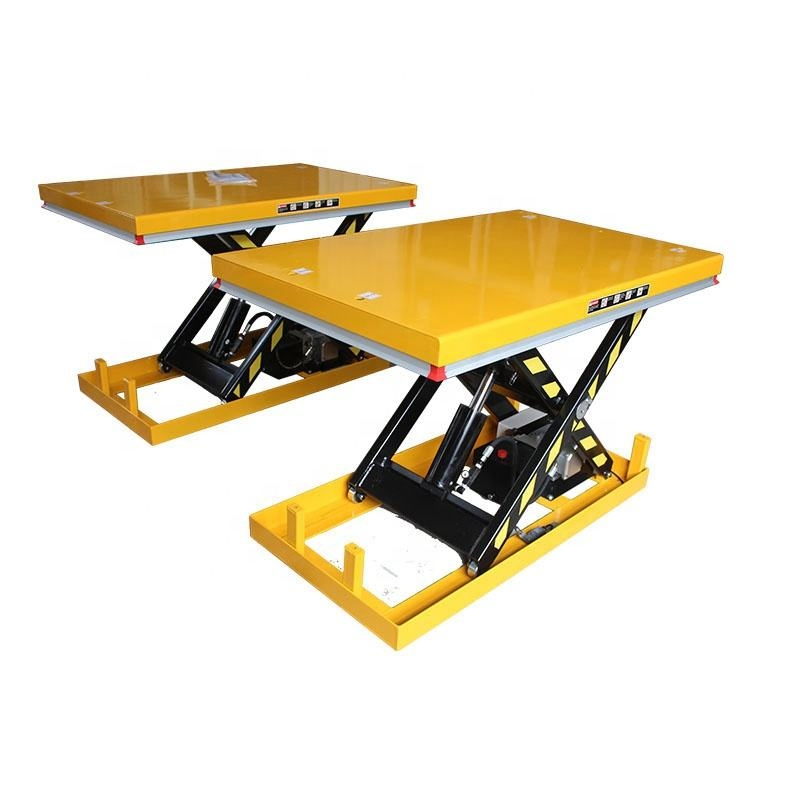

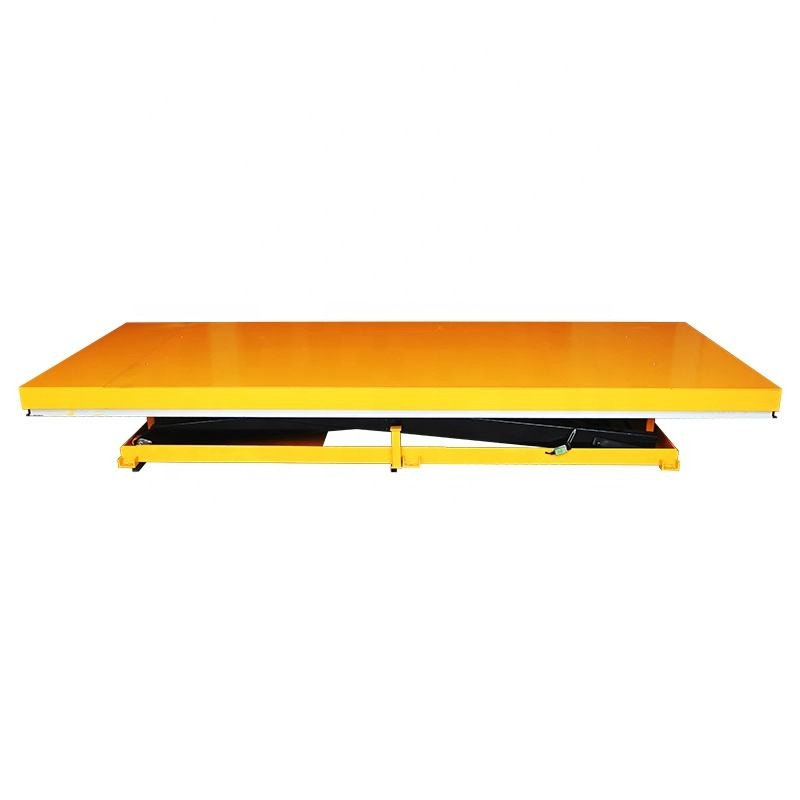

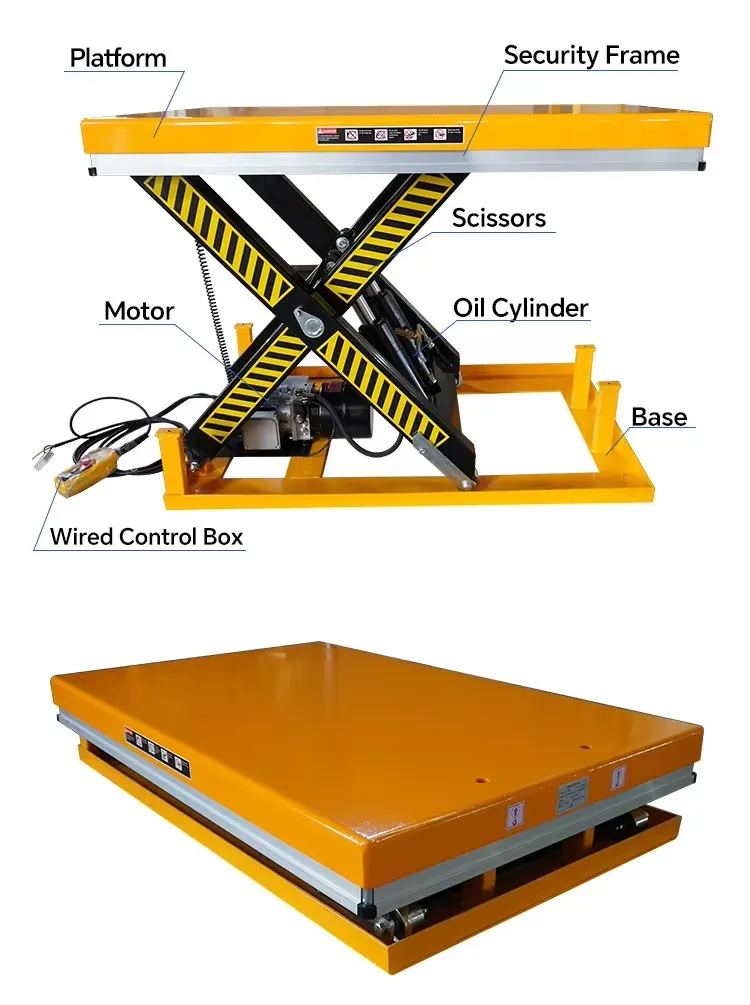

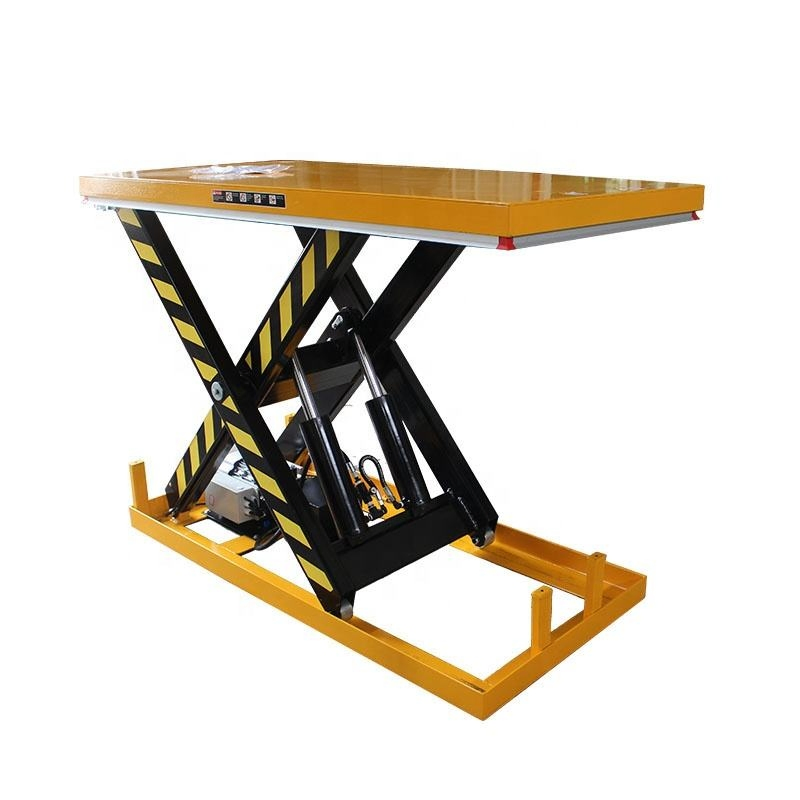

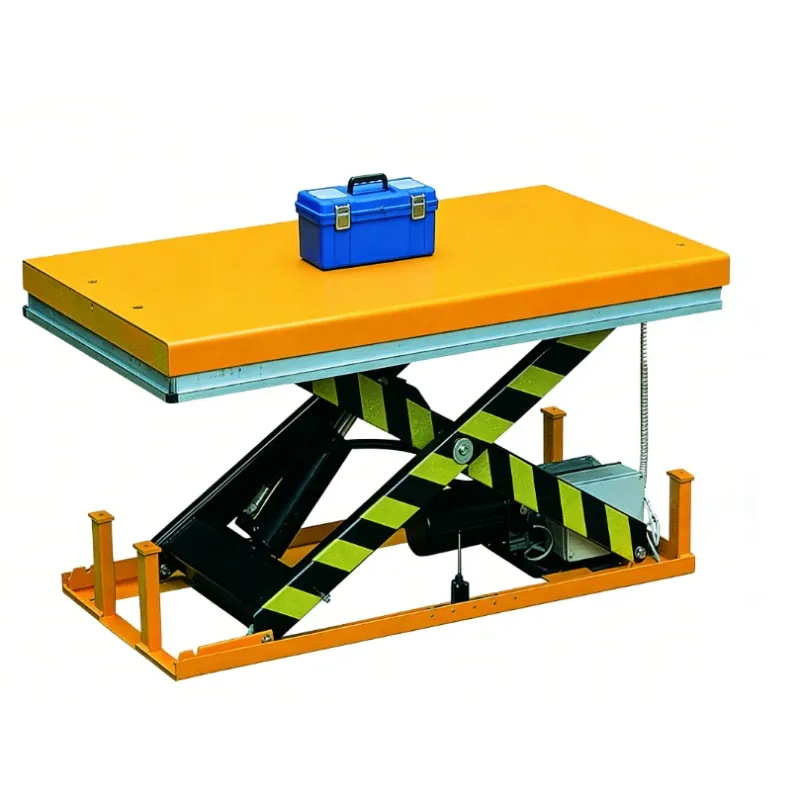

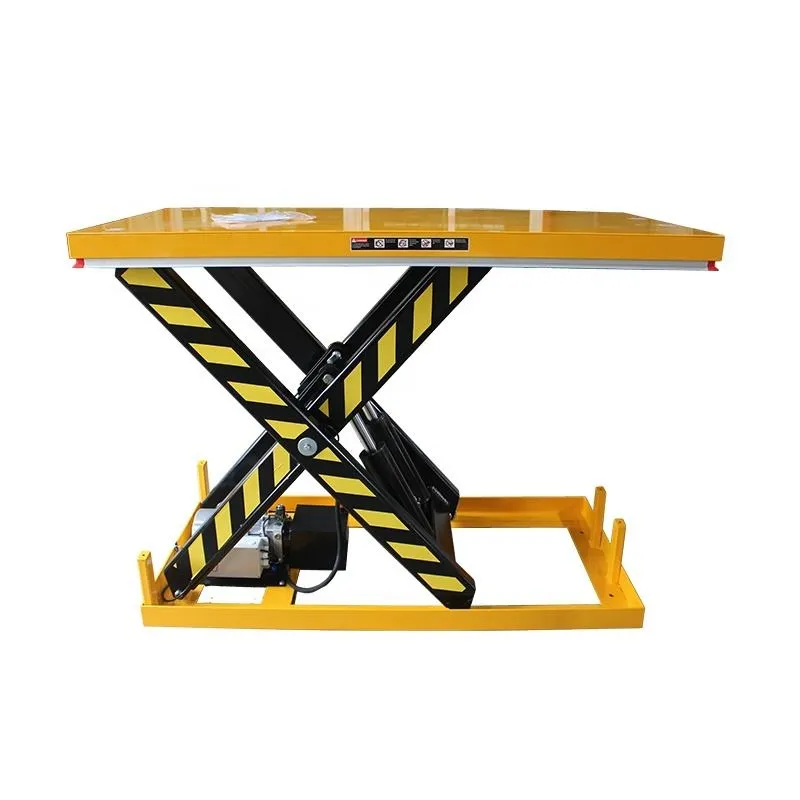

Electric Hydraulic Scissor Lift Table – a robust, versatile, and highly efficient material handling solution engineered to elevate productivity across industrial, manufacturing, and logistics environments. Designed with precision and durability in mind, this lift table seamlessly combines electric power with smooth hydraulic operation to provide reliable vertical lifting for loads ranging from 1000kg to 4000kg.
Whether you're raising heavy machinery, positioning pallets, or facilitating ergonomic assembly work, this equipment delivers consistent performance with lifting heights from as low as 205mm up to 1400mm, ensuring optimal accessibility and workflow adaptability.
| Model | Capacity (kg) | Lowered H (mm) | Raised H (mm) | Platform Size (mm) | Lift Time (s) | Power pack | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HW1001 | 1000 | 205 | 1000 | 820×1300 | 20-25 | AC 1.1kw | 160 |
| HW1003 | 1000 | 240 | 1300 | 850×1700 | 30-35 | AC 1.1kw | 200 |
| HW2001 | 2000 | 230 | 1050 | 850×1300 | 20-25 | AC 1.5kw | 235 |
| HW2004 | 2000 | 250 | 1300 | 1000×1700 | 25-35 | AC 1.5kw | 300 |
| HW4001 | 4000 | 240 | 1100 | 1200×1700 | 30-40 | AC 2.2kw | 375 |
| HW4008 | 4000 | 300 | 1400 | 1800×2200 | 45-50 | AC 2.2kw | 540 |
