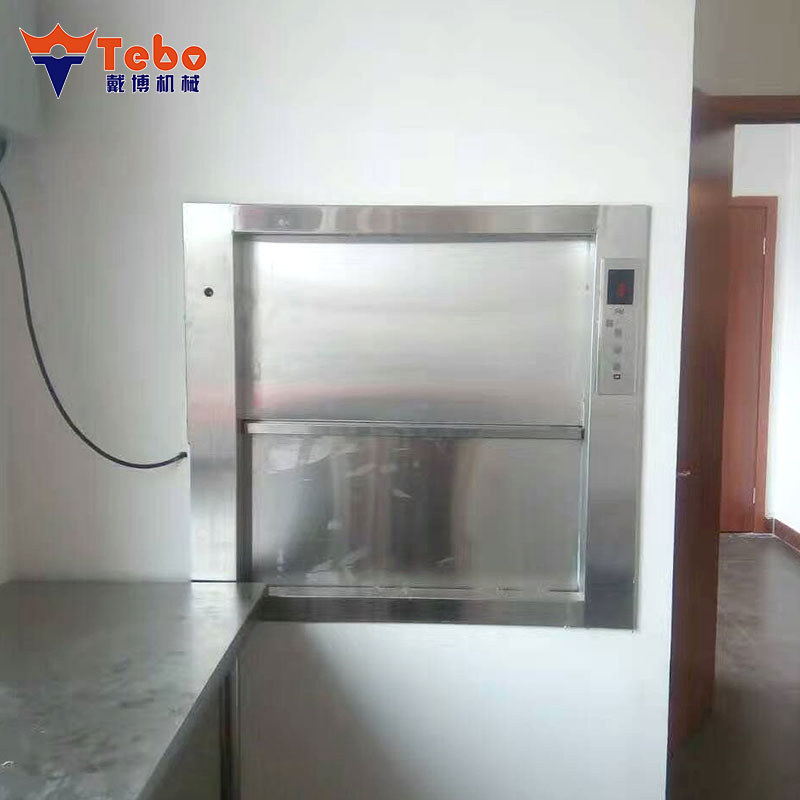

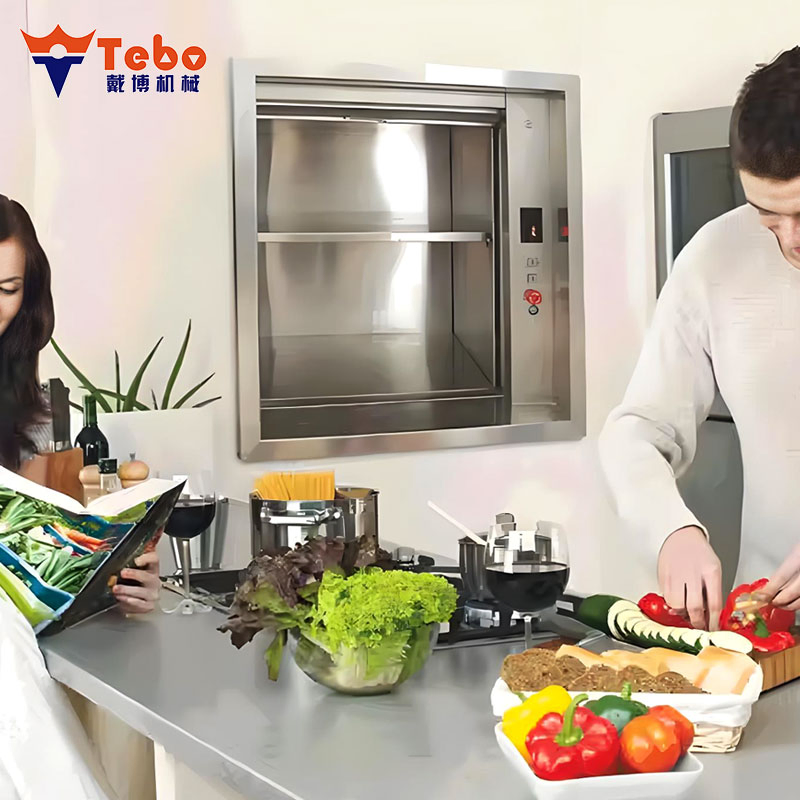

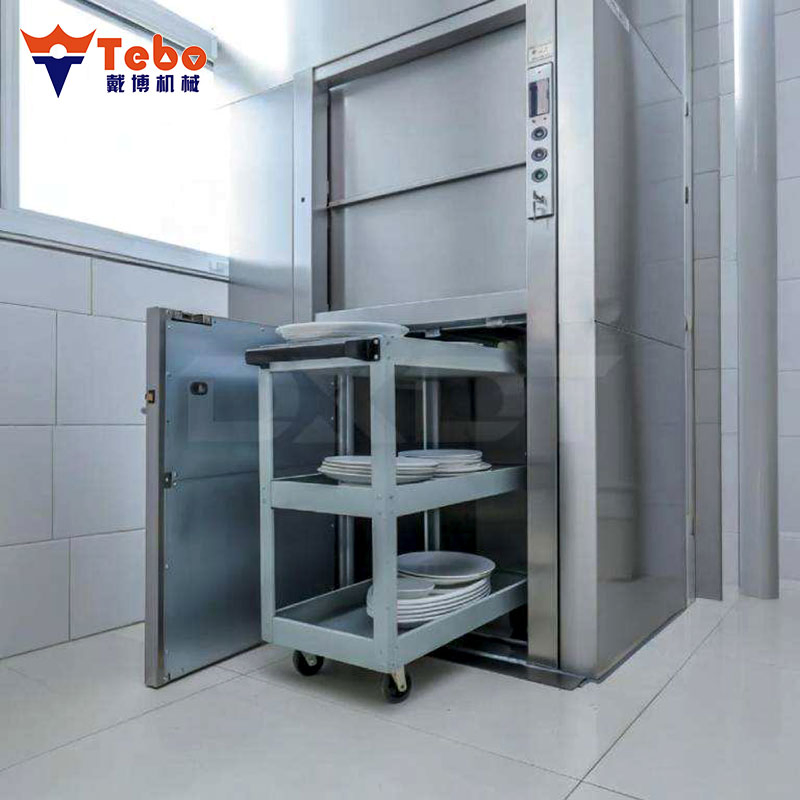

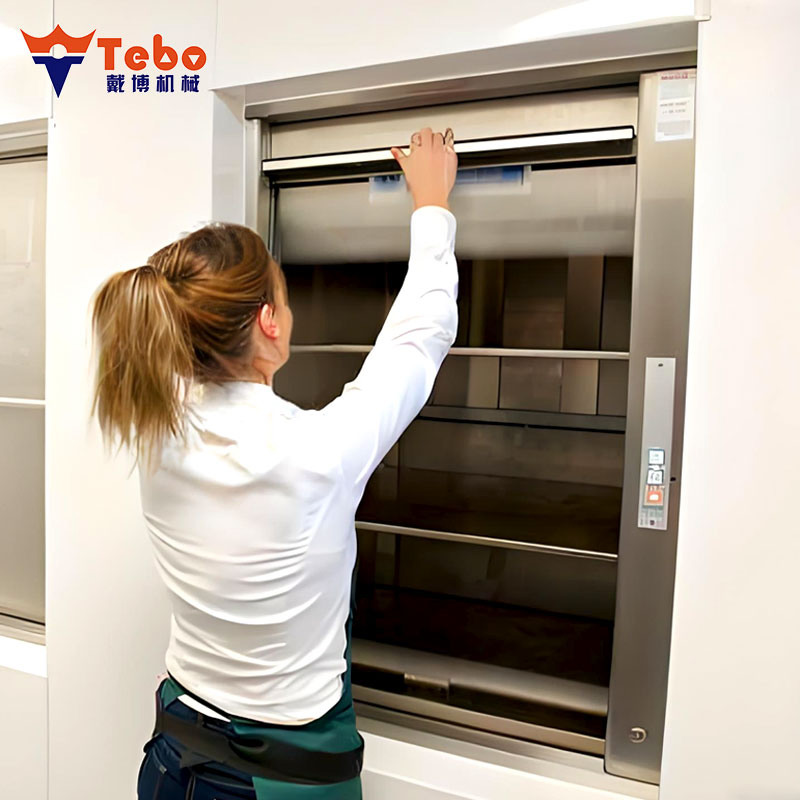

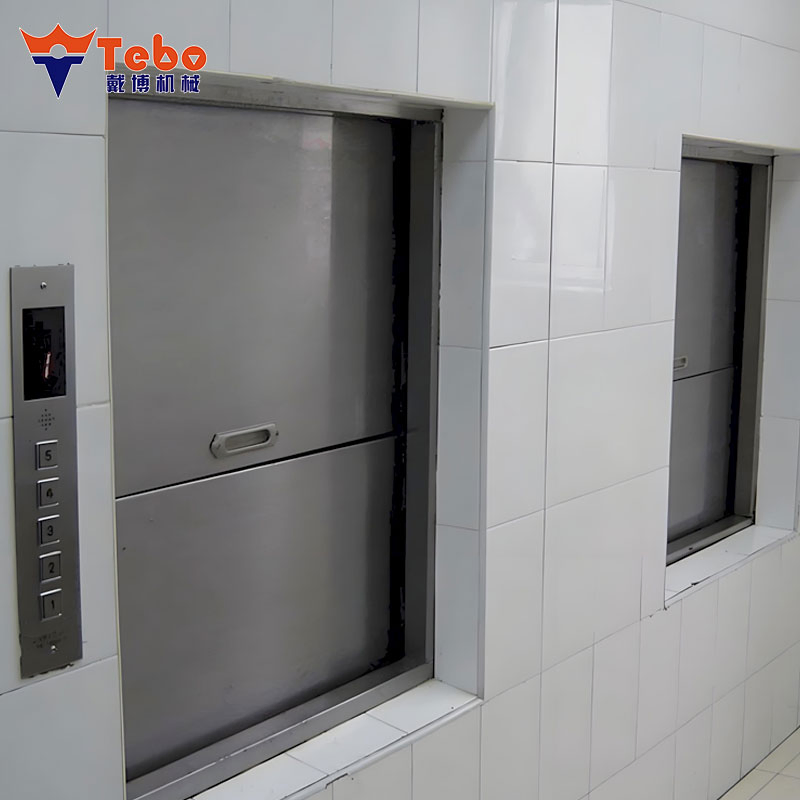

Electric 2 Stops 150kg Library Kitchen Food Elevator Lift Dumbwaiter System

Still deciding? Get samples of $ !
Request Sample

Product Description

Product Overview & Specifications
Model NO.TBD-65
TypeWellhole
Load Capacity50kg-300kg
Speed0.40m/s
Drive ModeAC
Open & Close TypeManual
Lift MechanismTelescoping Lift
Guide RailT Guide
Elevator DoorCenter Opening Door
OriginChina
Dumbwaiter System Overview
Product Description
⚙️

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.

The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings. Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals.

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, and private rooms.

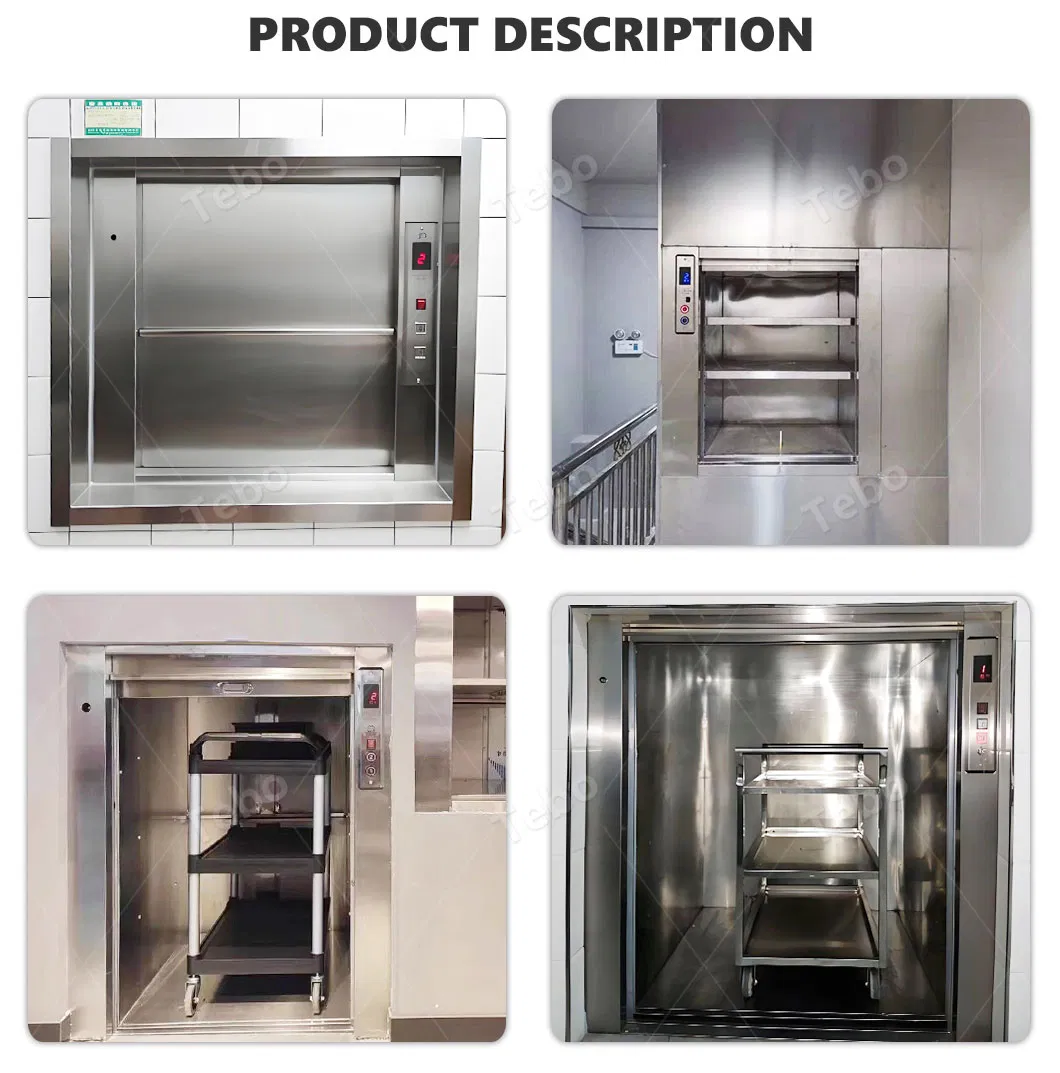

Food Elevator Lift Details
Technical Parameters (Window Type)
Type Load(kg) Cabin Dimension W*D*H(mm) Landing Door Cabin Door Door Size W*H(mm) Sill Height Overhead Height
Window Type 100 600*400*800 Standard Optional 600*800 800 2800
100 600*600*800 Standard Optional 600*800 800 2800
200 800*800*800 Standard Optional 800*800 800 2800
200 1000*1000*1000 Standard Optional 1000*1000 800 3200
Technical Parameters (Floor Type)
Type Load(kg) Cabin Dimension W*D*H(mm) Landing Door Cabin Door Door Size W*H(mm) Min Pit Depth Overhead Height
Floor Type 200 800*800*1000 Standard Optional 800*1000 600 2800
300 1000*1000*1200 Standard Optional 1000*1200 700 3200
400 1000*1200*1400 Standard Optional 1200*1400 800 3600

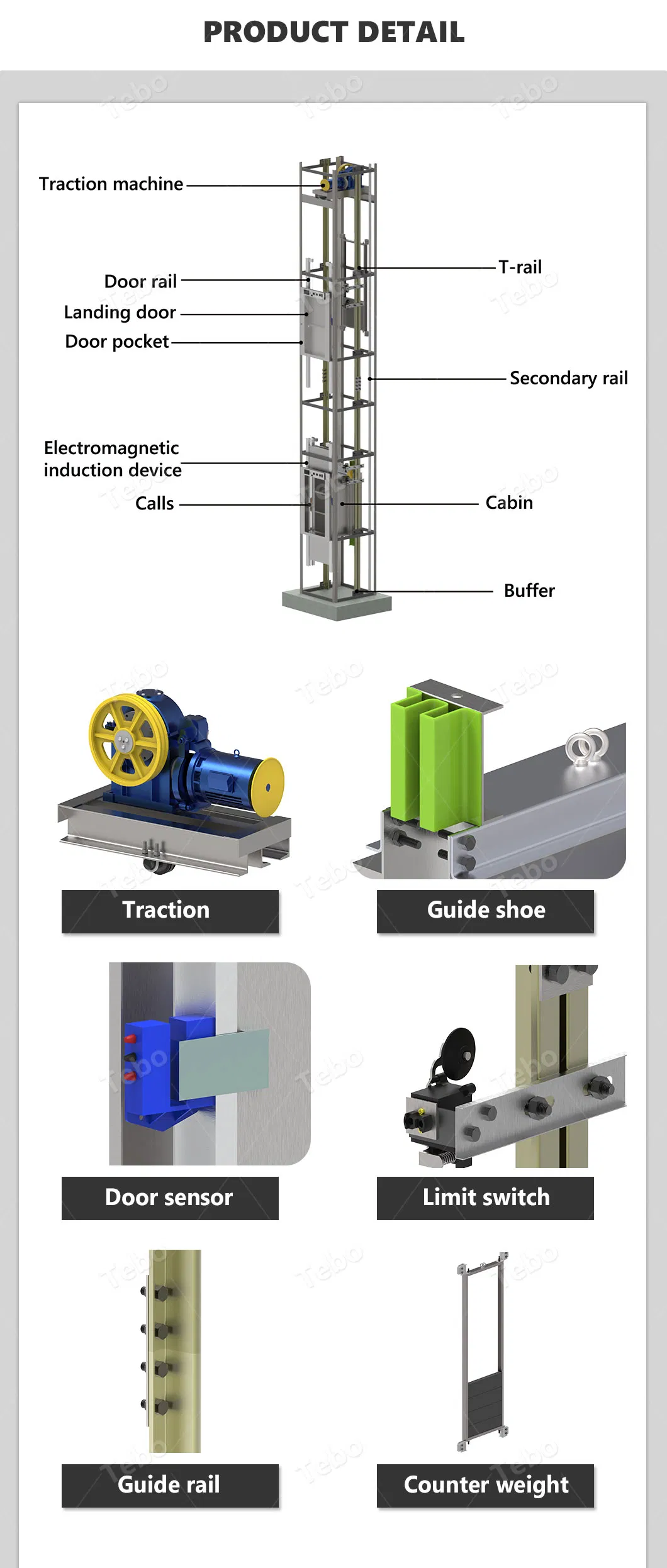

Detail 1

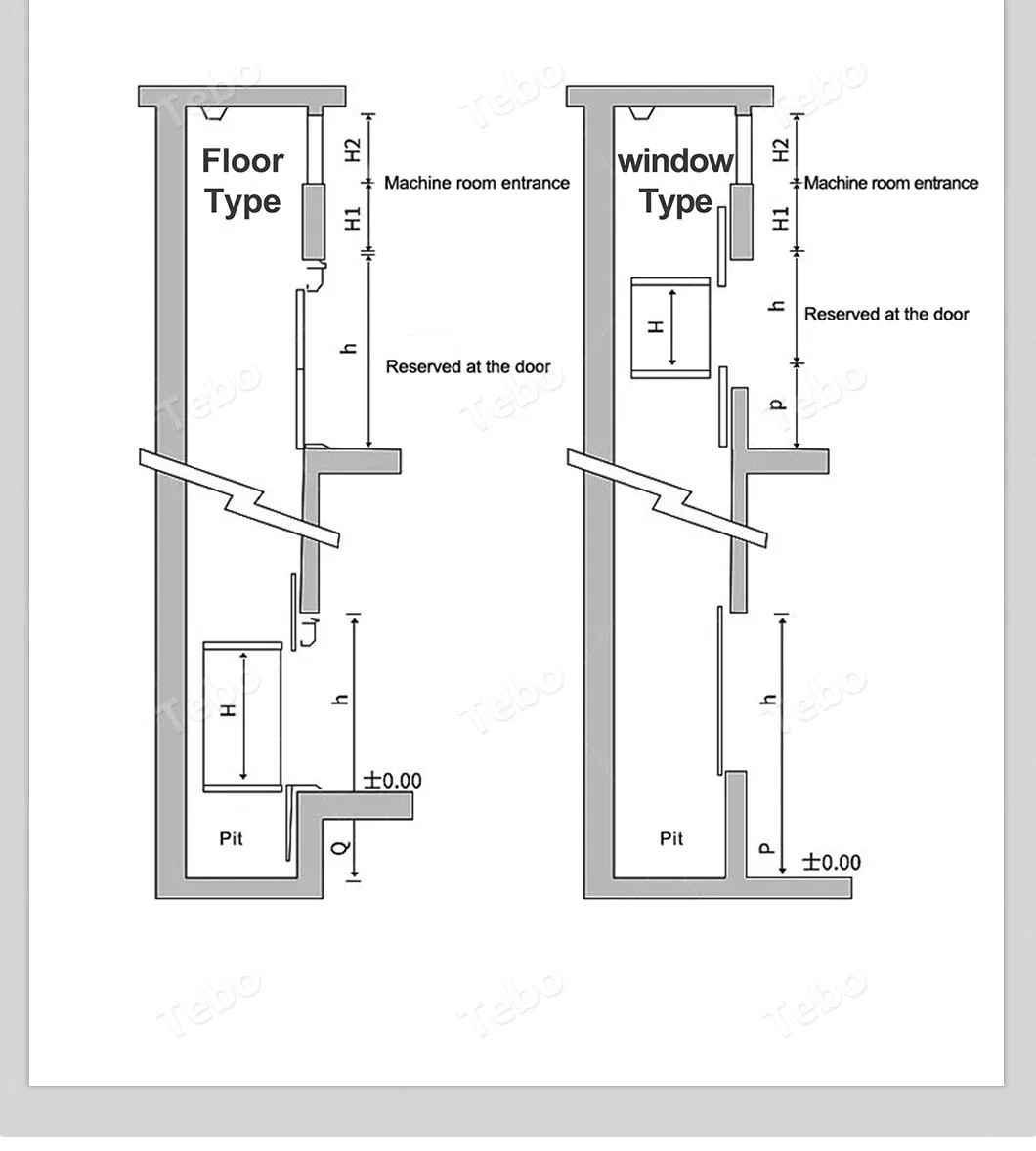

Detail 2

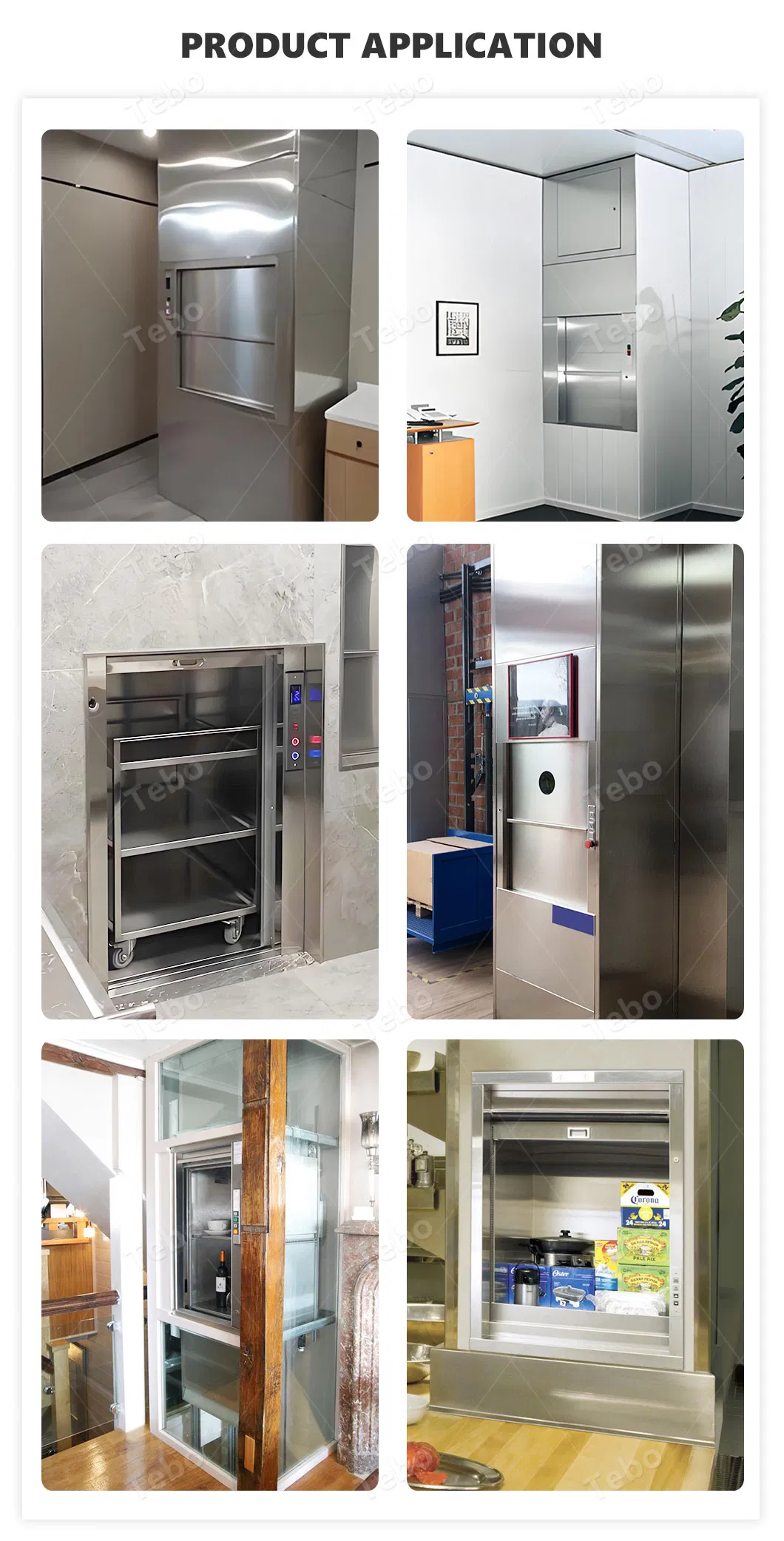

Detail 3
Manufacturing Excellence
Our production base utilizes advanced hydraulic drive systems and exceptional load-bearing designs. Equipped with modern CNC machining centers, automated welding equipment, and precision inspection instruments, we ensure efficient end-to-end production. From component processing to complete unit assembly, the equipment meets stringent performance and reliability standards.
Factory Overview

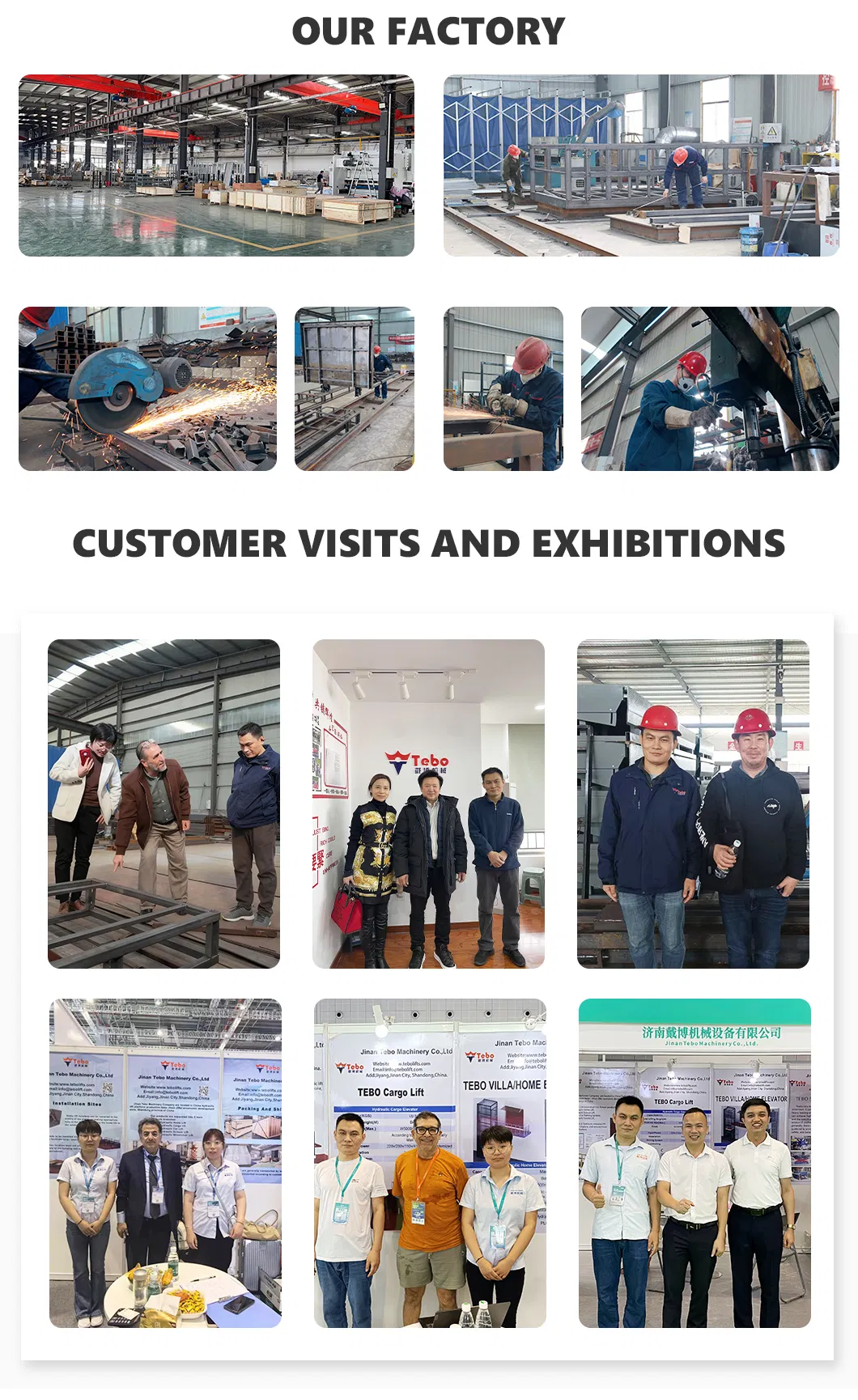

Production Process
Certifications & Packaging
Quality Certifications
Professional Packaging
Frequently Asked Questions
What is the typical load capacity for these lifts?
Our dumbwaiter lifts support a wide range of load capacities, typically from 50kg to 300kg for standard models, with floor-type options reaching up to 400kg.
Are the lifts customizable for specific building heights?
Yes, we offer fully customizable services. Cabin dimensions, door sizes, overhead height, and sill heights can all be adjusted to fit your architectural layout.
What materials are used for food hygiene safety?
The cabins are primarily constructed from high-grade stainless steel, ensuring corrosion resistance, durability, and a surface that is easy to clean and sanitize for food service.
How are the products packaged for international shipping?
We standardly use robust plywood cases to protect the equipment. Special shipping marks and specific packaging requirements can be accommodated upon request.
What is the expected delivery timeframe?
Production and shipping readiness usually take about 10 working days after receipt of payment, depending on the complexity of the customization.
Do you provide installation support?
We provide detailed assembly and installation manuals along with technical drawings. Most customers can install the machines by following these clear instructions.
