Customizable Container Shipping Xiwei Elevator Passenger Elevator - Xw-K036-3

1 / 5

Customizable Container Shipping Xiwei Elevator Passenger Elevator - Xw-K036-3

Customization:	Available
After-sales Service:	One-Year Free Warranty
Warranty:	One Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

Passenger Elevator-XW-K036- (3)

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

2.00 - 3.50m/s

Control Mode

Collective Selective Control

Position of Computer Room

Without Computer Room

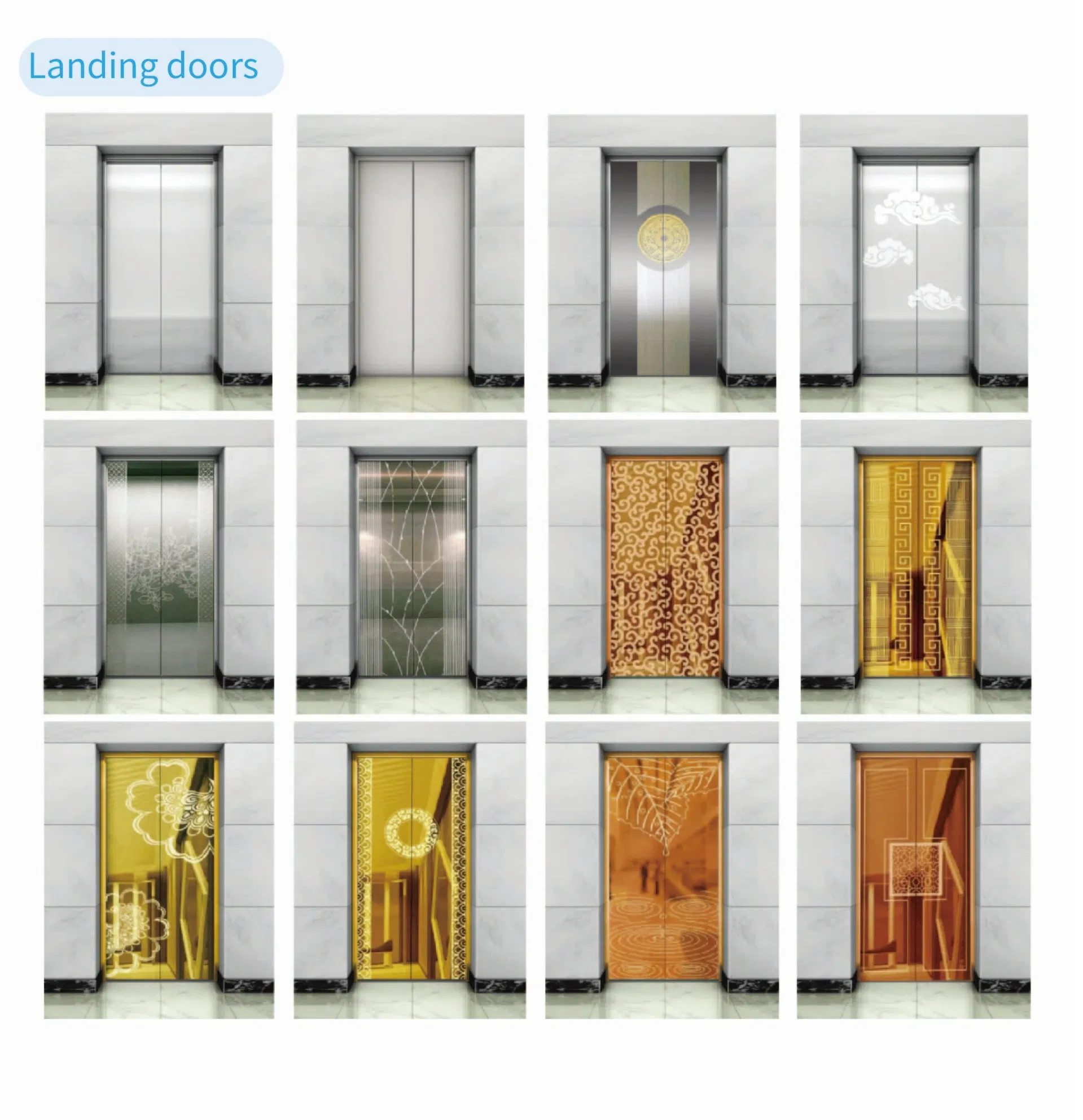

Elevator Door

Center Opening Door

Shaft

Concrete or Steel Structure

Production Capacity

10000 Units/Year

🔍 Product Description

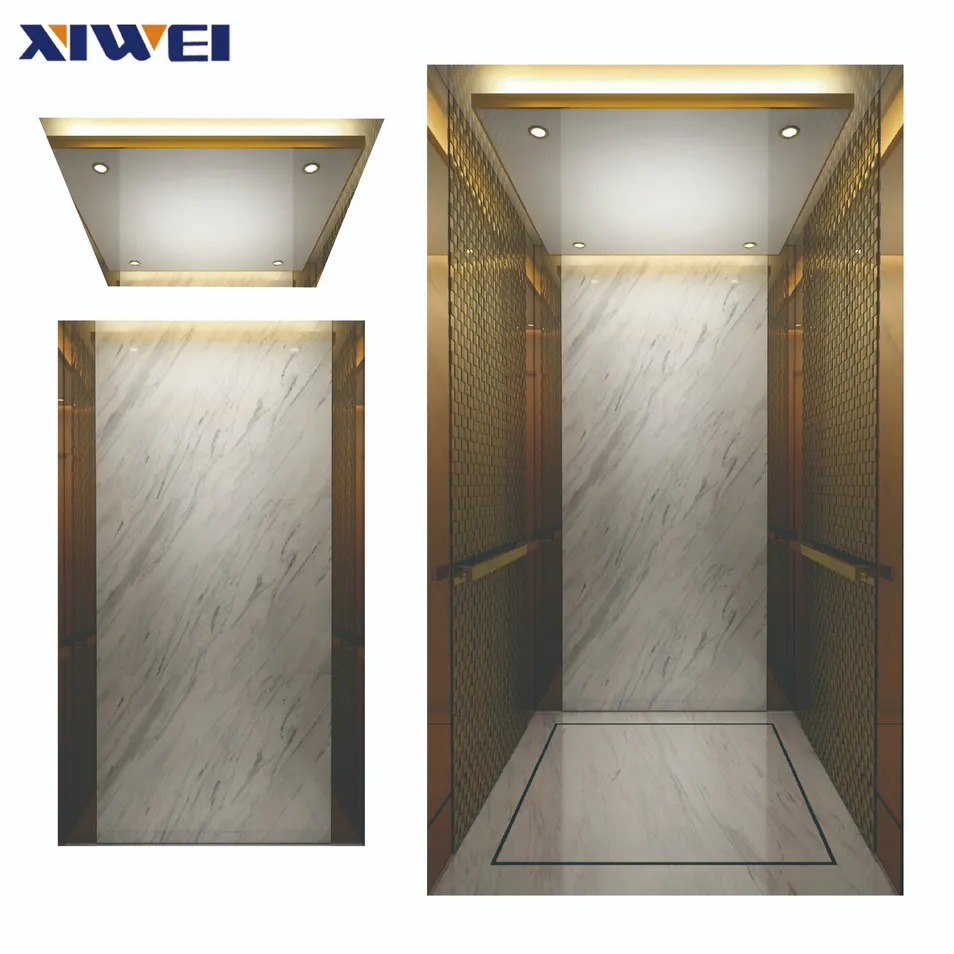

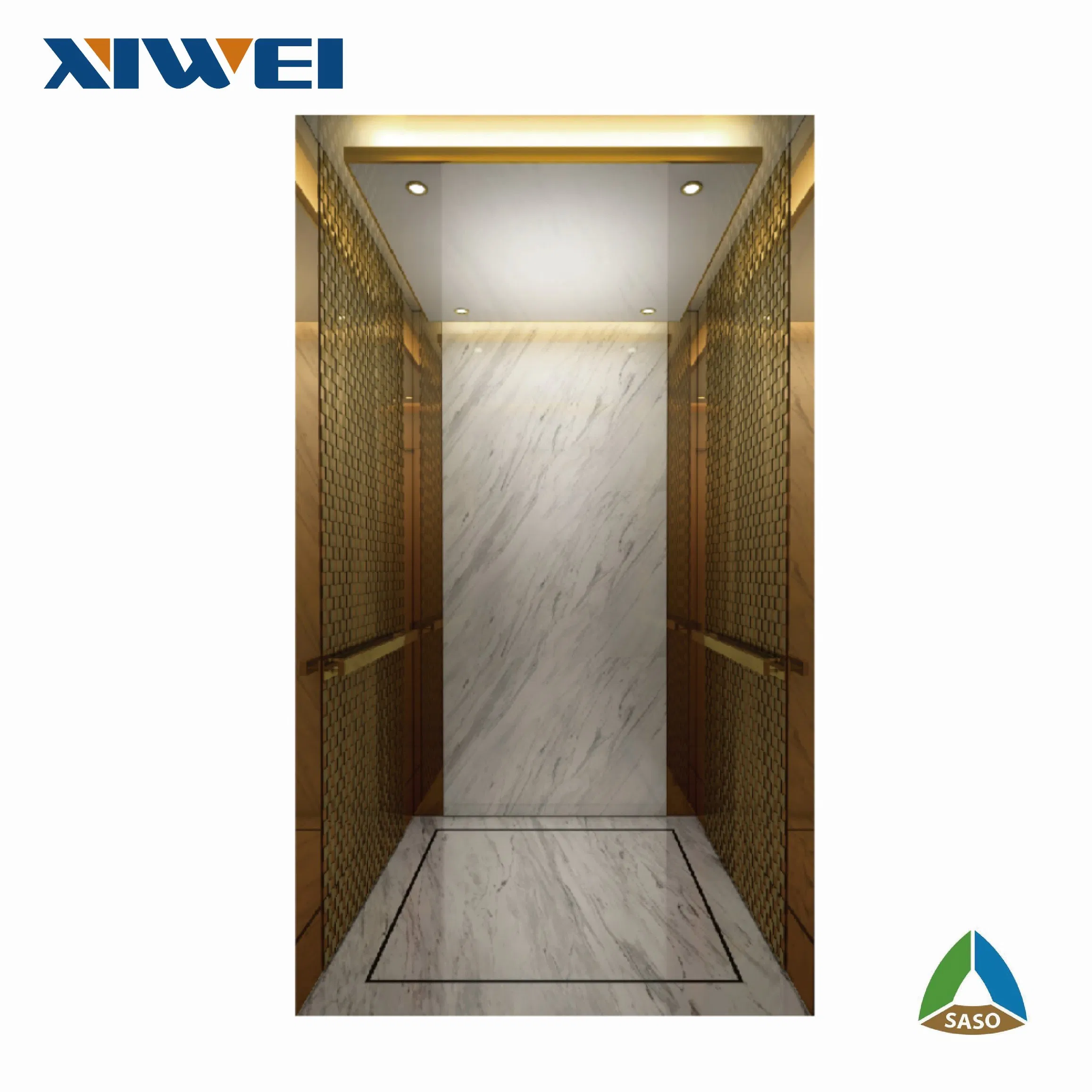

Model: XW-K036

Split ceiling (XW-DD15): Hairline stainless steel + acrylic plate + energy saving light
Car wall: Hairline stainless steel + rear-wall center mirror etched
Front wall: Hairline stainless steel

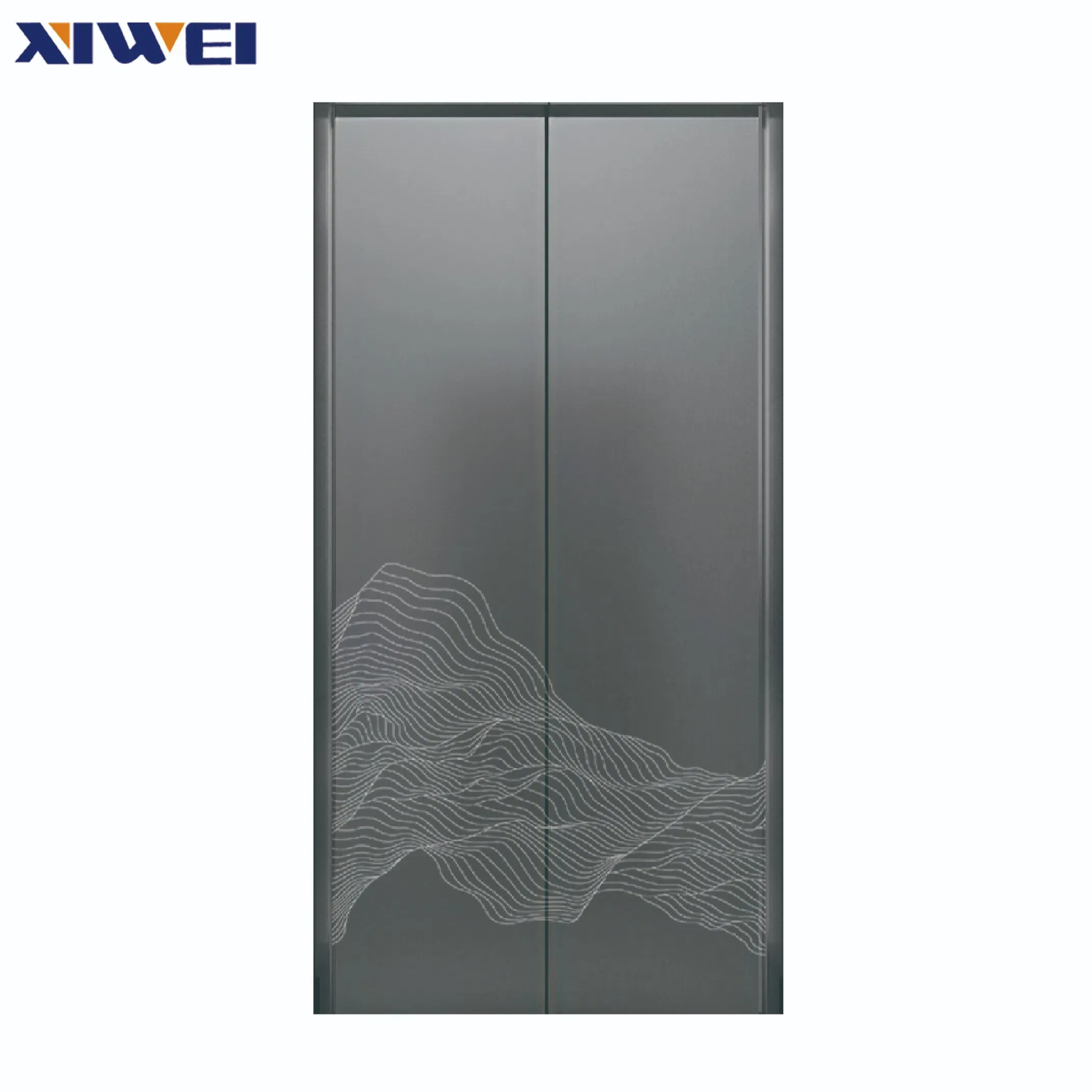

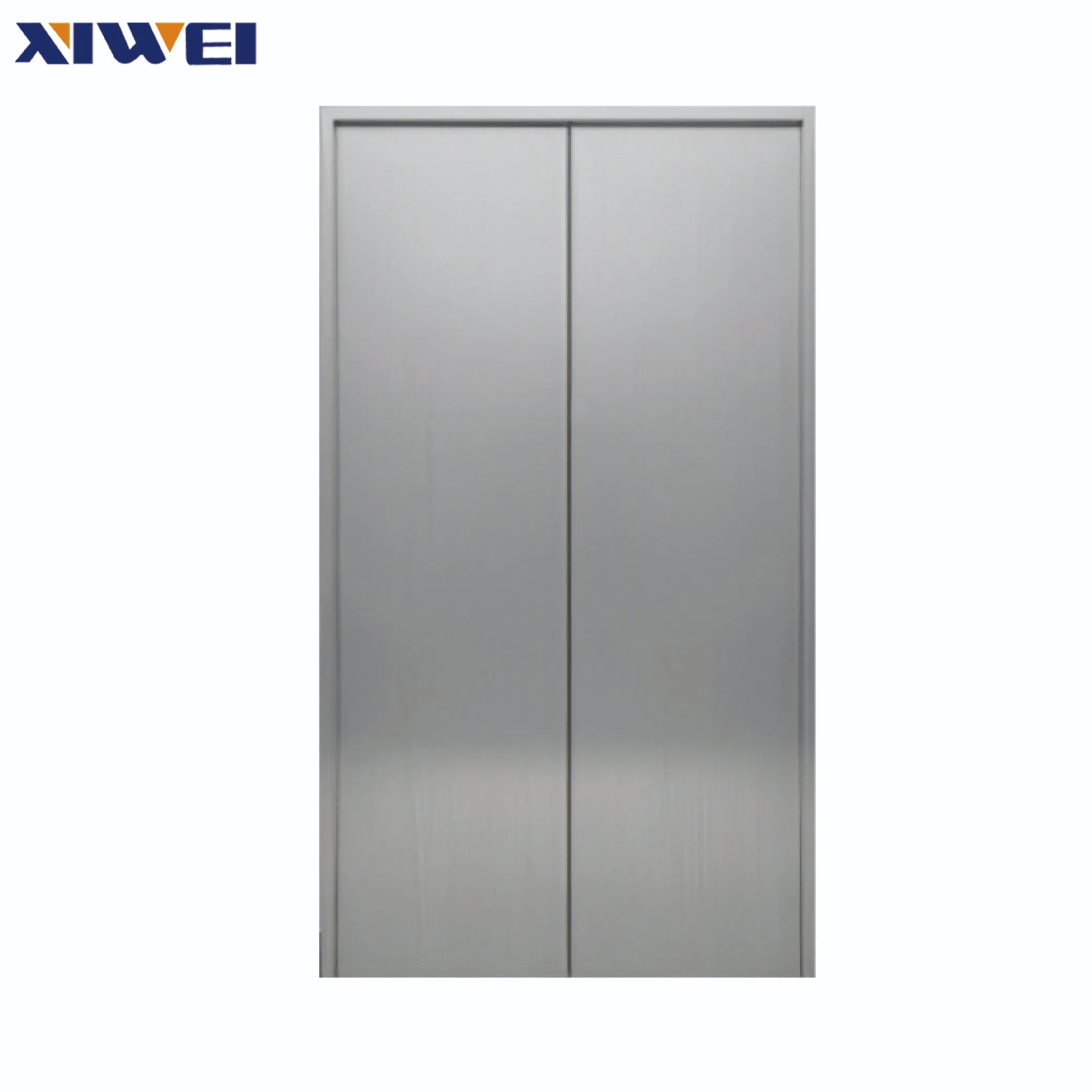

Car door: Hairline stainless steel

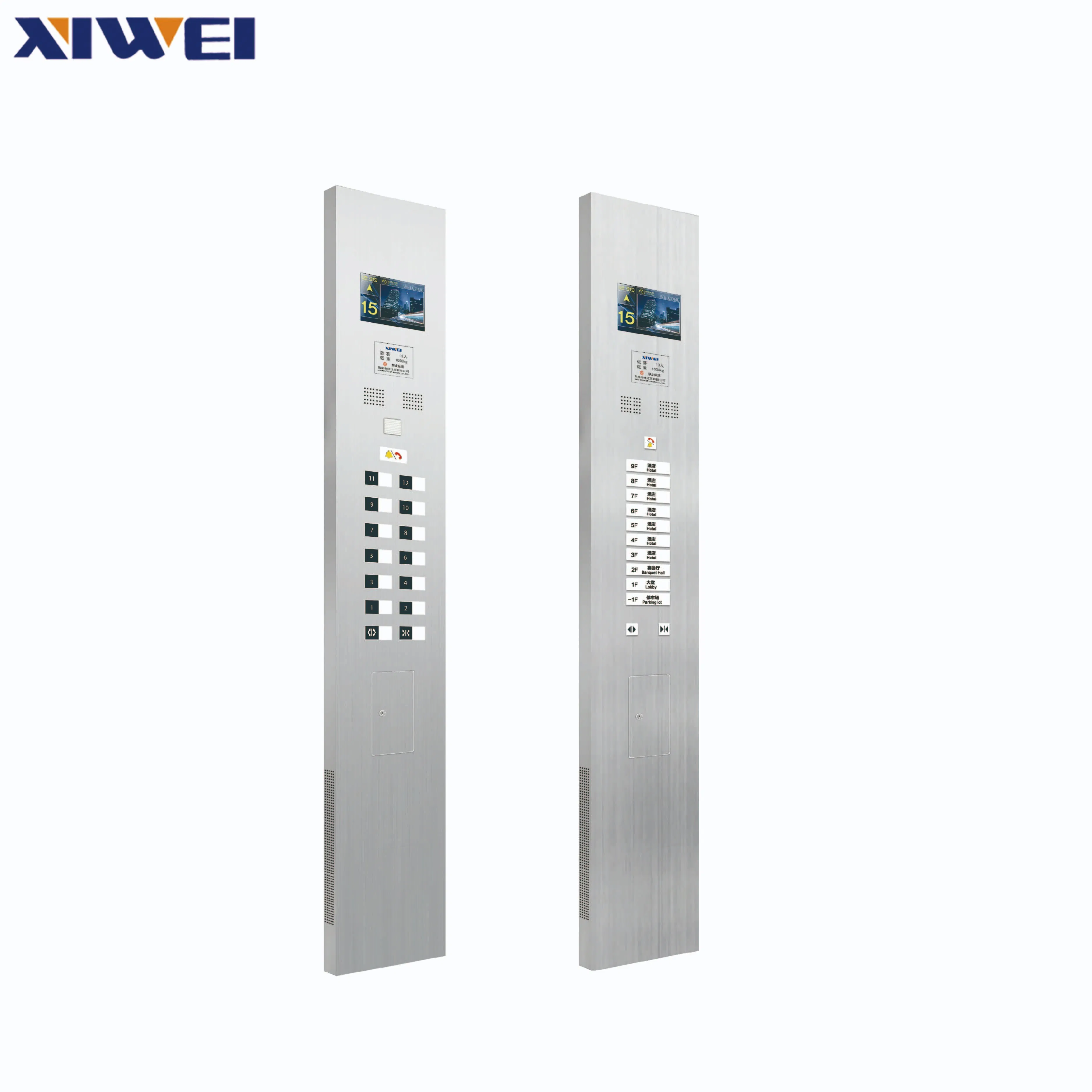

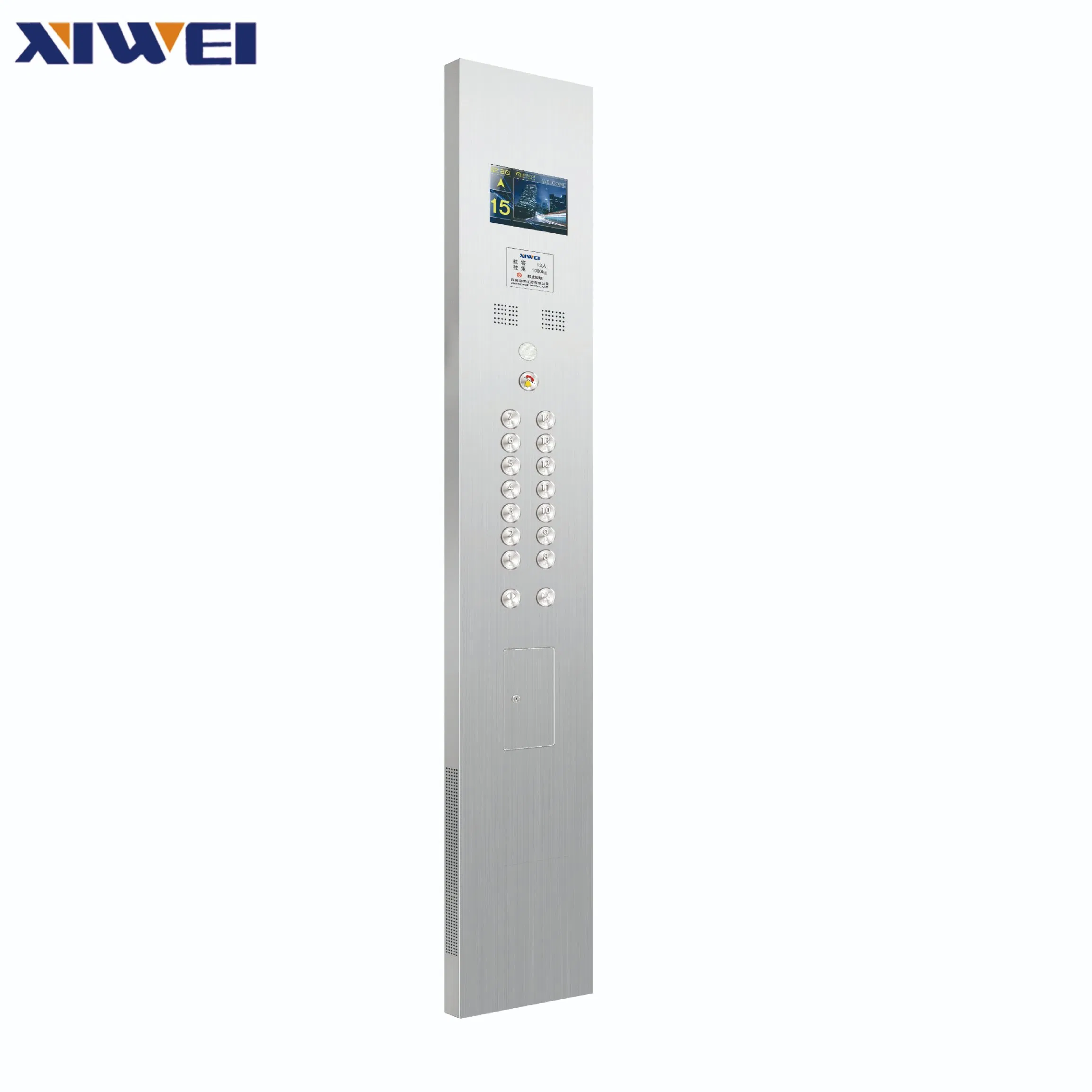

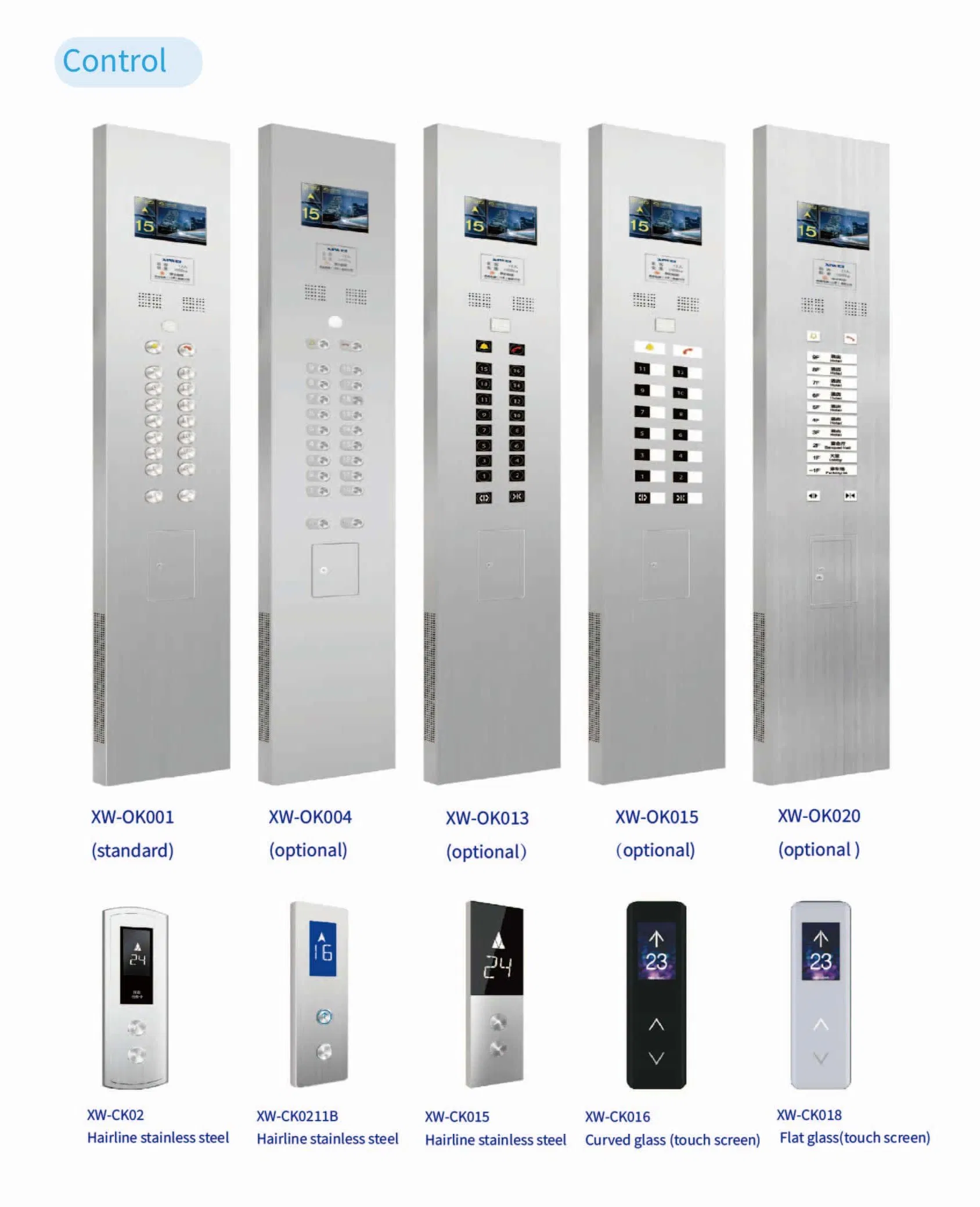

Operation panel: Integrated (XW-0K001), hairline stainless steel
Handrail (XW-F01): Stainless steel round handrail on the rear wall
Floor (XW-DB10): Full body brick or PVC

Applications: Combined with modern technology and fashion art, this passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., providing a safe and comfortable riding experience.

📏 Specification Details

Rated Load (kg)	Speed (m/s)	Net Car Size (CWxCD)	Net Door Size (DWxPH)	Hoistway Size (HWxHD)
450	1.0 - 1.75	1100 x 1150	700 x 2100	1850 x 1600
630	1.0 - 1.75	1200 x 1300	800 x 2100	2000 x 1750
800	1.0 - 2.5	1400 x 1400	800 x 2100	2100 x 1800
1000	1.0 - 2.5	1600 x 1500	900 x 2100	2300 x 1900
1150	1.0 - 2.5	1700 x 1500	1000 x 2100	2450 x 1900

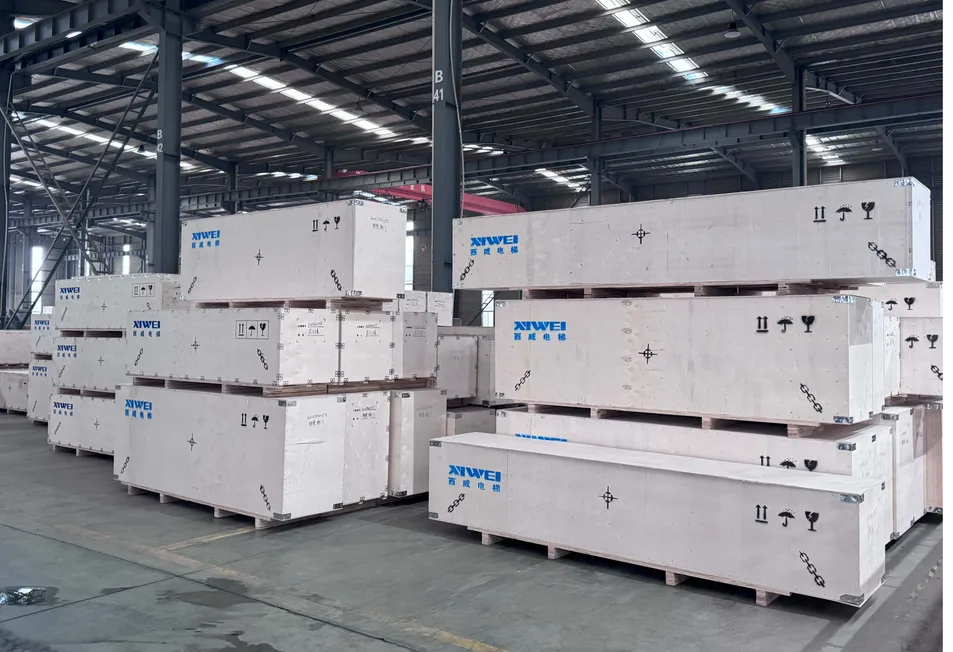

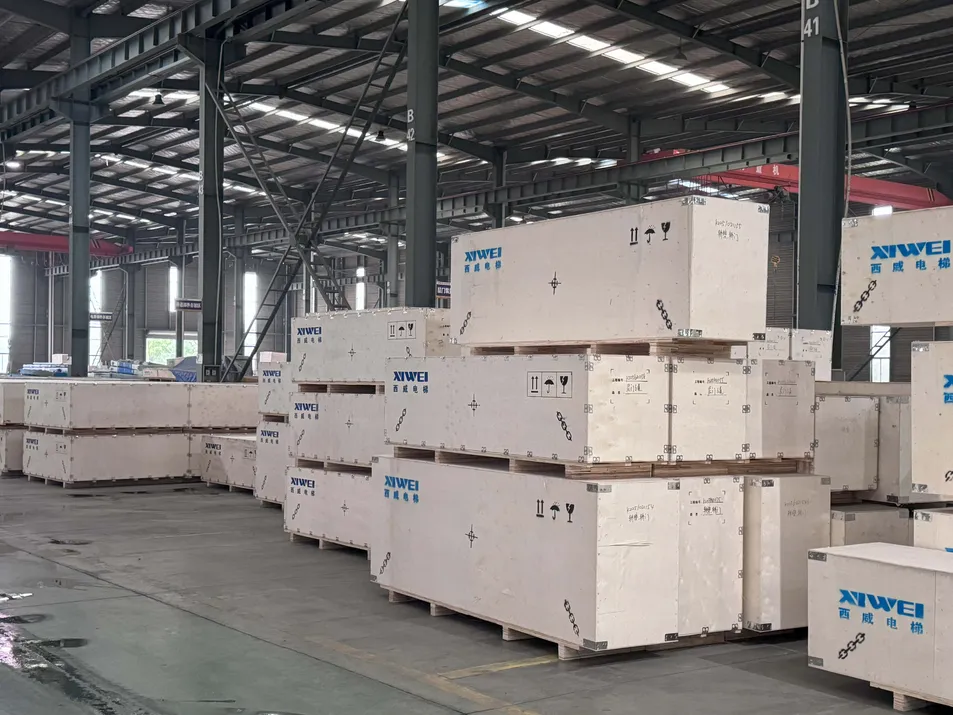

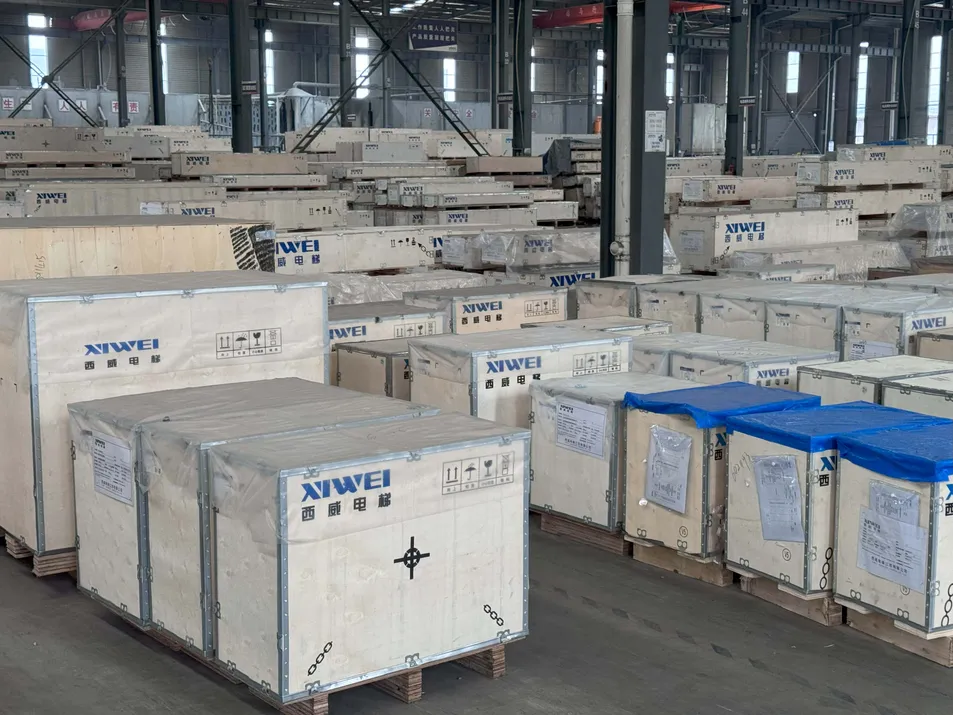

📦 Packing & Delivery

Package Size

140.00cm * 89.00cm * 61.00cm

Gross Weight

50.000kg

📜 Certifications

🛠️ After Sales Service

Warranty Period: The overall warranty period is 1 year. The warranty period for core components (traction machines, control cabinets, safety gears, and speed governors) is extended to 5 years.

The warranty covers equipment failures caused by manufacturing defects and installation issues. During the warranty period, all costs for maintenance and component replacement will be borne by us.

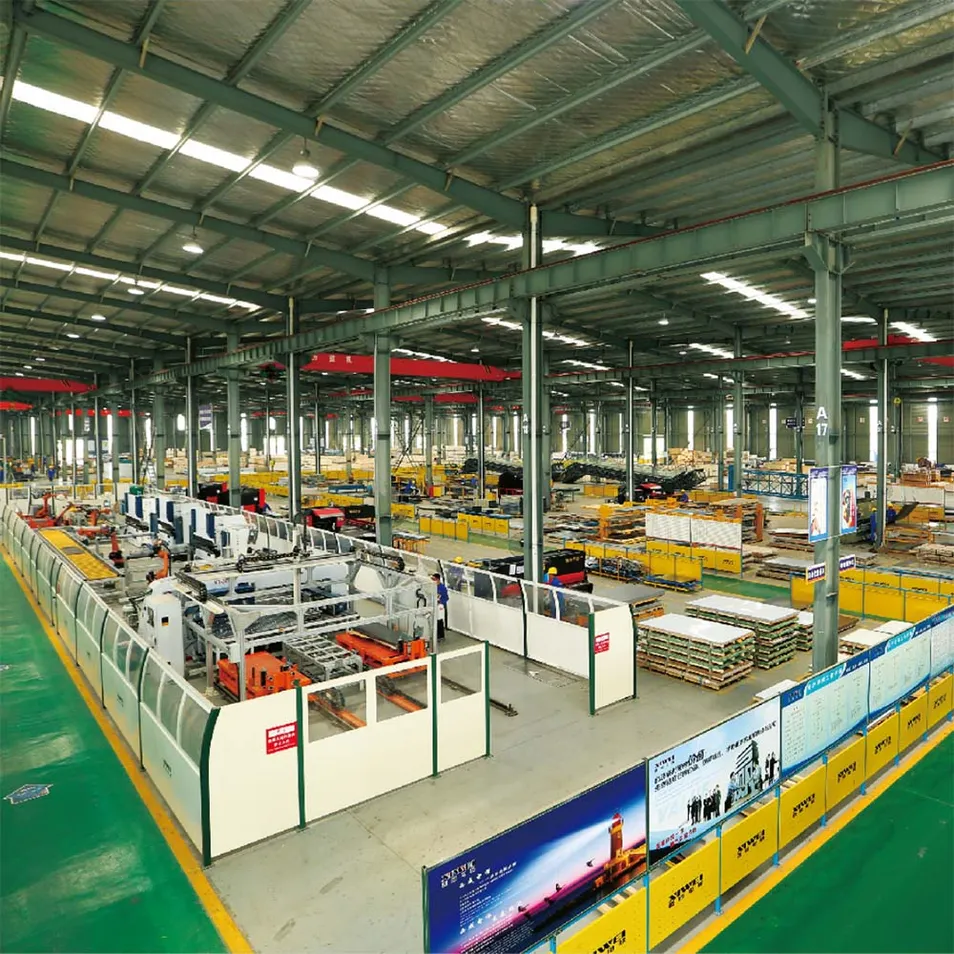

🏭 Factory Workshop & Systems

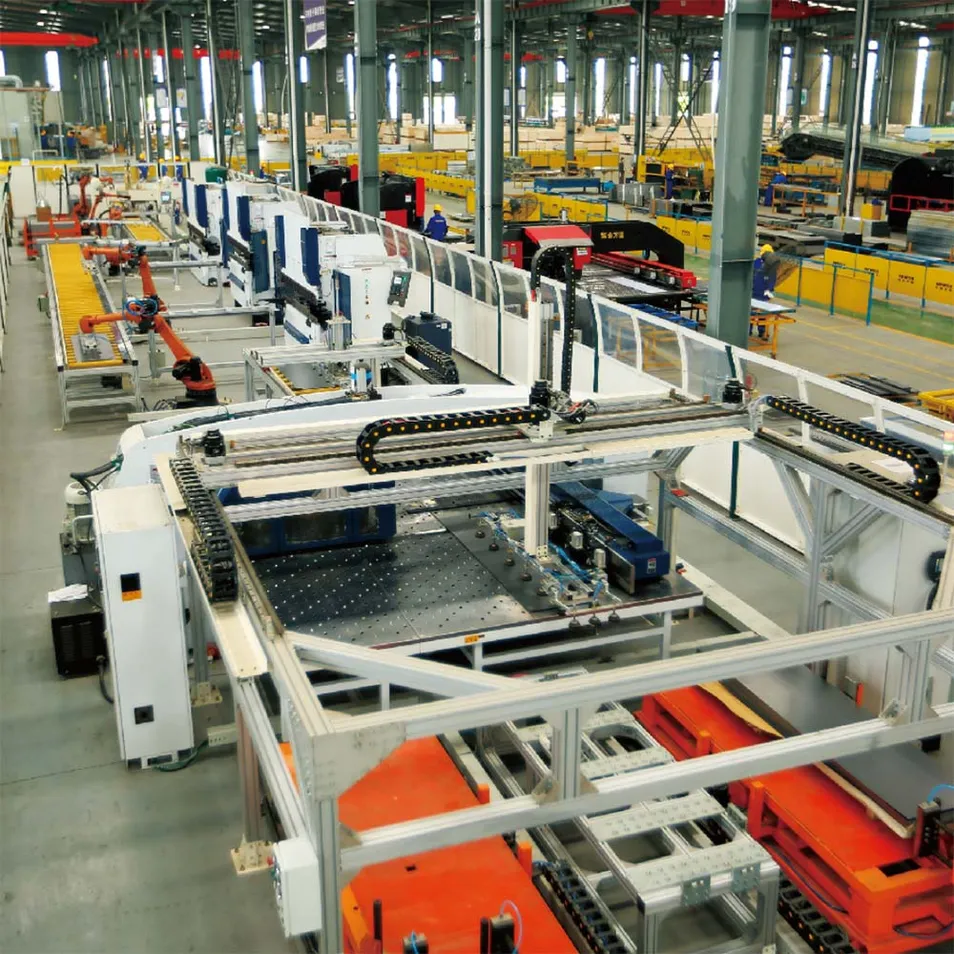

The facility covers an area of 120,000 m² with advanced production workshops and an 87m high test tower. Annual productive capacity reaches 80,000 sets. We introduce intelligent devices such as automatic feed warehouses and robot automatic flow-lines.

❓ Frequently Asked Questions

Q: Are the elevator wire ropes durable? A: Yes. The tensile strength of the wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire ropes, so they won't break at the same time.

Q: Is it dangerous if a power failure occurs suddenly during operation? A: If a power failure occurs, the elevator will automatically stop due to the electrical and mechanical safety devices. The brakes will be automatically applied.

Q: Will passengers be hurt if the door closes suddenly? A: No. If someone touches the hall door, it will automatically restart. The anti-clamping switch ensures the elevator cannot close if something is in the way.

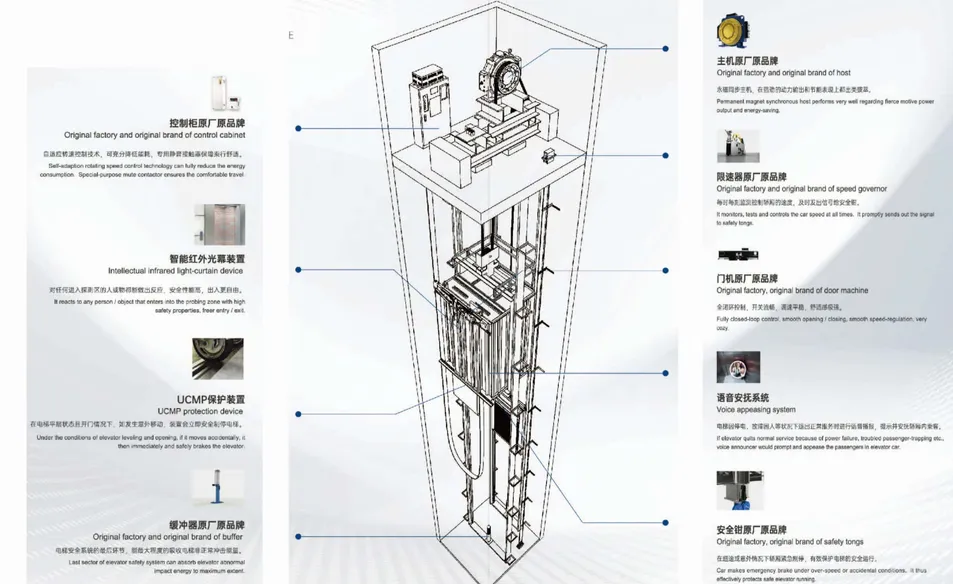

Q: How does the elevator run? A: Elevators are operated with a counterweight wire rope through a traction drive, moving up and down on the guide rail.

Q: Is escalator installation complicated? A: We design escalators with an integrated structure. This makes the equipment more precise and efficient, allowing for easier and more convenient commissioning.

Q: What certifications do your products have? A: Our products carry ISO9001, CCC, and CE Certificates, ensuring international quality and safety standards.
