China Popular School Passenger Elevator with CE/Cac Approval

1 / 5

China Popular School Passenger Elevator with CE/Cac Approval

Customization:	Available
After-sales Service:	One-Year Free Warranty
Warranty:	One Year

Send Inquiry

Product Description

📊

Basic Information

Model NO.

Passenger Elevator-XW-K03- (8)

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

2.00 - 3.50m/s

Control Mode

Collective Selective Control

Computer Room

Without Computer Room

Door Type

Center Opening Door

Production

10000 Units / Year

Origin

China

🏢

Product Description

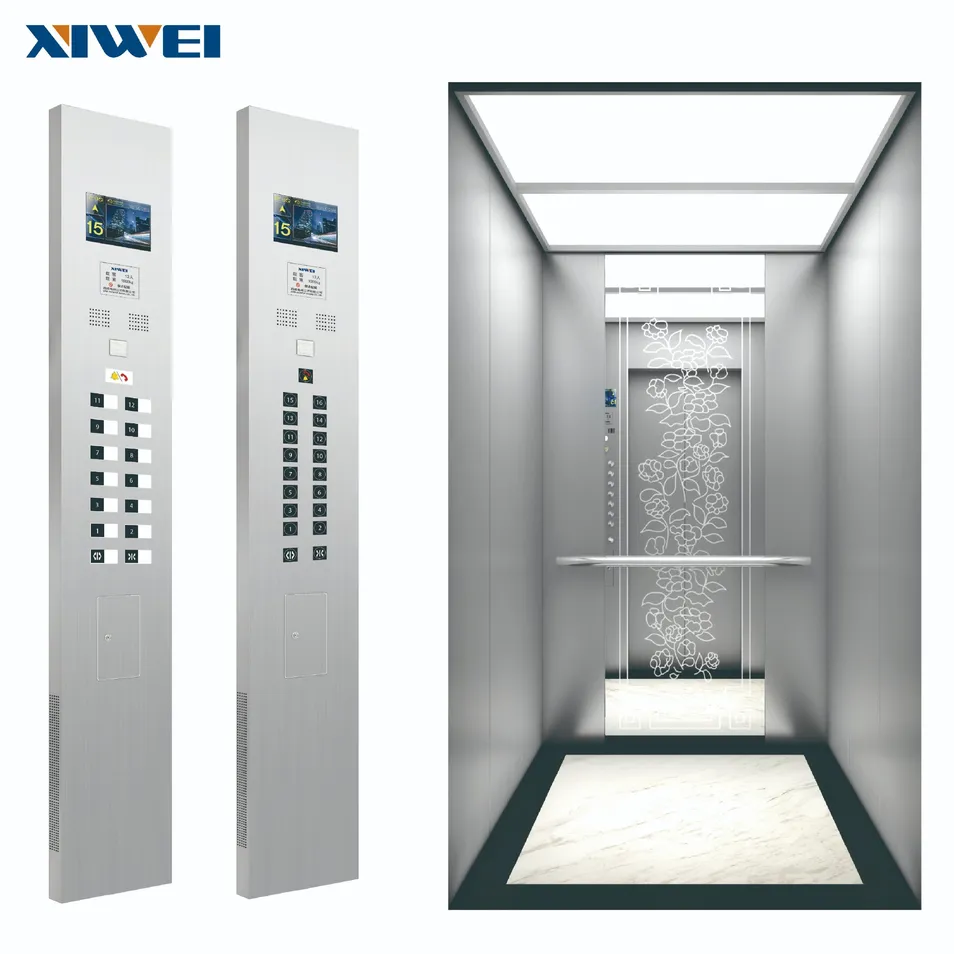

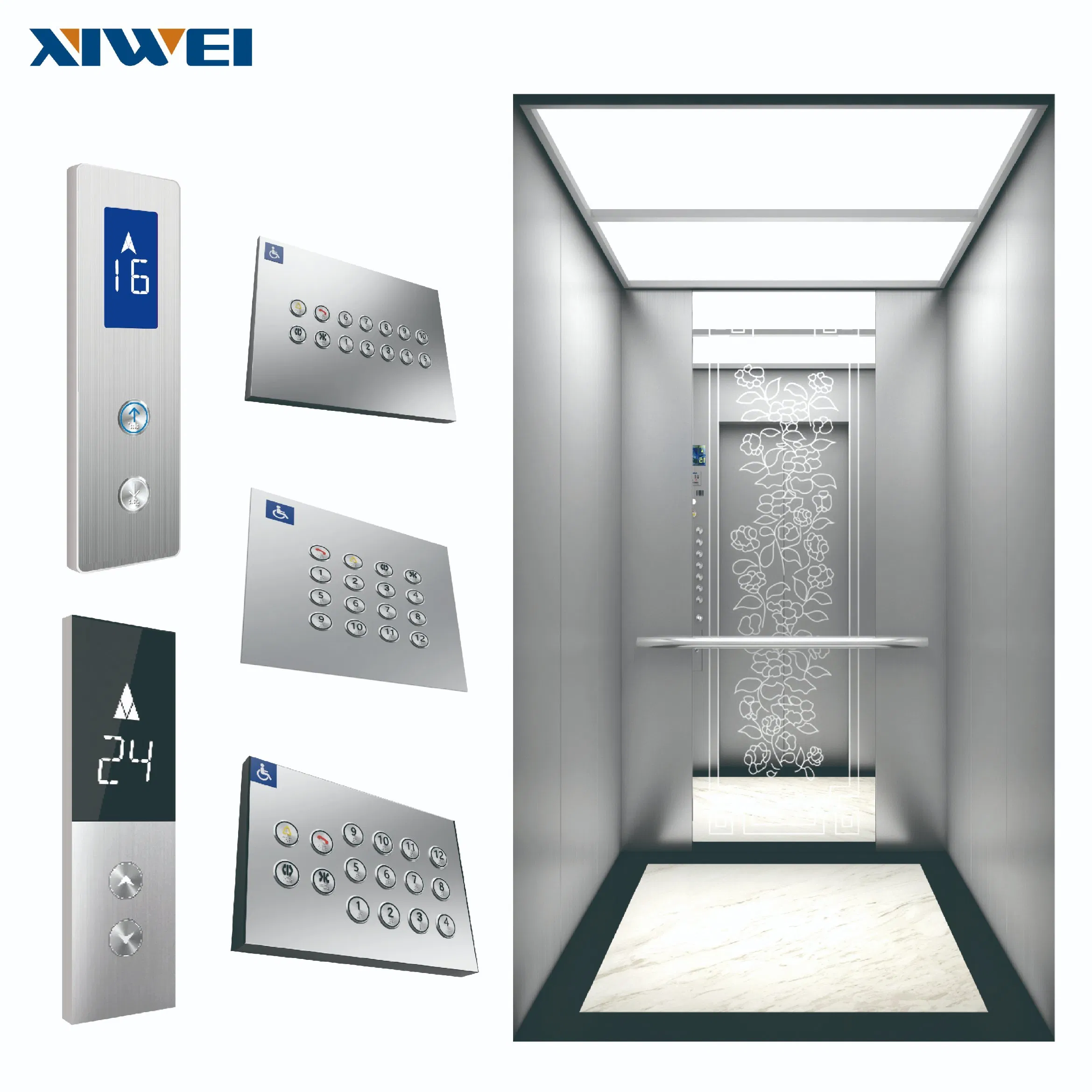

XW-K03 Flowers in profusion

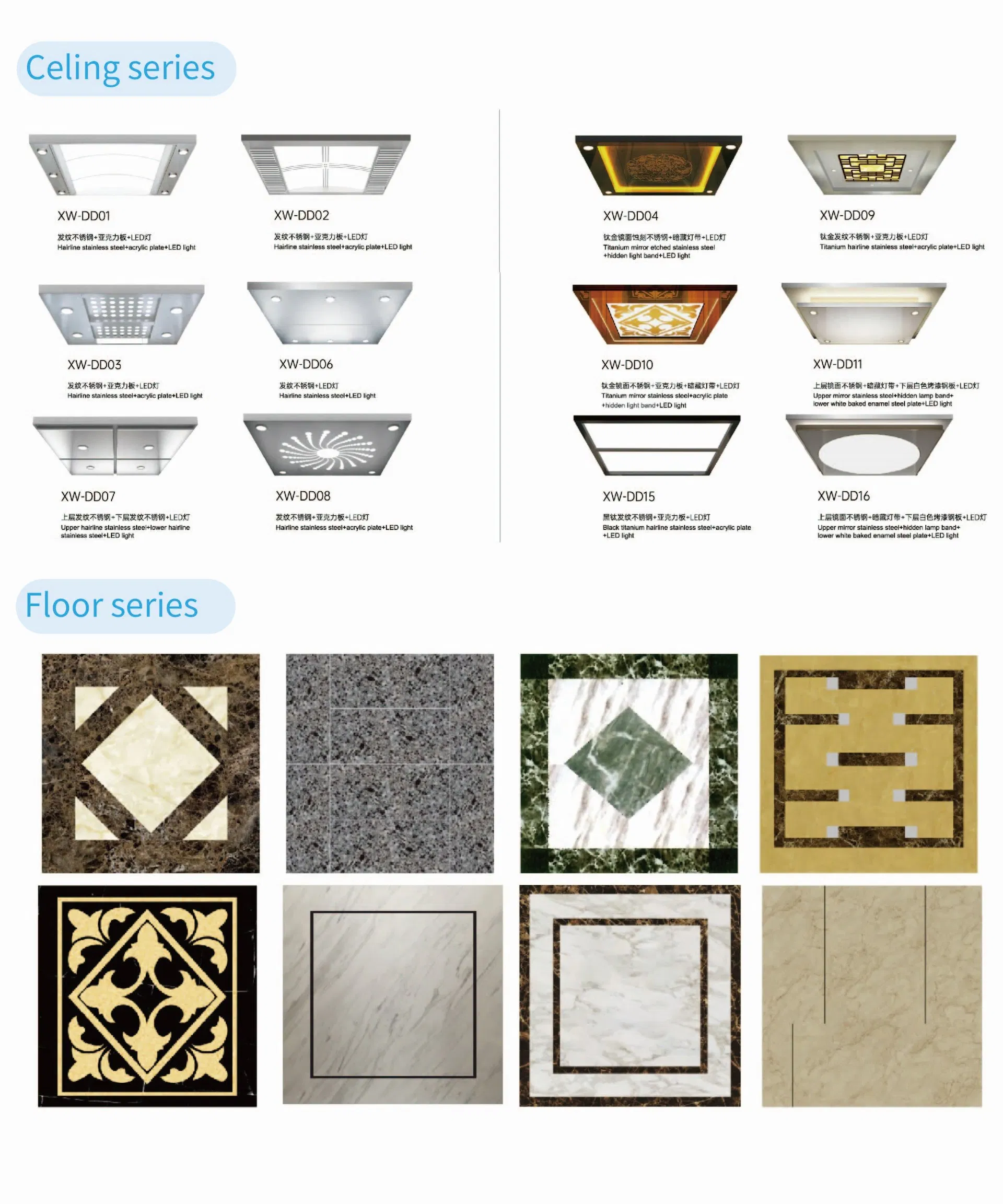

Split ceiling (XW-DD15): Hairline stainless steel + acrylic plate + energy saving light
Car wall: Hairline stainless steel + rear-wall center mirror etched
Front wall: Hairline stainless steel

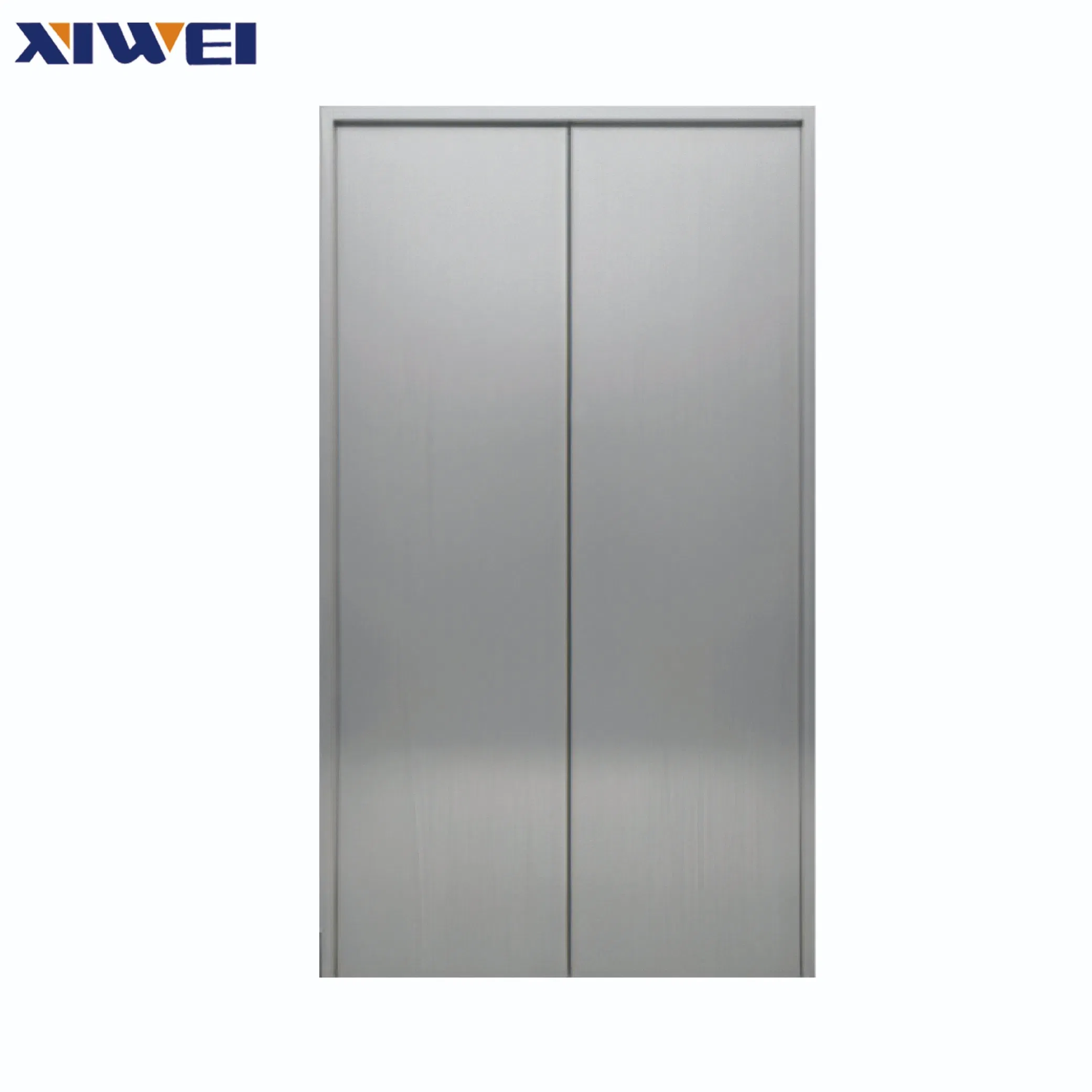

Car door: Hairline stainless steel

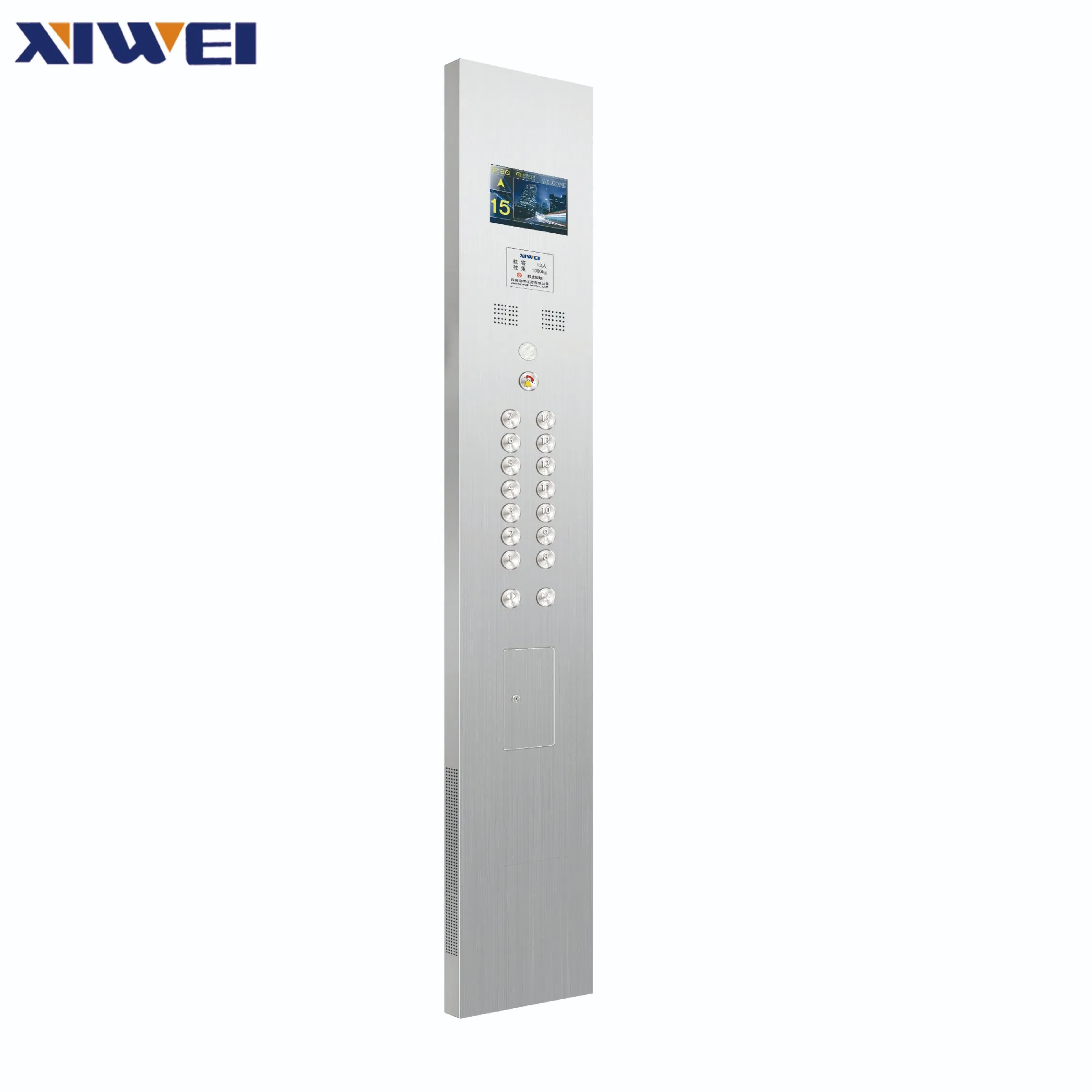

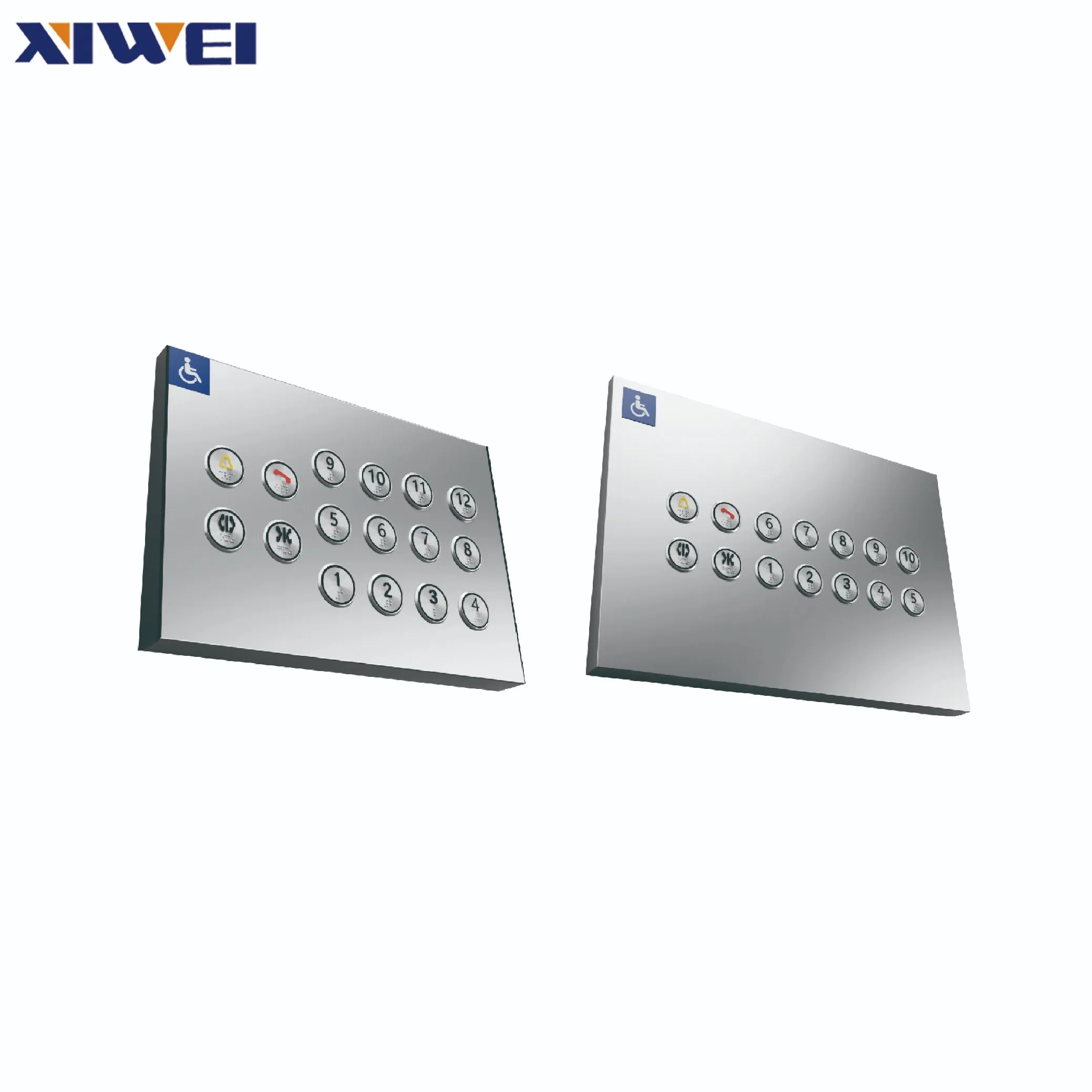

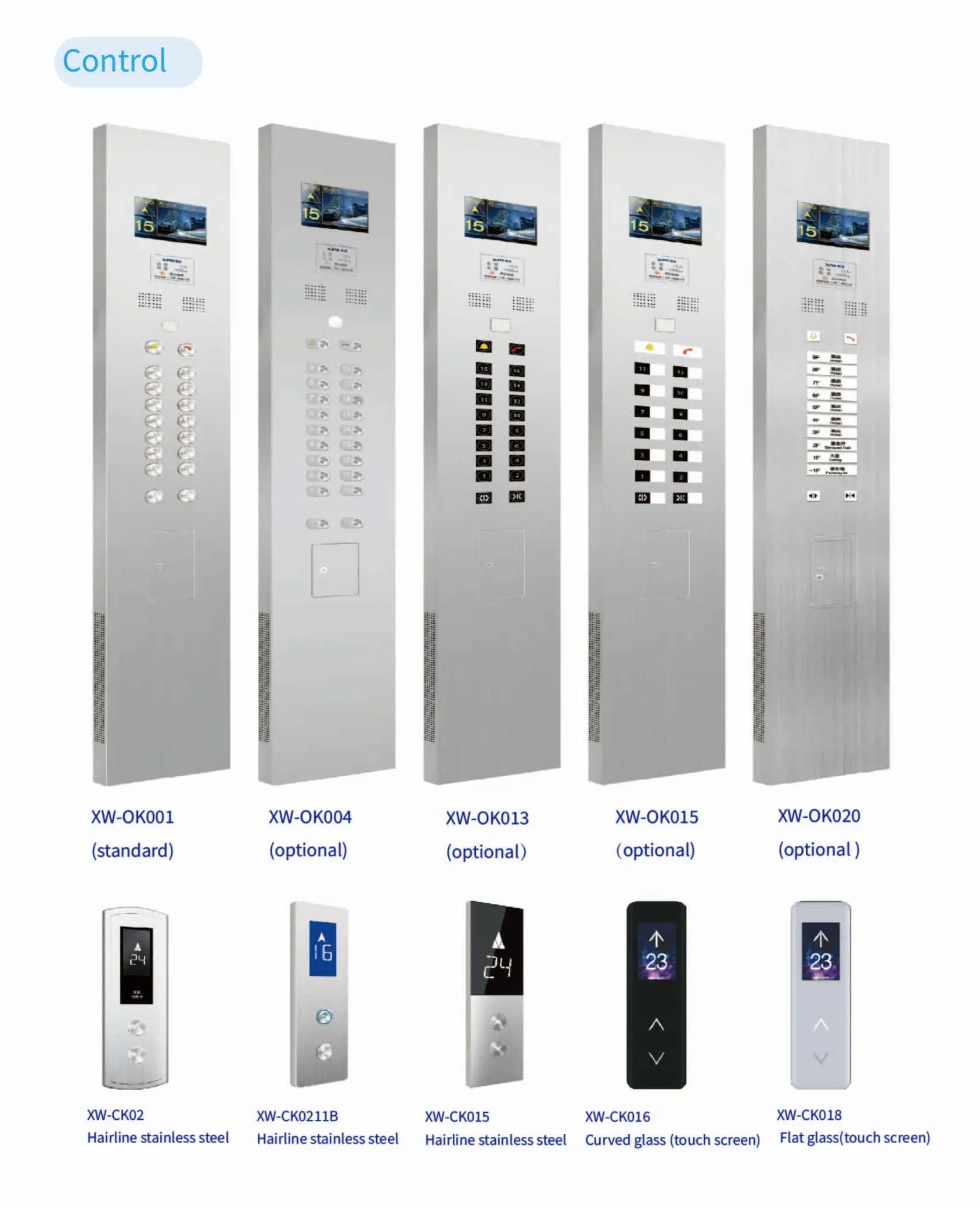

Operation panel: Integrated hairline stainless steel
Handrail: Stainless steel round handrail on the rear wall
Floor: Full body brick or PVC

Applications: Combined with modern technology and fashion art, our passenger lift satisfies all needs of hotel, office building, shopping mall, etc., and provides a safe and comfortable riding experience.

📋

Technical Specification

Rated Load (kg)	Rated Speed (m/s)	Car Size (CWxCD)	Door Size (DWxPH)	Hoistway Size (HWxHD)	Pit Depth (PD)	Overhead (OH)
450	1.0 - 1.75	1100 x 1150	700 x 2100	1850 x 1600	1500 - 1700	4700 - 4900
630	1.0 - 1.75	1200 x 1300	800 x 2100	2000 x 1750	1500 - 1700	4700 - 4900
800	1.0 - 2.5	1400 x 1400	800 x 2100	2100 x 1800	1500 - 2100	4700 - 5300
1000	1.0 - 2.5	1600 x 1500	900 x 2100	2300 x 1900	1500 - 2100	4700 - 5300

📦

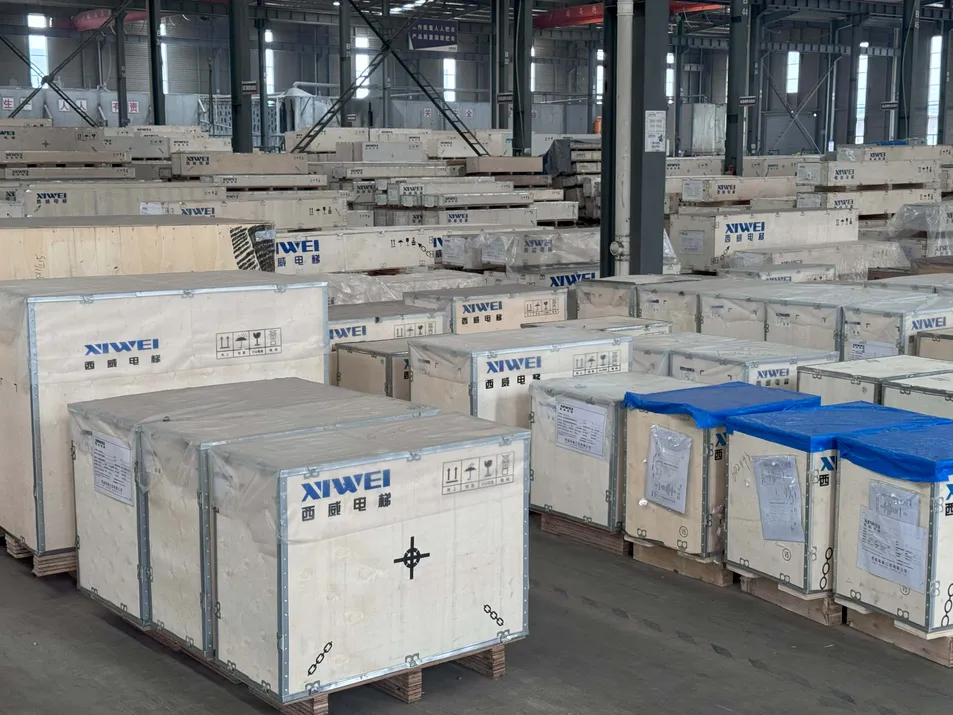

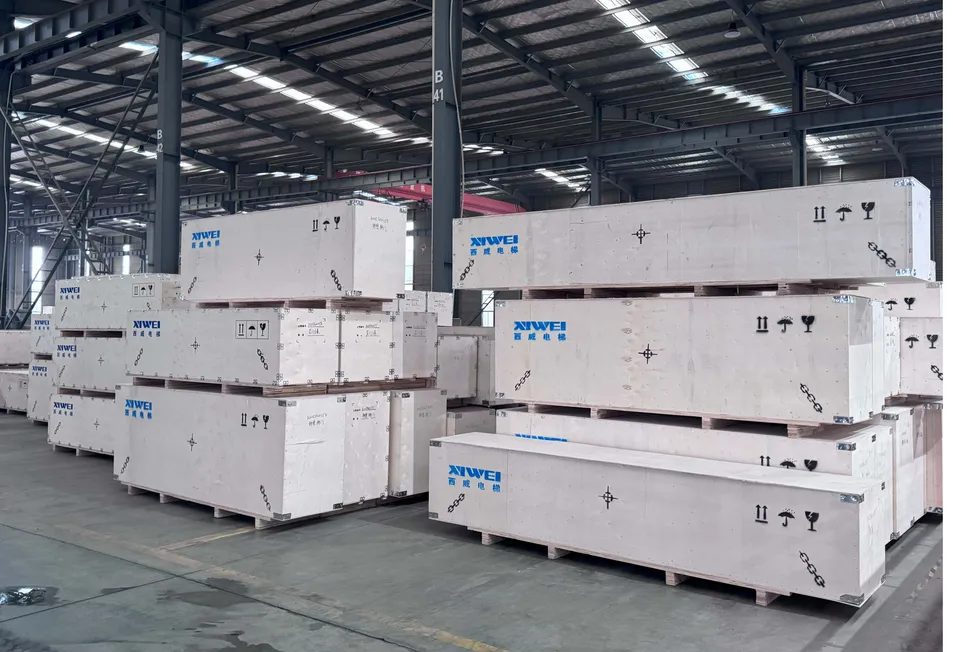

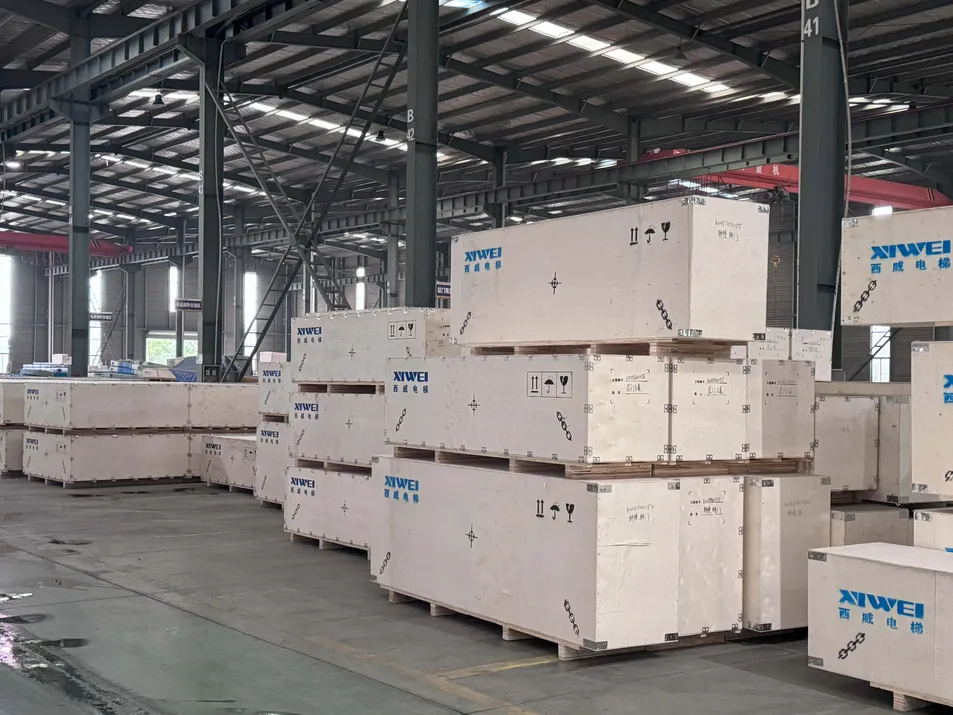

Packing & Delivery

Estimated Shipping Time:

DHL: 3-5 working days
UPS/TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea Freight: Depends on destination country

📜

Certifications

🛠️

After Sales Service

Warranty Period:

1 Year overall warranty for exported elevators.
5 Years extended warranty for core components: Traction machines, control cabinets, safety gears, and speed governors.
Covers manufacturing defects and installation issues.
Full maintenance and component replacement costs covered during warranty.

🏭

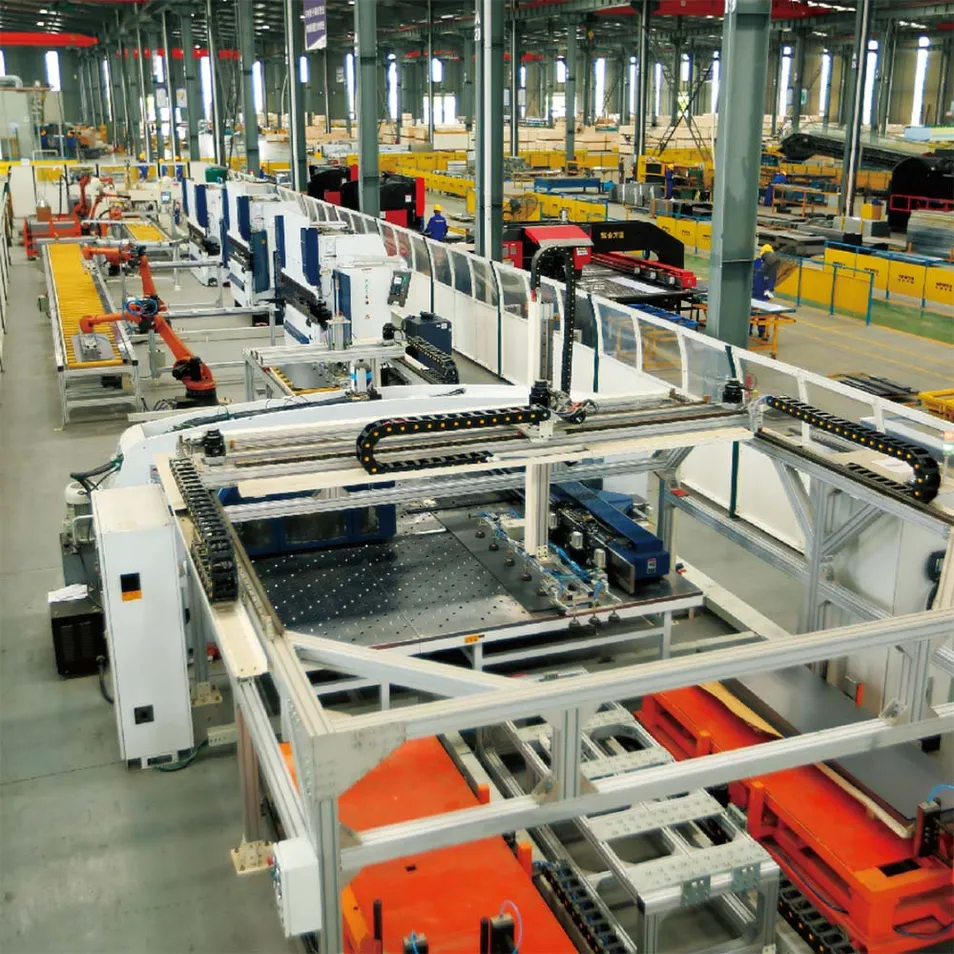

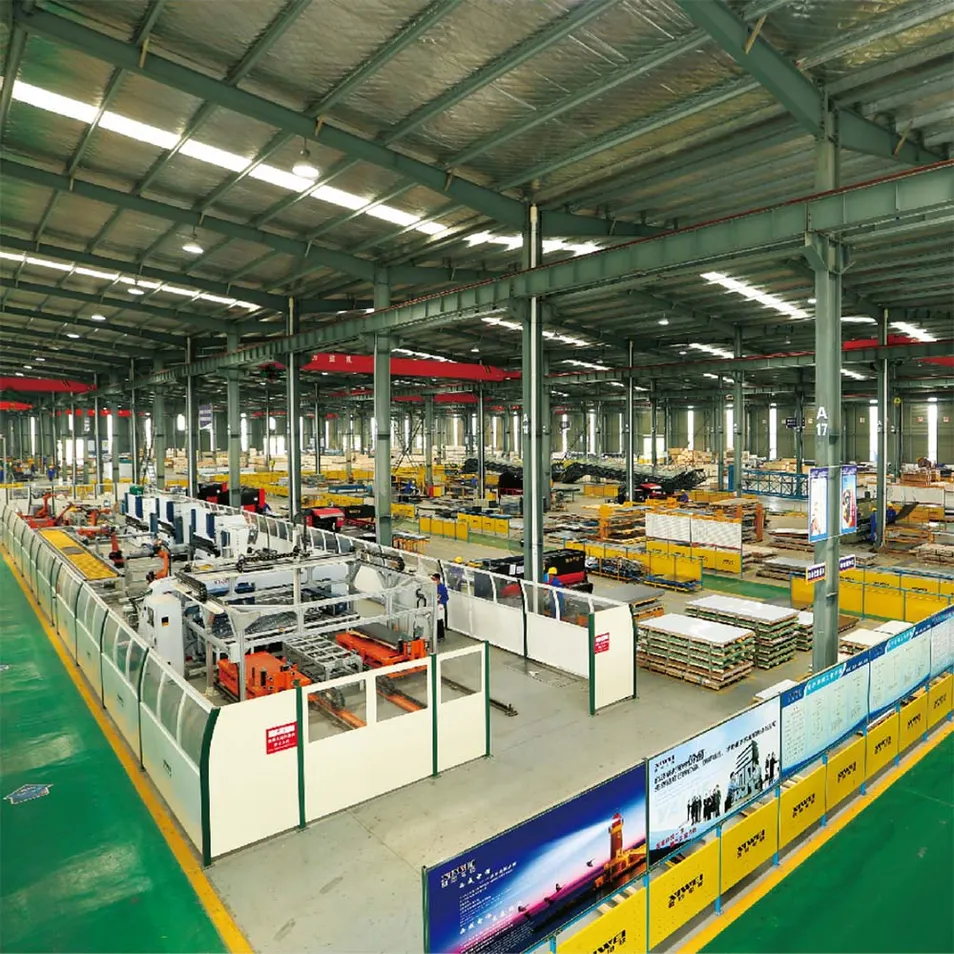

Factory Workshop

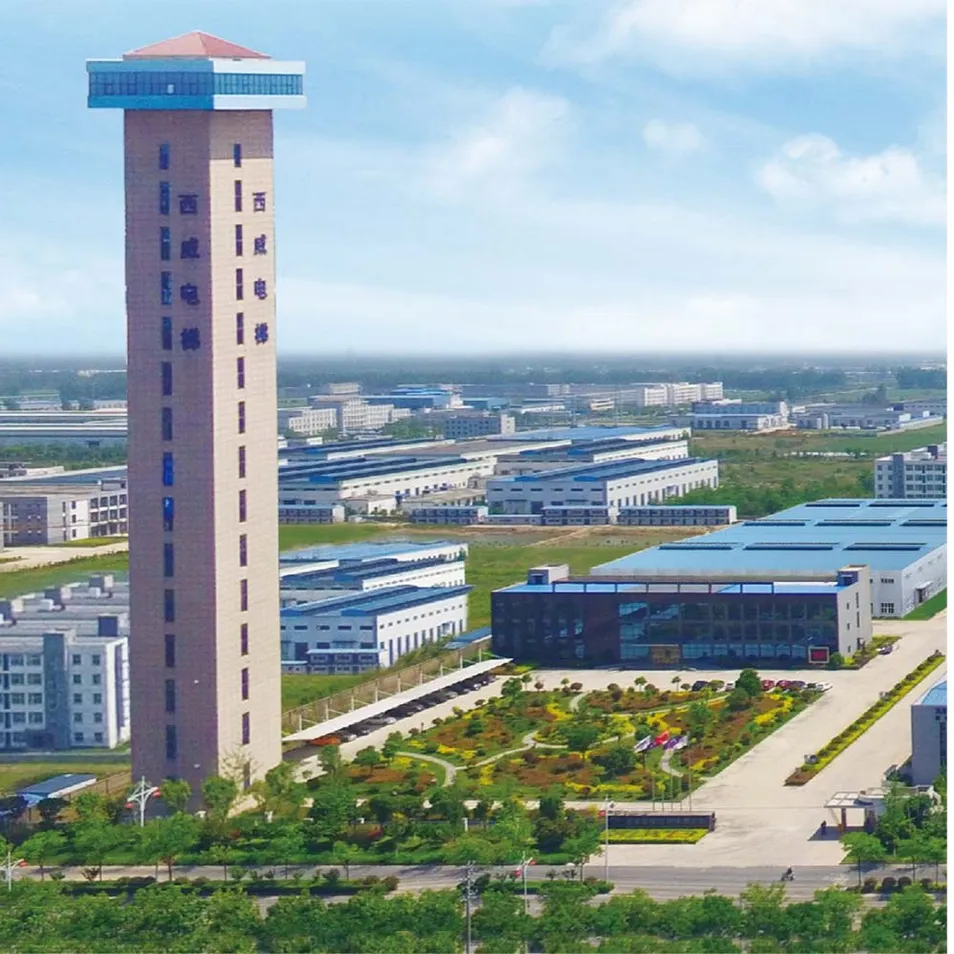

Our manufacturing facility adopts advanced Industry 4.0 ideas, introducing intellectual devices such as automatic feed warehouses, automatic painted flow-lines, and robot production lines. We ensure safe, advanced product design with low trouble rates and long service life. The factory covers 120,000 m² with an 87m high test tower and an annual capacity of 80,000 sets.

❓

Frequently Asked Questions

Q: Are the elevator wire ropes durable?

A: Yes. The tensile strength of the wire rope is greater than the weight of the lift. With a safety factor of more than four wire ropes, they will not break at the same time.

Q: Is it dangerous if a power failure occurs suddenly?

A: No. The elevator will automatically stop due to electrical and mechanical safety devices. Brakes will automatically engage in case of power failure.

Q: Can people be hurt if the door closes suddenly?

A: No. Elevators are equipped with anti-clamping switches. If someone touches the door, it will automatically restart and reopen without danger.

Q: How does the elevator run?

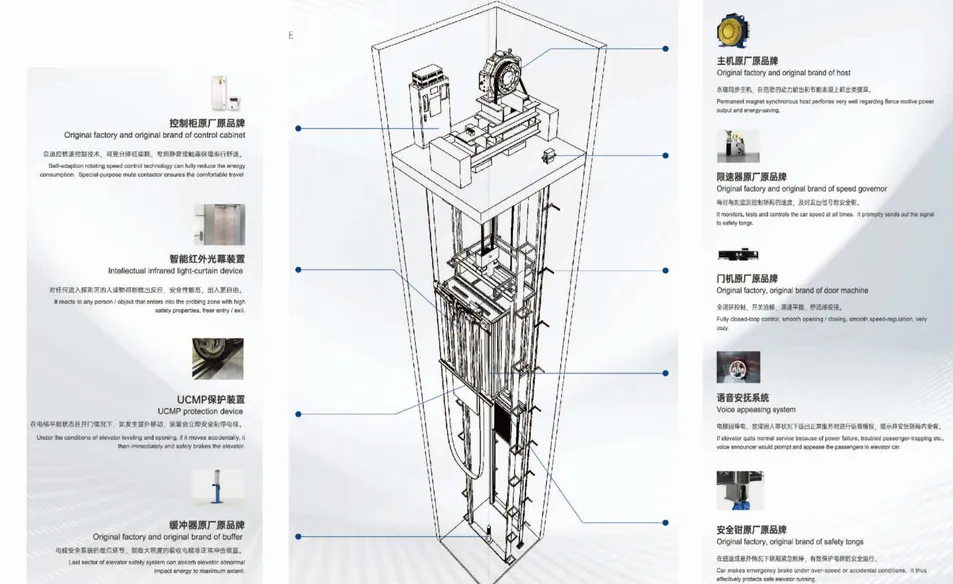

A: Elevators are operated by a counterweight wire rope through a traction drive, moving up and down on a guide rail.

Q: Is the escalator installation complicated?

A: We use an integrated structure for our escalators, making the equipment precise and efficient, which allows for easier and more convenient commissioning.

Q: Do you have any certifications?

A: Yes, we hold ISO9001, CCC, and CE Certificates to ensure global quality standards.
