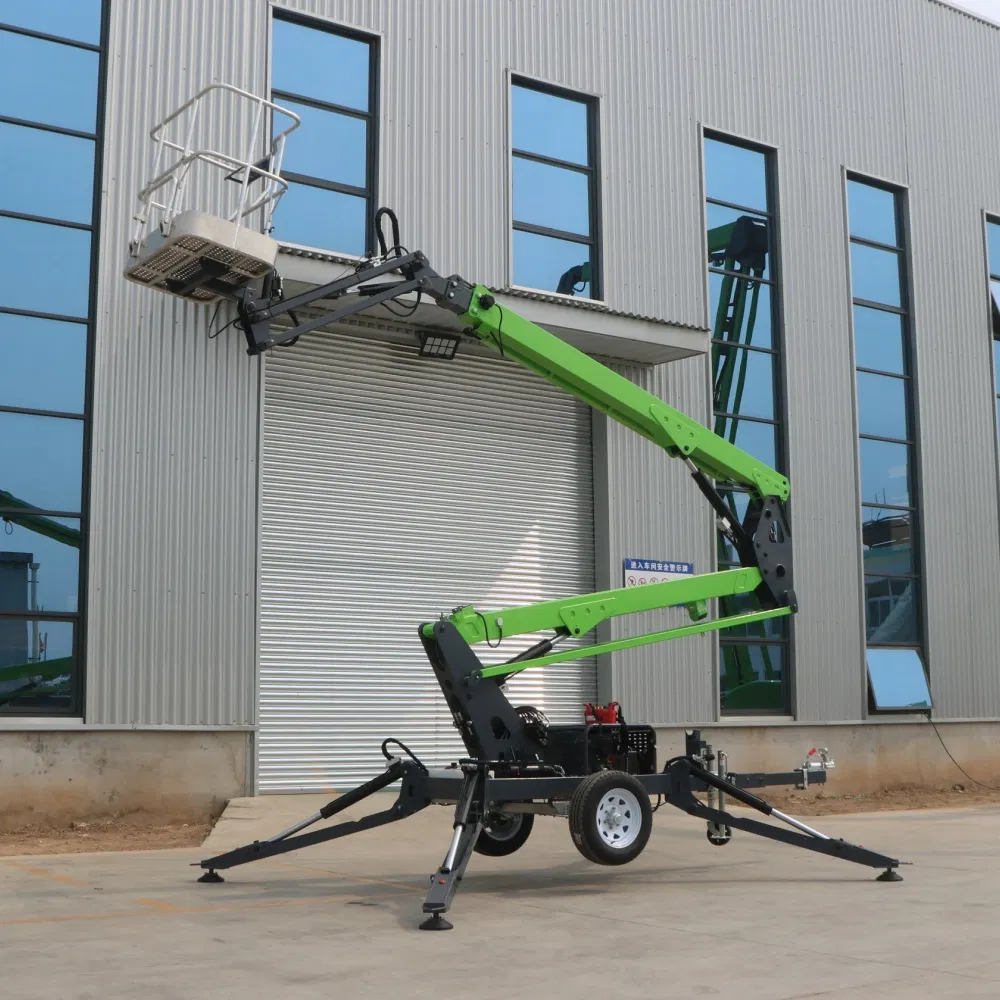

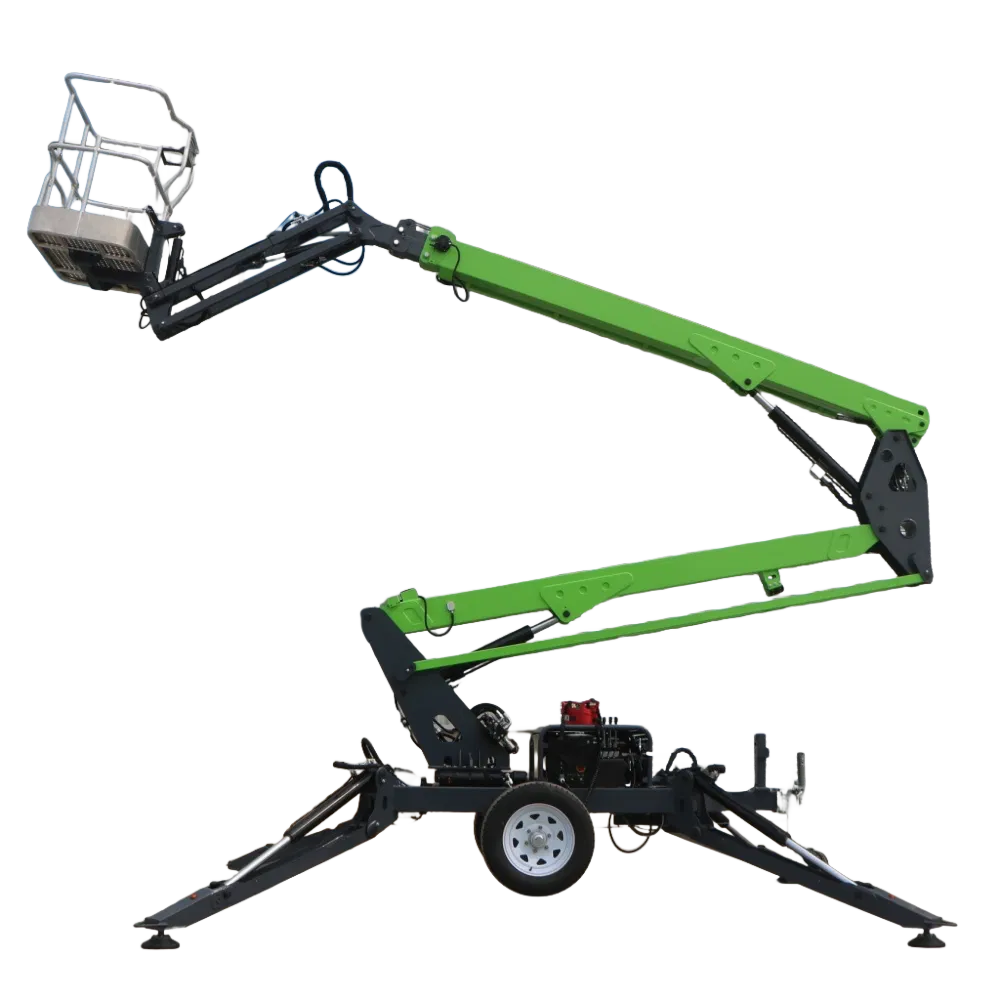

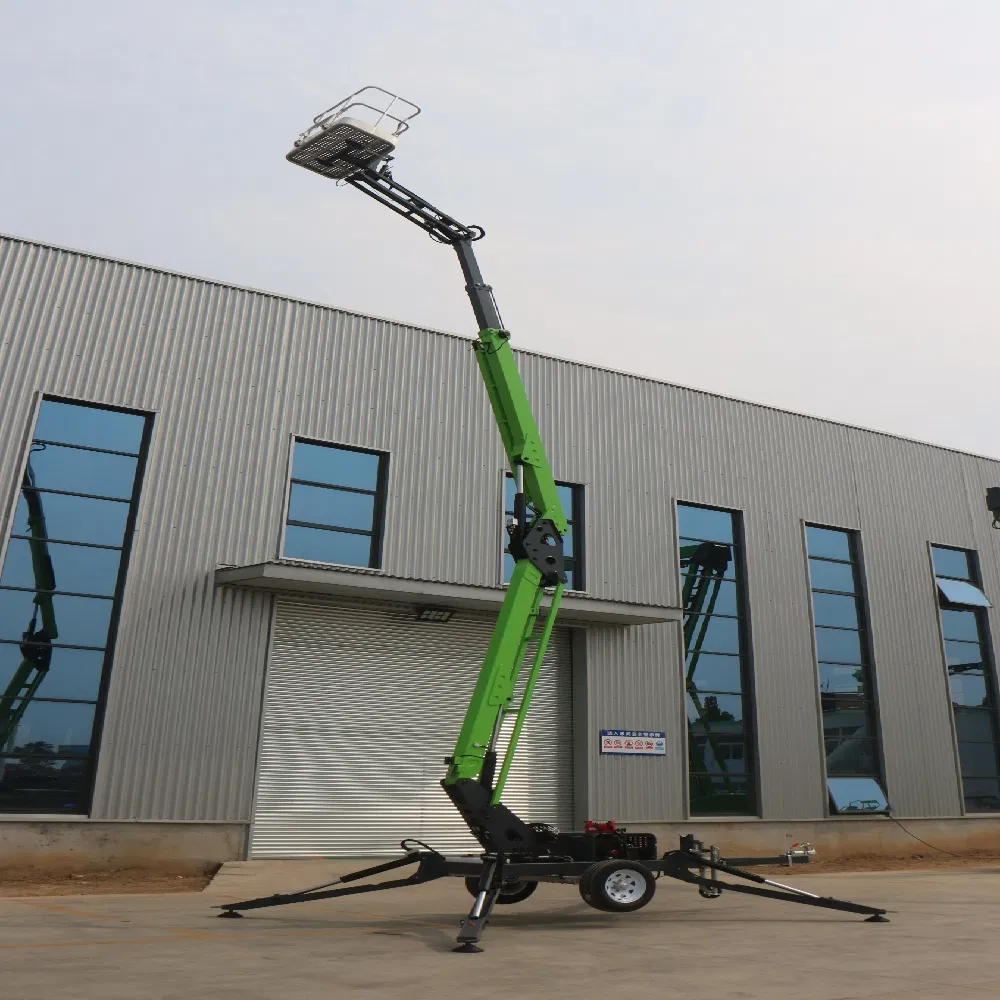

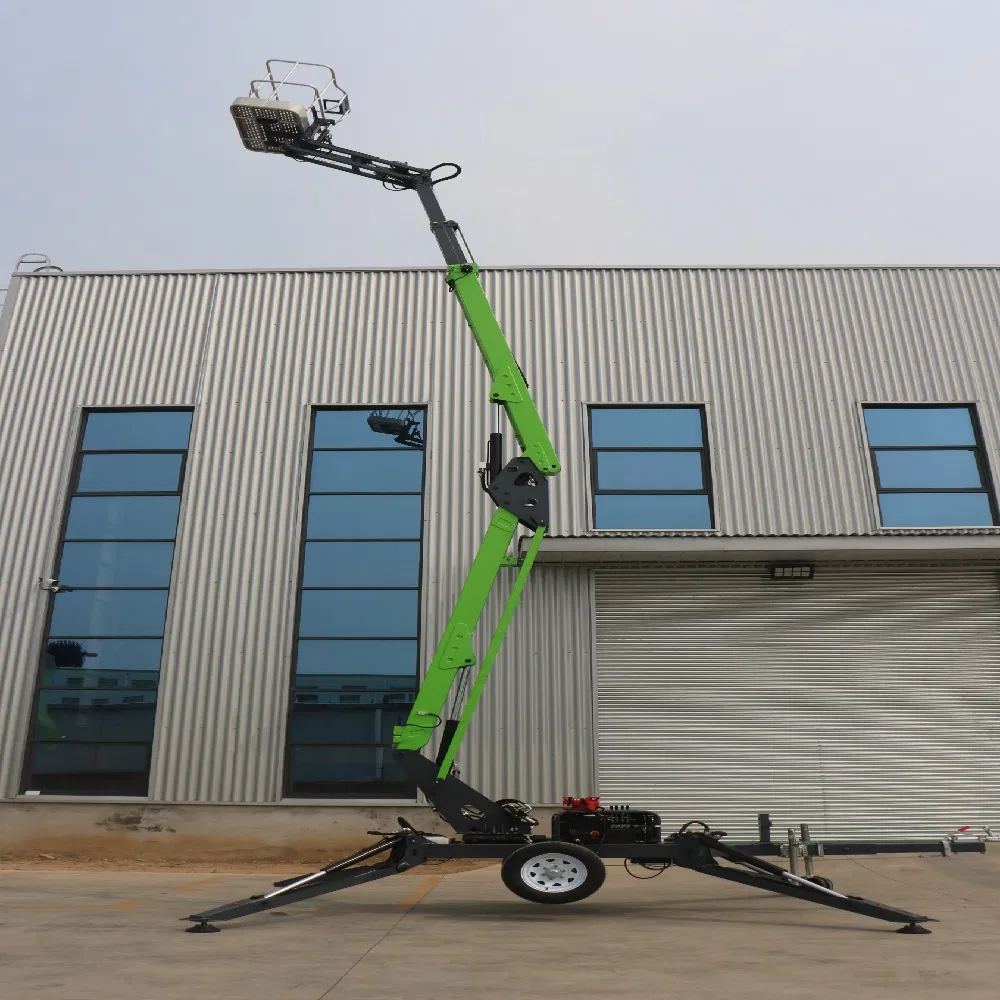

CE & ISO 18m Quick-Deployment Trailer-Mounted 8-18m Telescopic Spider Boom Lift Mewp

1 / 5

CE & ISO 18m Quick-Deployment Trailer-Mounted 8-18m Telescopic Spider Boom Lift Mewp

Customization:	Available
After-sales Service:	Online and 24-Hour Telephone Support
Warranty:	24 Months

Send Inquiry

Product Description

Basic Information

Model NO.

T18

Application

High-Altitude Aerial Work

Lift Mechanism

Telescoping Lift

Carrying Capacity

Middle-Level

Moves

Vehicular

Driven Type

Working Height

15.8m

Working Radius

6.6m

Rated Load

200kg

Battery

24V/192ah

Certification

CE, ISO 9001

Turntable Rotation

355°

Product Description

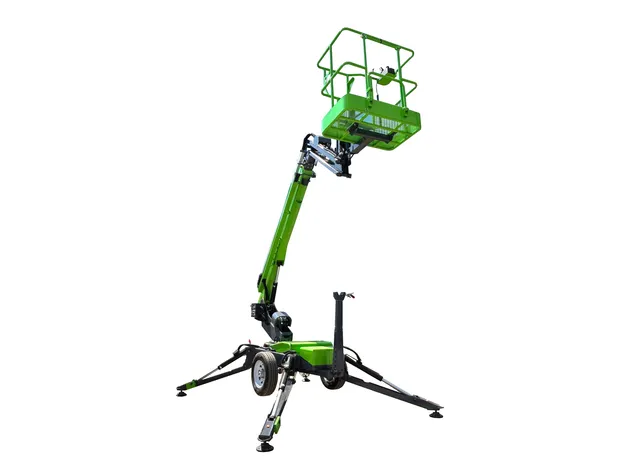

8-18M Electric Towable Articulated Spider Boom Lift Aerial Man Lift

Electric 14M Platform Height Towable Boom Lift

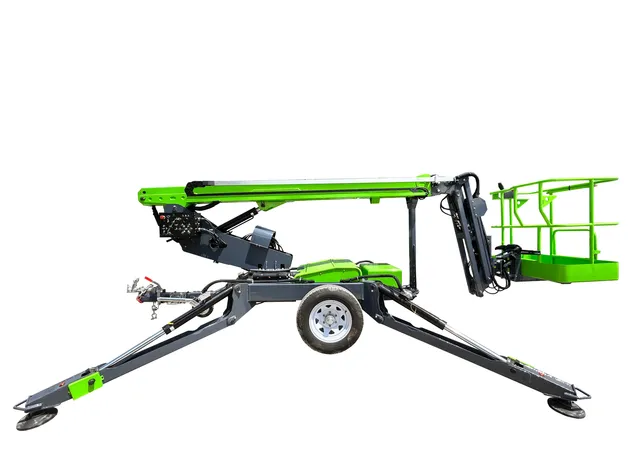

Our Electric 18M Platform Height Towable Boom Lift, also known as a Trailer Mounted, Tow-Behind, or on-Trailer Telescopic Boom Lift, offers an exceptional fusion of mobility and performance. Its towable design facilitates easy transport, while the electric system ensures quiet, zero-emission operation. The telescopic boom provides outstanding reach and precise positioning, making it a superbly efficient solution for diverse outdoor aerial tasks.

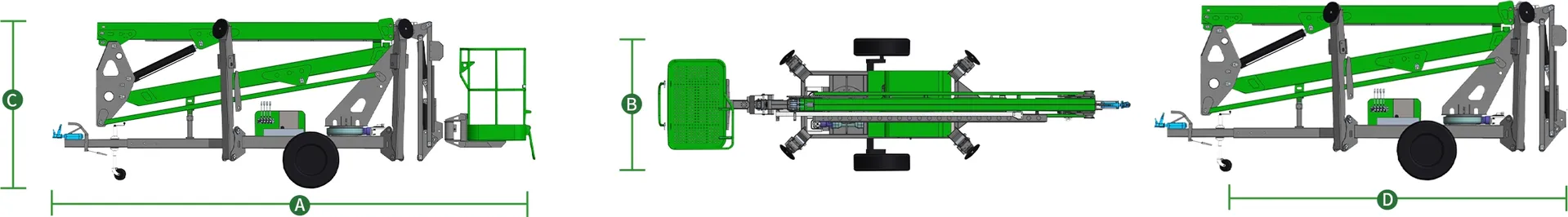

Technical Specifications

Model	T08	T10	T12	T14	T16
Max. Working Height	10m	12m	14m	15.8m	17.85m
Max. Platform Height	8m	10m	12m	13.8m	15.85m
Max. Working Radius	5m	5.5m	5.9m	6.5m	7.0m
Platform Size	0.9x0.7m	0.9x0.7m	0.9x0.7m	1.1x0.7m	1.1x0.7m
Weight	1490kg	1550kg	1640kg	1900kg	1980kg
Max. Lift Capacity	200kg	200kg	200kg	200kg	200kg
Gradeability	45%	45%	45%	45%	45%
Tire	205/70R15C	205/70R15C	205/70R15C	205/70R15C	205/70R15C

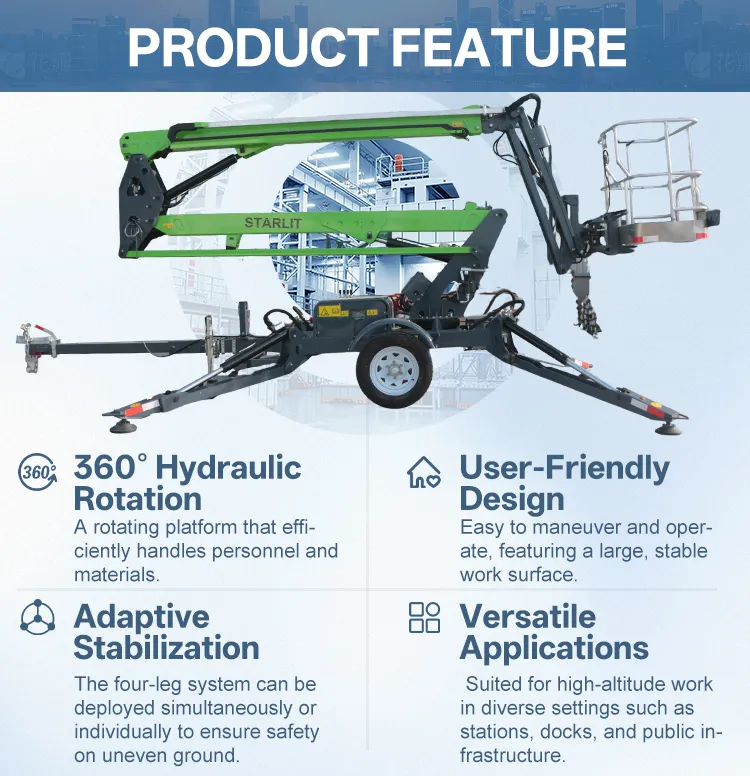

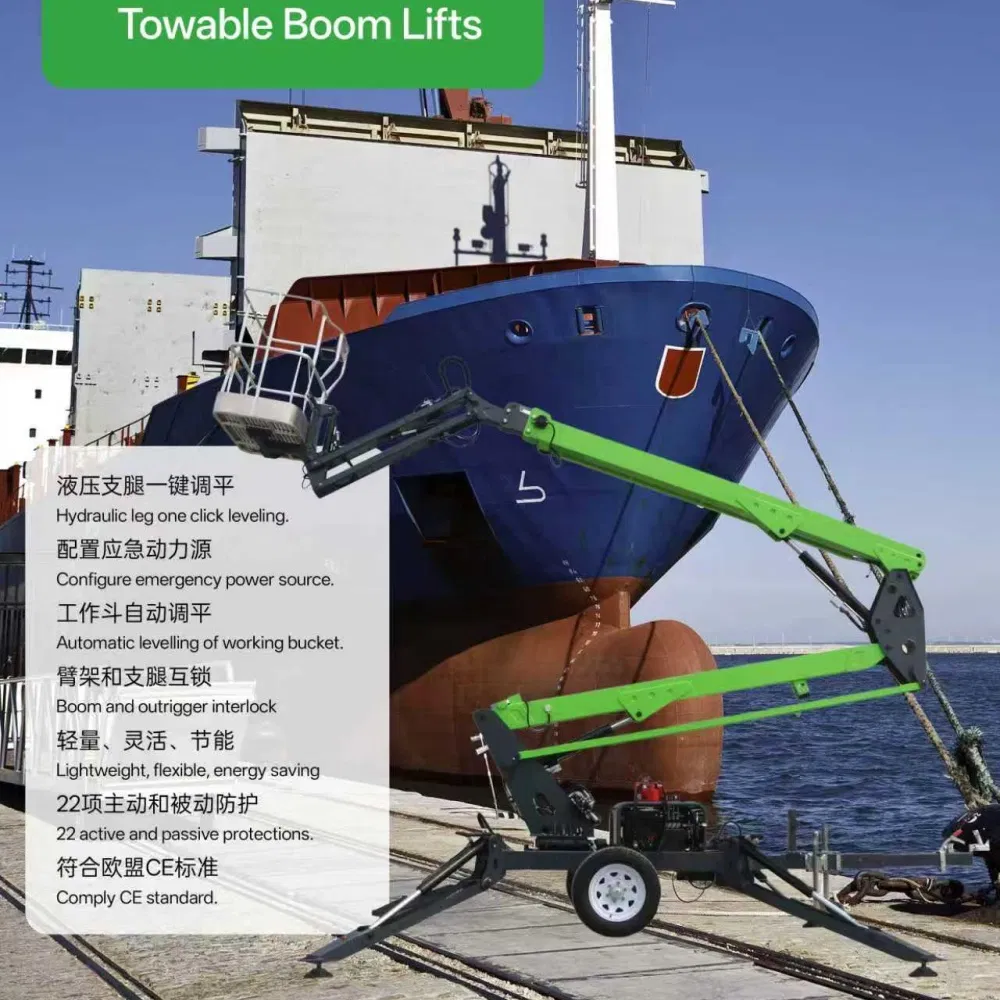

Key Features & Advantages

Comply with CE standard
Hydraulic leg one-click leveling
Emergency power source configuration
Automatic leveling of working bucket
Boom and outrigger interlock system
Lightweight, flexible, and energy saving
22 active and passive protections

Packing & Delivery

Package Size

470.00cm * 160.00cm * 215.00cm

Gross Weight

1900.000kg

Frequently Asked Questions

Q1: What is the maximum working height of this series? A: The maximum working height ranges from 10m (T08 model) up to 17.85m (T16 model).

Q2: What kind of power system does the boom lift use? A: It primarily uses a DC 24V/192Ah battery system. Optional power sources include Diesel, Gasoline, or AC power.

Q3: How many people can the platform accommodate? A: The platform is designed for an occupancy of 2 people with a maximum lift capacity of 200kg.

Q4: Is the lift easy to level on uneven ground? A: Yes, it features hydraulic legs with one-click leveling and an optional automatic leveling system for the outriggers.

Q5: What safety features are included? A: The lift is equipped with 22 active and passive protections, including boom and outrigger interlocks and an emergency manual power system.

Q6: Can the platform rotate for better positioning? A: Yes, the platform offers a rotation of ±80°, and the turntable can rotate 355° for precise positioning.
