| Capacity (Kg) | Person | Speed (m/s) | Entrance (mm) | Clear Car (mm) | Hoistway (mm) | Pit Depth (mm) | Overhead Height (mm) |
|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 / 1.5 | 700 | 1200x1100 | 1800x1800 | 1500 / 1600 | 4400 / 4500 |
| 630 | 8 | 1.0 / 1.5 | 800 | 1400x1100 | 2000x1800 | 1500 / 1600 | 4400 / 4500 |
| 800 | 10 | 1.0 - 2.0 | 800 | 1400x1350 | 2000x2050 | 1500 - 1800 | 4400 - 4700 |
| 1000 | 13 | 1.0 - 4.0 | 900 | 1600x1450 | 2200x2200 | 1500 - 3800 | 4400 - 5900 |
The drive system is equipped with a regenerative braking unit, feeding energy back to the power grid. It saves 50% more energy than ordinary AC elevators and 20% more than standard frequency elevators.
Adopts low noise vector control inverter for high-performance operation. The use of advanced IGBT realize PWM control, reducing motor noise and power consumption while extending motor life.

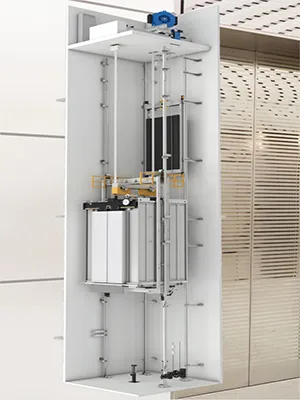

● Saves 10% of building area
● Saves 40% of electric energy
● Enhances efficiency by 25%~30%
● 30% energy saving

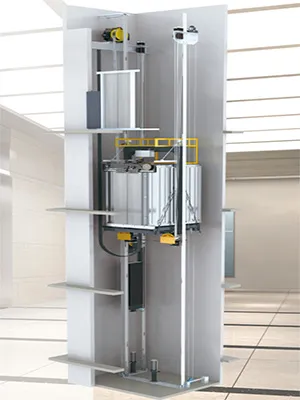

● Area reduced by more than 40%
● Simplified installation process

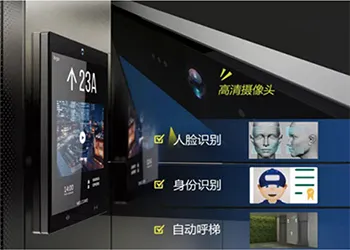

AI-powered contact-free operation with automatic floor calling.

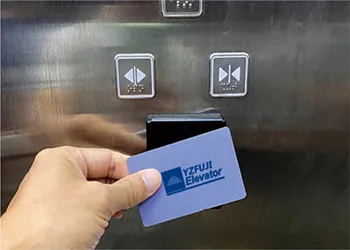

IC card identification and big data systems for resident safety.

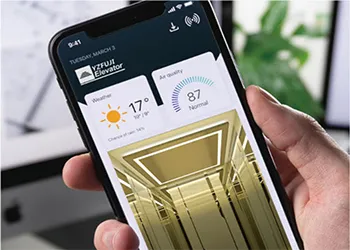

Call the elevator and identify target floors through your mobile device.
Since 1946: A globally recognized brand with decades of manufacturing excellence.

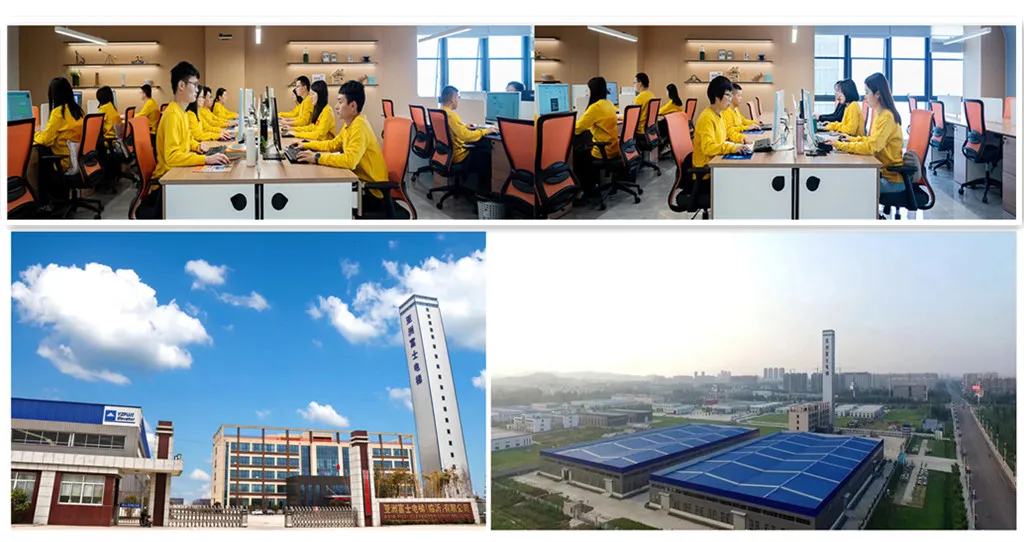

200,000 m²: Massive production facility integrating R&D, design, and manufacturing.

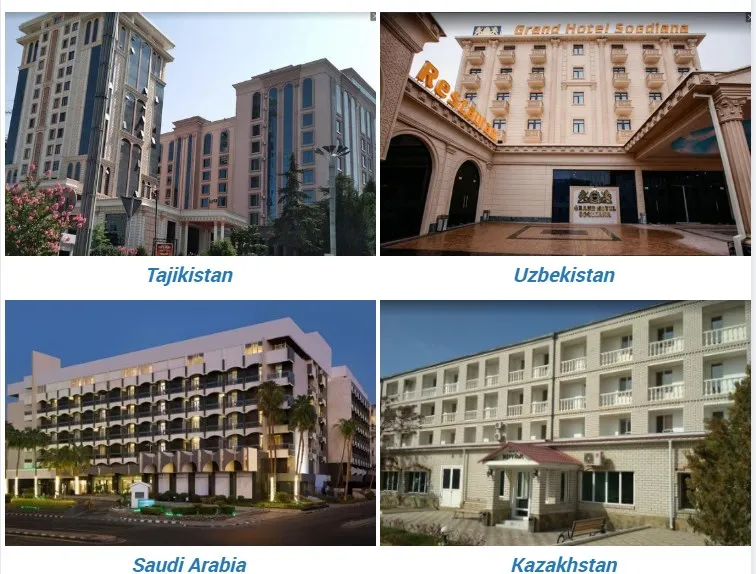

23 Years Exporting: Proven track record in international markets with over 5,000 units capacity annually.
All parts are packed in solid wooden cases with protective film to prevent damage during long-distance sea transportation.
