Cargo Goods Freight Glass Sightseeing Panoramic Observation Home Medical Bed Wheelchair Stretcher Passenger Hospital Electric Lift Elevator

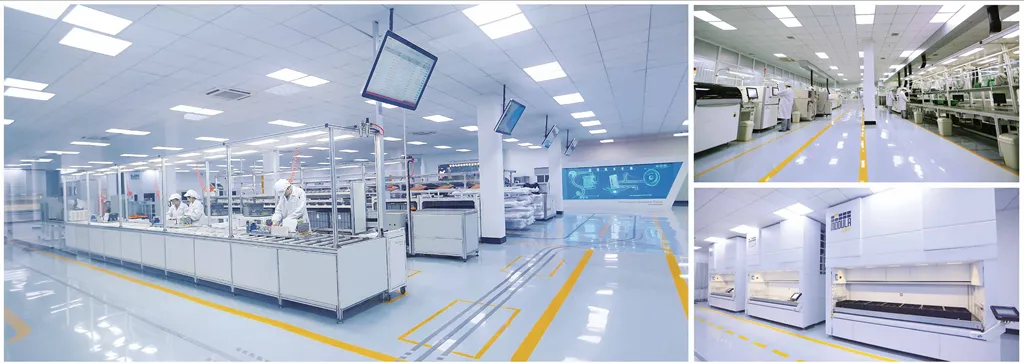

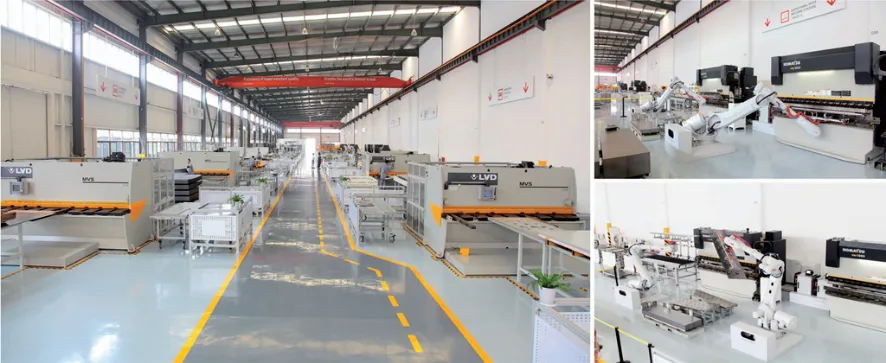

Our lifting solutions are dedicated to manufacturing high quality and superior performance elevators and escalators in accordance with international and professional standards. With full automatic production lines, our annual production capacity exceeds 30,000 sets, covering passenger elevators, freight elevators, panoramic elevators, hospital elevators, home lifts, and car lifts.

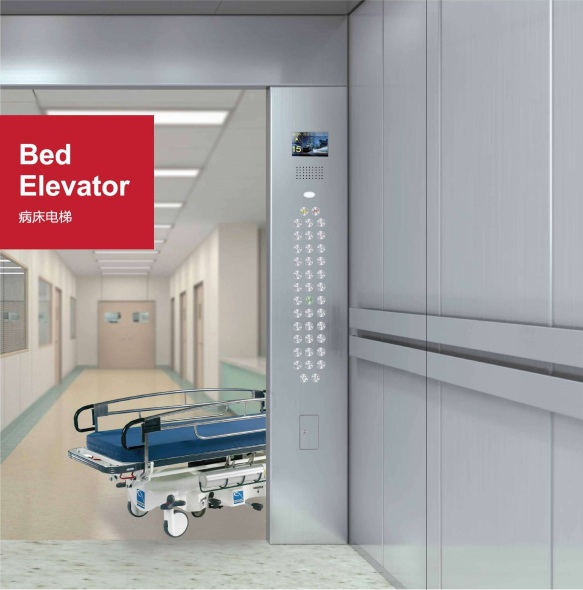

There is strict requirement for bed Lift because of the special environment in the hospital. Focusing on human-oriented design, we precisely control elevator traveling speed and attentively make comfortable space for passengers.
Using new data network control technology and permanent magnet synchronous motors, the elevator achieves intelligent running, low power consumption, and long life. Functions are specifically designed for medical needs.
Safety is the first priority, ensuring each passenger's safe delivery to their destination with advanced monitoring systems.
New layouts for machine rooms improve space availability and building integration efficiency.
Adopts gearless permanent magnet synchronous machines to save energy and protect the environment.

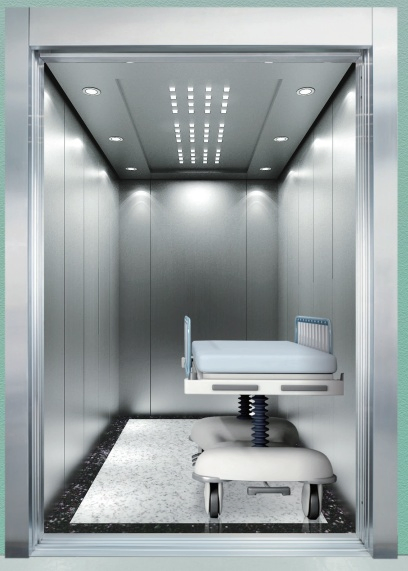

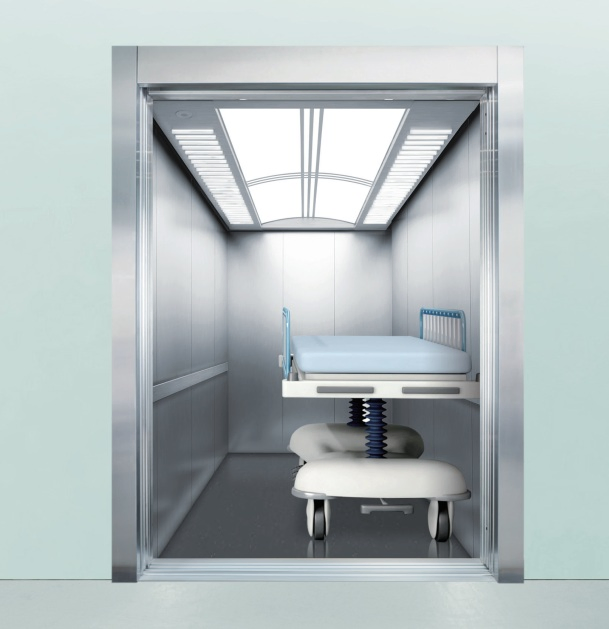

Efficient center-opening door systems and deep cabin designs maximize the width for stretcher and bed access.
| Capacity (kg) | Speed (m/s) | Cabin Size (mm) | Door Opening (mm) | Shaft Size (mm) | Pit Depth (mm) | Overhead (mm) |
|---|---|---|---|---|---|---|
| 1350 | 1.0 - 1.75 | 1300 * 2300 | 1000 * 2100 | 2350 * 2800 | 1500 | 4500 |
| 1600 | 1.0 - 1.75 | 1400 * 2400 | 1100 * 2100 | 2500 * 2900 | 1500 | 4500 |
| 1600 (Wide) | 1.0 - 1.75 | 1400 * 2400 | 1200 * 2100 | 2300 * 2900 | 1500 | 4500 |
* Above standard specification is only for reference. Custom designs are available based on jobsite shaft parameters.

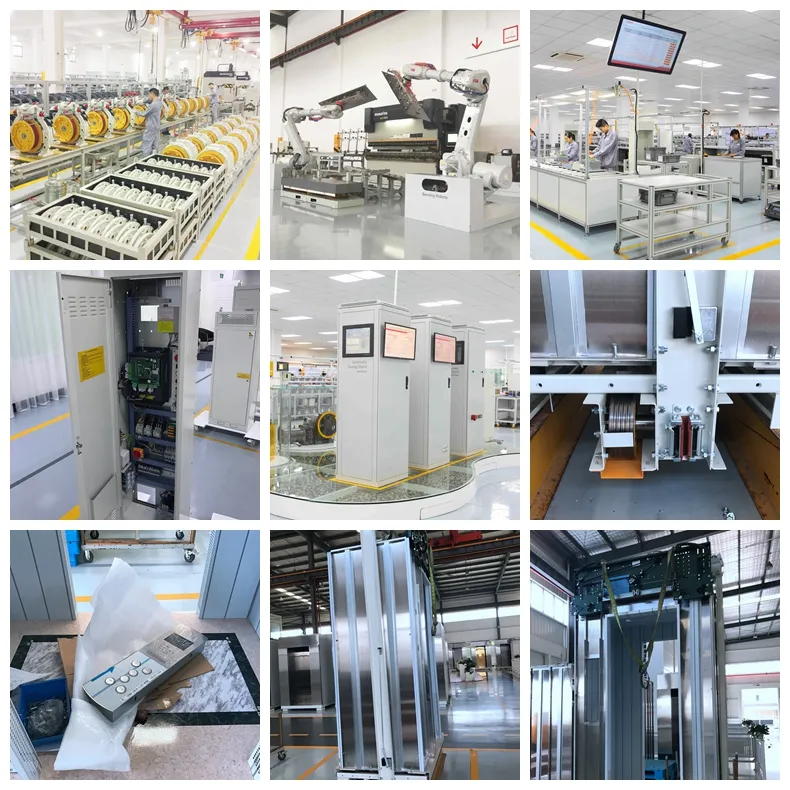

From raw material reception to finished product delivery, a strict operation system controls every step. No rejected raw material is accepted. QC departments inspect all items upon arrival.

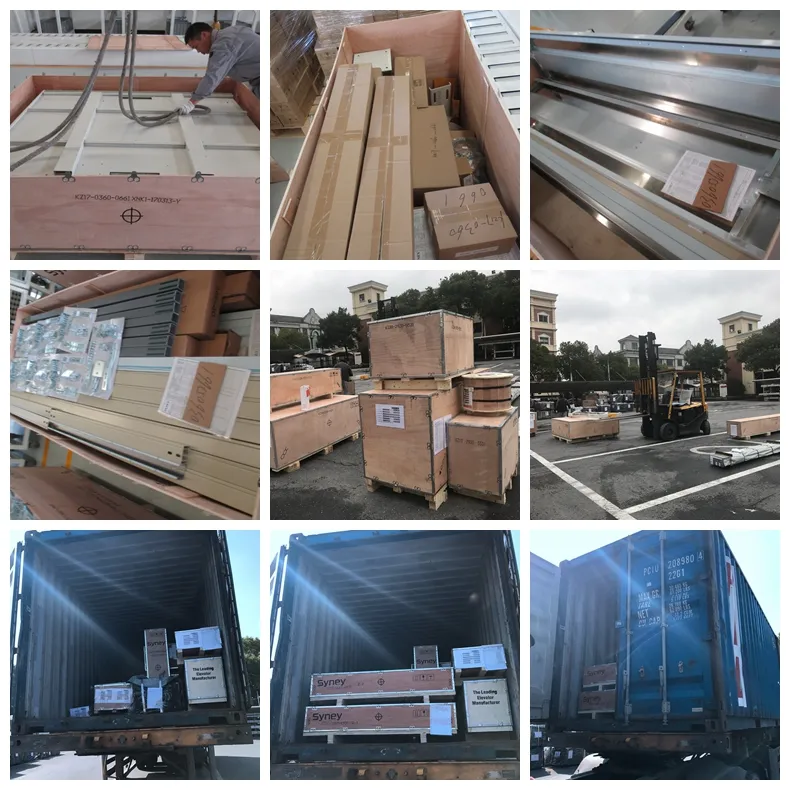

Packing: All parts are packed in solid plywood boxes suitable for long-time sea shipping. Sensitive components like control cabinets and motors are covered with protective film and desiccant.

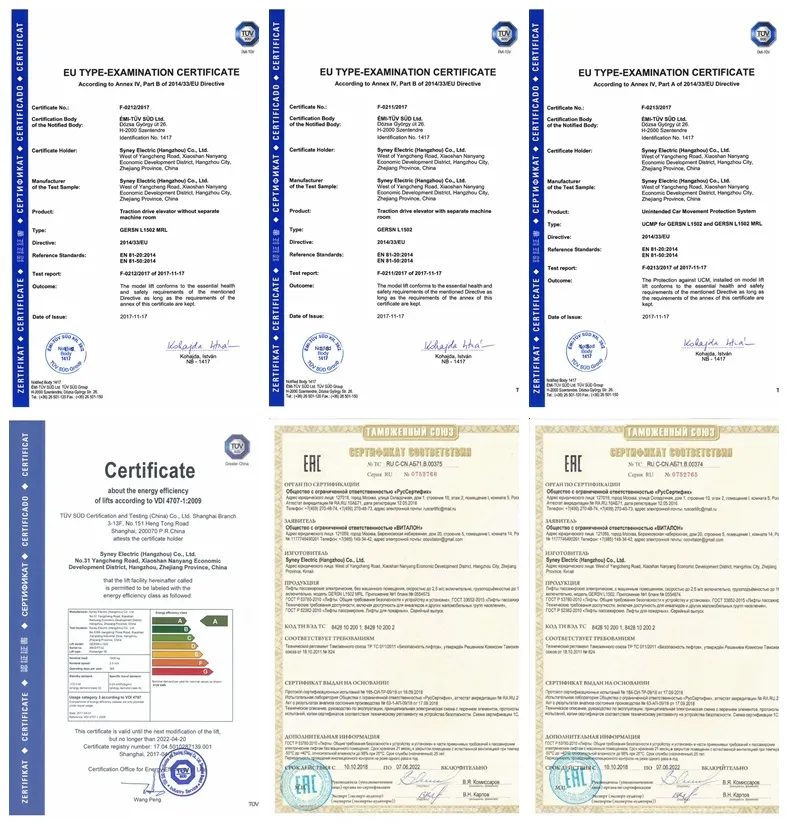

We hold Germany TÜV SÜD certification, one of the strictest worldwide. Our products are CE and EAC certified, meeting international safety and energy-efficiency (Grade A) standards.

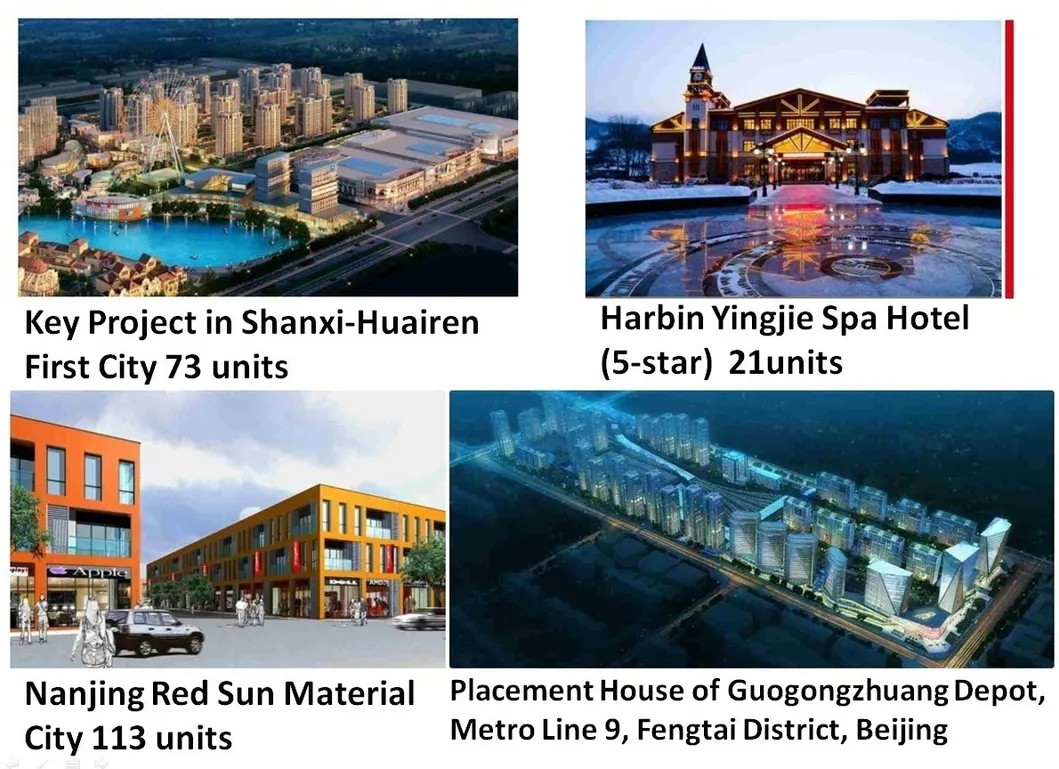

Our network expands to over 50 countries in Europe, Asia, Africa, and America, maintaining a steady growth through standardized management and perfect service networks.
