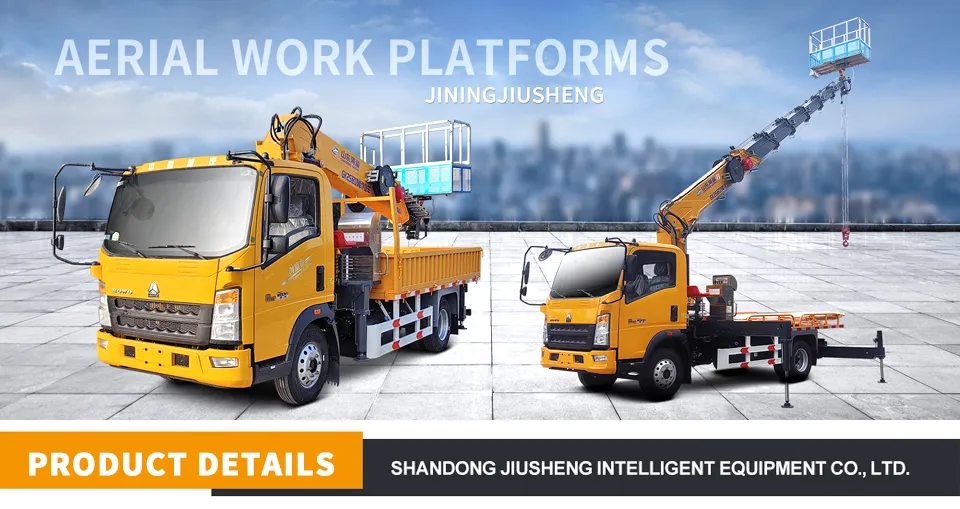

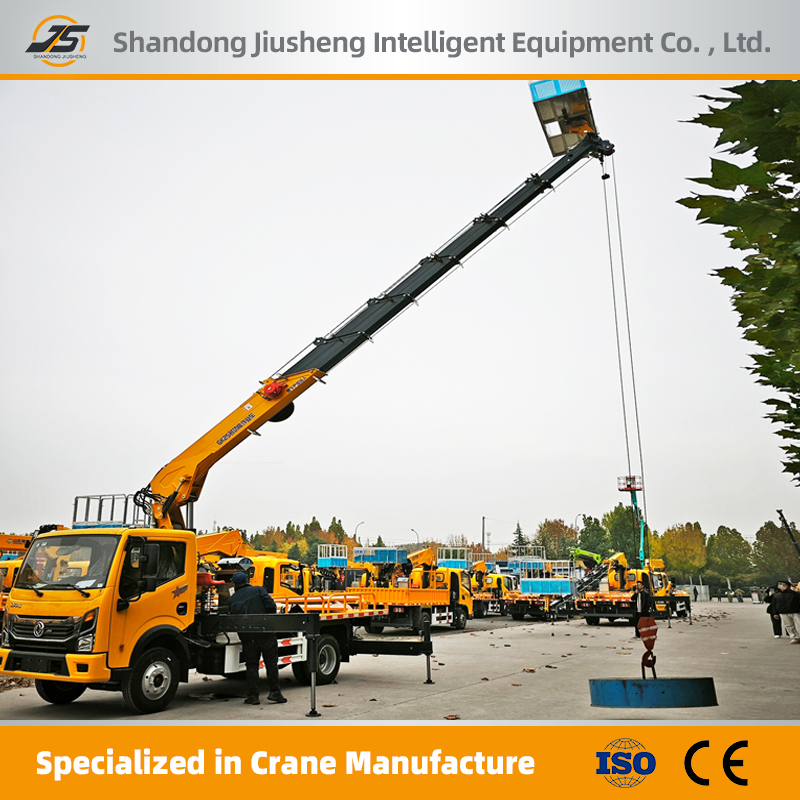

Straight Arm Aerial Work Platform
Aerial work platform truck is a special vehicle specially designed to safely and efficiently transport personnel and equipment to the aerial work location, which is widely used in construction, maintenance, cleaning, rescue and other fields. The work platform is designed with a non-slip floor, safety fence and operation control panel, which can carry 1-2 workers and necessary tools to ensure safety when working at height.

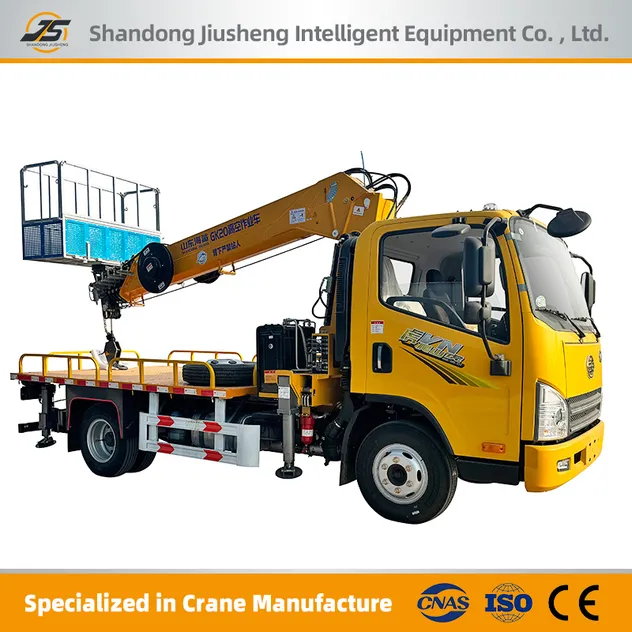

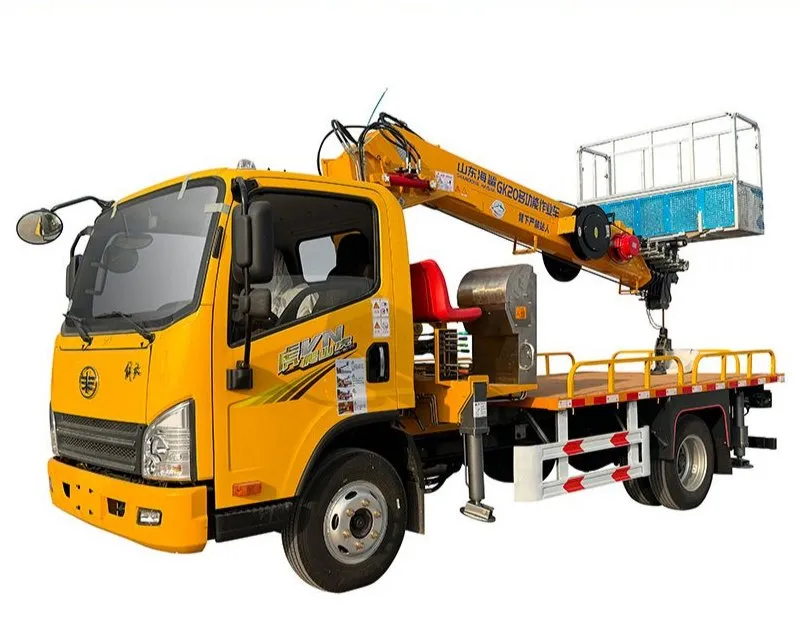

GK20

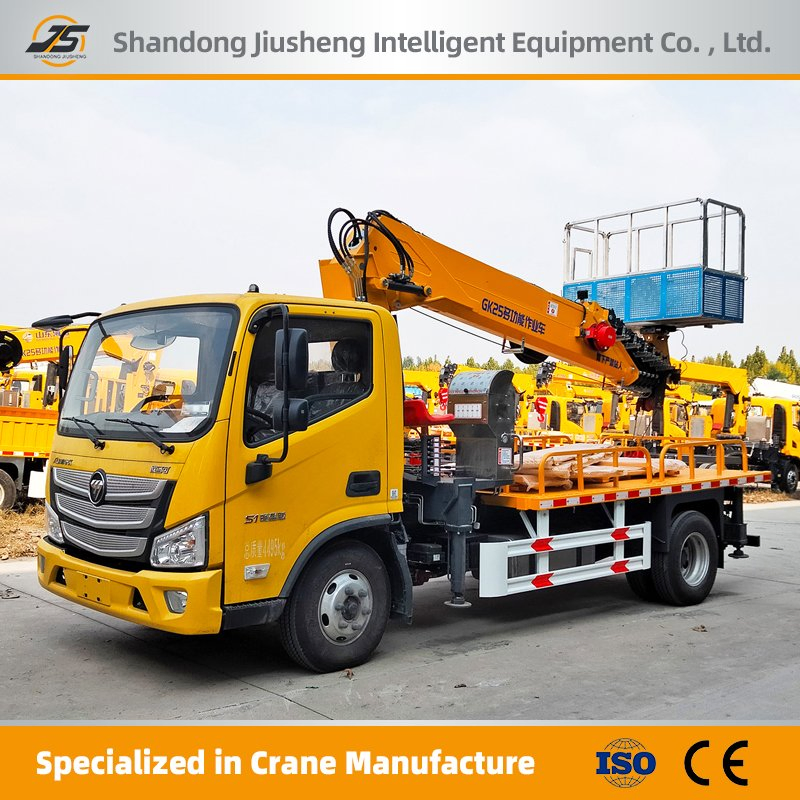

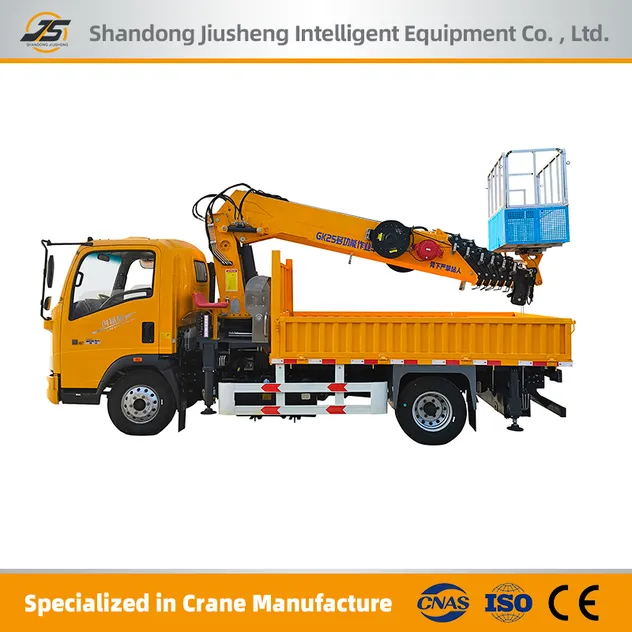

GK25

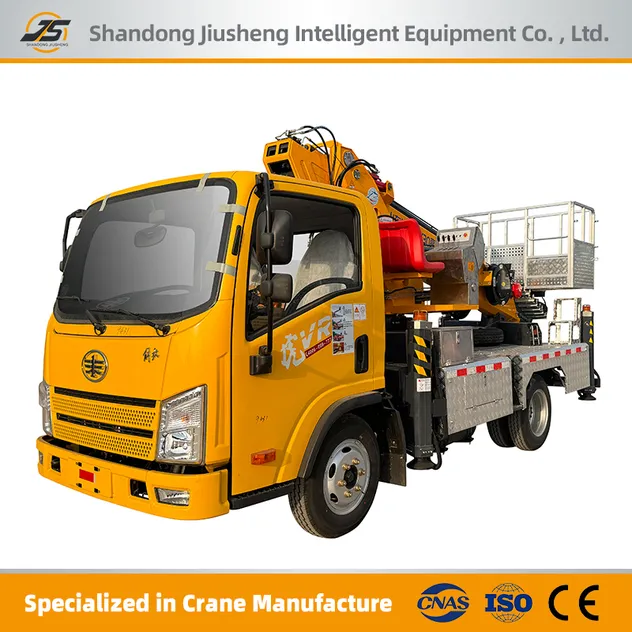

GK30
| Model | GK20 | GK25 | GK30 |
|---|---|---|---|
| Engine mode | WP2.3Q140E62 | WP2.3Q140E62 | QuanchaiQ23-132E60 |
| Lifting weight | 4T | 5T | 5T |
| Tires | 7.00R16 10PR | 7.00R16 10PR | 6.50R16 10 levels |
| Maximum working height | 19m | 25m | 28.3m |
| Boom | Six big arms | Seven big arms | Seven big arms |
| Platform rated load | 200KG | 230KG | 200KG |
| Boom rotation angle | 360° | 360° | 360° |
| Platform size | 1500*700*1100mm | 1600*700*1000mm | 1600*700*1100mm |

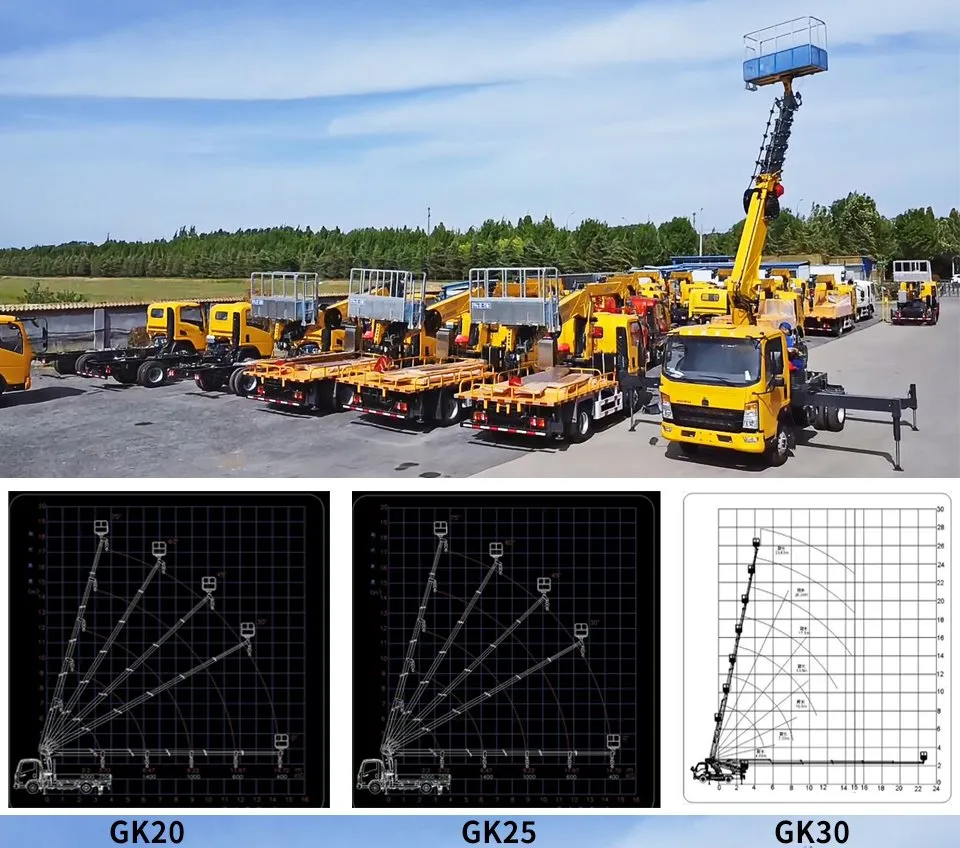

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
