Capacity 300kgs Floor Loading Dumbwaiter Service Lift

1 / 5

Capacity 300kgs Floor Loading Dumbwaiter Service Lift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	XYZD-2
Type	Wellhole and Derrick
Load Capacity	300kgs
Speed	0.40m/s
Drive Mode	AC Traction
Open & Close Type	Manual
Certification	CE, ISO 9001
Applicable Industries	Restaurant, Hotels, Warehouse, Bank, Childcenter
Transport Package	Plywood Case

Product Description

Capacity 300kgs Floor Loading Dumbwaiter Service Lift

Designed to enhance efficiency and convenience in your business or residential premises. This robust lift system is perfect for transporting heavy loads between floors, providing a seamless, easy-to-use solution for handling groceries, equipment, laundry, and more.

High Capacity: Supports up to 300 kg, ideal for commercial settings.
Floor Loading Design: Direct floor-level access, eliminating manual lifting.
Durable Construction: Engineered with high-quality materials for long-term reliability.
Space-Efficient: Compact design fits into various building layouts.
Safety Features: Includes emergency stop, automatic door mechanisms, and overload sensors.

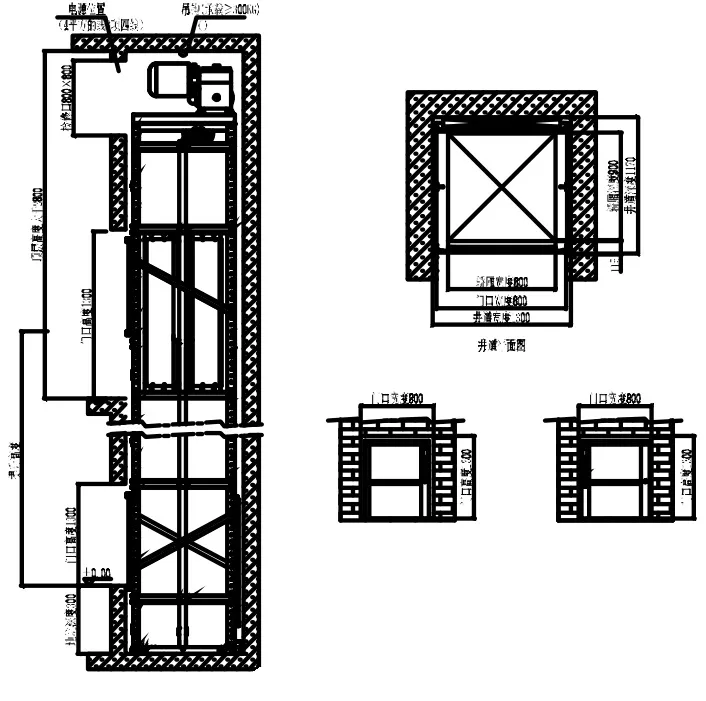

Product Parameters

MODEL	XYZD-SL2
Installation Site Size	1400*1400mm
Car Size	100010001100mm
Door Opening	Opposite opening
Doors	Bi-parting Stainless Steel

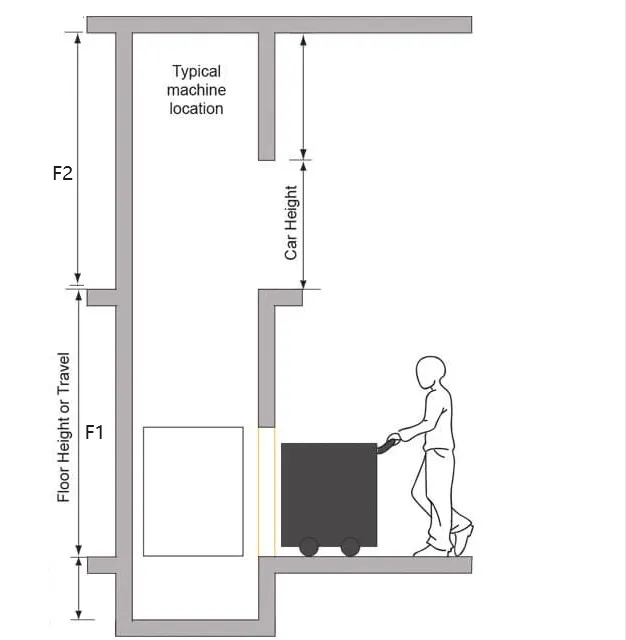

Floor Height	3428mm
Pit Depth	900mm
Speed	0.4m/s
Controls	Automatic push buttons, call & send. Includes position indicator, in-use indicator, door open signal & arrival buzzer.
Custom Service	Lifting height, cabin size, and door orientation can be customized.

Options for Enhanced Experience

We recognize that every project has specific requirements for Service Lifts:

Thermal Insulation: For operating in colder settings.
Dual Doors: For enhanced efficiency on a single floor level.
Luxury Finish: Fully copper-plated options available.

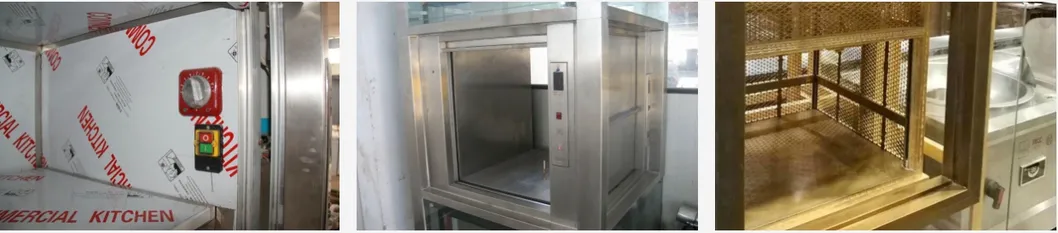

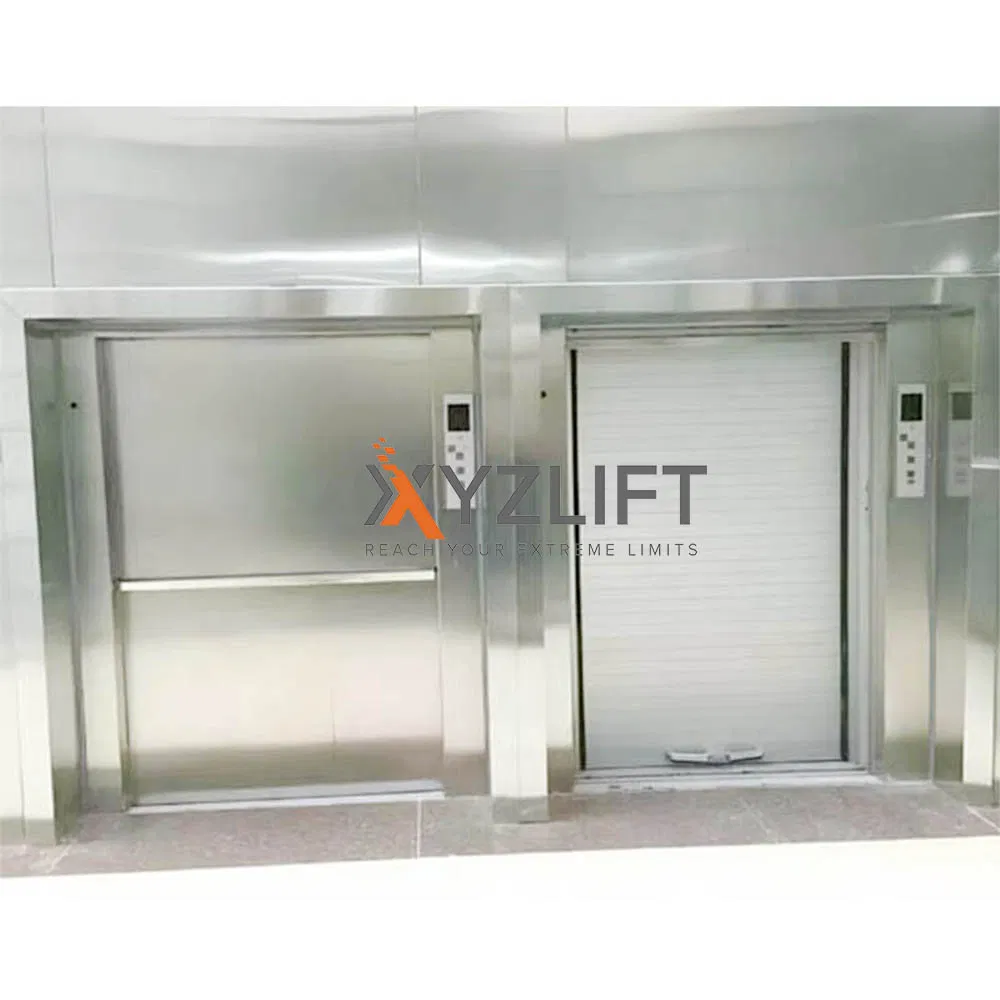

Landing Door Variety: Automatic landing doors, swing doors, and roller doors available to suit your site.

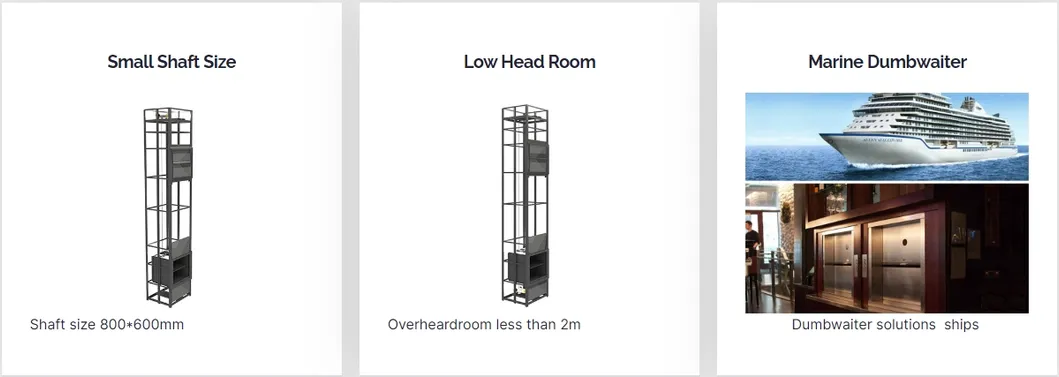

Exceptional Customization Capabilities

No matter what challenging issues you encounter: no pit, small hoistway, limited overhead space, or the need for highly stable marine dumbwaiters, our experienced technical team provides satisfying solutions.

10-Step Installation Guide

Step 1: Frame ConnectionConnect stand columns and shaft beams on a level foundation.

Step 2: Guide RailsAttach guide rails inside shaft beams using brackets.

Step 3: Motor InstallationInstall the motor at the top or in the machine room.

Step 4: CounterweightSet up counterweight frame and connect to cabin via pulley.

Step 5: Cabin & ShoesLower cabin into shaft and attach guide shoes.

Step 6: Cabin DoorInstall and align the cabin door.

Step 7: Landing DoorsInstall landing doors at each floor level.

Step 8: BuffersPlace buffers at the shaft bottom for safety.

Step 9: Limit SwitchesInstall leveling devices and safety limit switches.

Step 10: Electrical SetupConnect the electric controller to manage operations.

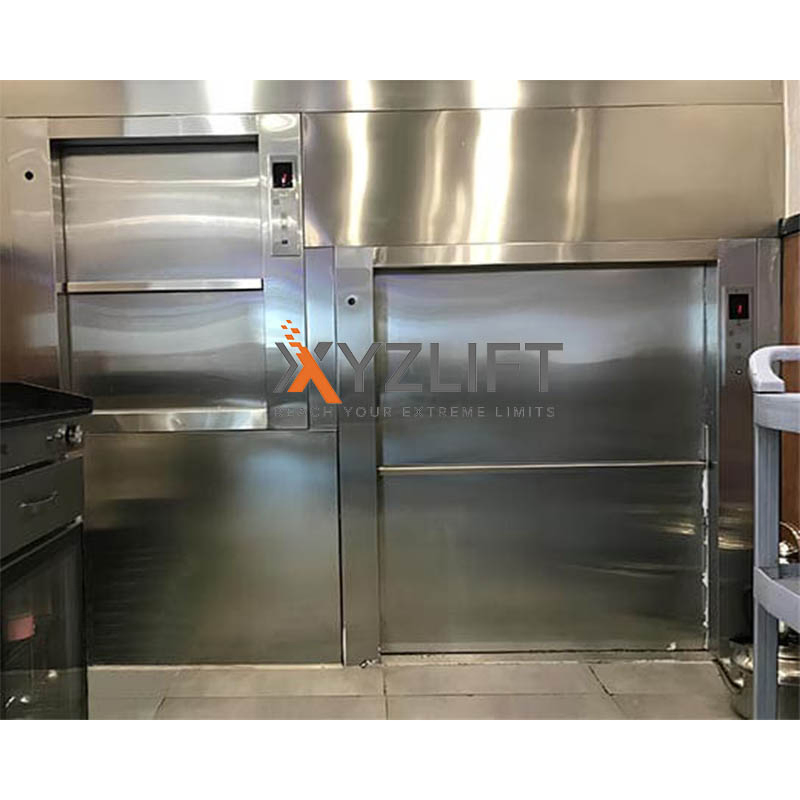

Project Showcases

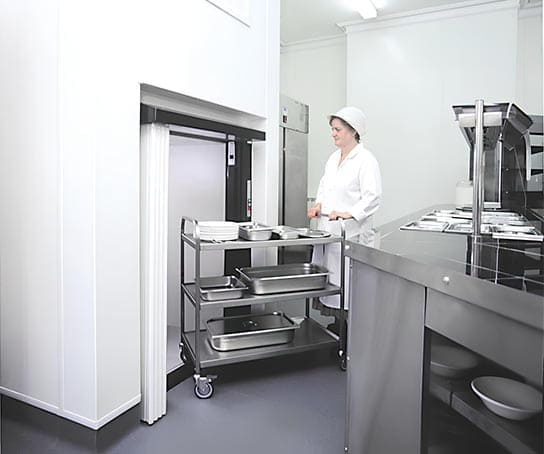

Our Service Lifts are suitable for hotels, restaurants, pubs, clubs, childcare centers, hospitals, schools, and residential villas.

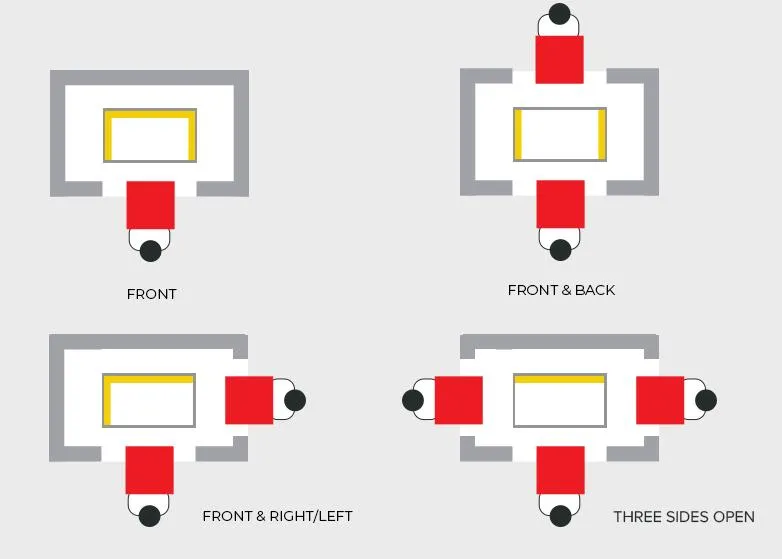

Loading Configurations

We provide four loading configurations to suit your floor plan:

Single side loading
Opposite sides loading
Adjacent side loading
Three sides loading

Frequently Asked Questions

1. What is the maximum load capacity for this dumbwaiter?

The XYZD-2 model is designed with a robust load capacity of up to 300kgs, making it suitable for heavy items in both commercial and residential settings.

2. Can the cabin size be customized to fit my existing hoistway?

Yes, we offer full tailor-made services. The cabin dimensions, lifting height, and even door orientations can be customized to match your specific site requirements.

3. What industries can benefit from using a floor-loading dumbwaiter?

These lifts are ideal for restaurants, hotels, warehouses, banks, childcare centers, hospitals, and private villas to solve multi-floor transportation challenges.

4. What safety features are included with the service lift?

The lift is equipped with multiple safety mechanisms, including emergency stop buttons, automatic door locking, overload sensors, and limit switches to ensure secure operation.

5. How difficult is the installation process?

Each unit comes with a detailed installation manual and video. Most projects follow a structured 10-step process, and technical support is typically available to resolve queries within 2 hours.
