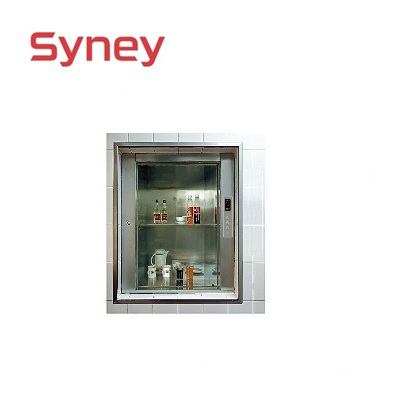

200kg Easy Install Restaurant Food Lift Dumbwaiter Elevators Home Dumbwaiters

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Basic Specifications

Model NO.

ZW001

Type

Wellhole

Load Capacity

200kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Guide Rail

Hollow Guide

Main Power

AC 380V, 3 Phase 50Hz

Packing

Plywood Box

Specification

EN81, GB7588-2003

HS Code

8431310090

Product Description

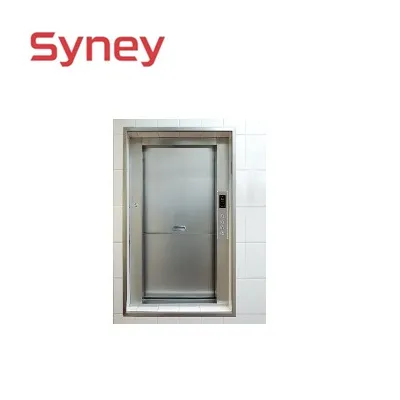

200kg Flexible Installation Dumbwaiter Elevator Stainless Steel Floor Type

The dumbwaiter is the smallest member of the elevator family, often referred to as a food elevator or kitchen lift. It serves various industries silently, maximizing utility within the smallest possible space. Our redefined dumbwaiter series offers a new image with both floor-type and window-type options, equipped with advanced technology and perfect quality.

Key Advantages

Space Efficient: Occupies minimal space and requires low civil engineering bearing capacity.
Advanced Control: Uses PC control modules for smooth operation and accurate leveling.
Flexible Operation: Humanized design for versatile daily use.
Versatile Models: Available in window type and floor type based on load needs.
Easy Maintenance: Safe, practical, elegant, and quiet operation.

Technical Parameters

Load (kg)	Speed (m/s)	Cabin Size (WxDxH)mm	Door Size (WxH)mm	Shaft Size (WxD)mm	Type
100	0.4	500x500x900	500x900	1000x800	Window Type
200	0.4	600x600x900	600x900	1100x900	Window Type
250	0.4	800x800x900	800x900	1300x1100	Window Type
100	0.4	500x500x1000	500x1000	1000x800	Floor Type
200	0.4	600x600x1000	600x1000	1100x900	Floor Type
300	0.4	900x900x1000	900x1000	1400x1200	Floor Type

Safety Functions

1. Motor overheat protect	2. Power phase fault detect	3. Drive running time detect	4. Inspection running
5. Emergency door opening key	6. Car door contact	7. Shaft emergency stop switch	8. Car top emergency stop switch
9. Safety gear contact	10. Main fuse (controller)	11. Main power switch	12. Car lighting switch

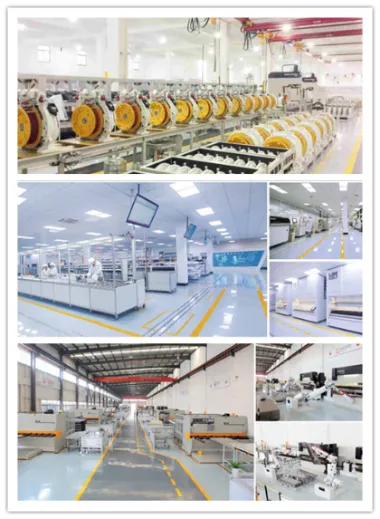

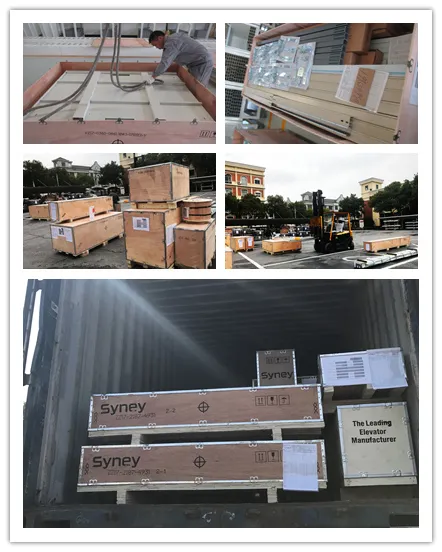

Manufacturing & Packing

Certifications & Global Projects

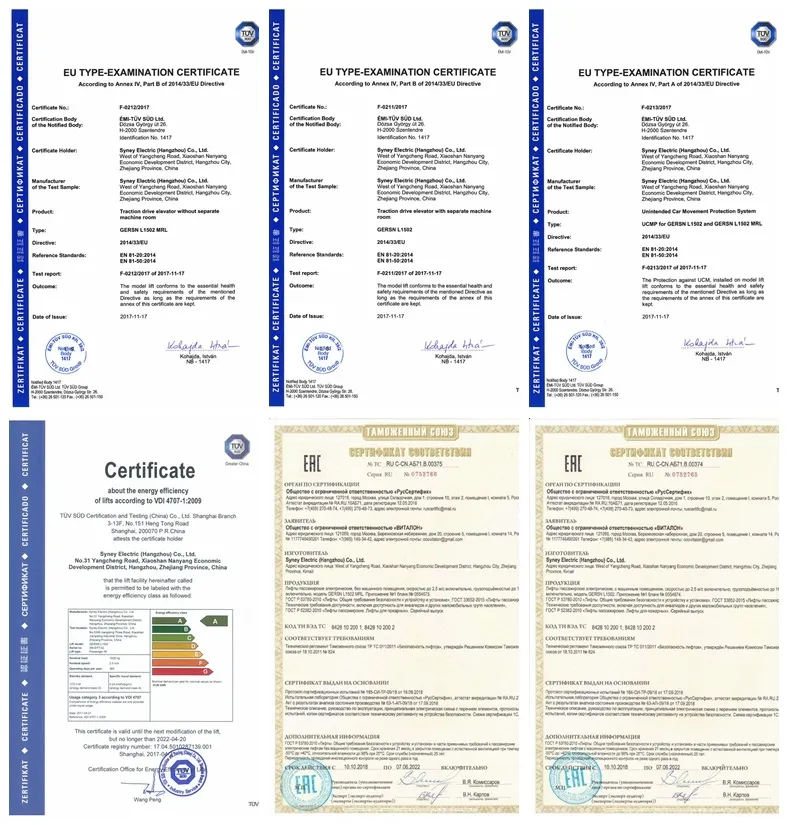

Our products hold Germany TÜV SÜD certification, one of the strictest quality marks worldwide. We also comply with CE and EAC standards for both machine room and machine room-less configurations, achieving Grade A energy efficiency.

Frequently Asked Questions

How do I choose between window type and floor type?

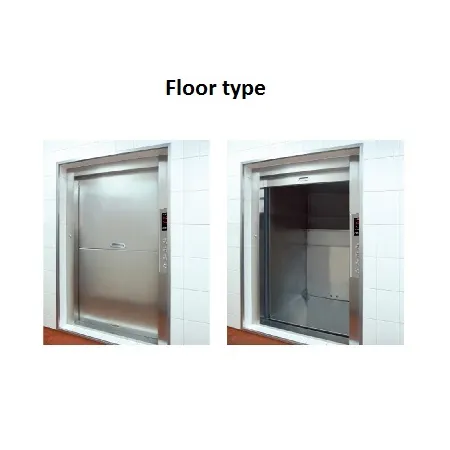

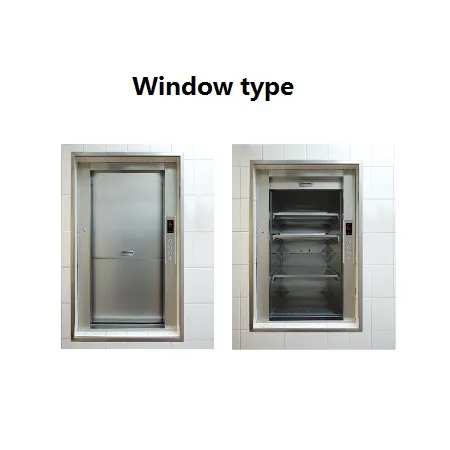

Window type is usually installed at waist height (about 700-900mm from the floor) for easy manual loading of small items like plates. Floor type starts at floor level, allowing for trolleys or larger containers to be rolled directly into the cabin.

What information is needed for a fast quotation?

Please provide the required load capacity, number of floors/stops, shaft dimensions (Width x Depth), and whether you prefer a window or floor type design.

What is the standard delivery time for a dumbwaiter?

The standard production and delivery time is approximately 30 days after the deposit is received and specifications are confirmed. Urgent production options may be available upon request.

What is the warranty period for the elevator?

We provide a standard warranty of 18 months starting from the date of delivery, covering manufacturing defects and major components.

How is the installation and commissioning handled?

We provide a complete installation manual and remote technical guidance. For specialized or large-scale projects, engineering support can be arranged to assist on-site.

Are custom sizes available if my shaft is already built?

Yes, while we have standard specifications, our factory can design a customized dumbwaiter to fit your existing shaft dimensions and specific site parameters.
