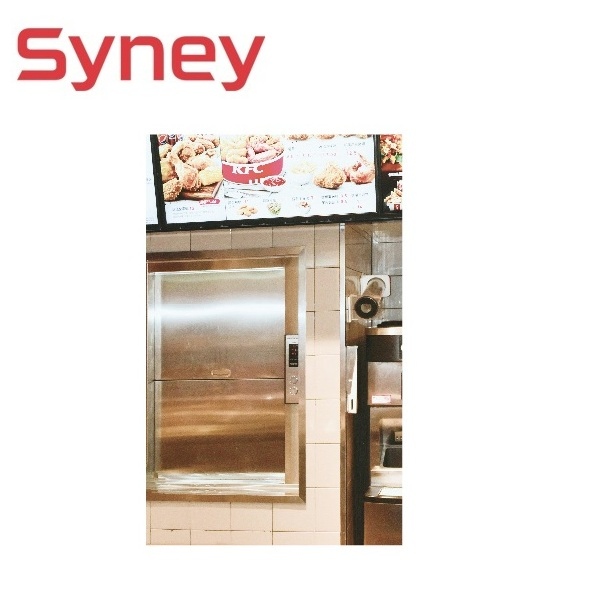

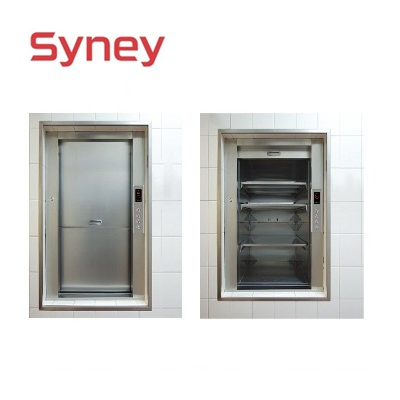

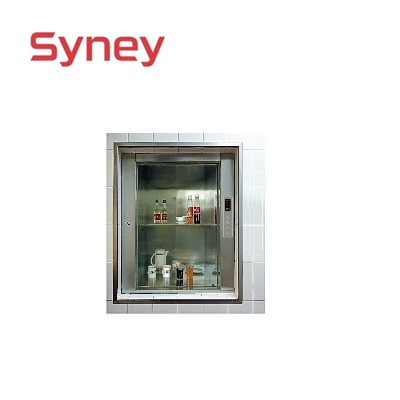

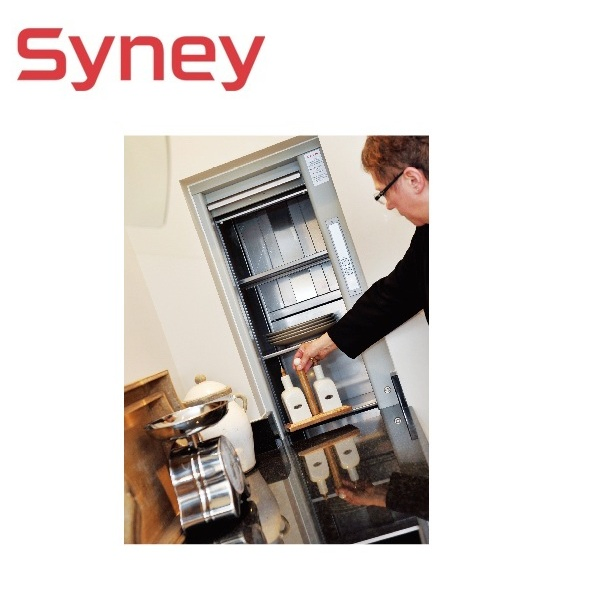

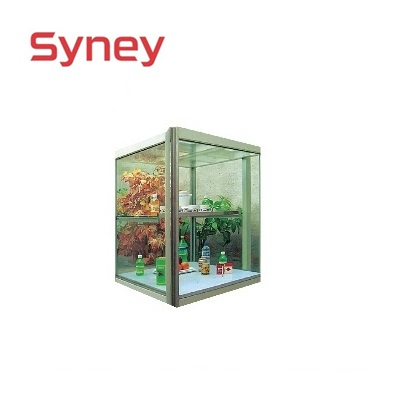

200kg Restaurant Kitchen Lifts Residential Dumbwaiters Elevator Dumbwaiter Food Lift

Customization: Available
After-sales Service: by Factory or Local Agent
Warranty: 18 Months After Shipment

Product Description

📦 Basic Information

Model NO.
ZW002
Type
Wellhole
Load Capacity
200kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Telescoping Lift
Door Open Way
Up and Down Open
Main Power
AC 380V, 3 Phase 50Hz
Production Time
30 Days
Packing
Plywood Box
Specification
EN81, GB7588-2003

🛠️ Product Description

200kg Restaurant Kitchen Lifts Residential Dumbwaiters

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing the biggest role with the smallest space footprint.

Kitchen Lift Design
🏢
Space Saving: Occupies a small space and does not require strong civil engineering bearing capacity.
💻
Advanced Control: Advanced PC control module for smooth running and accurate leveling.
⚙️
Flexible Operation: Humanized design makes operation more intuitive and maintenance easy.

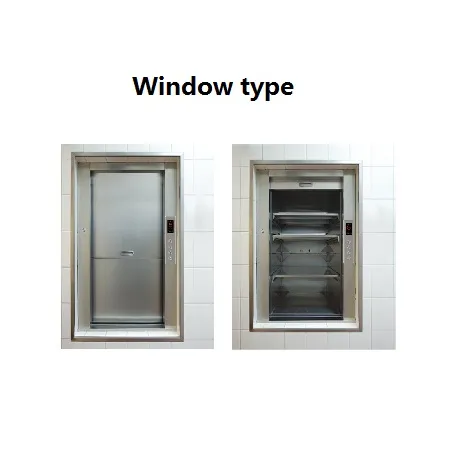

Dumbwaiter Type A

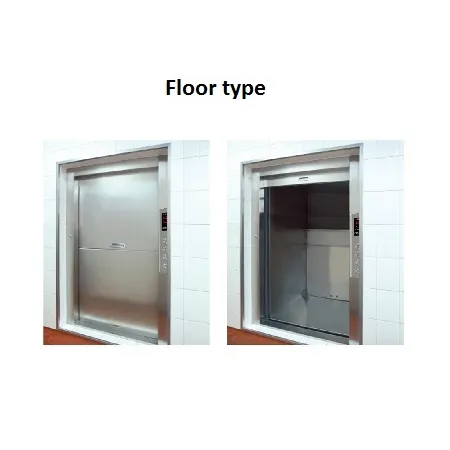

Dumbwaiter Type B

📊 Product Parameters

Load (kg) Speed (m/s) Cabin Size (WXDXH)mm Door Size (WxH)mm Shaft Size (WxD)mm Pit Depth (mm) Type
1000.4500x500x900500x9001000x800Window 700Window
2000.4600x600x900600x9001100x900Window 700Window
2500.4800x800x900800x9001300x1100Window 700Window
1000.4500x500x1000500x10001000x8001000Floor
2000.4600x600x1000600x10001100x9001000Floor
3000.4900x900x1000900x10001400x12001000Floor

Note: Standard specifications are for reference. Custom designs are available based on your site parameters.

🛡️ Safety Functions

1
Motor overheat protect
2
Power phase fault detect
3
Drive running time detect
4
Emergency door opening key
5
Car door contact
6
Shaft emergency stop
7
Running direction indicator
8
Safety gear contact

🏭 Manufacturing & Packing

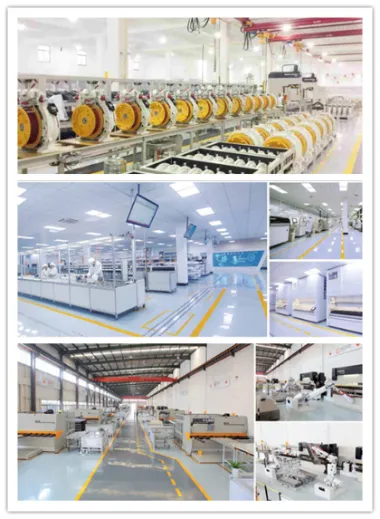

Manufacturing Process

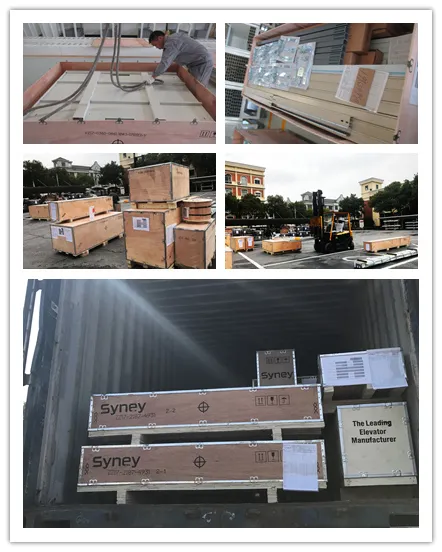

Packing and Delivery

📜 Certifications & Enterprise

A professional enterprise integrating R&D, design, manufacture, and customer service. We specialize in products including passenger lifts, sightseeing elevators, and kitchen lifts. Our network expands to over 50 countries worldwide.

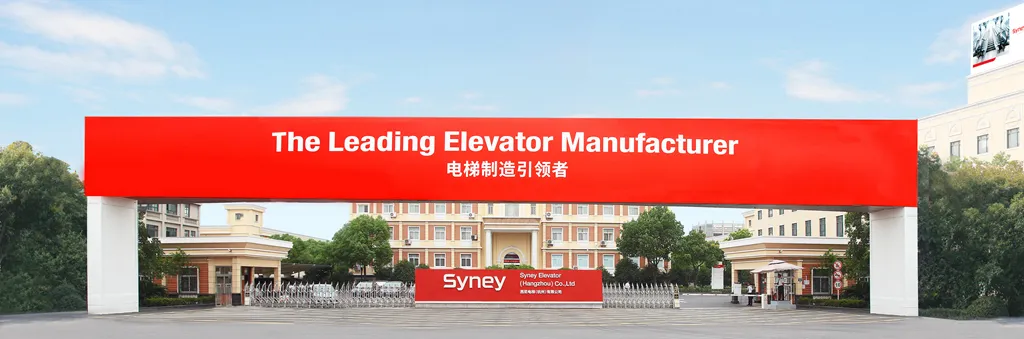

Factory Overview

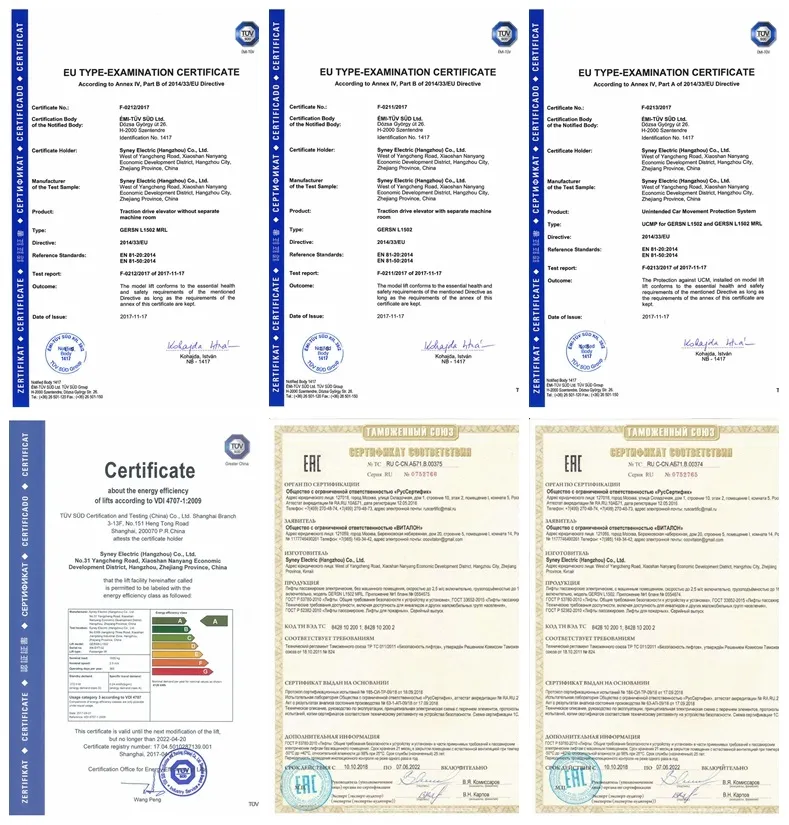

CE TÜV Certification
  • TÜV SÜD Certified - International quality standards.
  • CE Certificates - For lifts with and without machine rooms.
  • Energy Efficiency - Grade A performance.
  • EAC Certificates - Compliant with regional requirements.

🏙️ Global Projects

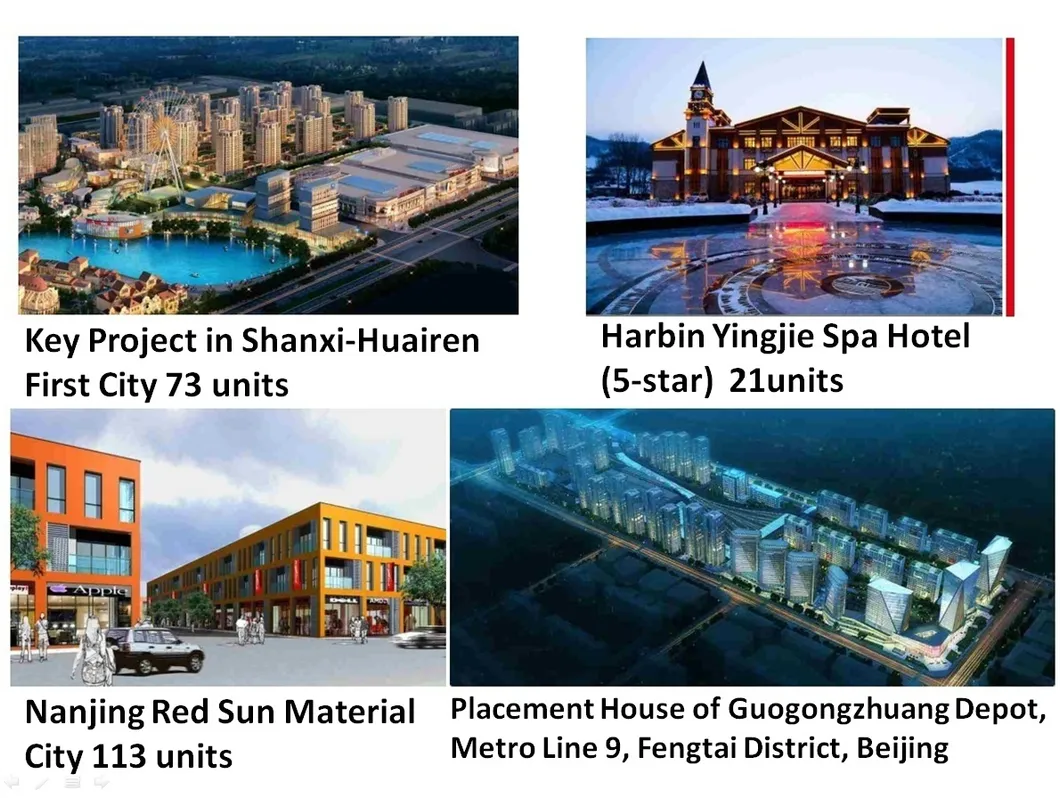

Project Case 1

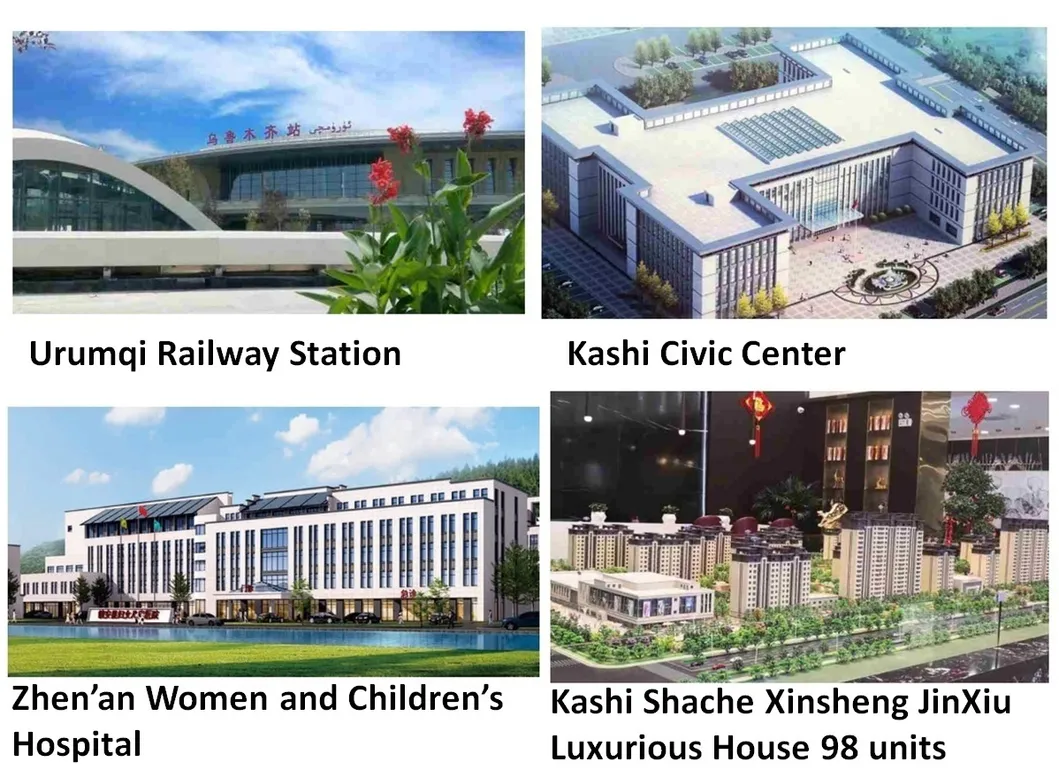

Project Case 2

Frequently Asked Questions

1. How can I get a fast reply for my inquiry?
Please provide complete information including shaft design status (finished or under construction), elevator type (kitchen dumbwaiter), capacity (e.g., 100kg), number of floors/stops, and shaft dimensions.
2. What is the typical process for placing an order?
The process involves: 1) Confirming specifications and drawings; 2) Signing the contract; 3) Production after payment; 4) Notification of completion and booking shipment; 5) Document delivery; 6) After-sales follow-up.
3. What is the standard delivery time for a dumbwaiter?
Usually, the delivery time is 30 days after the deposit is received. However, urgent production options are available to support specific project timelines.
4. What kind of warranty is provided for the elevator products?
We provide a comprehensive warranty of 18 months after the delivery date for our elevators and dumbwaiters.
5. How is the installation and commissioning handled?
We provide complete installation manuals and remote technical guidance. For special projects, engineers can be dispatched to the site, and we also offer technician training at our facility.
6. What should I do if I encounter after-sales issues?
Simply provide the contract number or the product serial number. Our factory can quickly check the specific technical parameters of your unit to provide an accurate solution.
