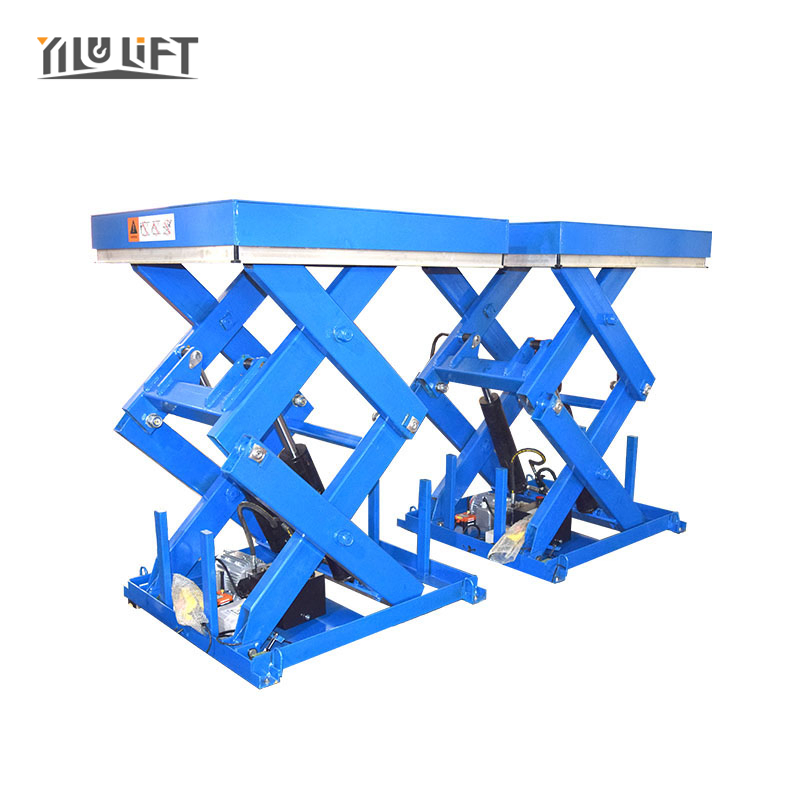

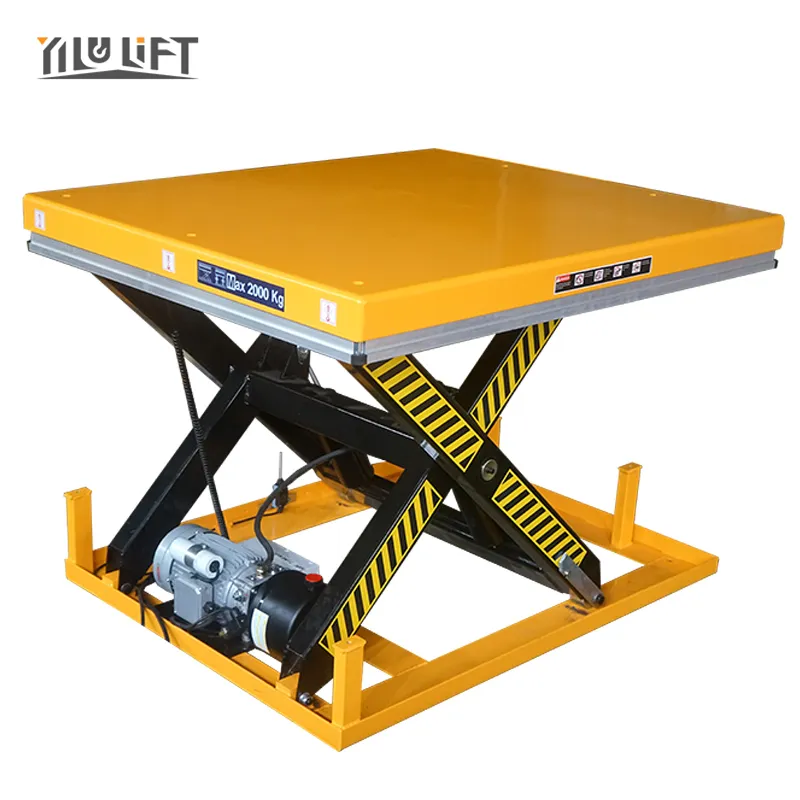

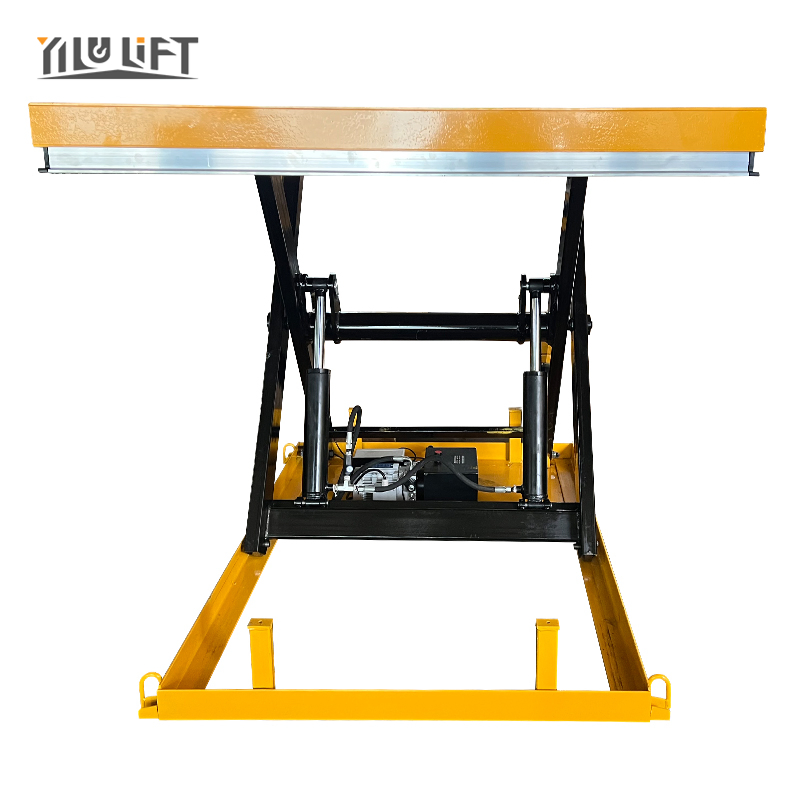

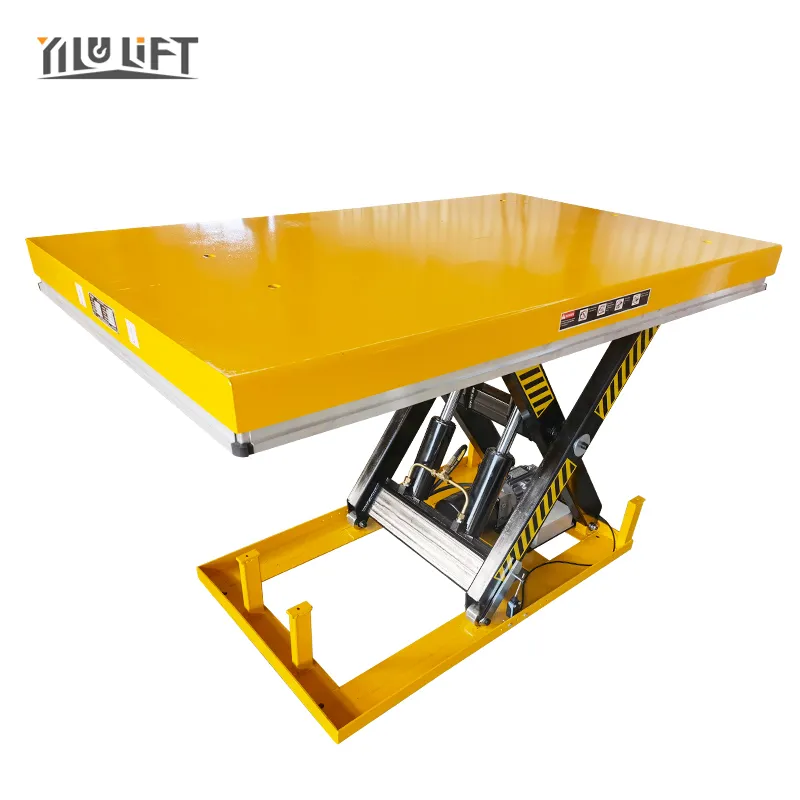

Stationary Electric Hydraulic Scissor Lift Table is a premier material handling solution. Equipped with a robust hydraulic lifting system and precise electric control, it offers stable operation, easy installation, and an exceptionally low failure rate. Standard load capacities range from 1000kg to 4000kg, with maximum platform heights from 1m to 4m.
This equipment is integrated with multiple safety features including explosion-proof valves, spillover valves, and emergency decline valves to ensure maximum protection for both cargo and operators. It is widely utilized in factories, warehouses, workshops, and construction sites for efficient vertical transportation.
Customization is accepted: Units can be installed directly on the ground or within a pit for flush-floor access.
| Series | Model | Load (KG) | Self Height (MM) | Max Platform Height (MM) | Platform Size (MM) | Lifting Time (S) | Net Weight (KG) |
|---|---|---|---|---|---|---|---|
| Single Scissor | HW1001 | 1000 | 205 | 990 | 1300×820 | 20~25 | 160 |
| HW1004 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 | |
| HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 | |
| HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 | |

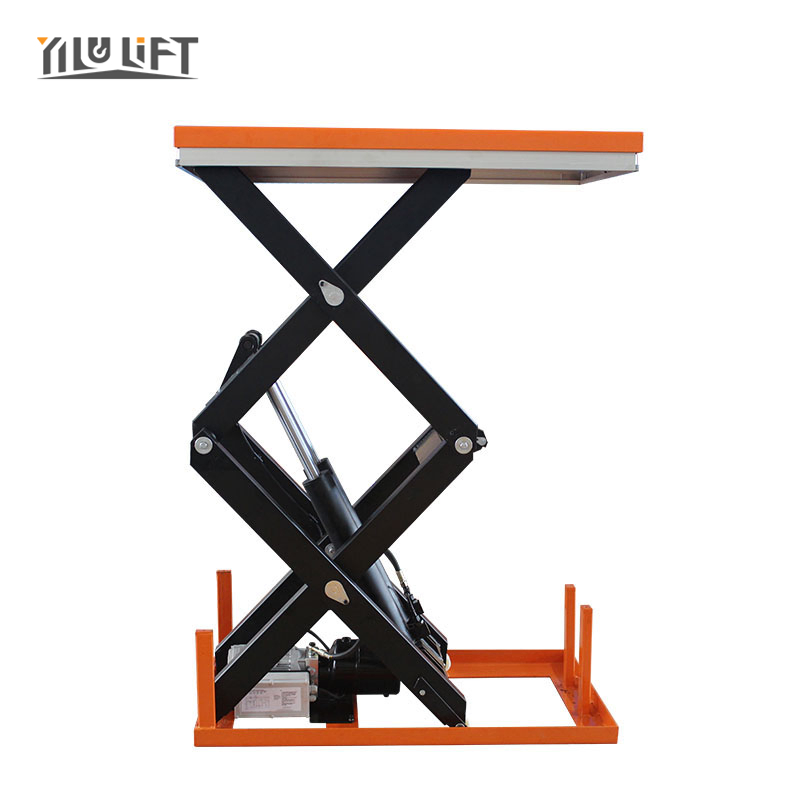

| Double Scissors | HD1000 | 1000 | 305 | 1780 | 1300X820 | 35-45 | 210 |
| HD4000 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 | |

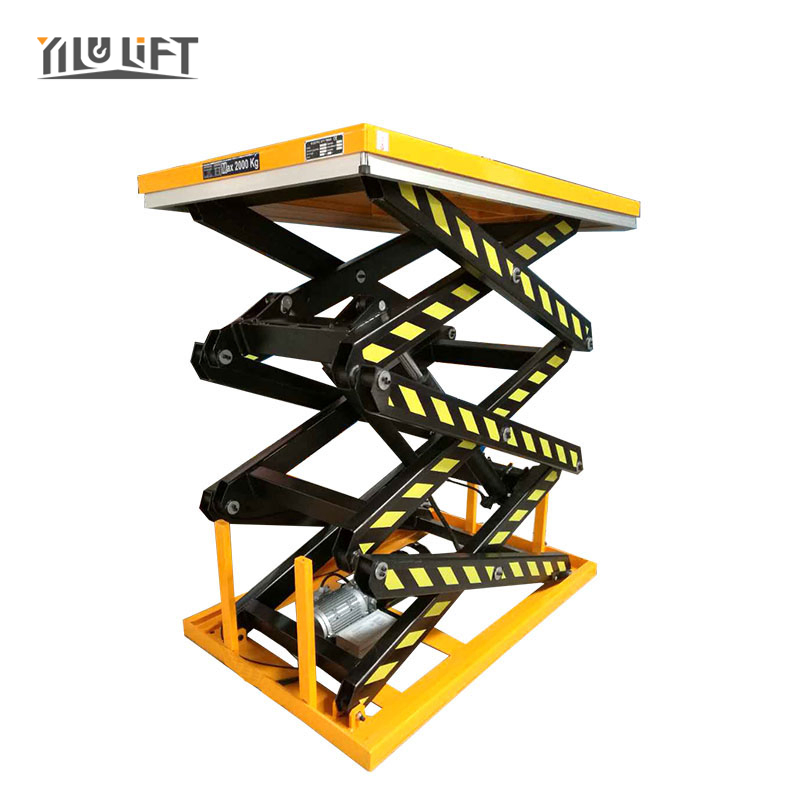

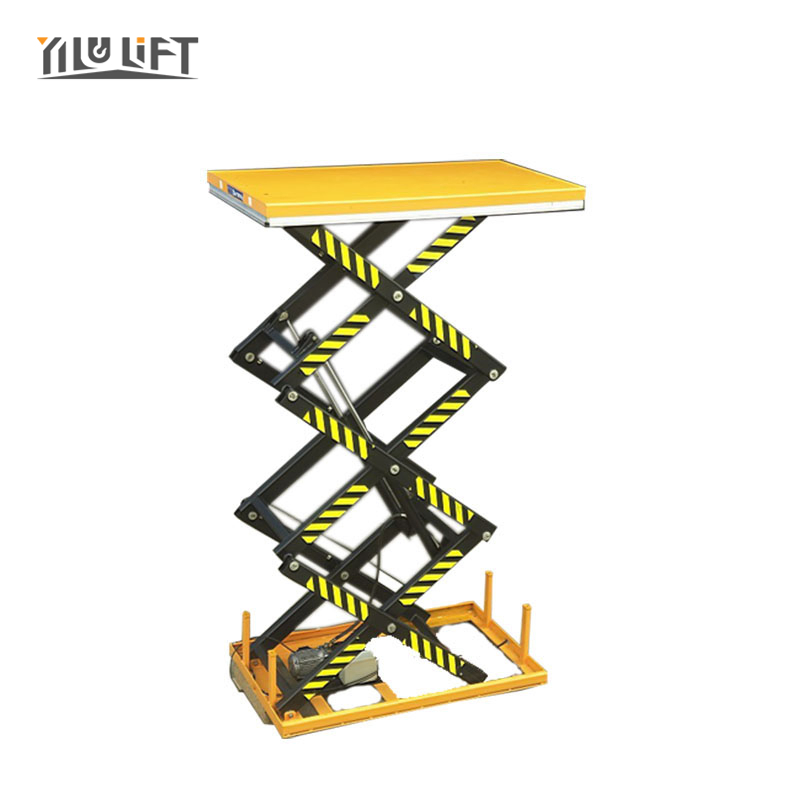

| Three Scissors | HT2000 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 |
| Four Scissors | HF2000 | 2000 | 850 | 4200 | 2500x1500 | 80-90 | 980 |
