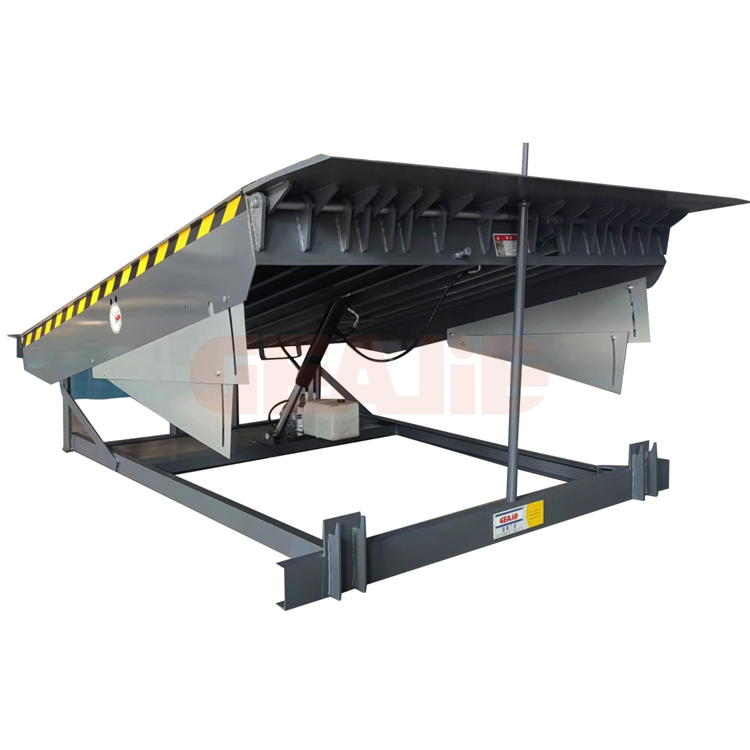

10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
1 / 5
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table
10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table

10 Ton Heavy Duty Hydraulic Scissor Lift Table Loading Dock Table

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
VSDL-02
Application
Warehouse Crane, Charge and Discharge
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof, Insulating
Certification
CE, RoHS, ISO 9001, AAA
Type
Work Platform
Power Supply
380V/0.75kw
Hydraulic Unit
Swiss Bucher Hydraulic System
Working Range
-300 to +350mm
Lip Plate
Standard 400mm, 500mm Optional
Loading Capacity
10000kg
HS Code
8428909090
🏗️

Product Description

Heavy Duty Hydraulic Scissor Lift

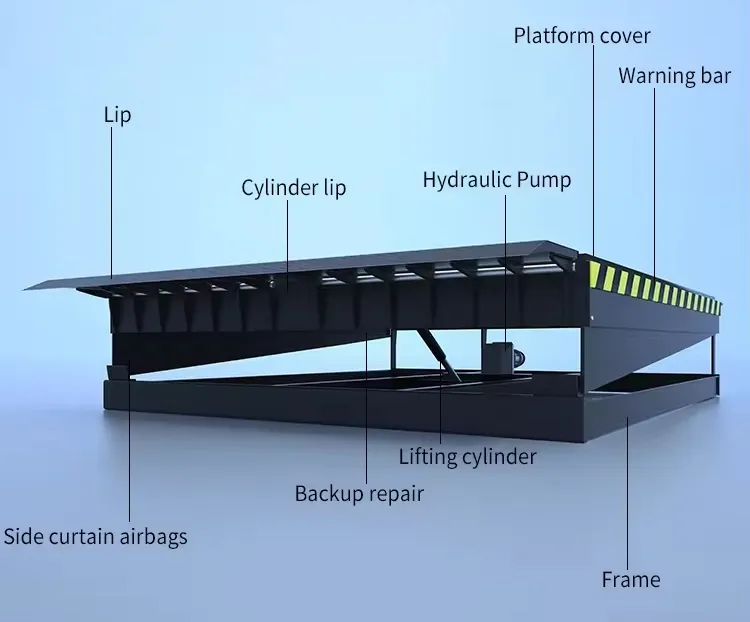

Electric Hydraulic Dock Leveller

High-performance loading dock solution designed for heavy-duty industrial applications, ensuring quick and safe loading/unloading processes.

Electric Hydraulic Dock Leveller

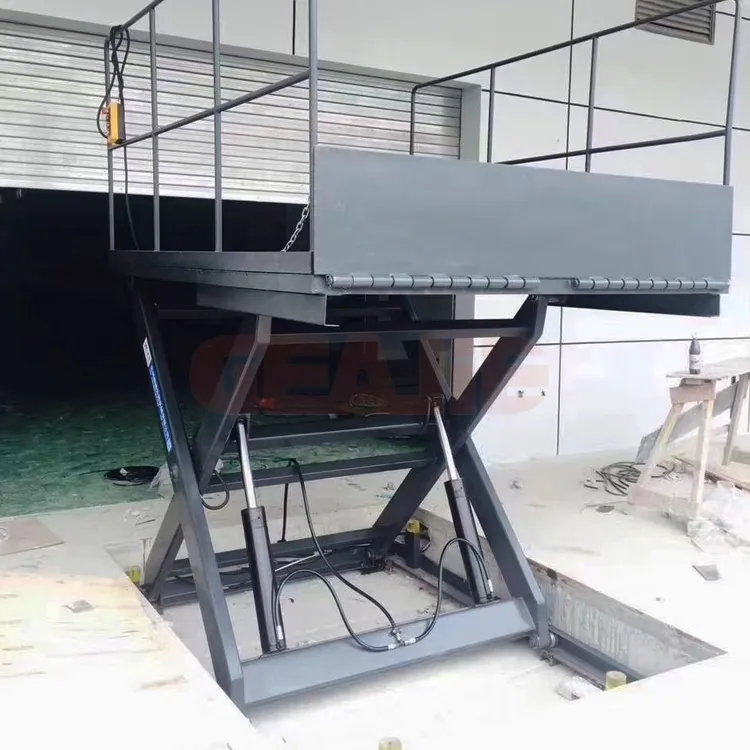

Product Show 1
Product Show 2

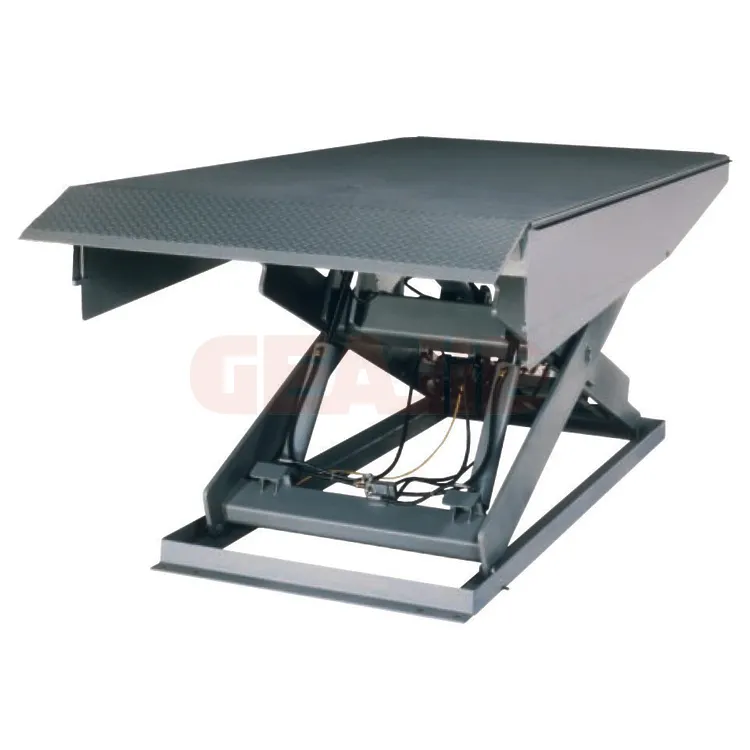

Product Show 3
📋

Material & Technical Parameters

Technical Specs
Feature Description
Application EnvironmentLow temperature environment with high sealing requirements
Load Capacity6-10 tons
Width Options1830mm, 2000mm
Length Options1500mm, 1800mm, 2000mm
Lip Plate500mm
Countertop Structure8mm high-strength anti-skid pattern steel plate with bottom reinforcement
Lip Thickness14mm - 16mm high-strength anti-slip steel
Hydraulic Power UnitSwiss Bucher Hydraulic System
Security ConfigurationAnti-fall safety function
⚙️

Structural Design

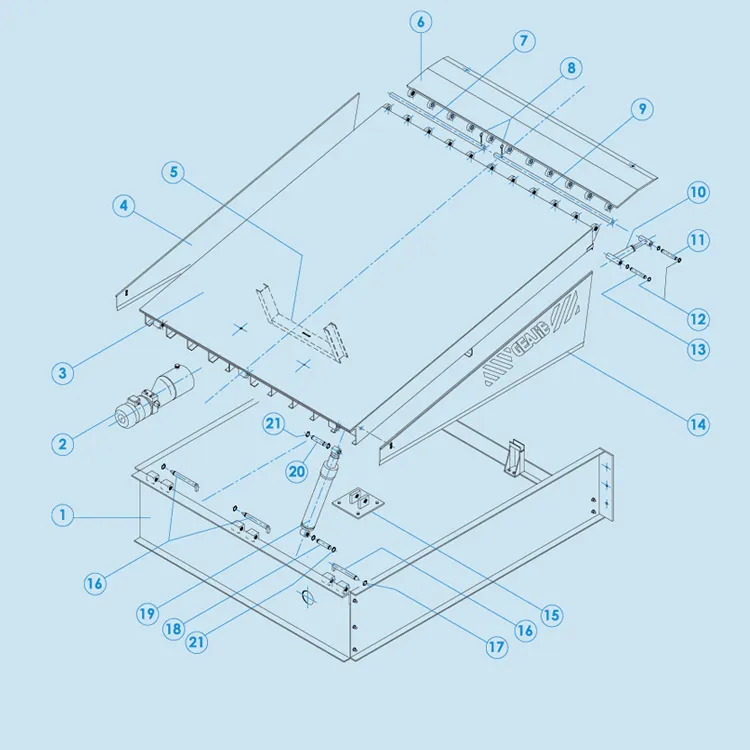

Structural Drawing
1. Mould12. Seeger straight pins of the lip
2. Hydraulic control unit13. Straight Pin body of the body
3. Upper plate14. Right foot guard
4. Left foot guard15. Flange fixing - upper plate cylinder
6. Swinging lip16. Upper plate rotation pivot
10. Cylinder of the lip19. Upper plate cylinder
🌟

Product Advantages

  • Durable Material: Made of high-strength steel with corrosion-resistant treatment.
  • High Load Capacity: Designed for light goods to heavy industrial equipment (up to 10 tons).
  • Flexible Operation: Available in hydraulic, pneumatic, and mechanical types with automated control options.
  • Safety First: Equipped with anti-slip surfaces, safety barriers, and sensors.
  • Adjustable Height: Smoothly connects different truck heights to the loading dock.
Loading Dock Advantages
❓

Frequently Asked Questions

Q1: What is the Minimum Order Quantity (MOQ)?
A: A single set (1 set) is acceptable.
Q2: What are the maximum available dimensions for the doors?
A: The maximum length can reach 6.5M and the maximum width is 6M, which is adjustable.
Q3: Where are these dock levelers typically used?
A: They are widely used in factory outlets and outgoing ports of logistics parks.
Q4: Is the installation process difficult?
A: No, the product is designed to be very easy to install.
Q5: What are the main benefits of using a dock leveler?
A: It significantly improves the efficiency of cargo handling and makes loading and unloading goods much easier and safer.
Q6: Do you provide OEM services?
A: Yes, OEM is highly welcomed and we have extensive professional exporting experience worldwide.
